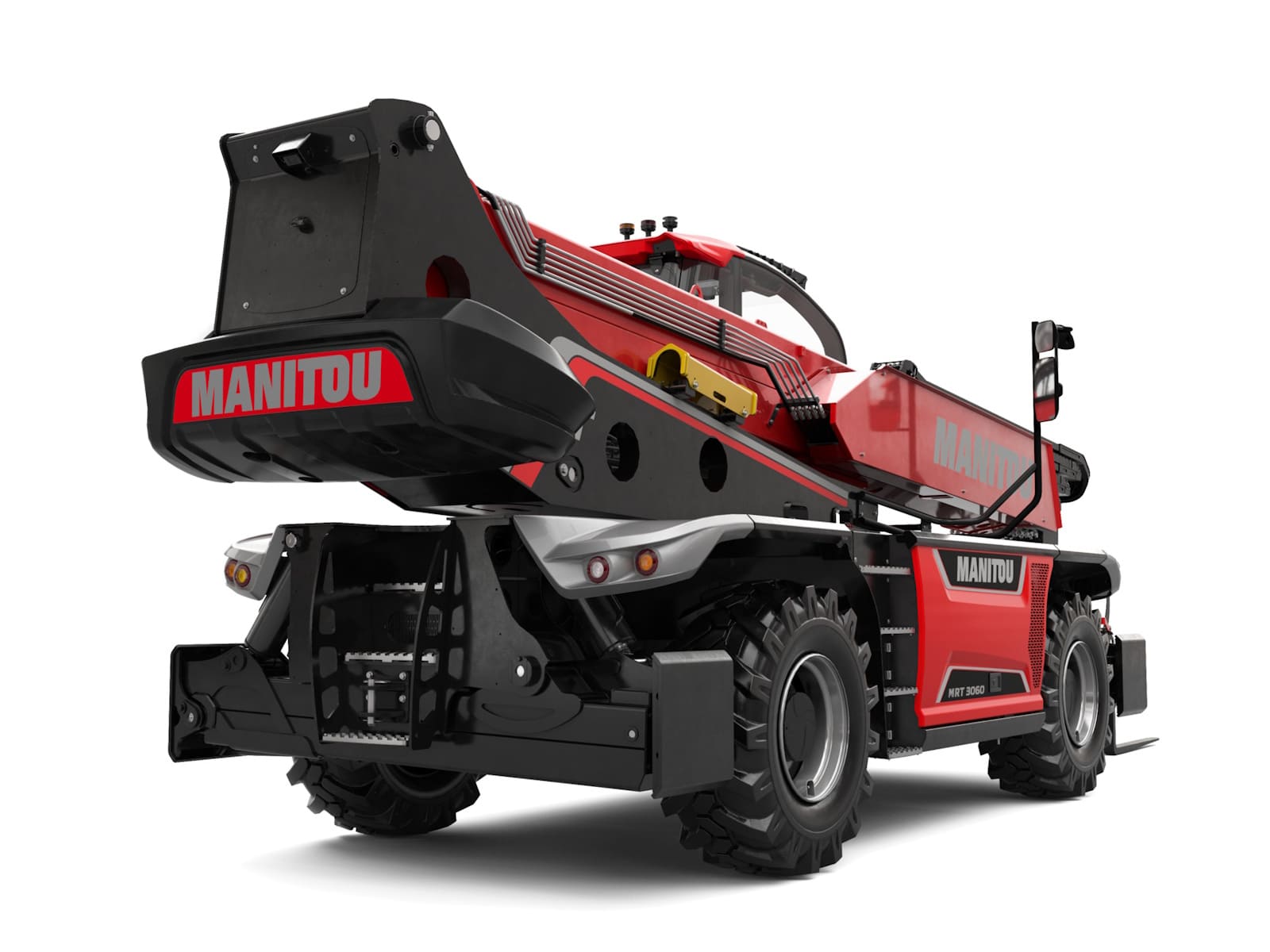

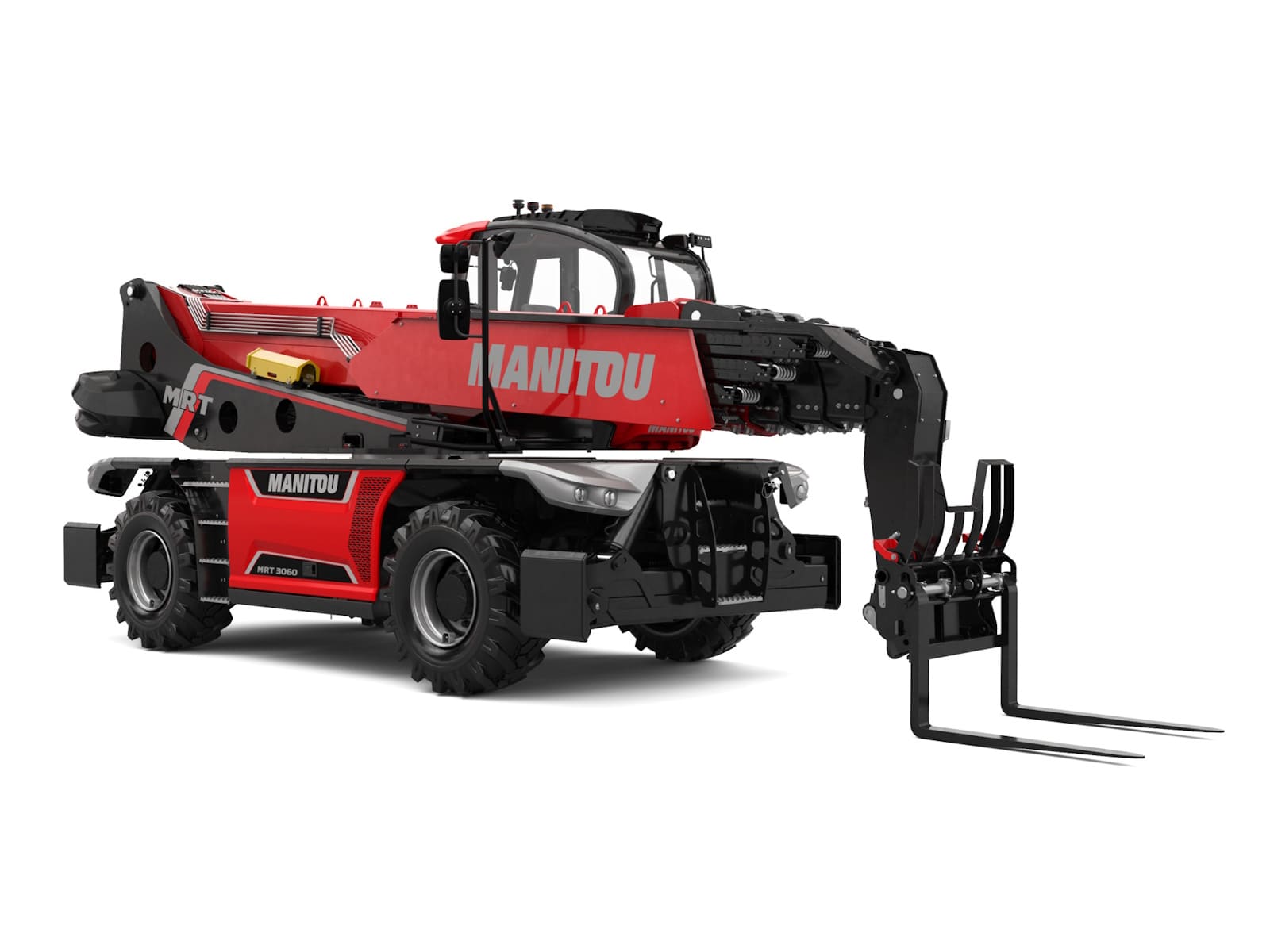

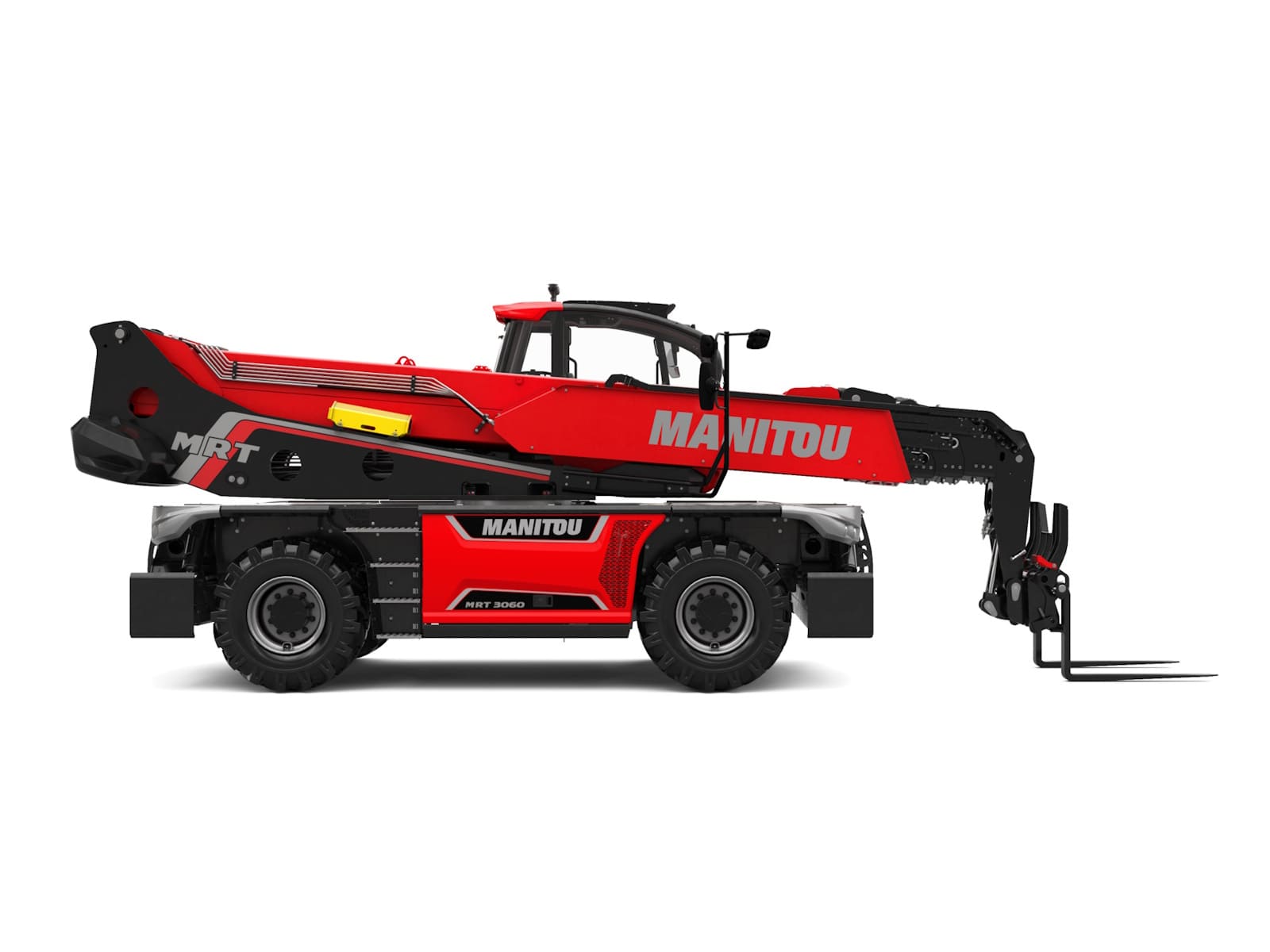

2026 Manitou Group MRT 3060

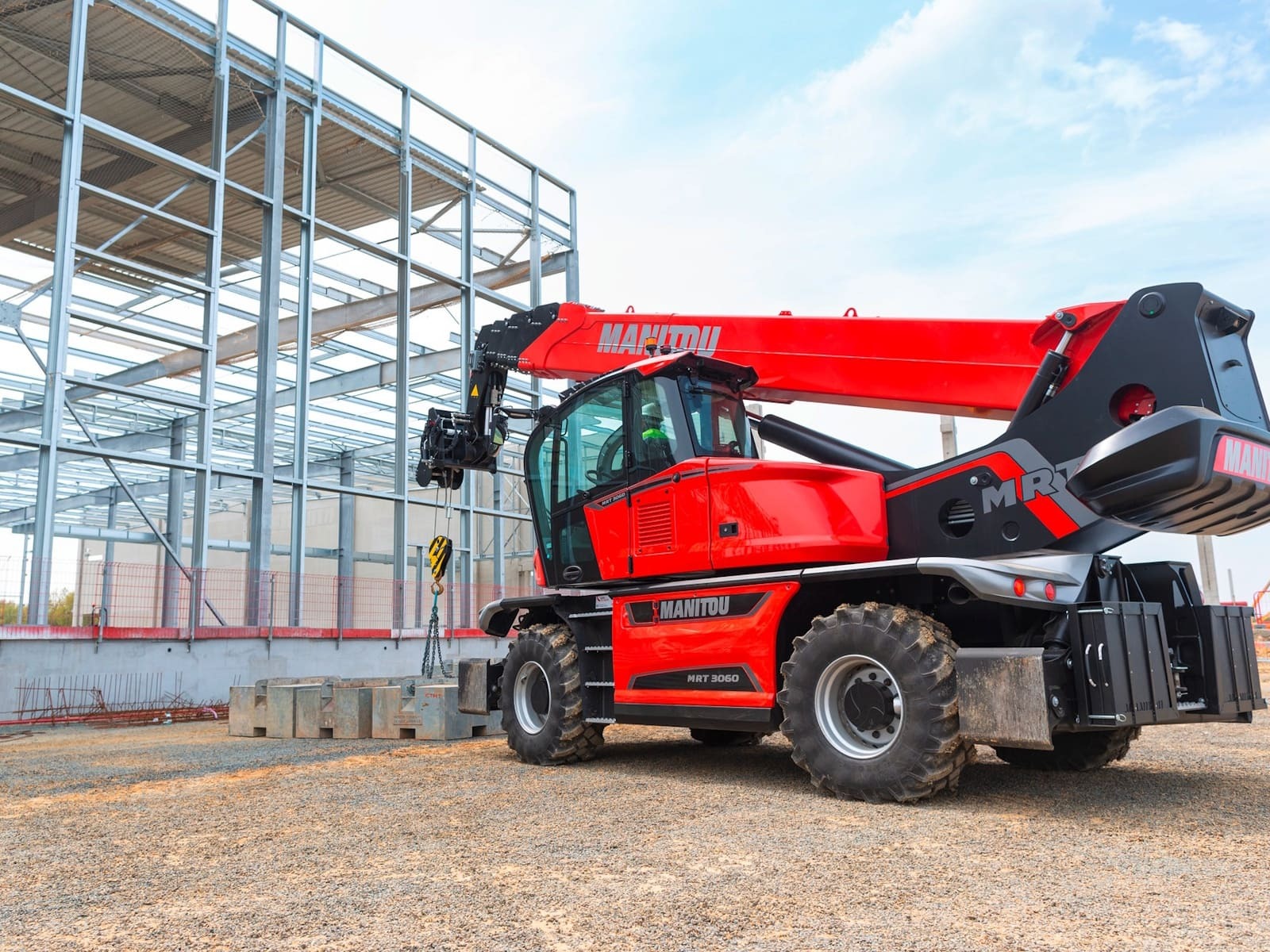

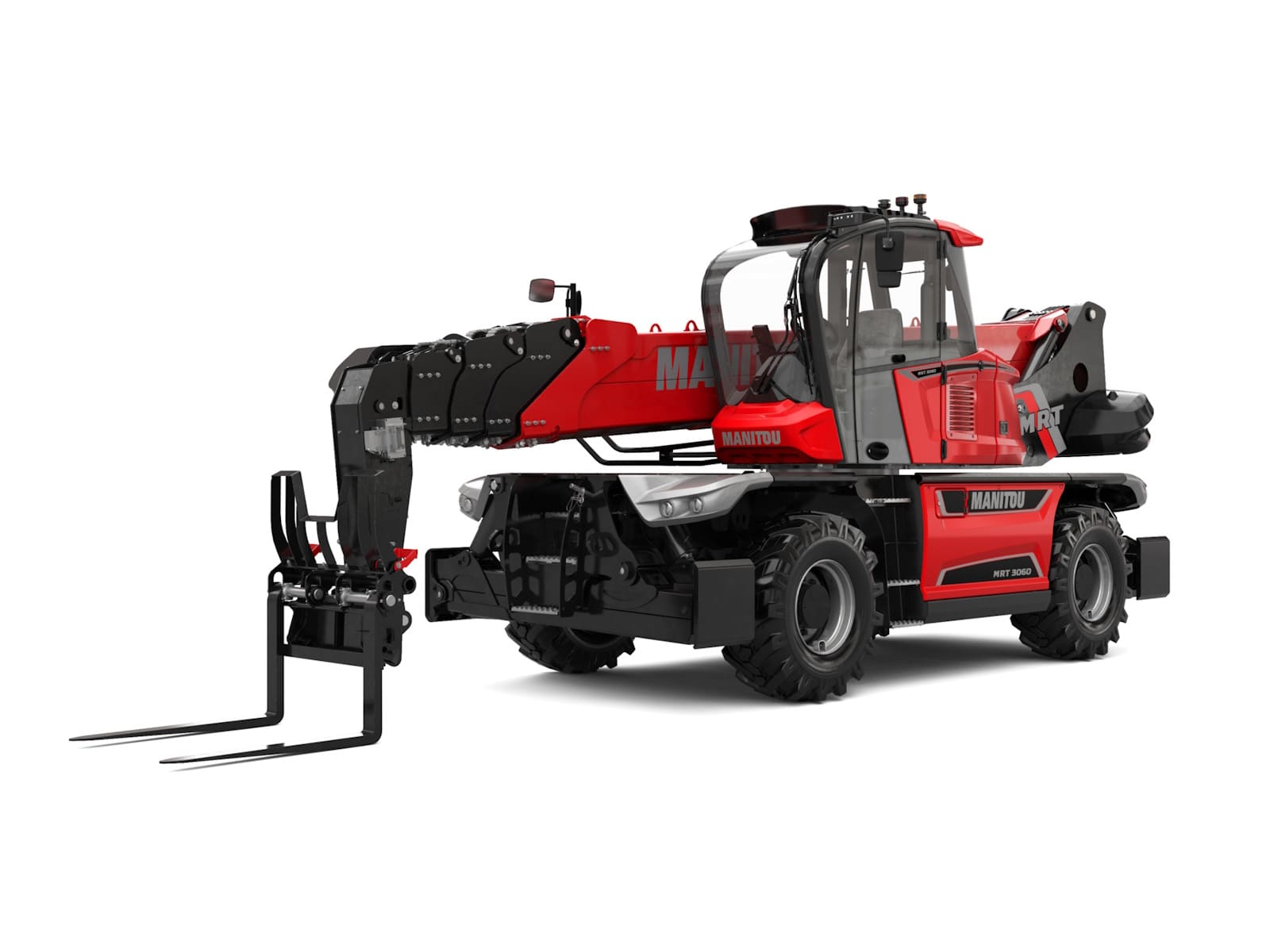

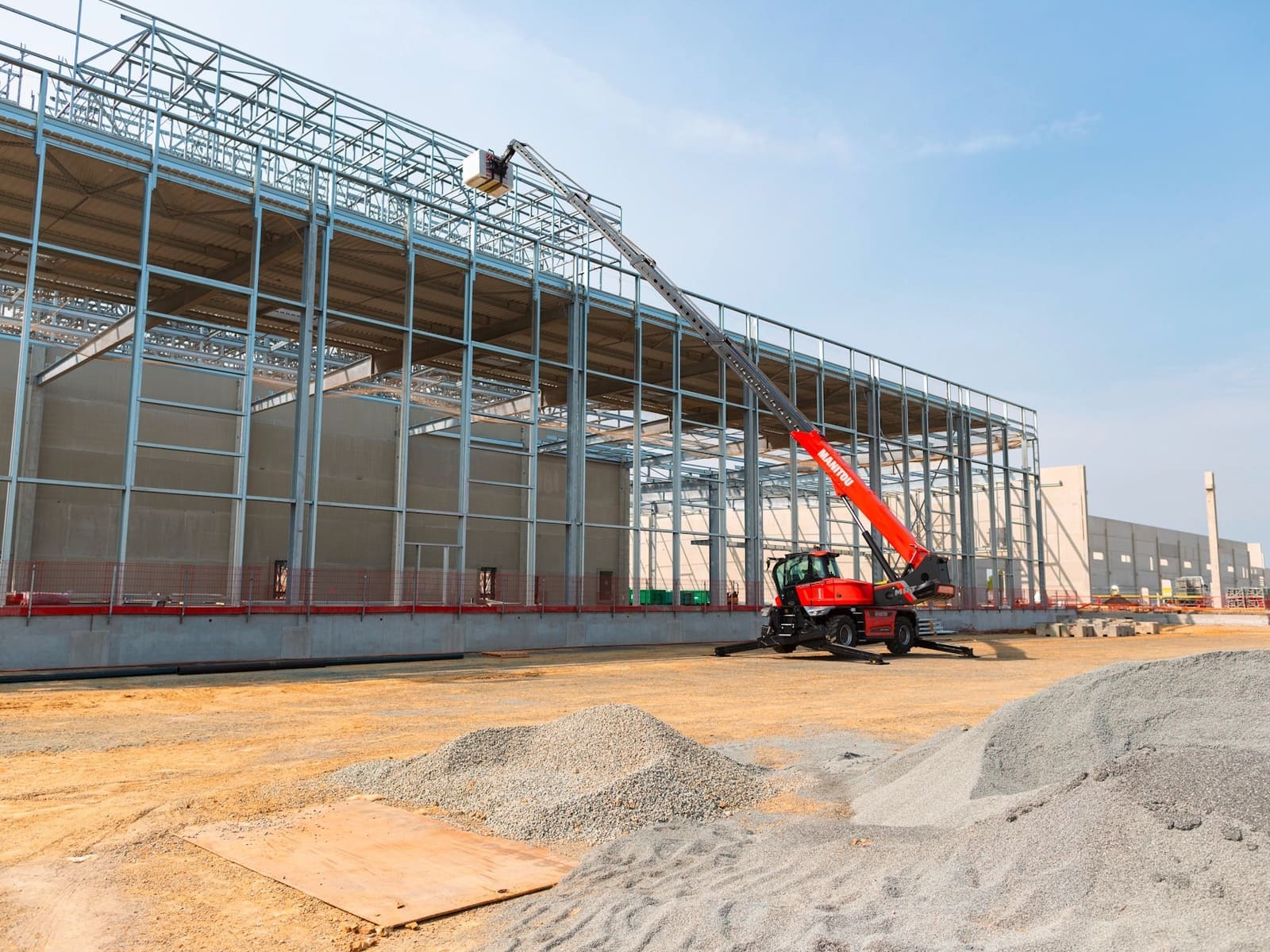

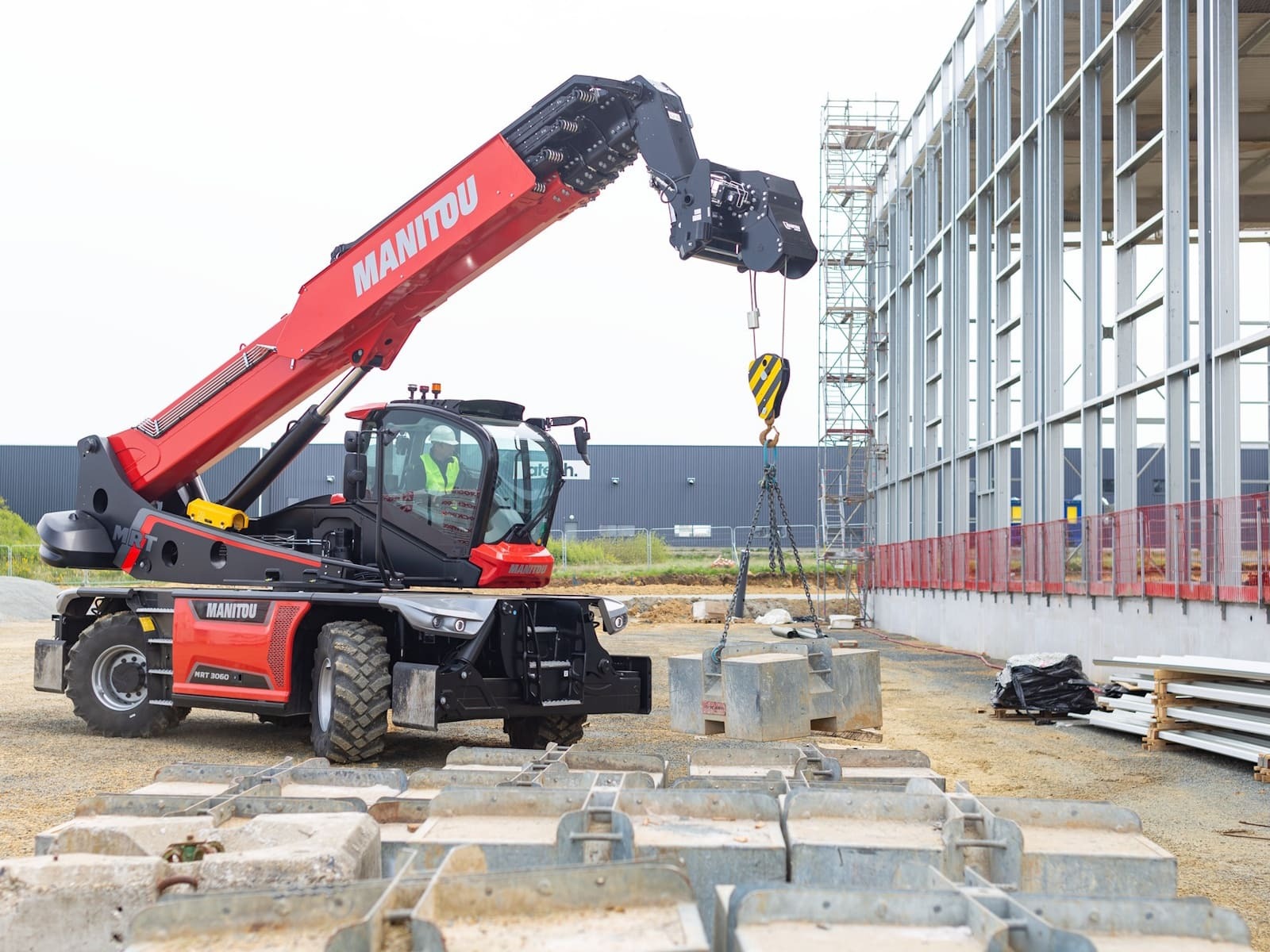

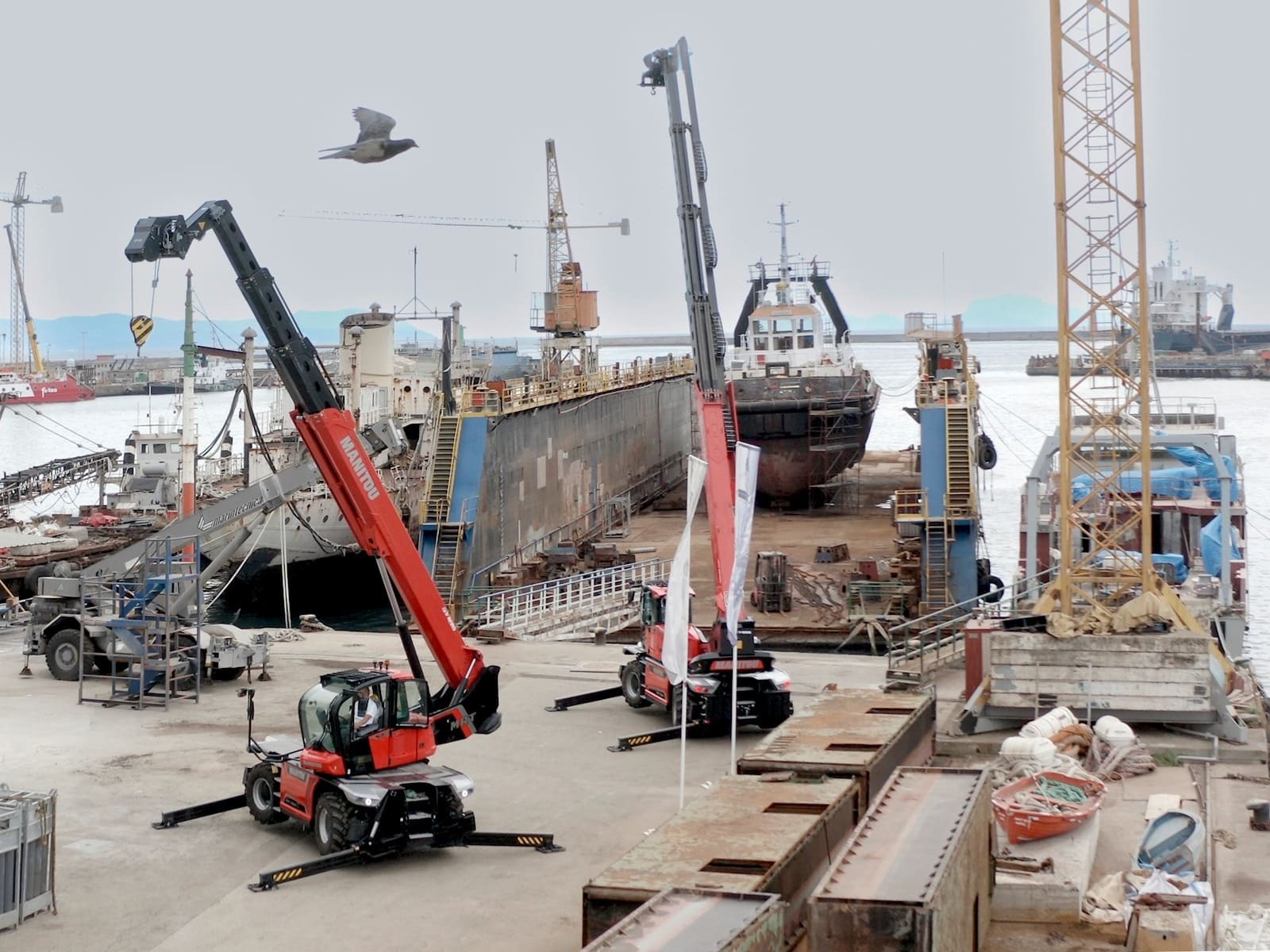

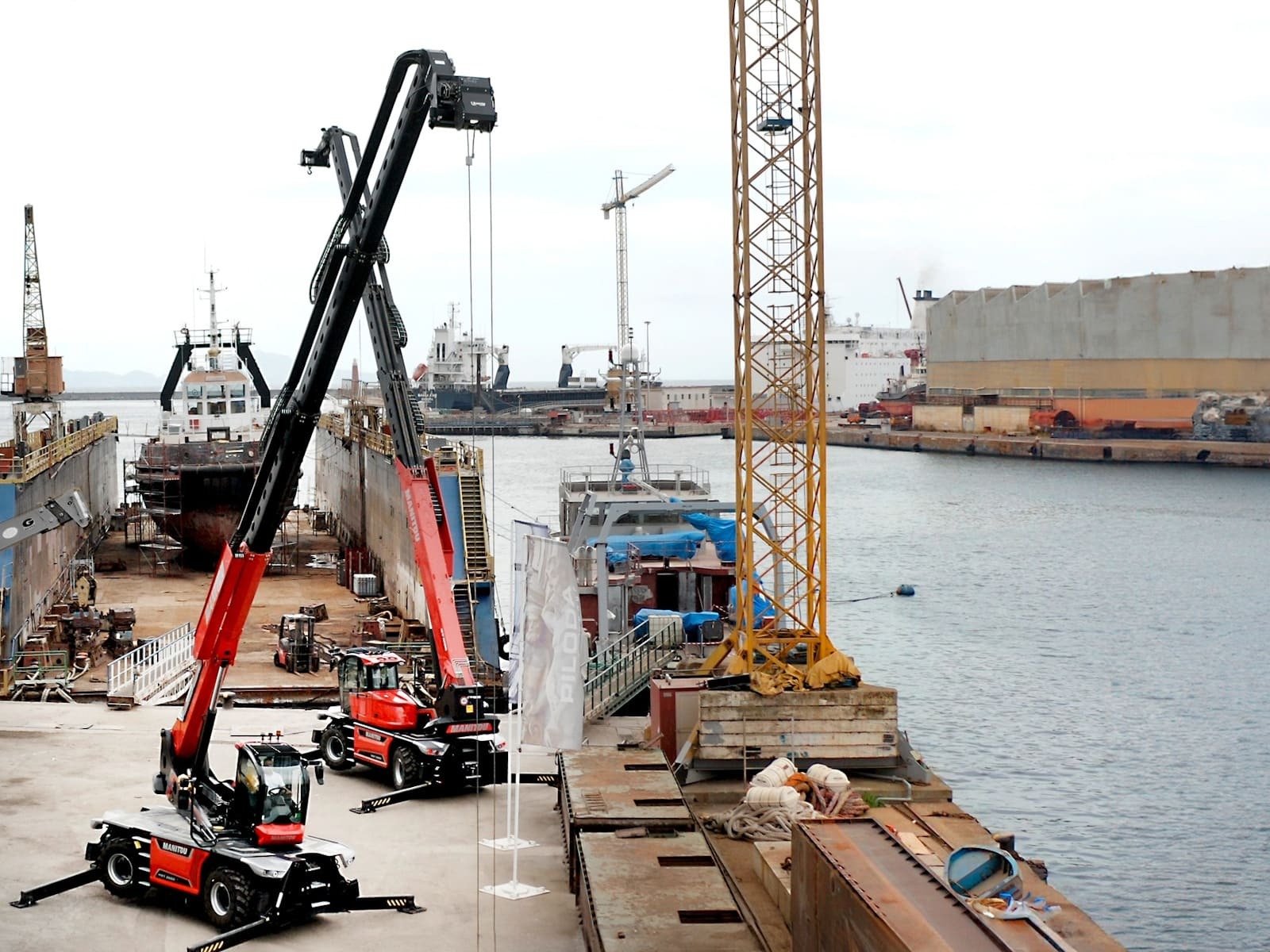

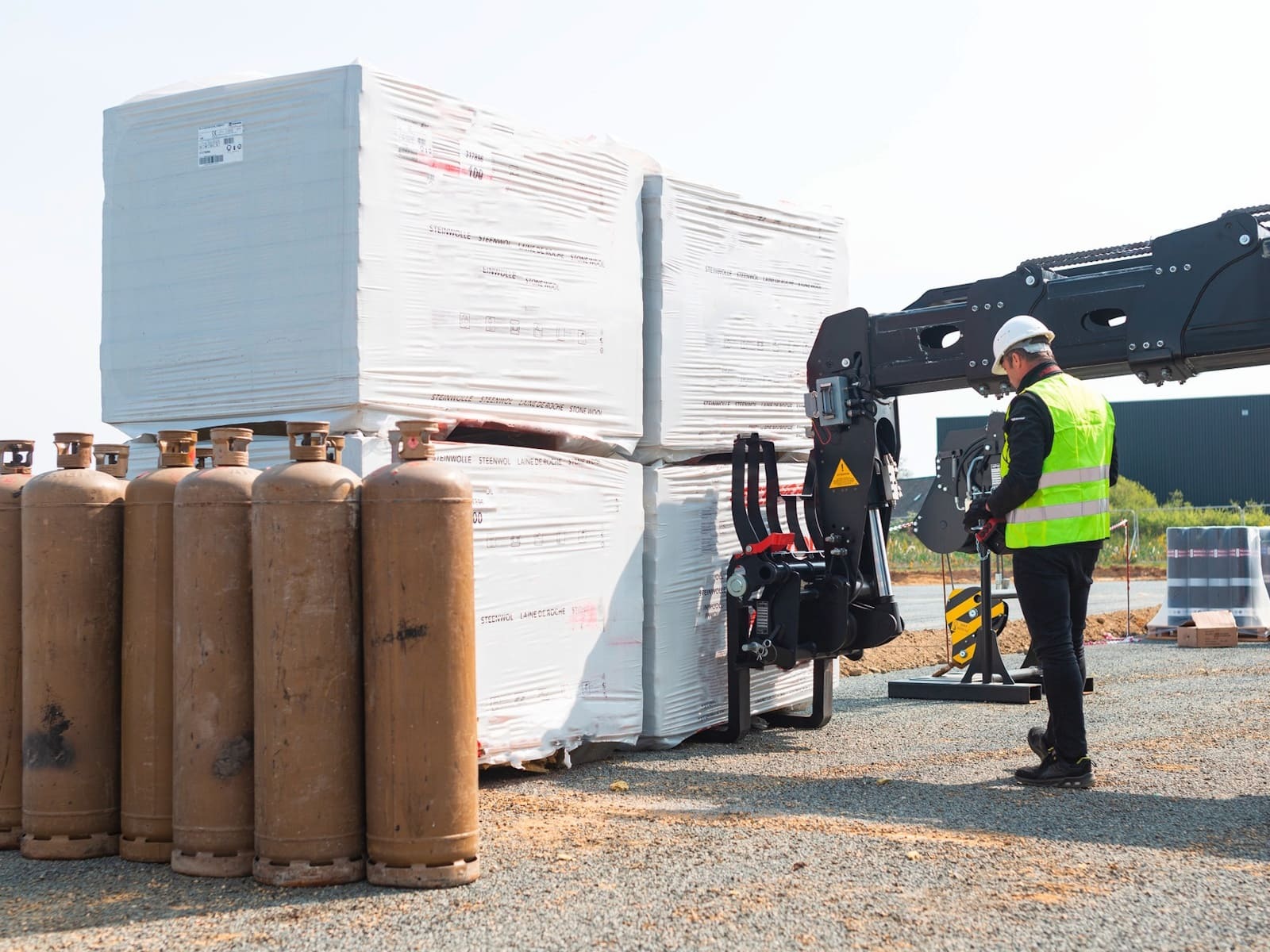

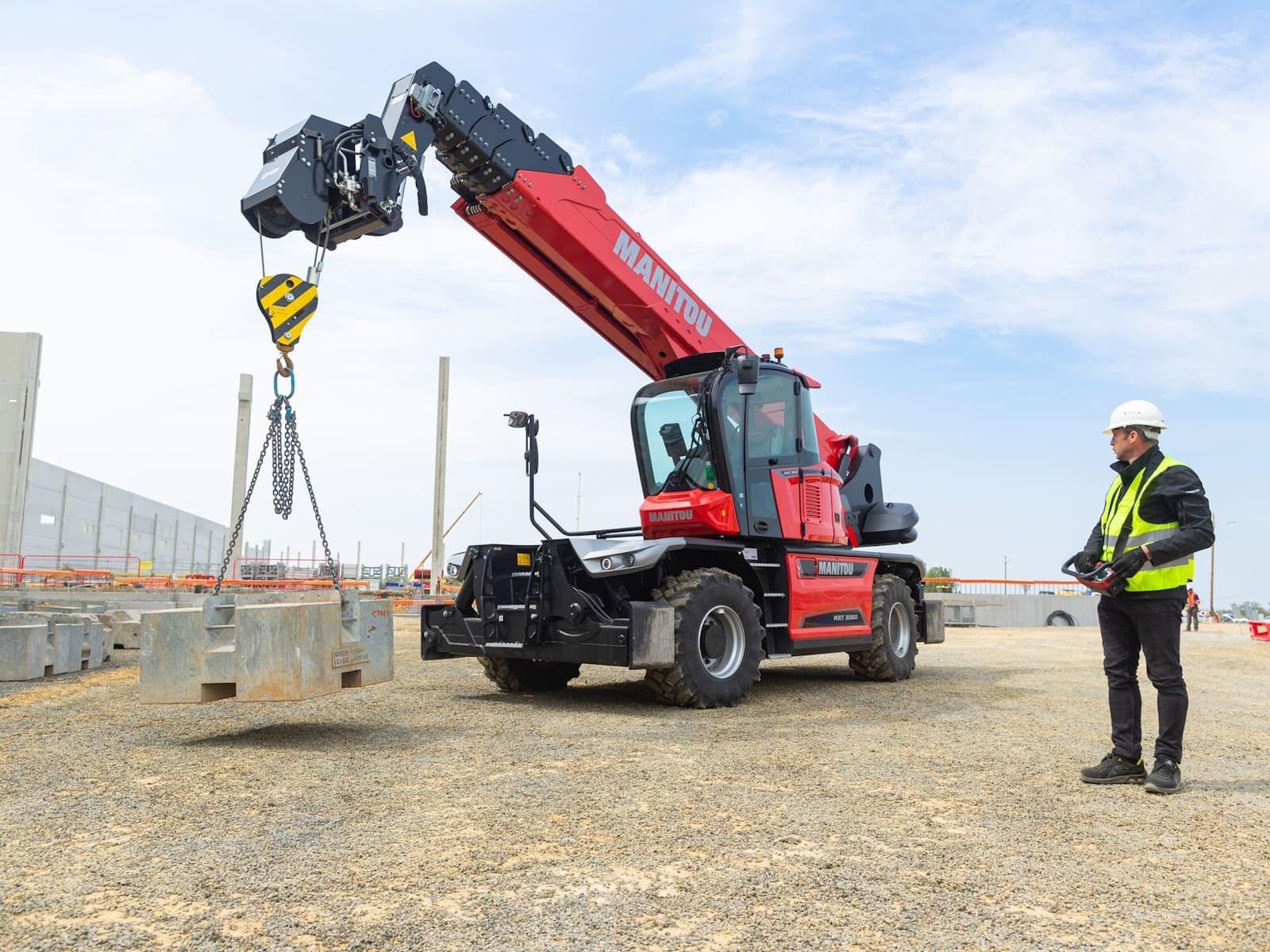

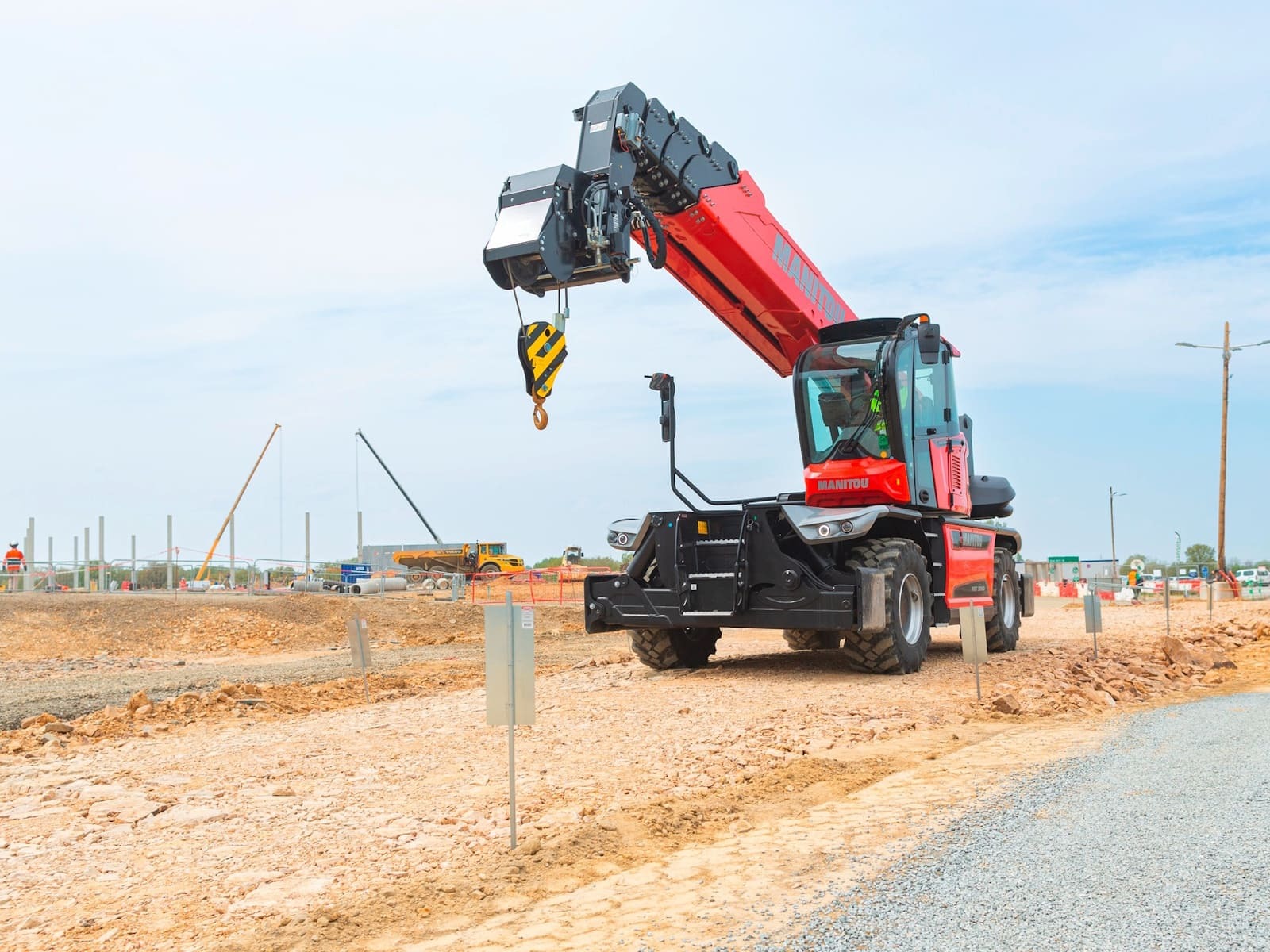

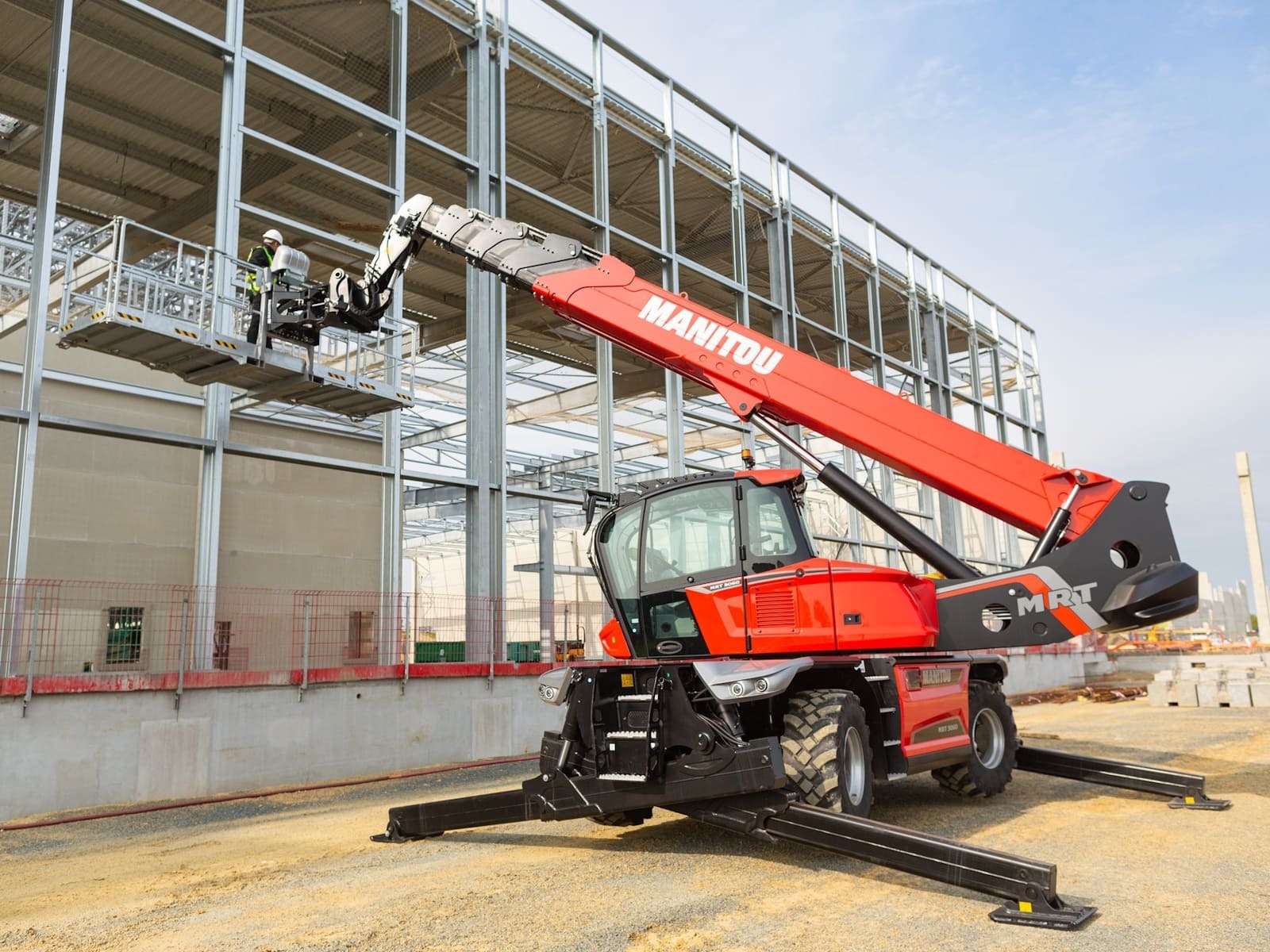

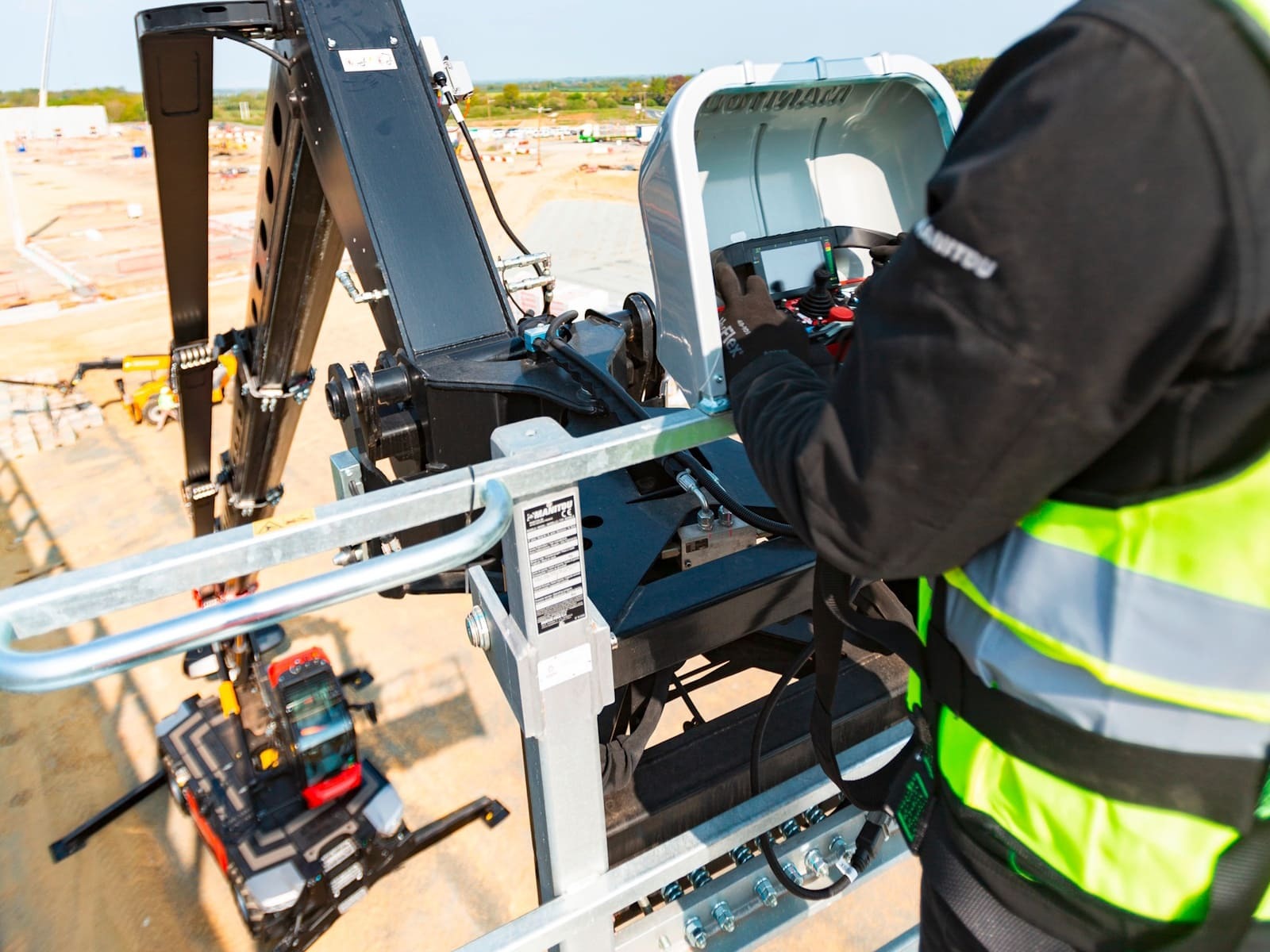

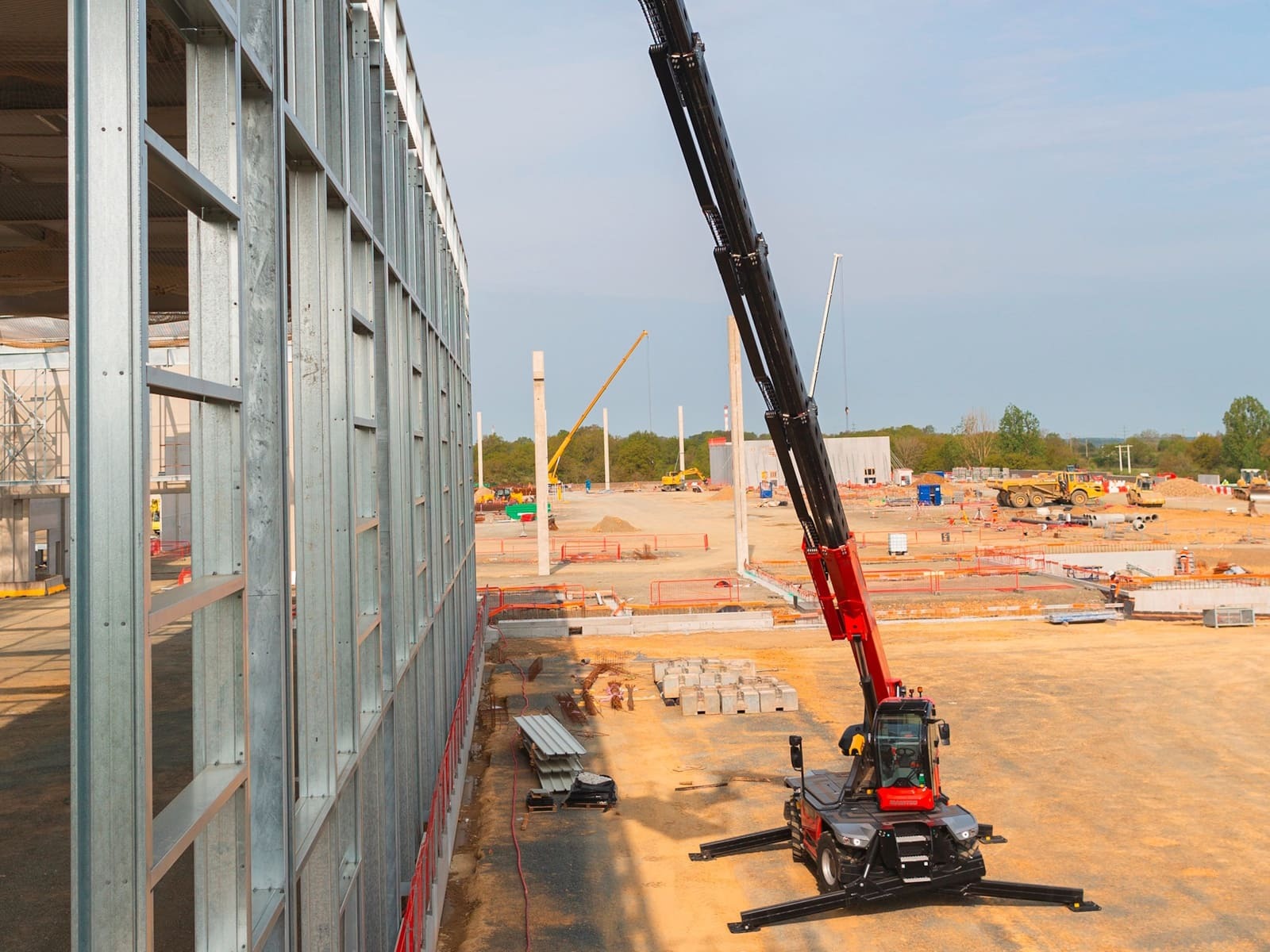

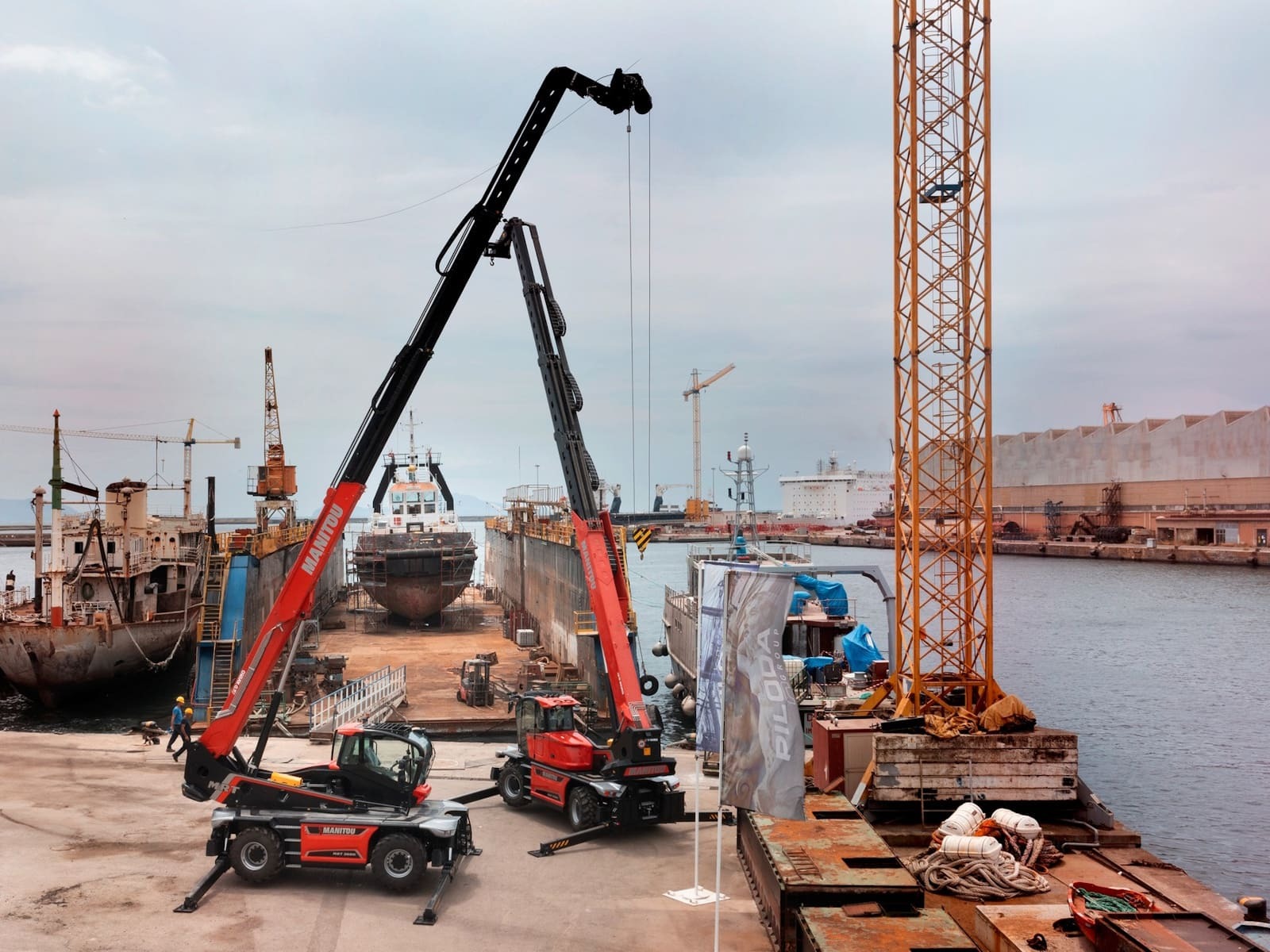

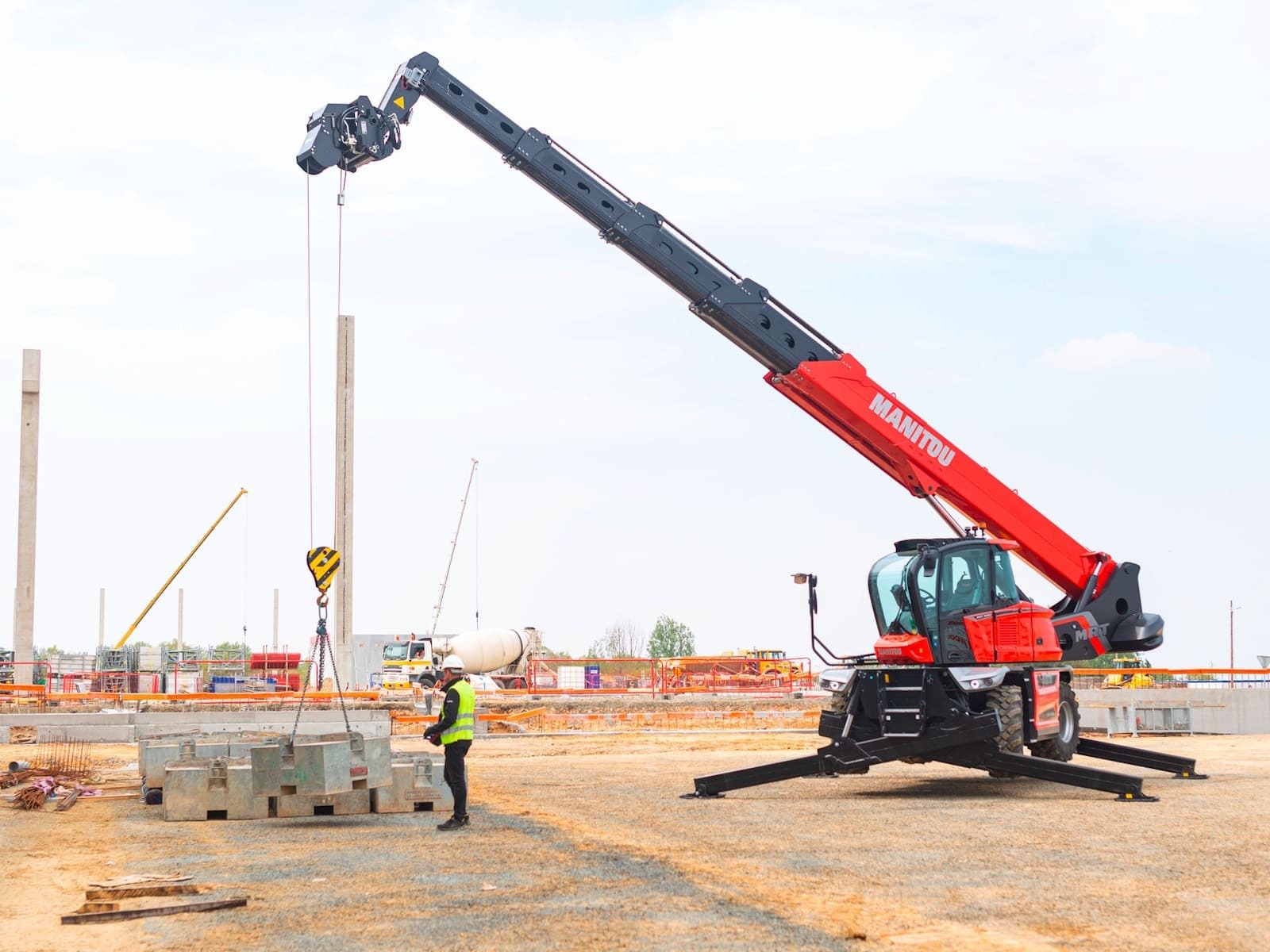

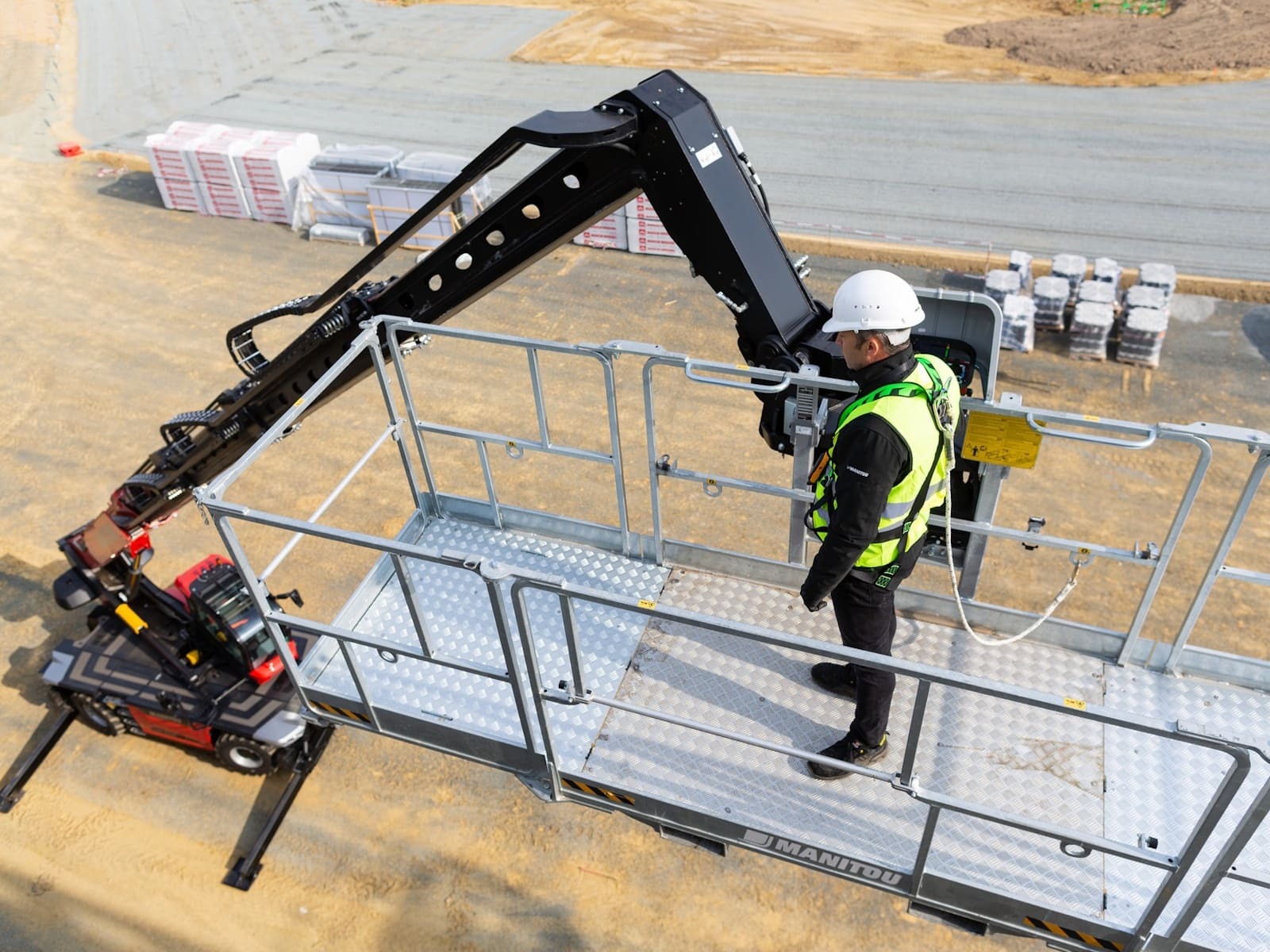

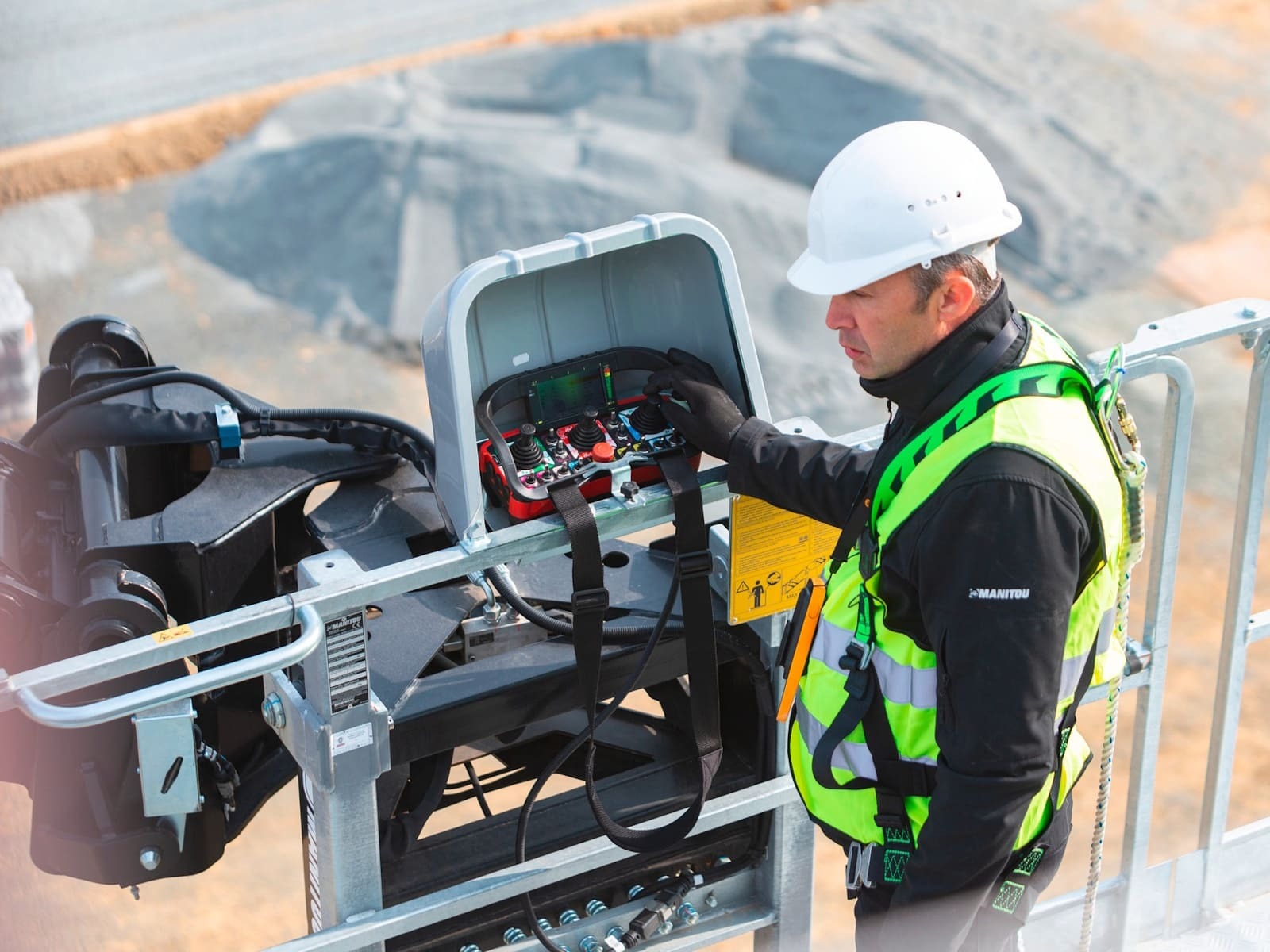

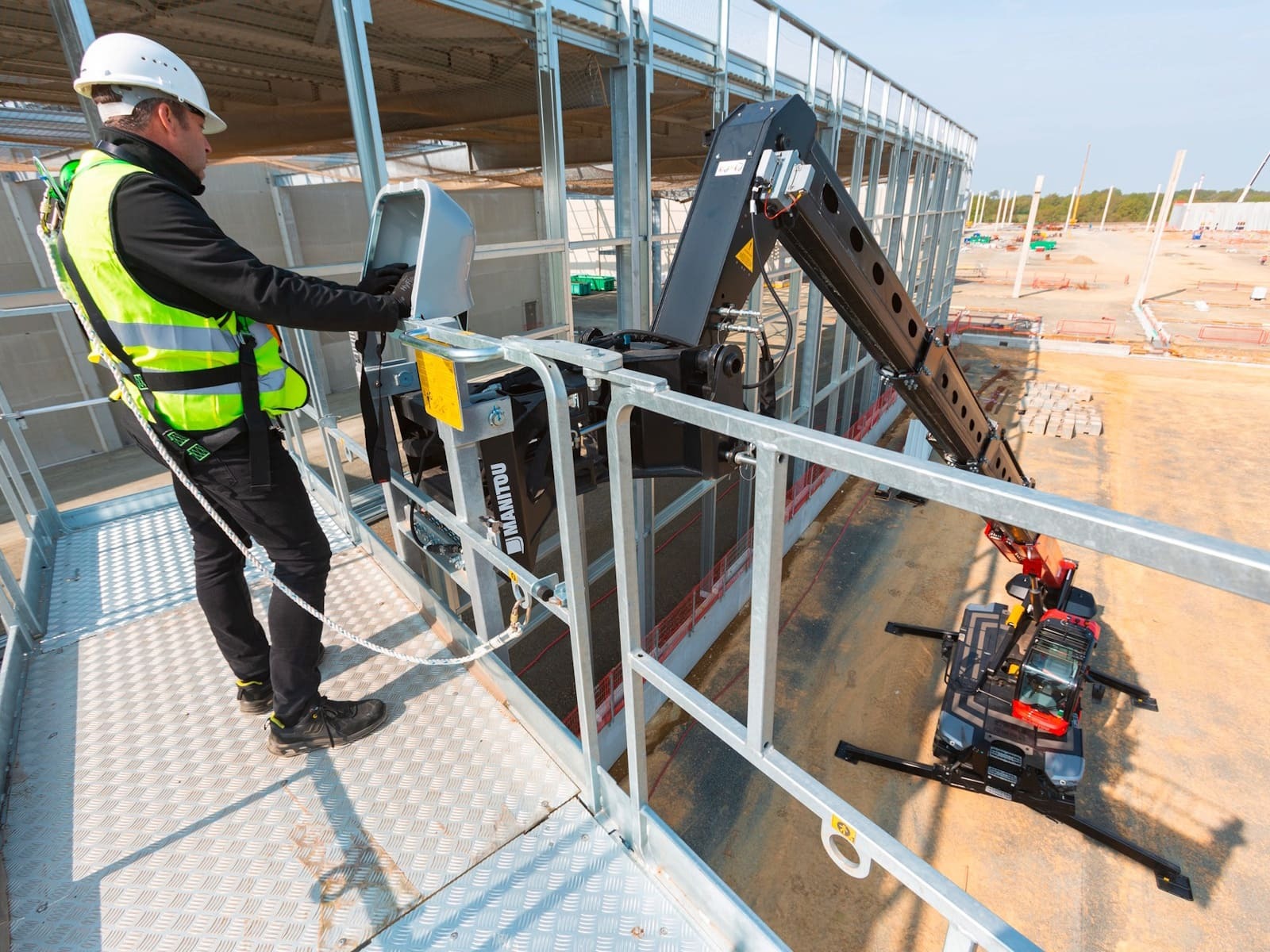

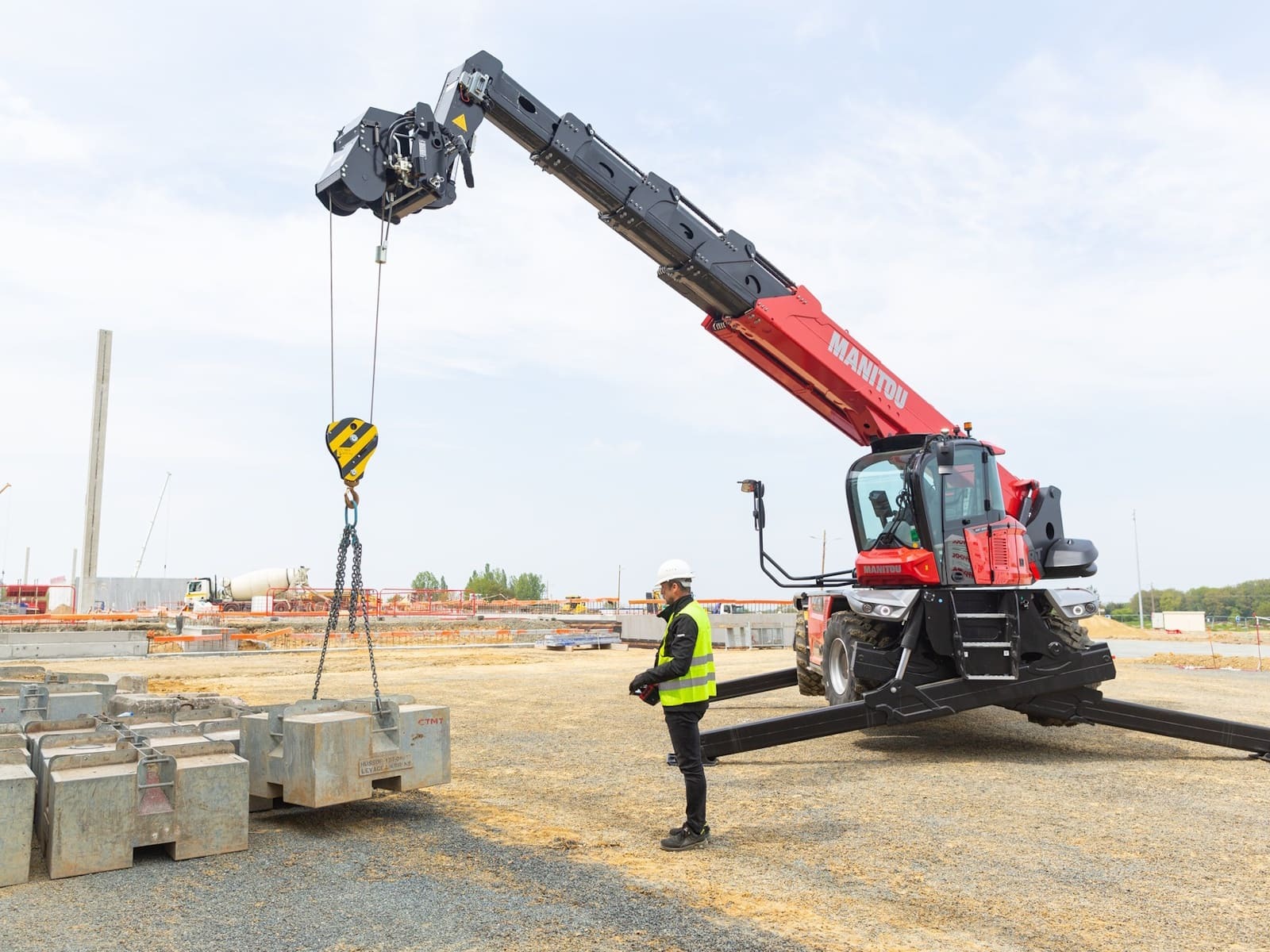

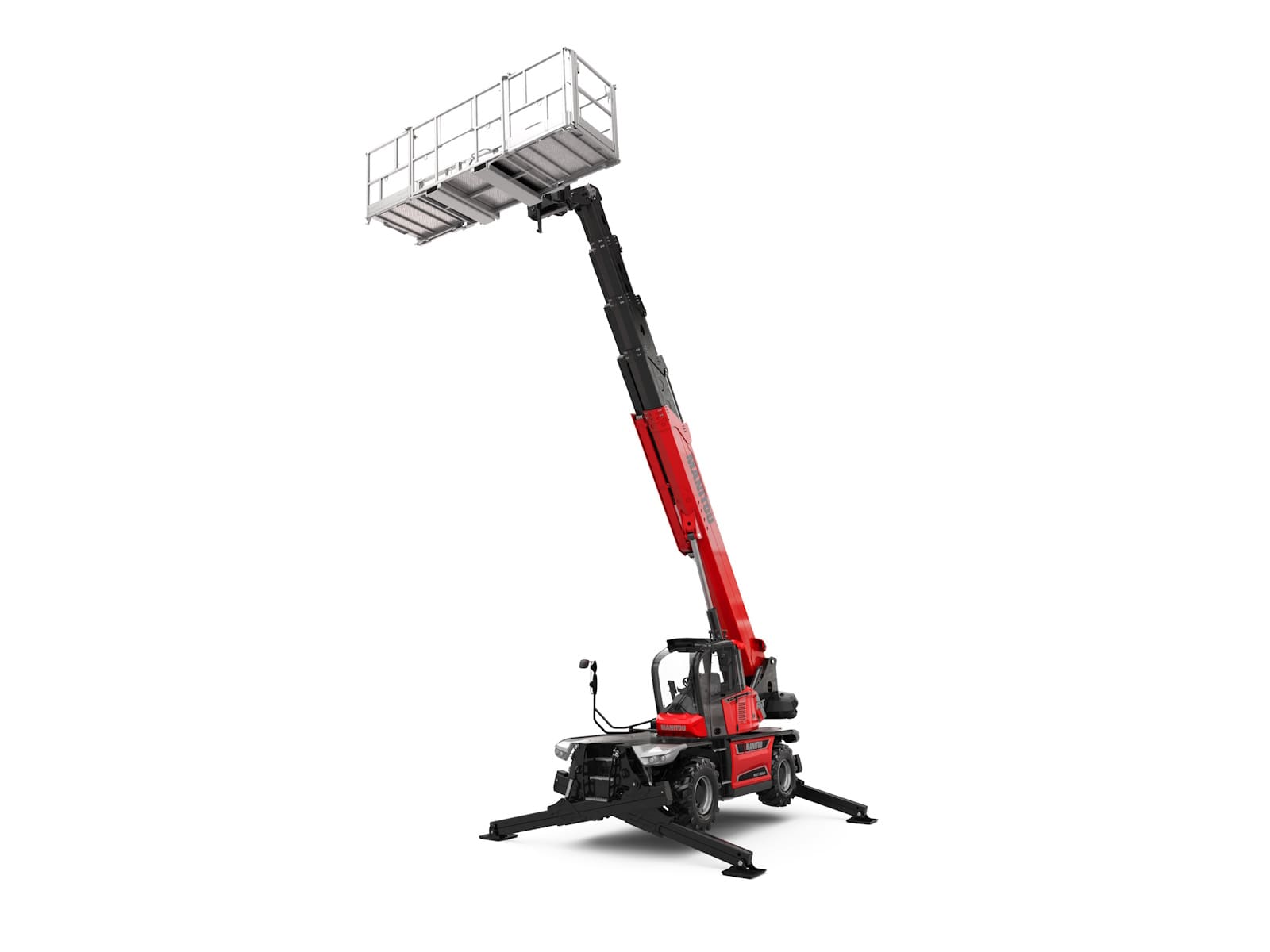

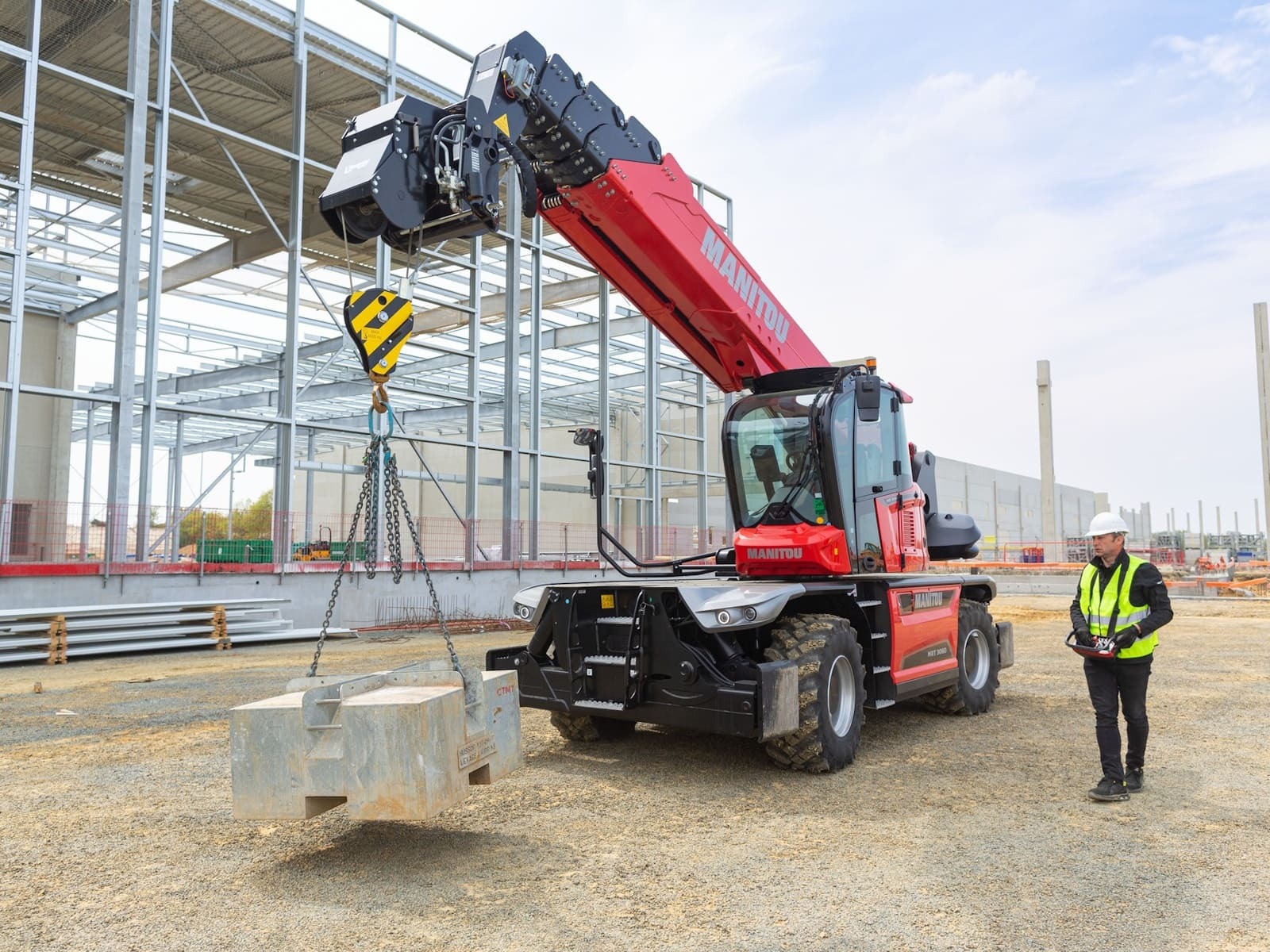

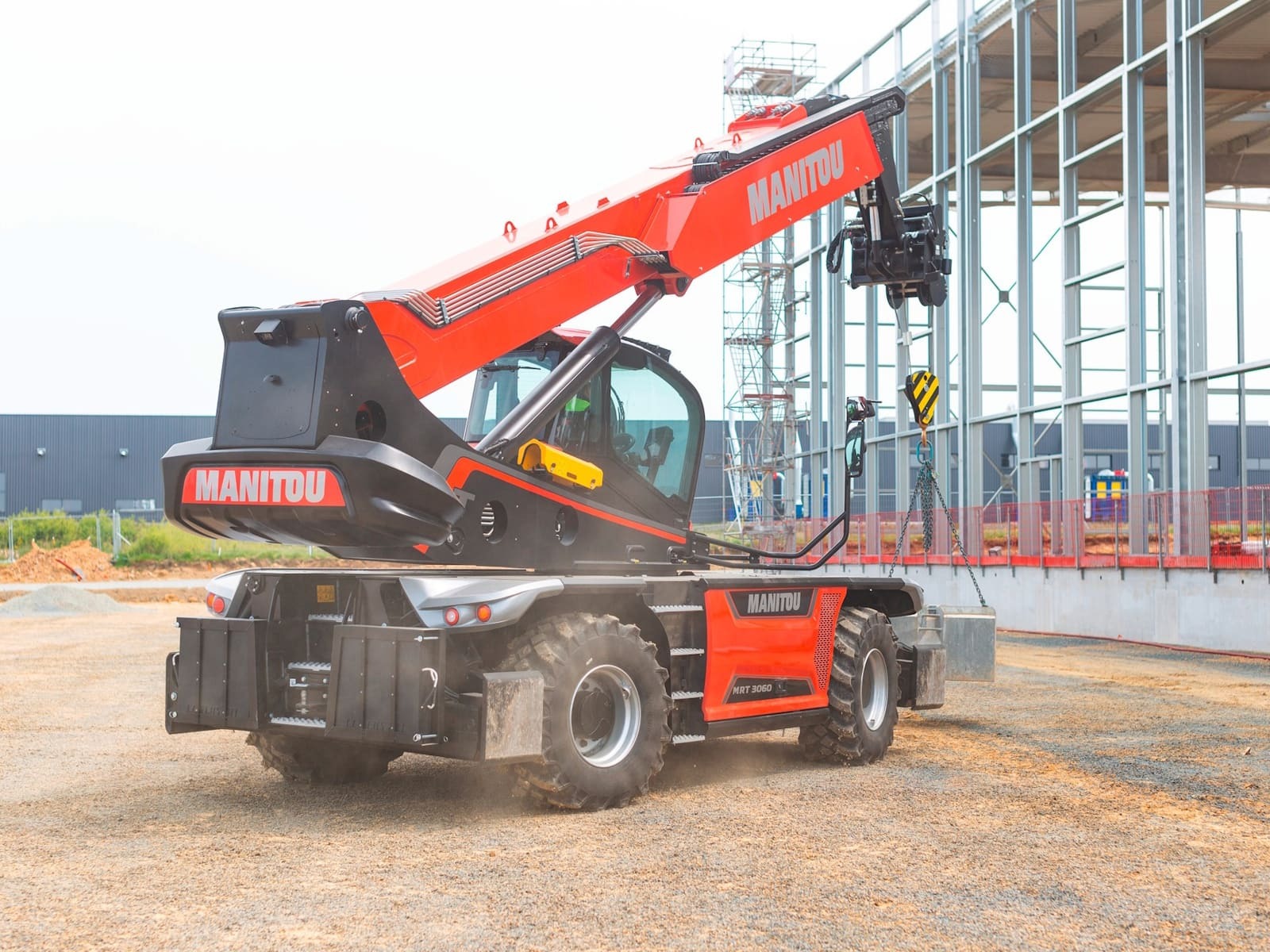

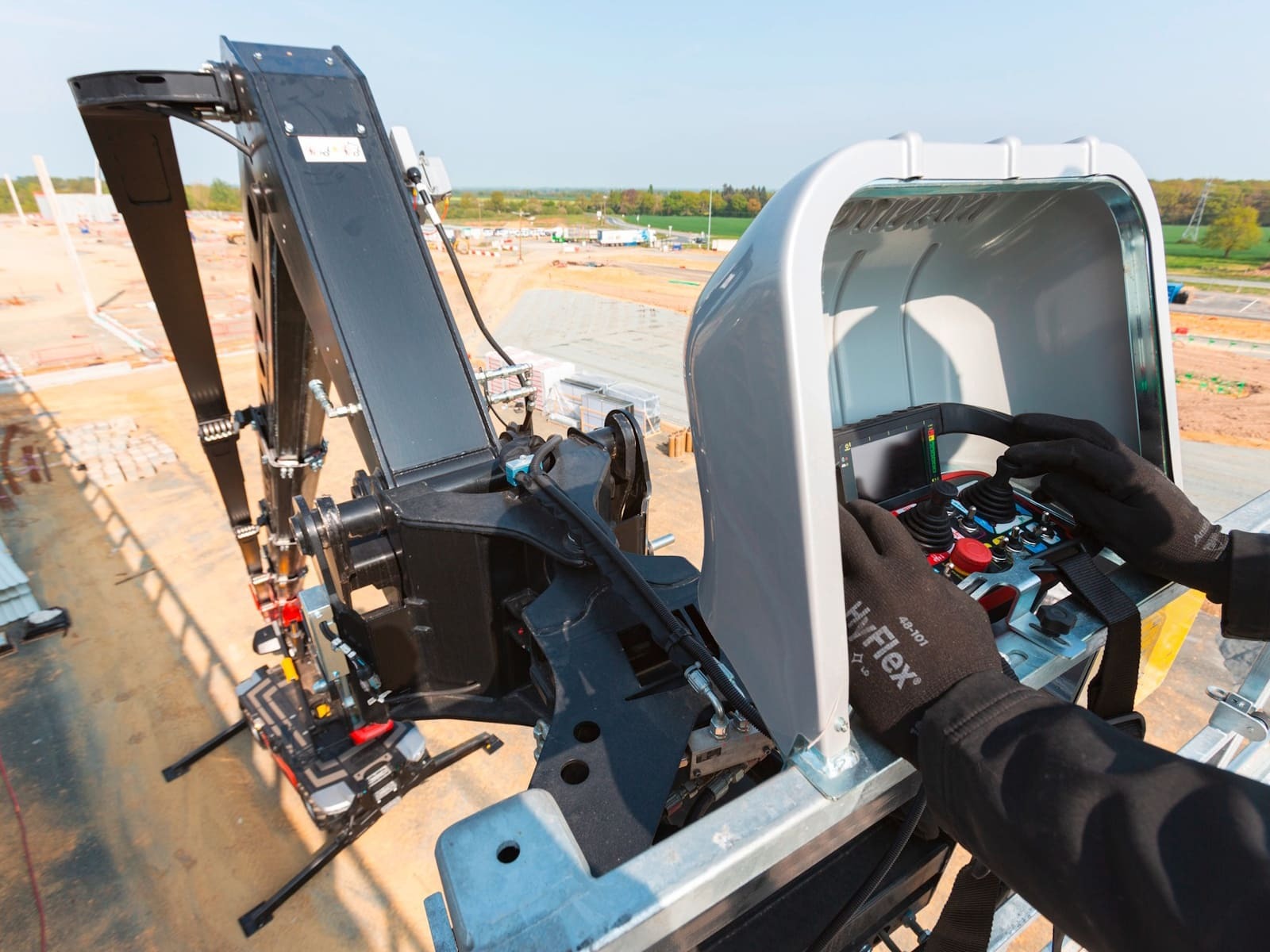

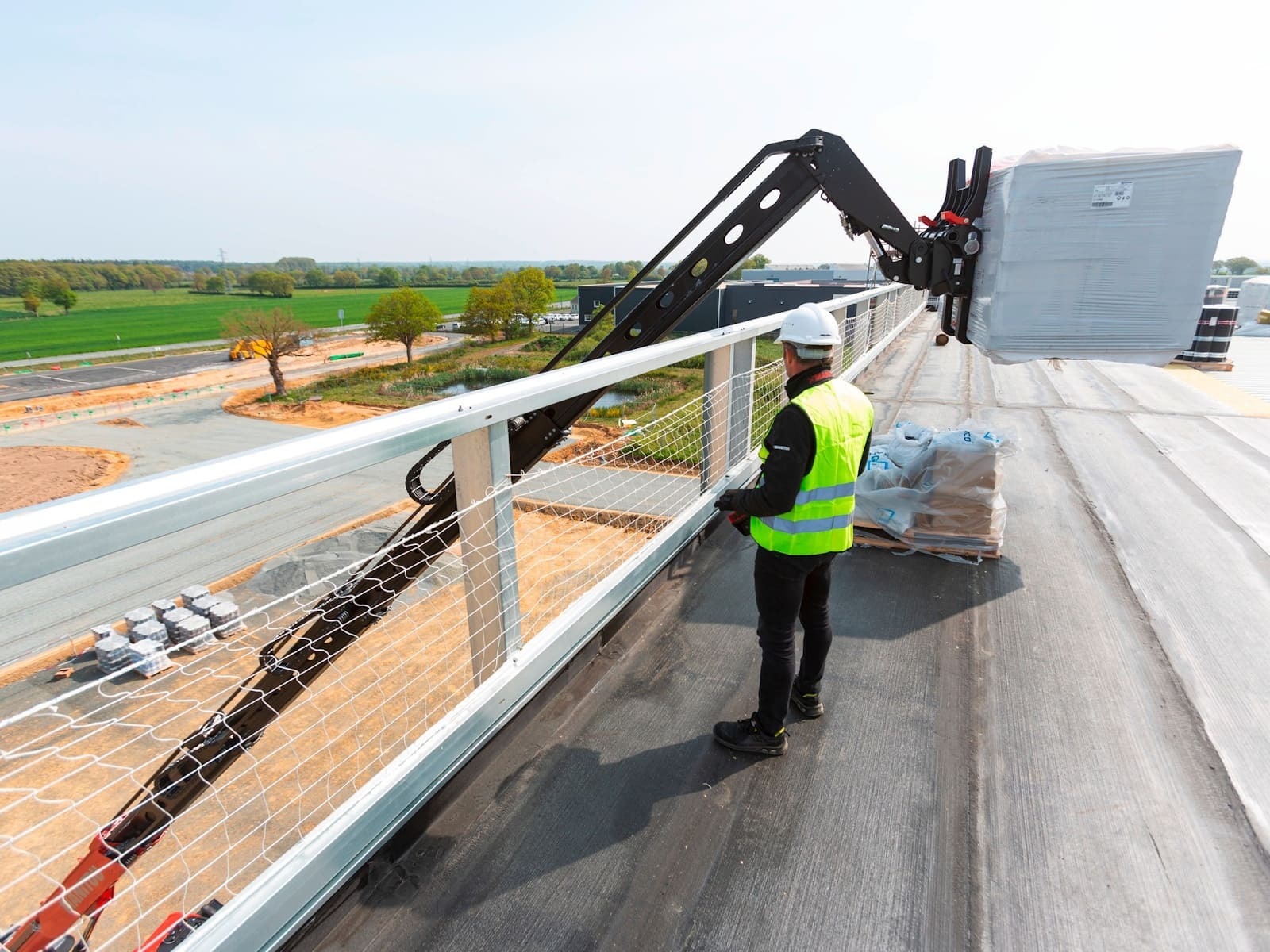

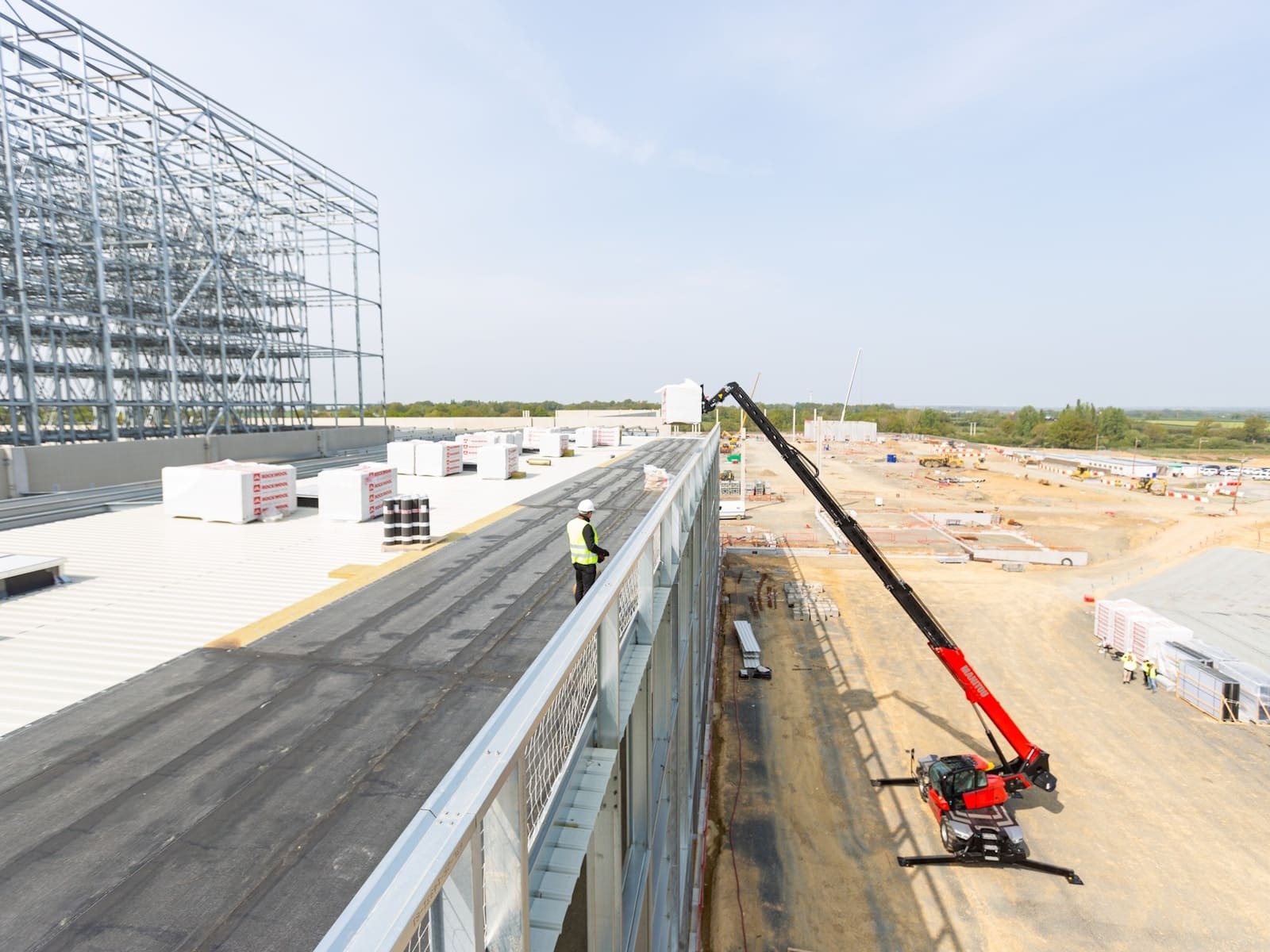

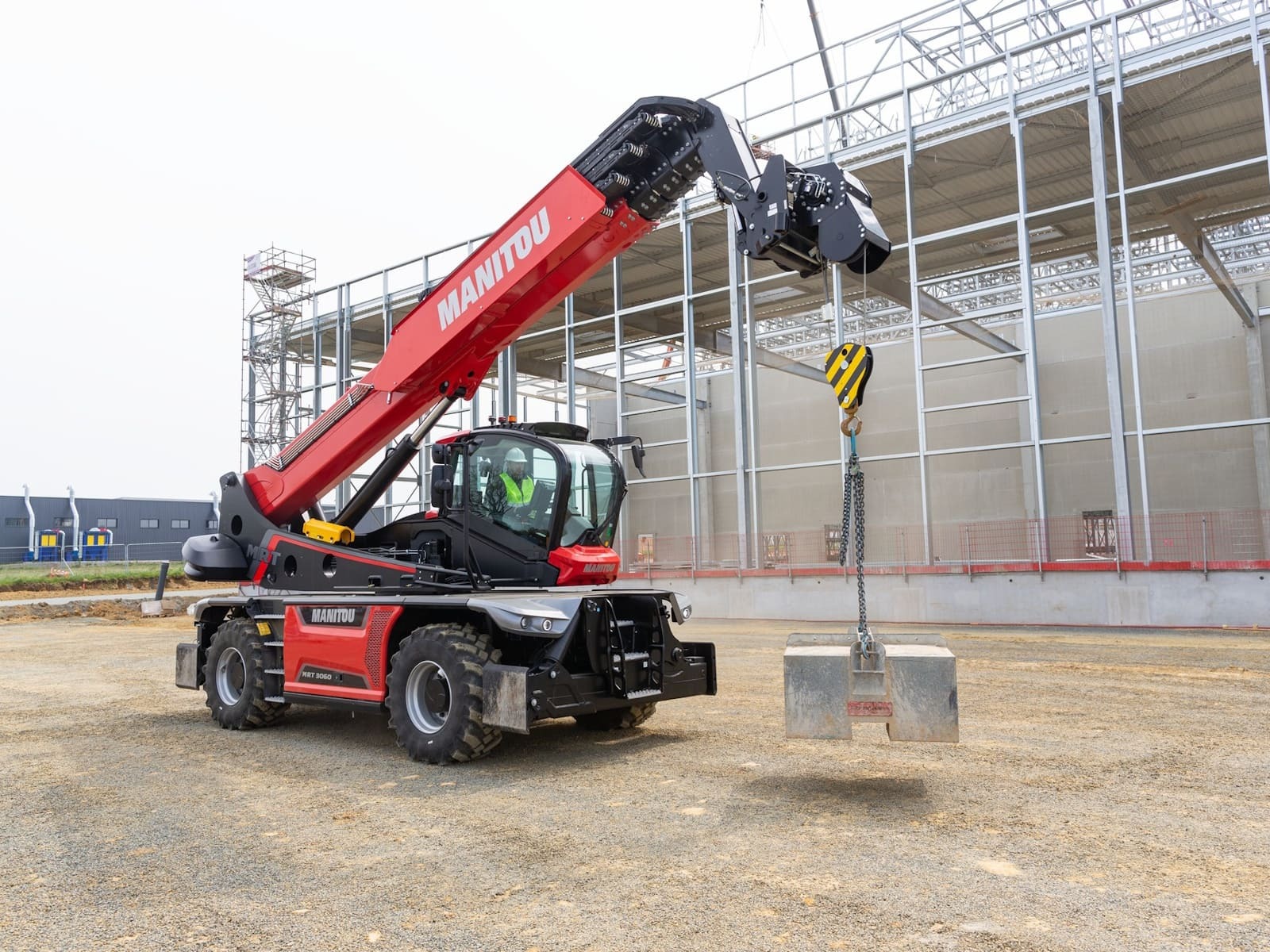

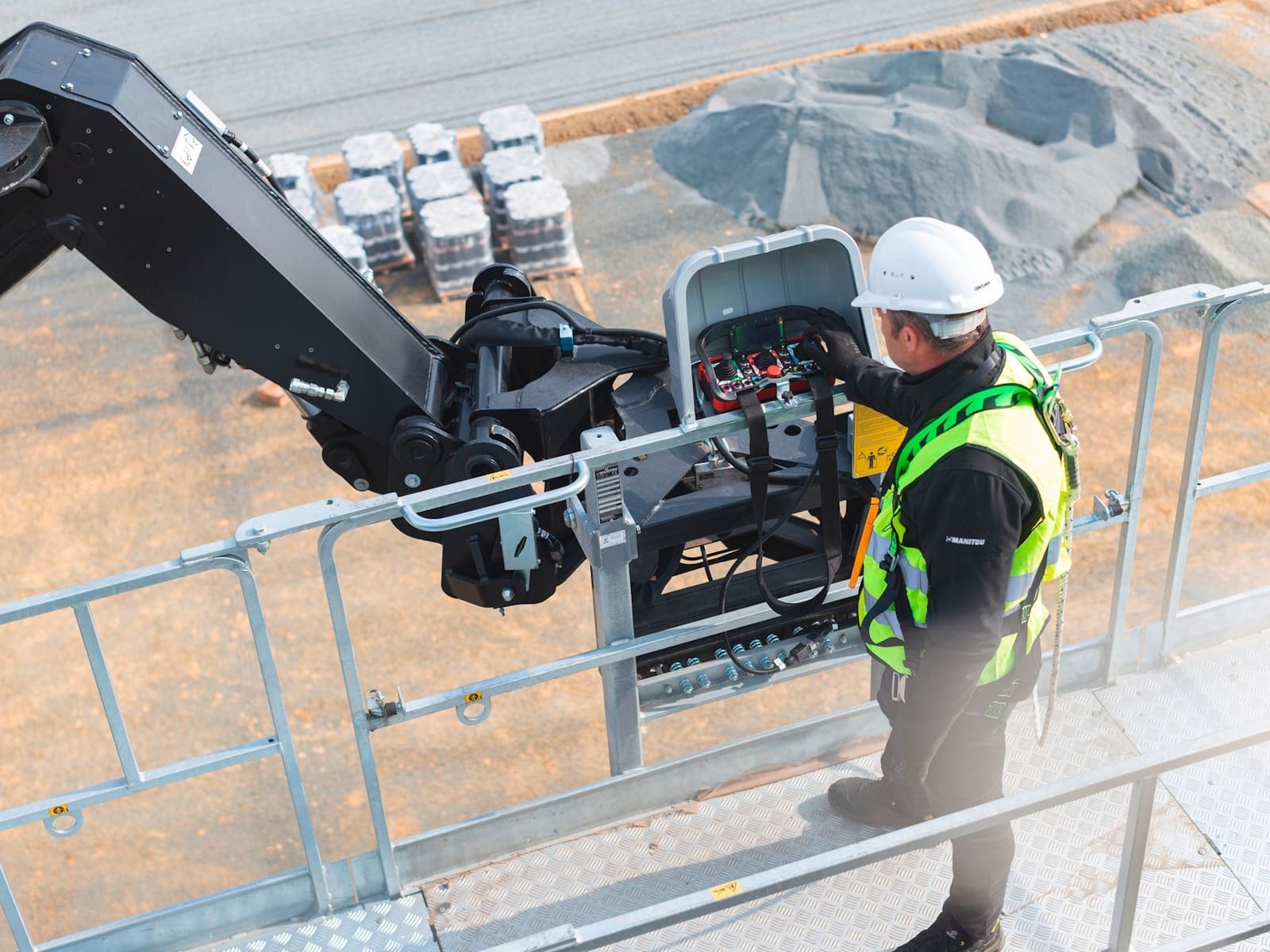

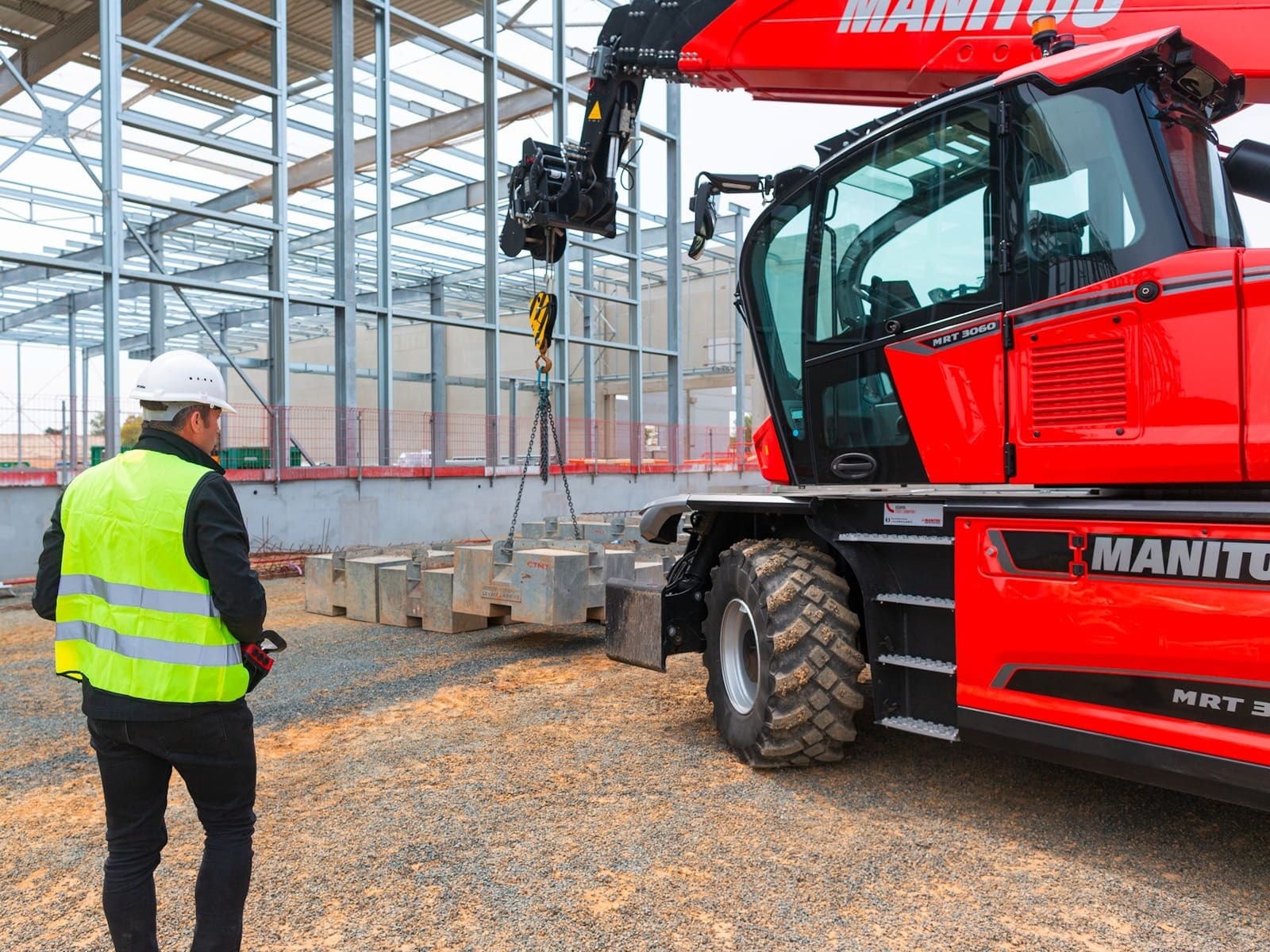

By combining the capabilities of 3 machines in 1 (telescopic handler, winch and aerial work platform), the MRT 3060 is truly a versatile tool for your handling operations.

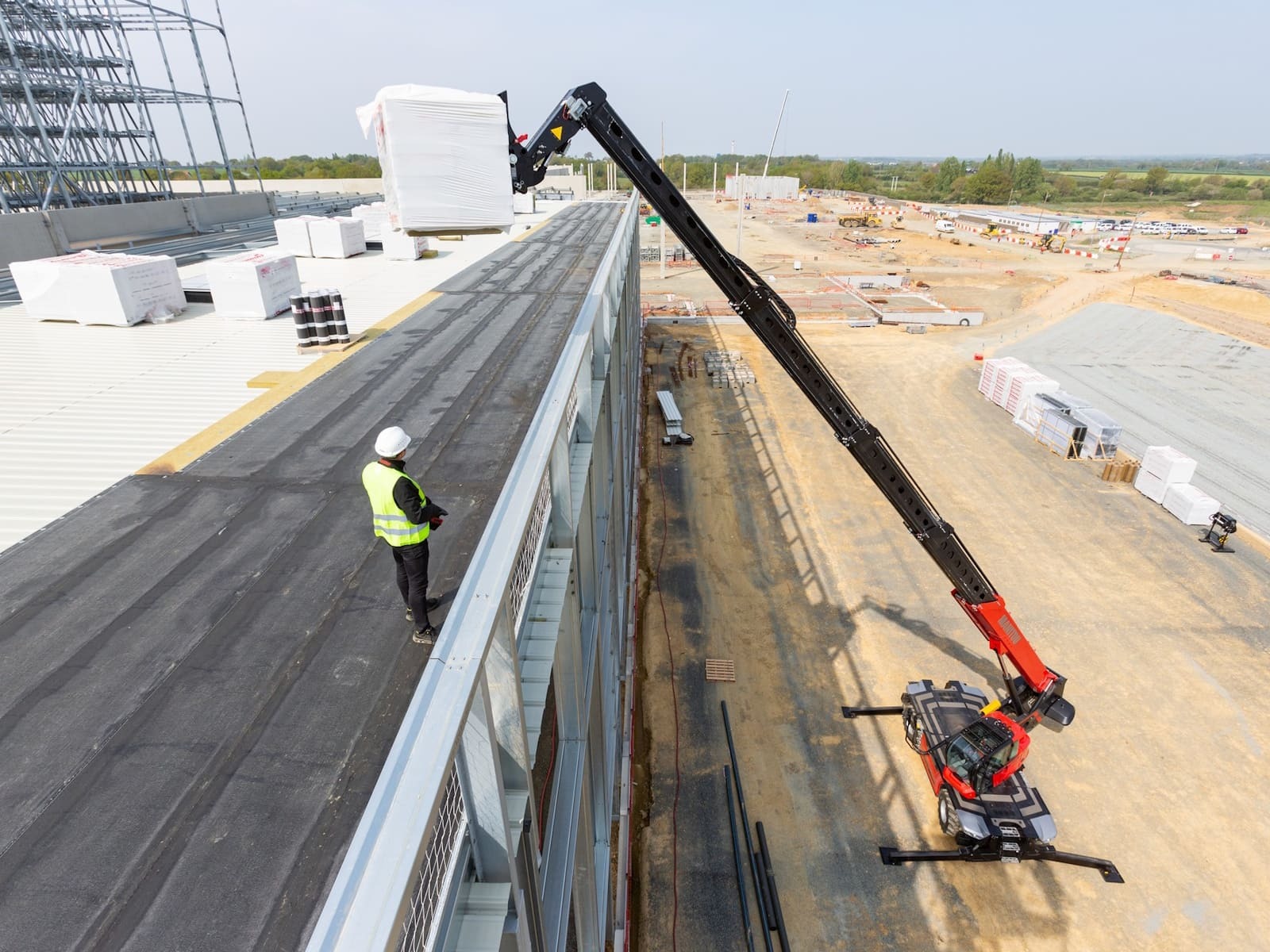

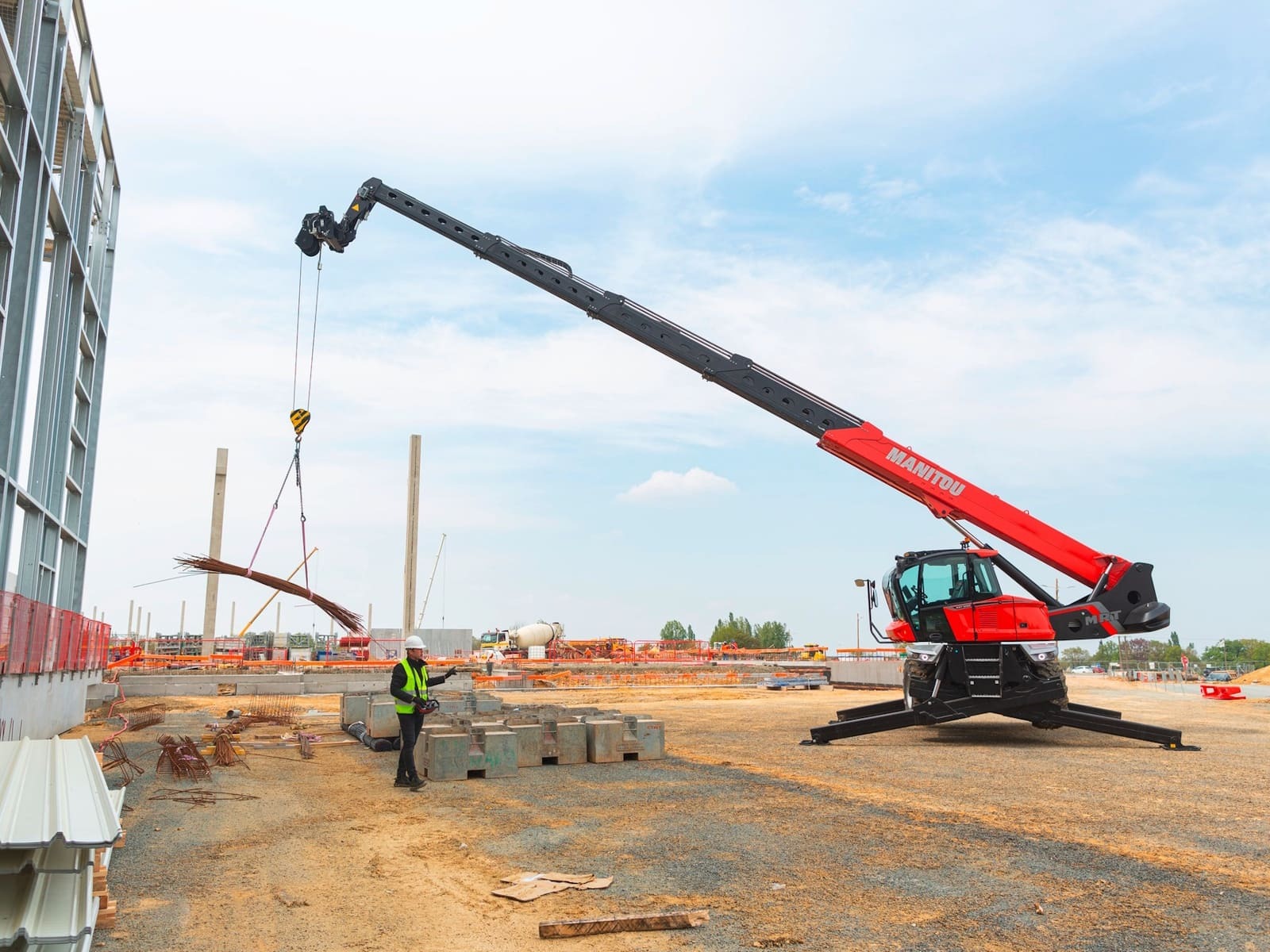

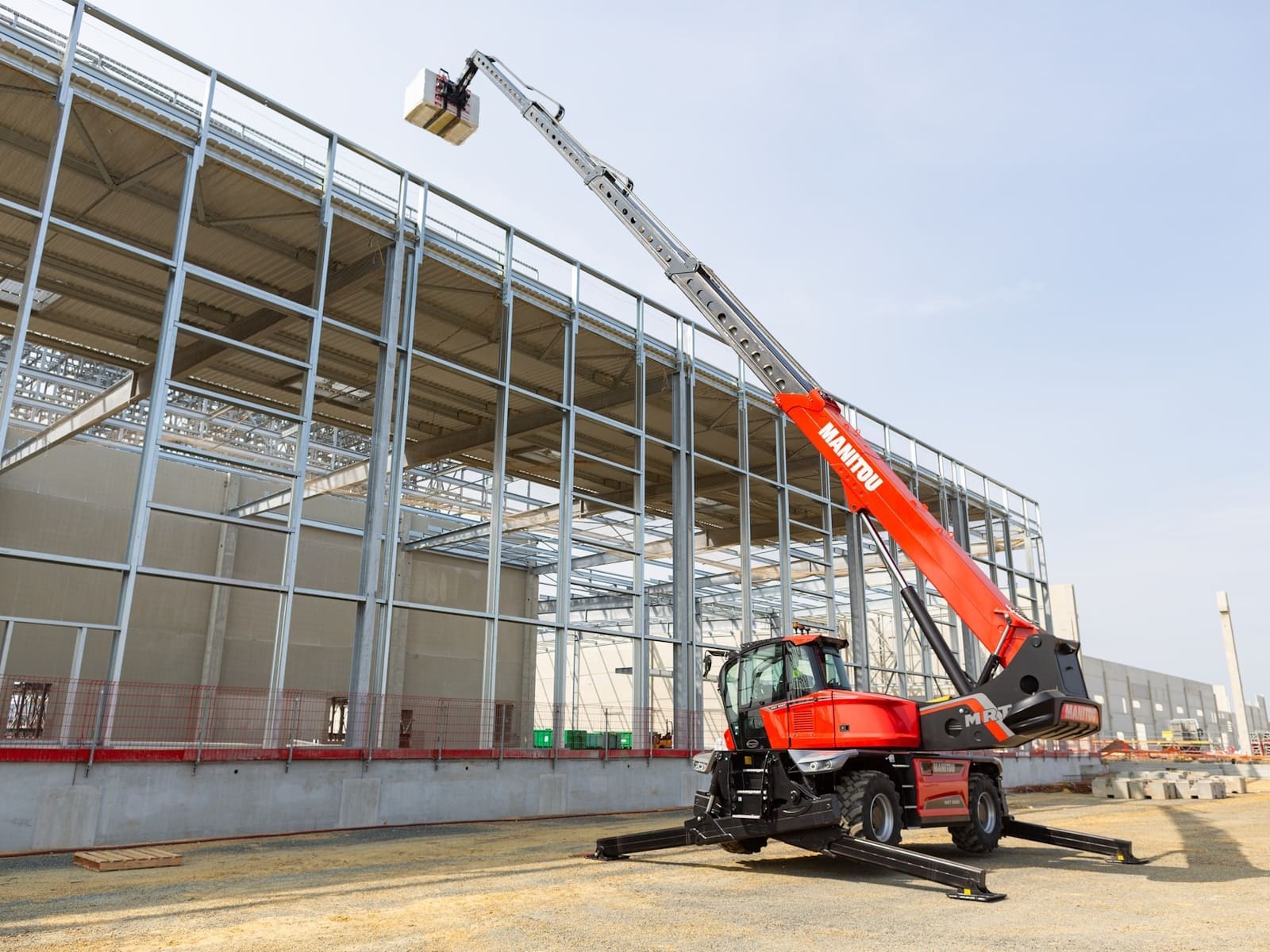

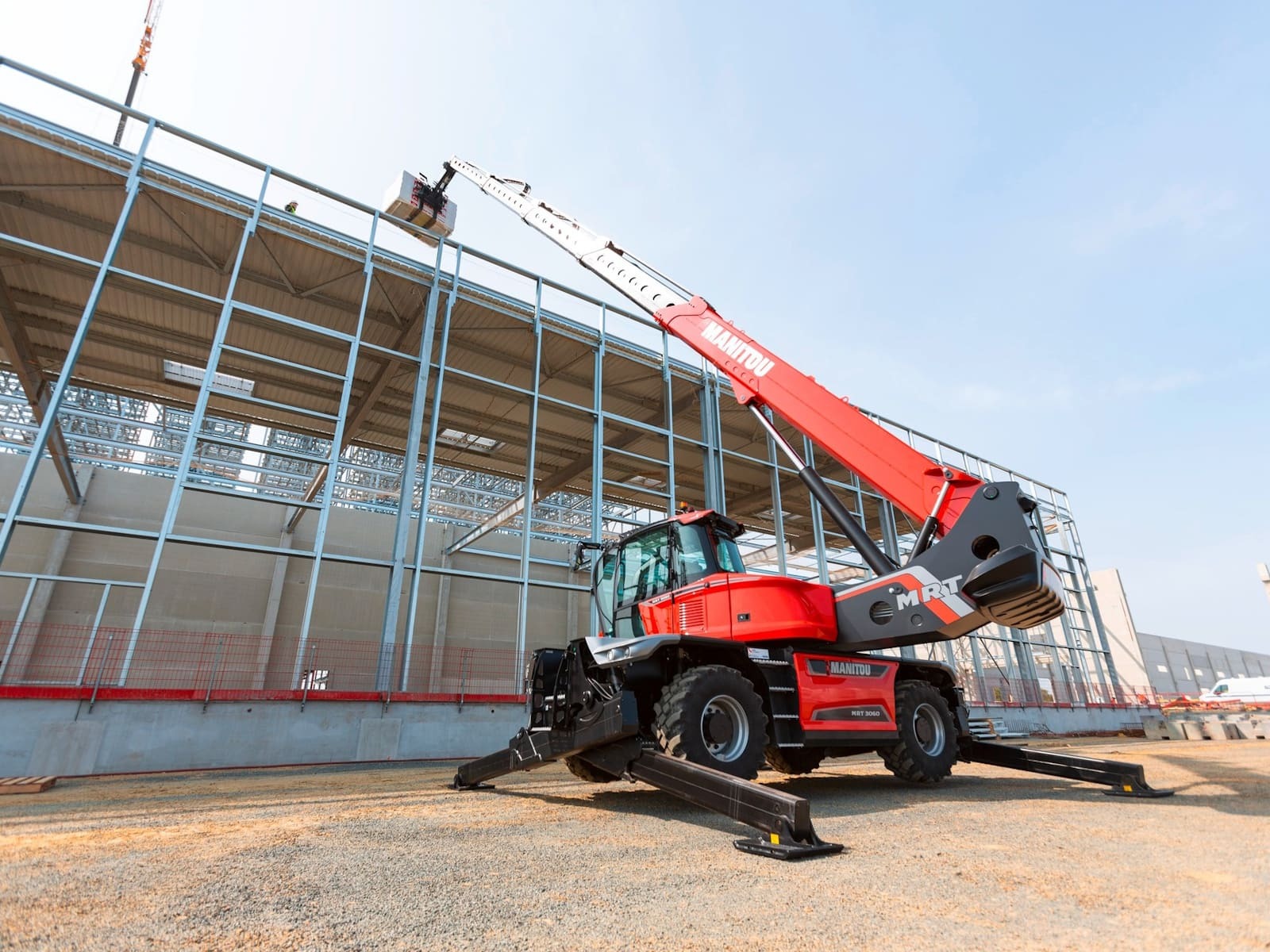

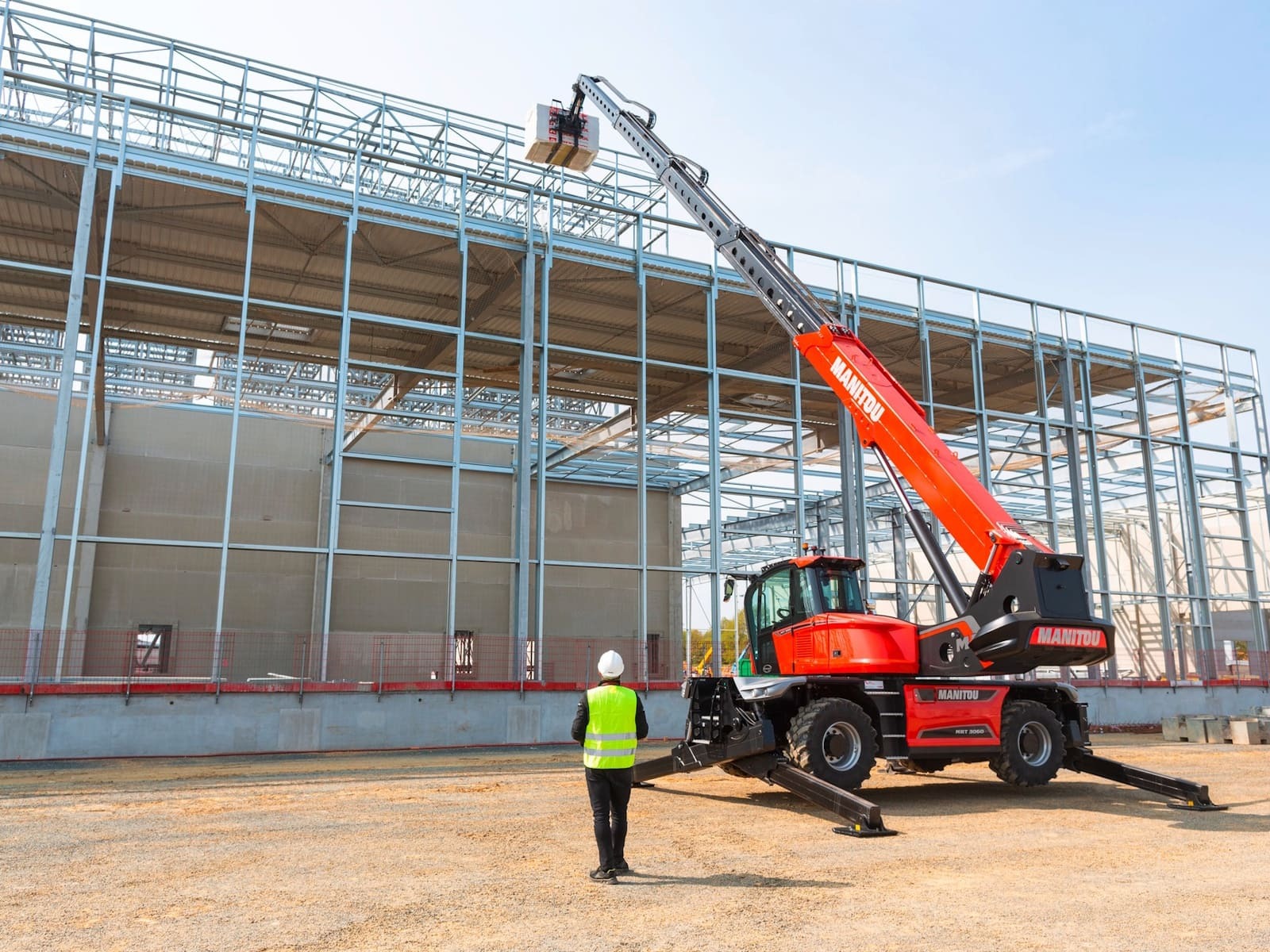

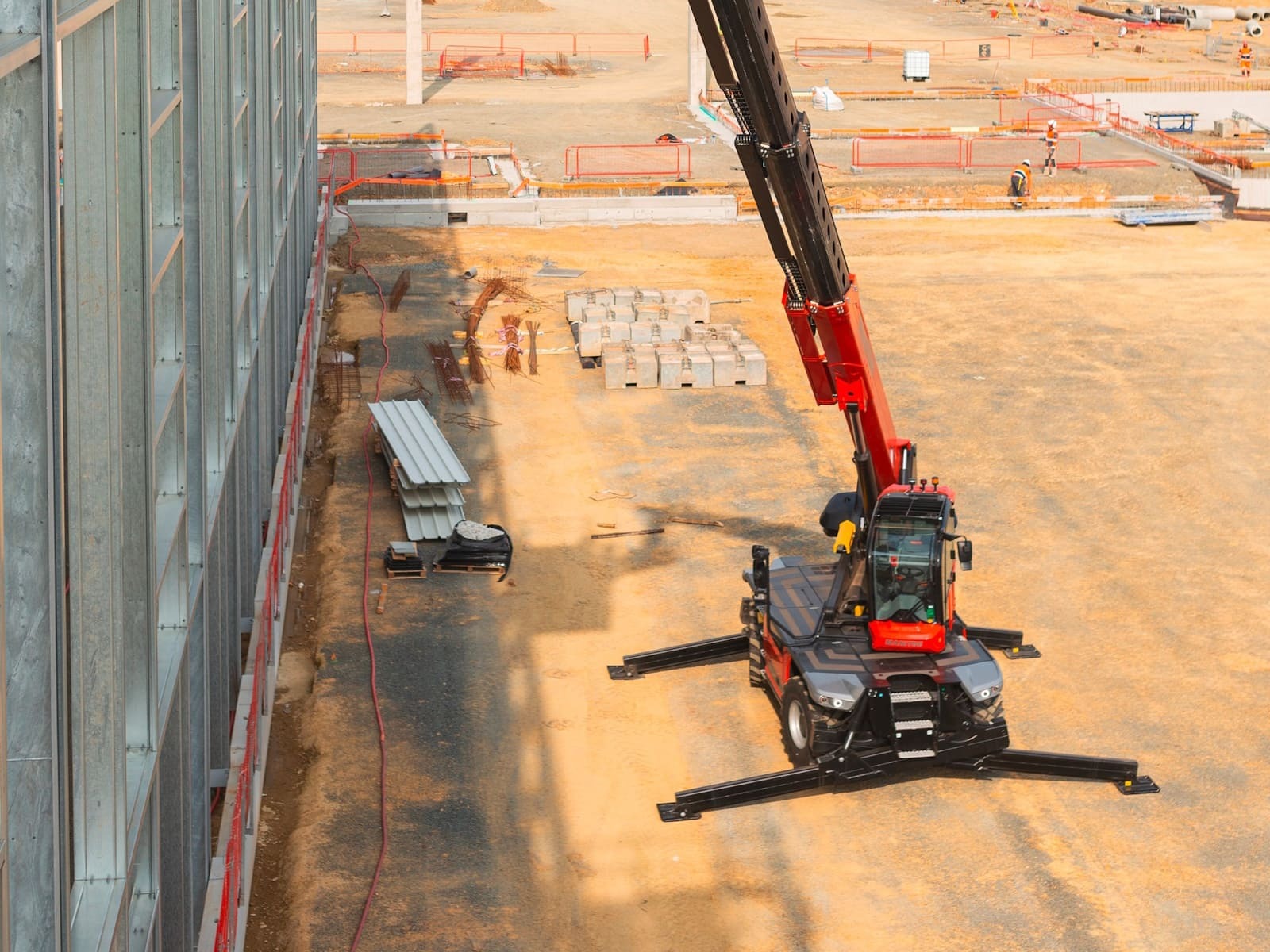

The MRT 3060 can lift up to 6 tonnes, while maintaining precise control over your loads, thanks to its pentagonal boom section and exceptional 360° visibility. Its 360° rotation allows you to perform different operations without having to move the machine.

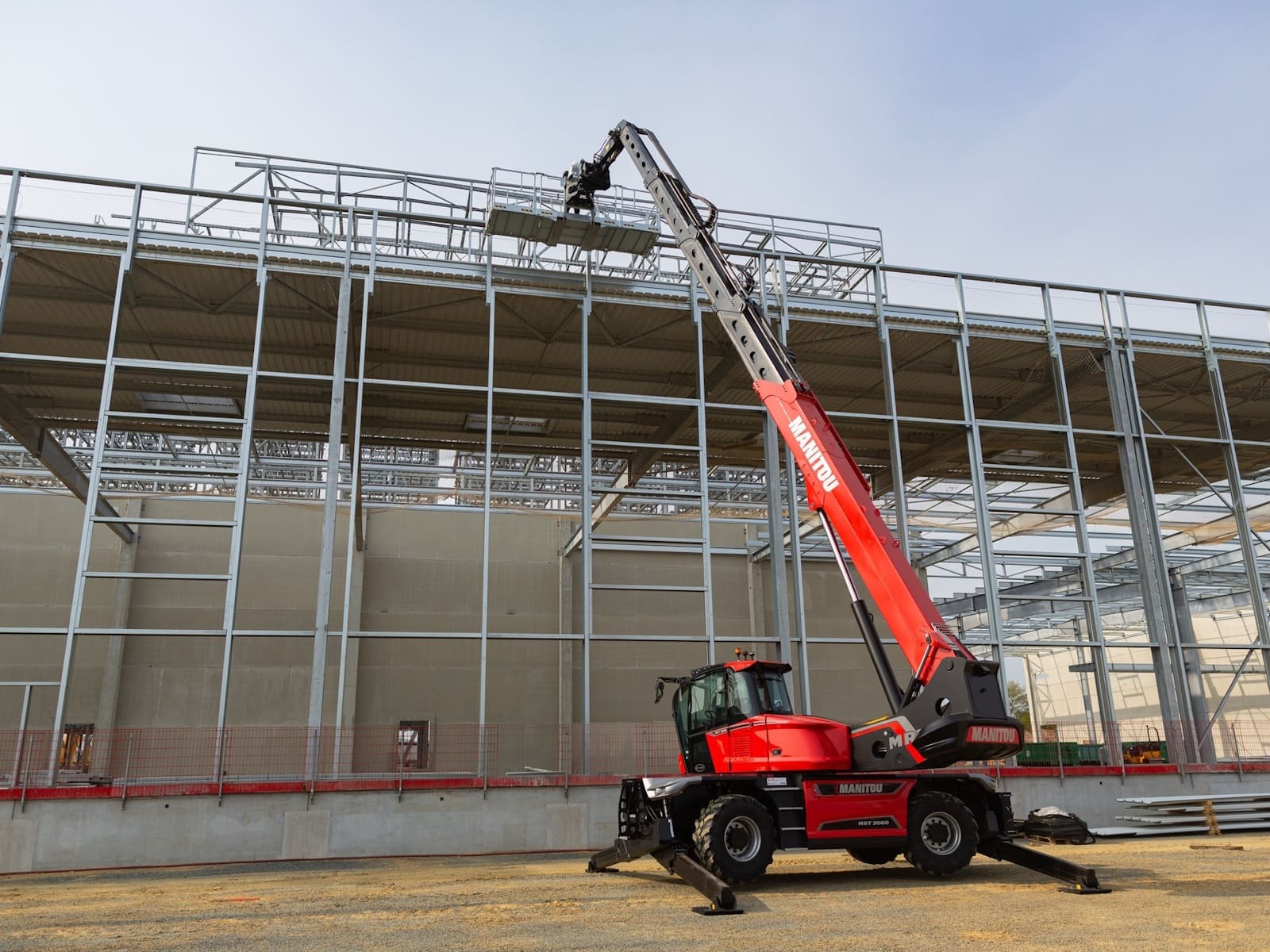

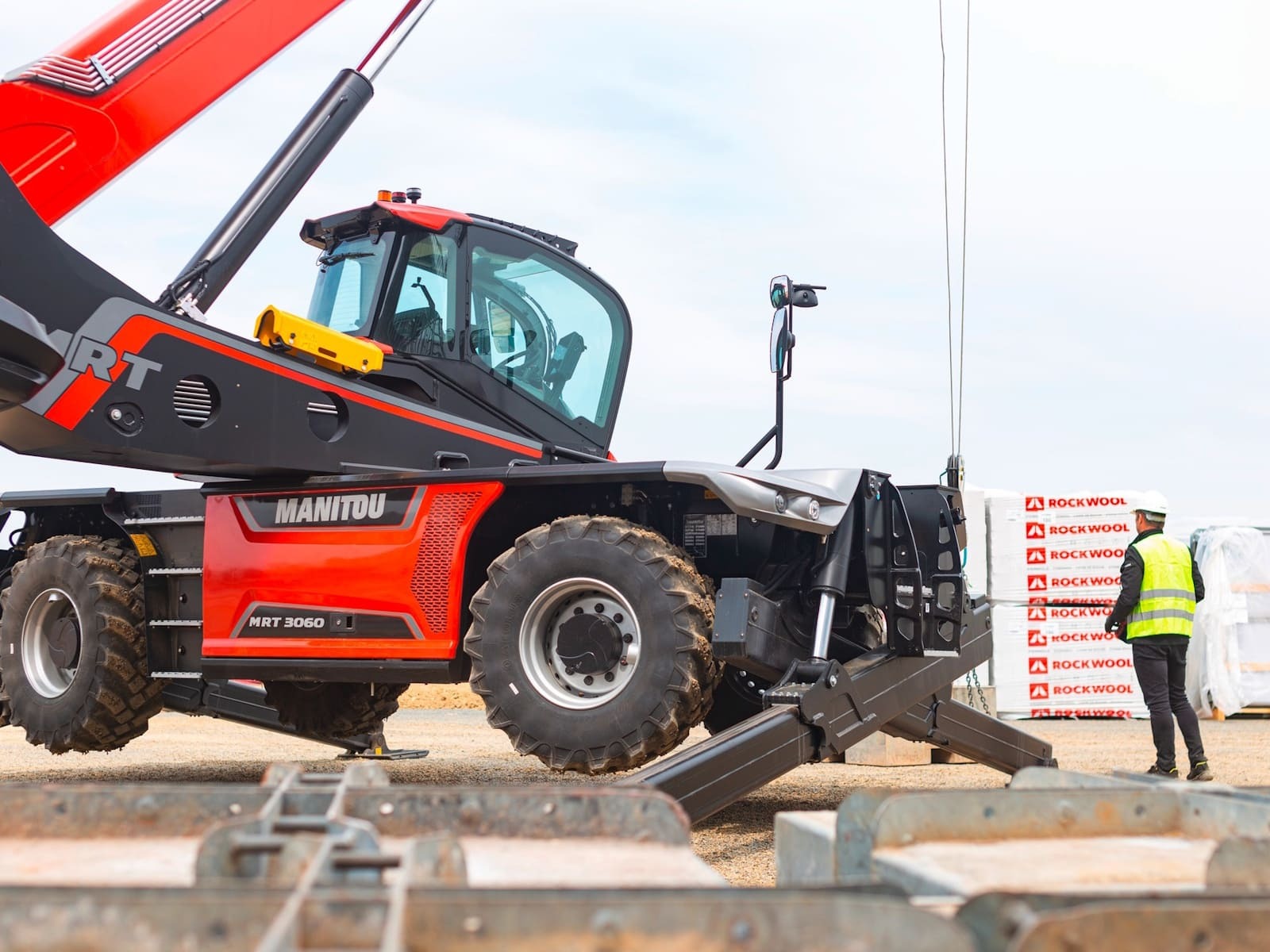

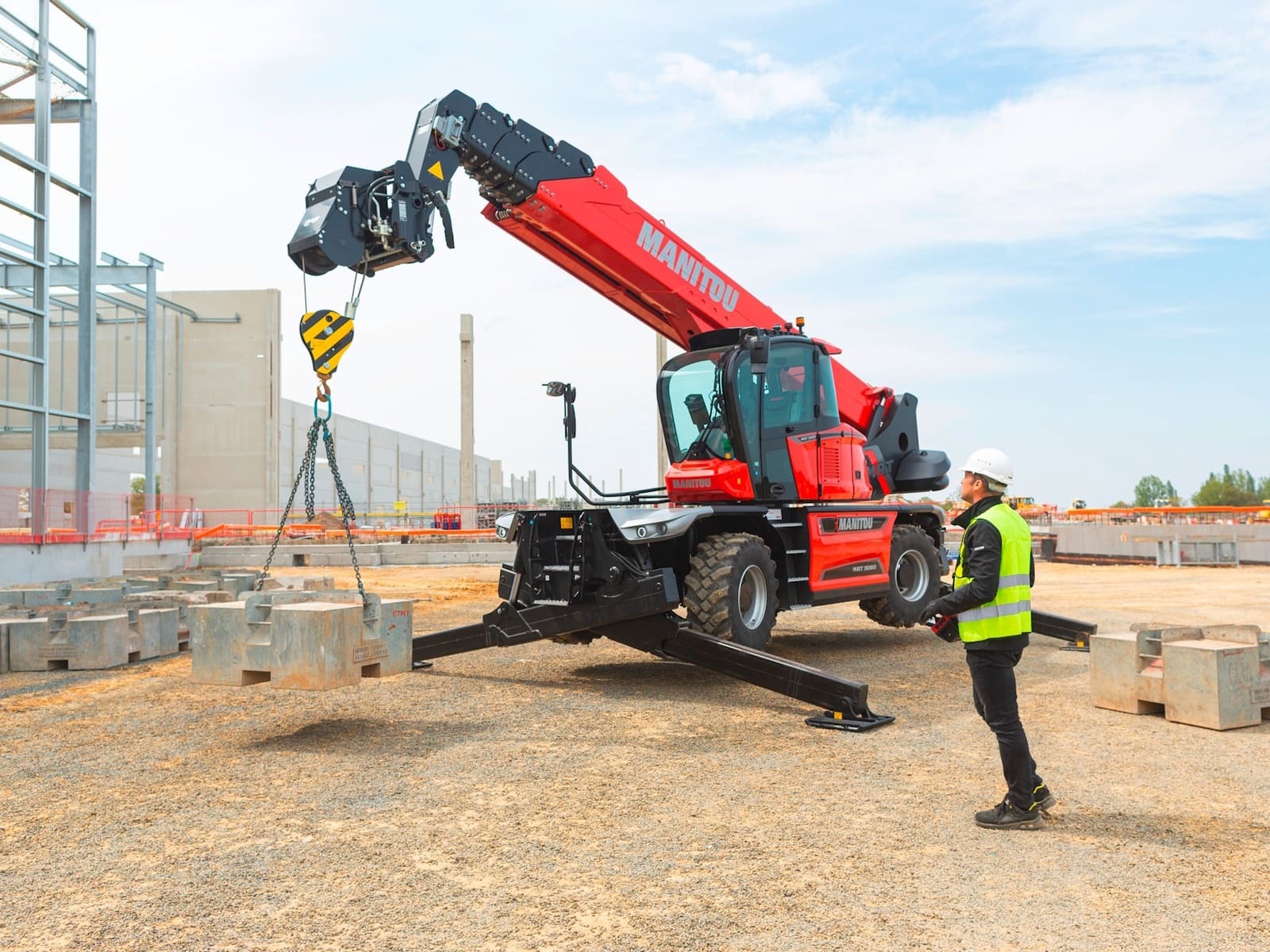

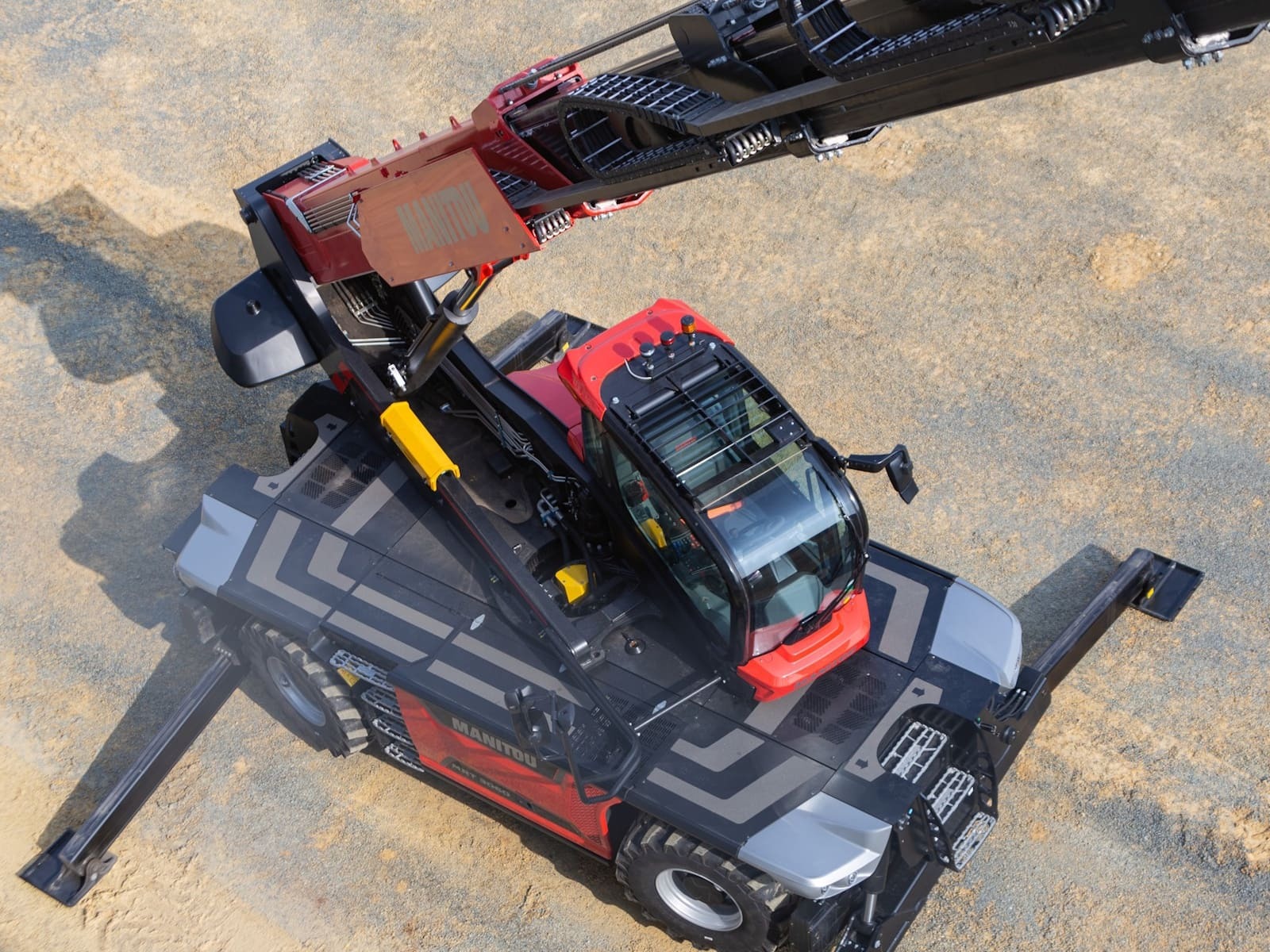

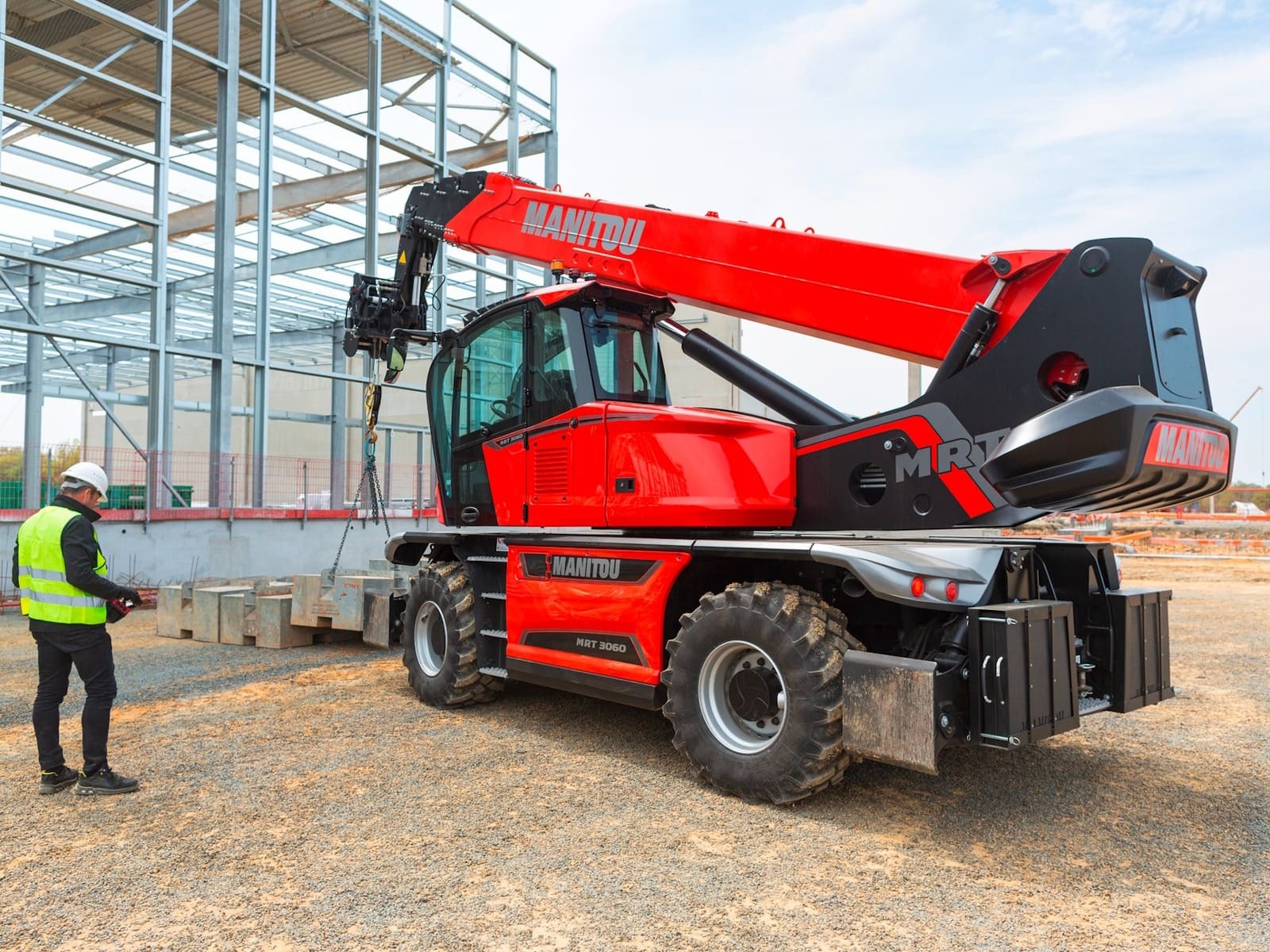

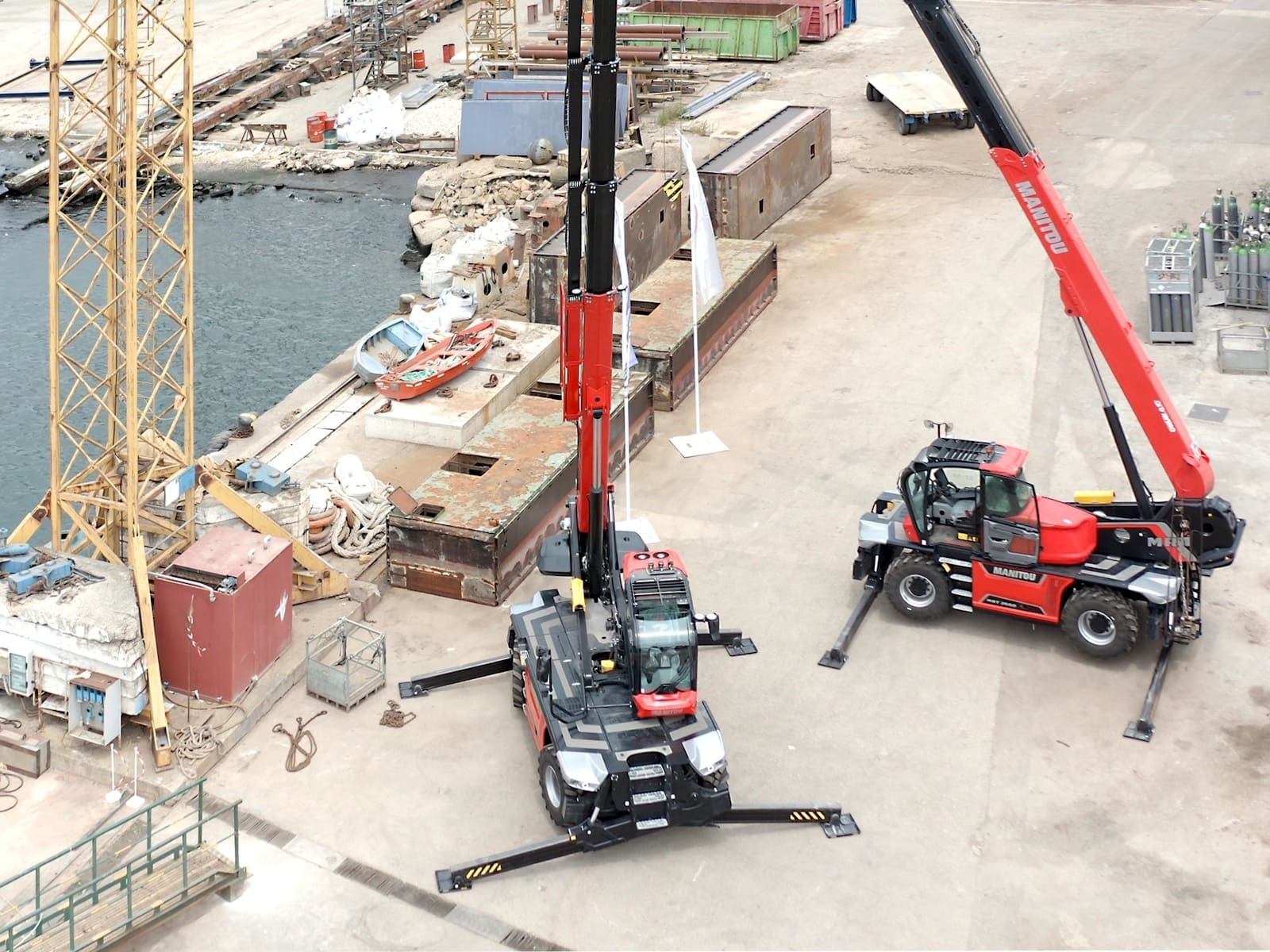

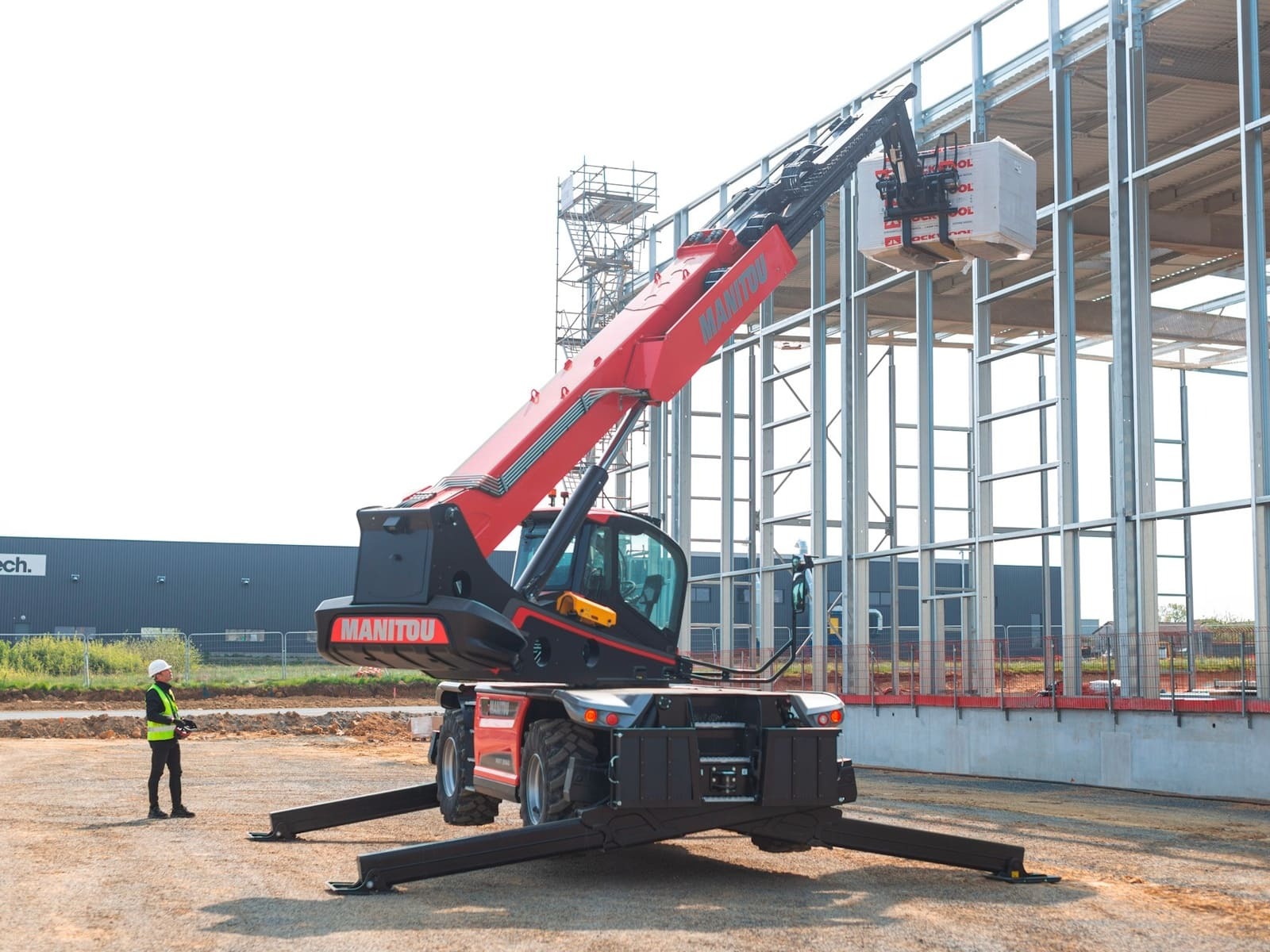

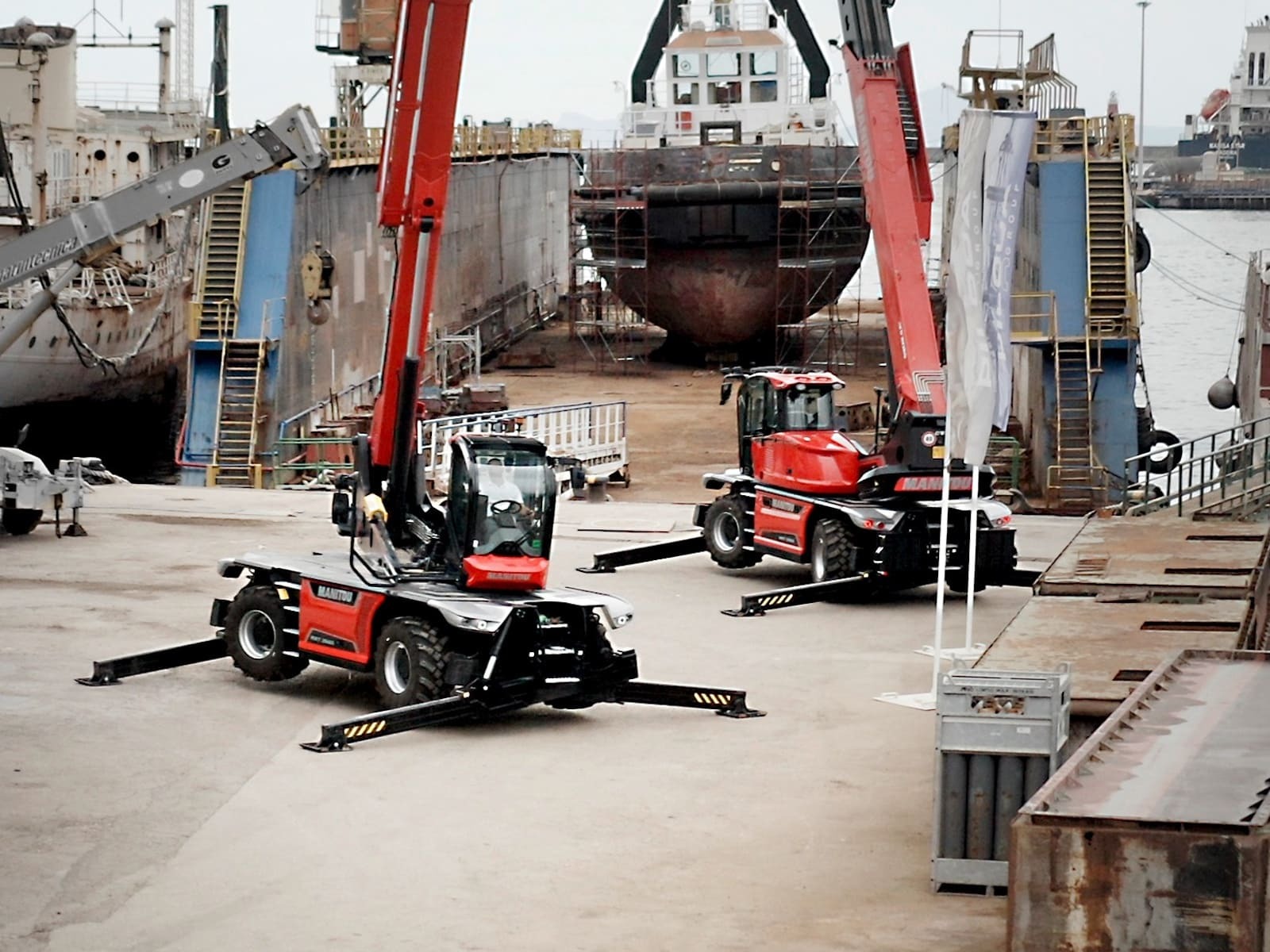

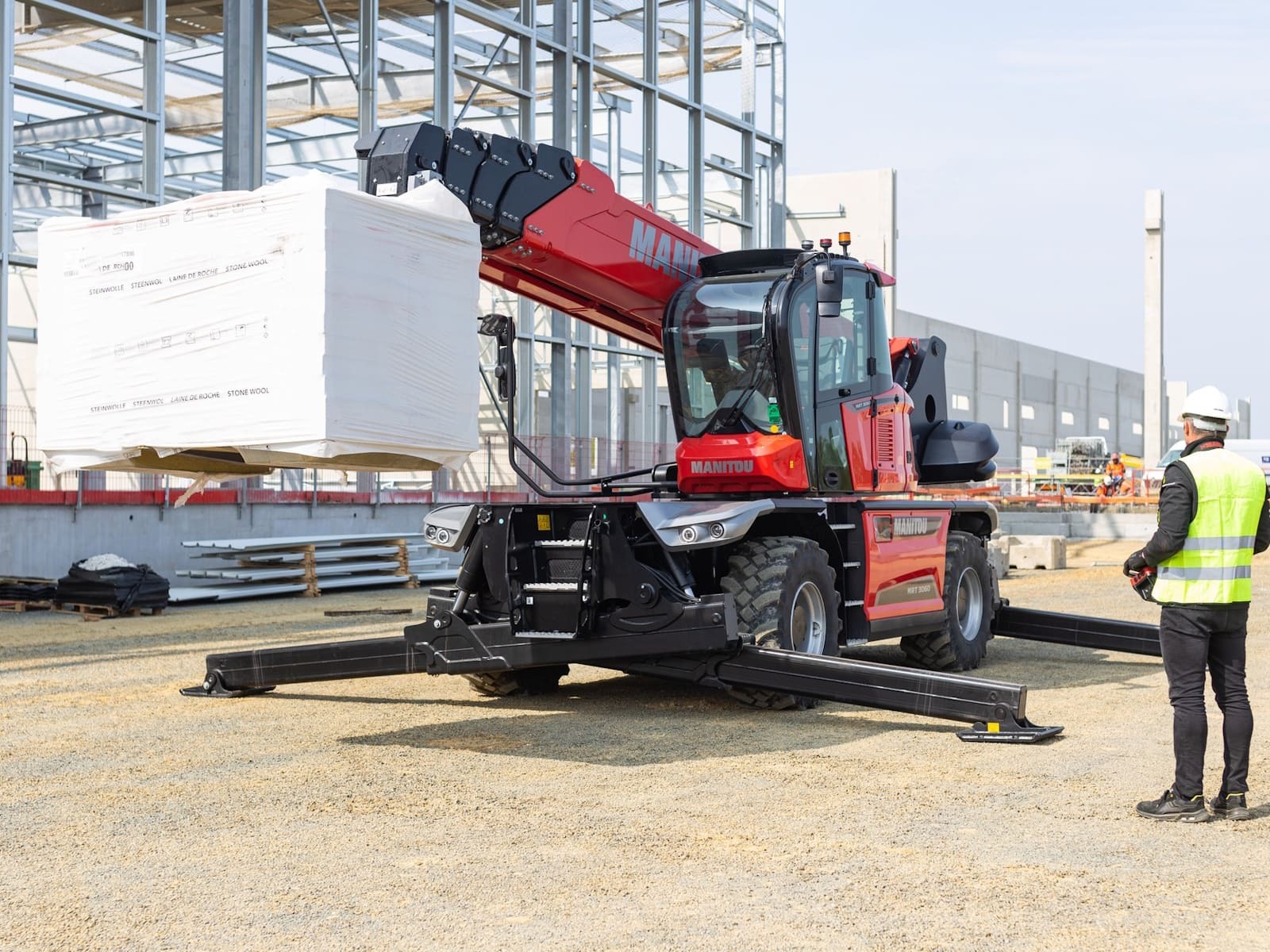

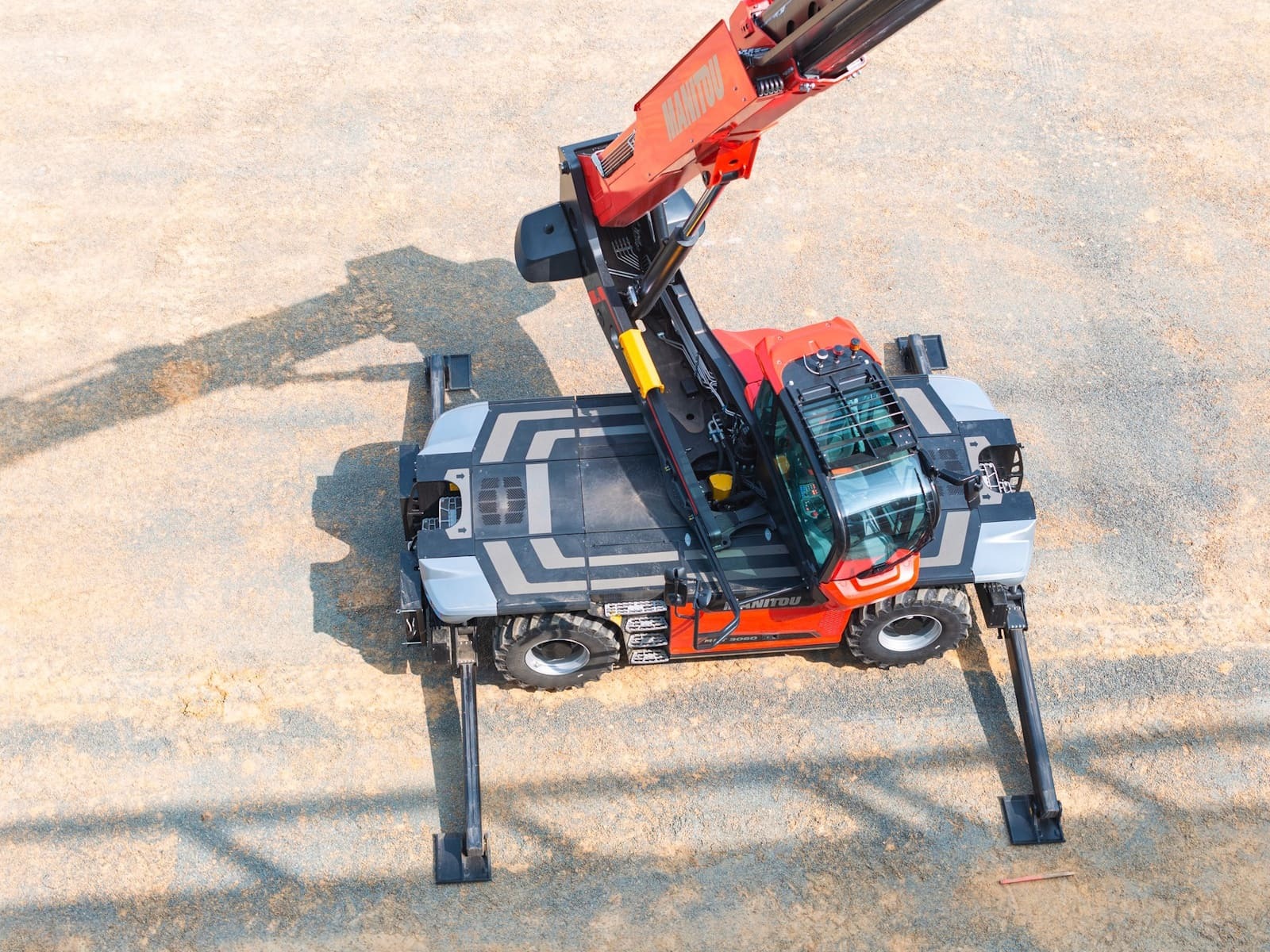

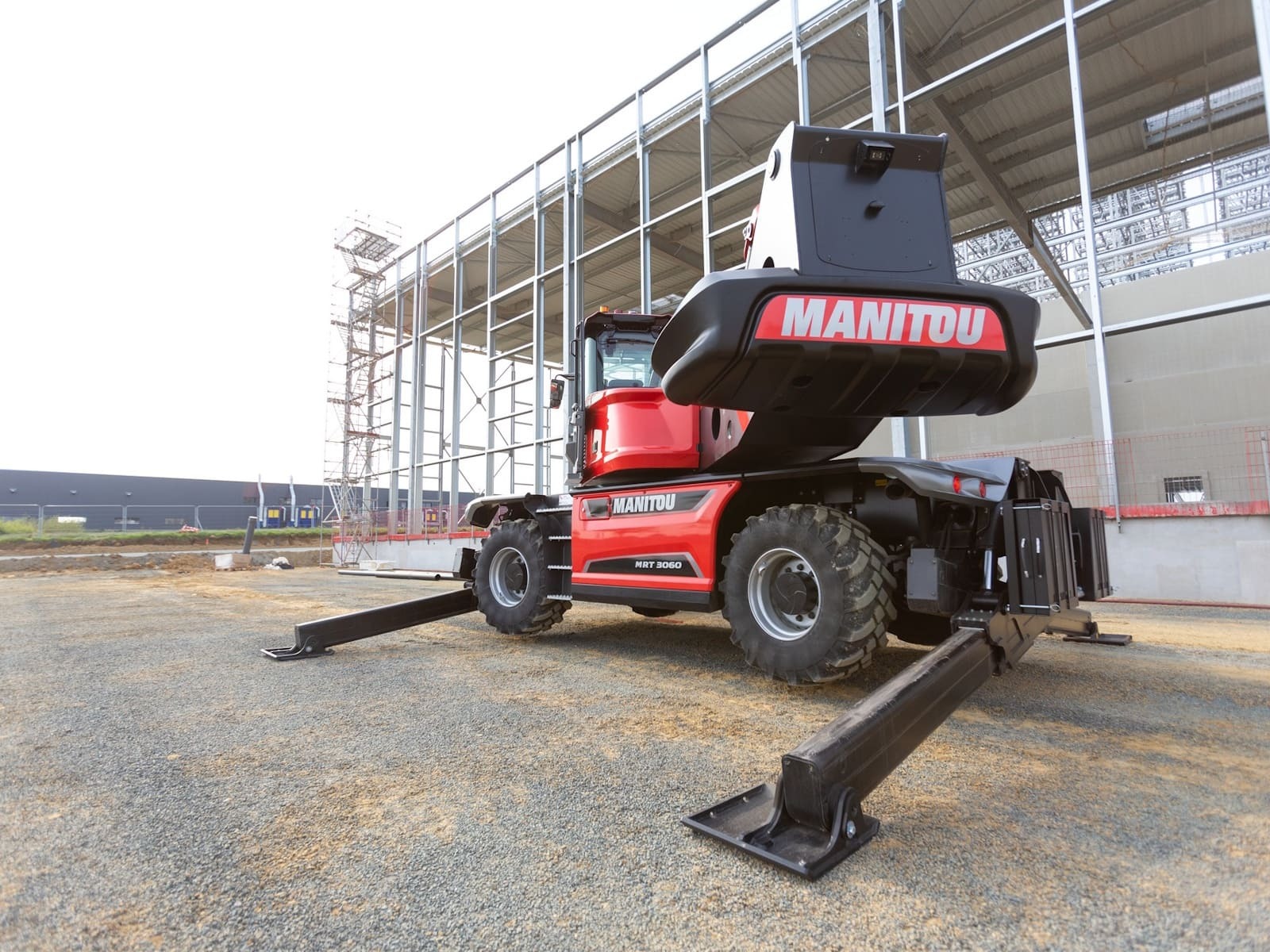

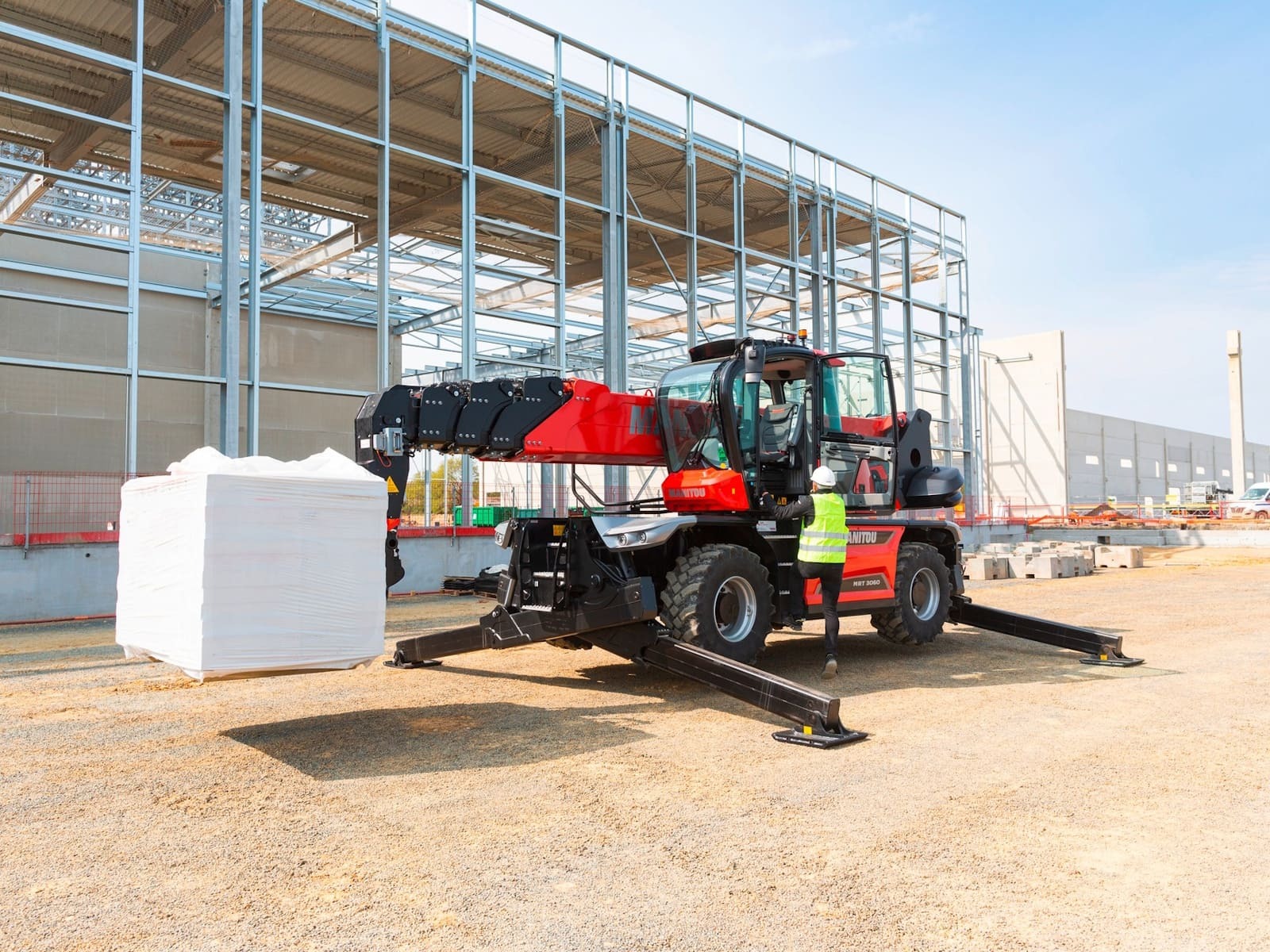

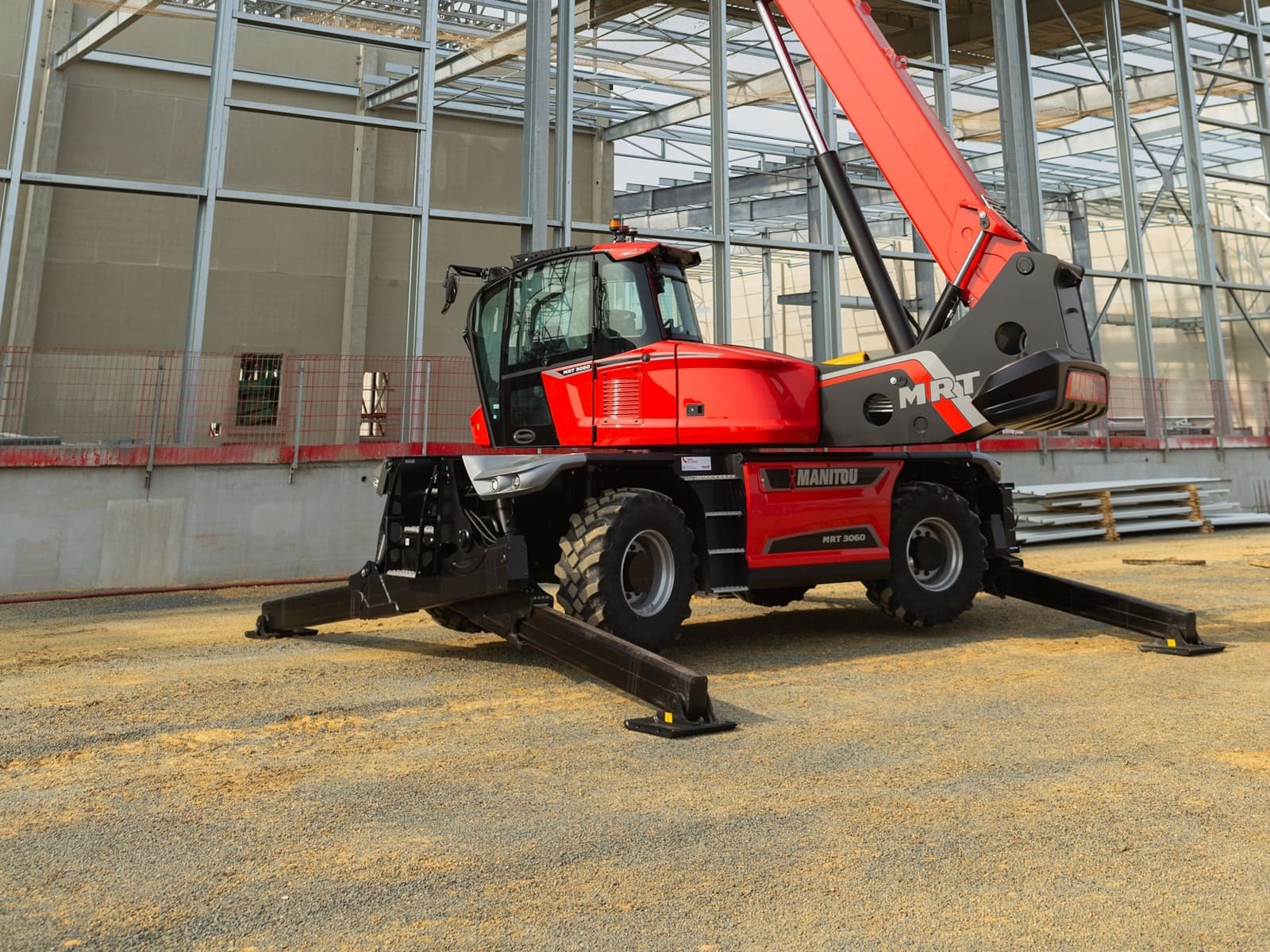

It can be used on tires or stabilizers, which provide a larger support surface for safe working. Smart, ergonomic and comfortable, the MRT 3060 is ideal for construction and industrial applications. It's a powerful and precise tool that you won't be able to do without!
Info
Industry
Agriculture
Make
Manitou Group
Model
MRT 3060
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
Rotating
Specs
Load Capacity
13228 lb
Height
10 ft 2 in | Max. lifting height: 98 ft 1 in
Notes

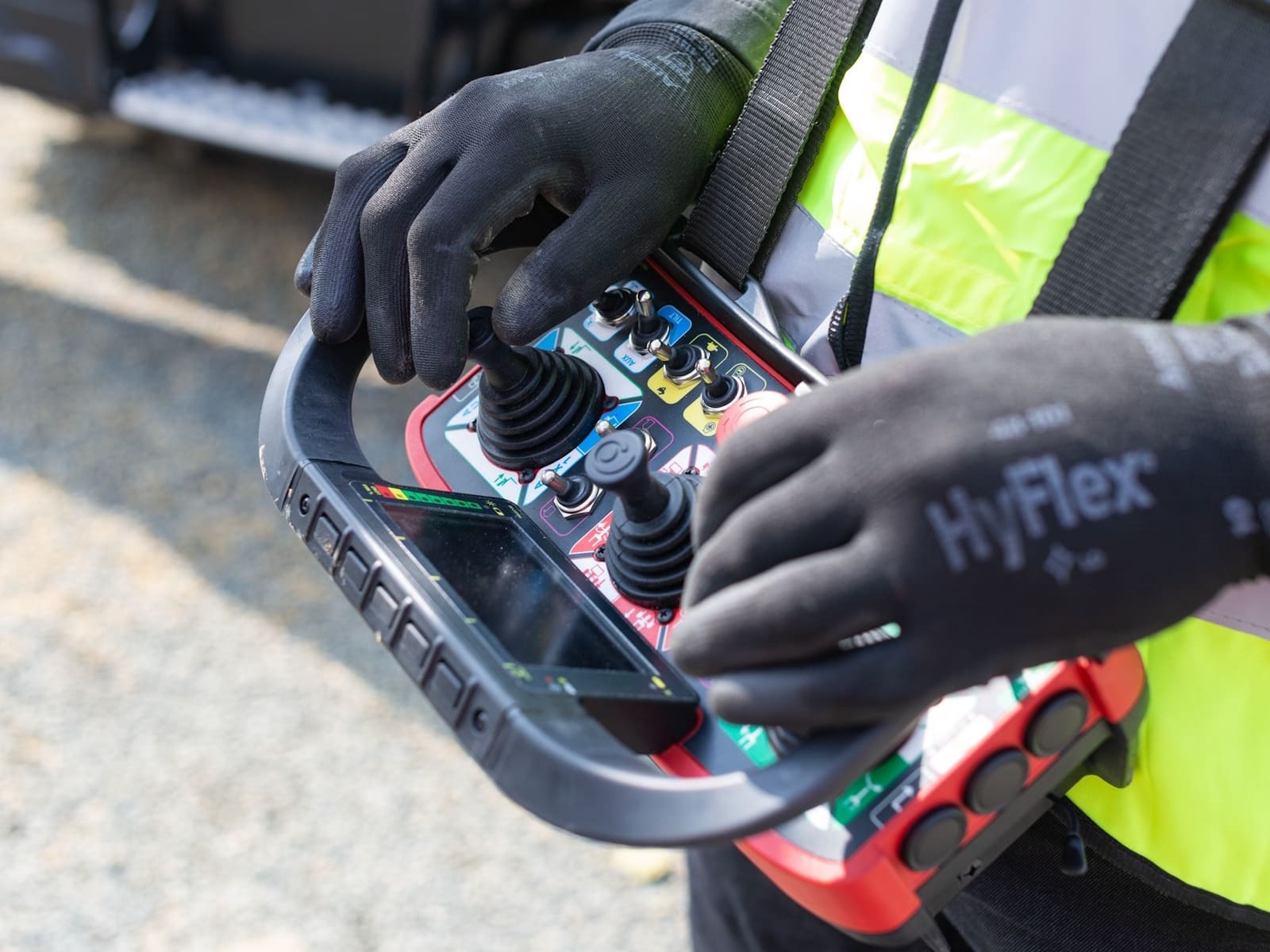

Max. outreach: 85 ft | Tilt-up angle: 12 ° | Tilt-down angle: 110 ° | Turret rotation: 360 ° | Stabilizers Type: Telescopic Duplex | Gradeability (laden / unladen): 32.40 % / 41.40 % | Engine cooling system: Water cooled | Gearbox / Number of gears (forward / reverse): Speedshift / 2 / 2 | Max. travel speed: 25 mph (40 km/h) | Drawbar pull: 9200 daN | Hydraulic flow: 49 US gpm (185 l/min) | Hydraulic Pressure: 5076 PSI (350 bar) | Noise at driving position (LpA): 68 dB | Noise to environment (LwA): 108 dB | Vibration on hands/arms: less than 8.2 ft/s² (< 2.50 m/s²) | Controls: 2 Joysticks | Safety cab homologation: Cabin ROPS - FOPS level 2 | CO2 Emissions per hour: 30.71 kg CO2/h | Fuel consumption: 2.40 US gph
Length
Overall length (with forks): 30 ft | Length to face of forks: 26 ft 1 in | Forks: 47 in
Width
8 ft 2 in | Overall cab width: 3 ft 2 in | Forks: 4 in
Turning Radius
External turning radius (over tyres): 15 ft 2 in
Ground Clearance
1 ft 3 in
Wheelbase
10 ft 8 in
Weight
48061 lb
Tires
445/65 R22.5
Wheels
Drive wheels (front / rear): 2 / 2
Steering
2 wheel steer, 4 wheel steer, Crab mode | Steering wheels (front / rear): 2 / 2
Engine
Yanmar | Stage V / Tier 4
Power/Horsepower
173 Hp / 127 kW
Torque
594 ft/lbs (805 Nm) @ 1500 rpm
Cylinders
4 - 279 in³
Battery
2 x 12 V | 12V Battery capacity: 120 Ah | Battery starting current: (EN)850 A
Brakes
Parking brake: Automatic negative parking brake | Service brake: Oil-immersed multi-discs braking on front & rear axles
Oil Capacity
3.40 US gal | Hydraulic oil: 79.25 US gal
Fuel Capacity
84.50 US gal | Diesel Exhaust fluid (AdBlue® type): 6.34 US gal
