2026 Manitou Group V'Air 23
Get in Touch
Description

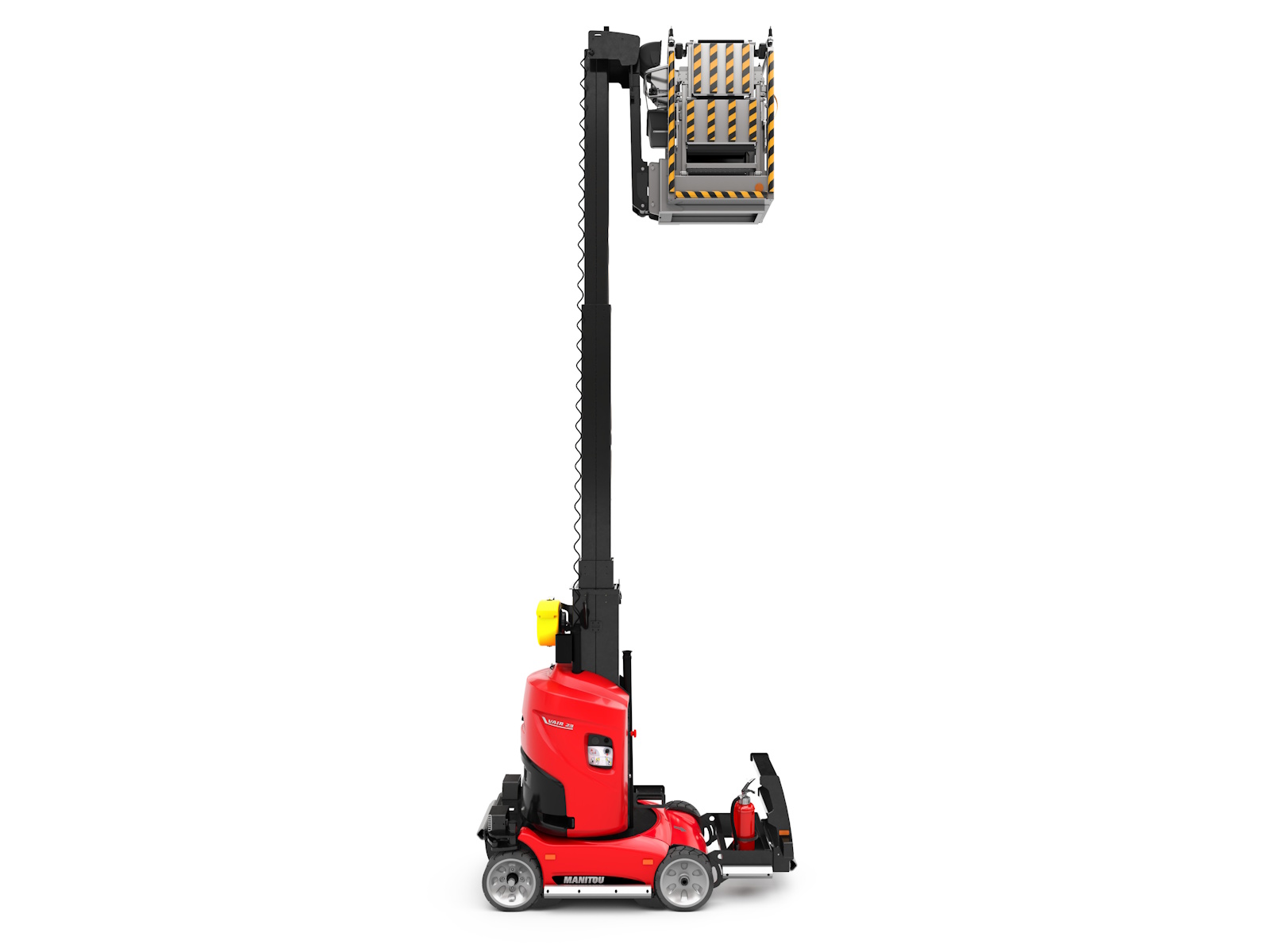

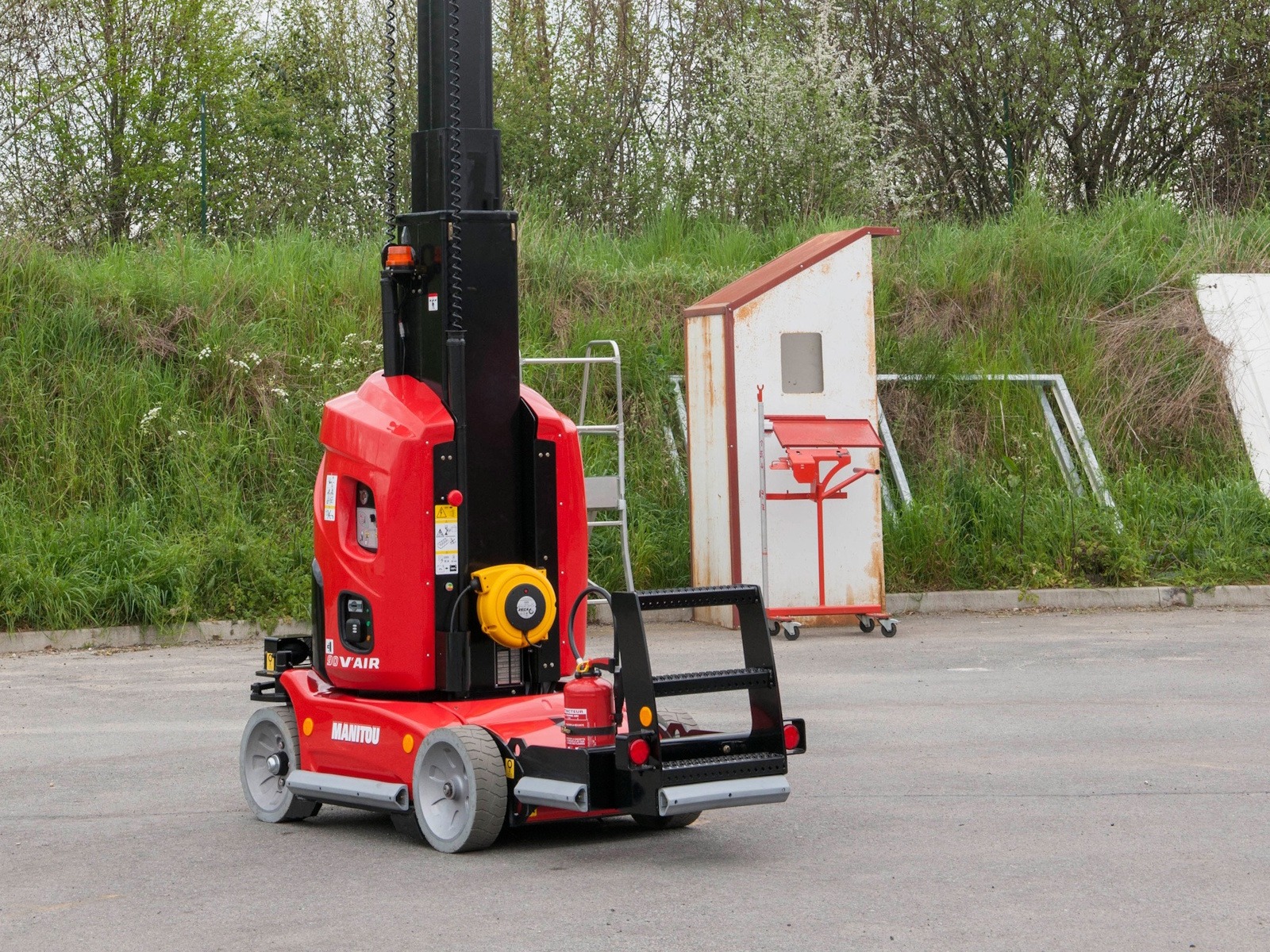

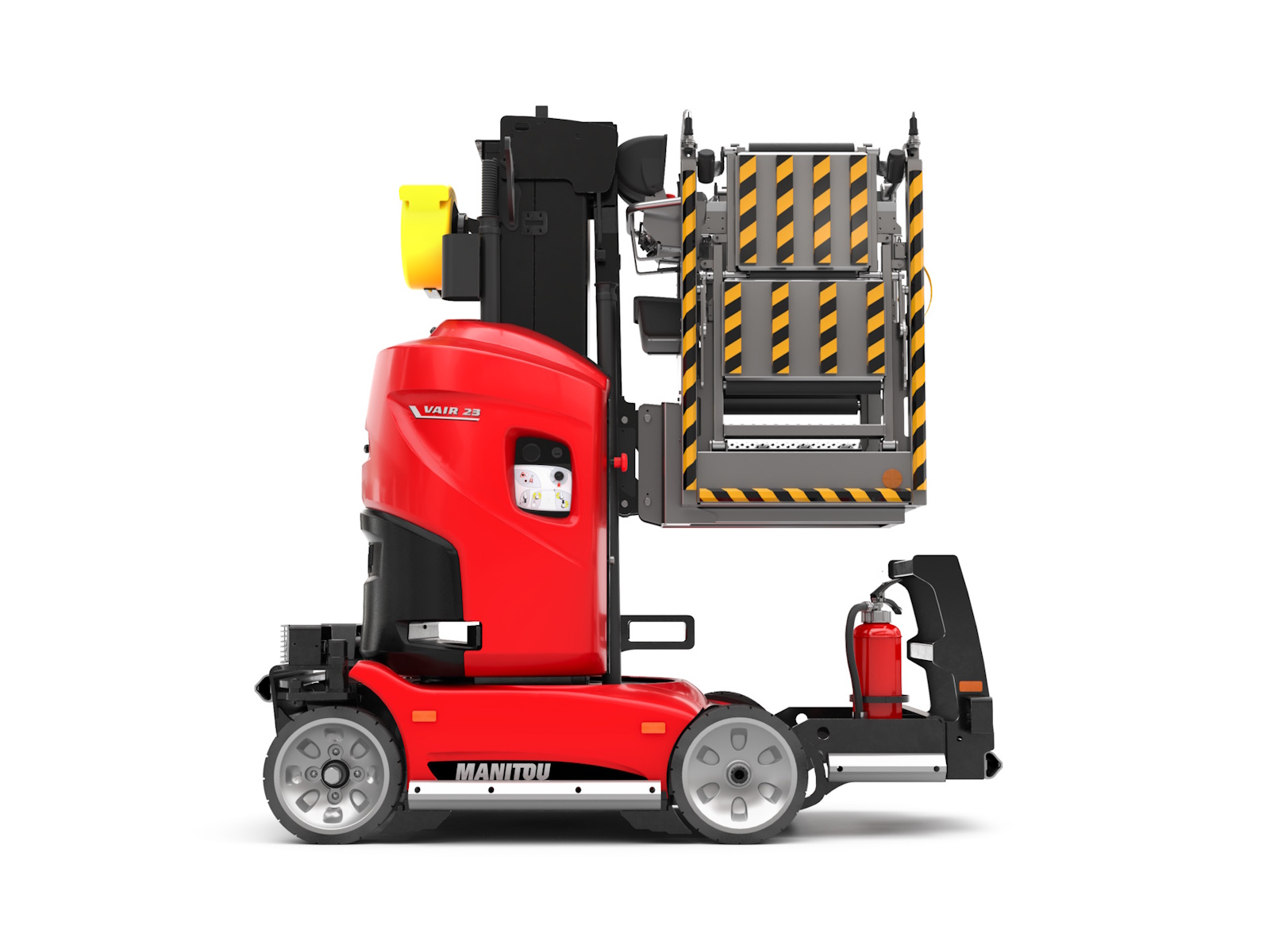

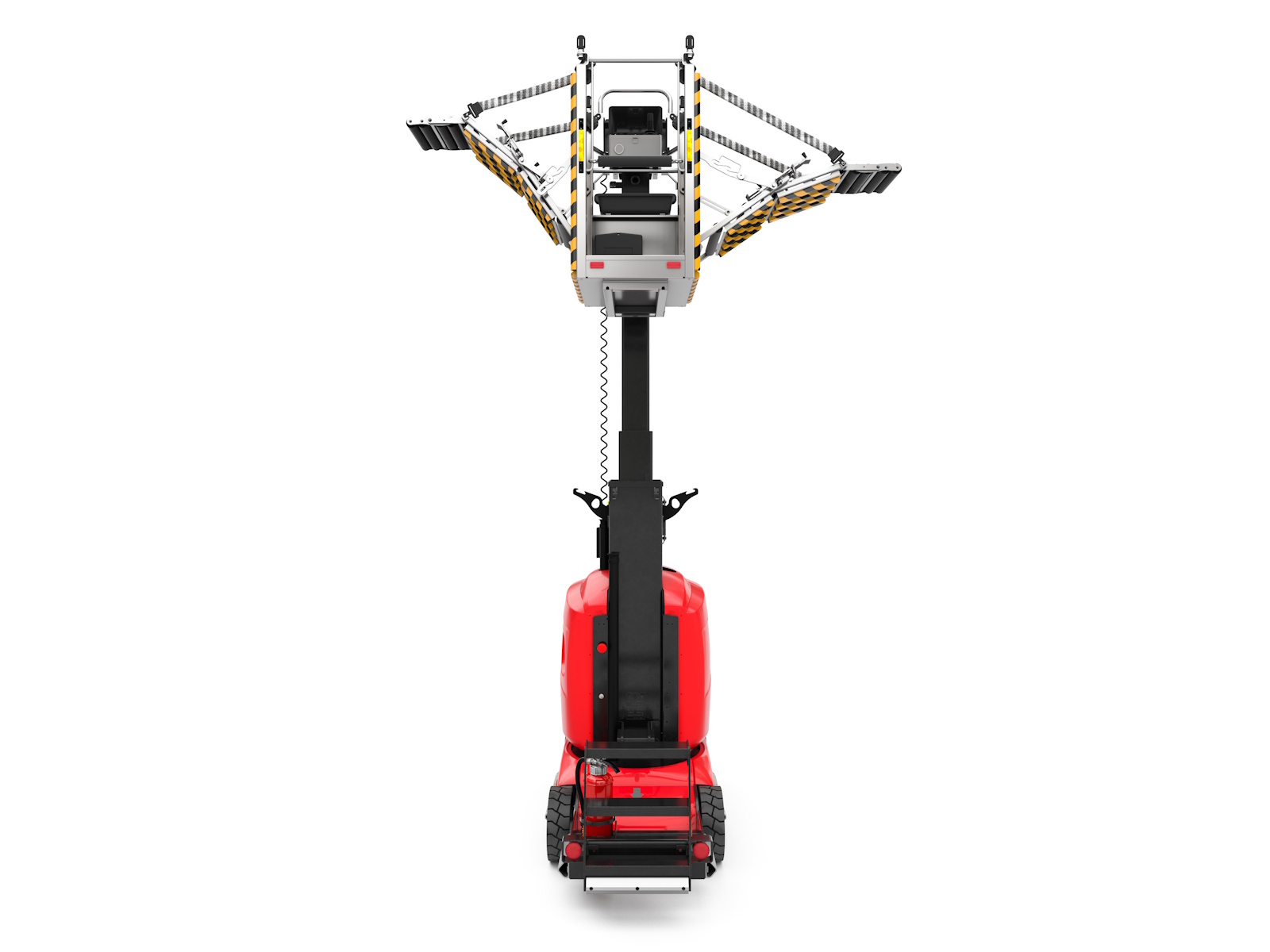

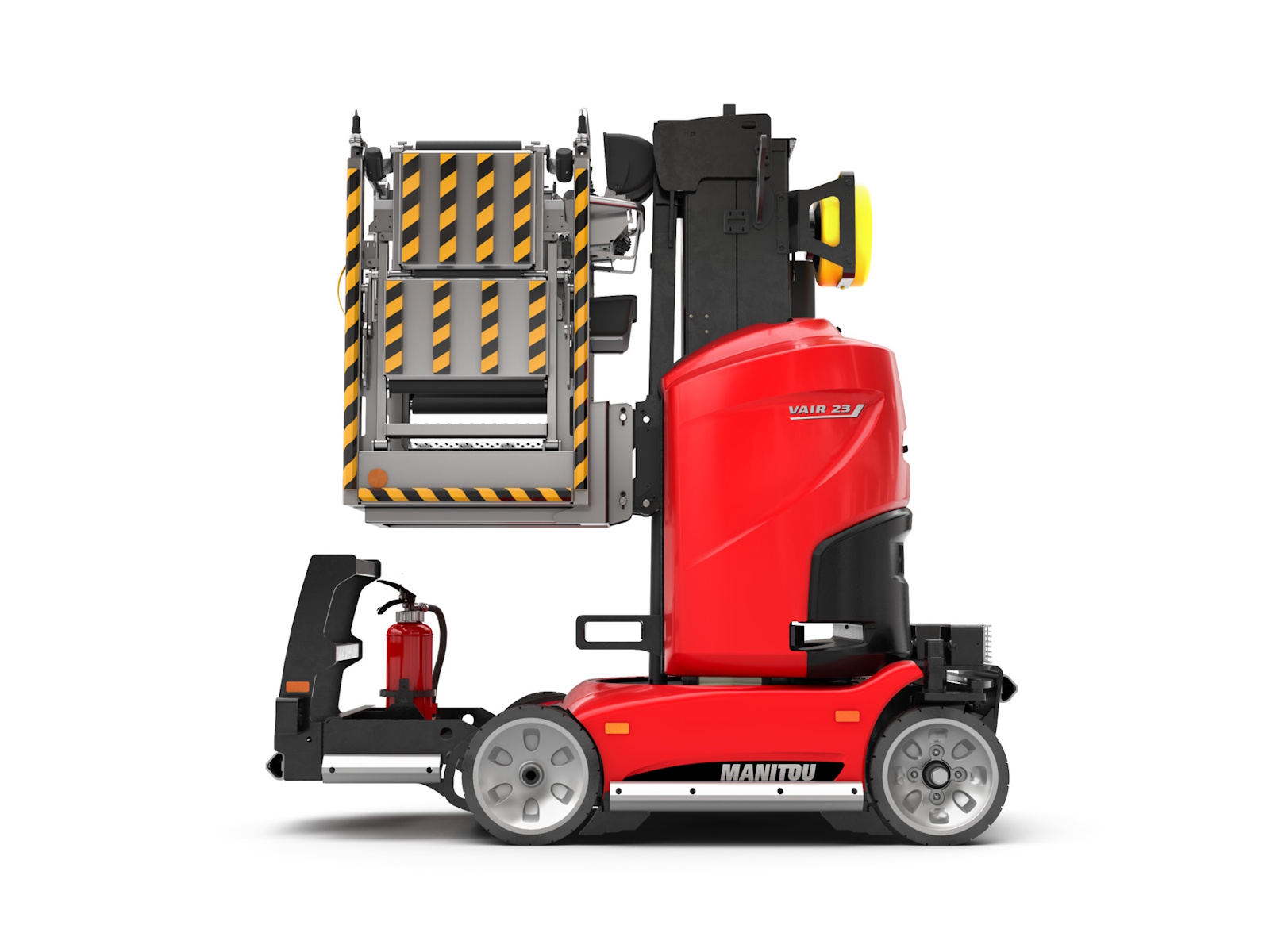

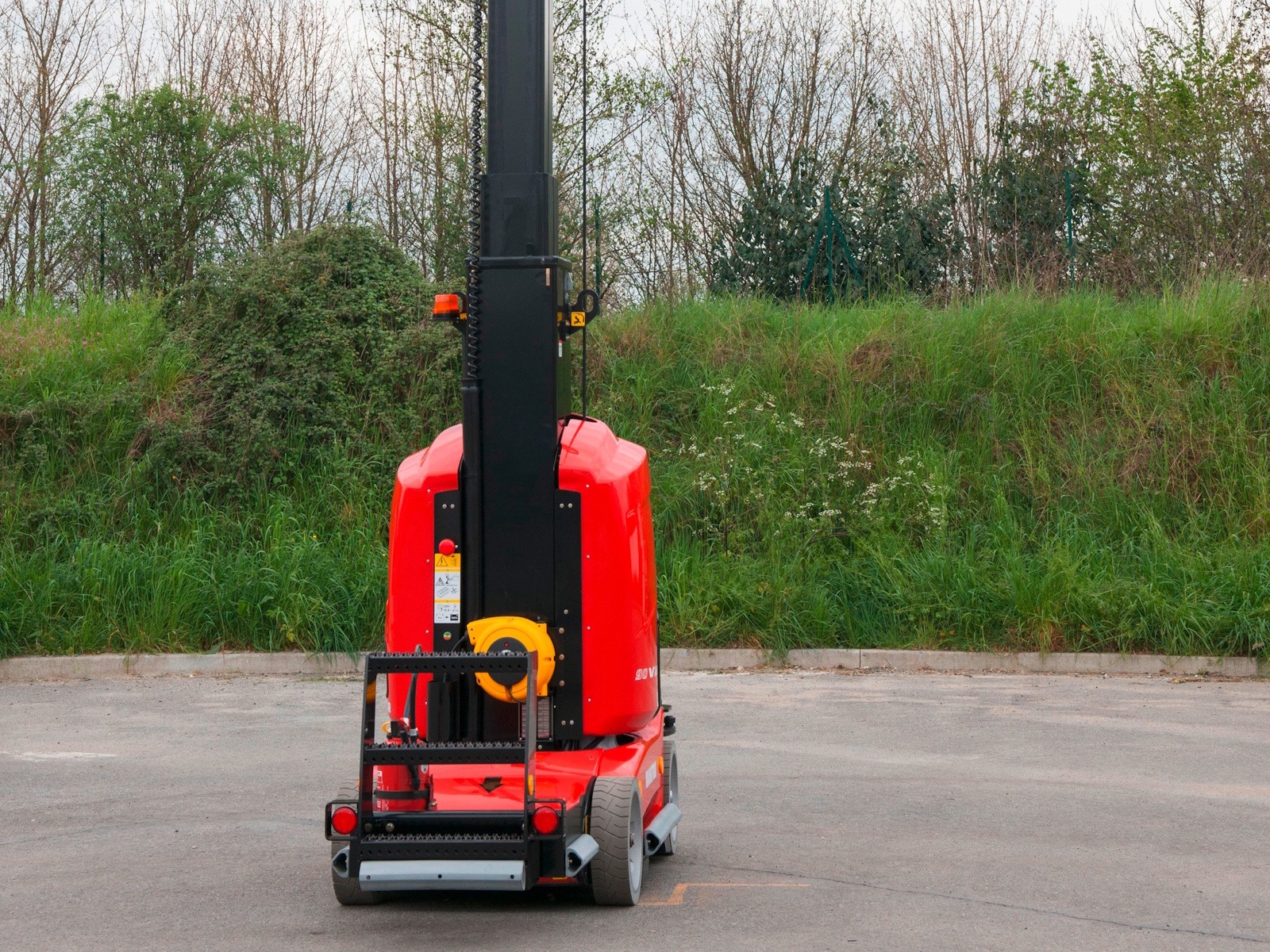

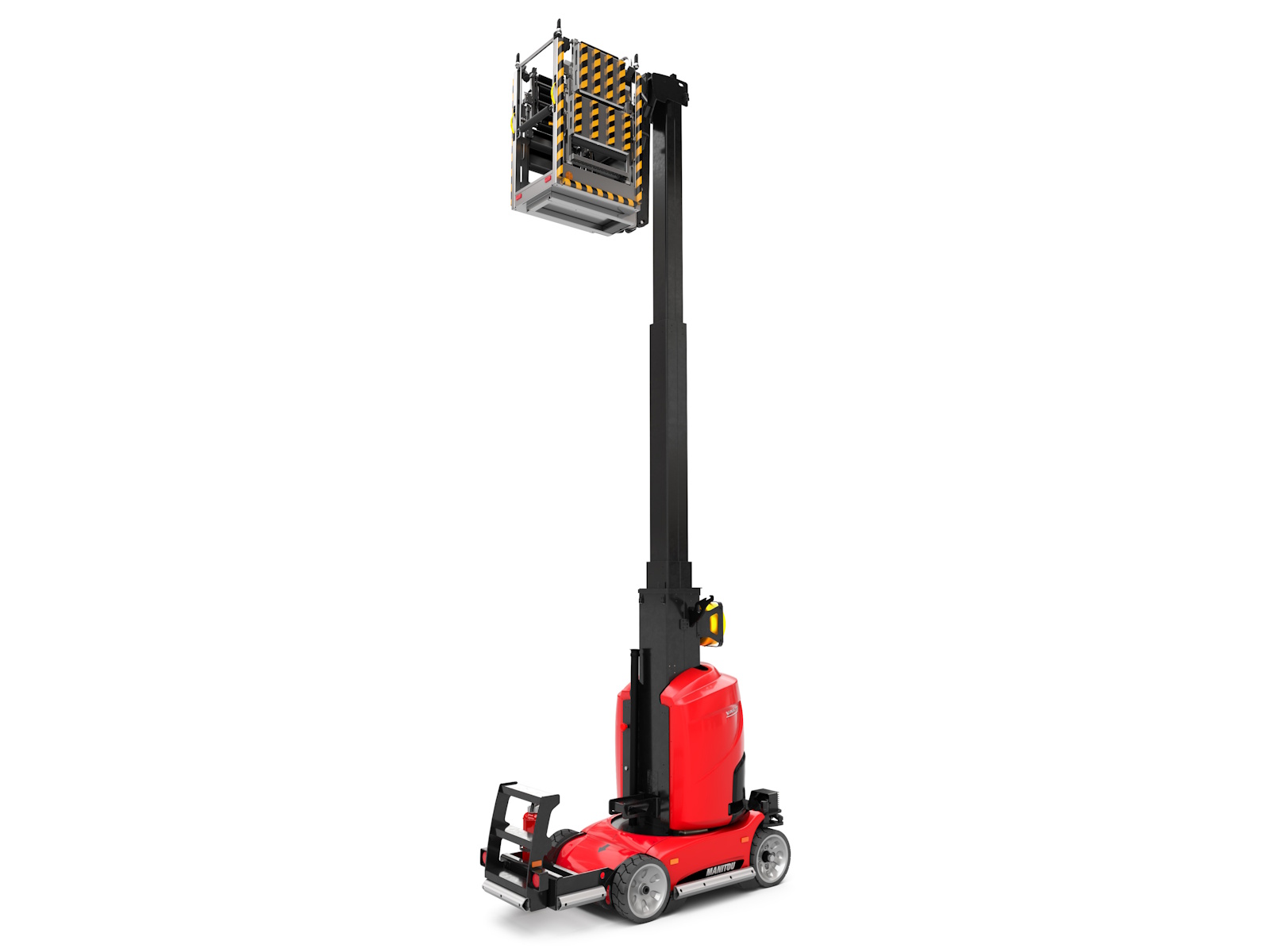

2026 Manitou Group V'Air 23

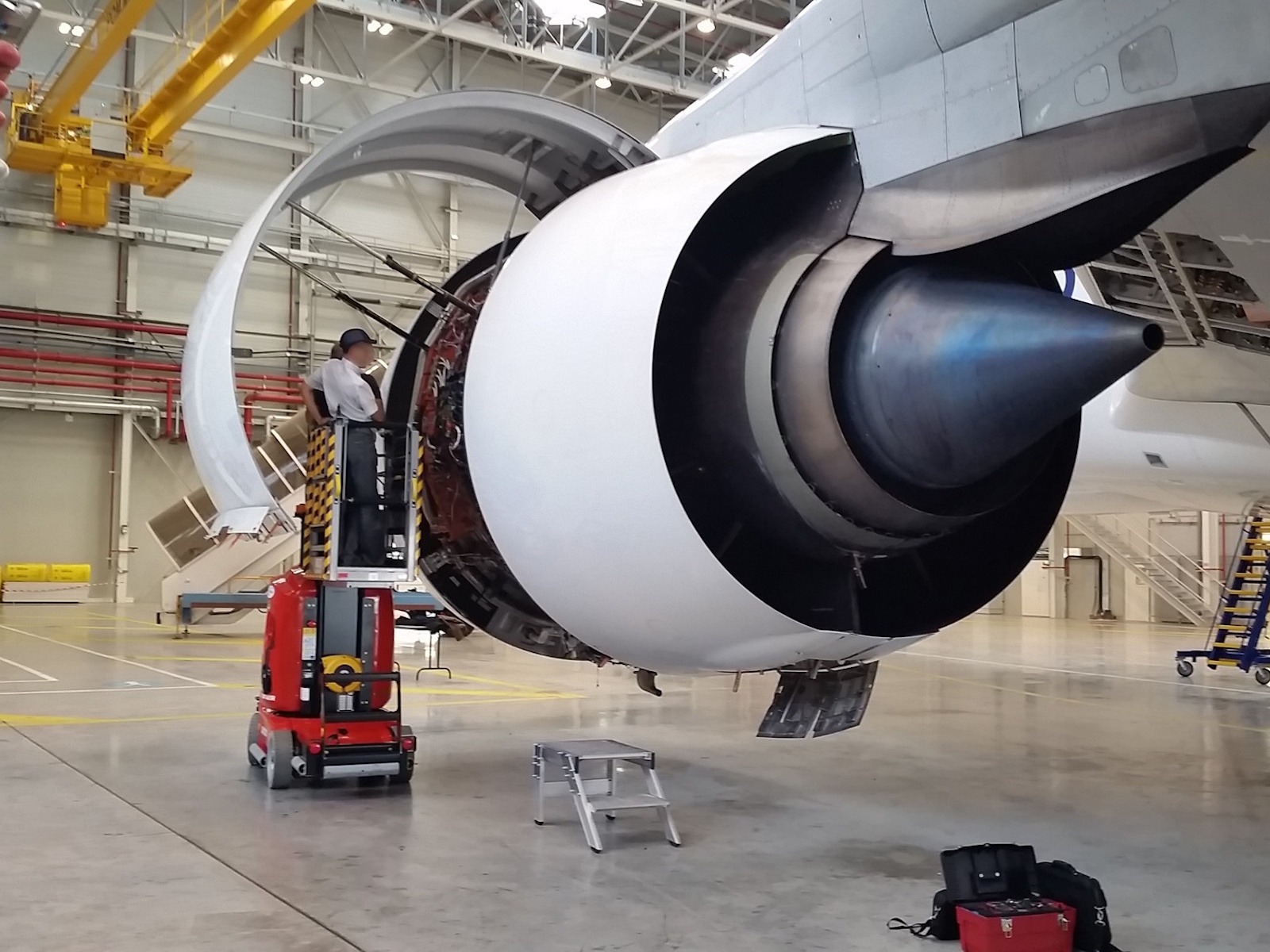

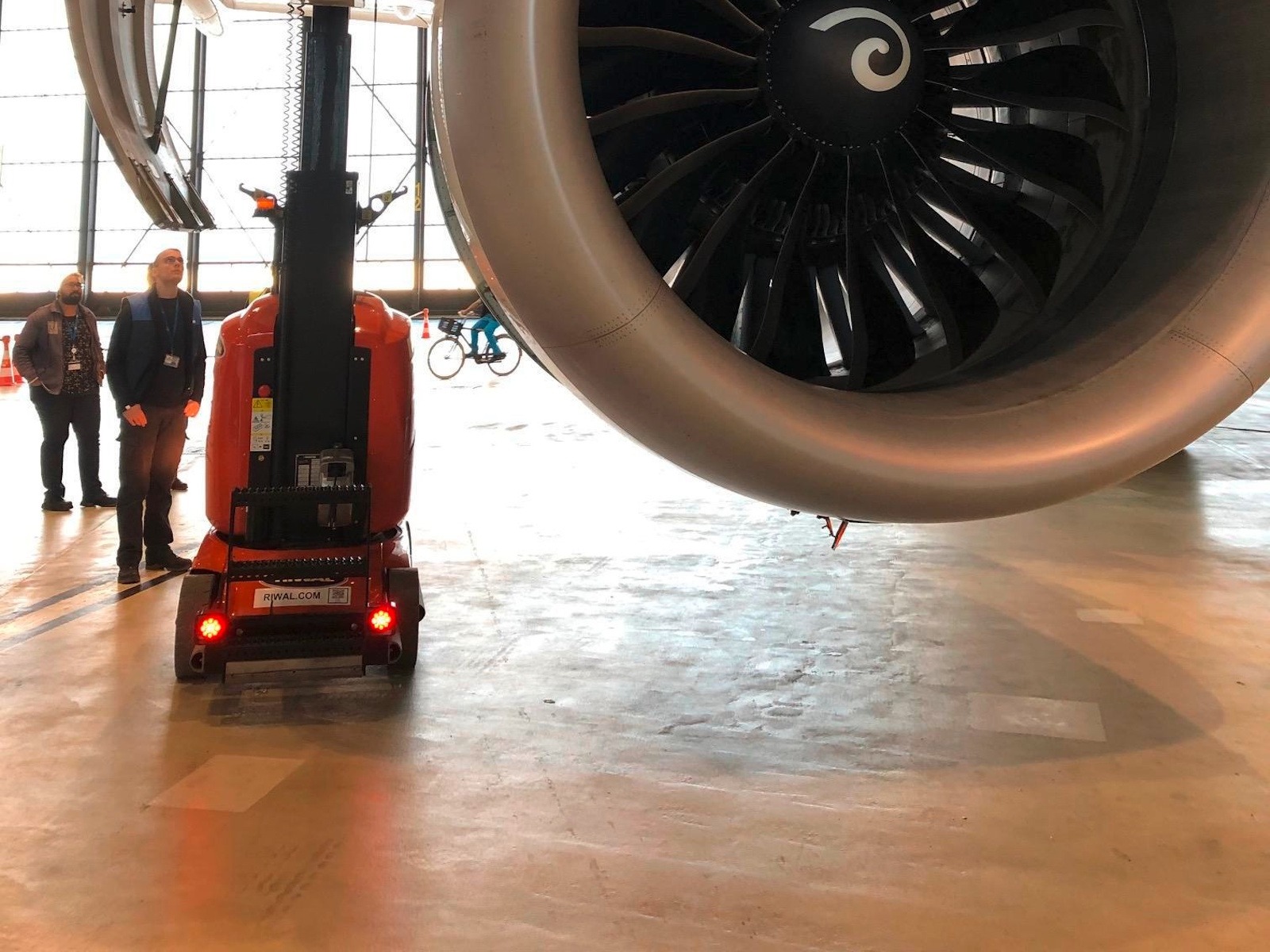

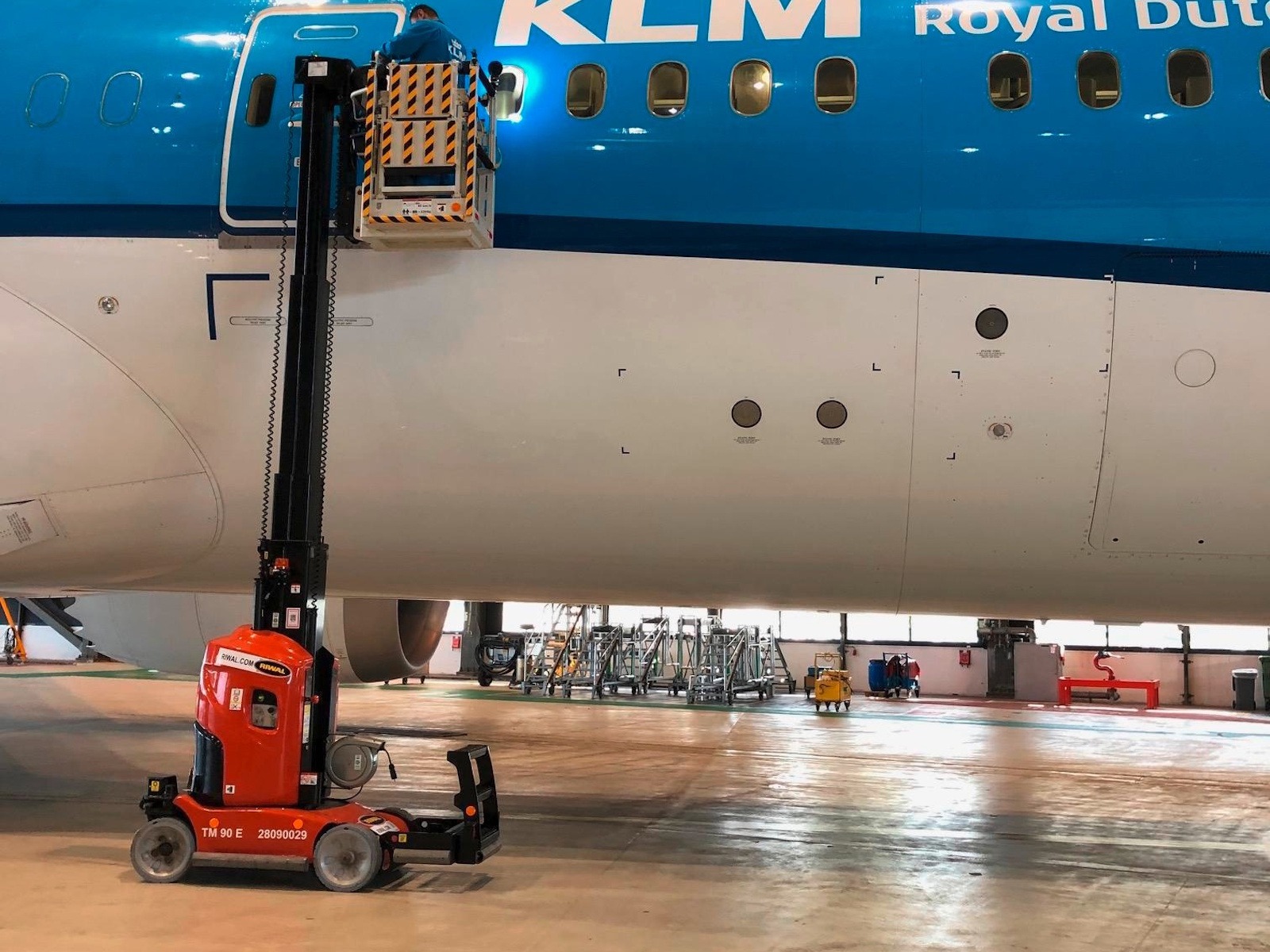

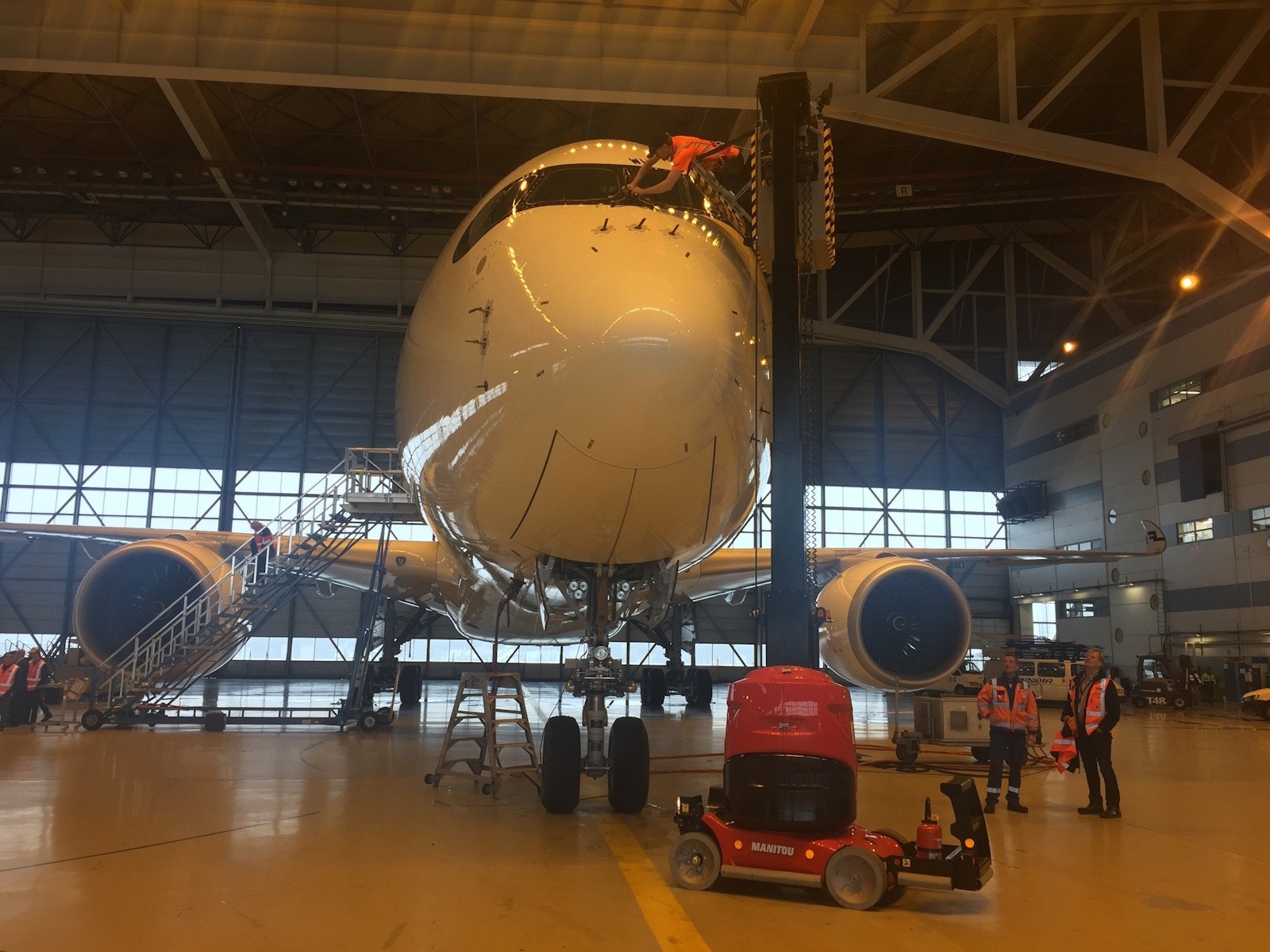

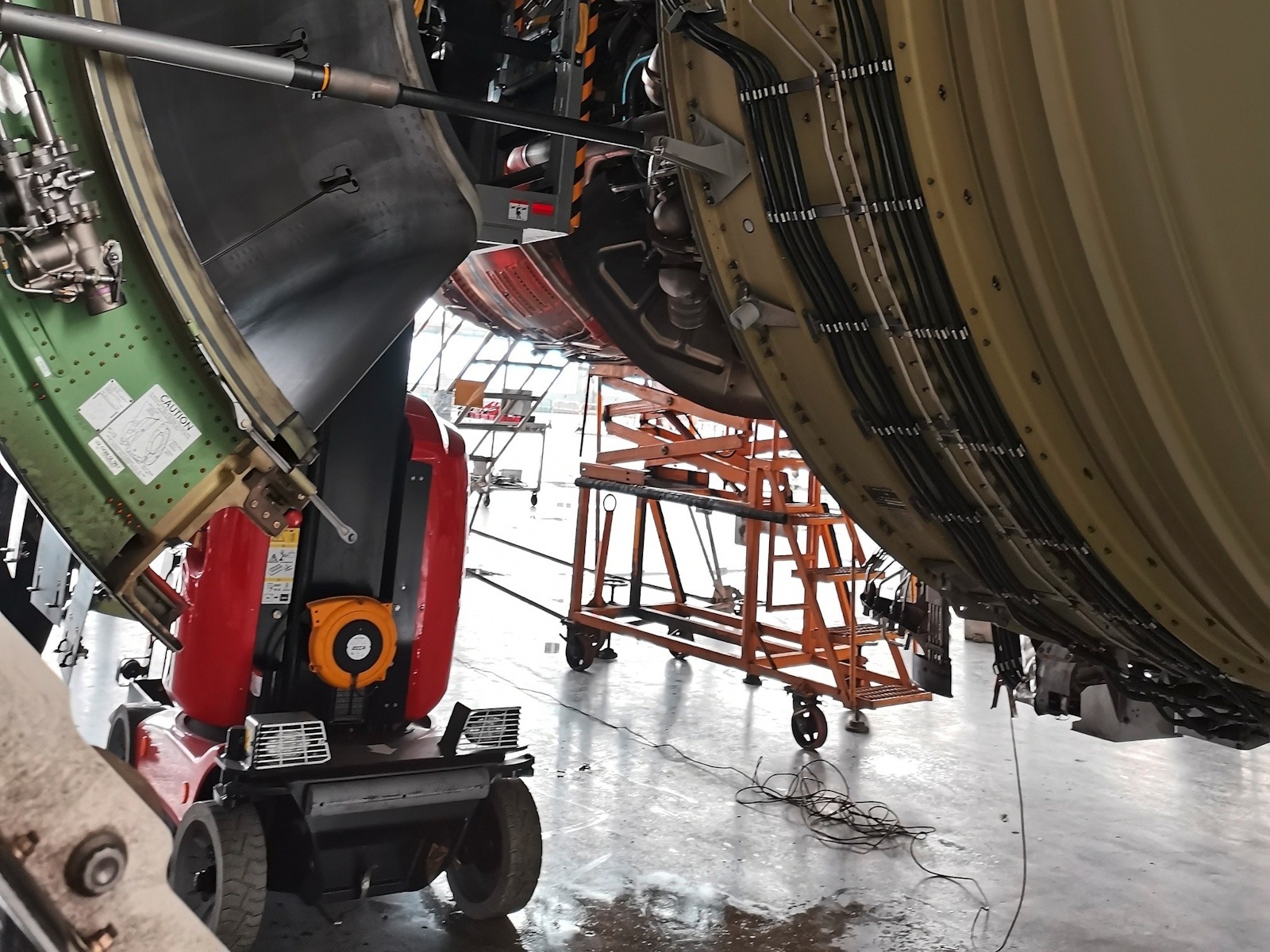

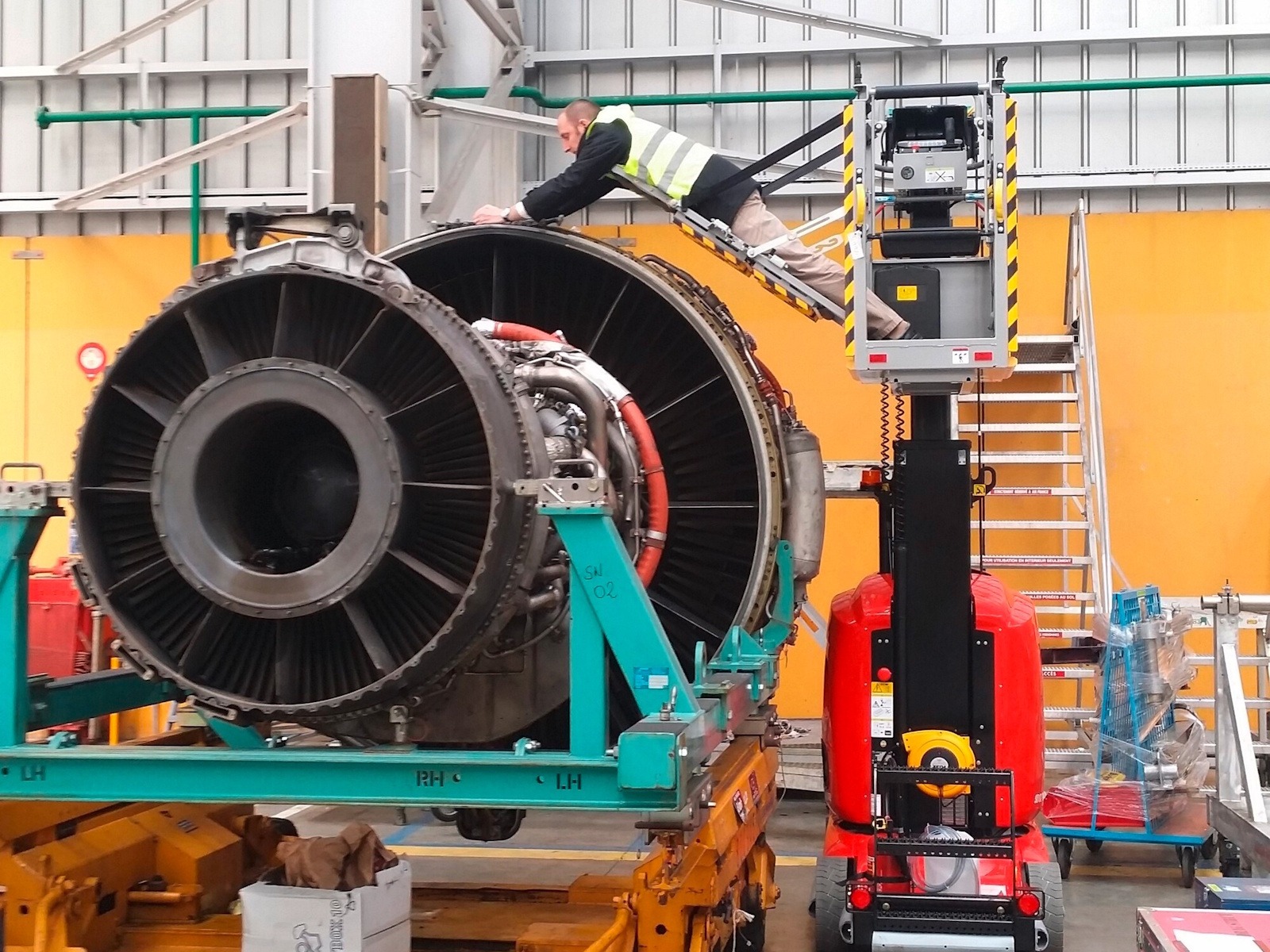

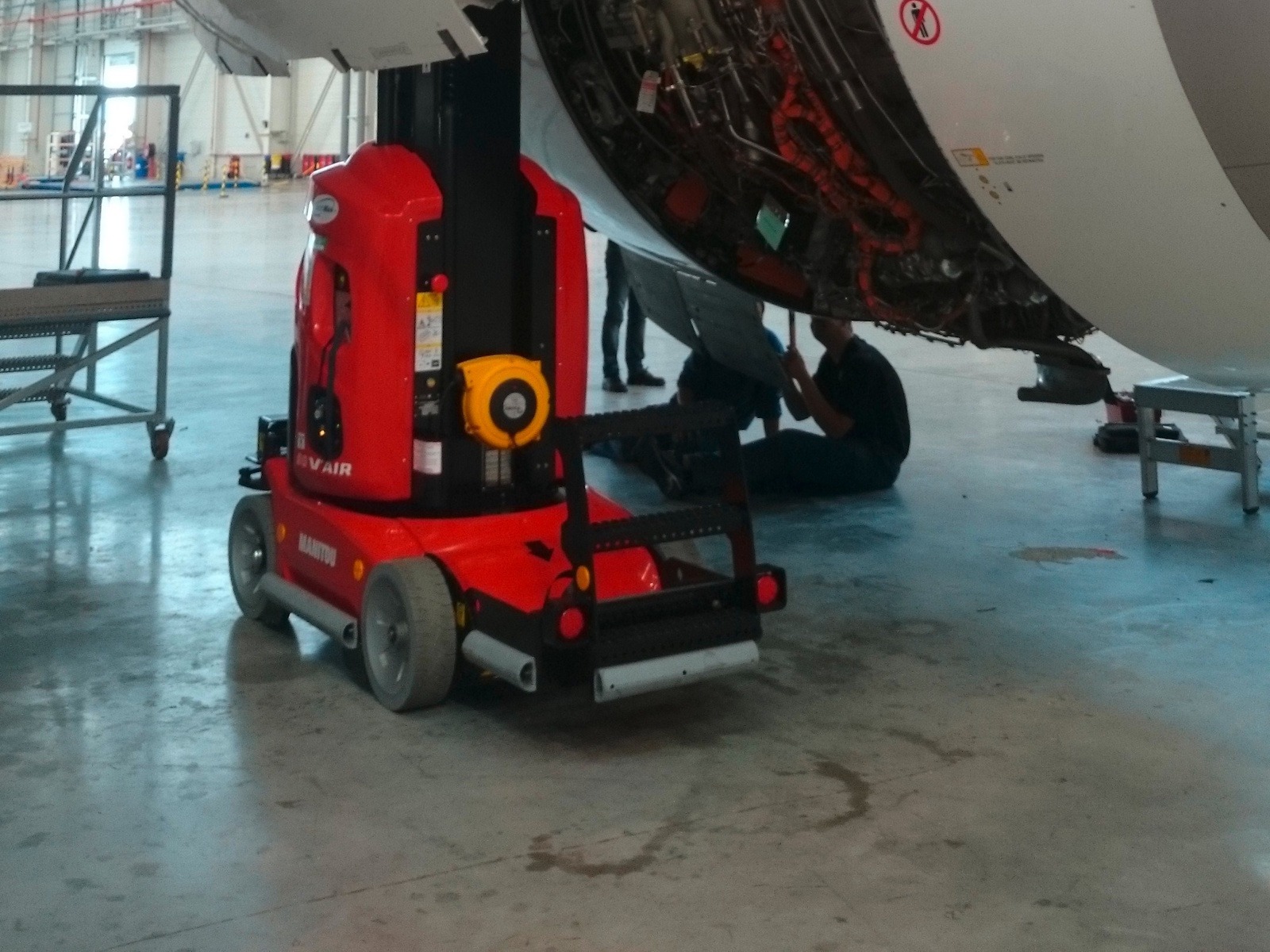

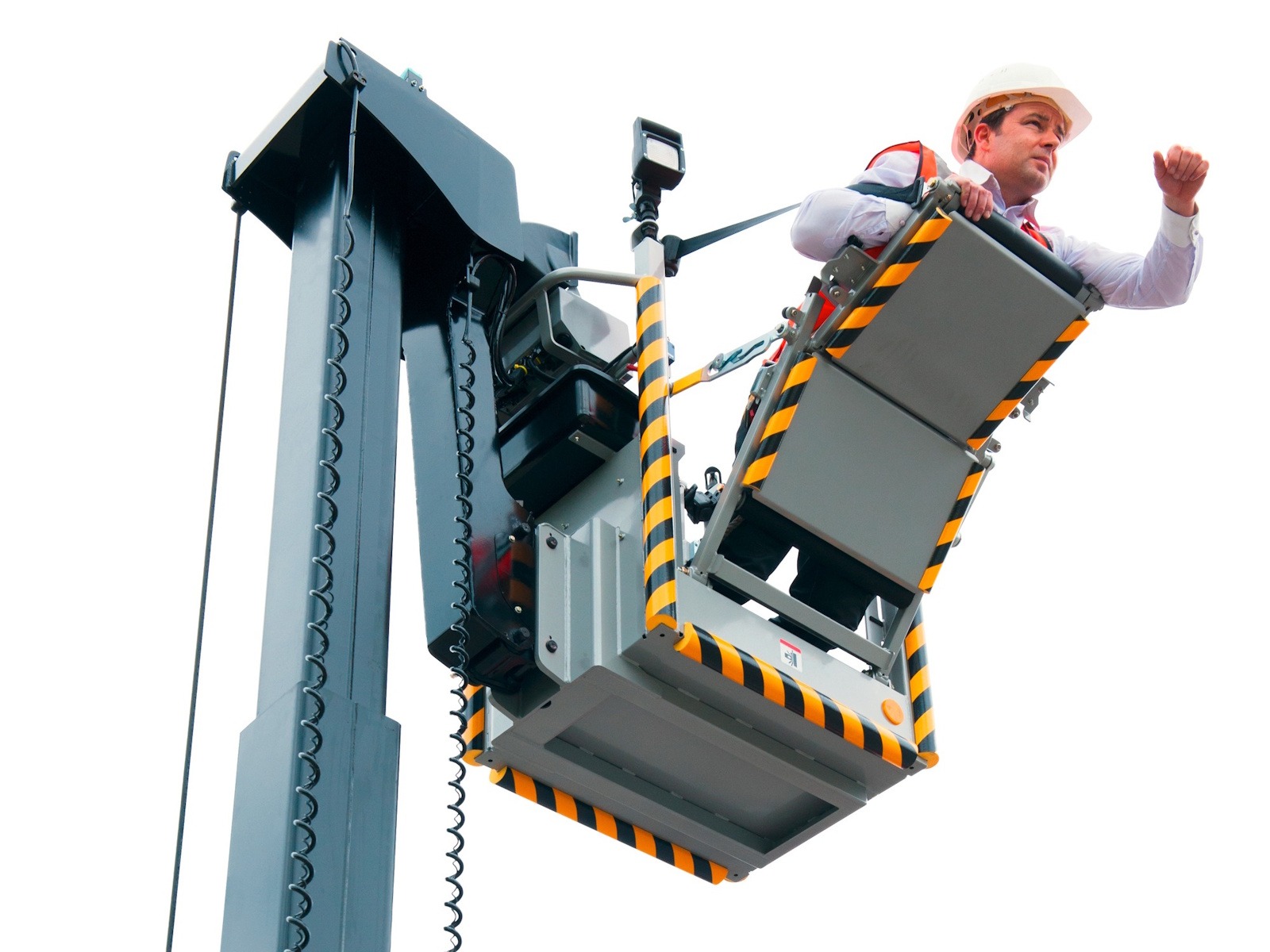

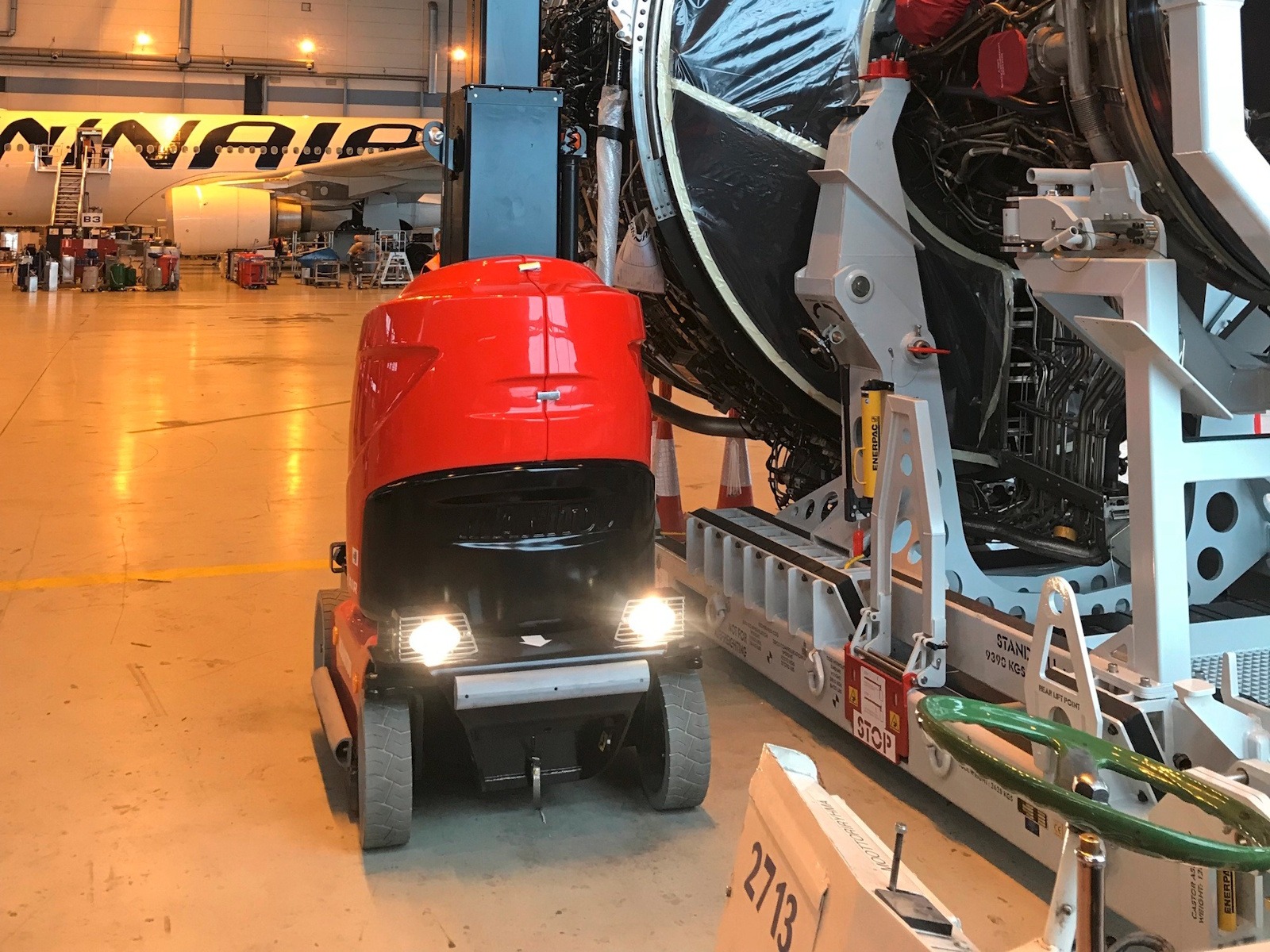

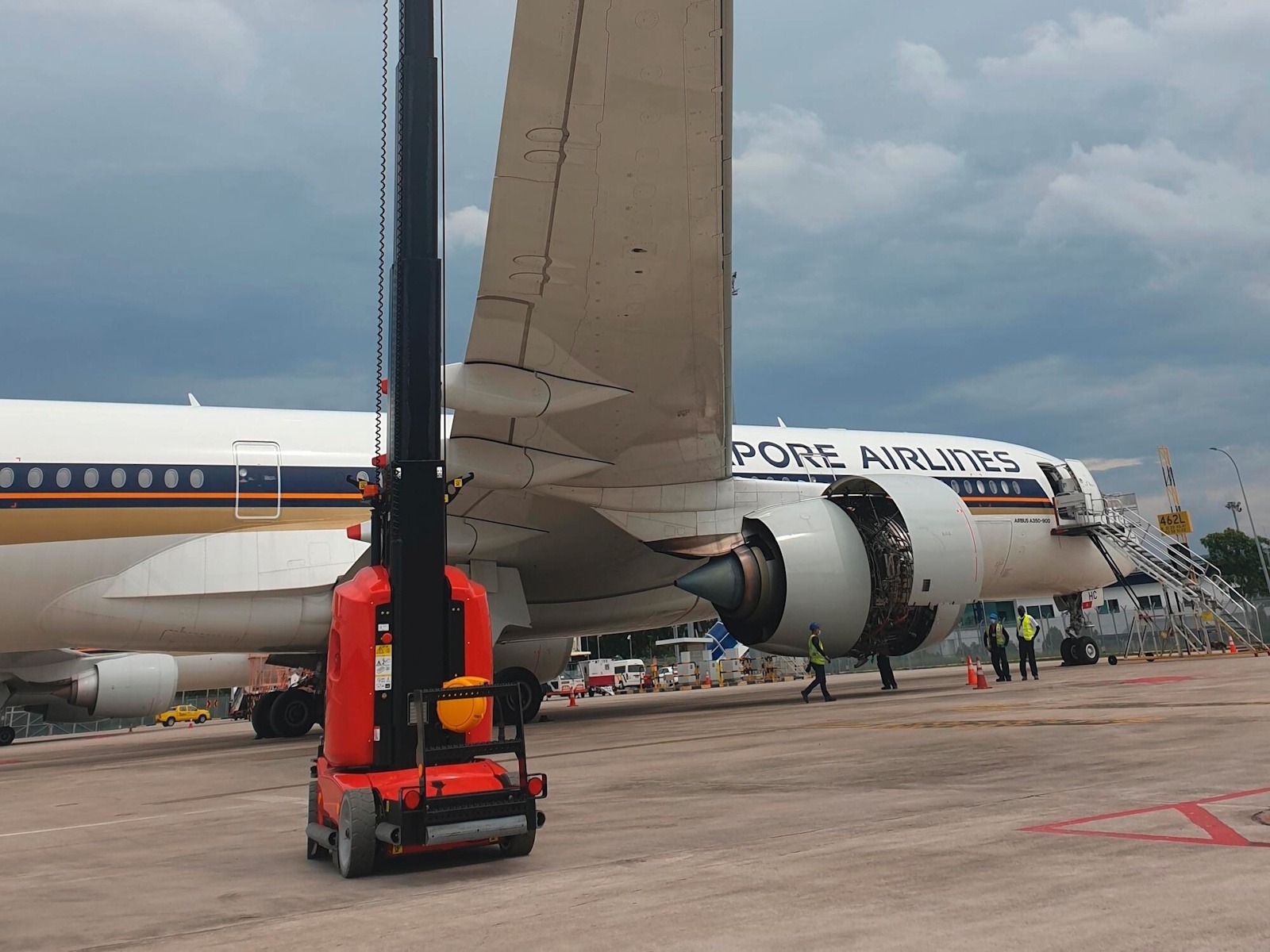

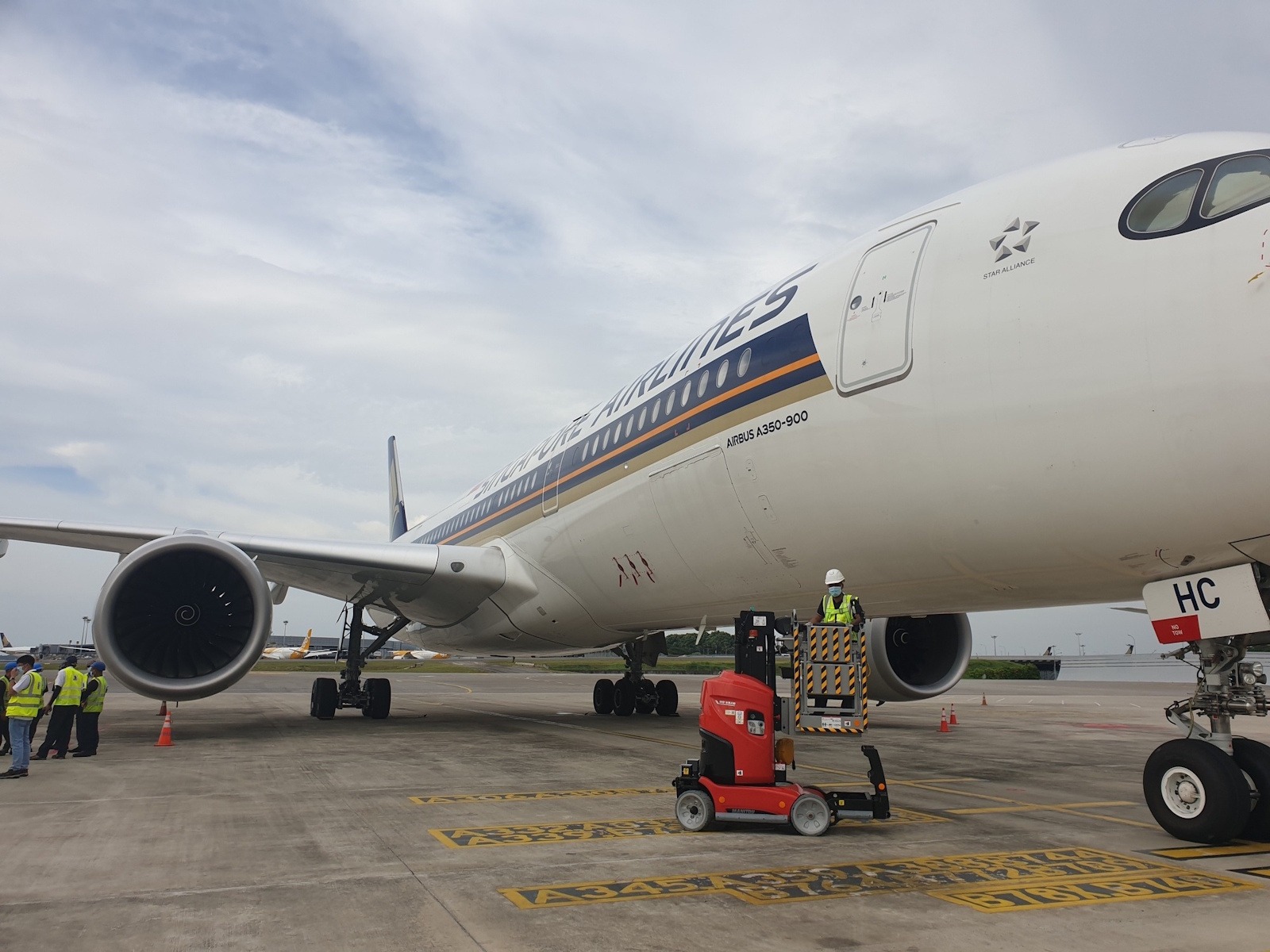

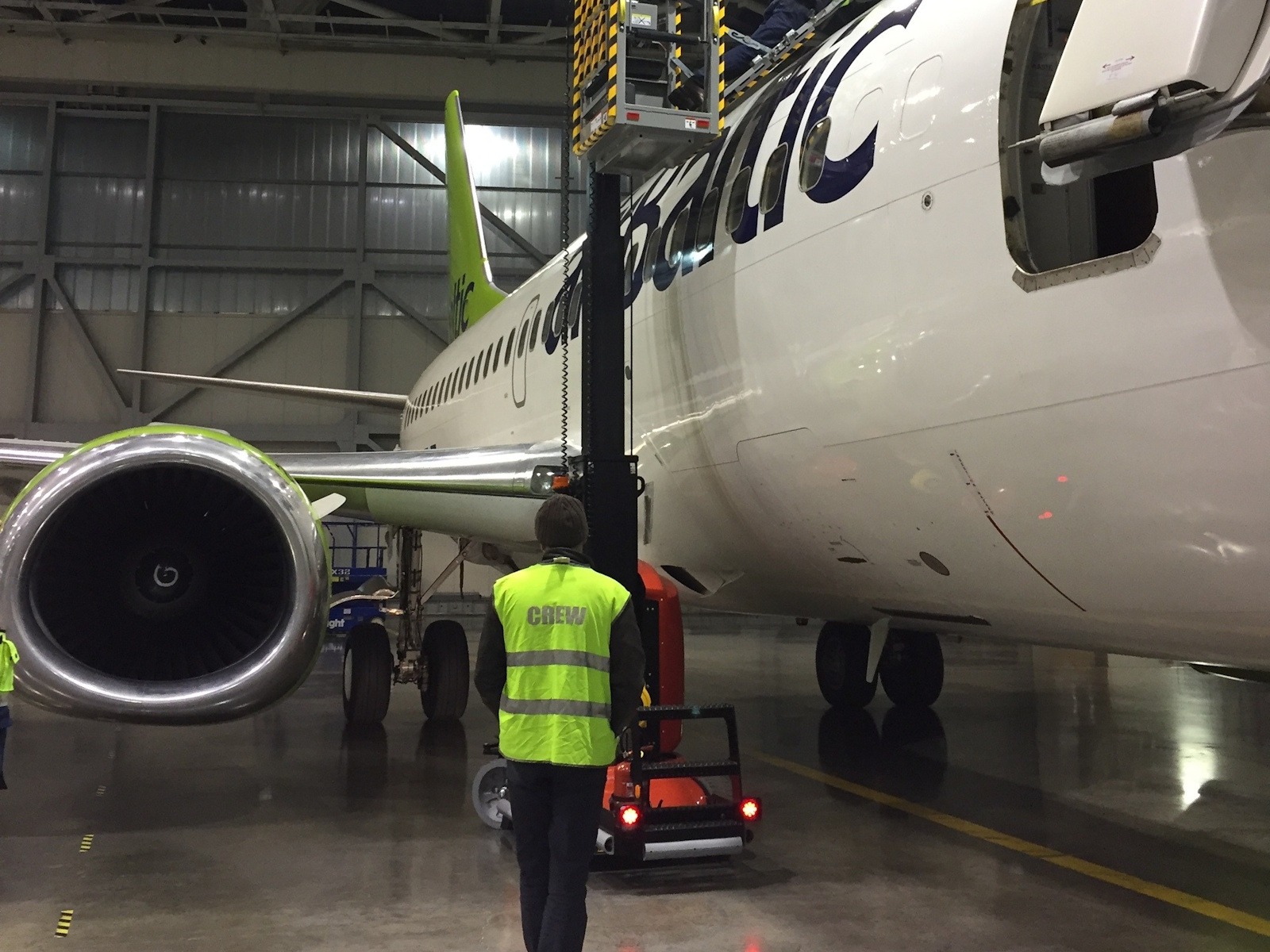

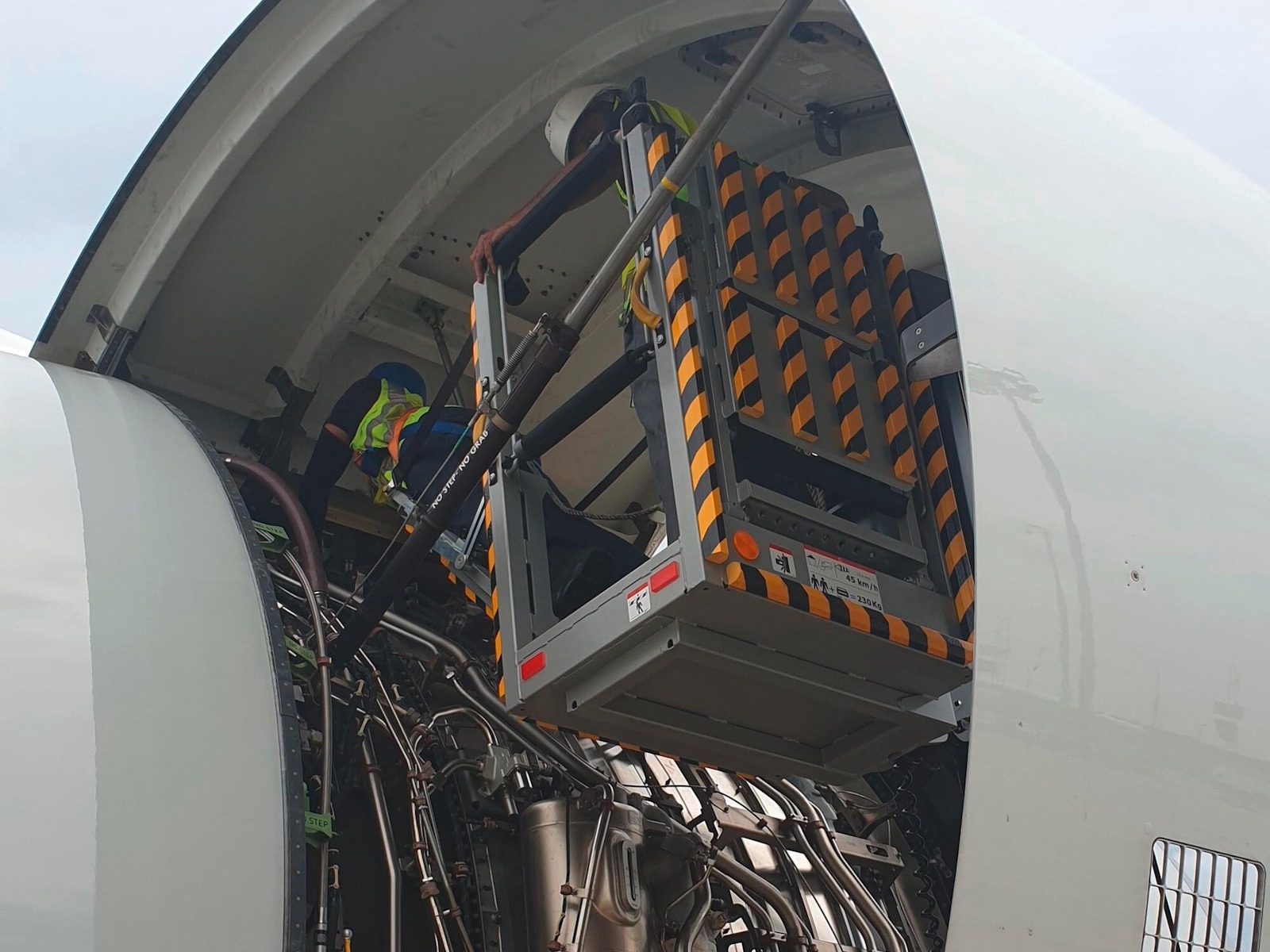

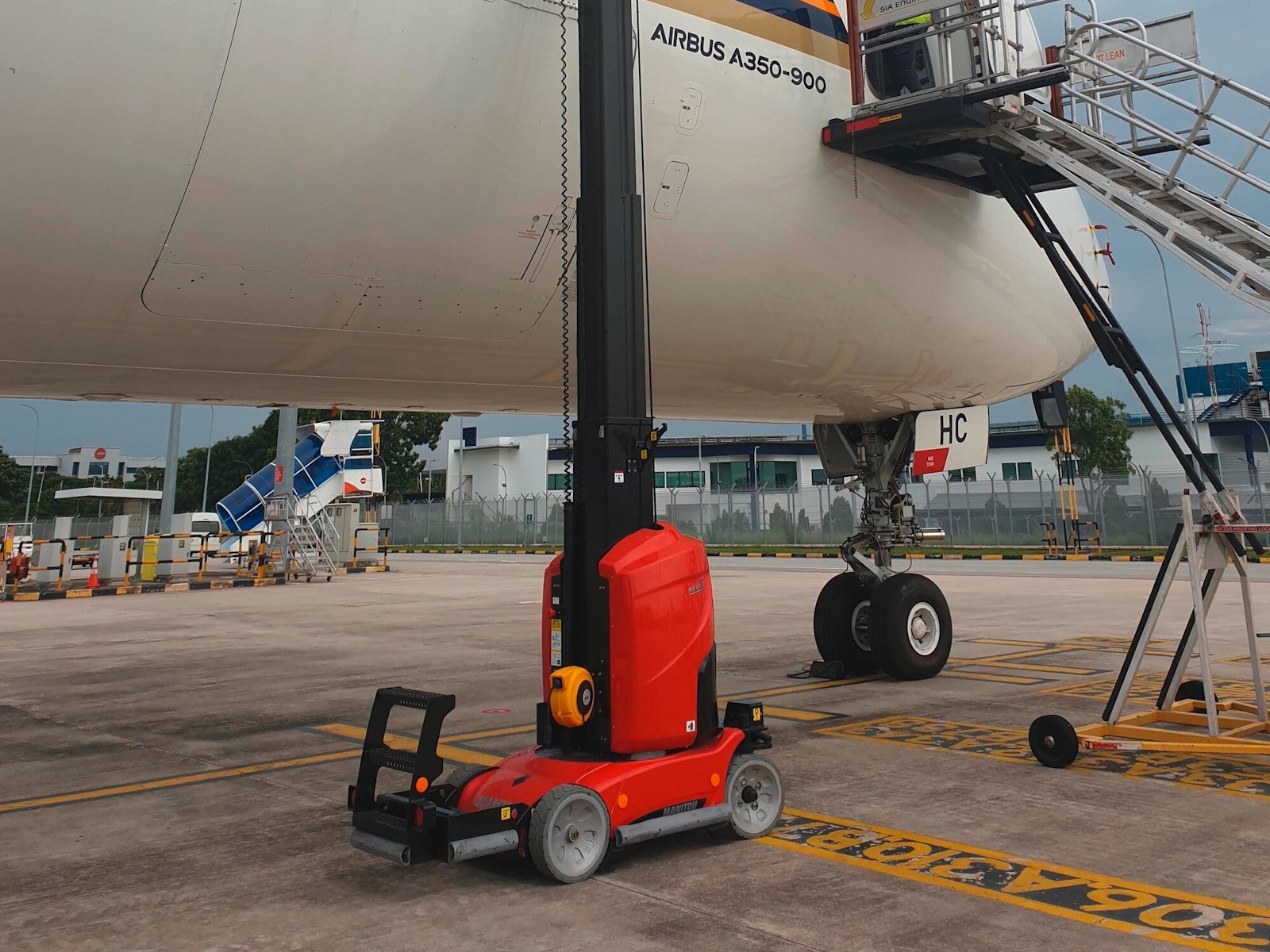

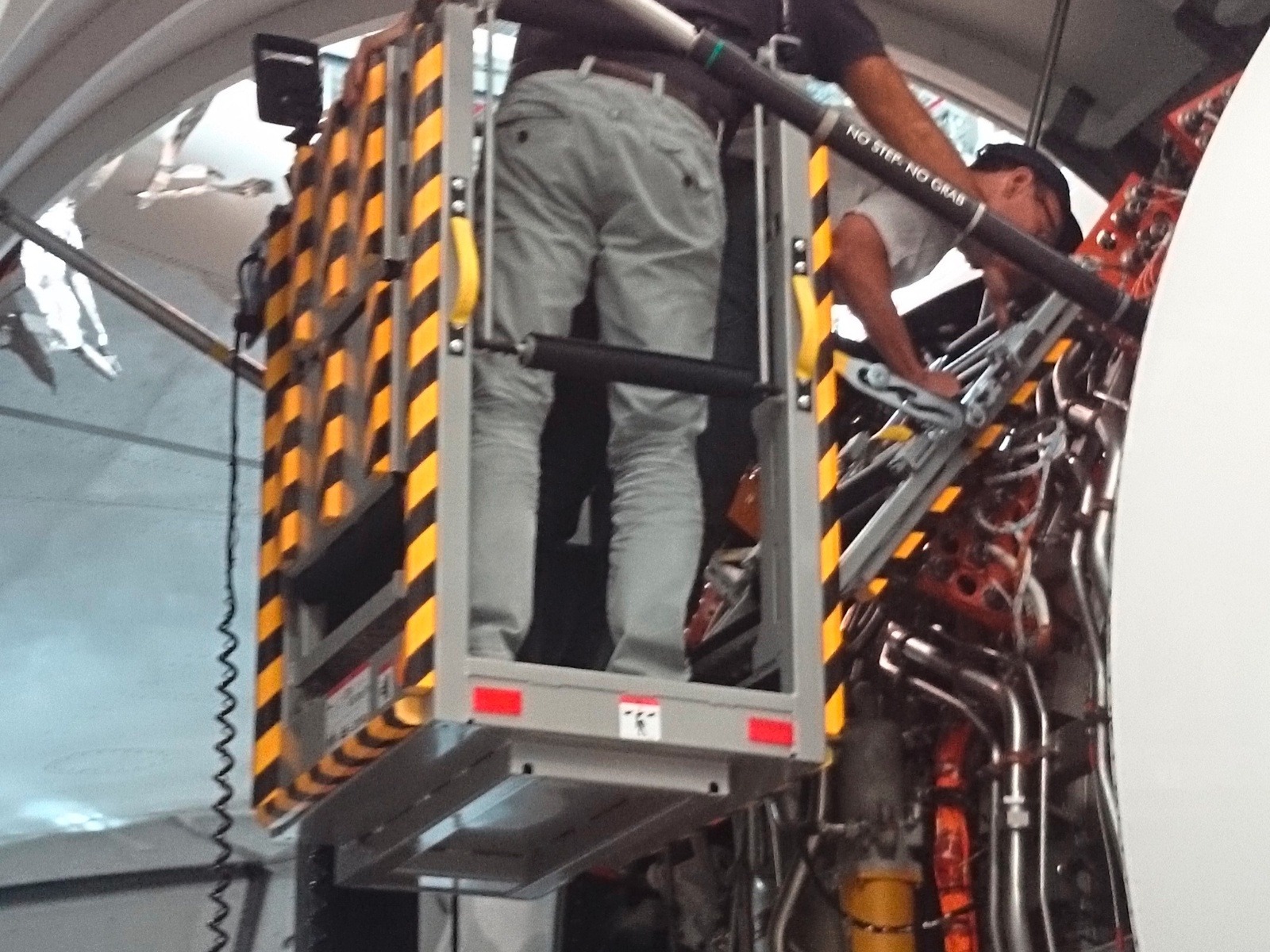

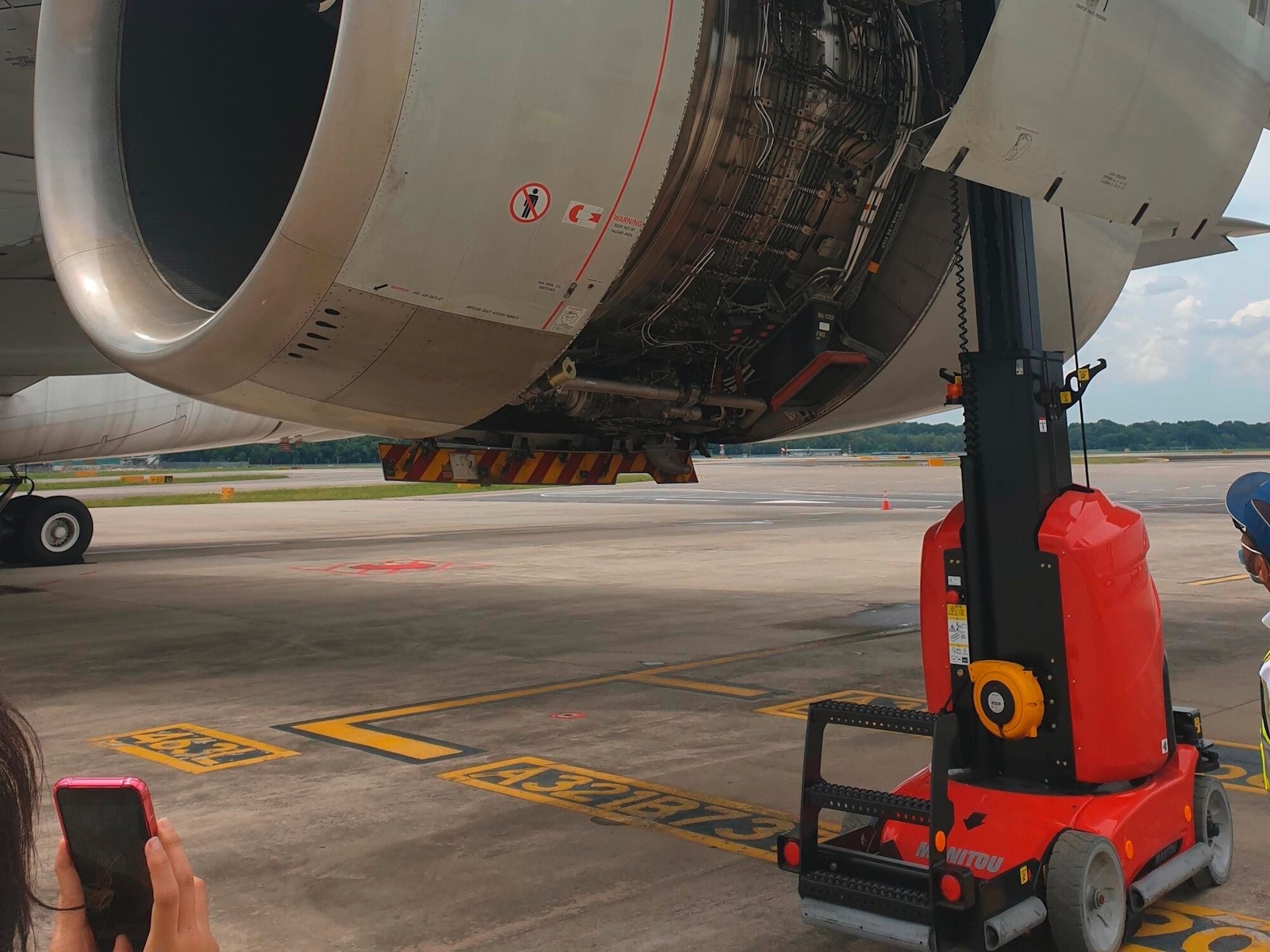

Looking for a handling solution to work at heights in very tight spaces for the aeronautics industry? Check out the performance of the V'Air 23 mast lift! Equipped with a telescopic mast, this model offers a maximum working height of 29 ft 6 in: ideal to operate in the most remote areas safely. The telescopic mast technology provides stronger visibility on the machine and your surroundings during travel, in a very compact package. This aerial platform allows you to perform your maintenance operations with comfort and precision.
Info
Industry
Agriculture
Make
Manitou Group
Model
V'Air 23
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Height
6 ft 7 in | Working height: 28 ft 4 in | Platform height: 22 ft | Overall height (stowed): 6 ft 7 in
Notes
Max. outreach: 14 ft 8 in | Platform capacity: 507 lb | Turret rotation: 355 ° | Platform rotation (right / left): 46 ° / 46 ° | Number of people (indoor / outdoor): 2 / 2 | Platform dimensions (length x width): 4 ft 11 in x 2 ft 6 in | Drive speed - stowed: 2.80 mph | Drive speed - raised: 0.50 mph | Gradeability: 25 % | Maximum allowable tilt: 3 ° | On-board charger (V / A): 48 V / 30 A | Hydraulic tank capacity: 7.90 US gal |Hydraulic pressure: 3046 PSI | Sound pressure level (platform work station) (LpA): 70 dB | Vibration on hands/arms: < 2.50 m/s²
Weight
Platform weight*: 6757 lb
Length
15 ft 6 in | Overall length (stowed): 15 ft 6 in
Width
4 ft 11 in
Wheelbase
6 ft 7 in
Ground Clearance
5 in
Turning Radius
Turning radius (inside): 1 ft 11 in | Turning radius (outside): 9 ft 11 in
Tires
Non-marking solid tires | 23 x 9 in
Wheels
Drive wheels: 2 | Braking wheels: 2
Steering
Steering wheels: 2
Battery
Battery technology: Lead-acid | Battery voltage: 48 V | Number of batteries / Battery capacity: 8 / 225 Ah | Battery energy: 10.80 kWh
