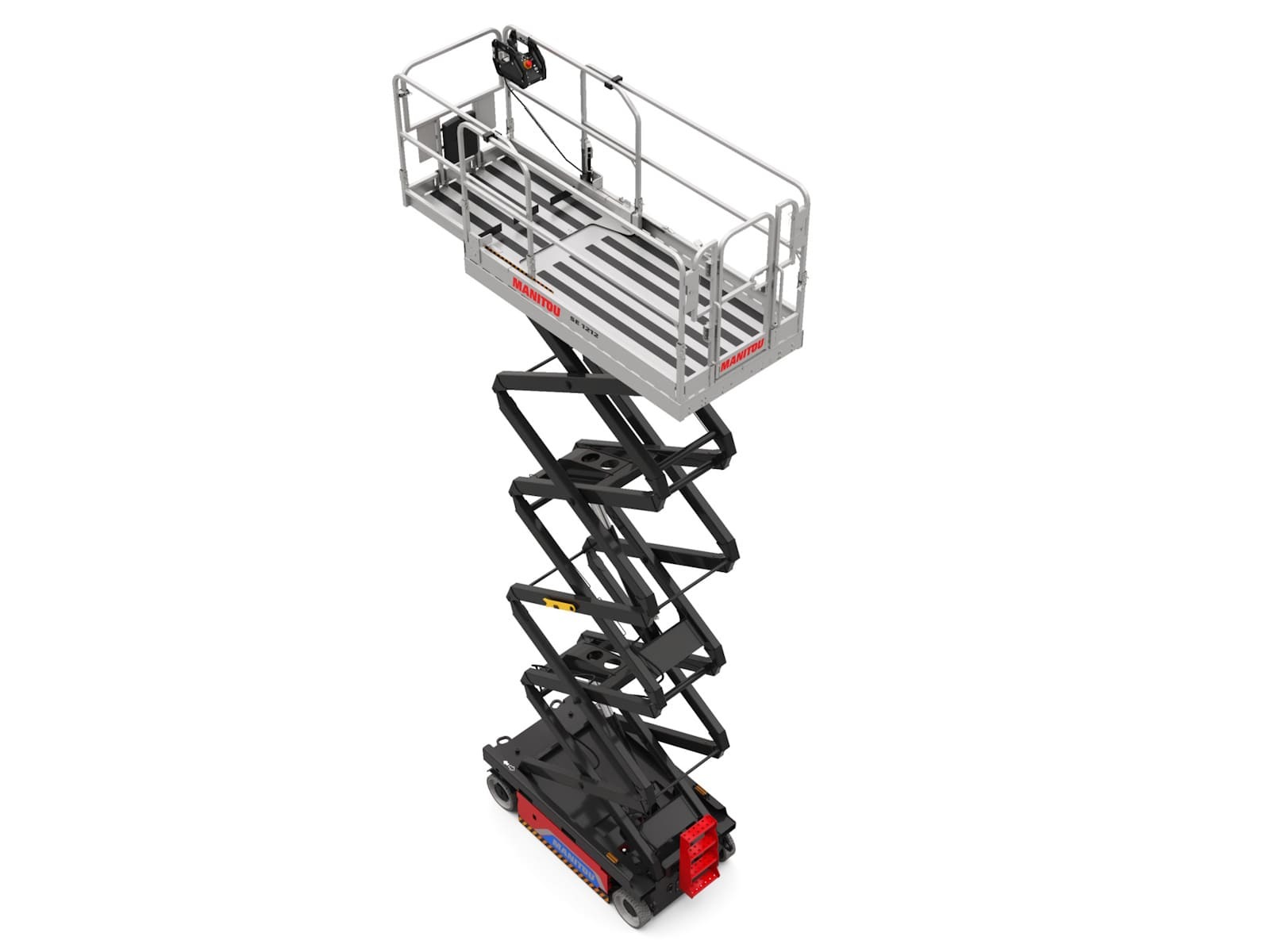

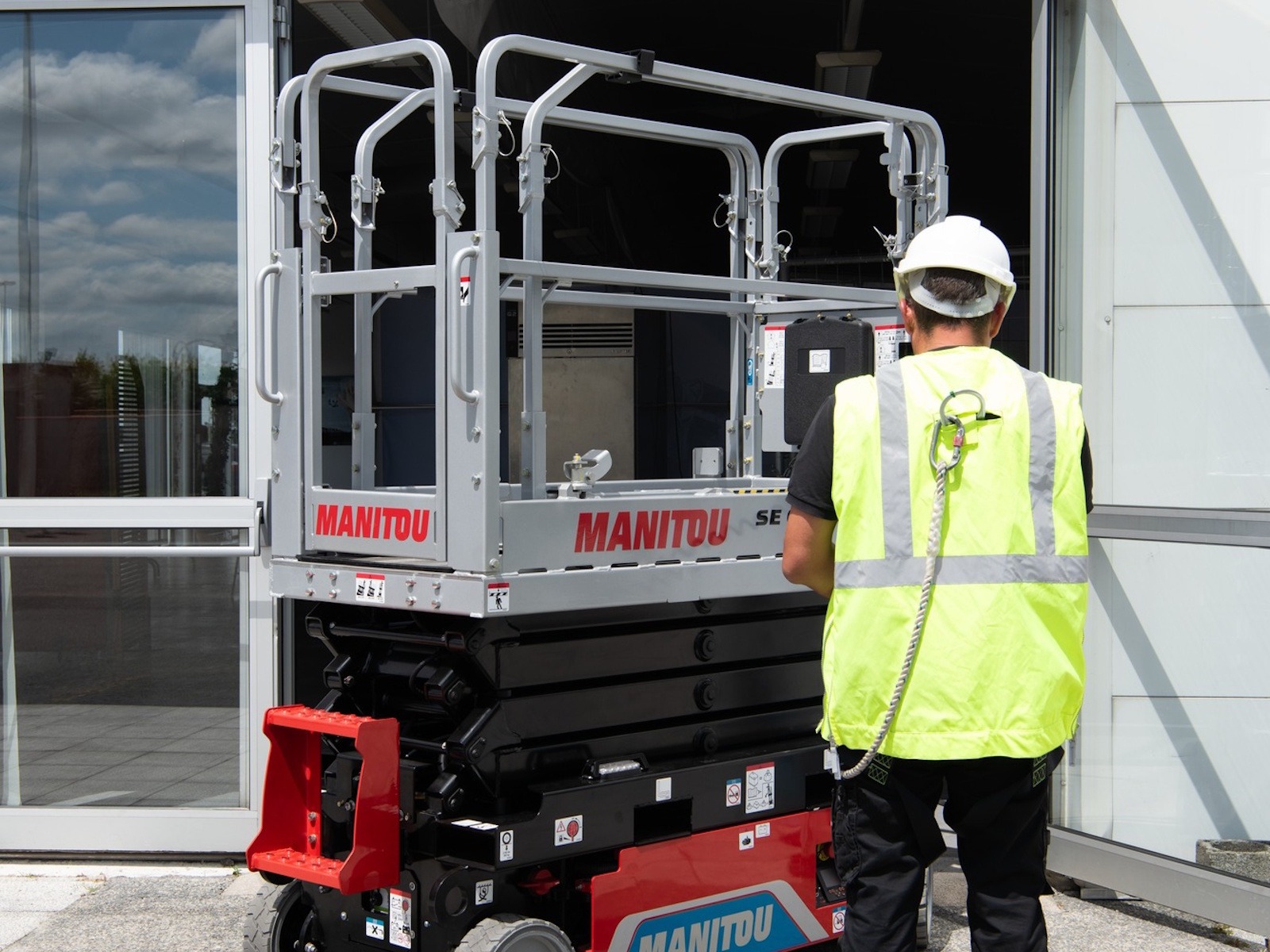

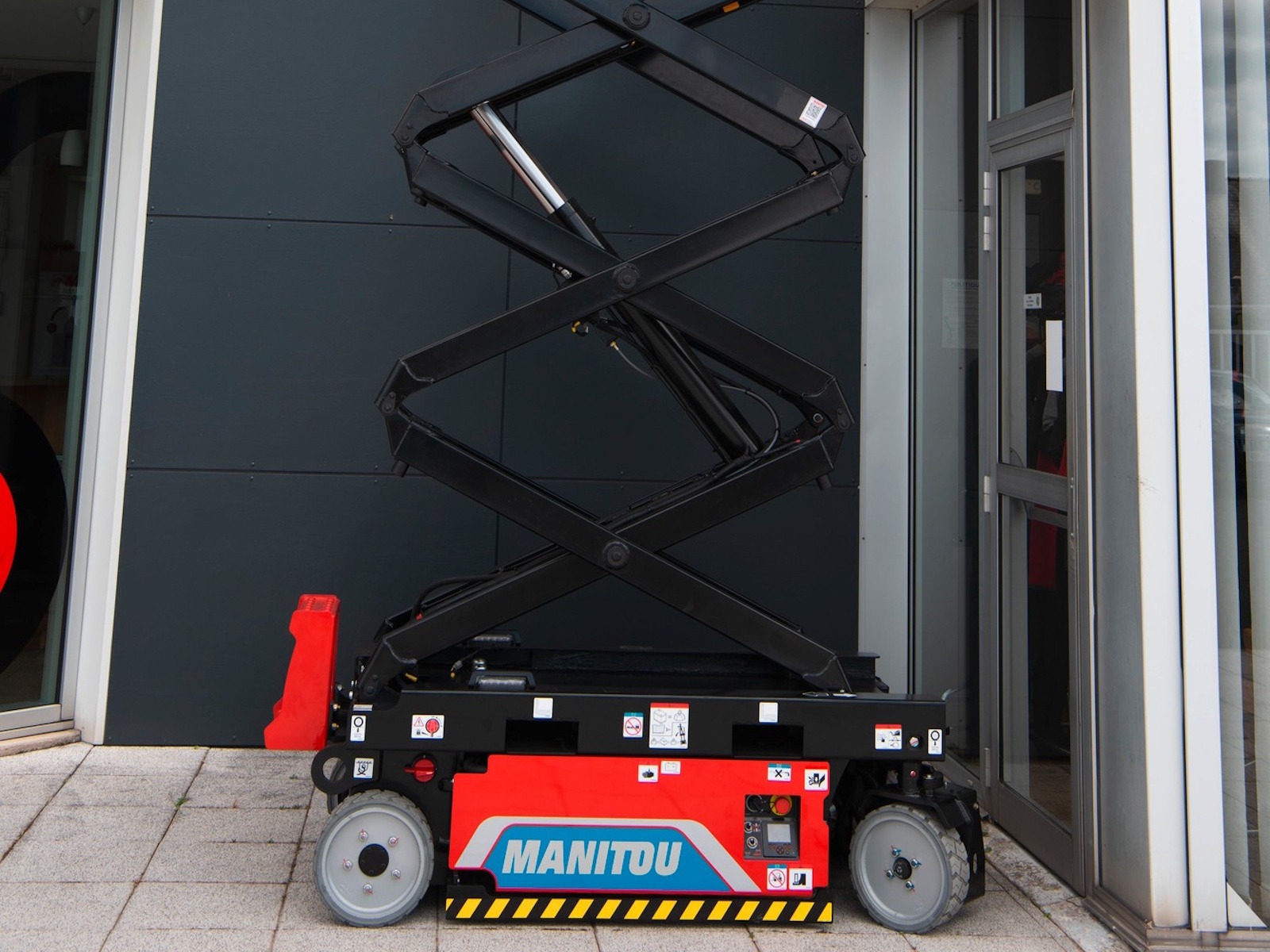

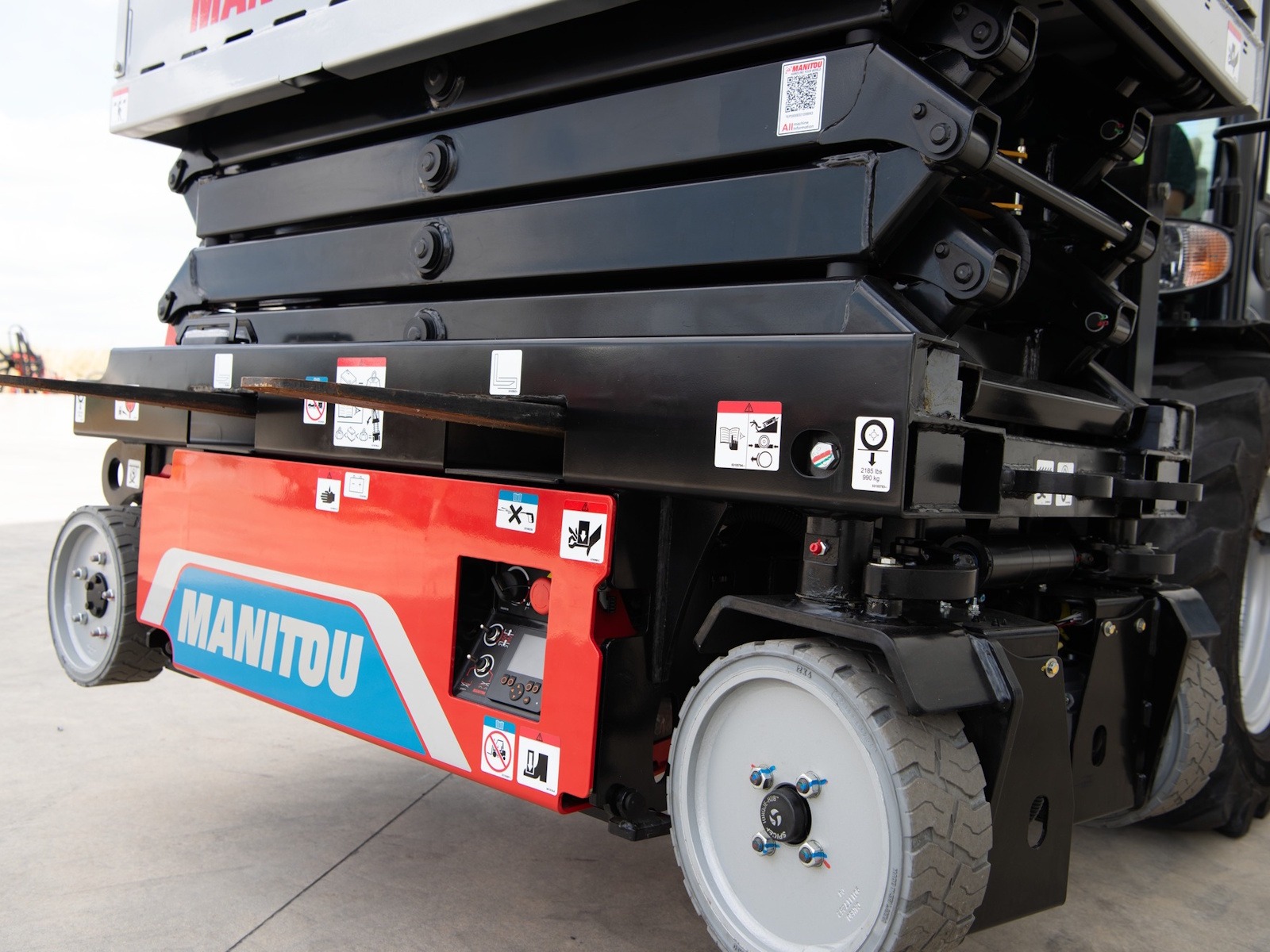

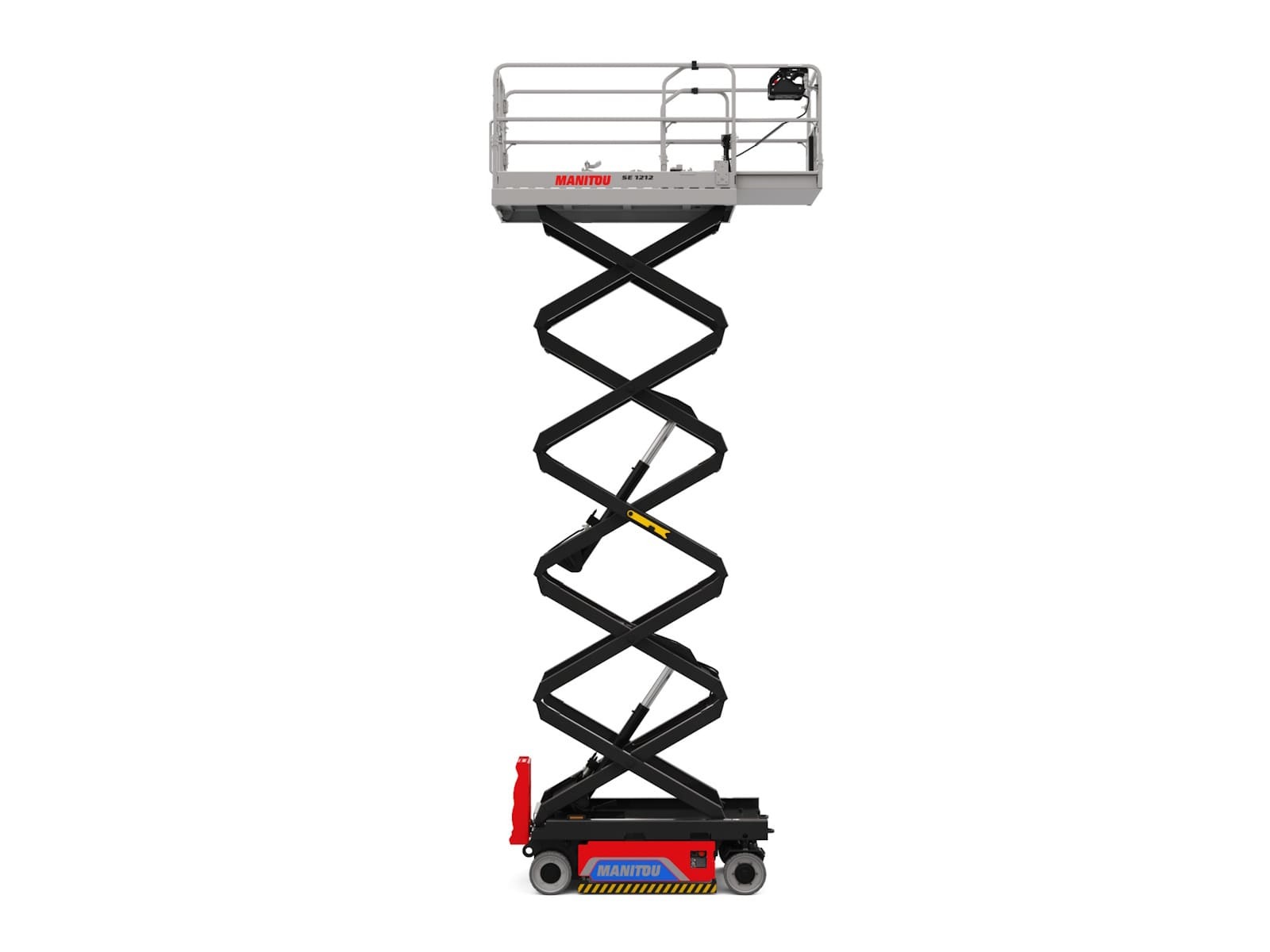

2026 Manitou Group SE 3246

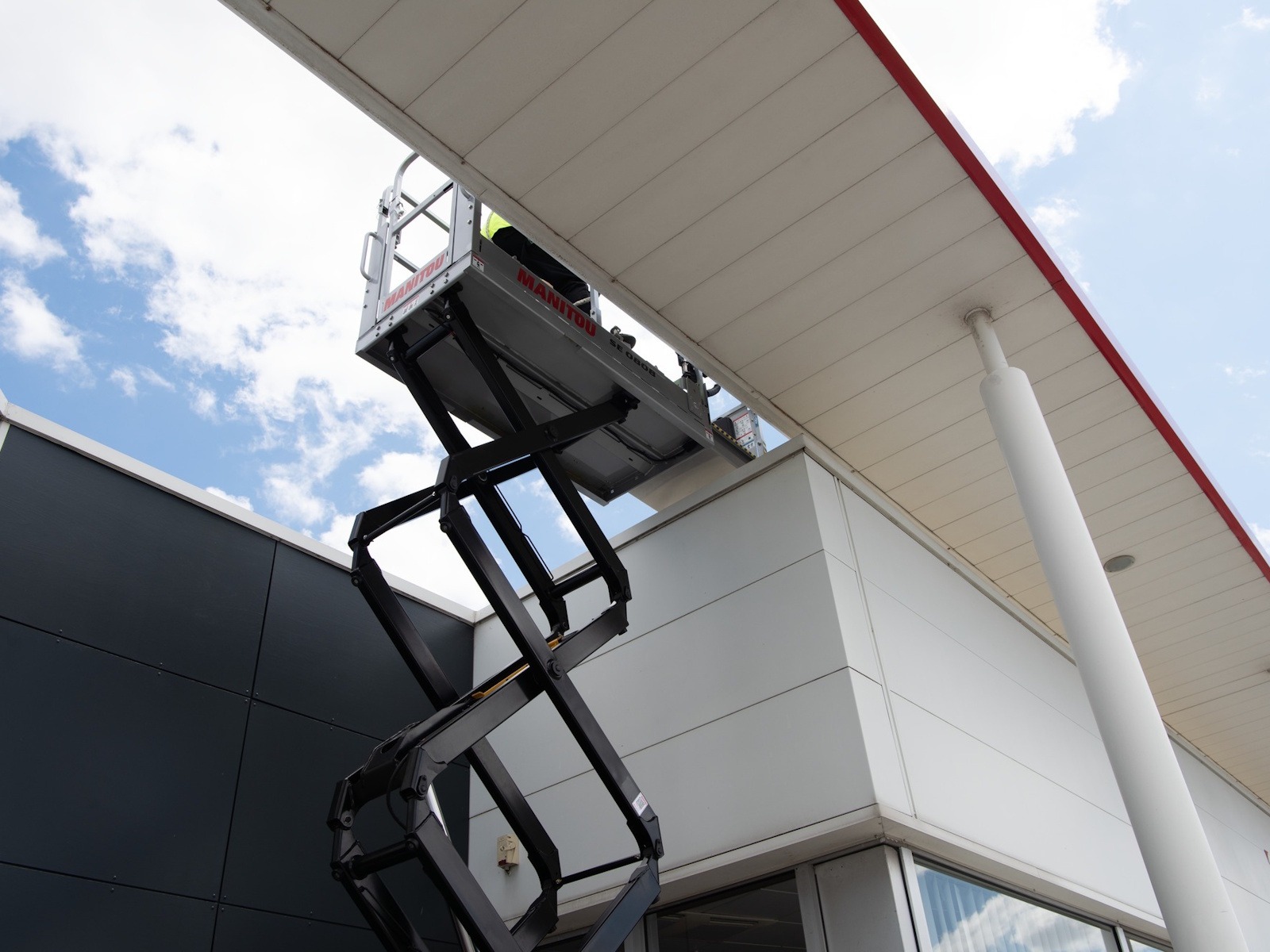

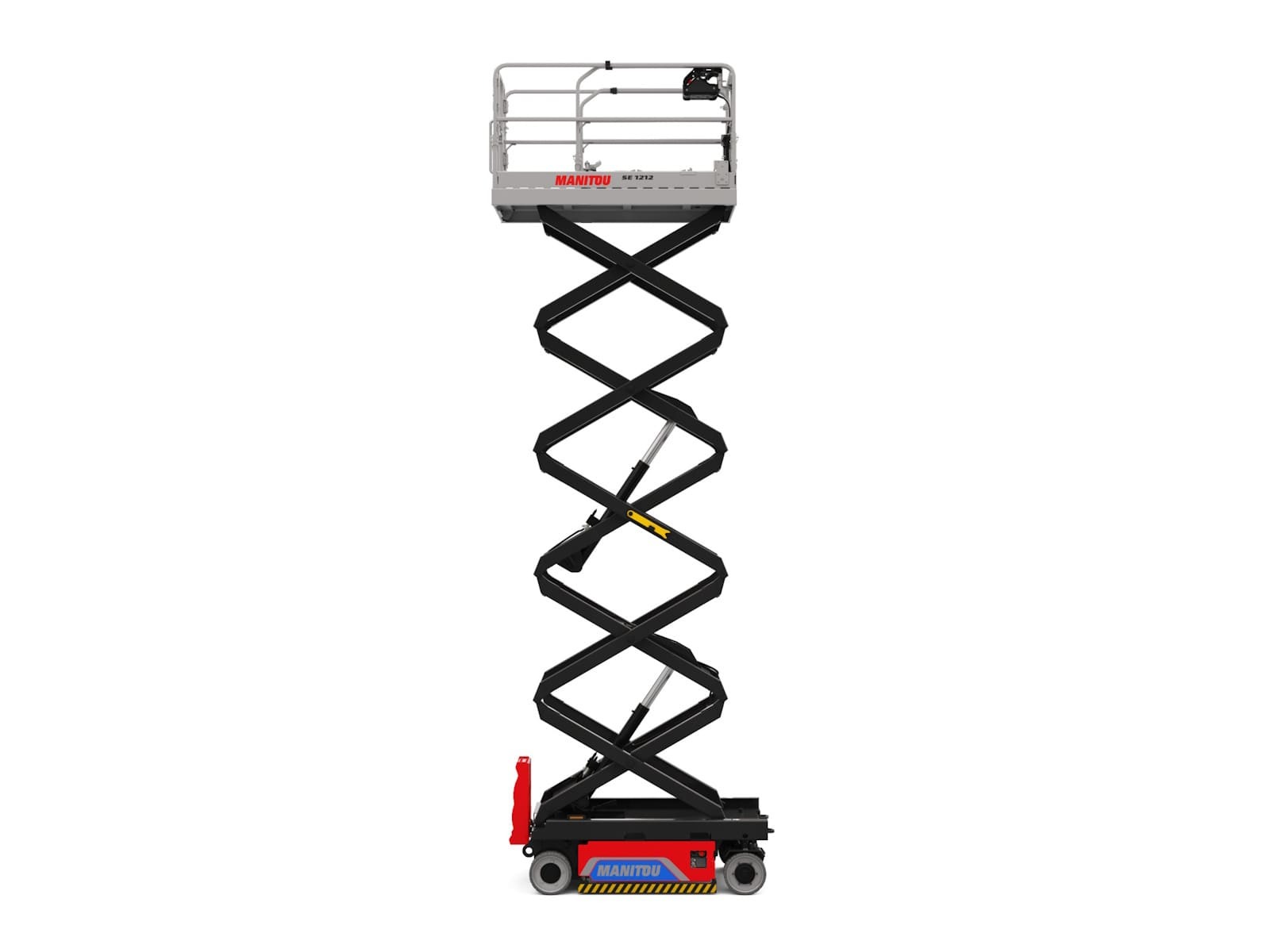

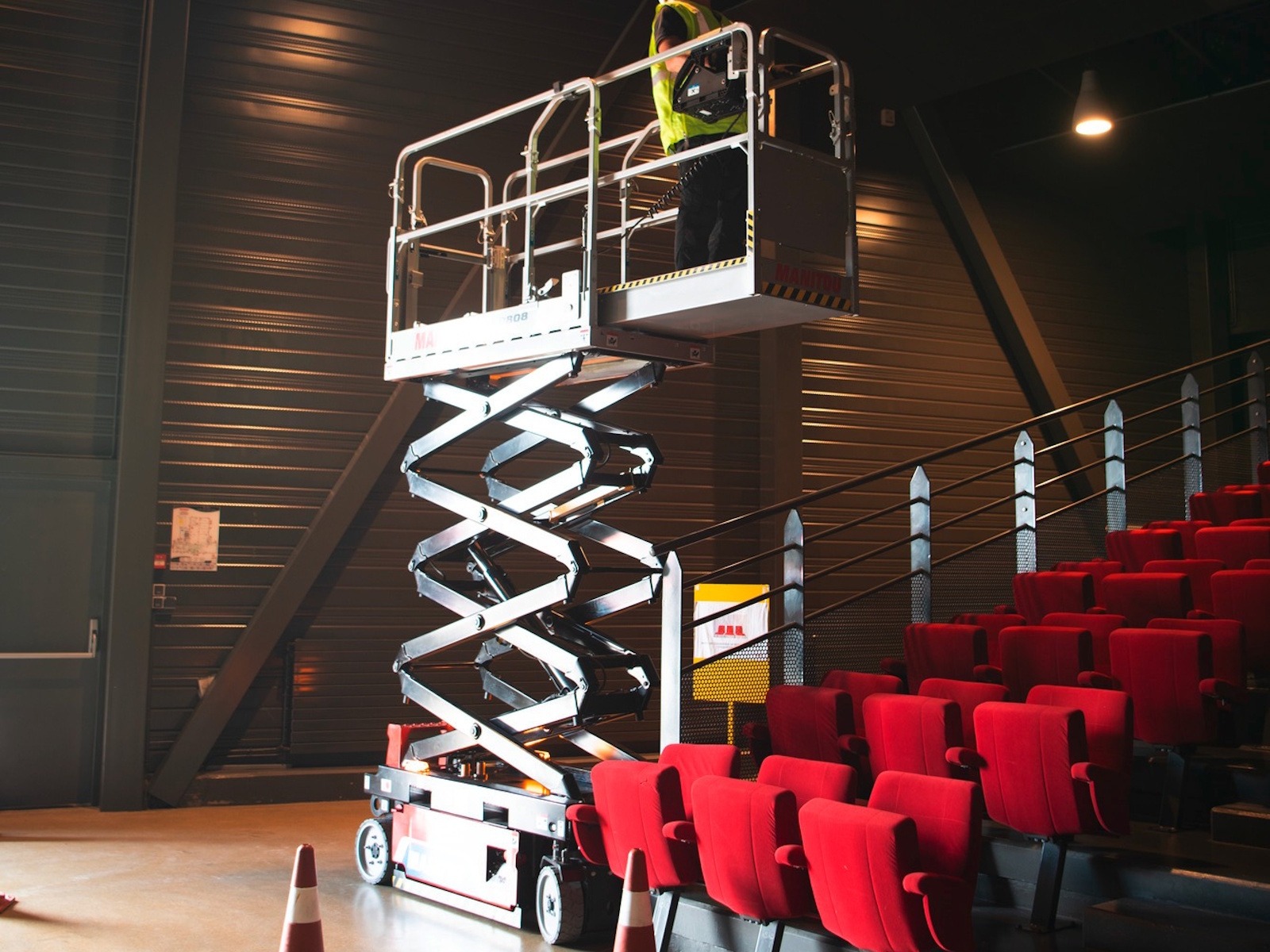

Optimize your work at height with the electric SE 3246 Scissor Lift, designed to place the operator at the heart of performance. Safely reach critical areas up to 38 ft 9 in. Master the tightest environments thanks to exceptional maneuverability and proportional controls offering millimeter precision. Maximum safety and ergonomics boost your productivity on site.
Robust and featuring long autonomy, this elevating platform excels in the construction, industrial maintenance, and logistics markets. It is ideal for interior finishing, technical installations, and building maintenance, ensuring a reduced Total Cost of Ownership (TCO) even in confined spaces.
Info
Industry
Agriculture
Make
Manitou Group
Model
SE 3246
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Height

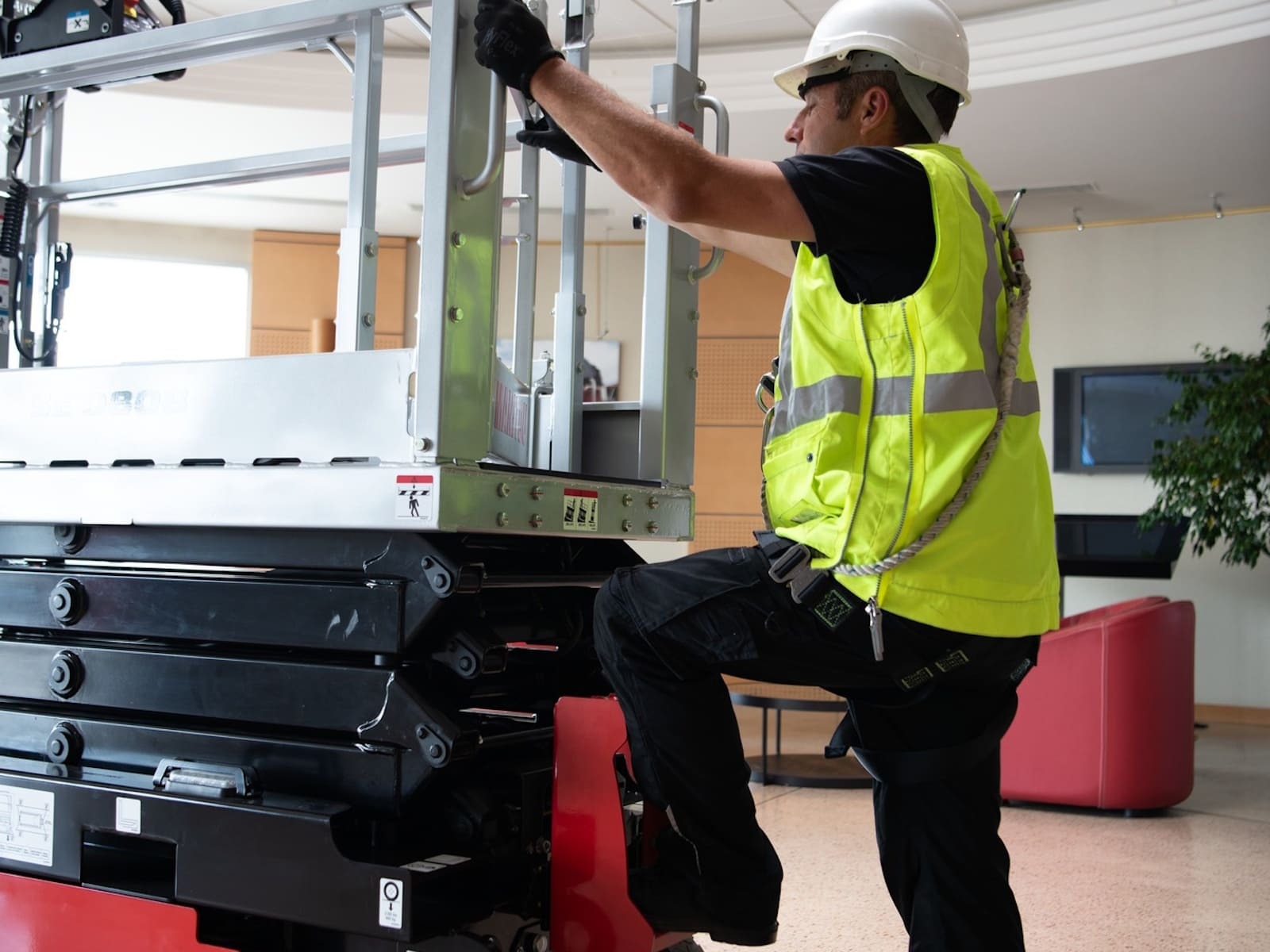

8 ft 4 in | Working height: 38 ft 9 in | Working height maximum (indoor): 38 ft 9 in | Working height maximum (outdoor): 38 ft 9 in | Platform height maximum (indoor): 32 ft 2 in | Platform height maximum (outdoor): 32 ft 2 in | Floor height (access): 4 ft 6 in | Overall height (stowed): 6 ft 5 in
Notes
Platform capacity: 772 lb | Max. capacity on the extension deck: 254 lb | Number of people (indoor / outdoor): 3 / 1 | Platform dimensions (length x width): 7 ft 3 in x 3 ft 9 in | Platform dimensions with extension (length x width): 10 ft 2 in x 3 ft 9 in | Drive speed - stowed: 3 mph | Drive speed - raised: 0.50 mph | Gradeability: 25 % | Indoor and outdoor max Tilt Rating (Fore and Aft / Side-to-Side): 3.50 ° / 1.50 ° | On-board charger (V / A): 24 V / 30 A | Hydraulic Pressure: 3626 PSI | Hydraulic tank capacity: 6 US gal | Sound pressure level (platform work station) (LpA): 66.60 dB | Vibration on hands/arms: < 0.98 ft/s²
Weight
Platform weight*: 6349 lb
Length
8 ft | Deck opening length: 2 ft 11 in | Overall length with platform extension: 10 ft 11 in
Width
3 ft 10 in
Turning Radius
Outside turning radius - platform: 7 ft 8 in | Internal turning radius: 0 in
Ground Clearance
Ground clearance with pothole guards deployed: 1 in | Ground clearance with pothole guards folded: 3 in
Wheelbase
5 ft 9 in
Tires
Non marking cushion | 15 x 5 in / 381 x 125 mm
Wheels
Drive wheels (front / rear): 2 / 0 | Braking wheels (front / rear): 2 / 0
Steering
Steering wheels (front / rear): 2 / 0
Brakes
Service brake: Electric
Battery
Battery technology: Lead acid | Battery voltage: 48 V | Number of batteries / Battery capacity: 4 / 120 Ah | Battery energy: 5.76 kWh
Power/Horsepower
Drive motor power rating: 2 x 0.77 kW
