2026 Manitou Group MTA 842
Get in Touch
Description

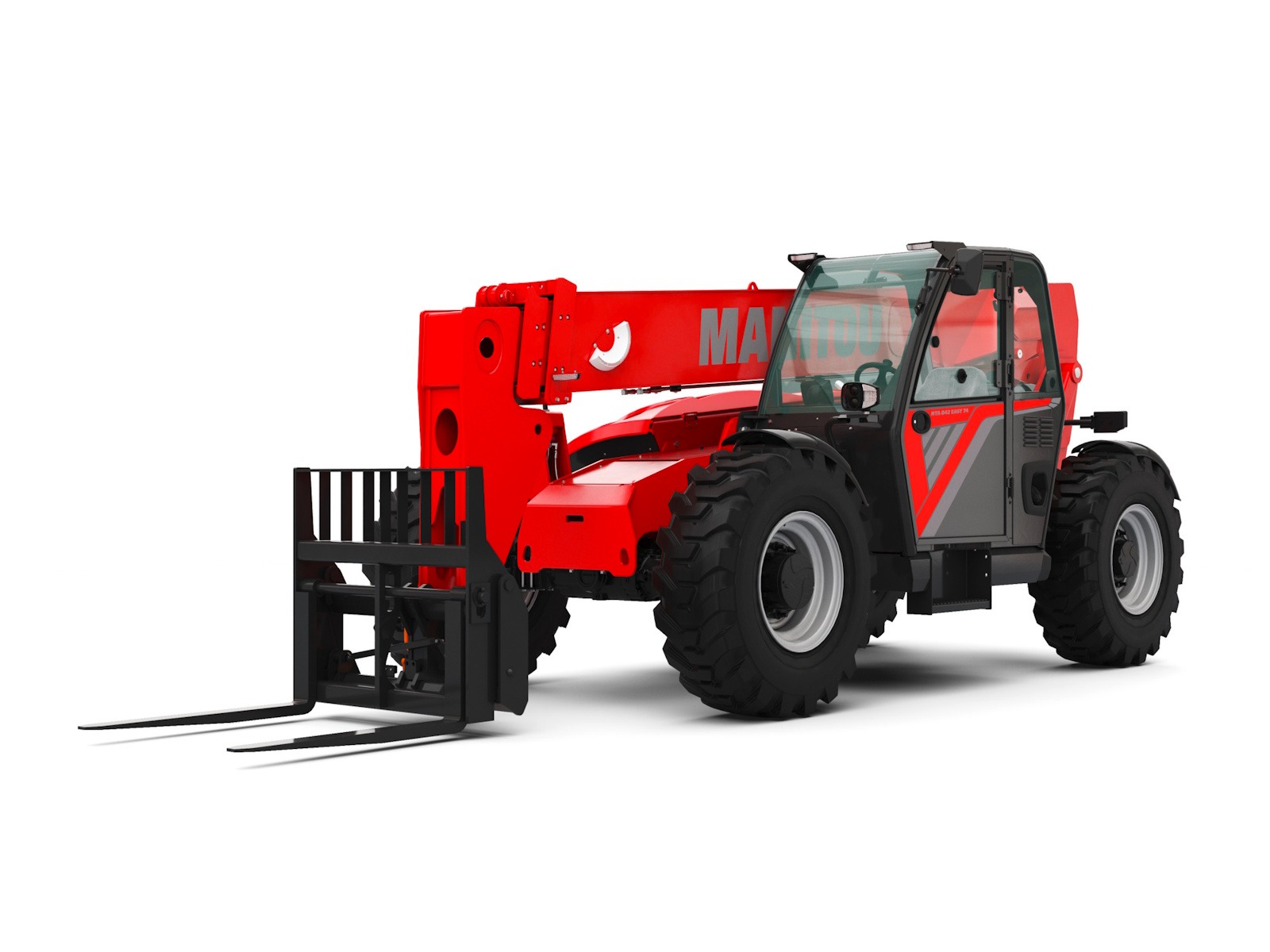

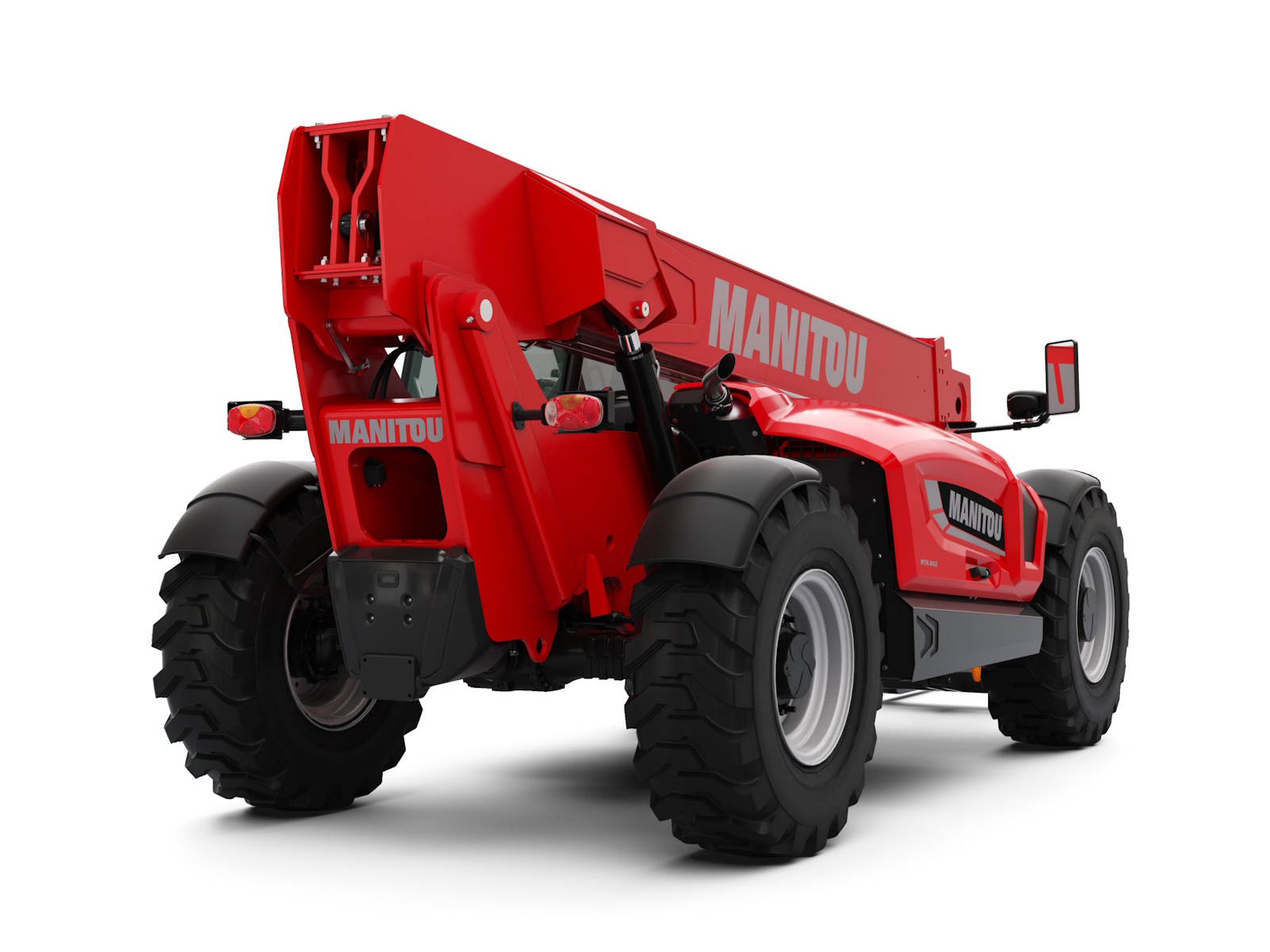

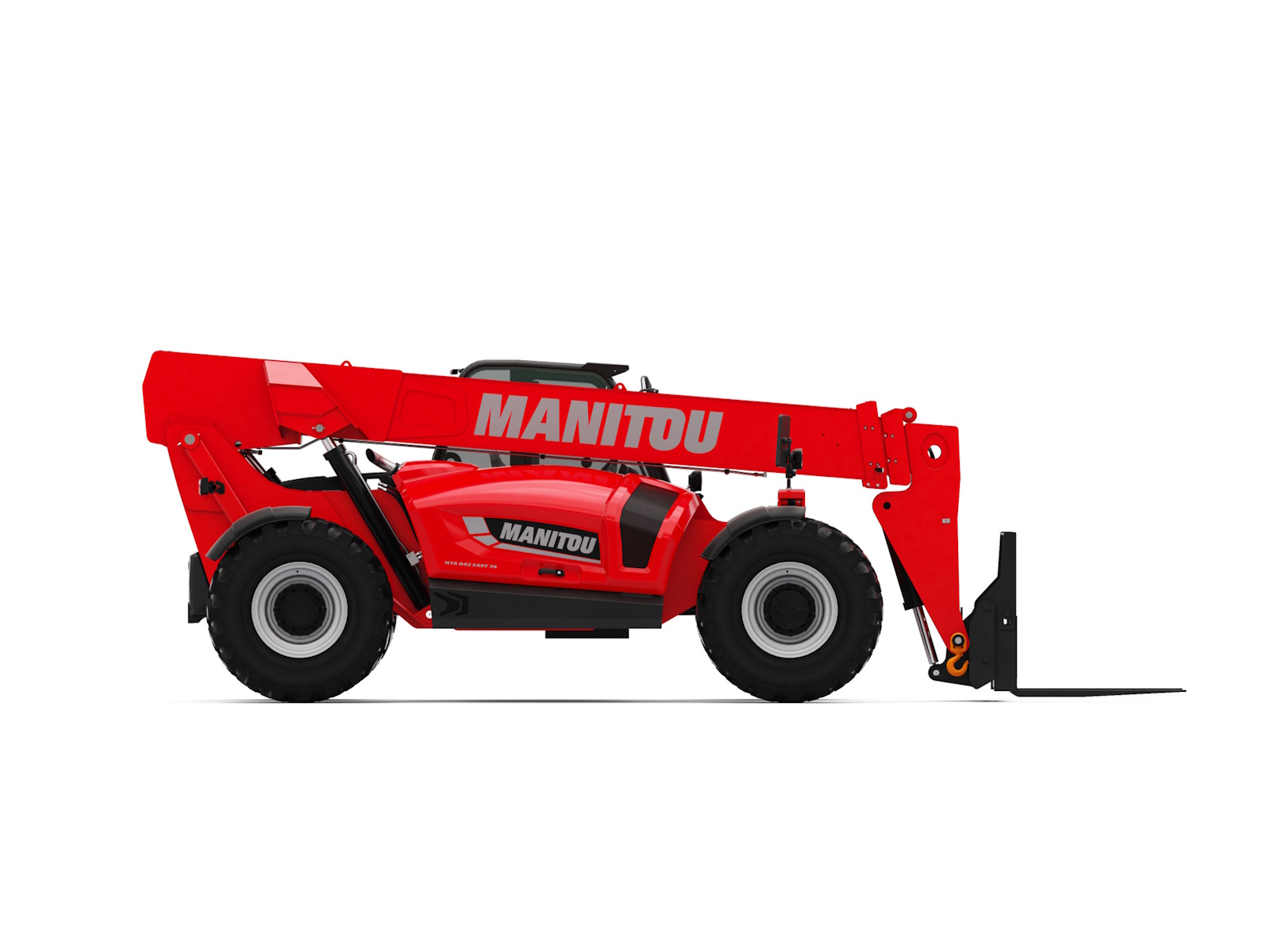

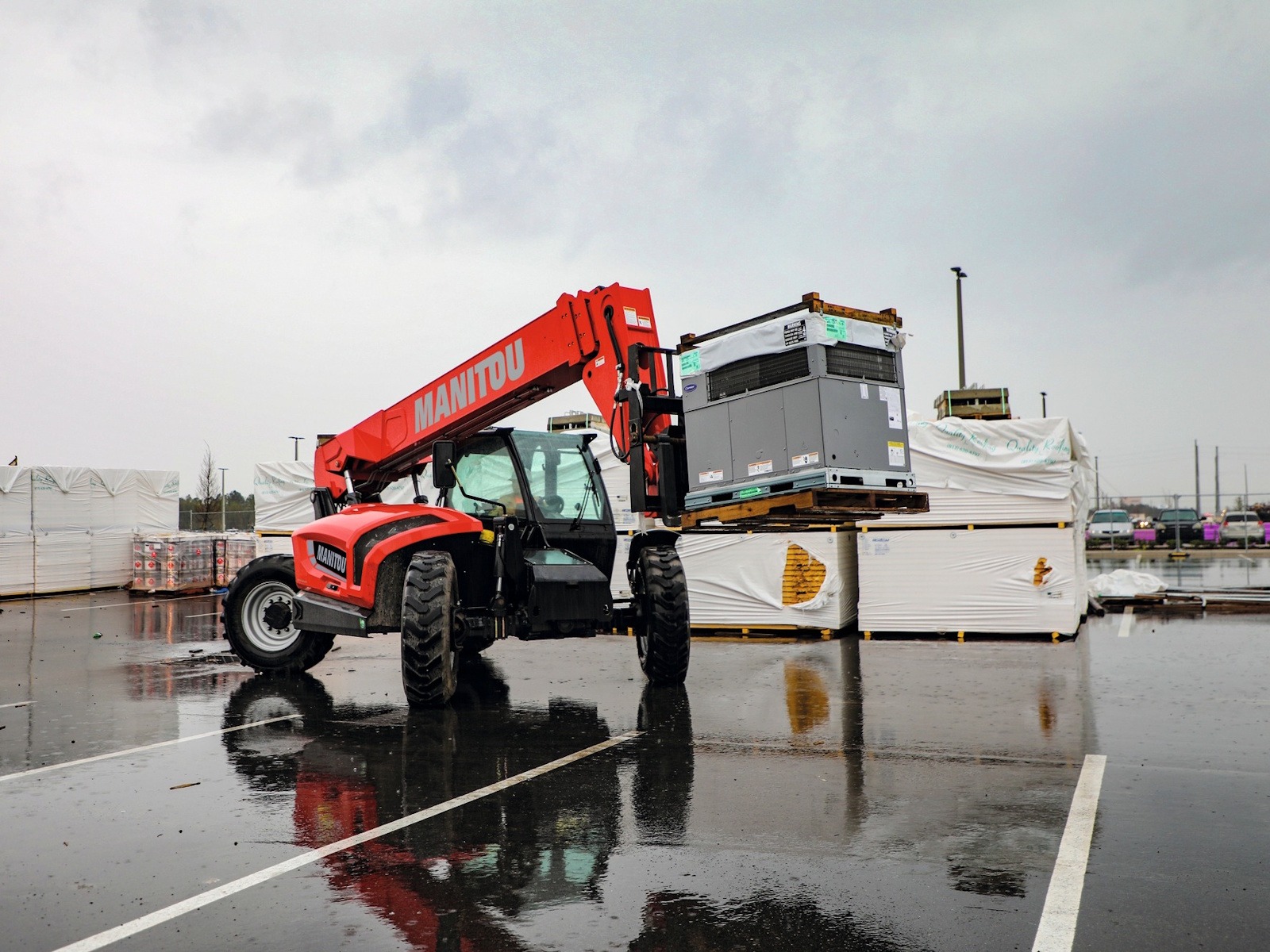

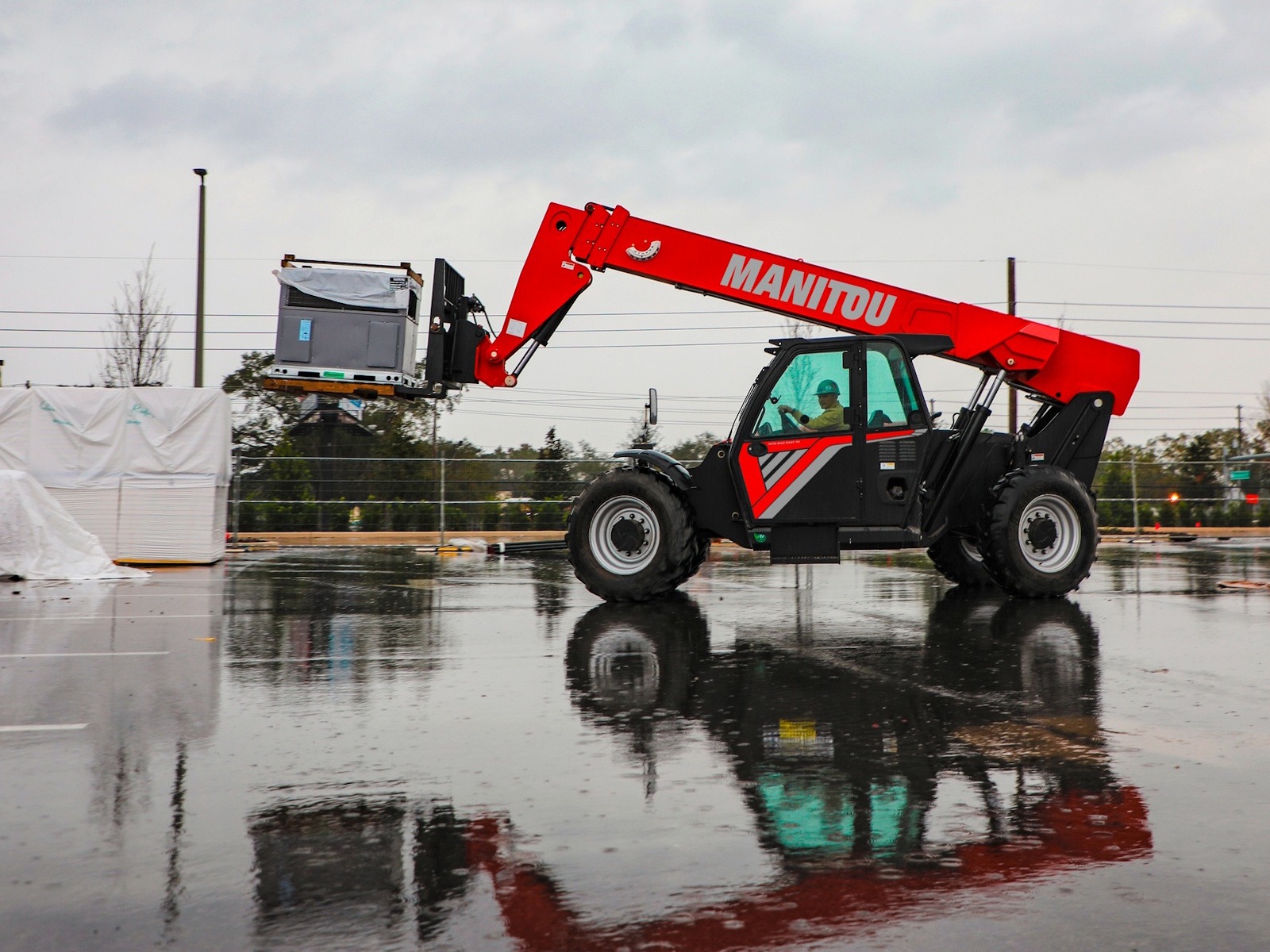

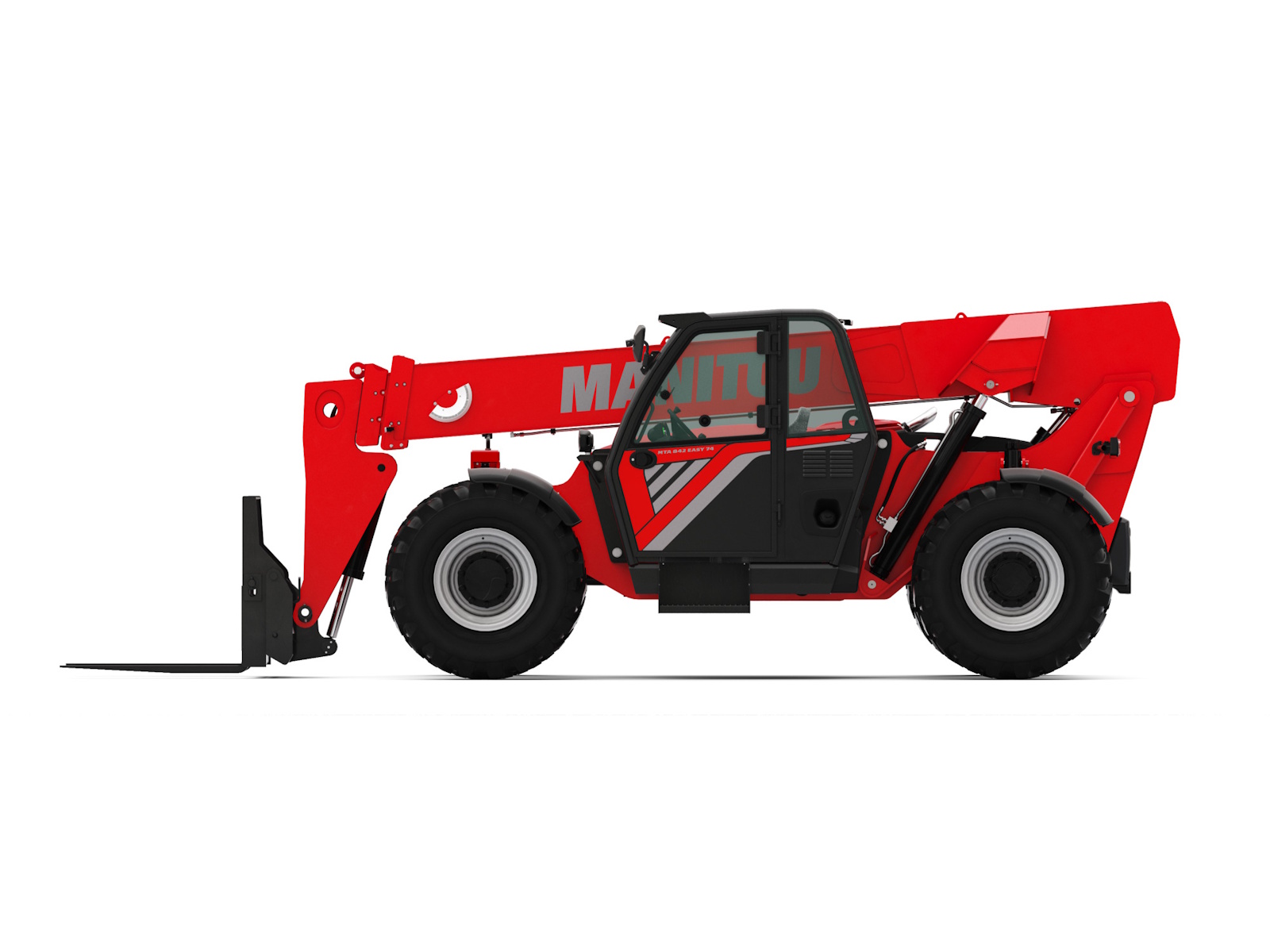

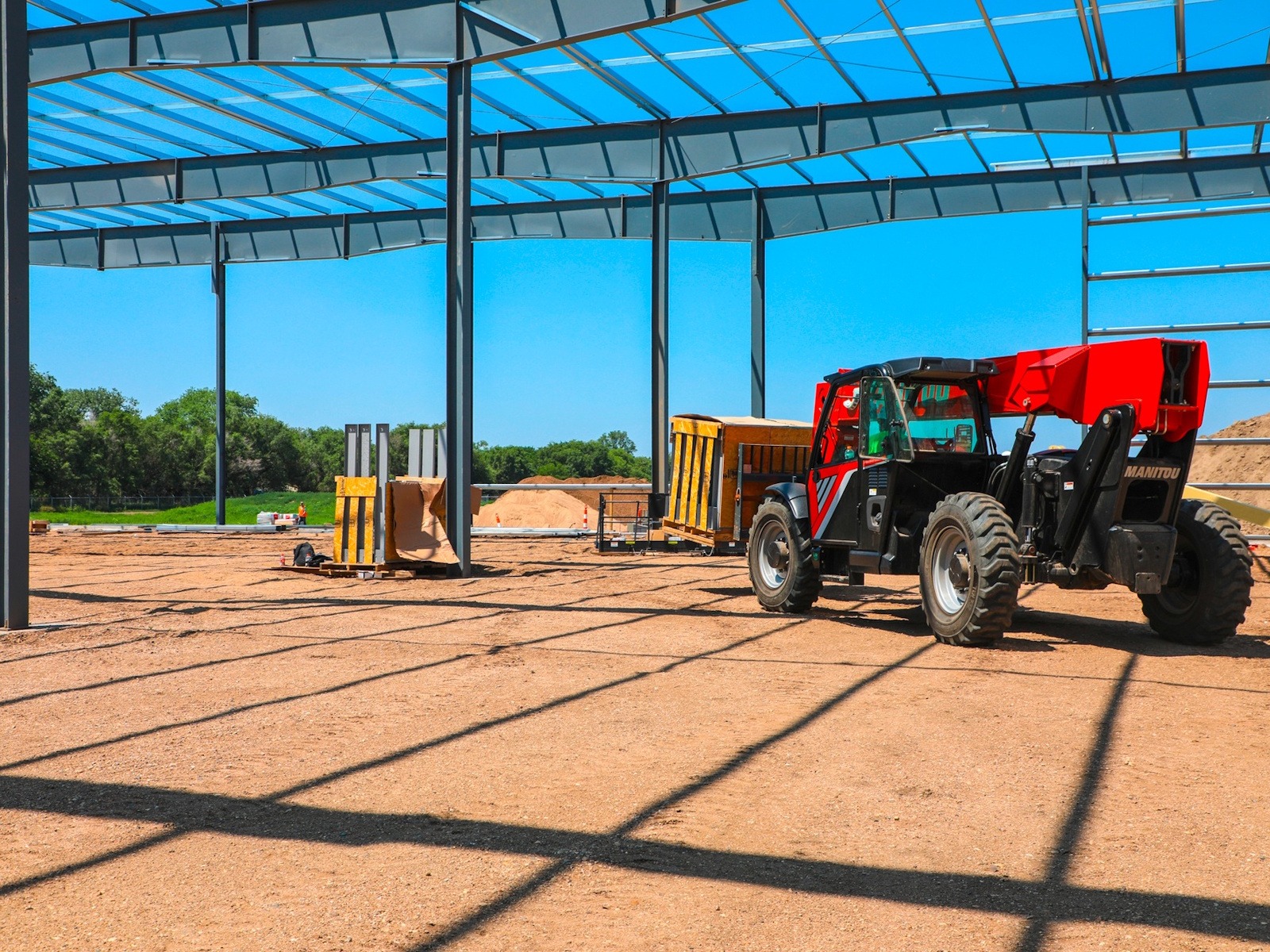

2026 Manitou Group MTA 842
The new MTA Serie is designed to meet the needs of North American construction markets and rental sectors.

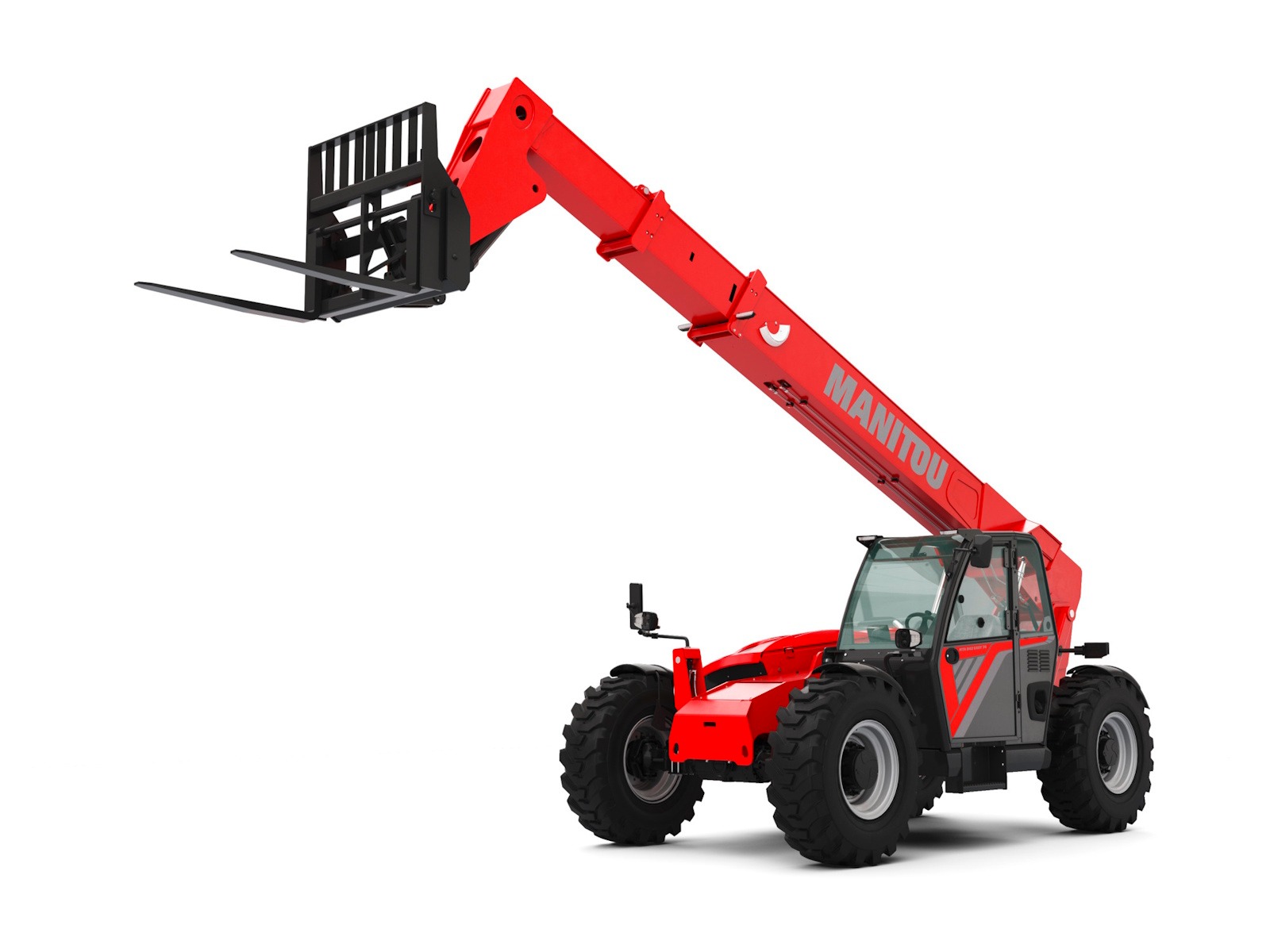

The MTA 842 offers great performance with 127 HP Deutz engine, 5 speed powershift transmission with lift up to 42' 6" (12.96 m) and reach to 28' 6" (8.68 m) in a 8,000 lbs. (3,629 kg) telescopic handler.
The new design also offers better visibility, comfort, performance, and a reduced total cost of ownership.

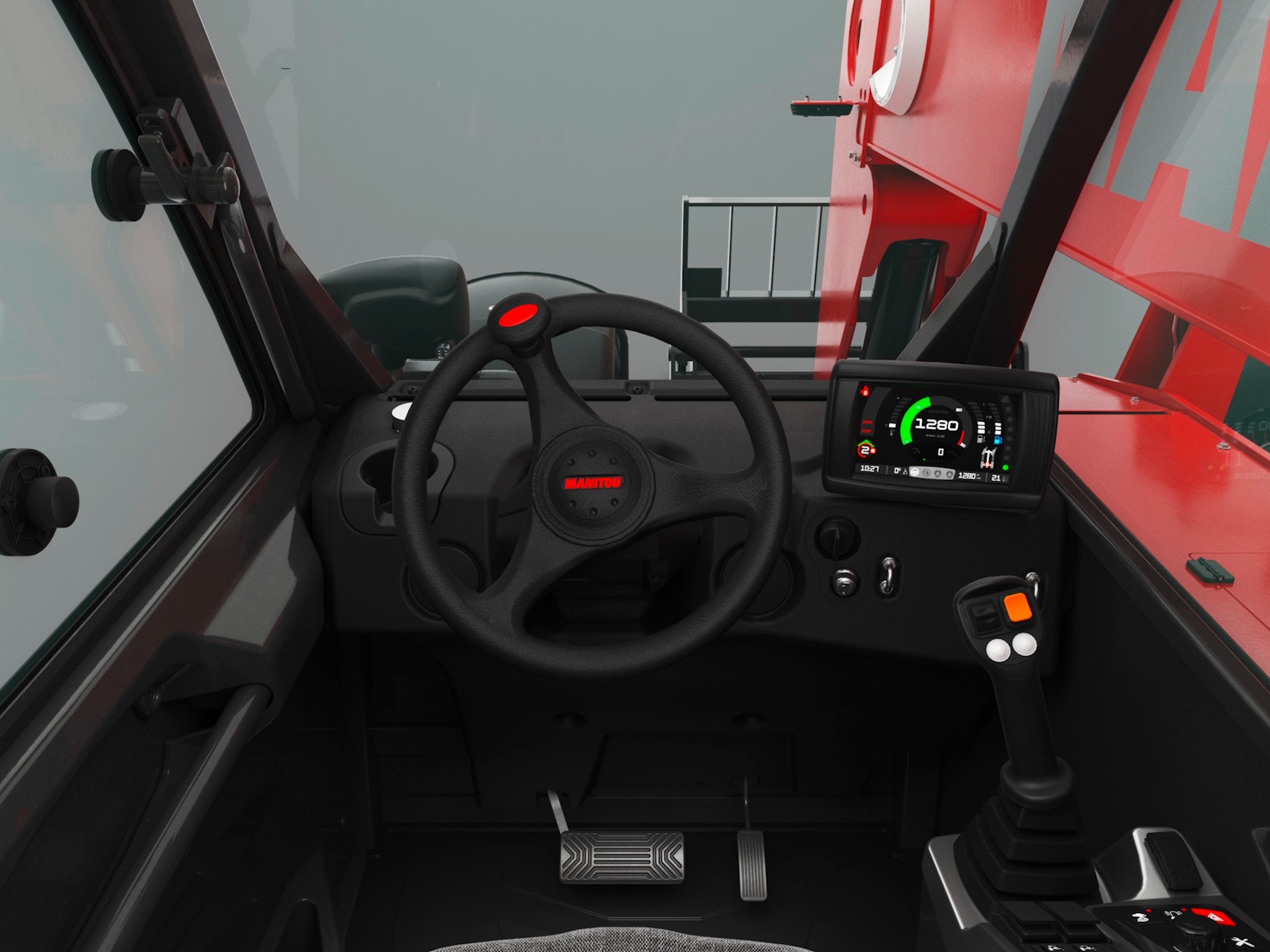

- New cabin design for more comfort and visibility
- Enhanced performance from combined hydraulic movements
- Better TCO with robust, high quality components
Info
Industry
Agriculture
Make
Manitou Group
Model
MTA 842
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Load Capacity
Max. capacity: 8000 lb
Height
8 ft | Max. lifting height: 42 ft 6 in
Notes
Max. outreach: 28 ft 6 in | Tilt-up angle: 34 ° | Tilt-down angle: 96 ° | Frame leveling corrector: 10 ° | Lifting: 11 s | Lowering: 6 s | Extension: 17 s | Retraction: 11 s | Crowd: 4 s | Dump: 6 s | Drawbar pull: 11113 kgF | Number of gears (forward / reverse): 5 / 3 | Max. travel speed: 21 mph | Hydraulic pump type: Axial piston | Hydraulic flow / Pressure: 40 US gpm-4000 PSI | Noise at driving position (LpA): 80 dB
Length
Length to face of forks: 20 ft 8 in | Overall length (with forks): 24 ft 8 in | Forks: 48 in
Width
Overall width: 8 ft 2 in | Overall cab width: 3 ft 1 in | Forks: 4 in
Wheelbase
11 ft 6 in
Ground Clearance
1 ft 6 in
Turning Radius
External turning radius: 13 ft 1 in
Weight
23951 lb
Tires
Pneumatic
Engine
Deutz | Tier 4 final
Cylinders
4 - 220 in³
Power/Horsepower
127 Hp / 95 kW
Torque
369 ft/lbs @ 2300 rpm
Transmission
Powershift
Brakes
Parking brake: Hydraulic spring release SAHR | Service brake: Wet disc brakes
Oil Capacity
2 US gal | Hydraulic oil: 36 US gal
Fuel Capacity
38 US gal | Diesel Exhaust fluid (AdBlue® type) tank capacity: 4 US gal
Steering
Steering wheels (front / rear): 2 / 2
Wheels
Drive wheels (front / rear): 2 / 2
