2026 Manitou Group MTA 519e
Get in Touch
Description

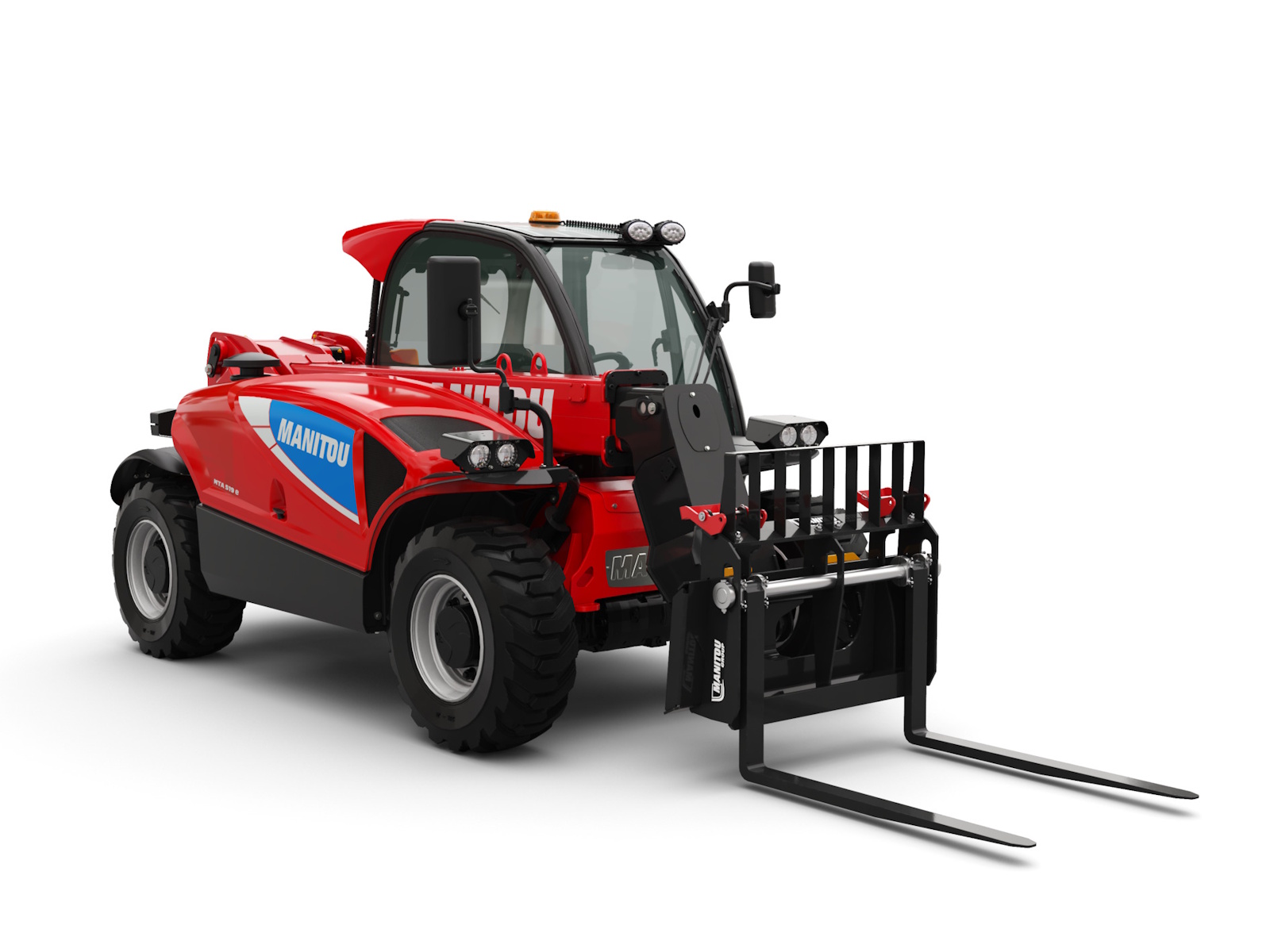

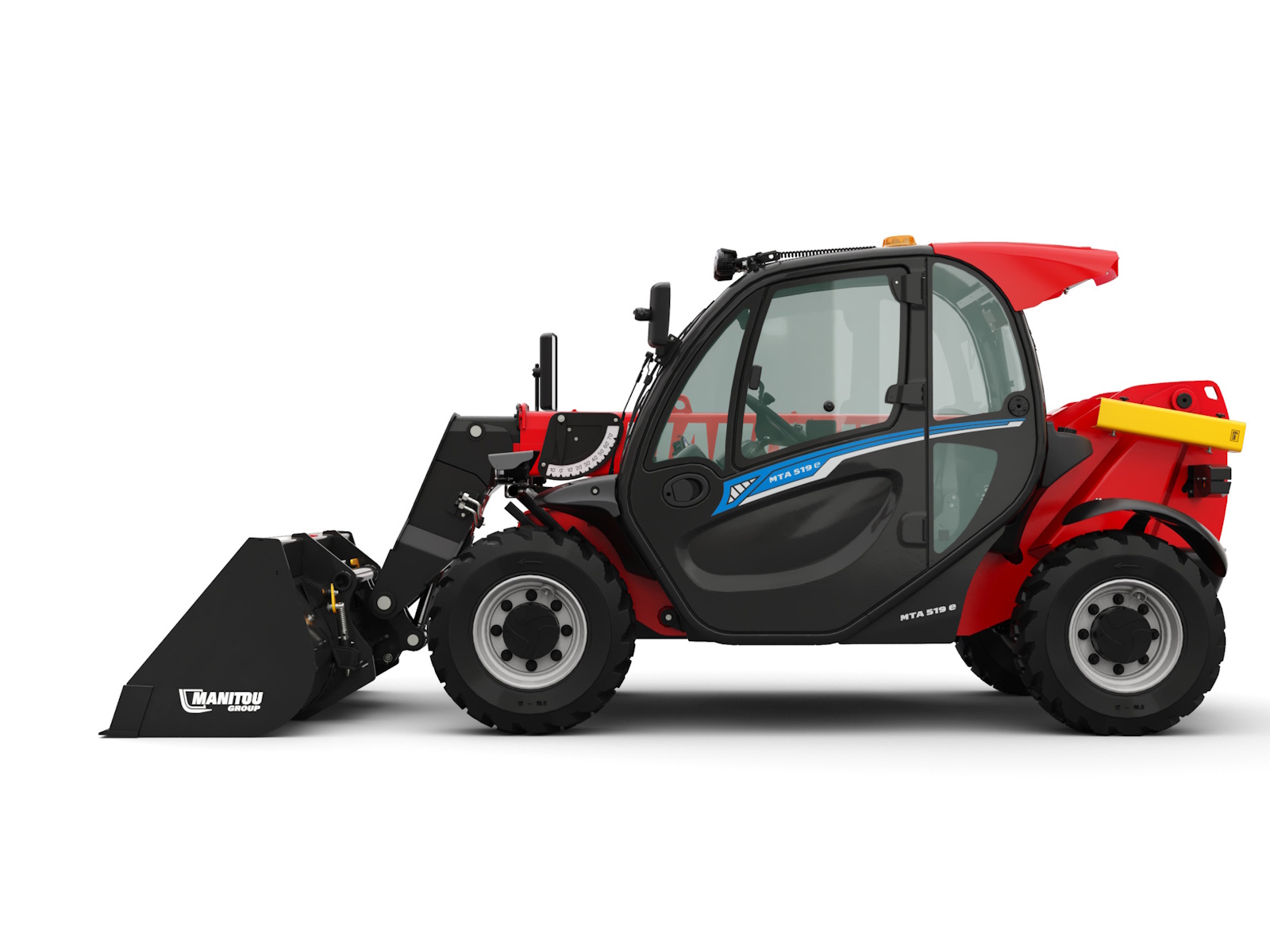

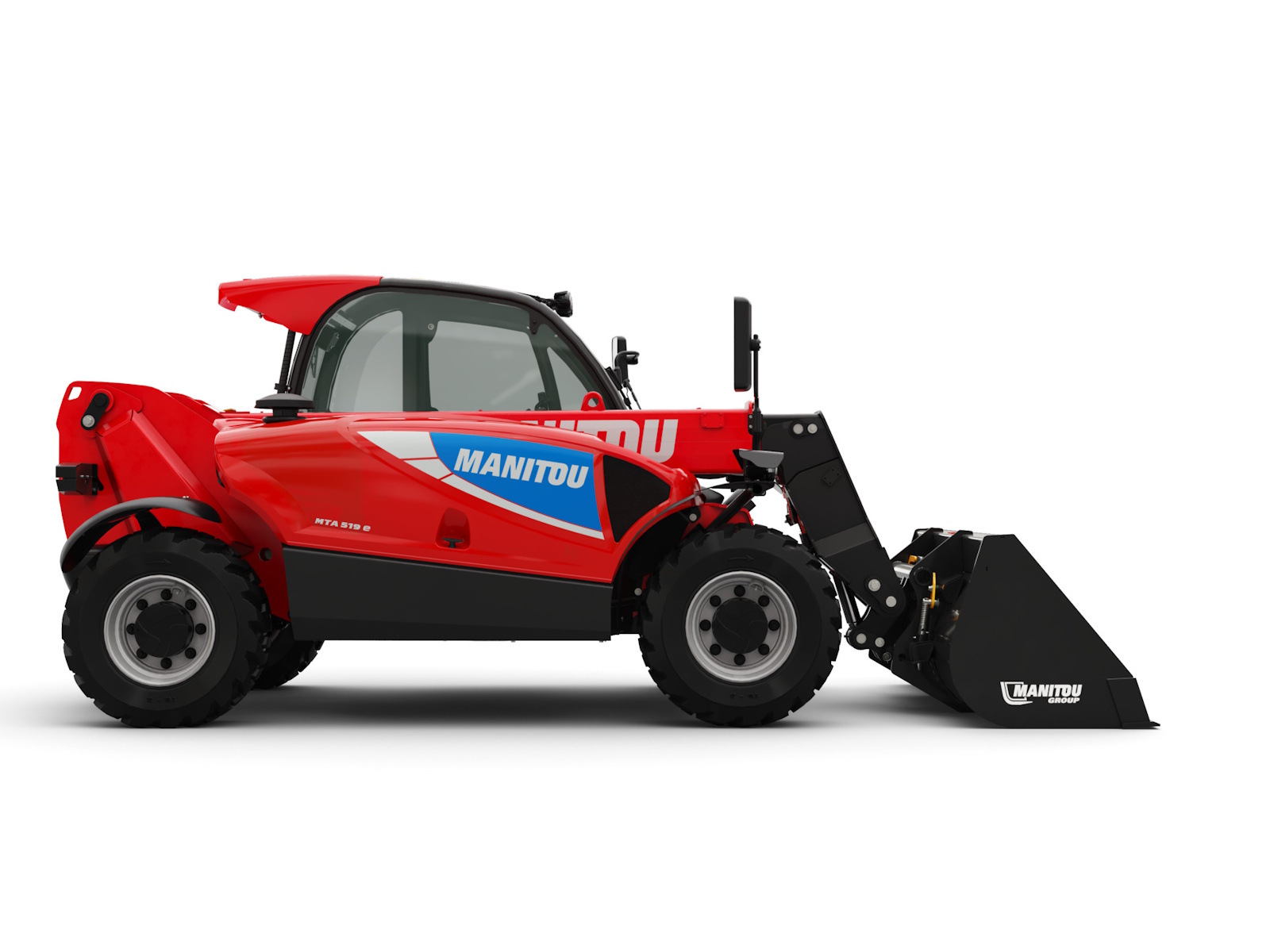

2026 Manitou Group MTA 519e
Manitou telehandler 519 100% electric.
The first 100% electric Manitou fixed telescopic telehandler, dedicated to construction applications!
A compact, versatile machine for all your material handling applications, combining low noise and zero emissions, with no compromise on performance.
19 ft 2 in lifting height, 5,500 lbs capacity, 13 in ground clearance, combined hydraulic movements, and compact dimensions, the MTA 519 e is a true all-terrain machine, also favored for working on compact, low-emission worksites such as urban centers or indoor applications.
Designed with Lithium-ion batteries and an on-board charger, you can add an extra battery and charger to extend on-site autonomy, and charge your machine more quickly.
Info
Industry
Agriculture
Make
Manitou Group
Model
MTA 519e
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Load Capacity
Max. capacity: 5512 lb
Height
6 ft 4 in | Max. lifting height: 19 ft 2 in
Notes
Max. outreach: 11 ft | Breakout force with bucket: 3770 daN | Tilt-up angle: 12 ° | Tilt-down angle: 117 ° | Lifting: 11 s | Lowering: 8 s | Extension: 7.70 s | Retraction: 7.40 s | Crowd: 4 s | Dump: 4.30 s | Drawbar pull (Laden): 2090 daN | Charger Power / Phase / Current type: 3 kW / Single-phase / AC | Number of gears (forward / reverse): 1 / 1 | Max. travel speed: 12 mph | Hydraulic pump type: Gear pump | Hydraulic flow / Pressure: 22 US gpm-3408 PSI | Noise at driving position (LpA): 72 dB | Noise to environment (LwA): 92 dB
Length
Overall length to carriage: 12 ft 7 in | Overall length (with forks): 16 ft 9 in | Forks: 47 in
Width
5 ft 11 in | Overall cab width: 2 ft 7 in | Forks: 5 in
Wheelbase
7 ft 7 in
Ground Clearance
1 ft 1 in
Turning Radius
External turning radius (over tyres): 10 ft 10 in
Weight
10483 lb
Tires
Pneumatic | CAMSO SKS532 12-16.5
Torque
148 ft/lbs
Engine
Power/Horsepower
Drive motor power rating: 40 kW | Hydraulic motor power: 30 kW
Battery
Battery technology: Lithium-ion | Battery capacity: 348 Ah | Battery energy: 35 kWh | Battery voltage / capacity: 100 V / 348 Ah | 12V Battery capacity: 74 Ah
Transmission
Electrical
Brakes
Parking brake: Hydraulic spring release SAHR | Service brake: Hydraulic
Oil Capacity
21 US gal
Wheels
Drive wheels (front / rear): 2 / 2
Steering
Steering wheels (front / rear): 2 / 2
