2026 Manitou Group MTA 1242 MAX
Get in Touch
Description

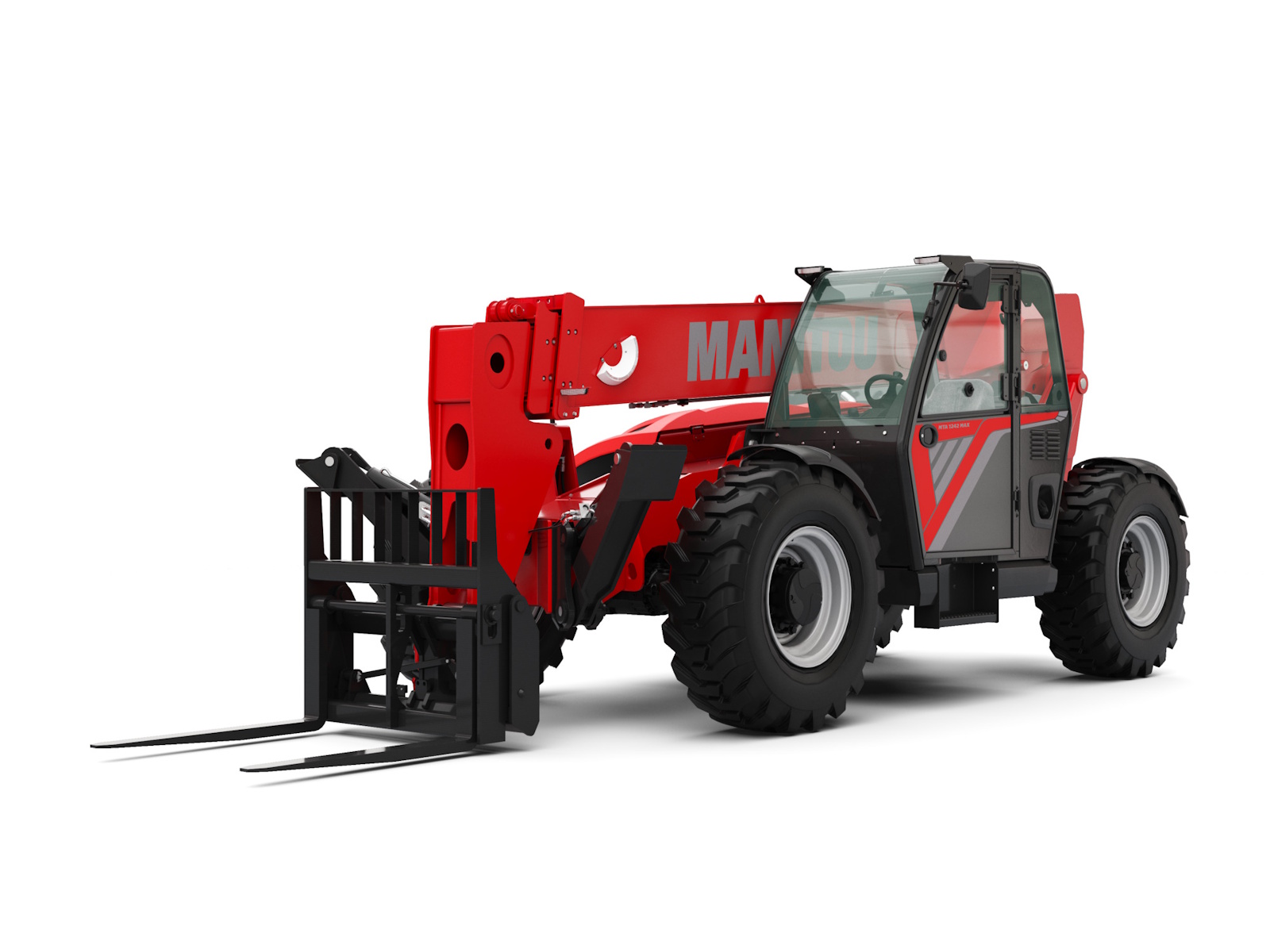

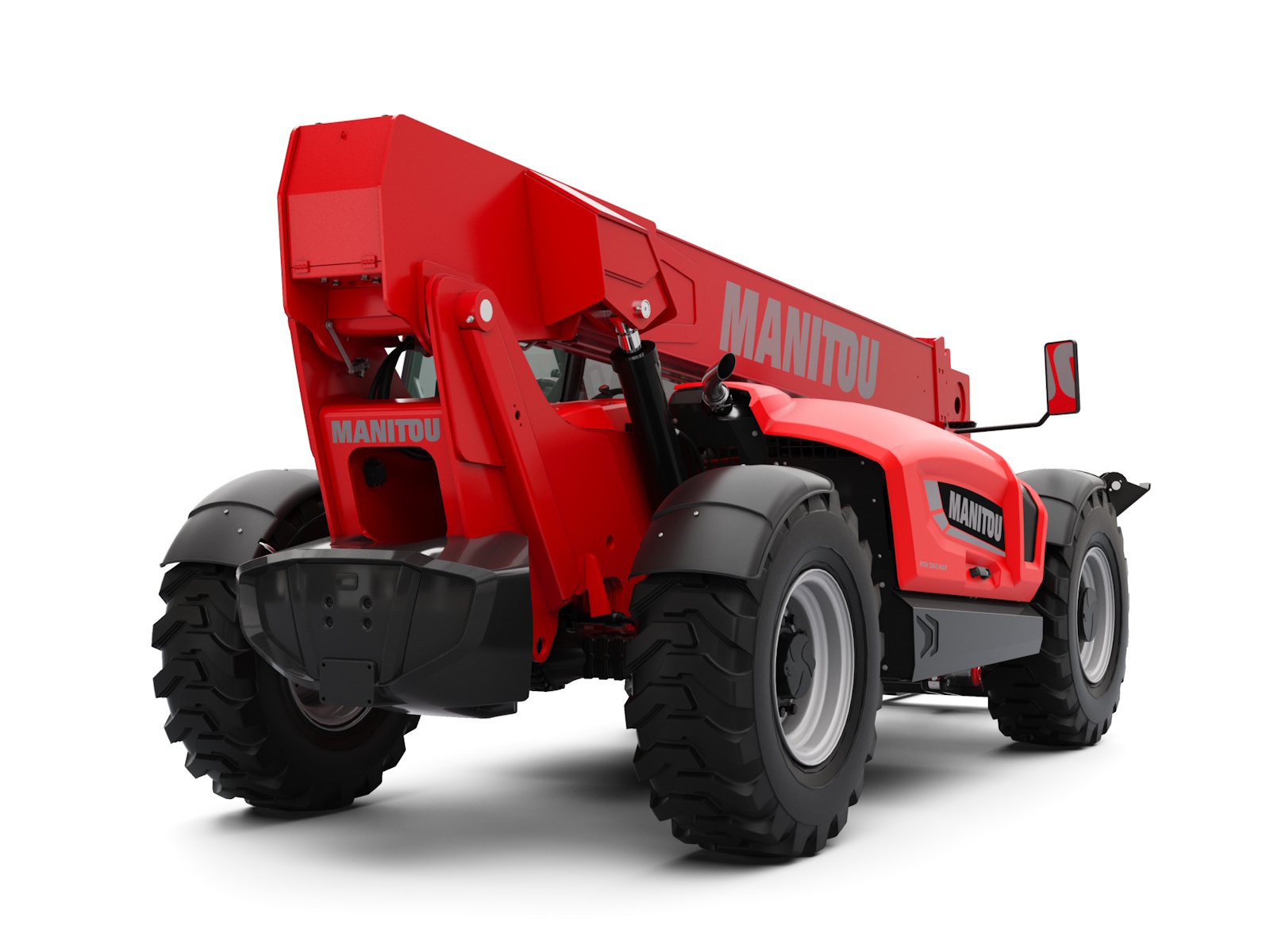

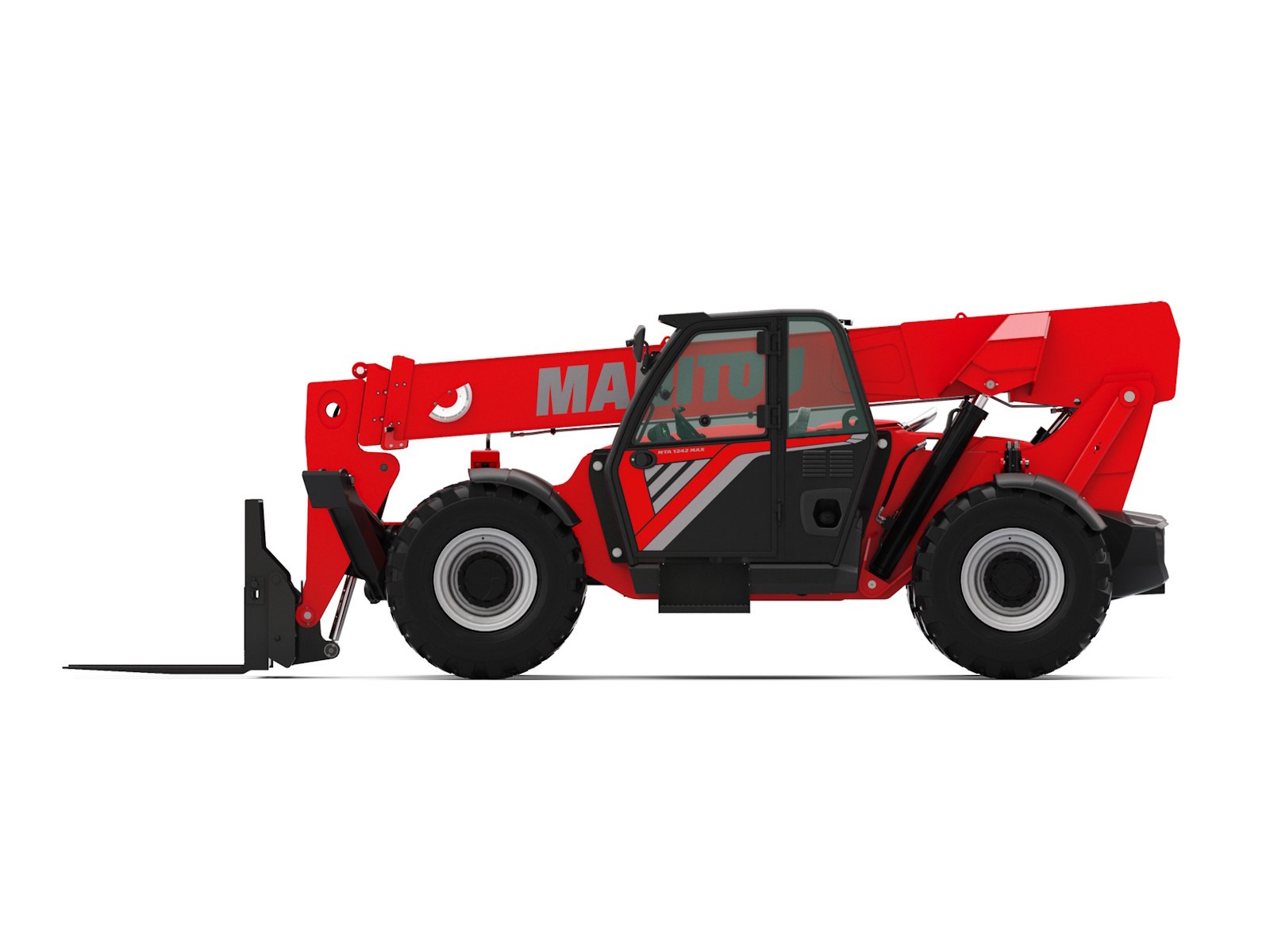

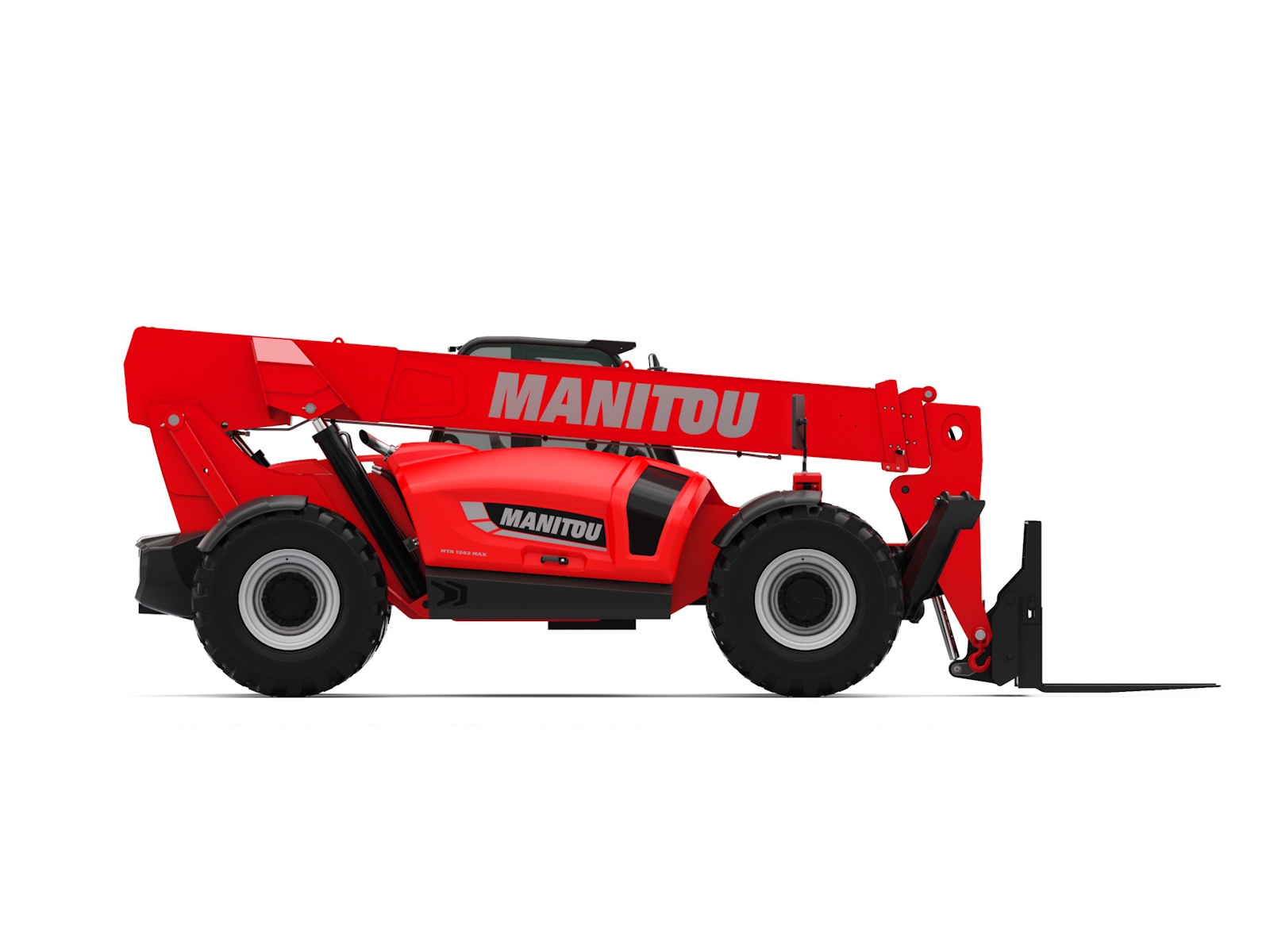

2026 Manitou Group MTA 1242 MAX
Info
Industry
Agriculture
Make
Manitou Group
Model
MTA 1242 MAX
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Load Capacity
12000 lb
Height
8 ft 1 in | Max. lifting height: 42 ft 6 in
Notes
Max. outreach: 28 ft 6 in | Tilt-up angle: 34 ° | Tilt-down angle: 96 ° | Frame leveling longitudinal +/-: 10 ° | Lifting: 16 s | Lowering: 11 s | Extension: 17 s | Retraction: 12 s | Crowd: 4 s | Dump: 6 s | Number of gears (forward / reverse): 5 / 3 | Max. travel speed: 22 mph | Hydraulic pump type: Axial piston | Hydraulic flow / Pressure: 40 US gpm-4000 PSI | Noise at driving position (LpA): 80 dB
Length
Overall length to carriage: 20 ft 8 in | Overall length (with forks): 24 ft 8 in | Forks: 48 in
Width
8 ft 4 in | Overall cab width: 3 ft 1 in | Forks: 6 in
Wheelbase
11 ft 6 in
Ground Clearance
1 ft 7 in
Turning Radius
External turning radius: 12 ft 9 in
Weight
28300 lb
Tires
Pneumatic
Engine
Deutz | Tier 4 final
Cylinders
4 - 220 in³
Power/Horsepower
127 Hp / 95 kW
Torque
369 ft/lbs @ 2300 rpm
Transmission
Powershift
Brakes
Parking brake: Hydraulic spring release SAHR | Service brake: Wet disc brakes
Oil Capacity
2 US gal | Hydraulic oil: 38 US gal
Fuel Capacity
38 US gal | Diesel Exhaust fluid (AdBlue® type) tank capacity: 4 US gal
Steering
Steering wheels (front / rear): 2 / 2
Wheels
Drive wheels (front / rear): 2 / 2
