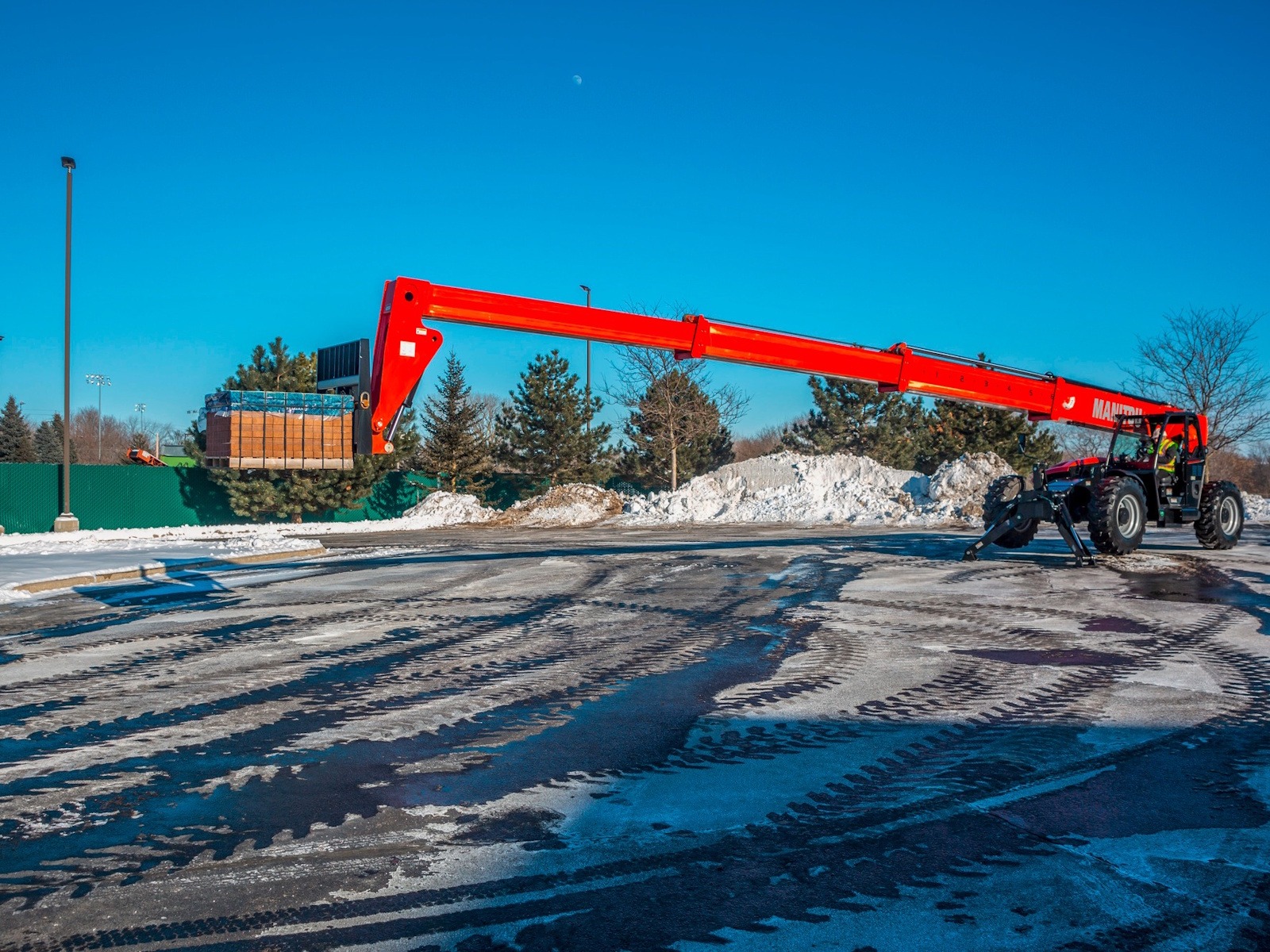

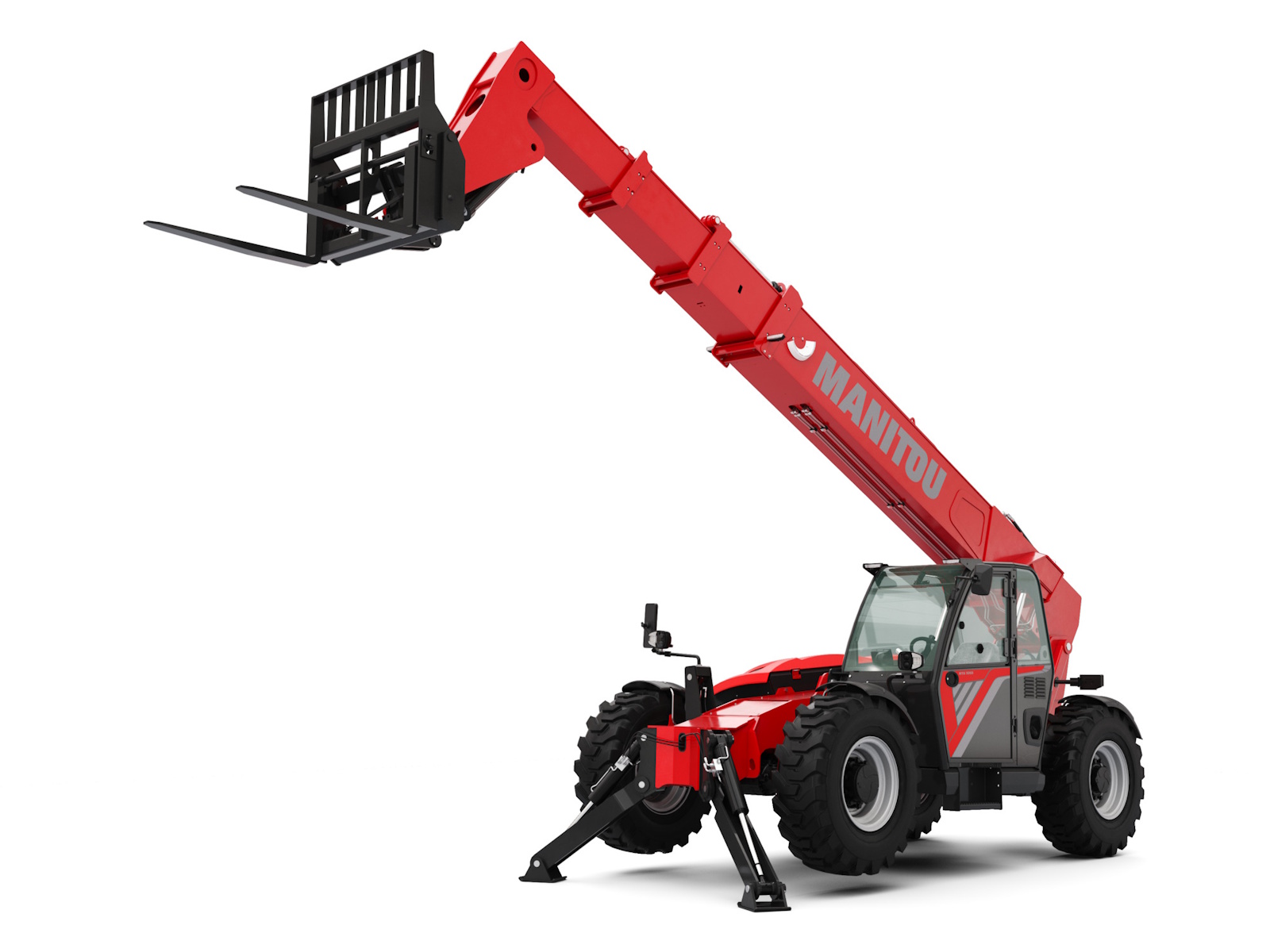

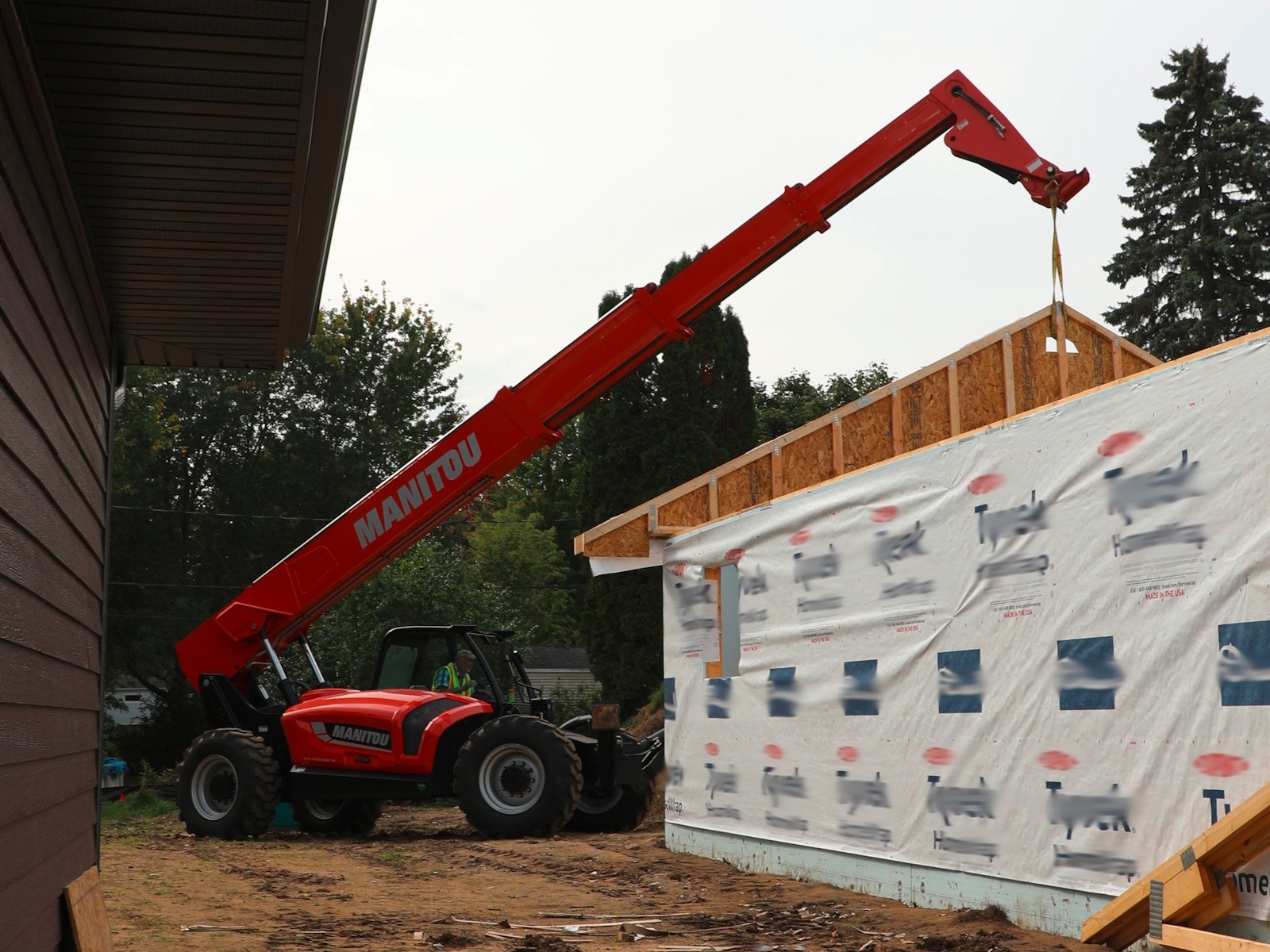

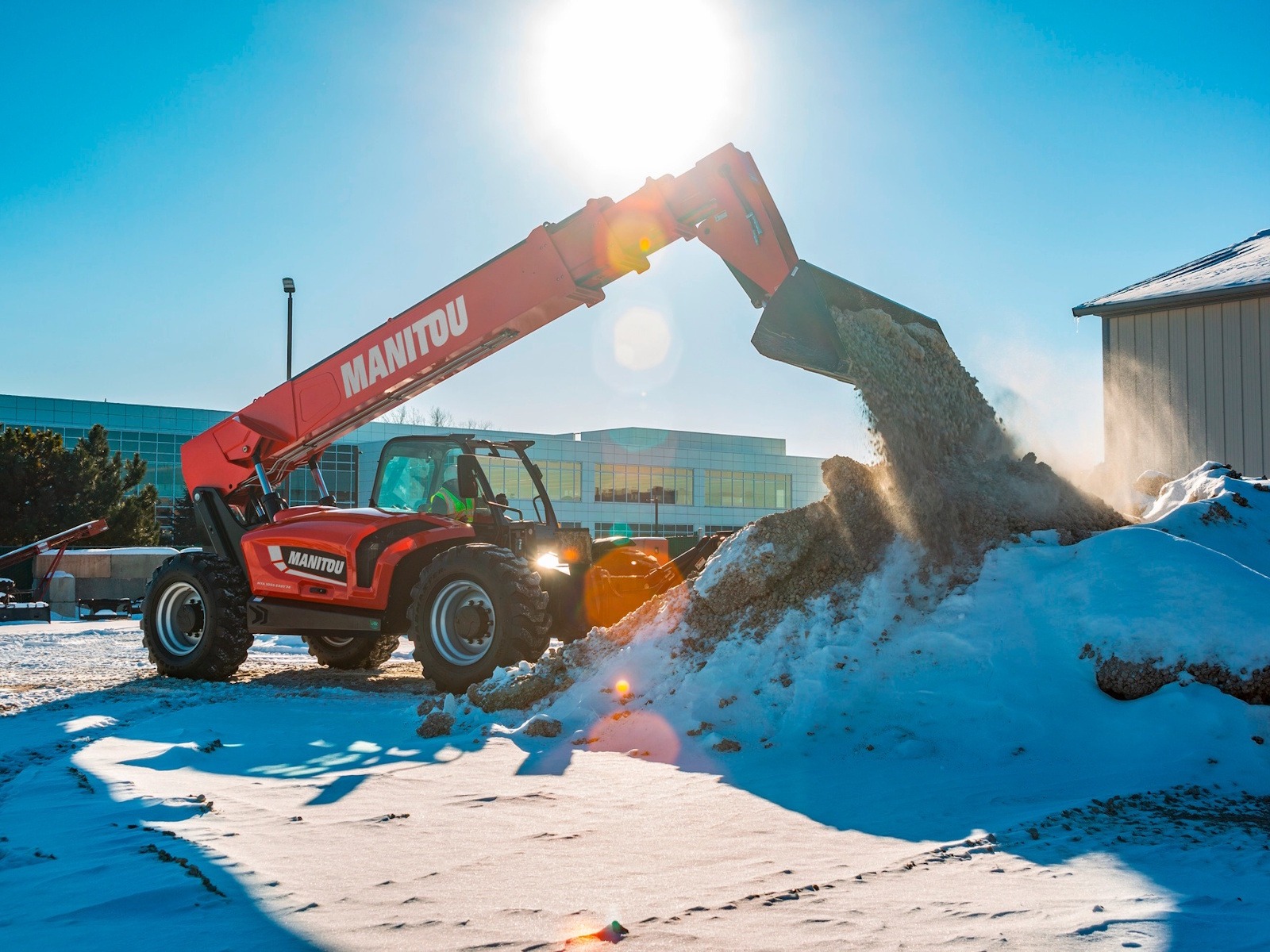

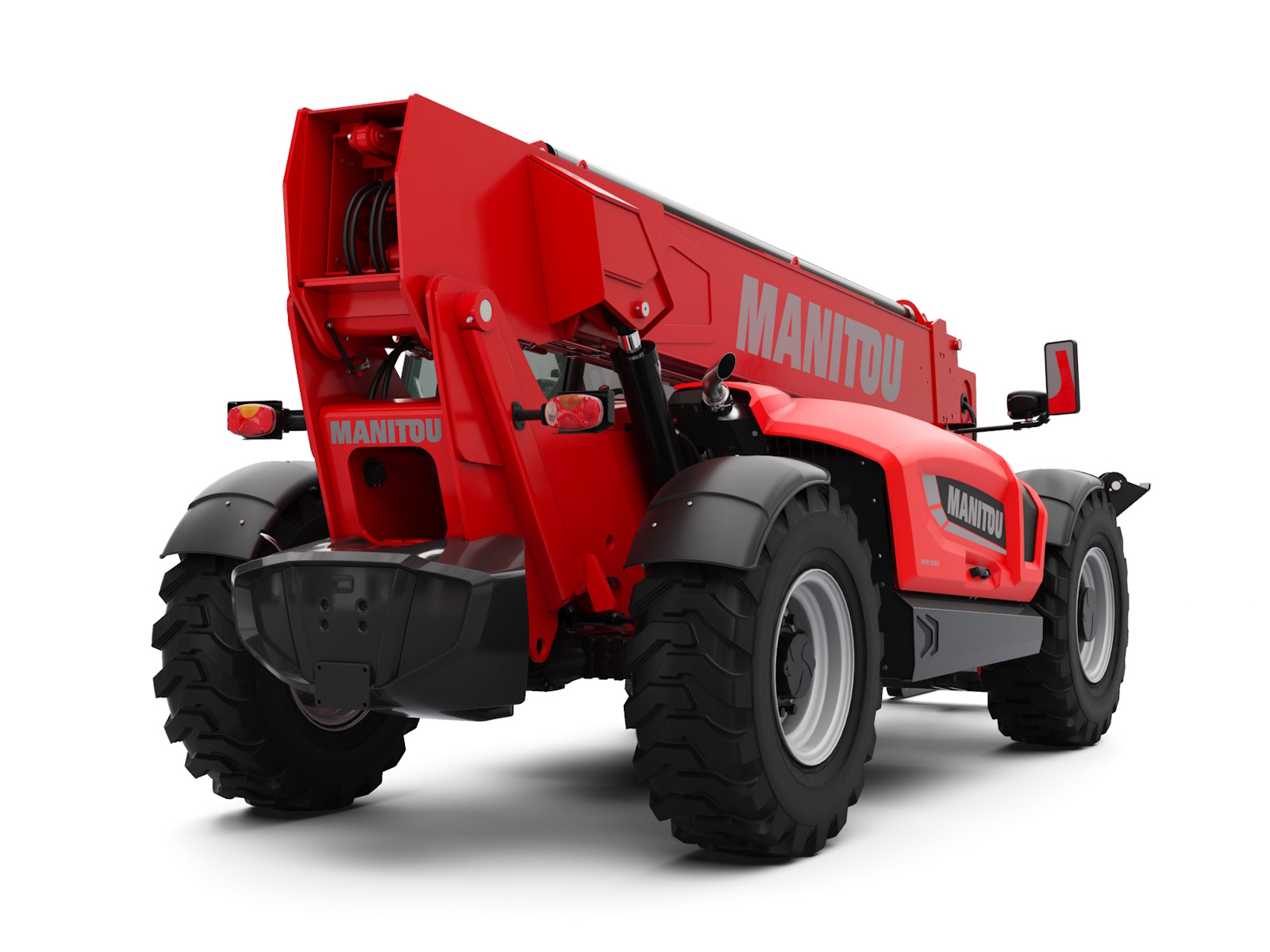

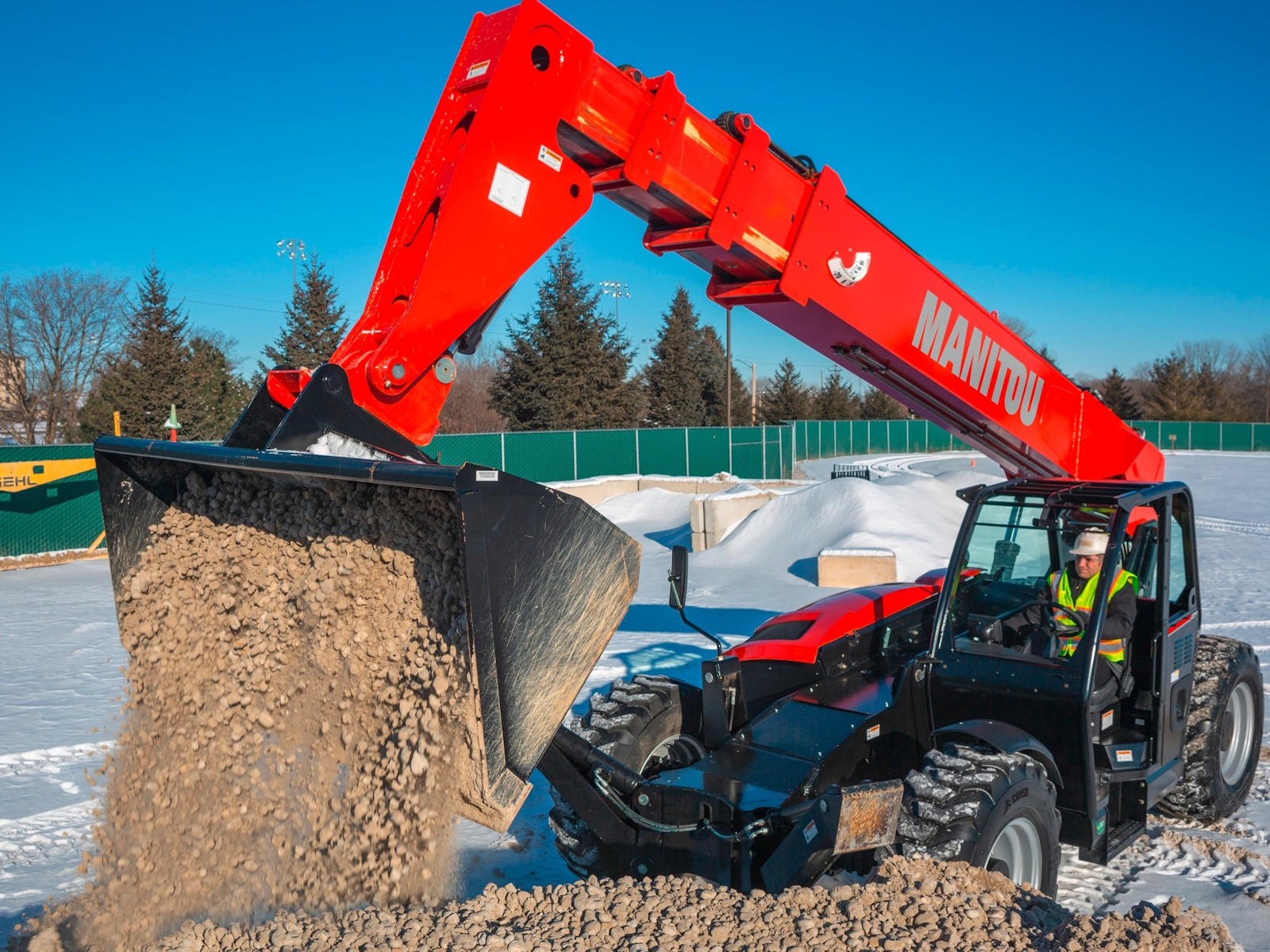

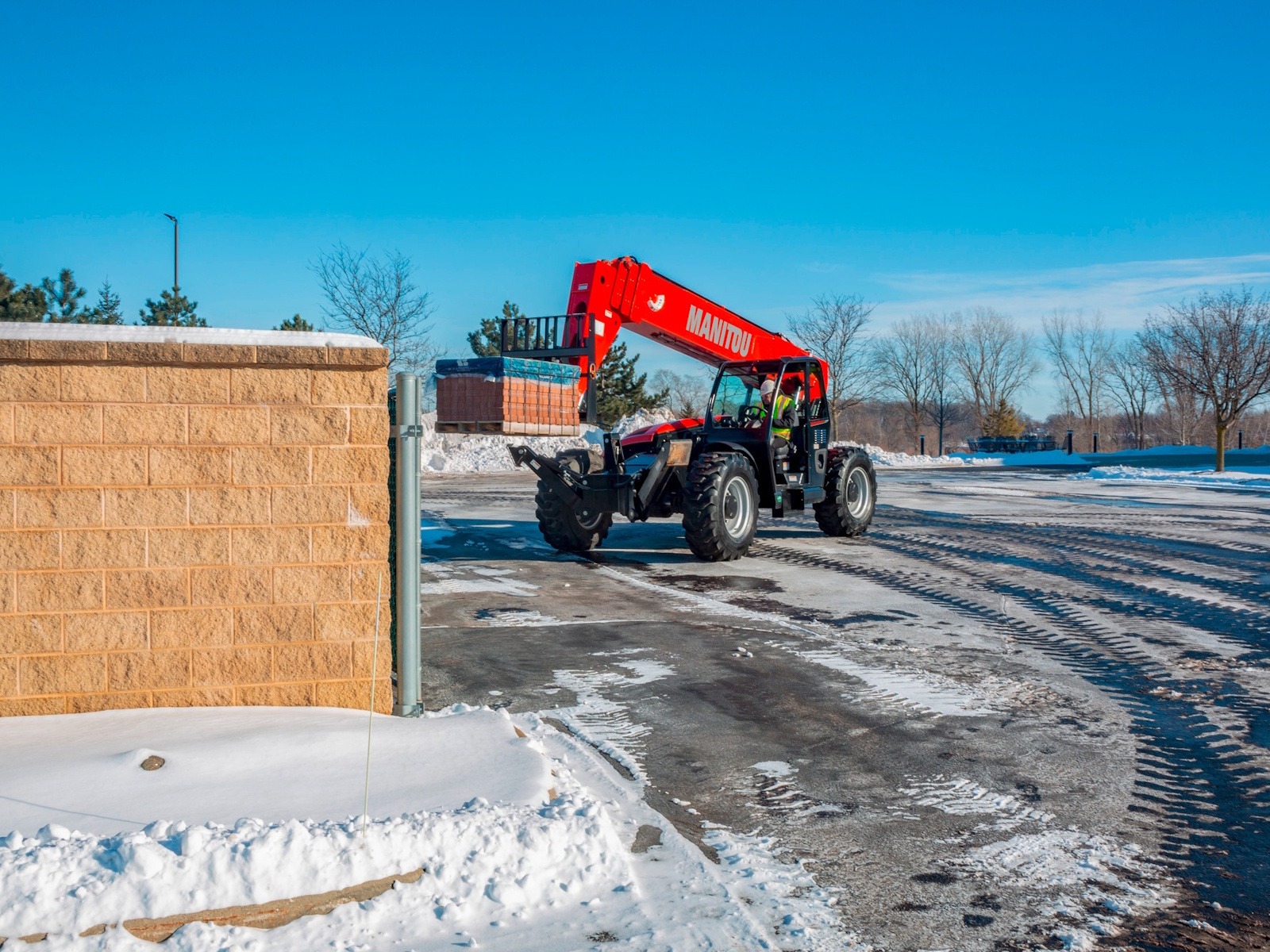

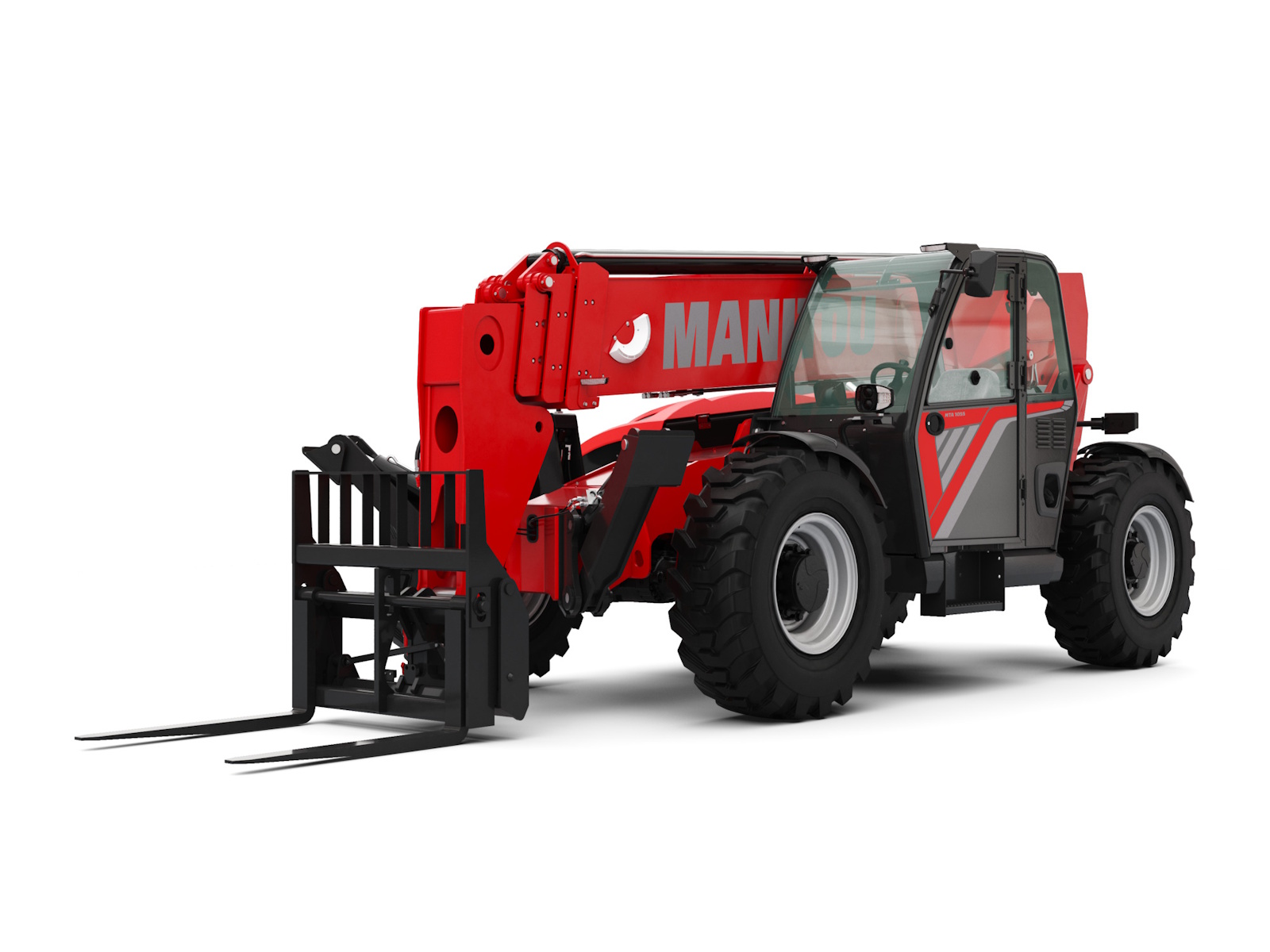

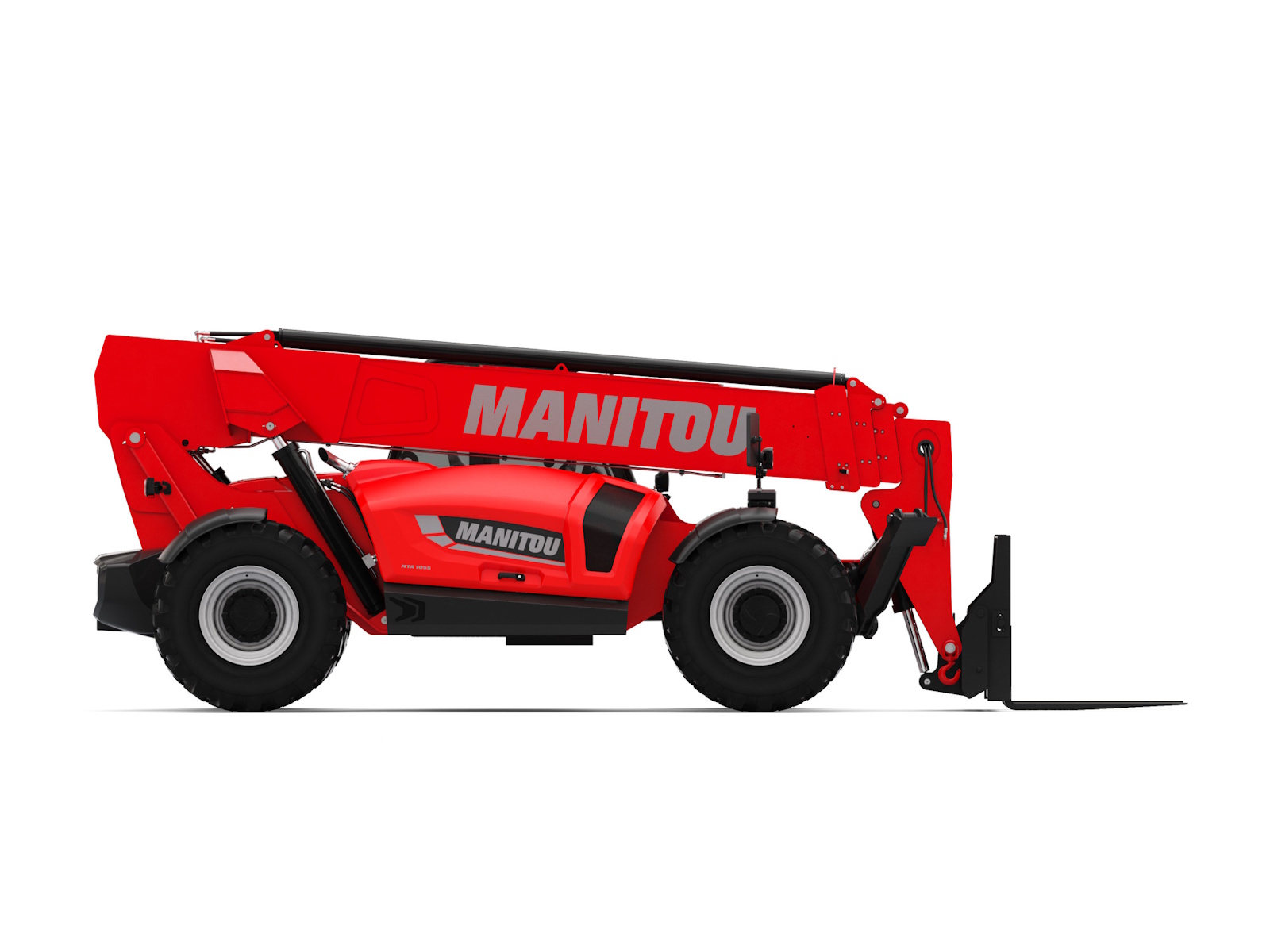

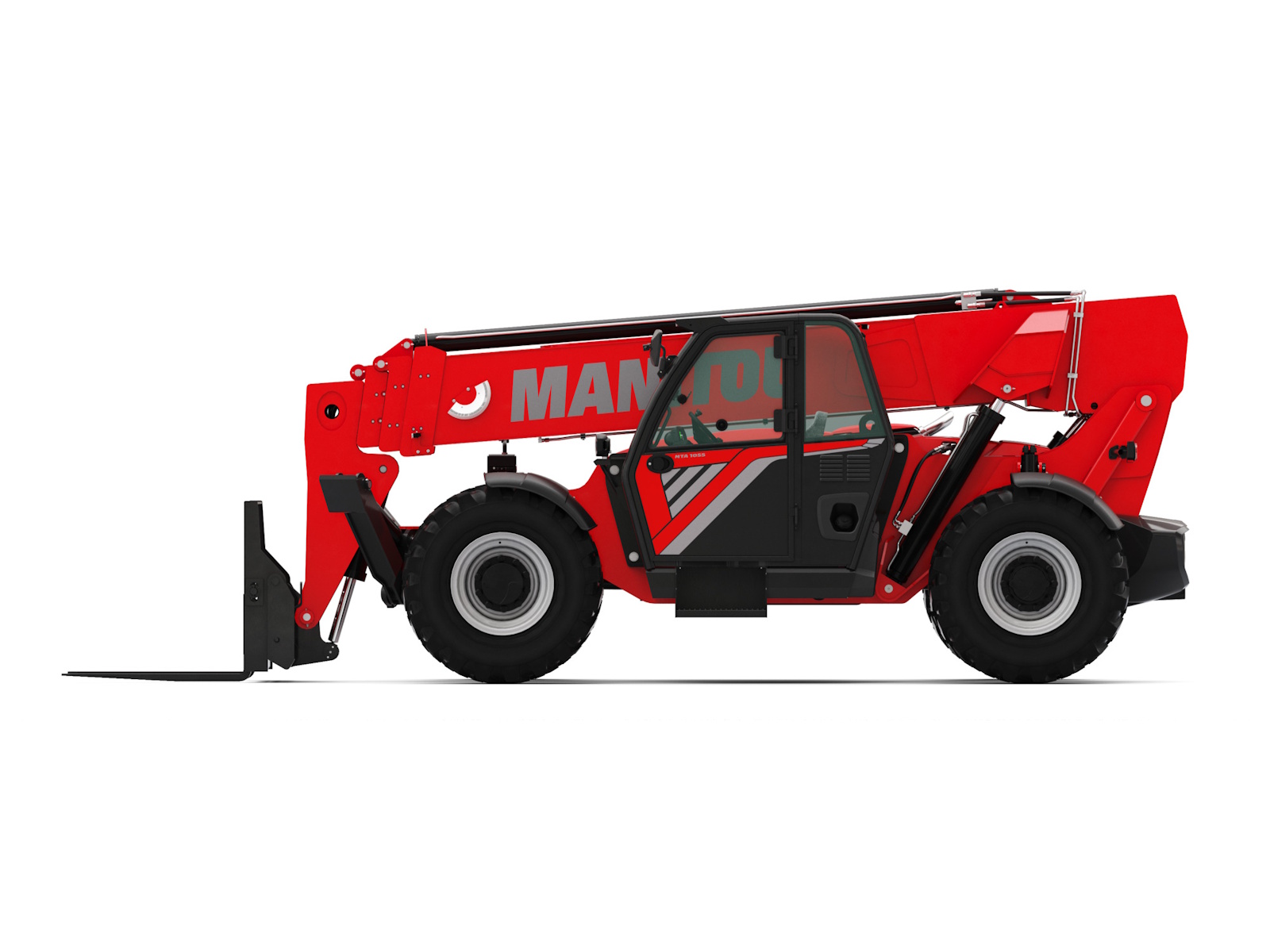

2026 Manitou Group MTA 1055
The new MTA Serie is designed to meet the needs of North American construction markets and rental sectors.

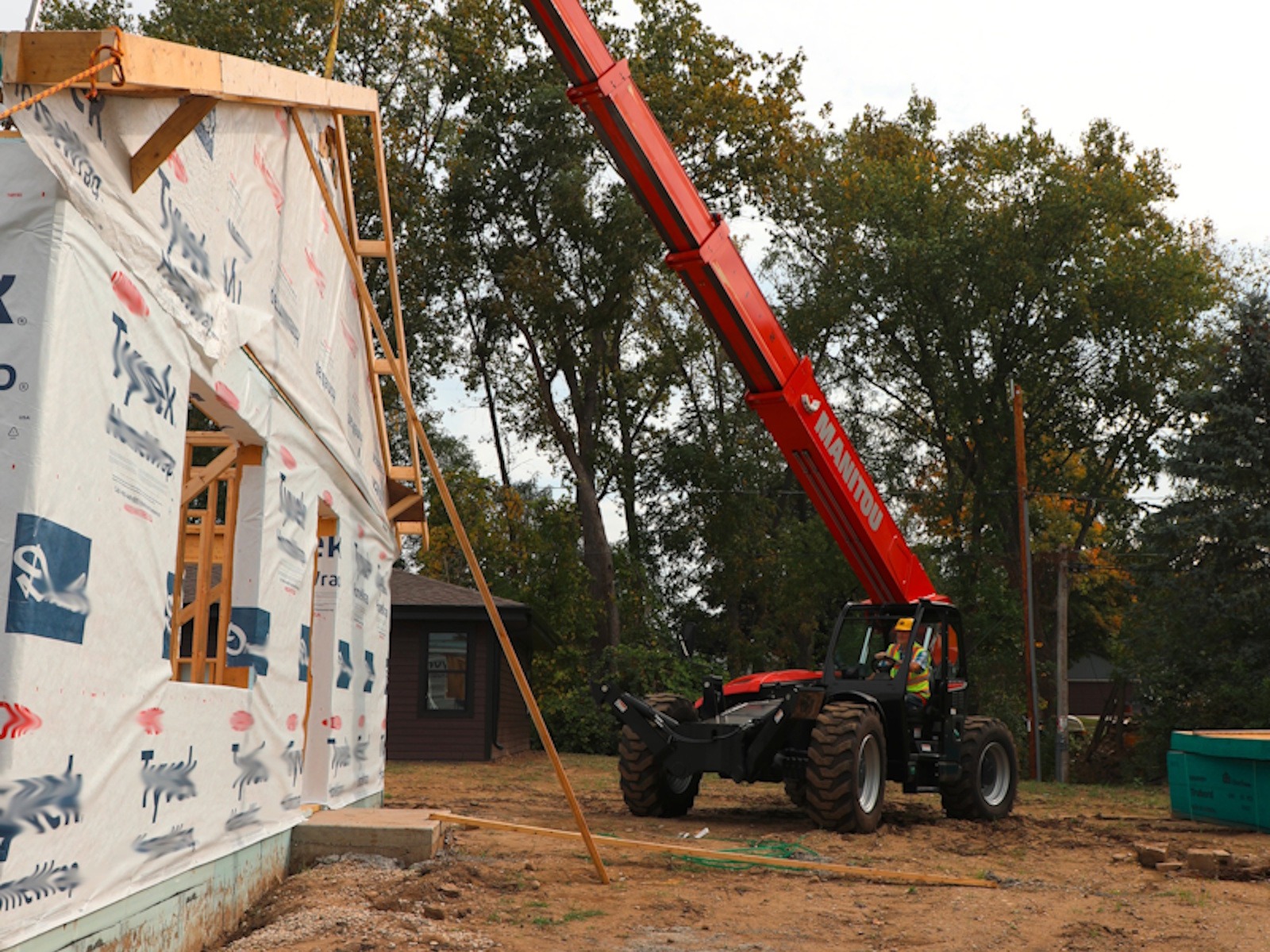

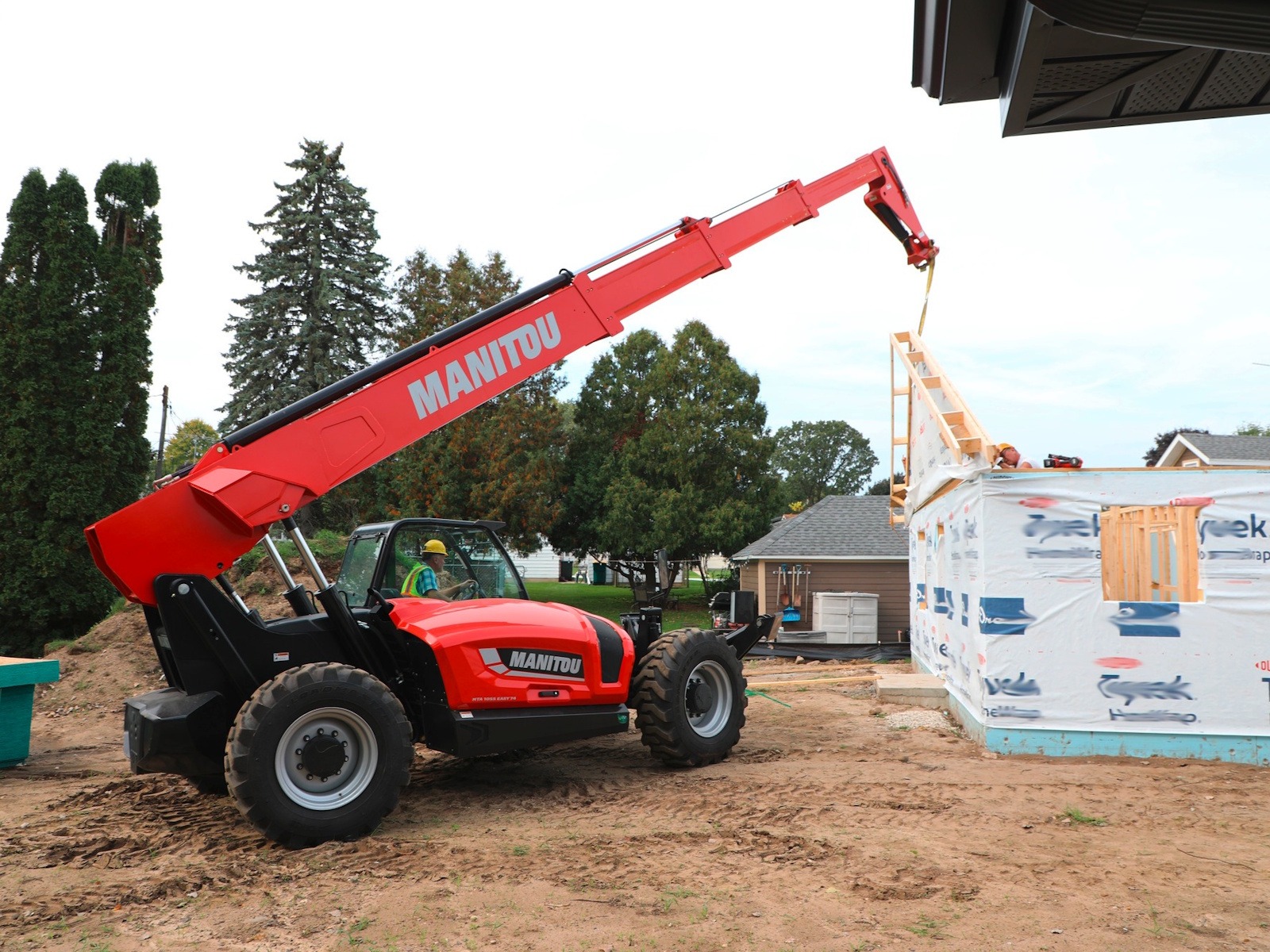

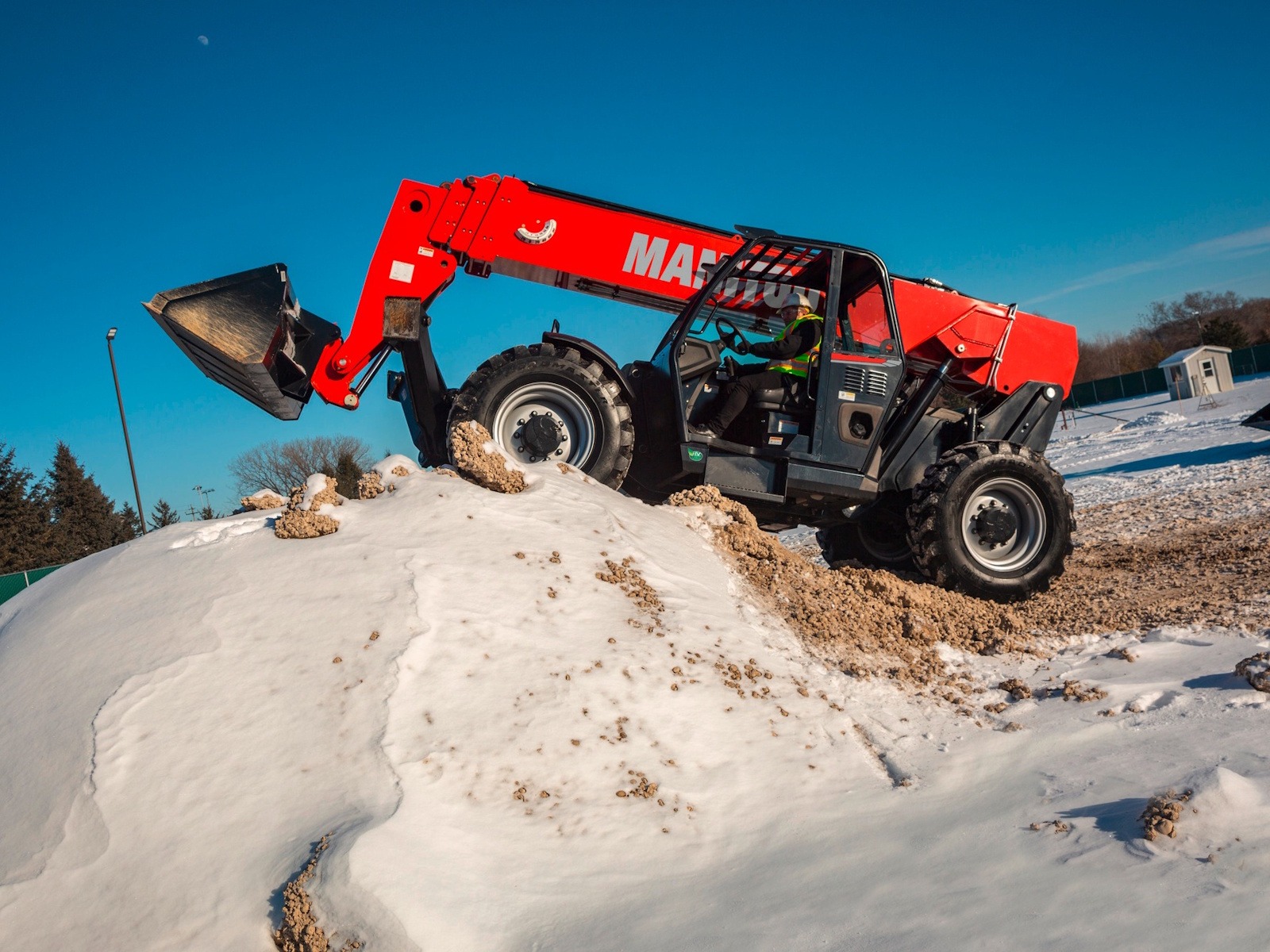

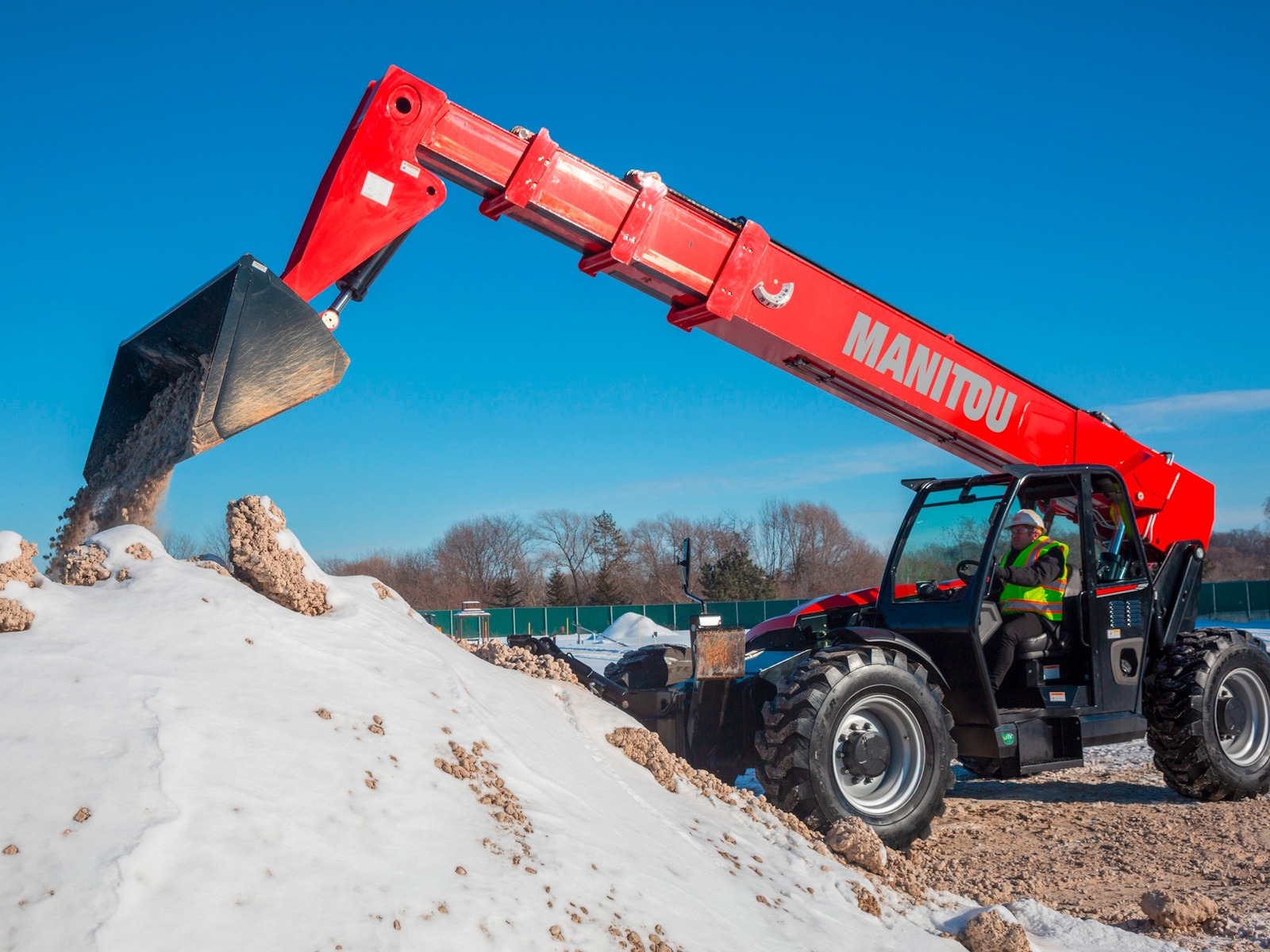

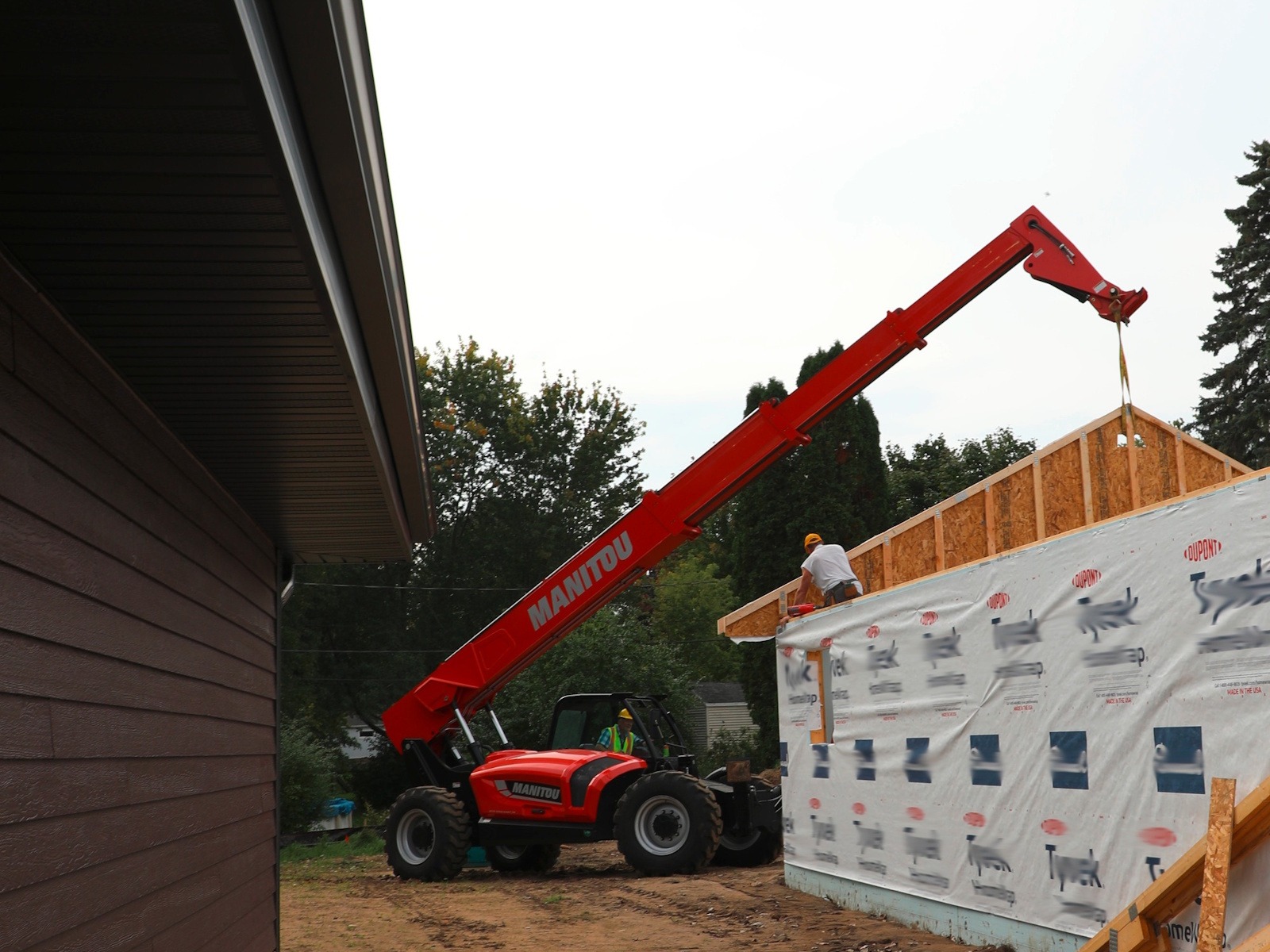

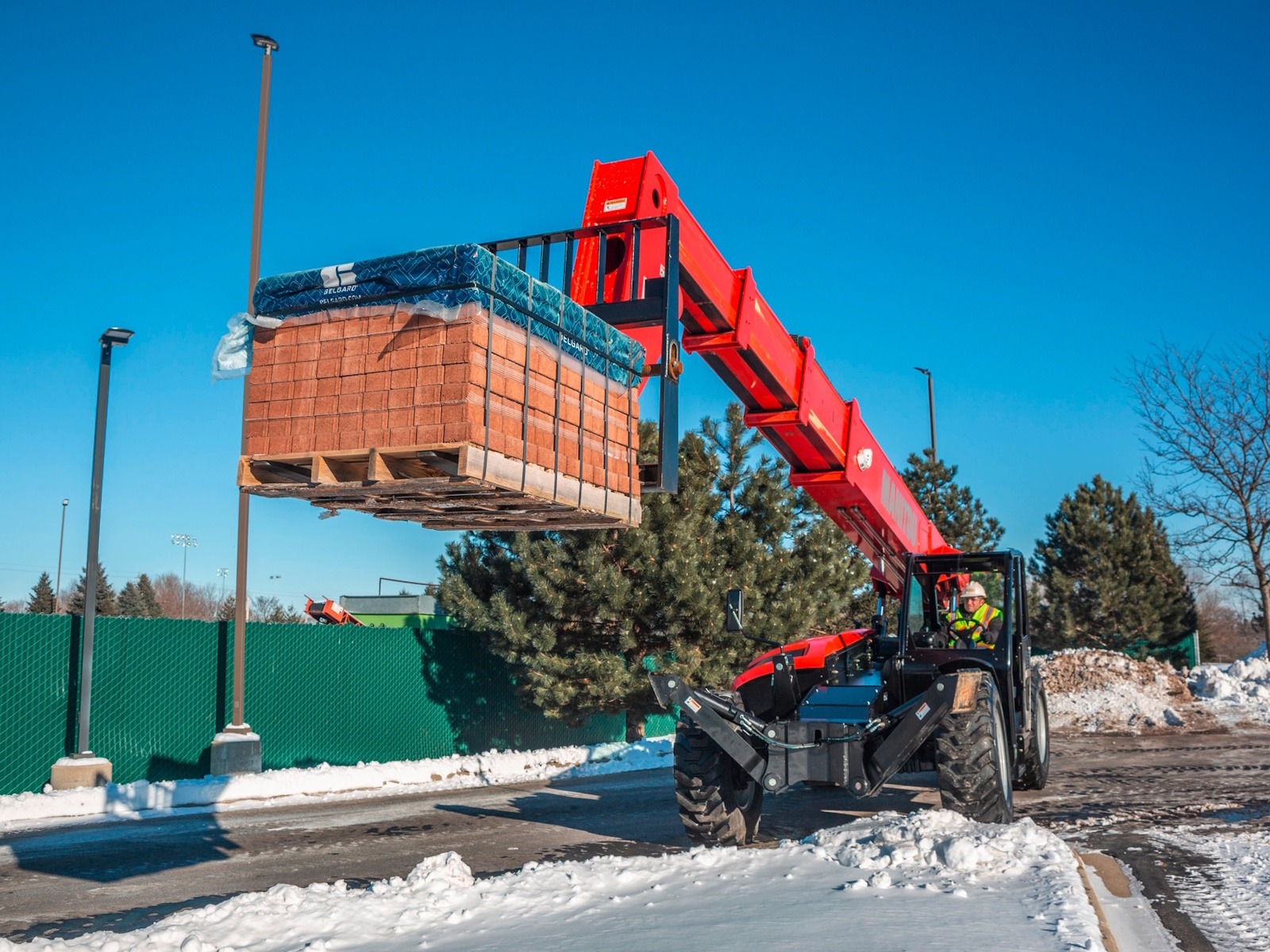

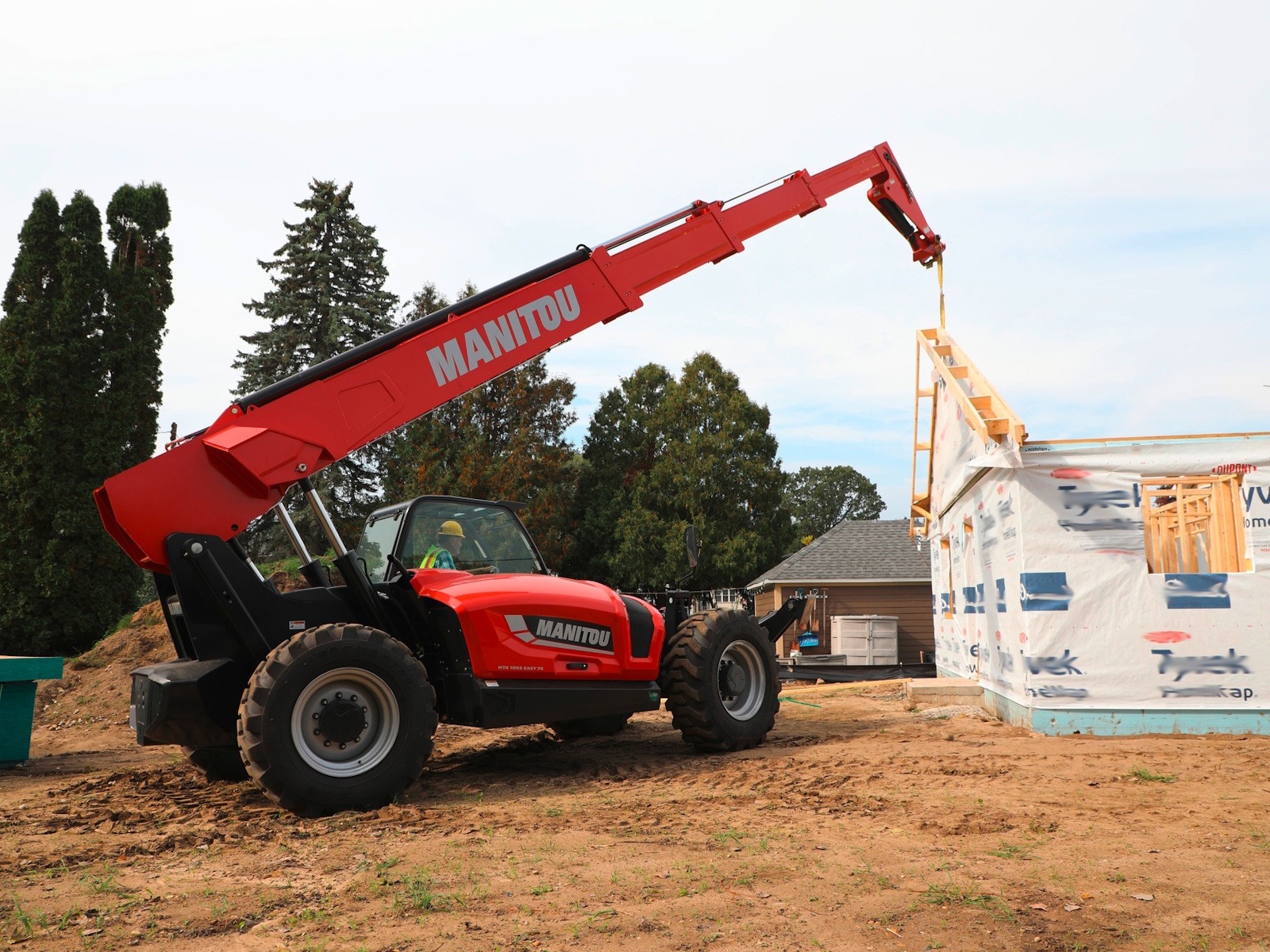

The MTA 1055: high lift with full power performance. MTA 1055 has 10,000 lbs. (4,536 kg) capacity with max lift to 55' 7" (16.9 m) and reach to 42' 3" (12.9 m). Deutz 127 HP and 5 speed power shift trasmission.
The new design also offers better visibility, comfort, performance, and a reduced total cost of ownership.

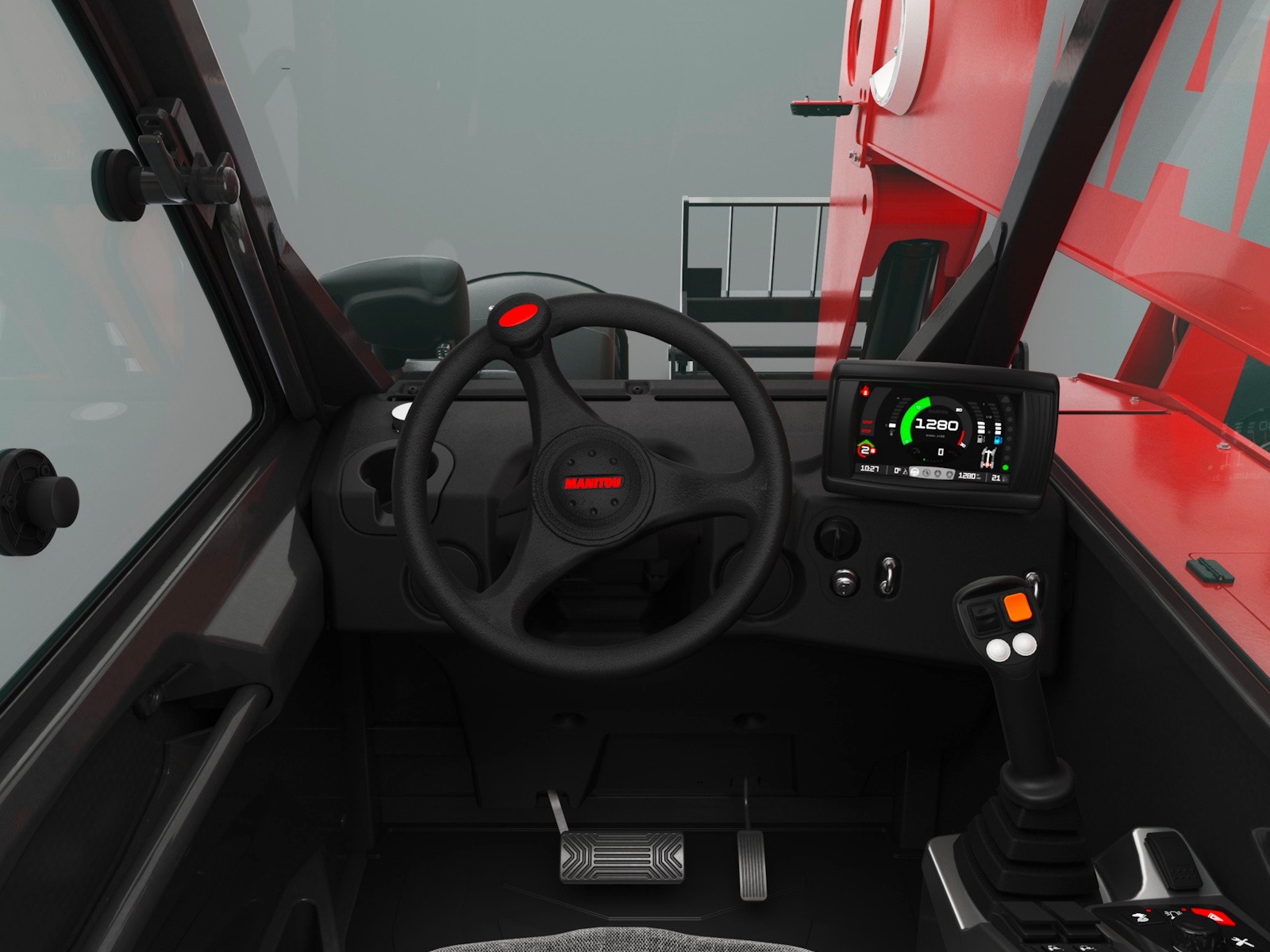

- New cabin design for more comfort and visibility
- Enhanced performance from combined hydraulic movements
- Better TCO with robust, high quality components
Info
Industry
Agriculture
Make
Manitou Group
Model
MTA 1055
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Notes
Max. capacity: 10000 lb | Max. outreach: 42 ft 3 in | Tilt-up angle: 34 ° | Tilt-down angle: 96 ° | Frame leveling corrector: 10 ° | Lifting: 16 s | Lowering: 11 s | Extension: 18 s | Retraction: 16 s | Crowd: 4 s | Dump: 6 s | Drawbar pull: 12519 daN | Number of gears (forward / reverse): 5 / 3 | Max. travel speed: 20 mph | Hydraulic pump type: Axial piston | Hydraulic flow / Pressure: 40 US gpm-4000 PSI | Noise at driving position (LpA): 80 dB | Controls: Joystick
Height
8 ft 6 in | Max. lifting height: 55 ft 7 in
Length
Length to face of forks: 21 ft | Overall length (with forks): 25 ft | Forks: 48 in
Width
8 ft 4 in | Overall cab width: 3 ft 1 in | Forks: 5 in
Wheelbase
11 ft 6 in
Ground Clearance
1 ft 7 in
Turning Radius
External turning radius: 12 ft 10 in
Weight
30300 lb
Tires
Pneumatic
Engine
Deutz
Cylinders
4 - 220 in³
Power/Horsepower
127 Hp / 95 kW
Torque
69 ft/lbs @ 2300 rpm
Transmission
Powershift
Brakes
Parking brake: Hydraulic spring release SAHR | Service brake: Wet disc brakes
Oil Capacity
2 US gal | Hydraulic oil: 42 US gal
Fuel Capacity
38 US gal | Diesel Exhaust fluid (AdBlue® type) tank capacity: 4 US gal
Steering
Steering wheels (front / rear): 2 / 2
Wheels
Drive wheels (front / rear): 2 / 2
