2026 Manitou Group MT 420 H

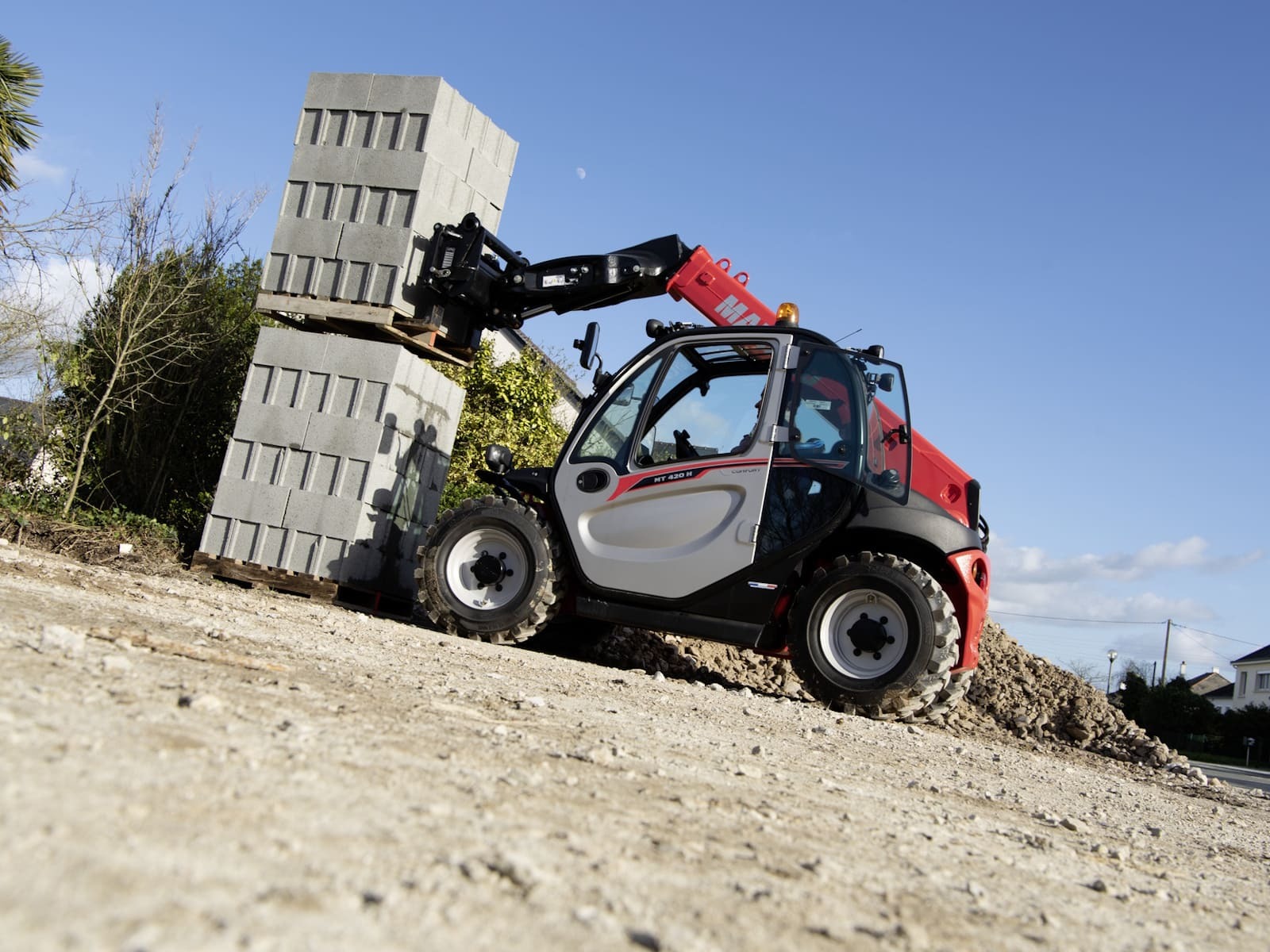

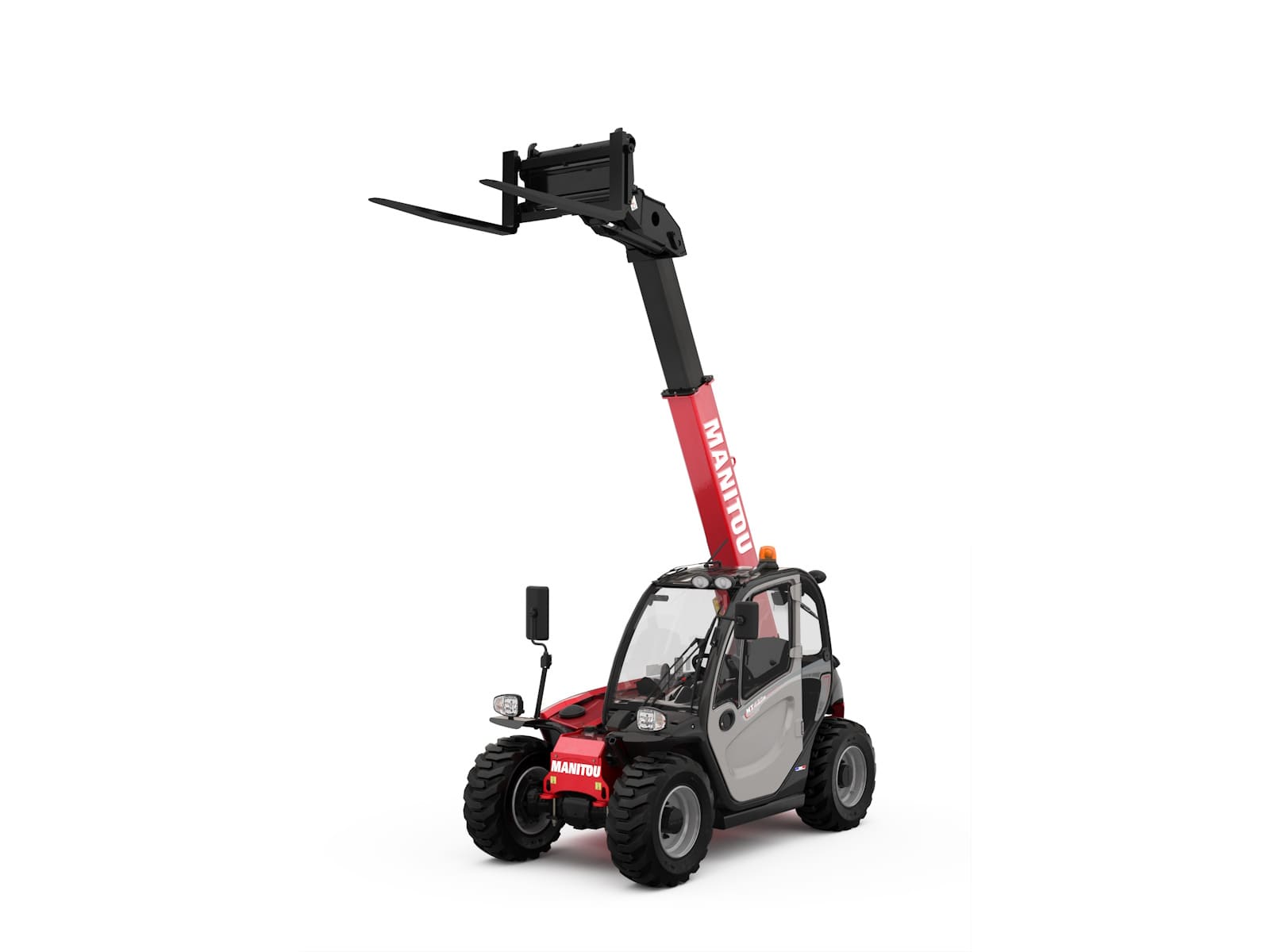

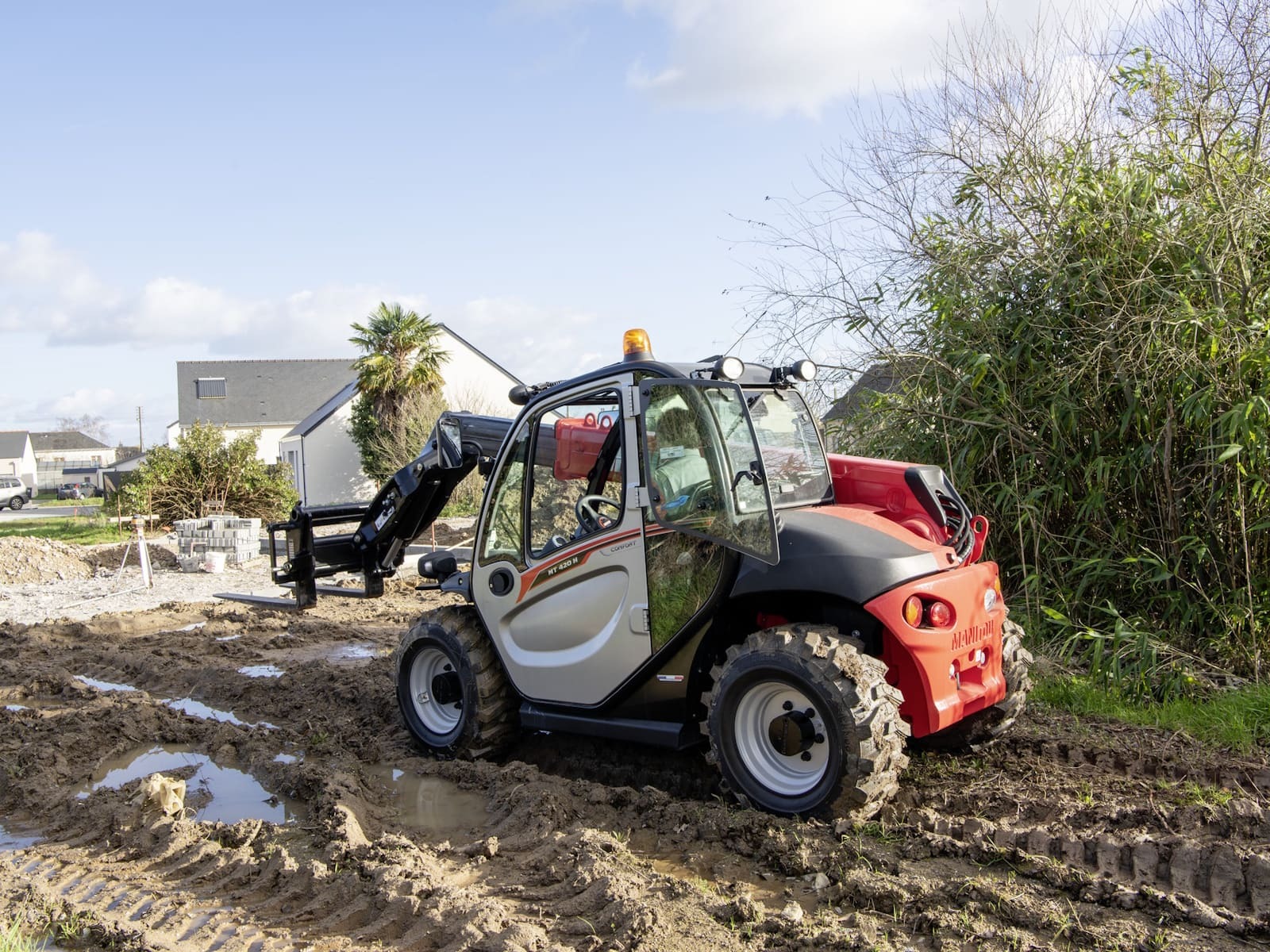

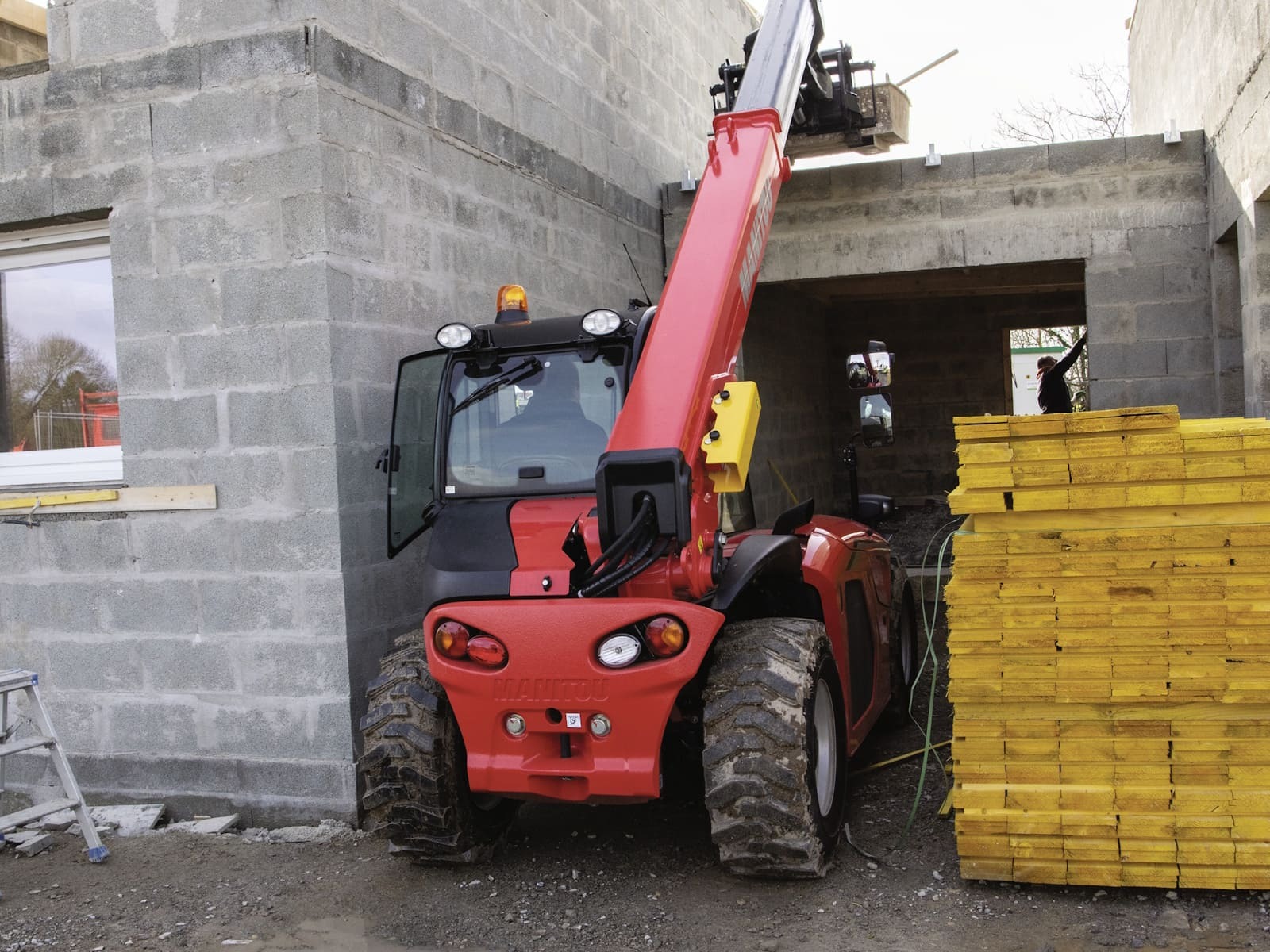

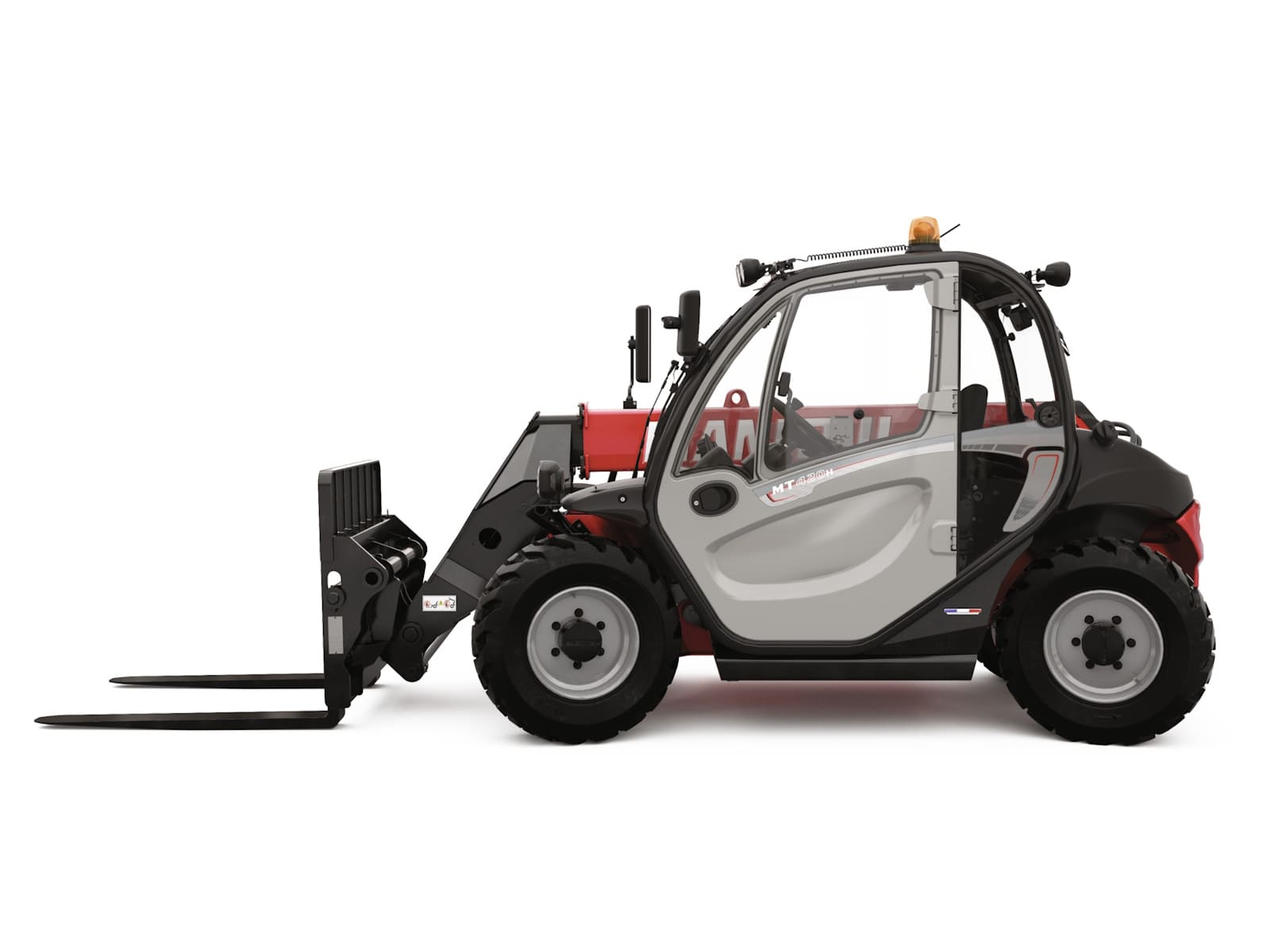

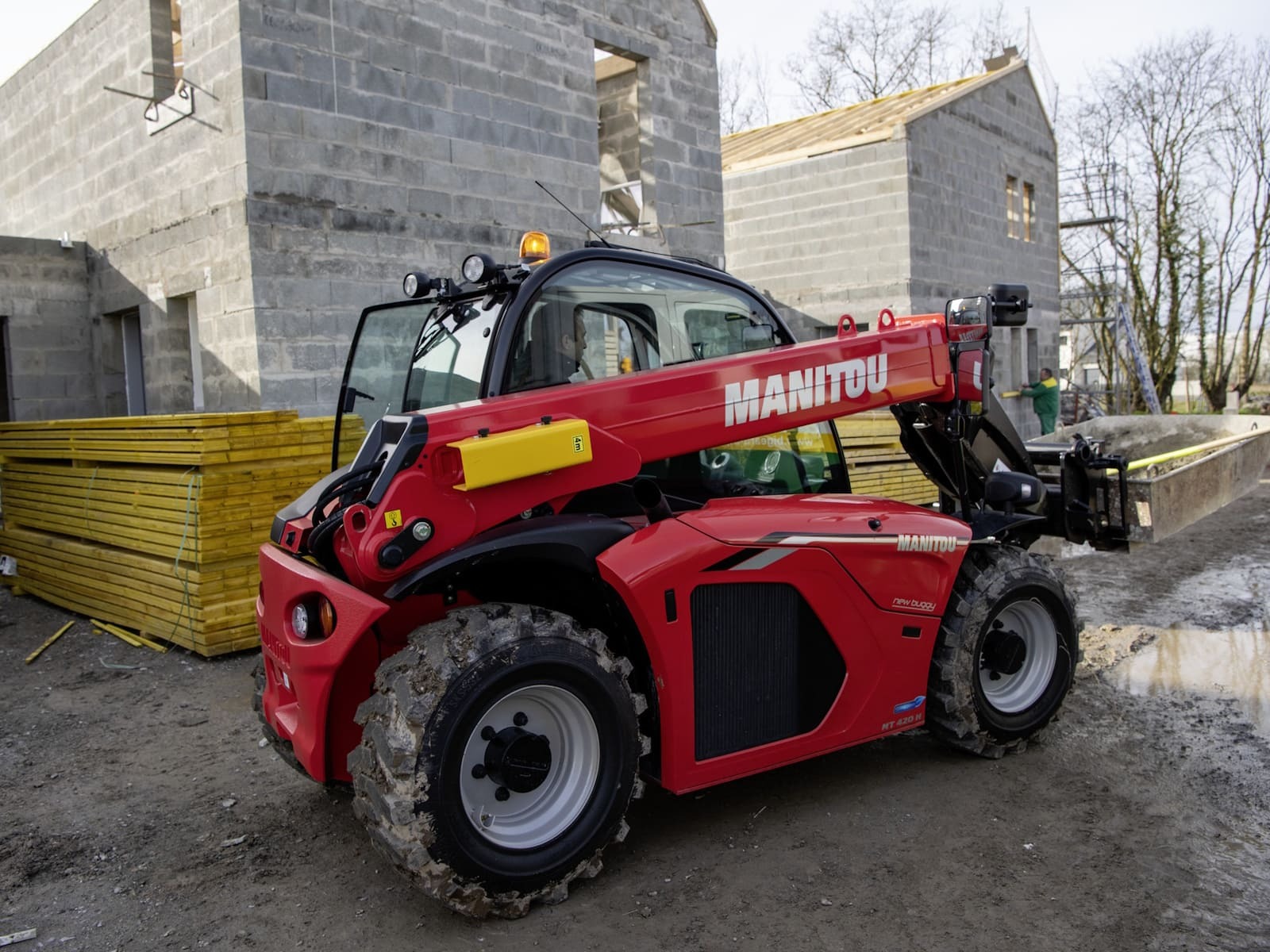

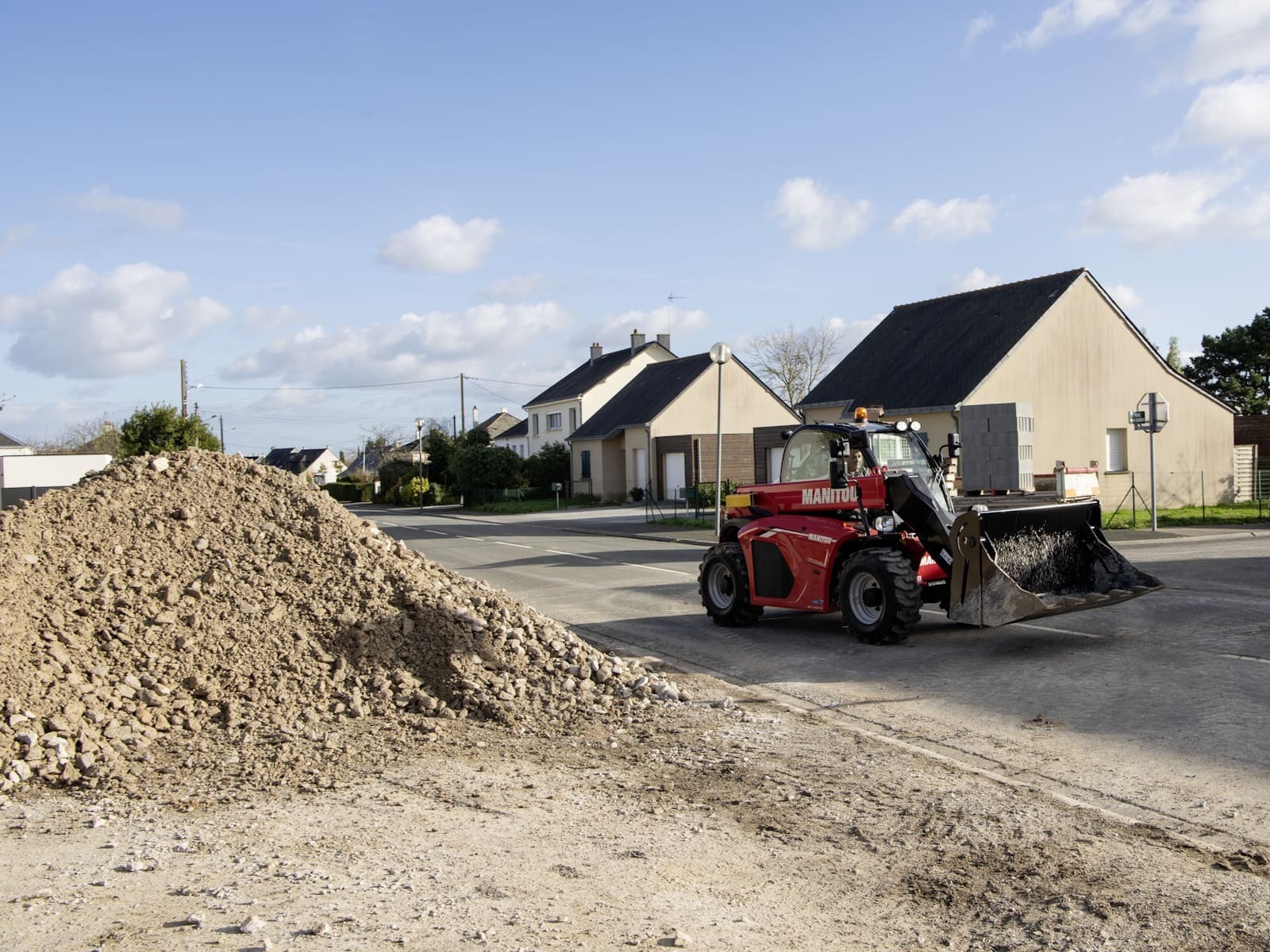

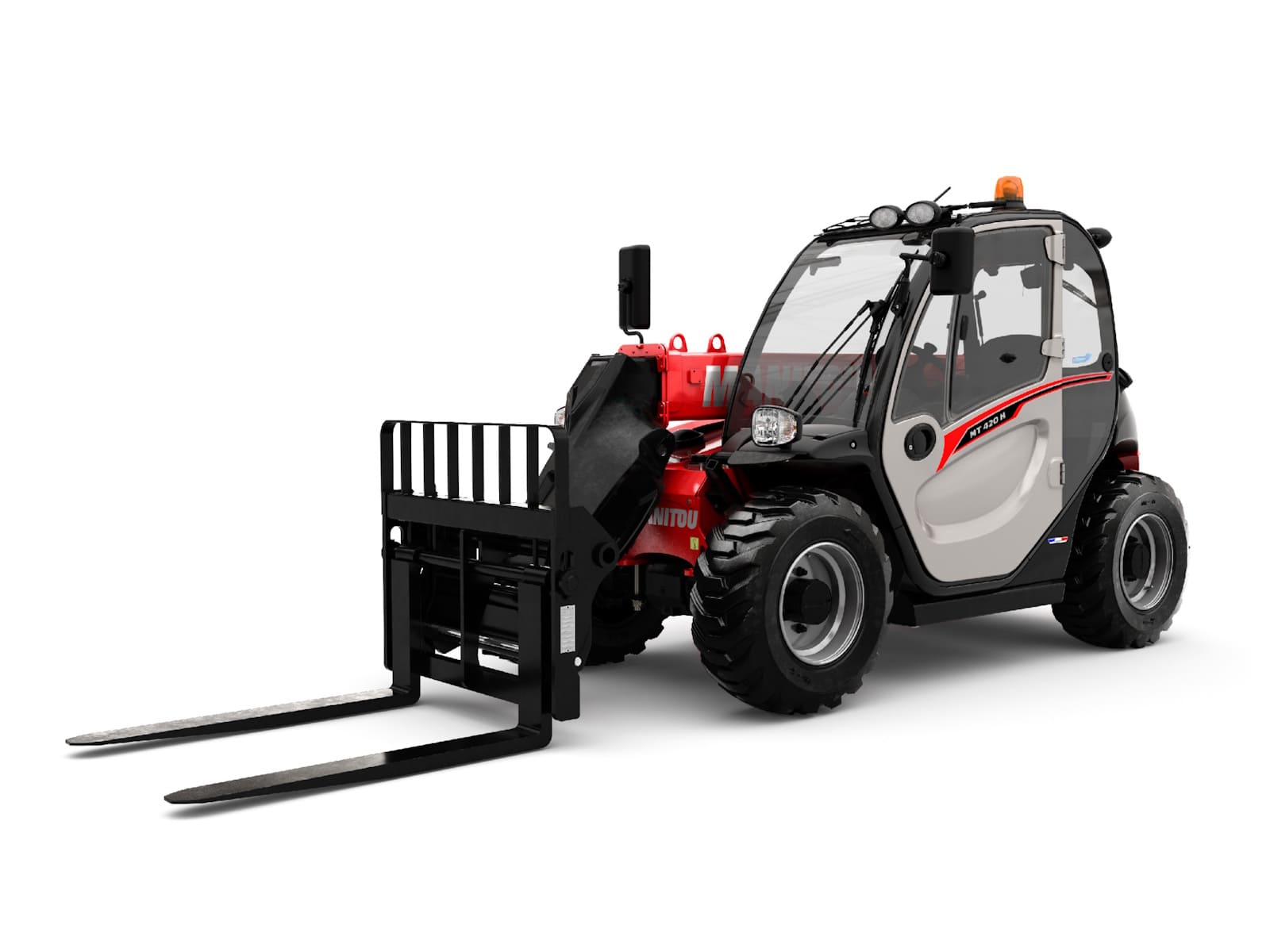

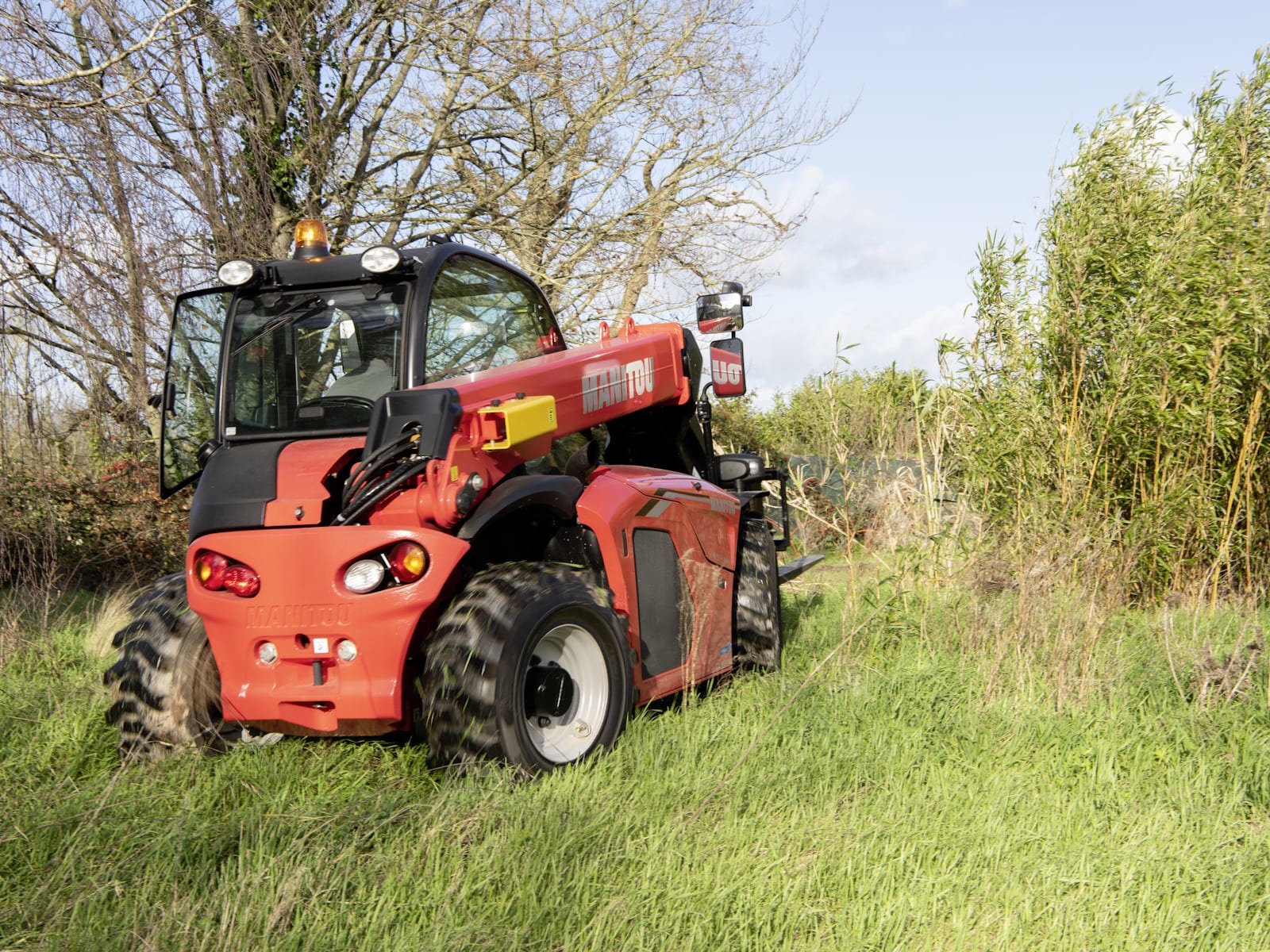

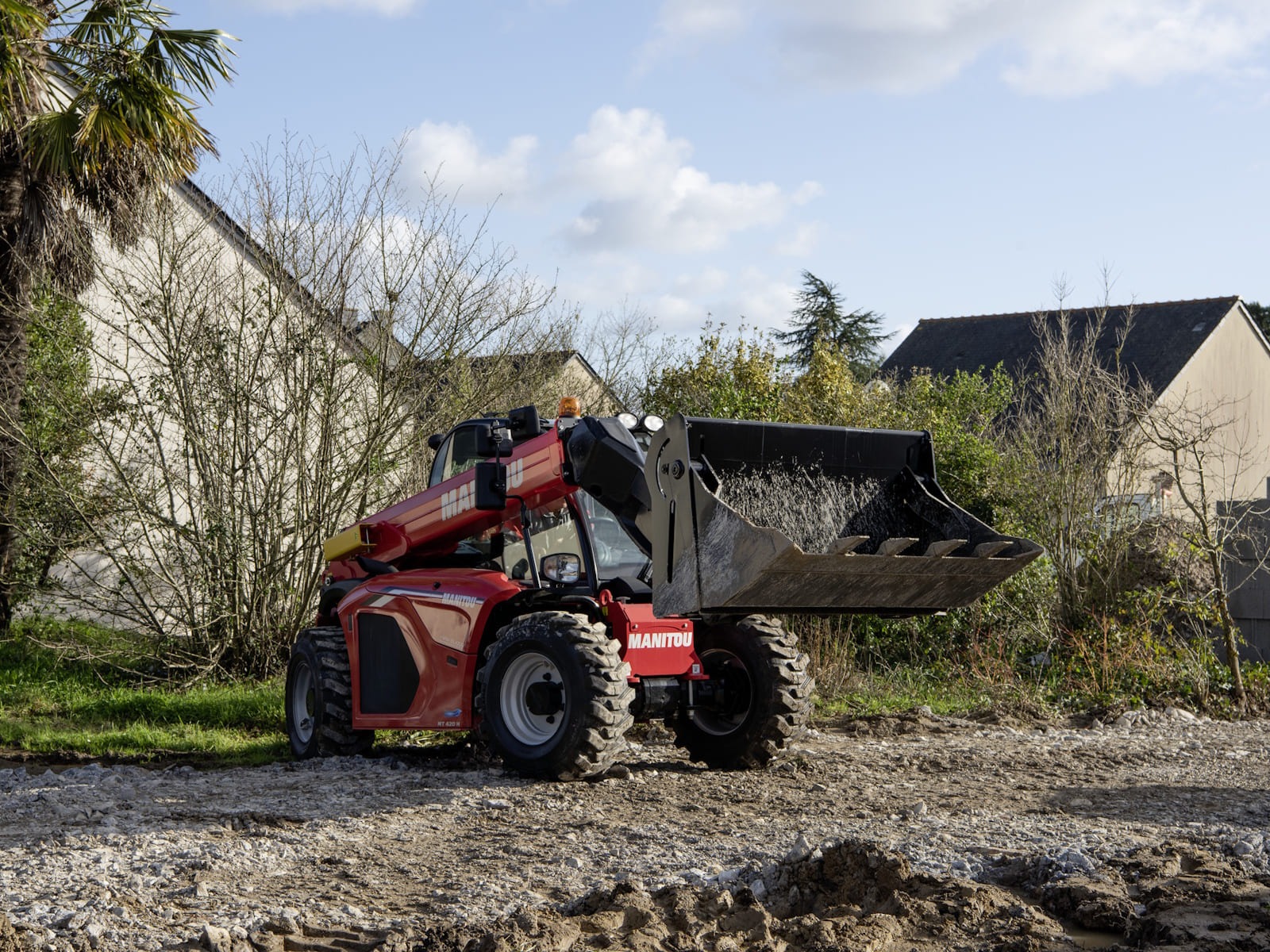

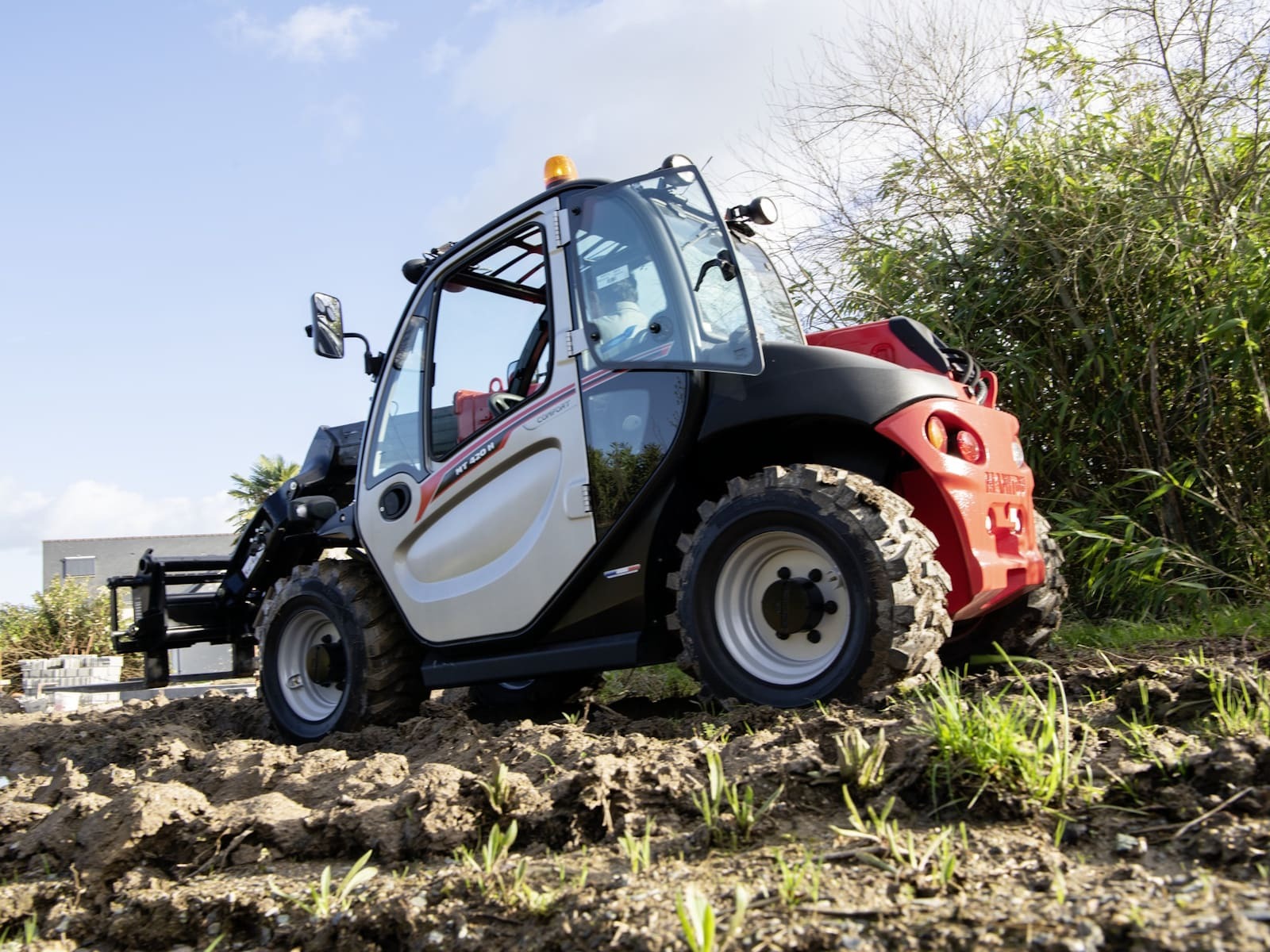

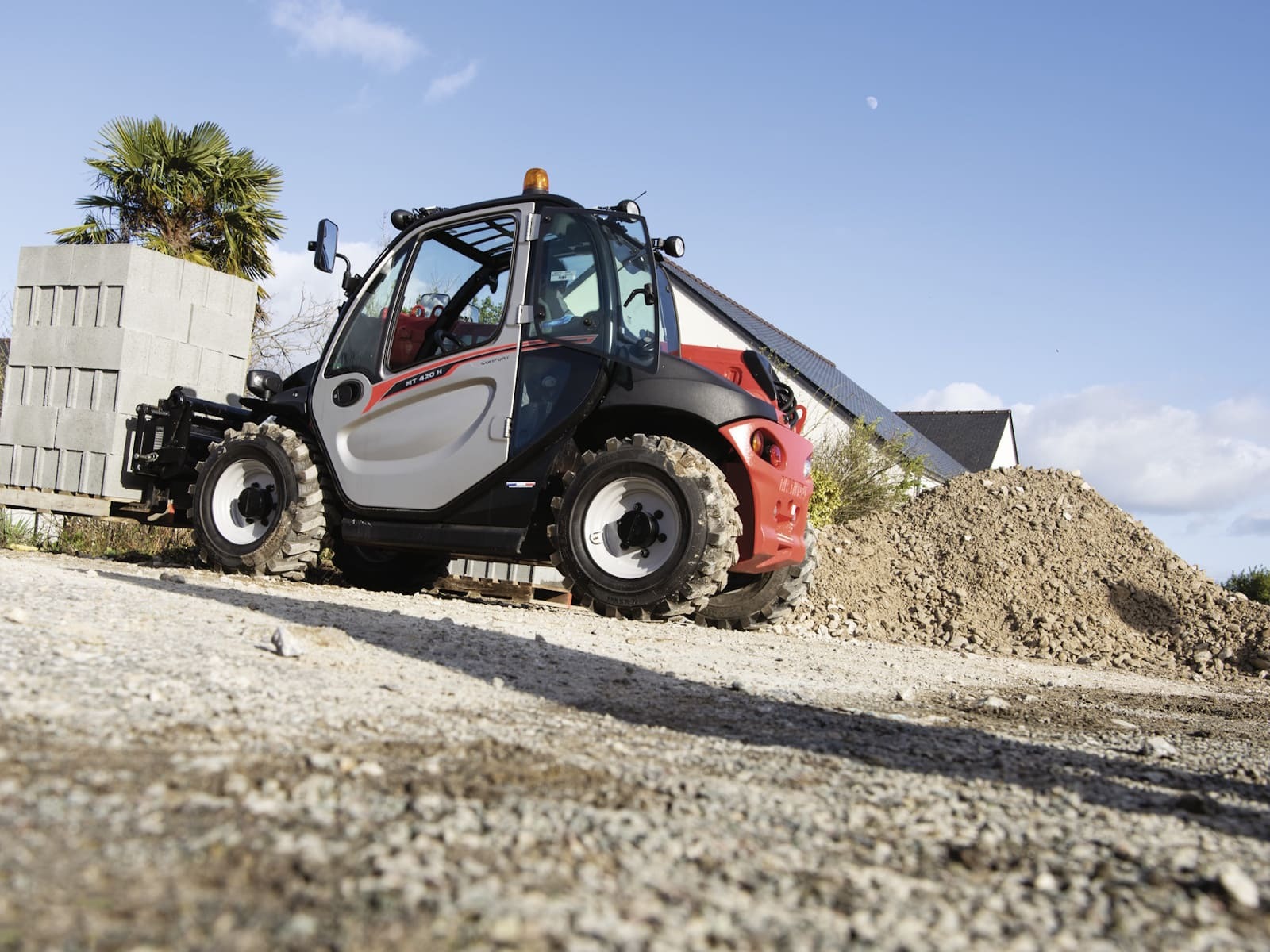

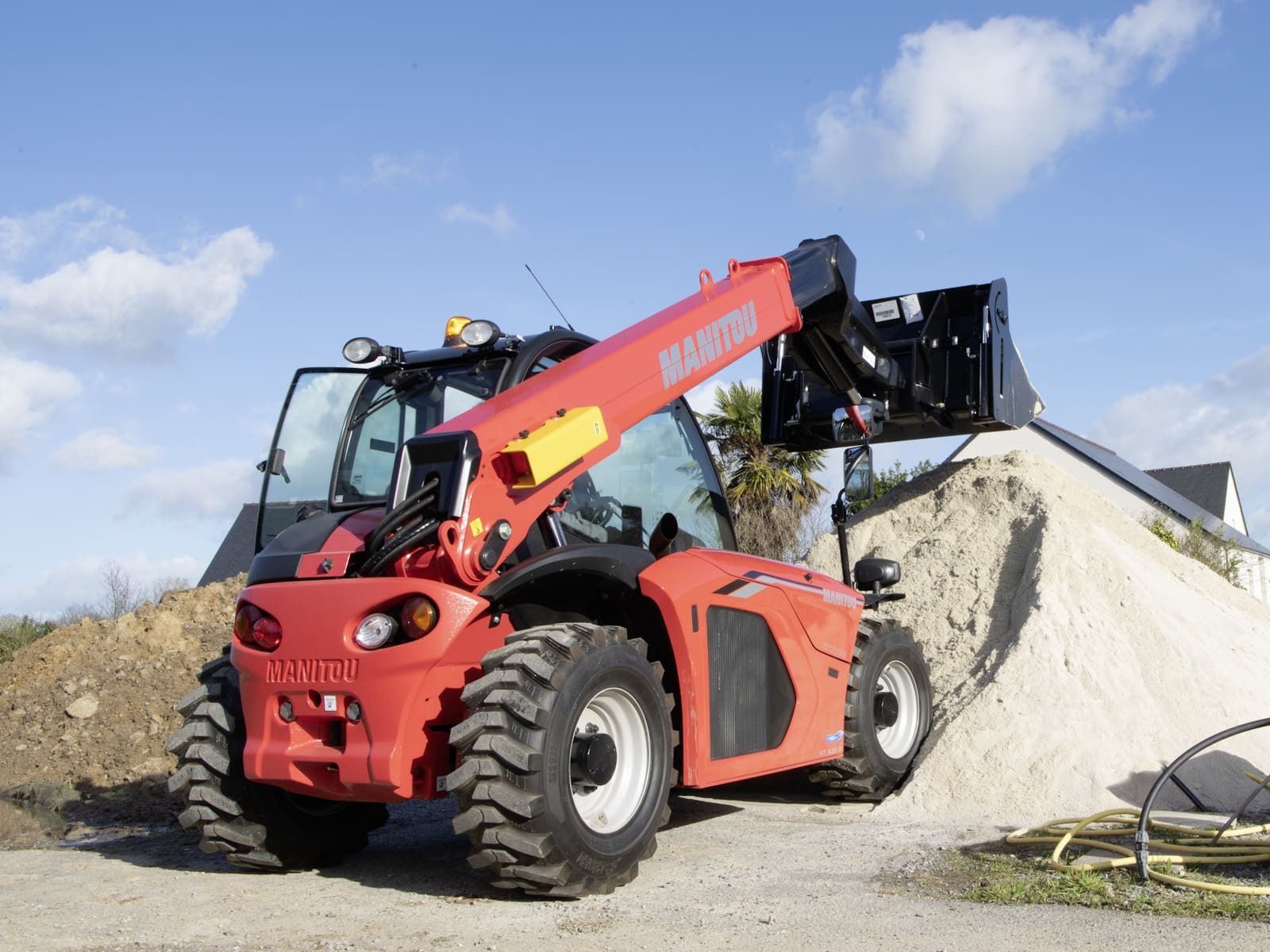

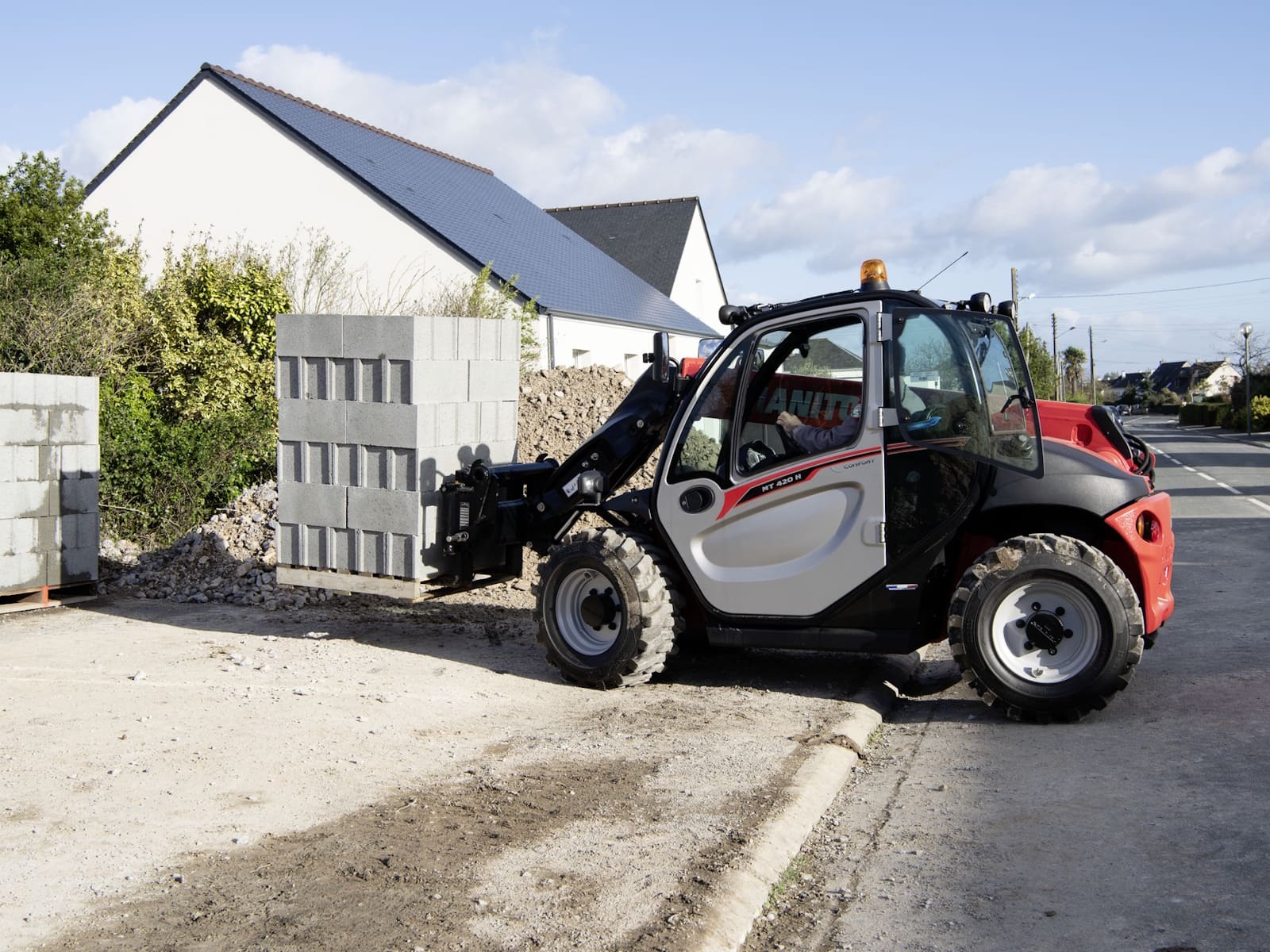

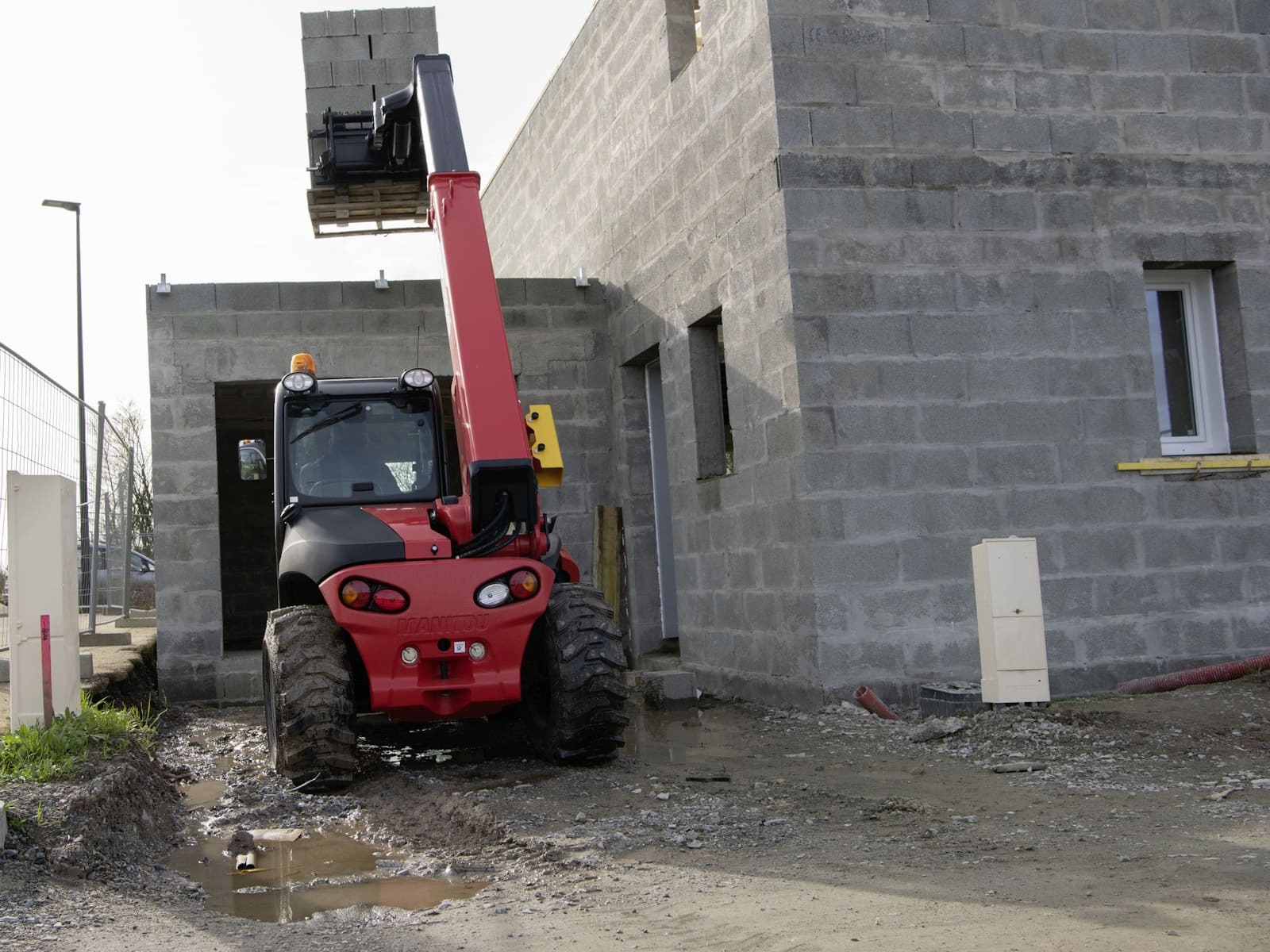

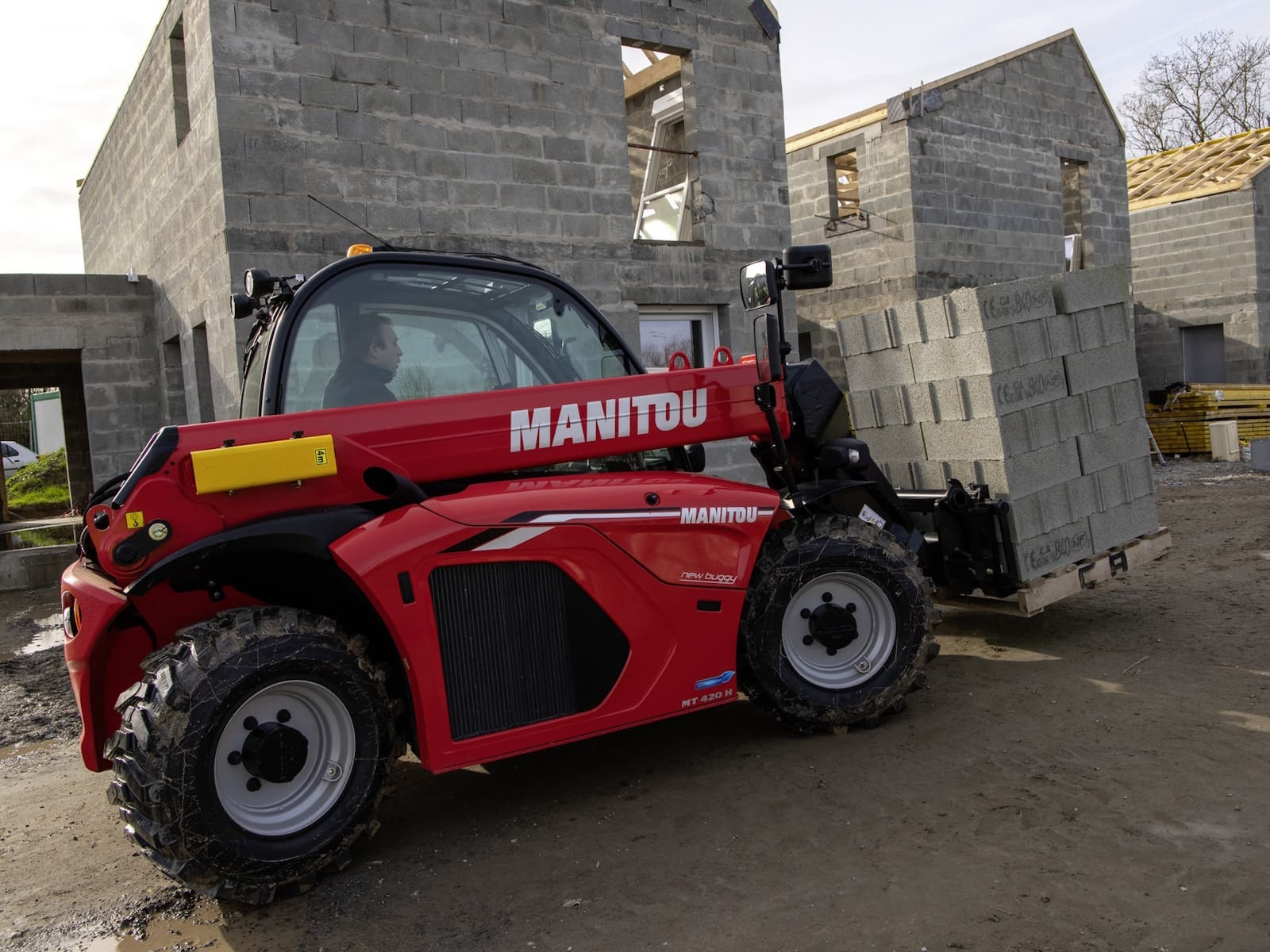

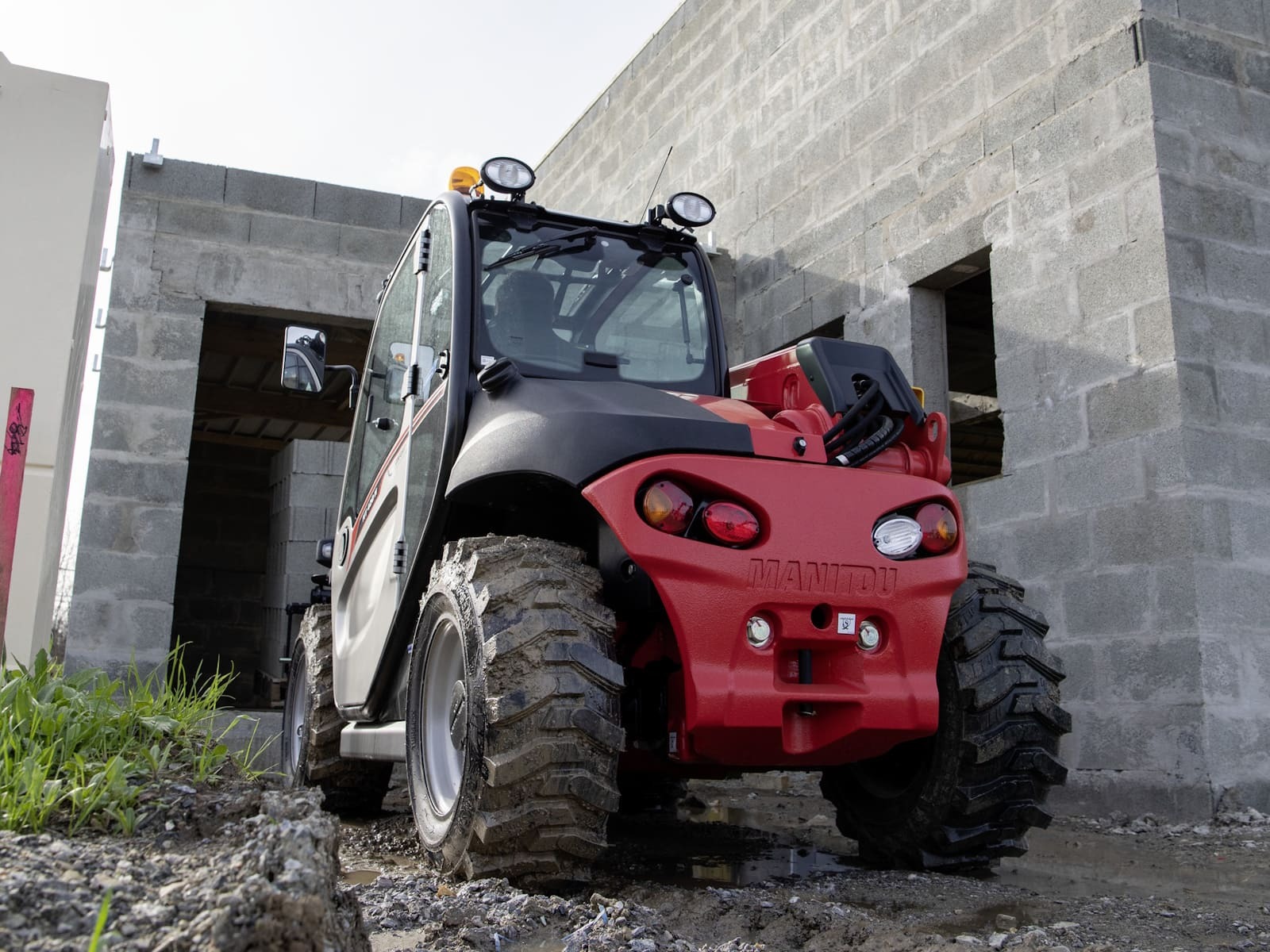

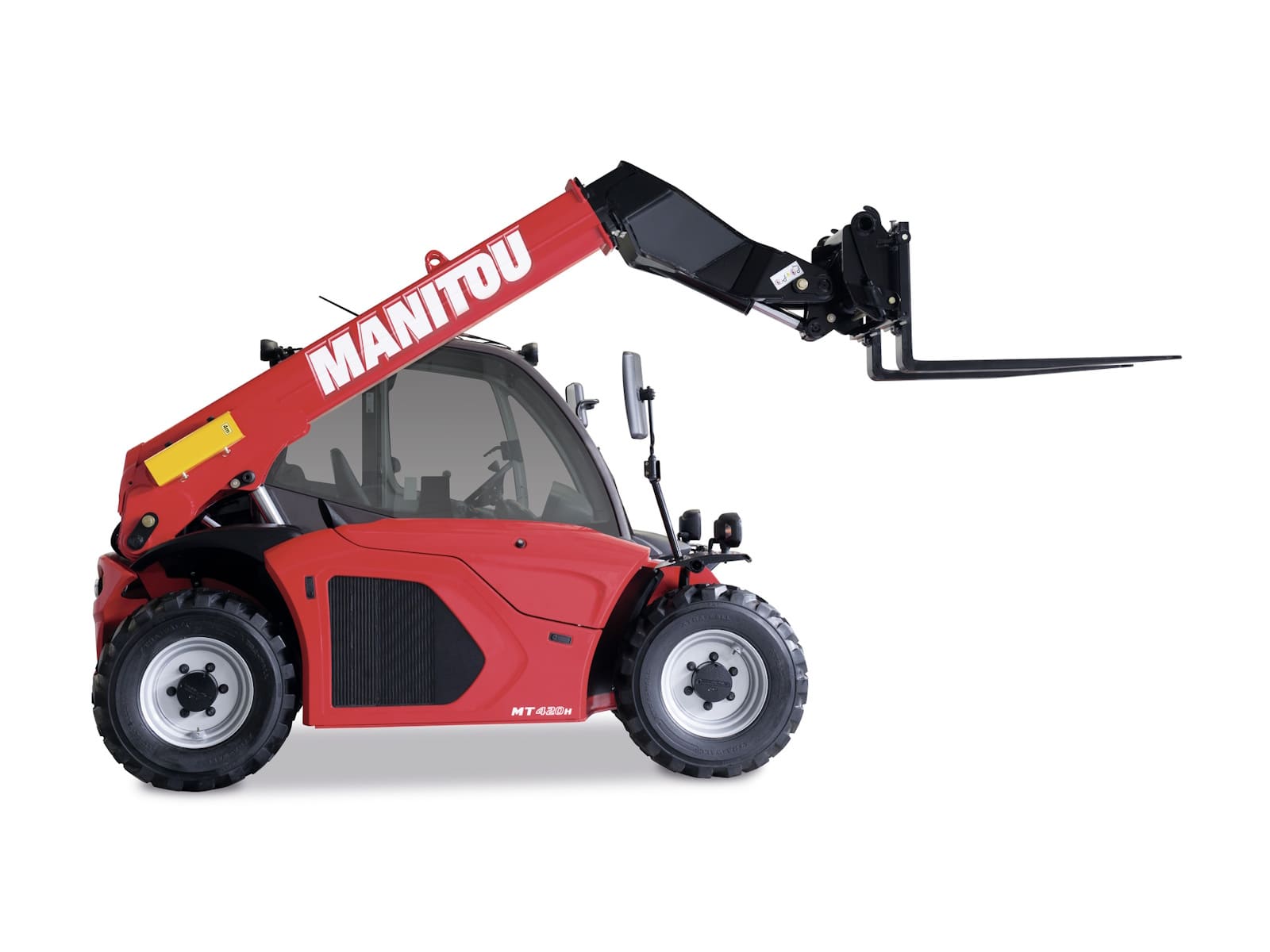

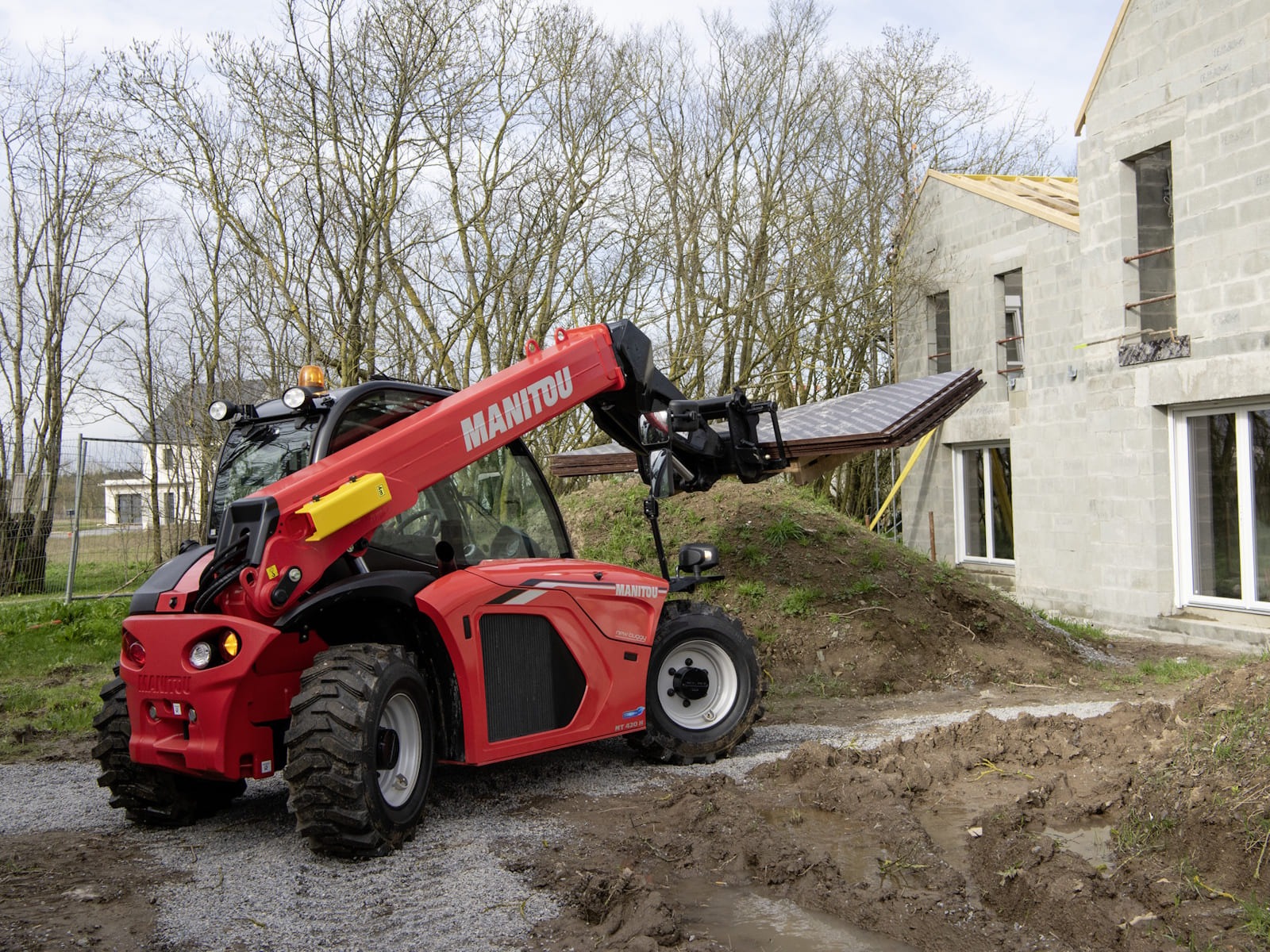

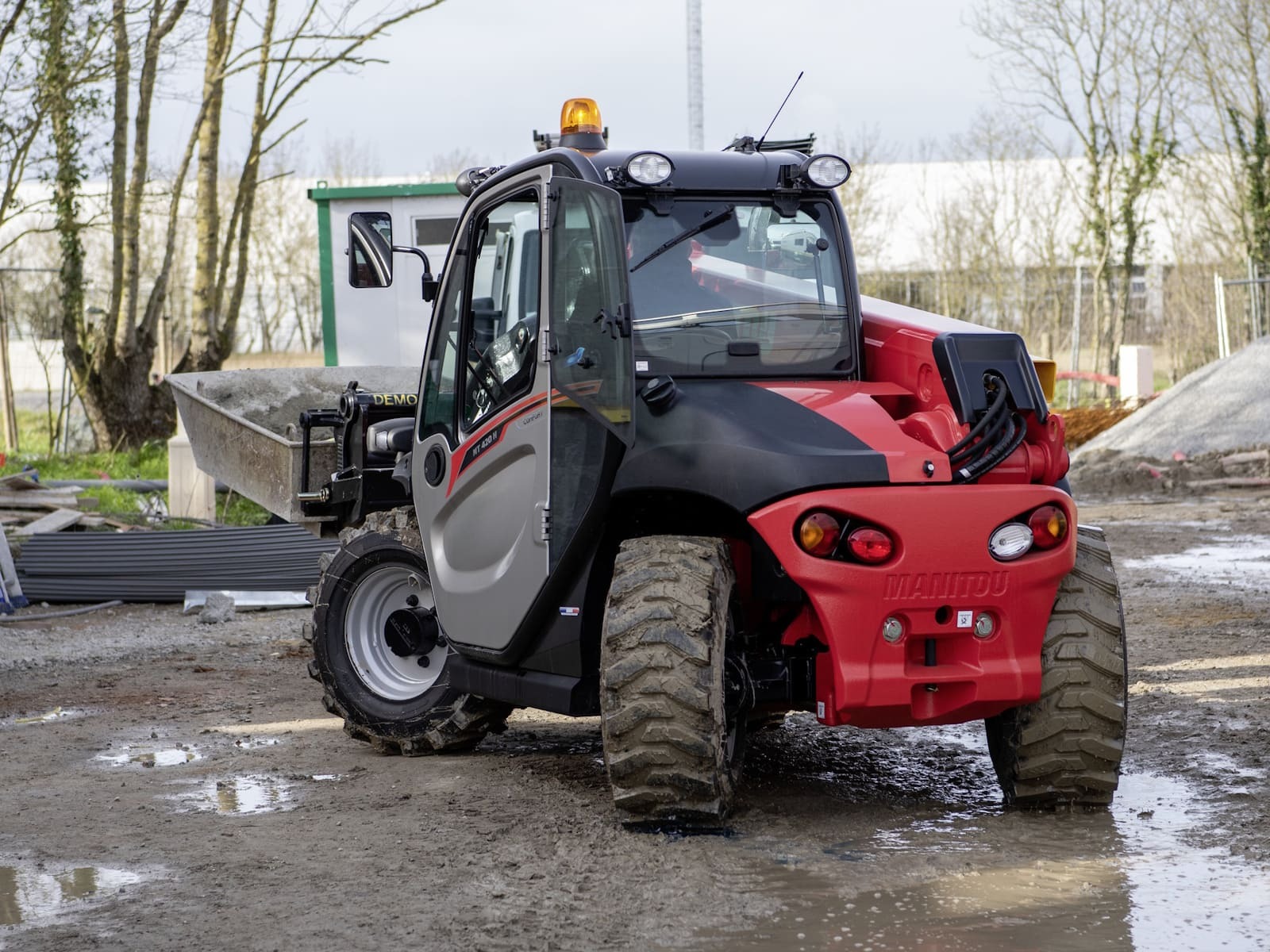

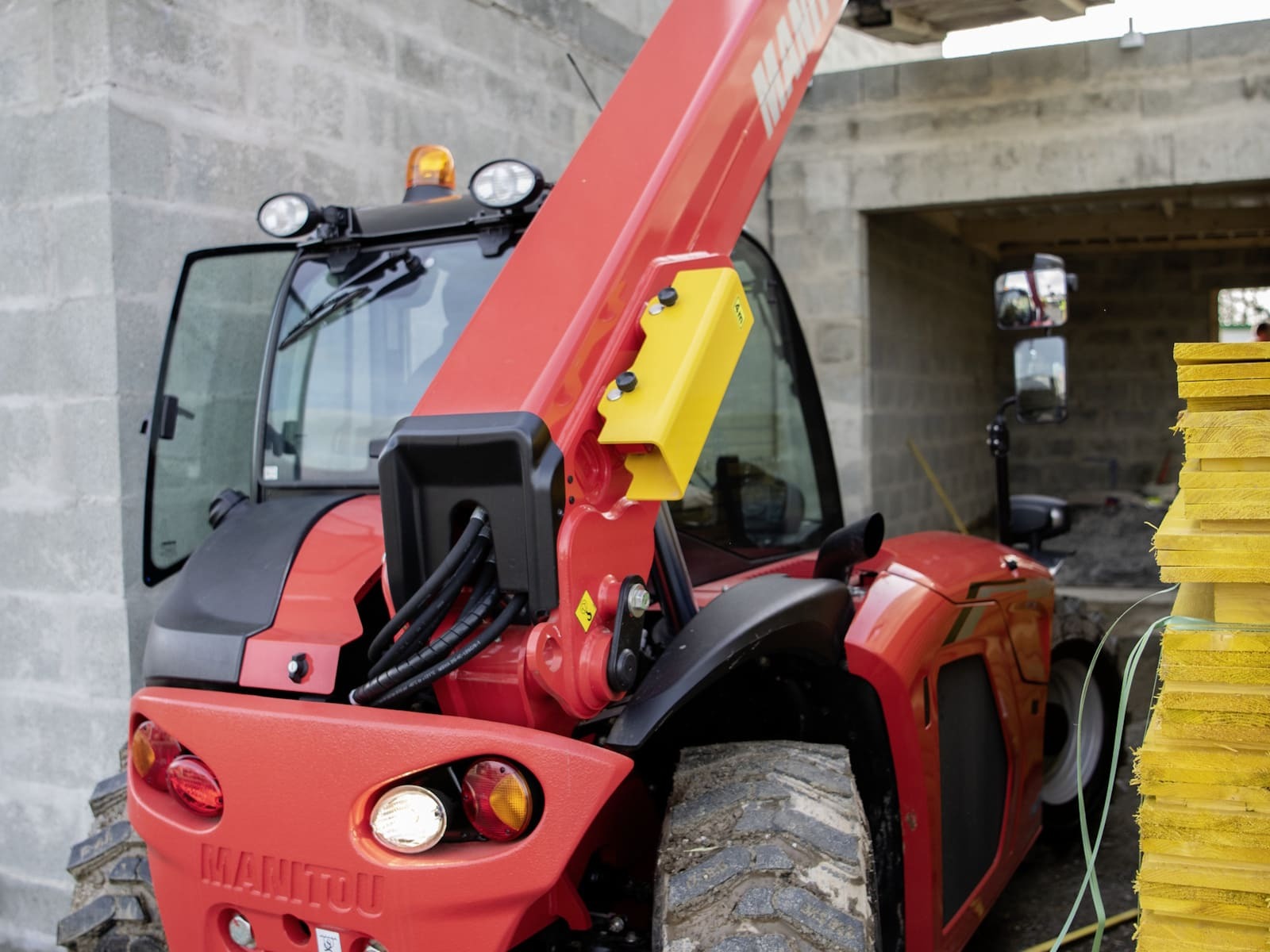

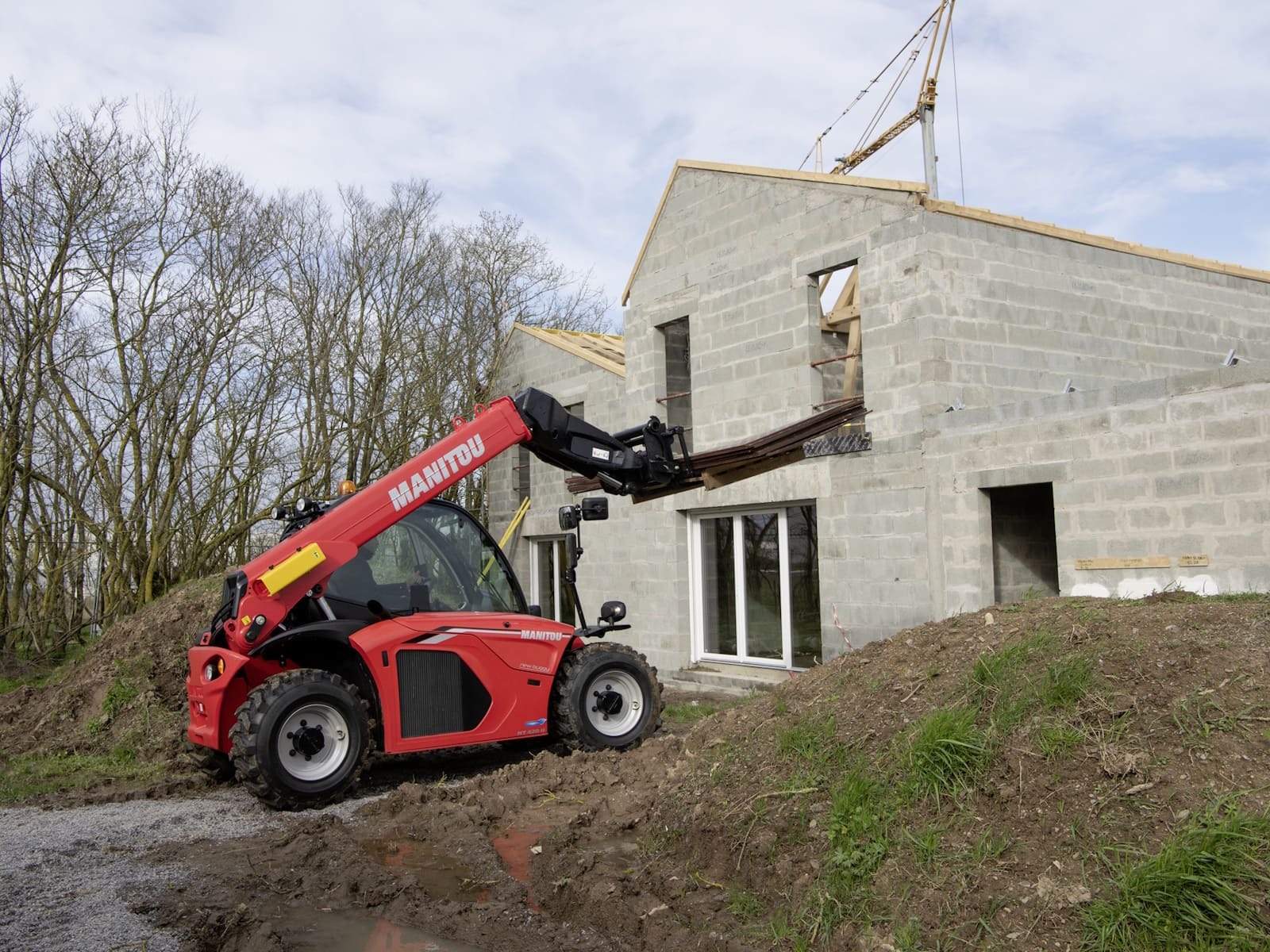

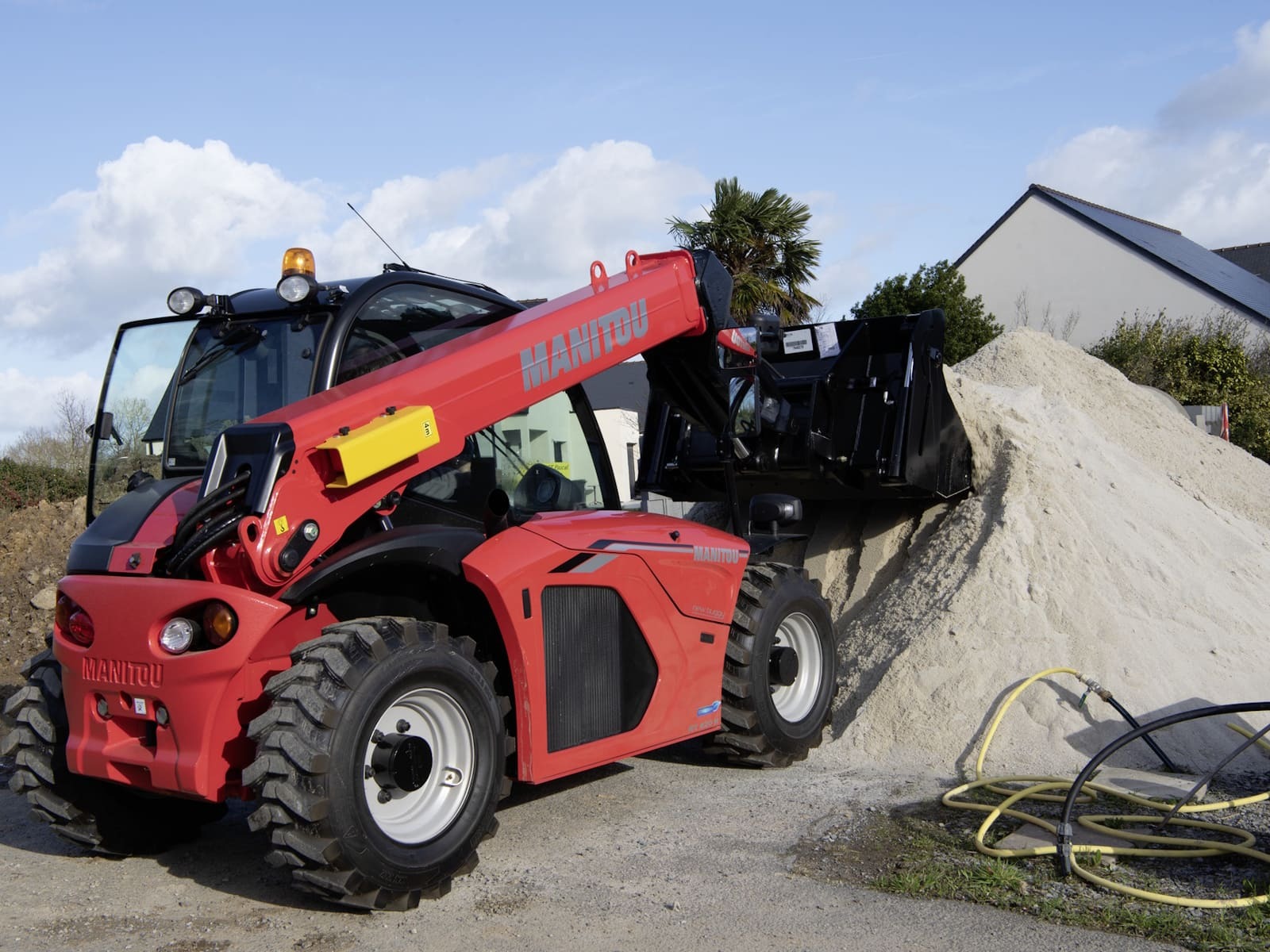

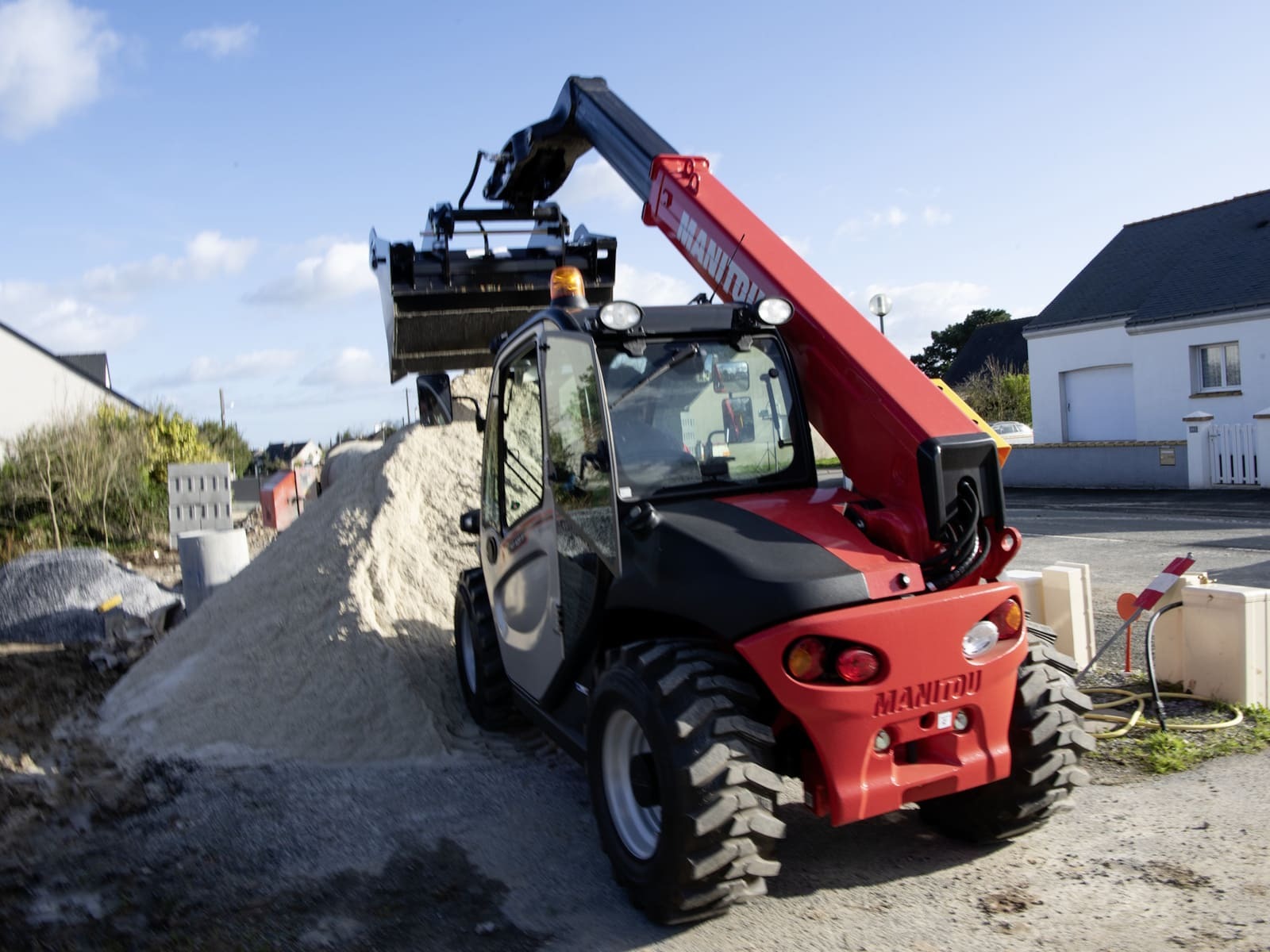

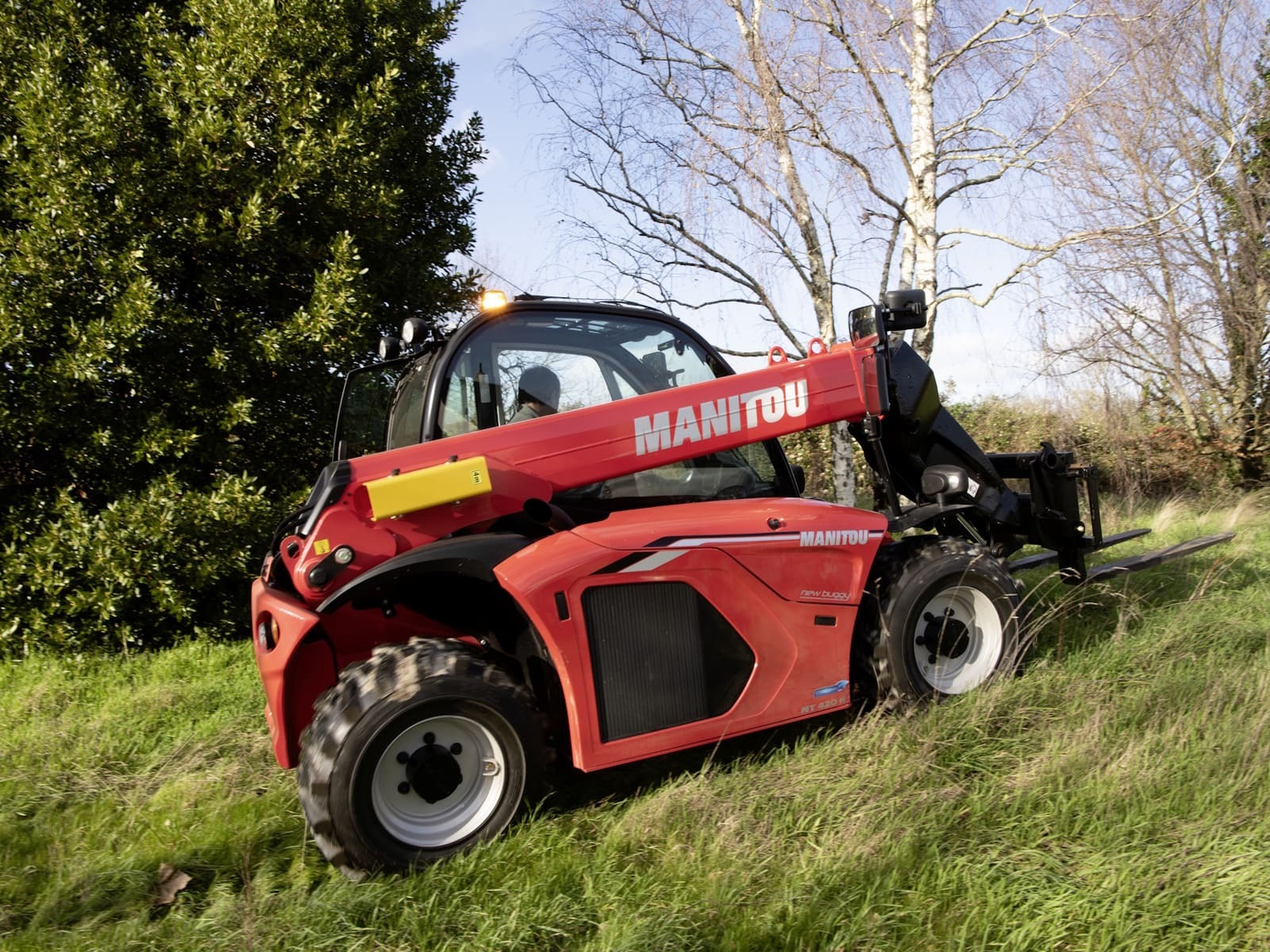

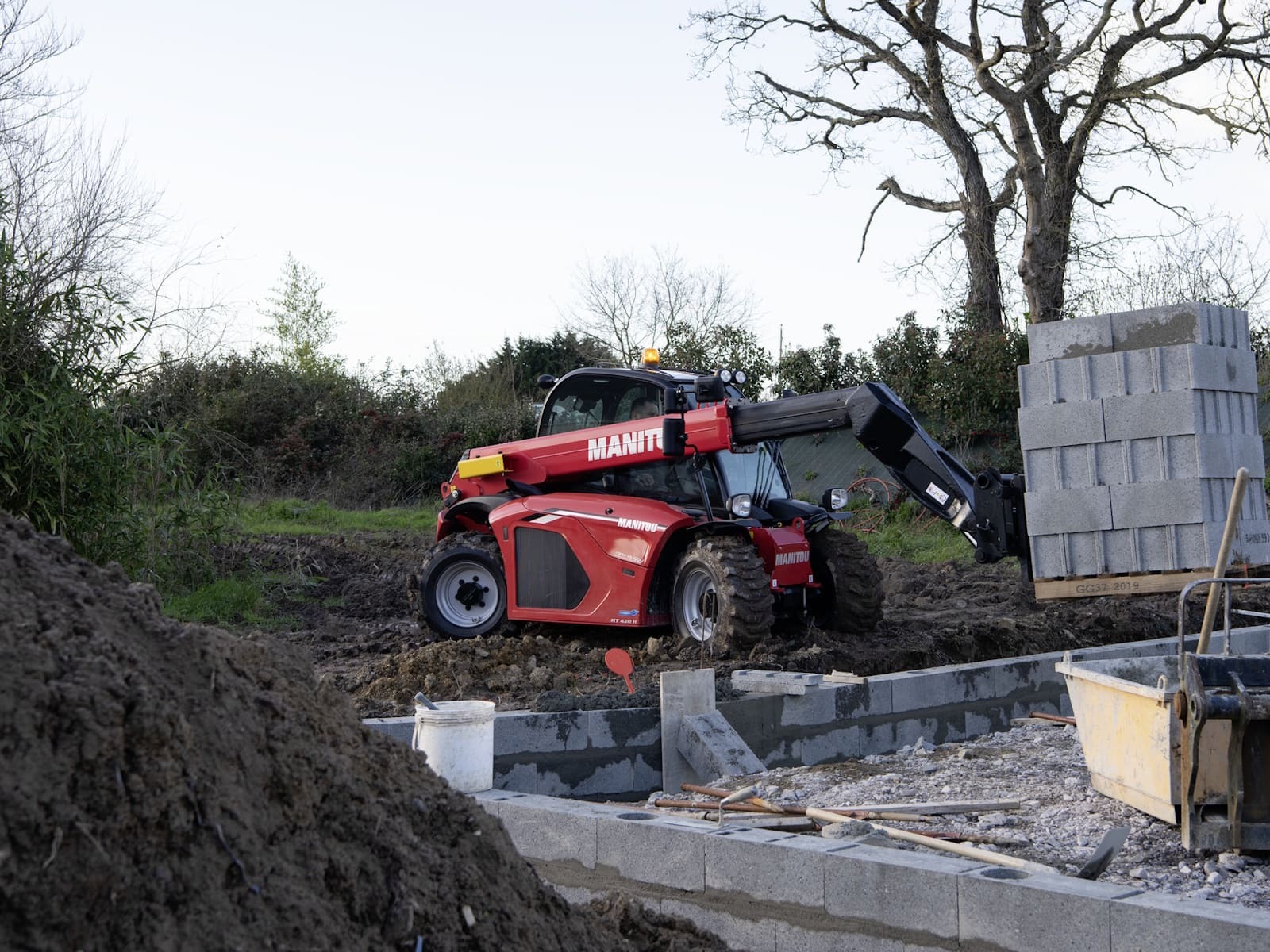

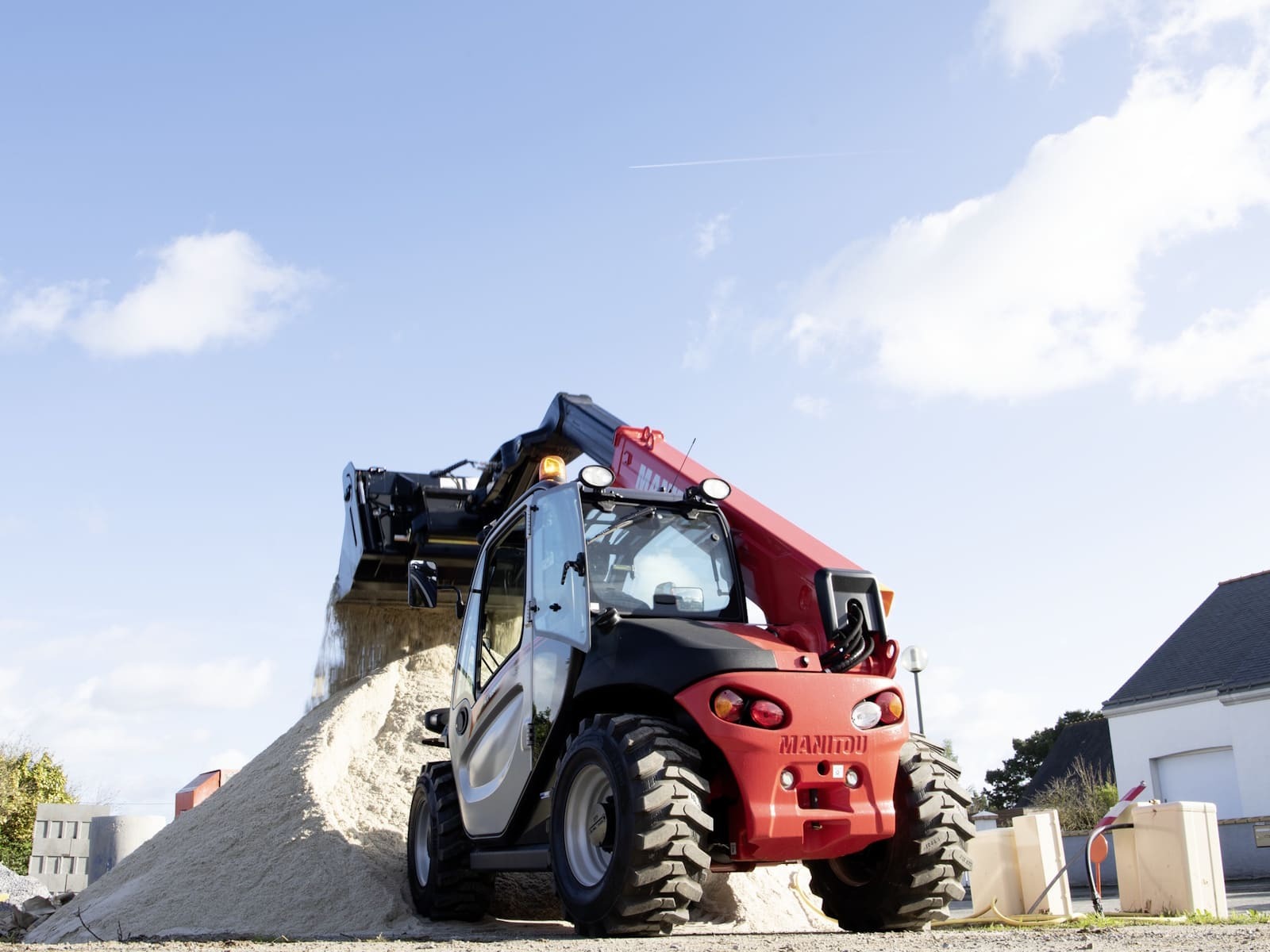

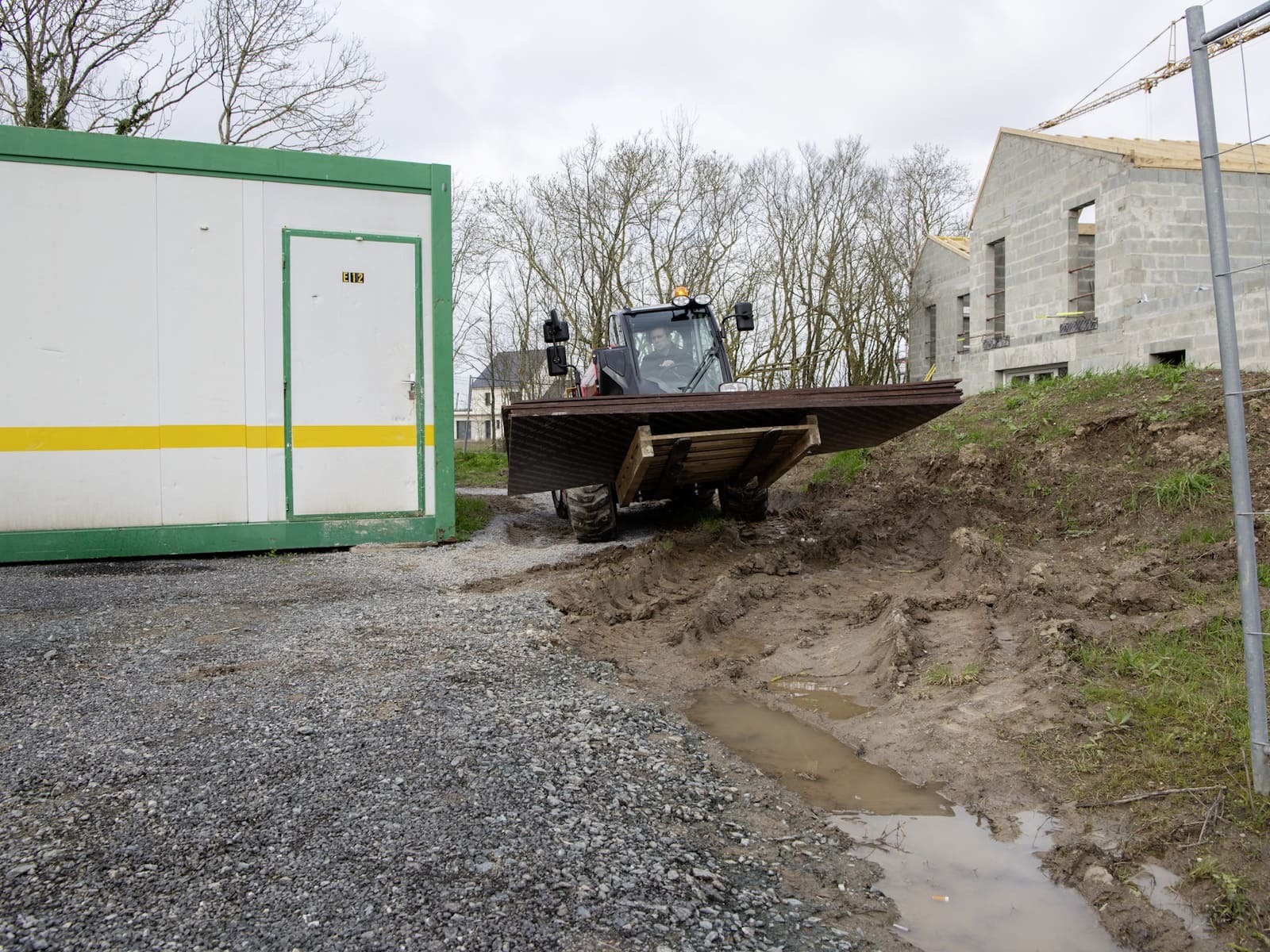

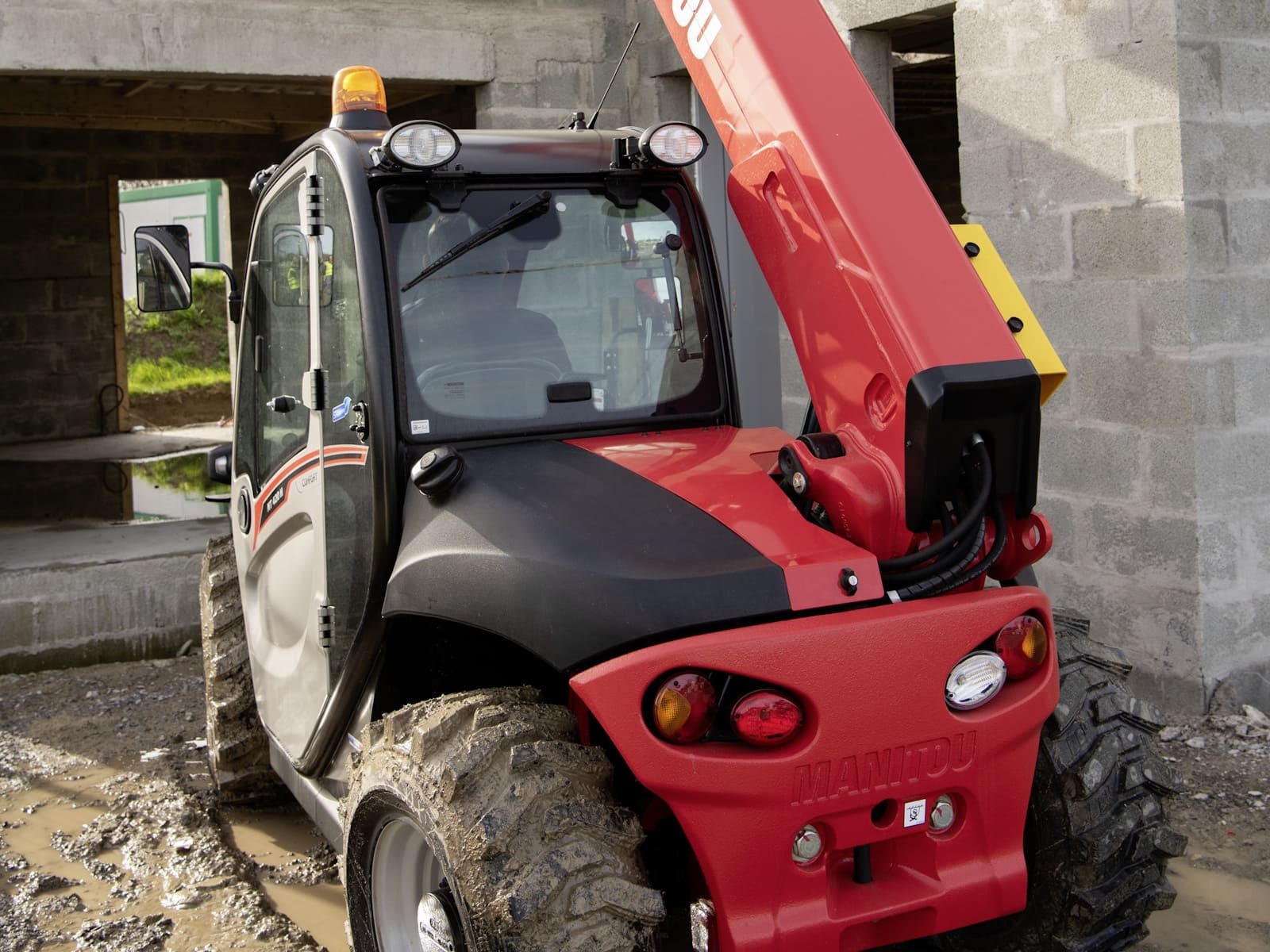

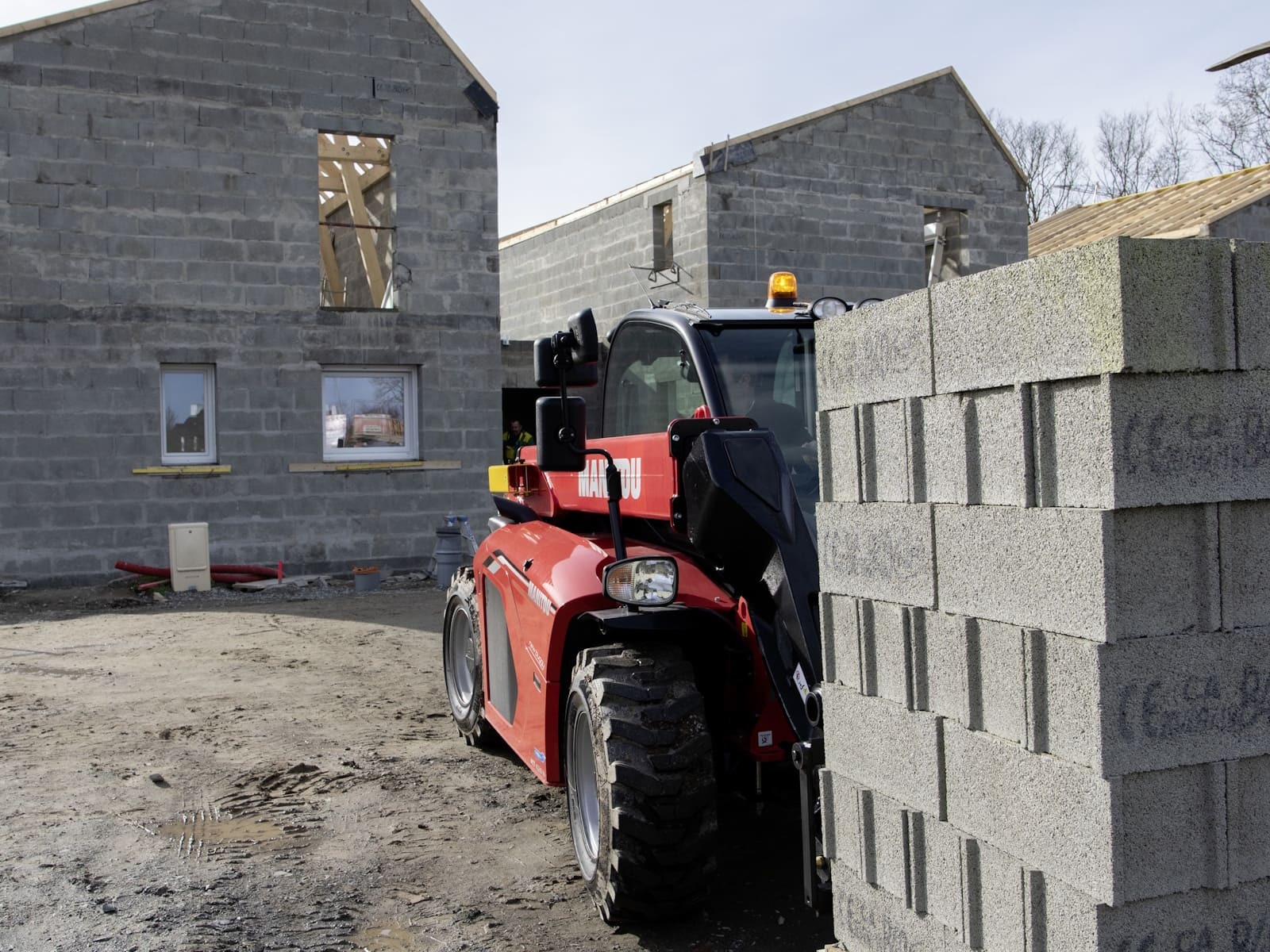

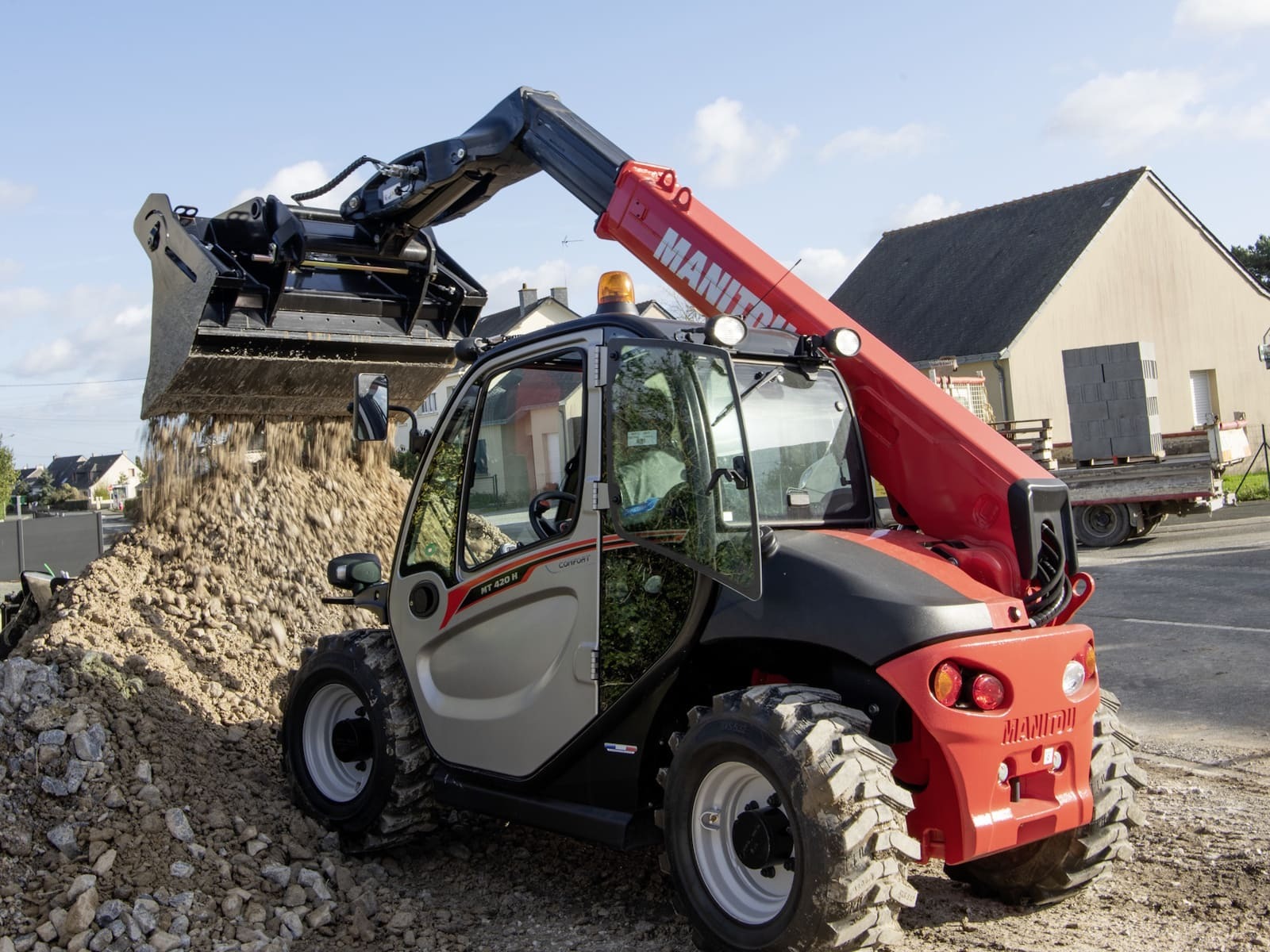

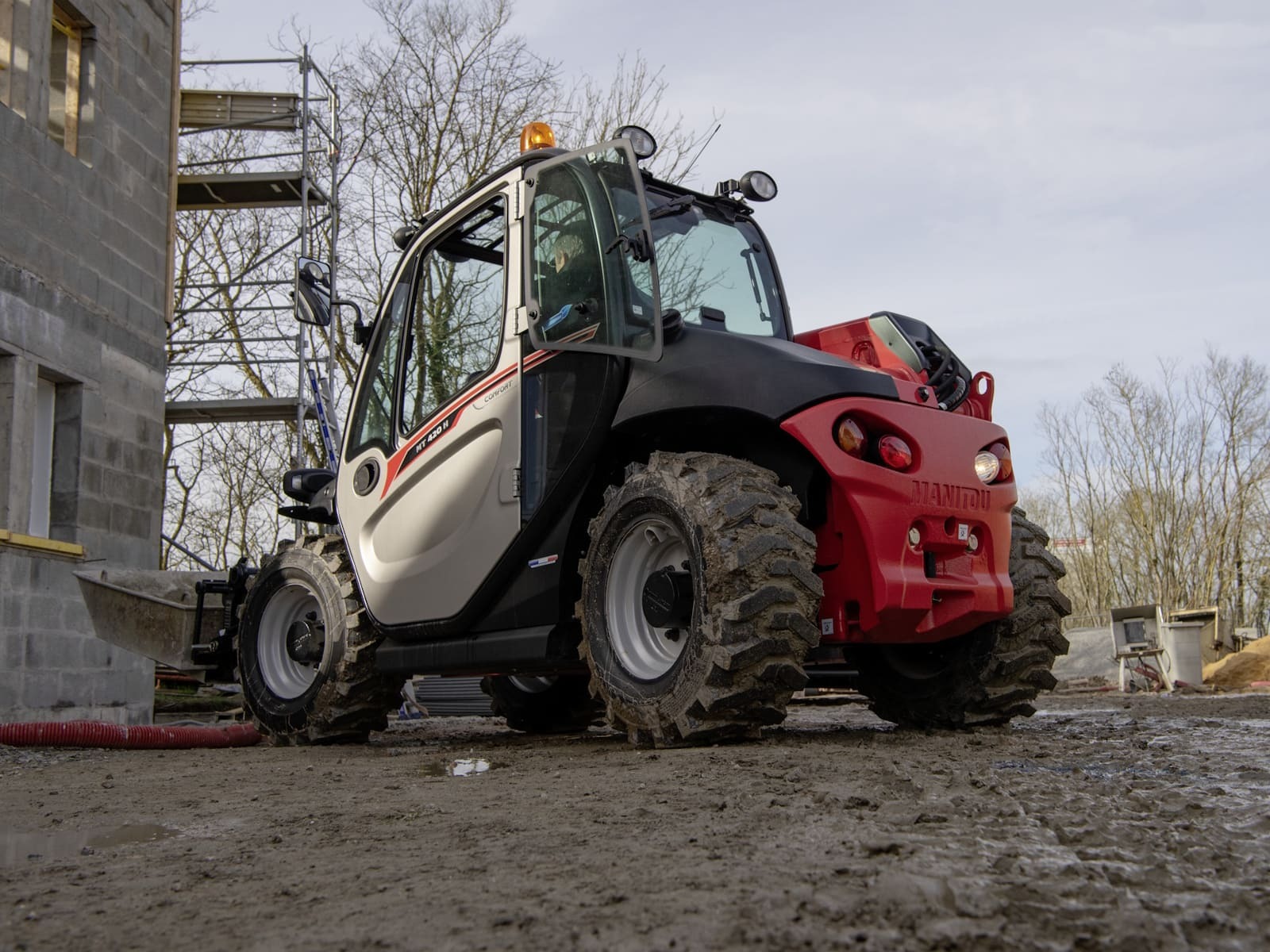

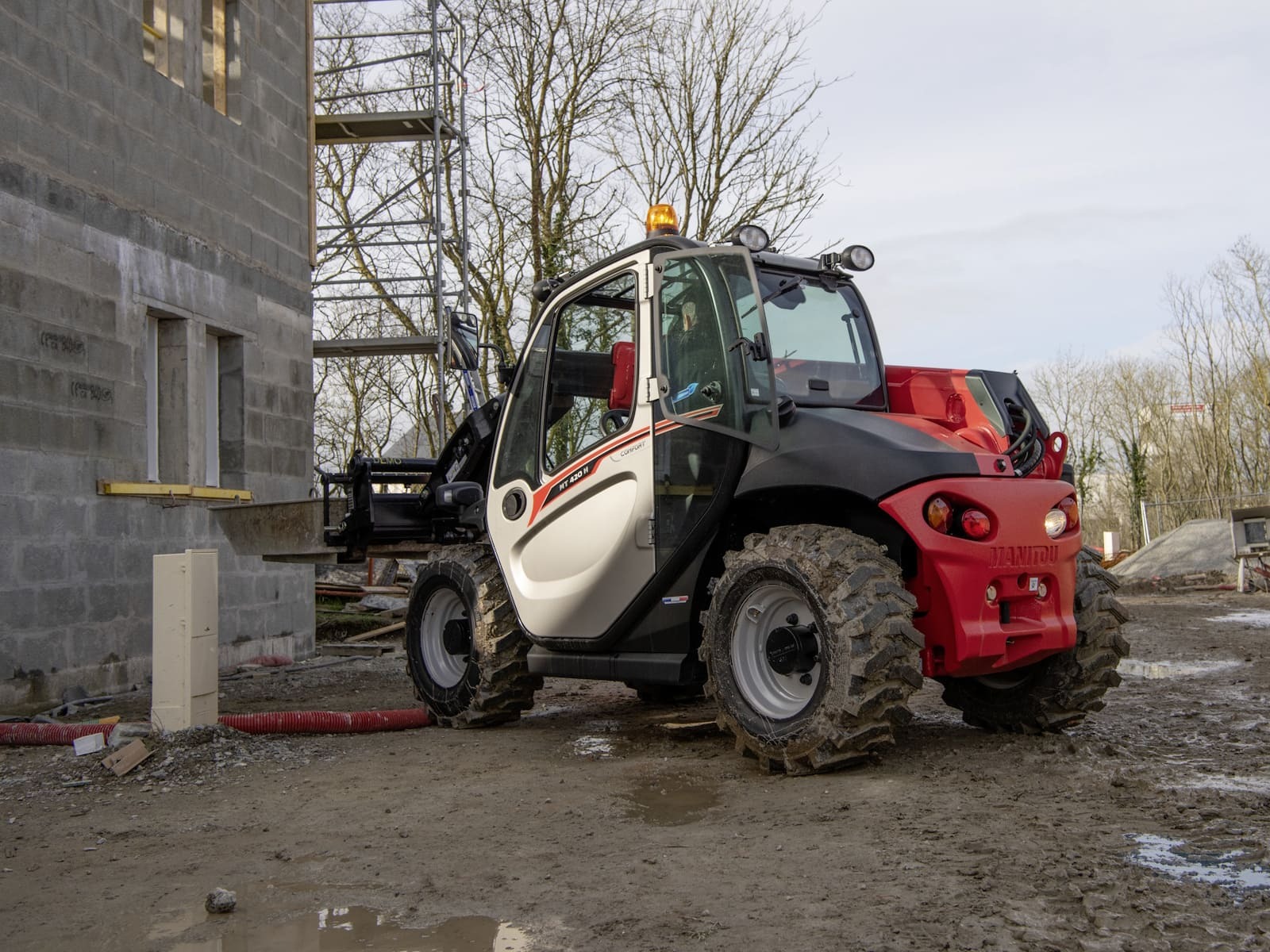

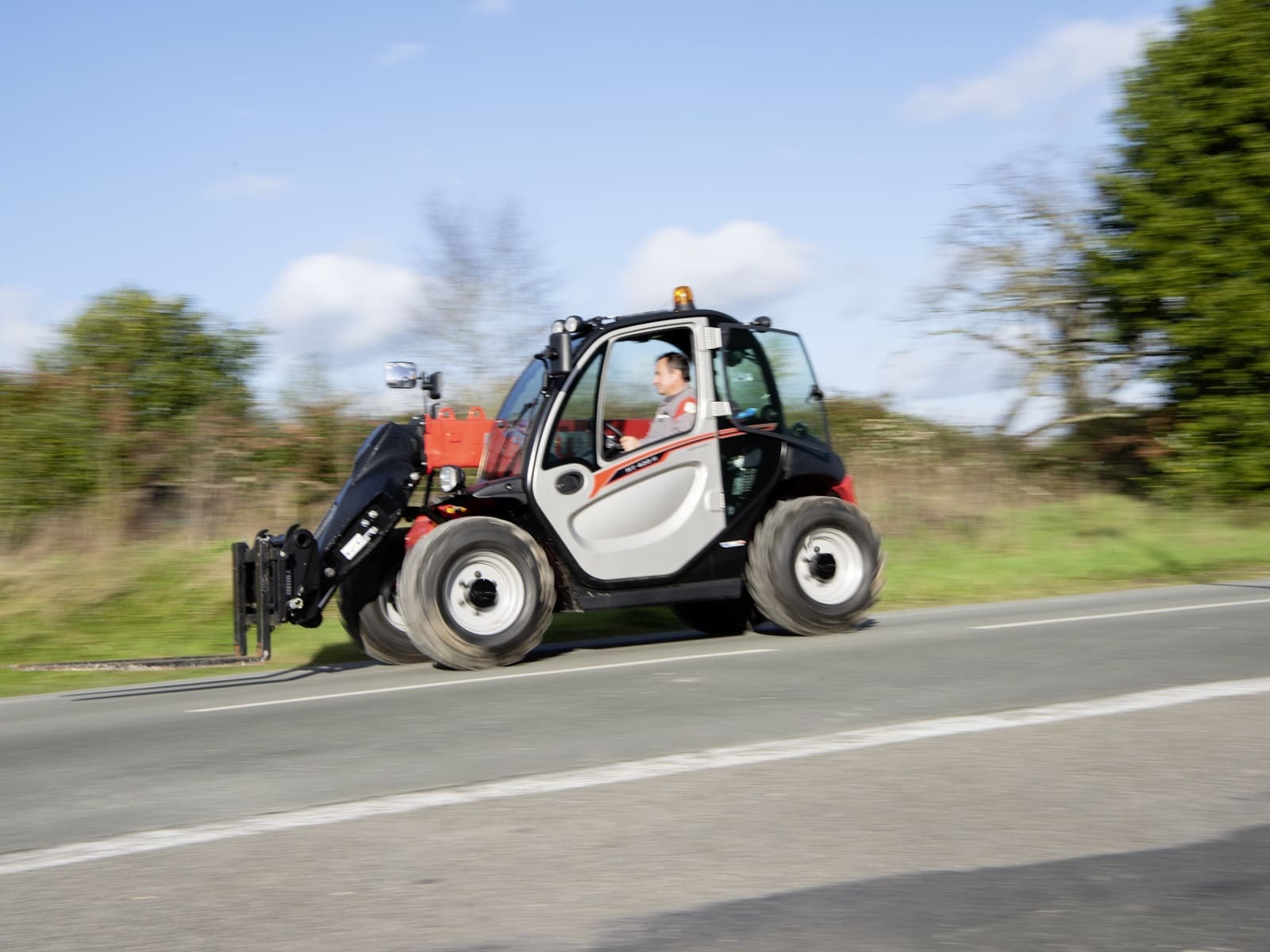

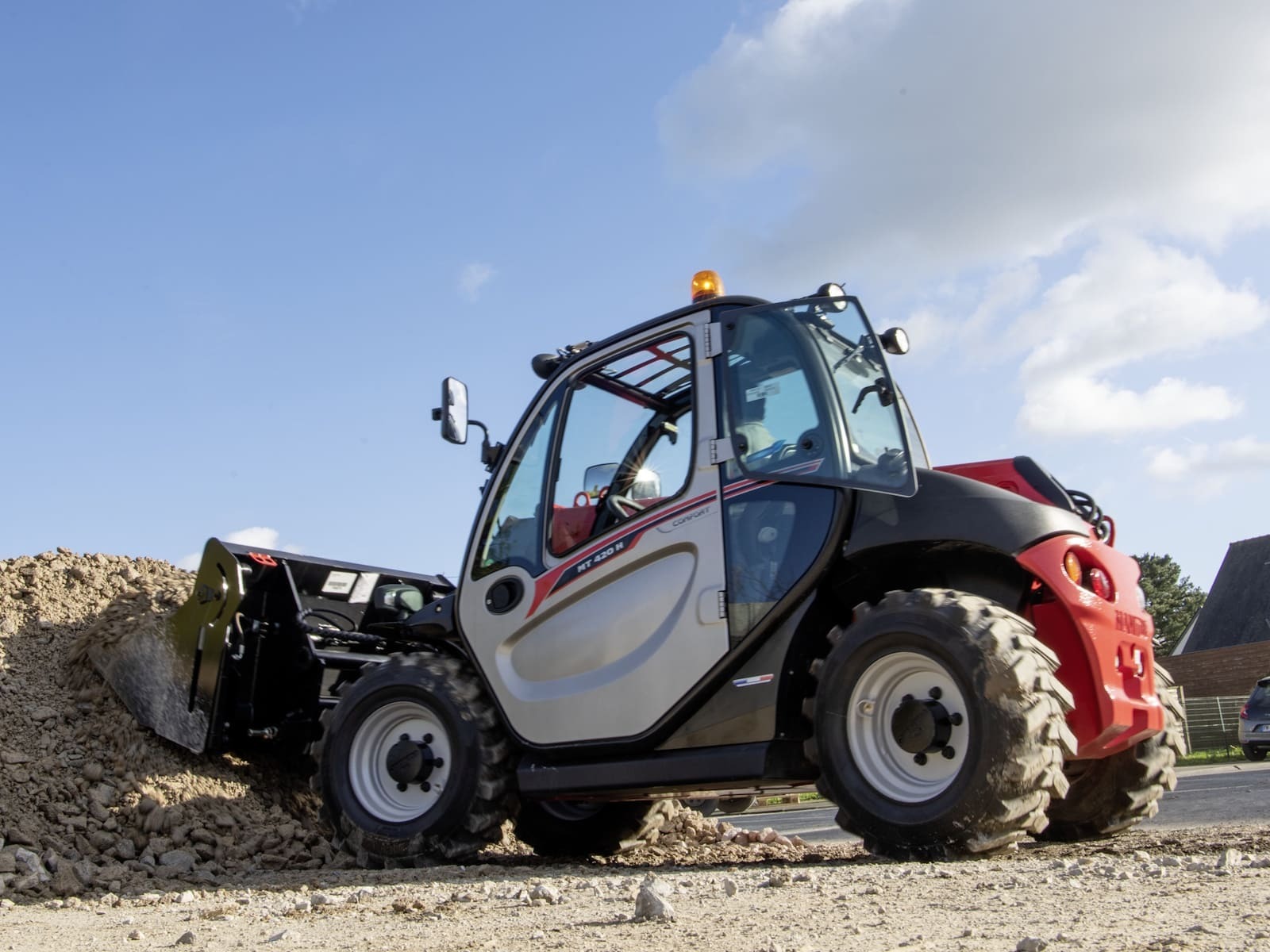

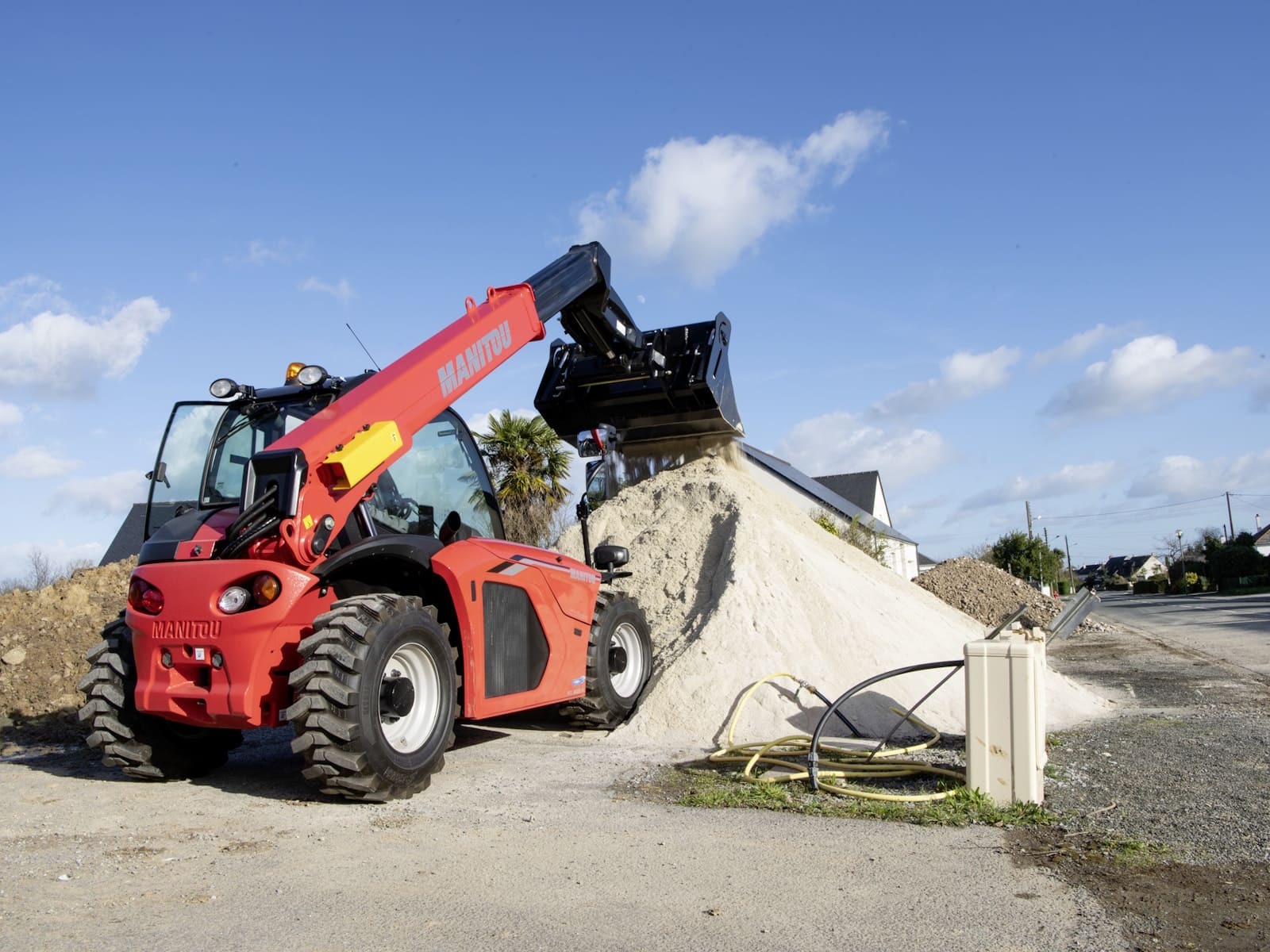

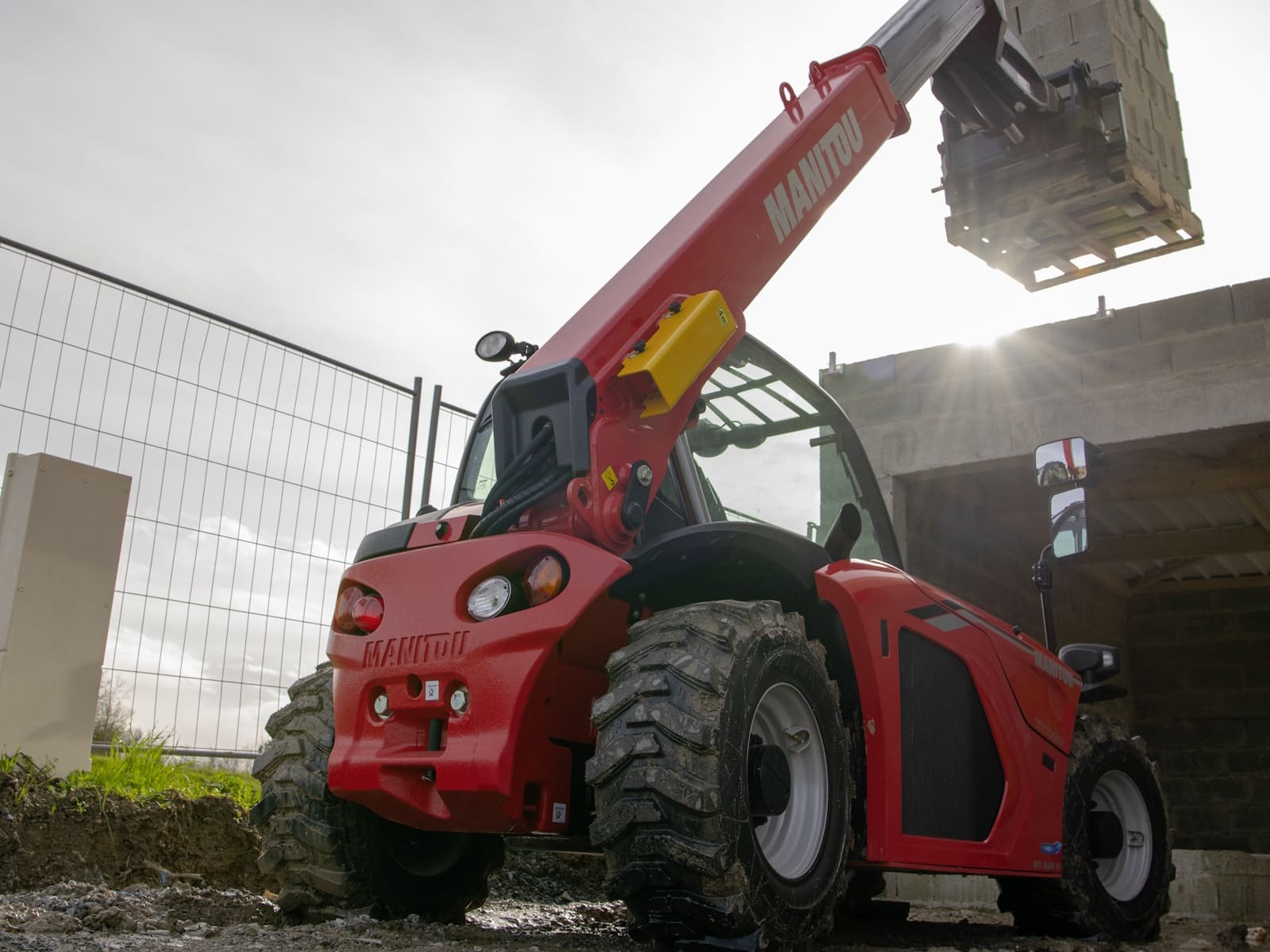

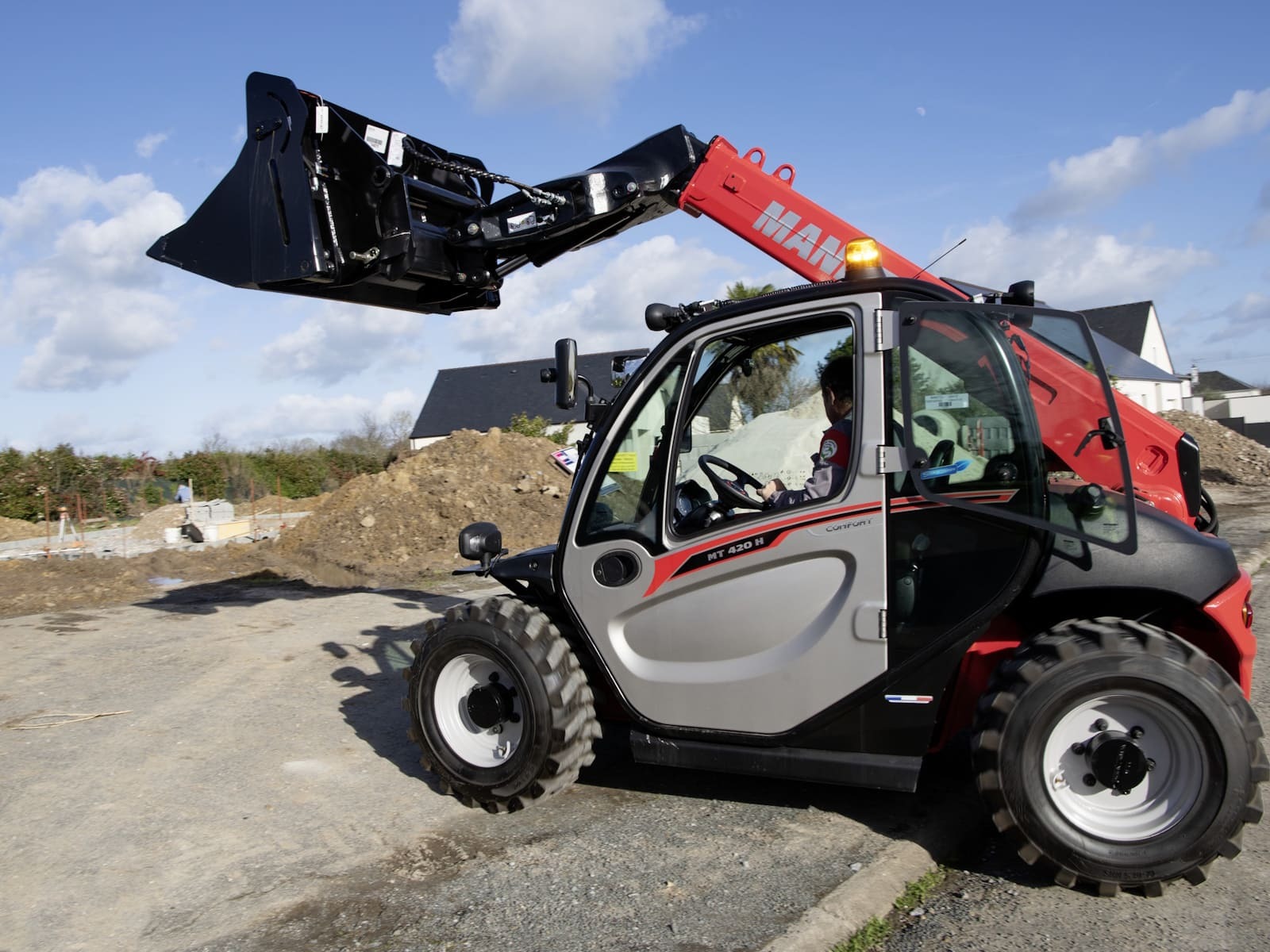

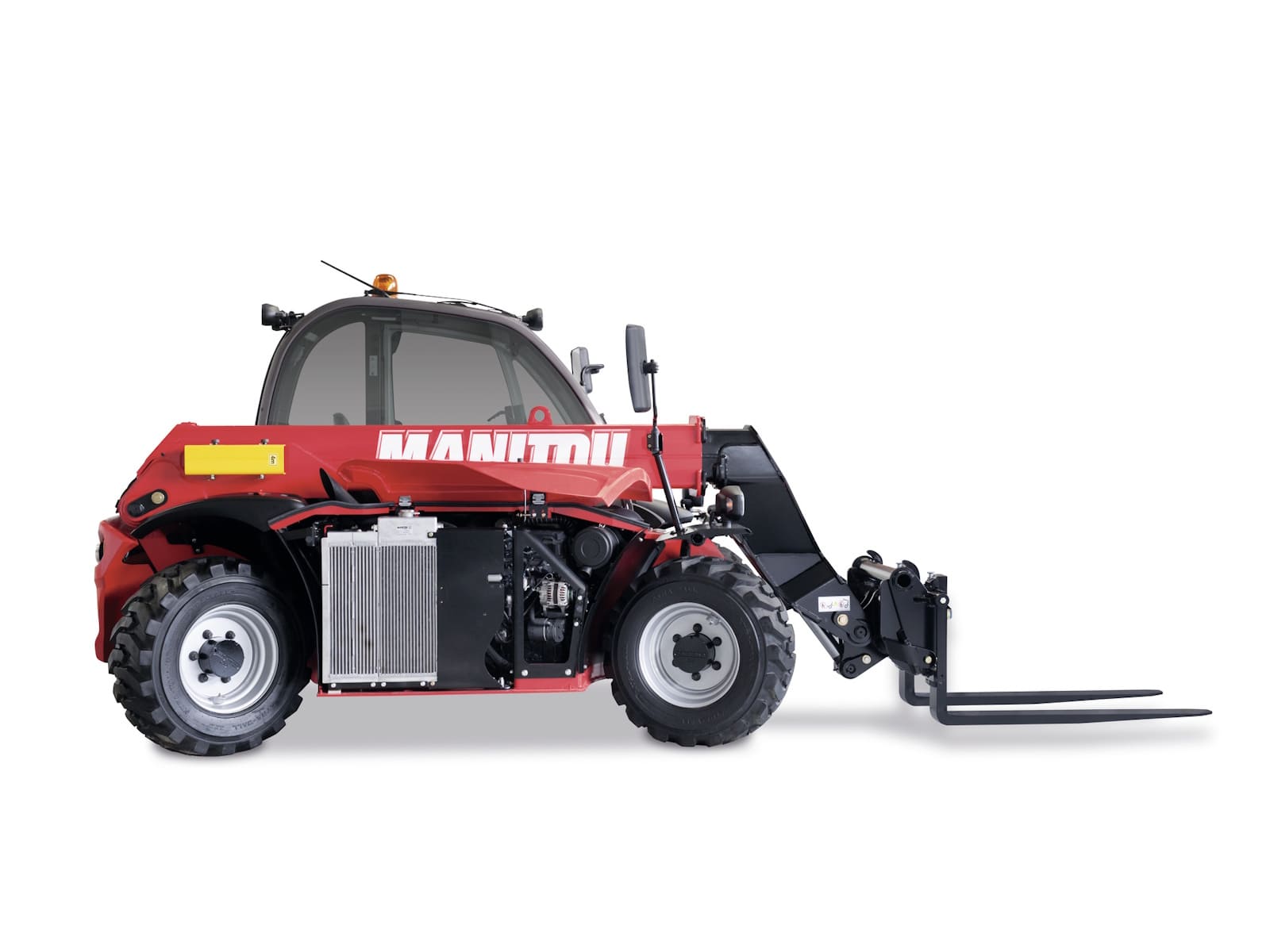

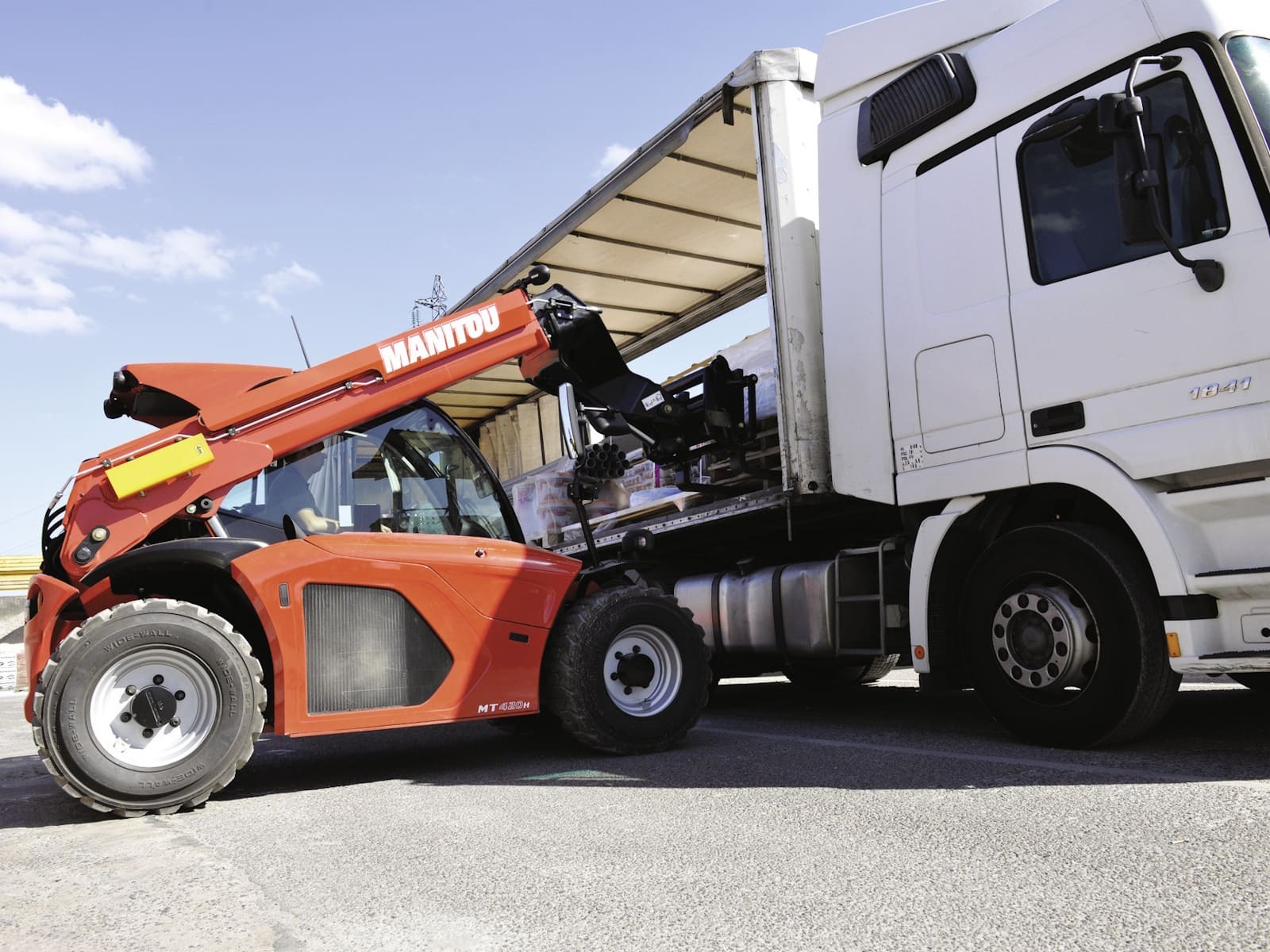

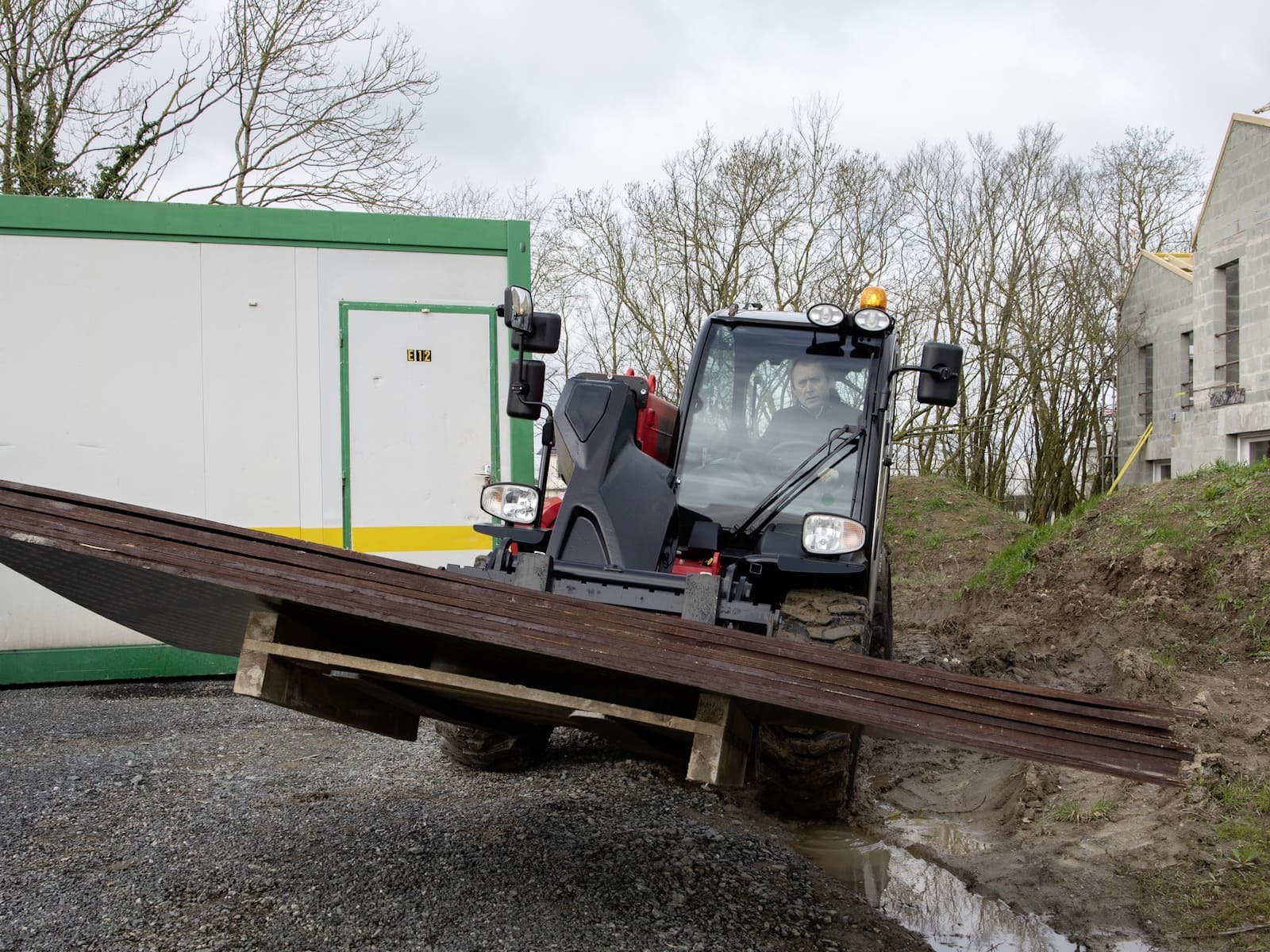

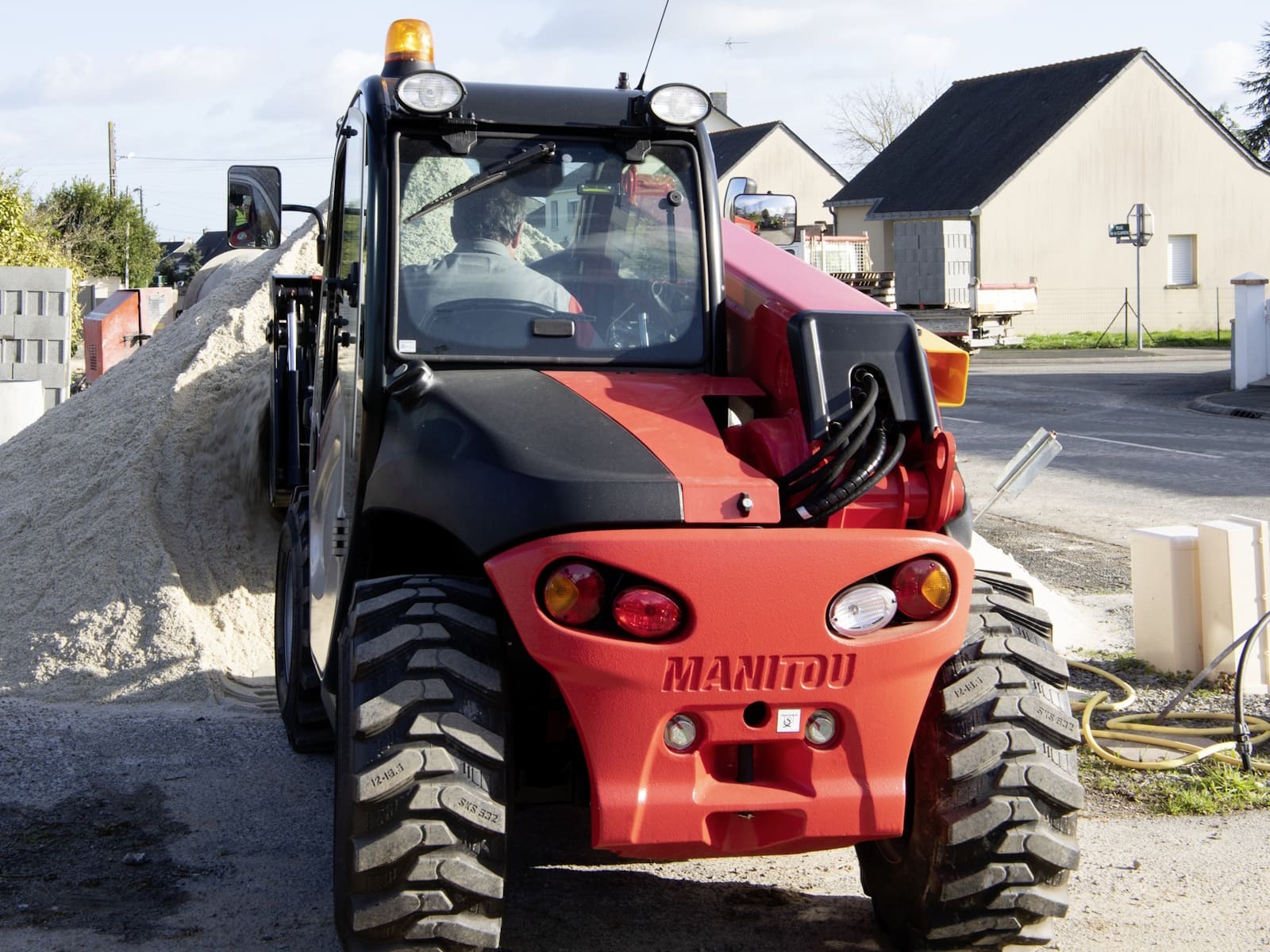

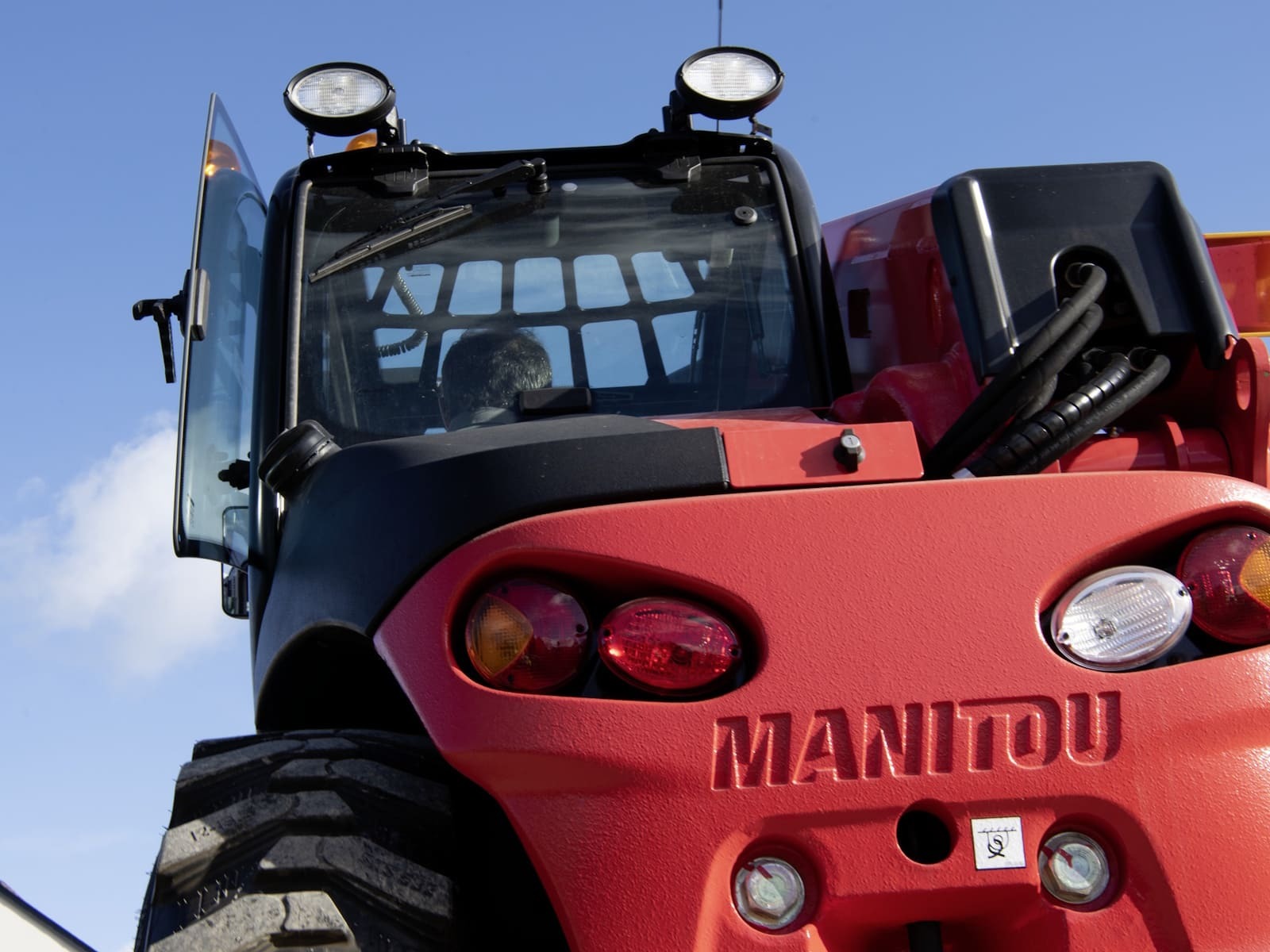

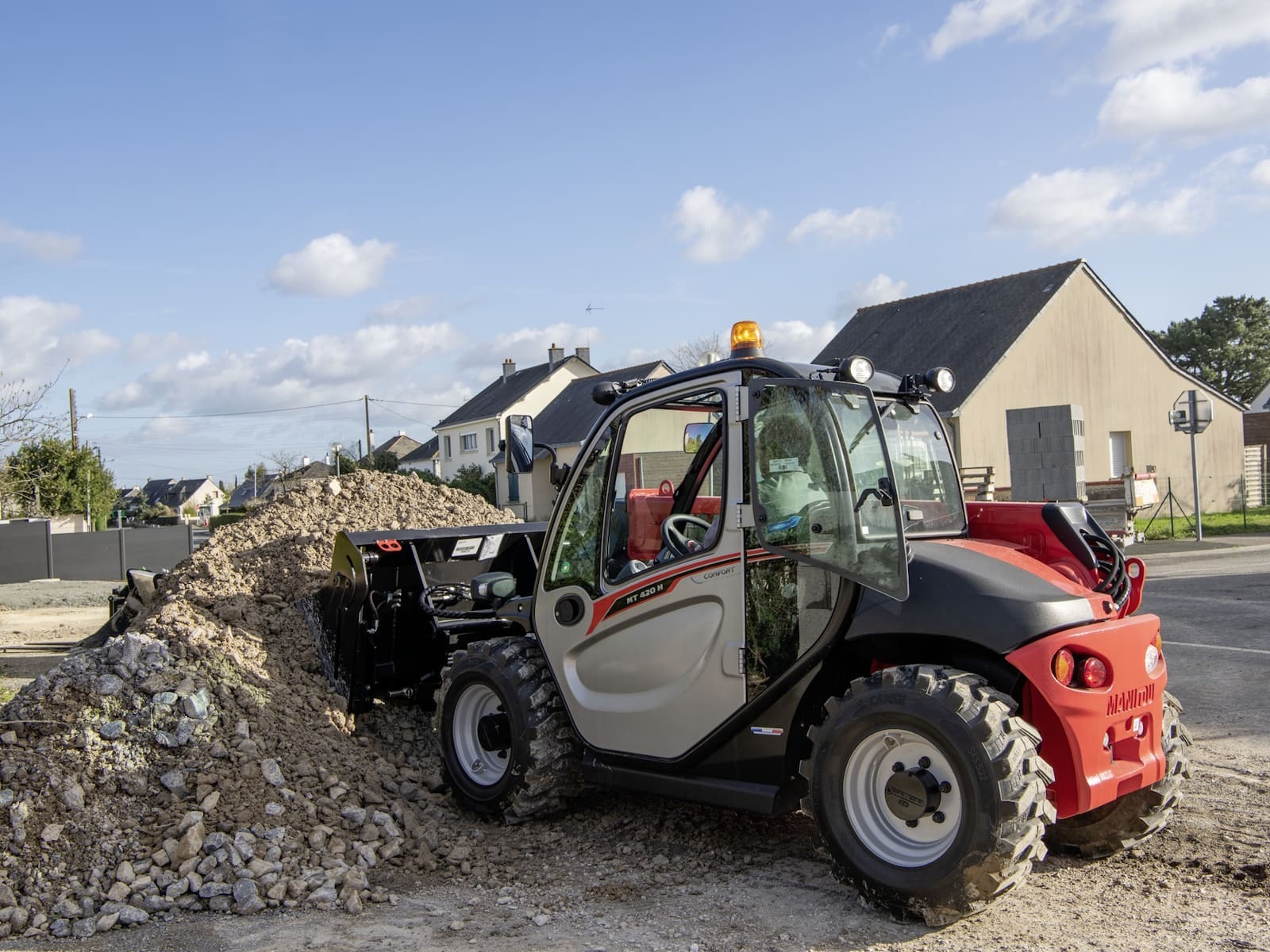

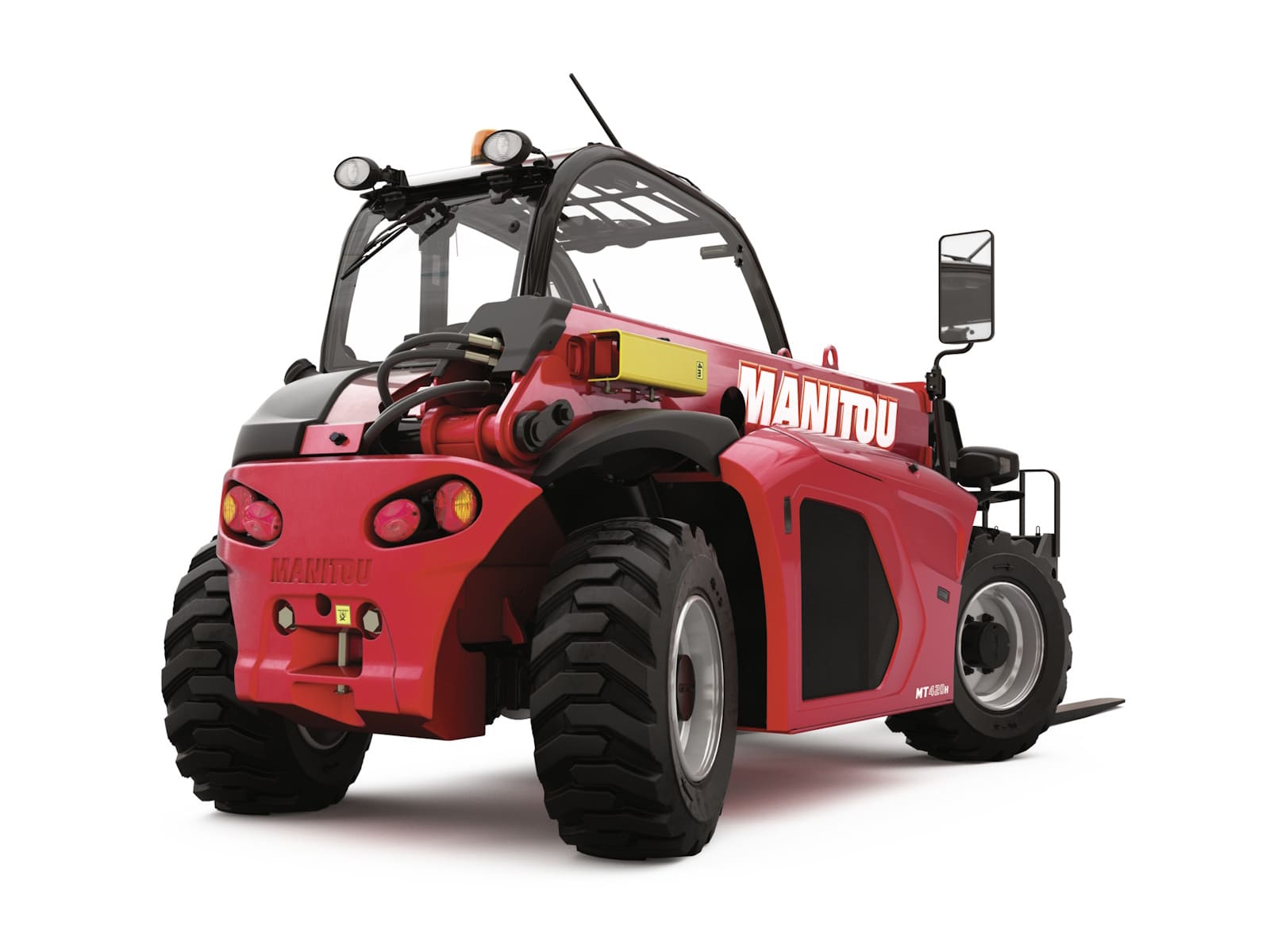

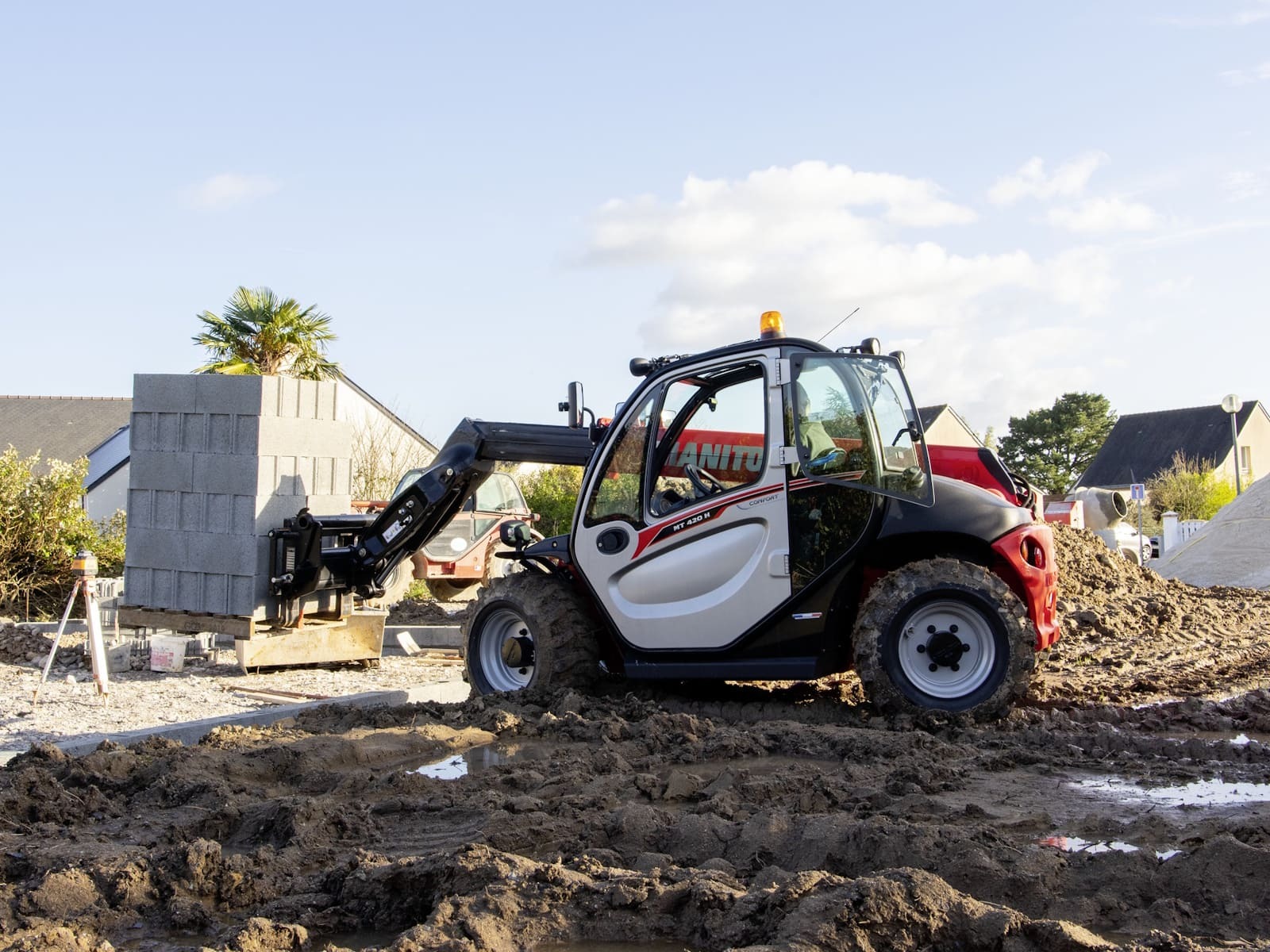

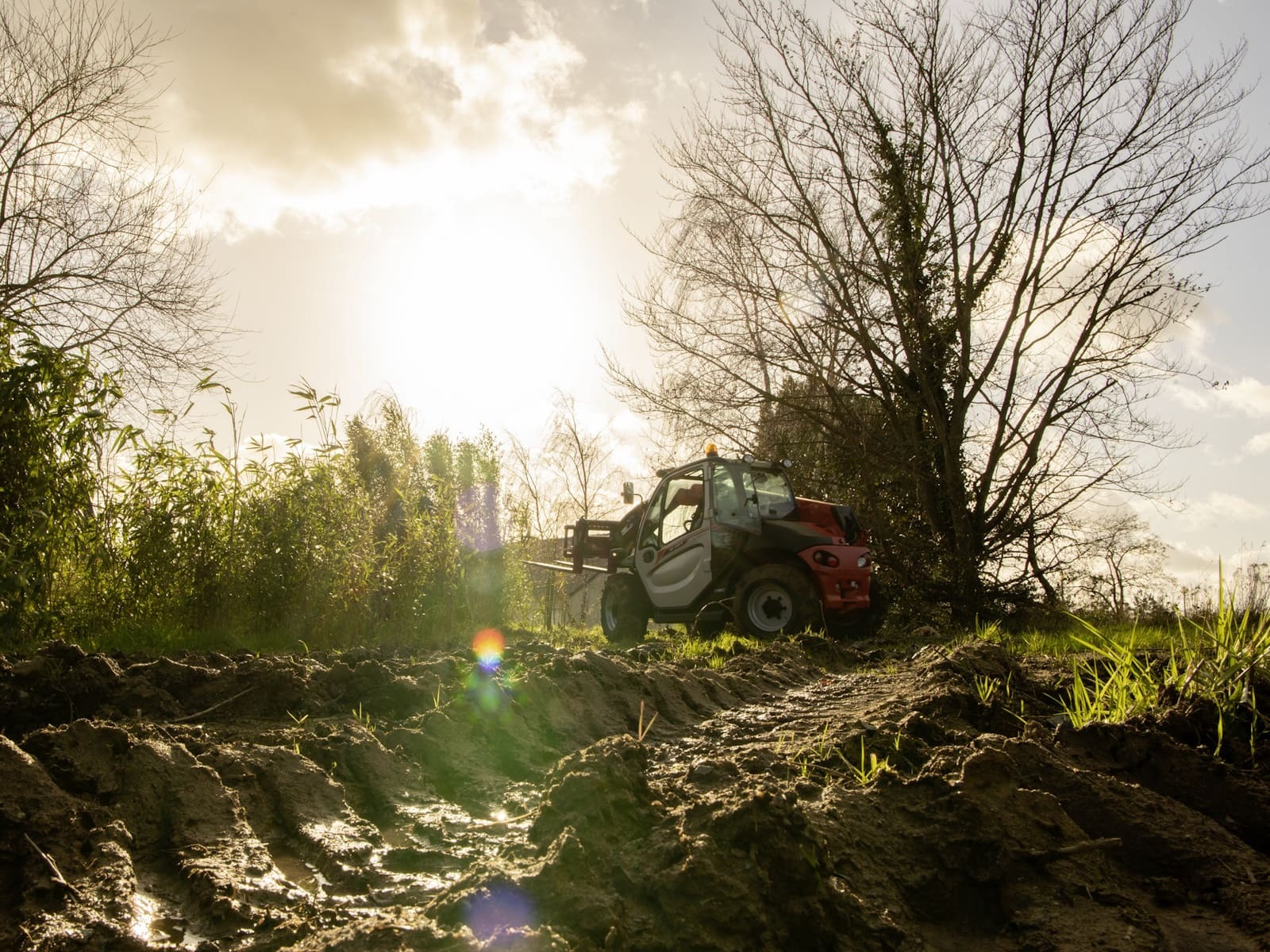

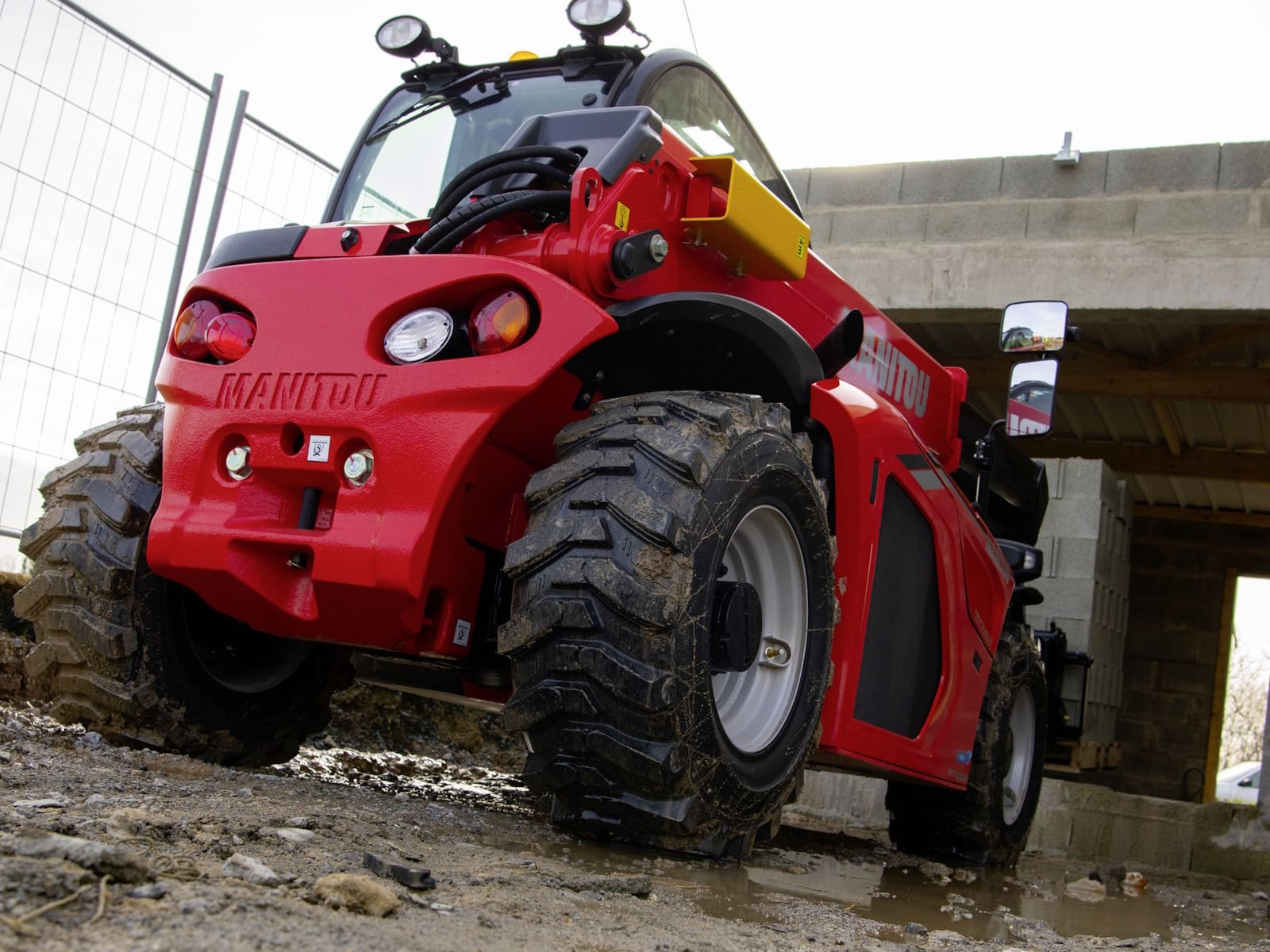

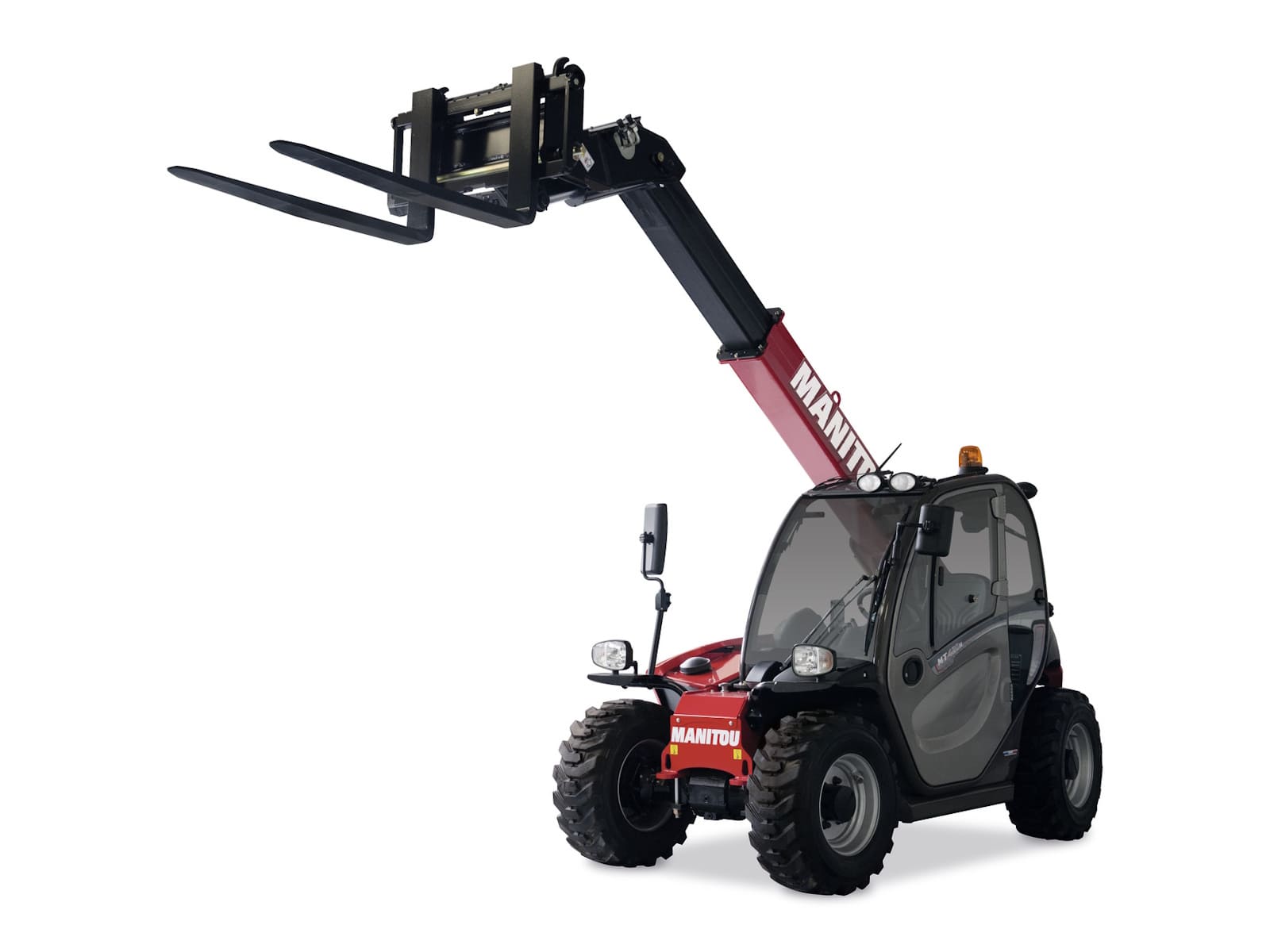

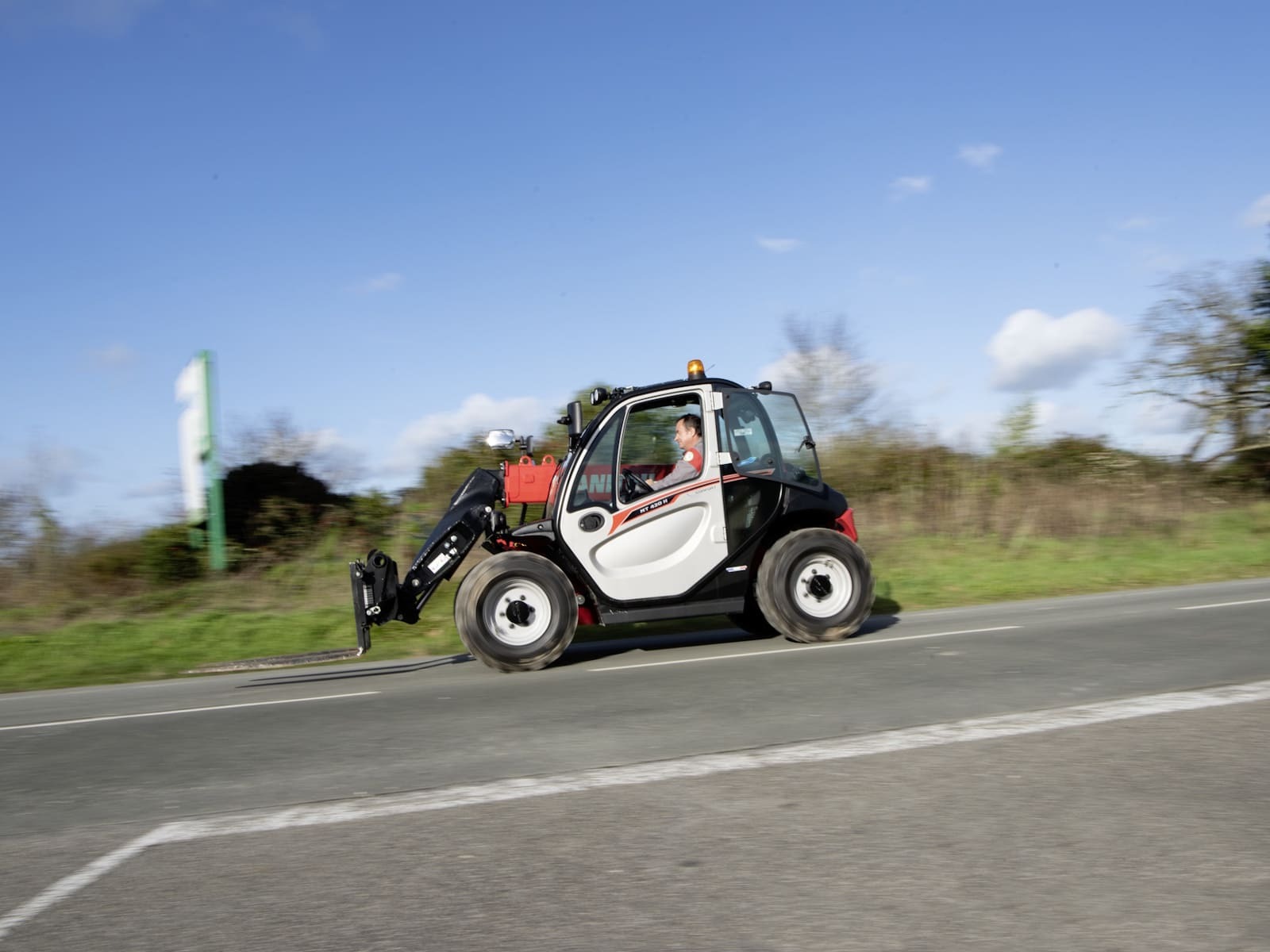

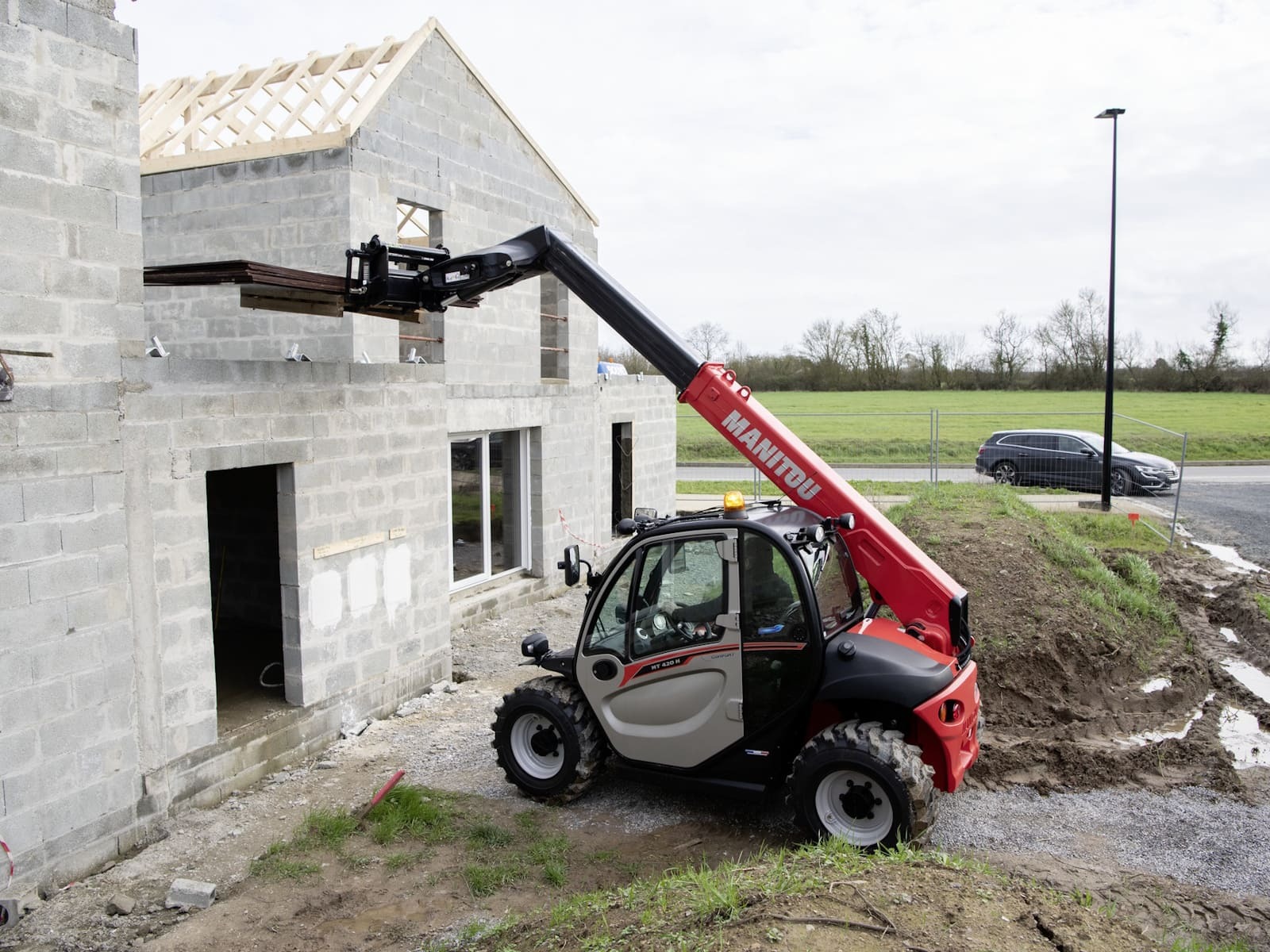

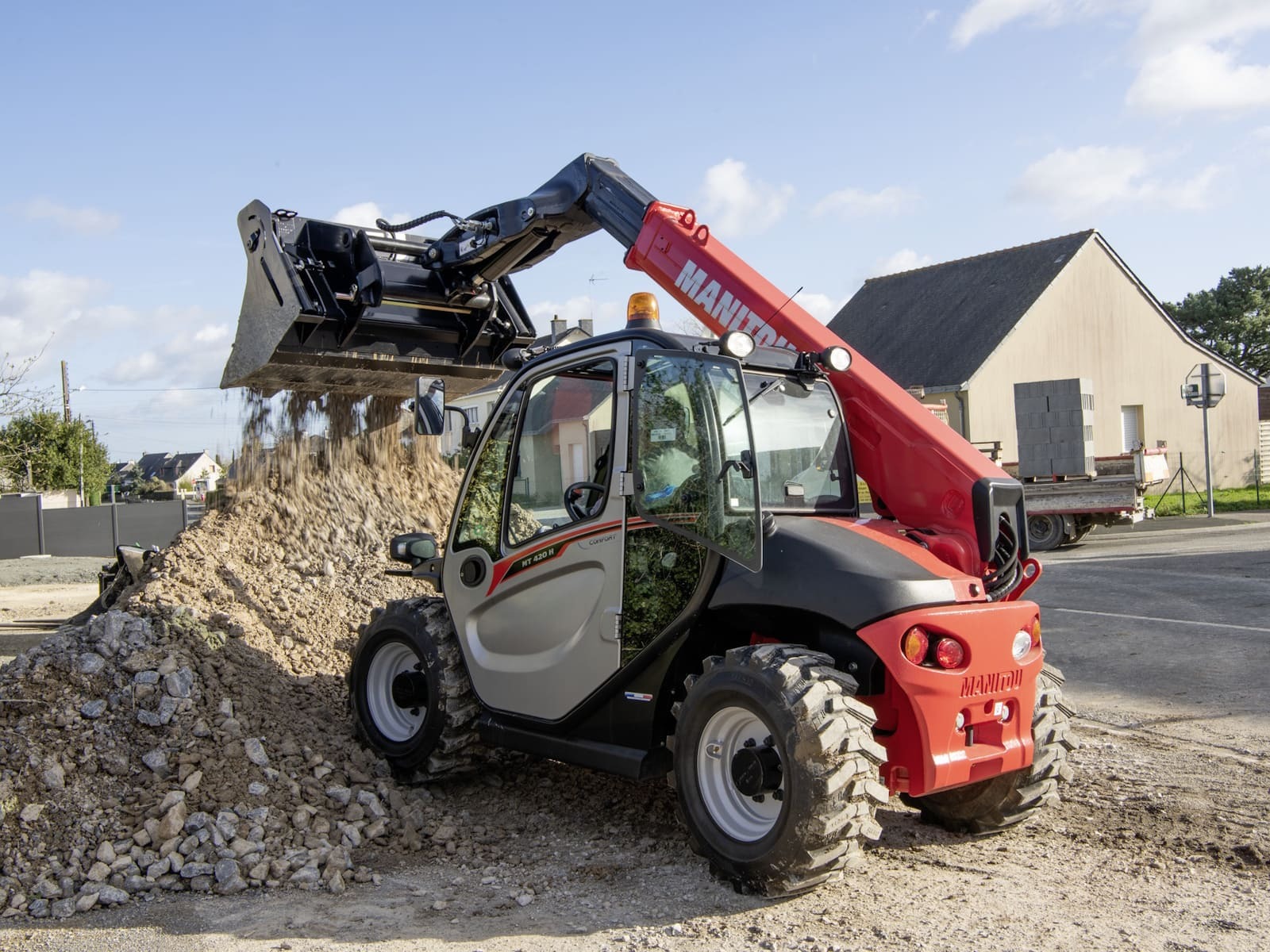

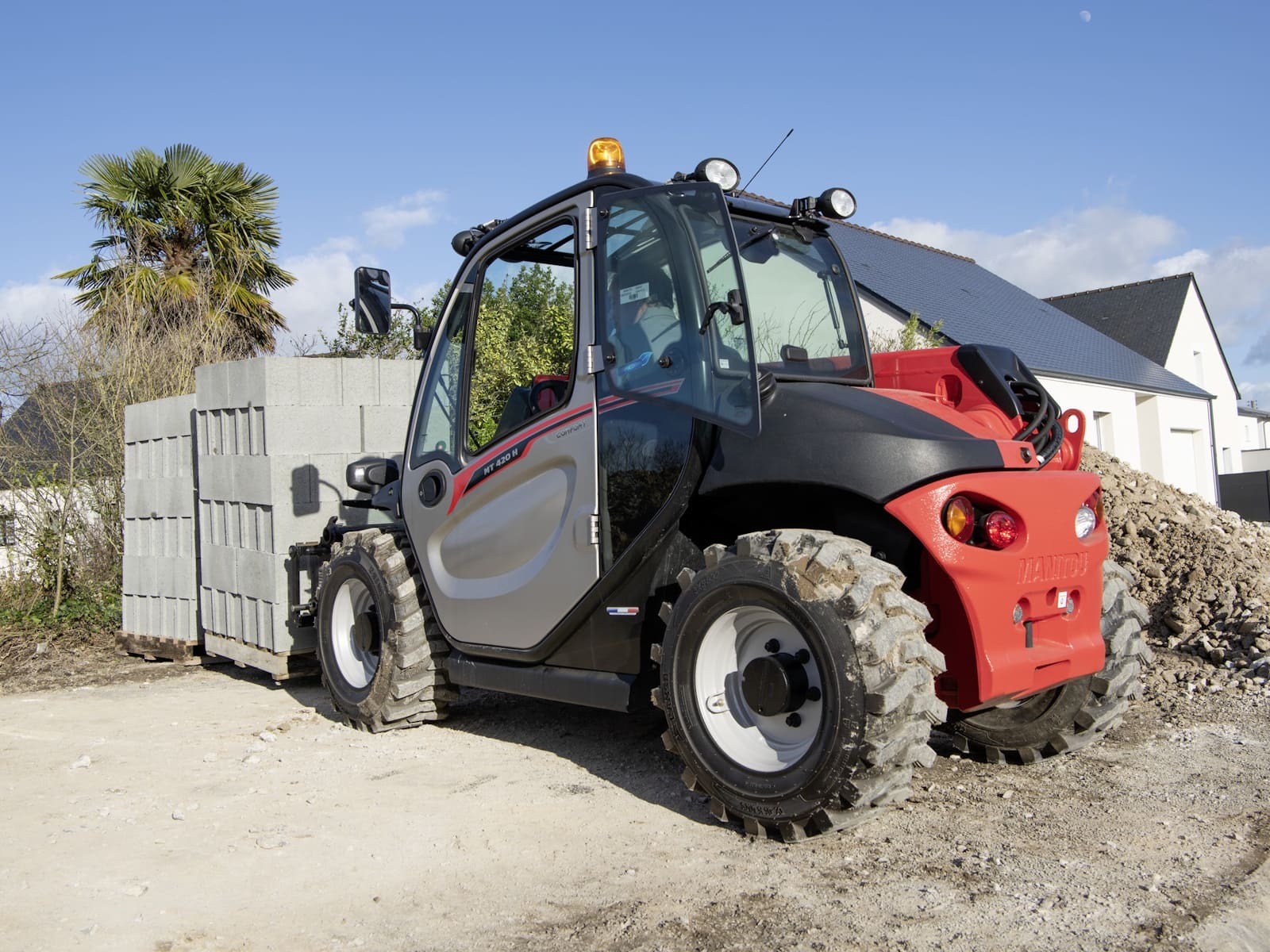

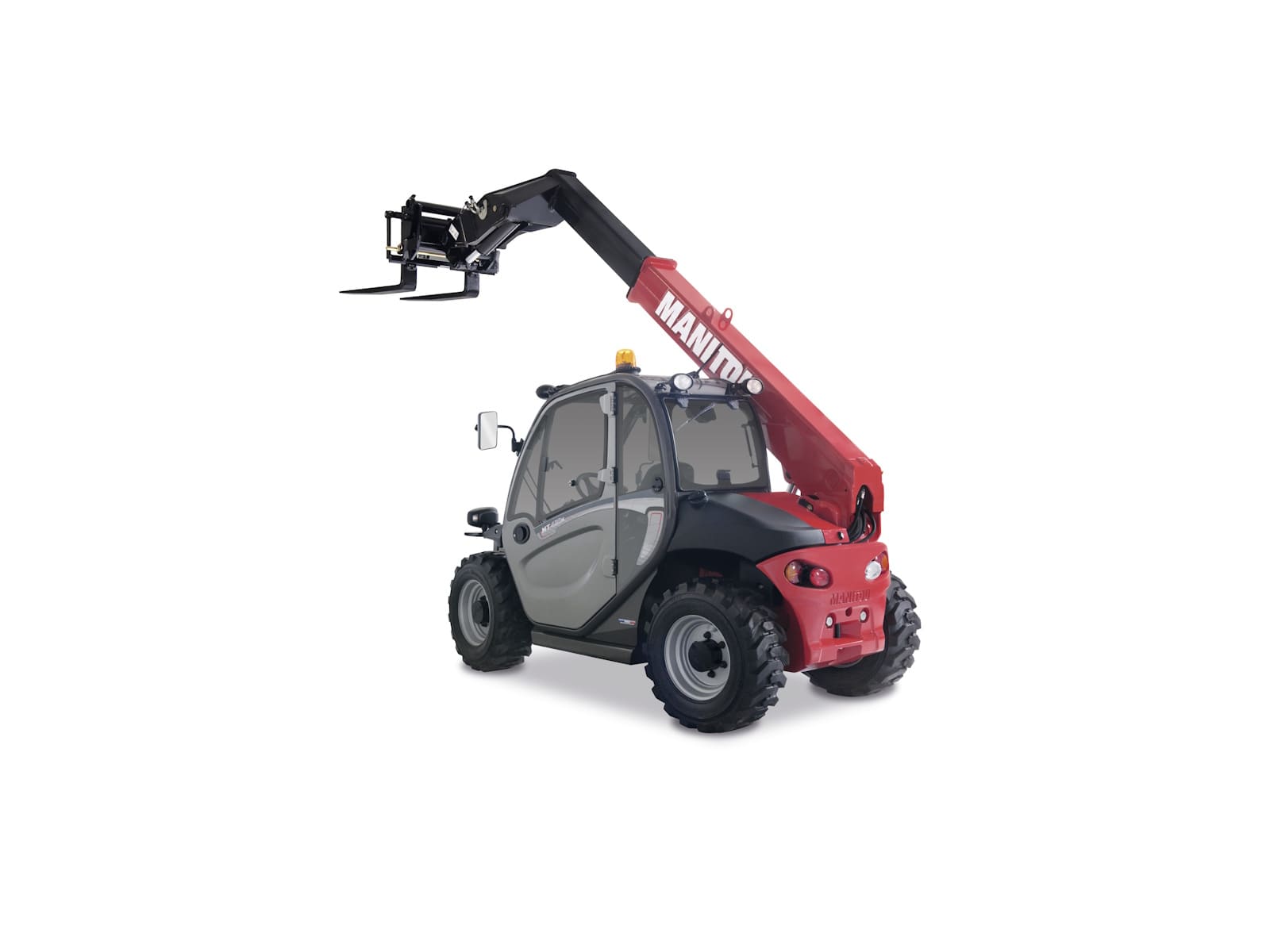

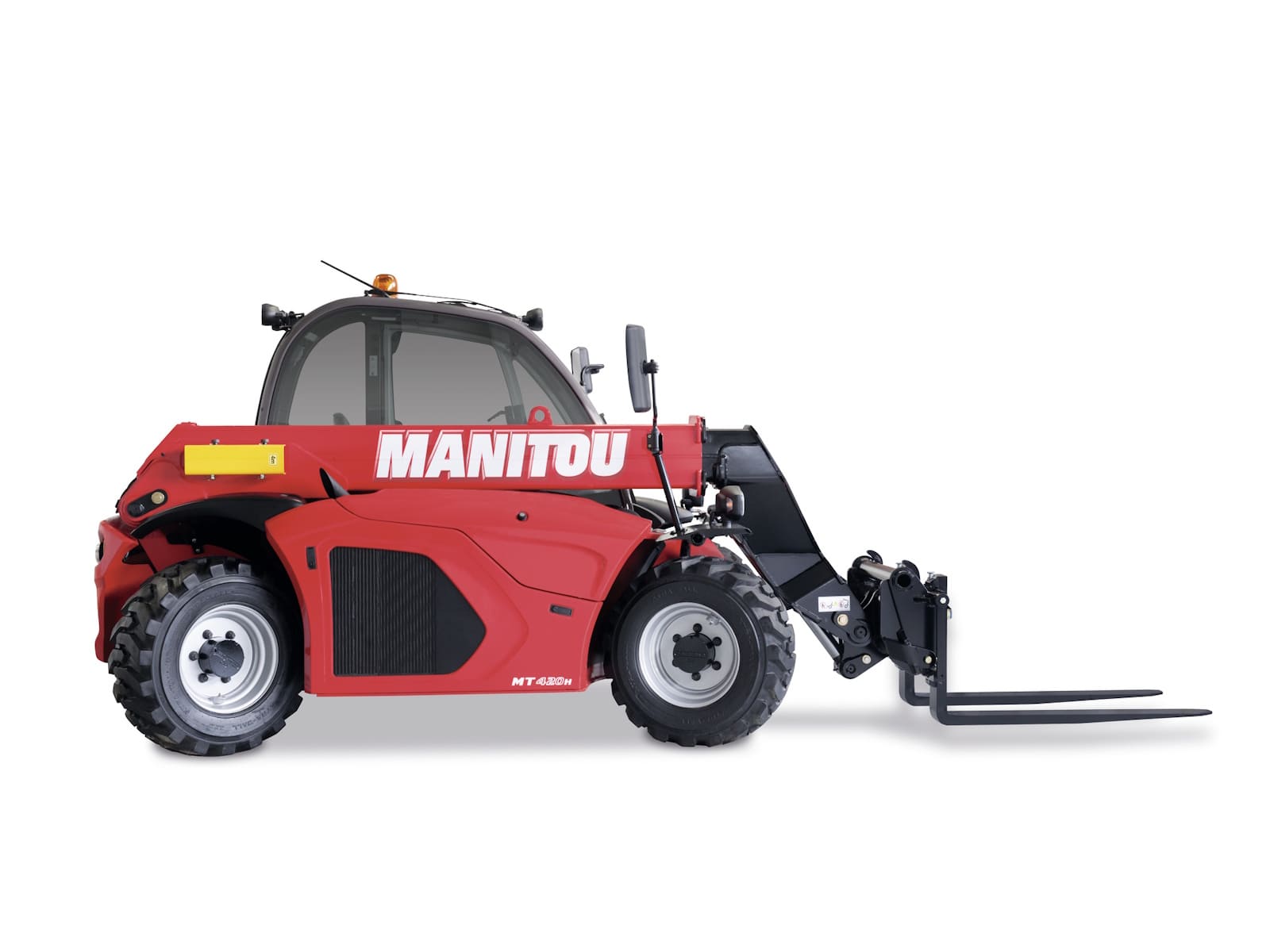

The MT 420 H super-compact telehandler is the smallest in the MT range. Ideal for construction and renovation, its exceptional compactness allows access through narrow entrances as well as confined spaces. Its turning radius and 3 steering modes (4WS/2WS/Crab) provide excellent maneuverability. The MT 420 H has a capacity of 4,400 lbs (2,000 kg) at 14 ft. 3 in. (4.3) m, giving it a high performance load chart. The 56 hp (42 kW) engine and 2-speed hydrostatic transmission has the power to reach 15.5 mph (25 km/h). Another advantage is the simultaneous movements of the lift and extend functions that further increase productivity.
Info
Industry
Agriculture
Make
Manitou Group
Model
MT 420 H
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Load Capacity
Max. capacity: 4409 lb
Height
6 ft 6 in | Max. lifting height: 14 ft 3 in
Notes
Max. outreach: 8 ft 8 in | Breakout force with bucket: 1886 daN | Tilt-up angle: 12 ° | Tilt-down angle: 116 ° | Lifting: 5 s | Lowering: 3.50 s | Extension: 4.80 s | Retraction: 3 s | Crowd: 3.30 s | Dump: 2.70 s | Drawbar pull (Laden): 2850 daN | Number of gears (forward / reverse): 2 / 2 | Max. travel speed: 15 mph | Hydraulic pump type: Gear pump | Hydraulic flow / Pressure: 20 US gpm-3408 PSI | Noise at driving position (LpA): 76 dB | Noise to environment (LwA): 104 dB | Vibration on hands/arms: < 8 ft/s² | Safety / Cab certification: Standard EN 15000 / ROPS - FOPS cab (level 1) | Controls: JSM
Length
Overall length to carriage: 11 ft 11 in | Length to face of forks: 11 ft 9 in | Forks: 47 in
Width
4 ft 11 in | Overall cab width: 2 ft 7 in | Forks: 5 in
Wheelbase
7 ft
Ground Clearance
9 in
Turning Radius
External turning radius (over tyres): 9 ft 9 in
Weight
9392 lb | Unladen weight (with forks): 9237 lb

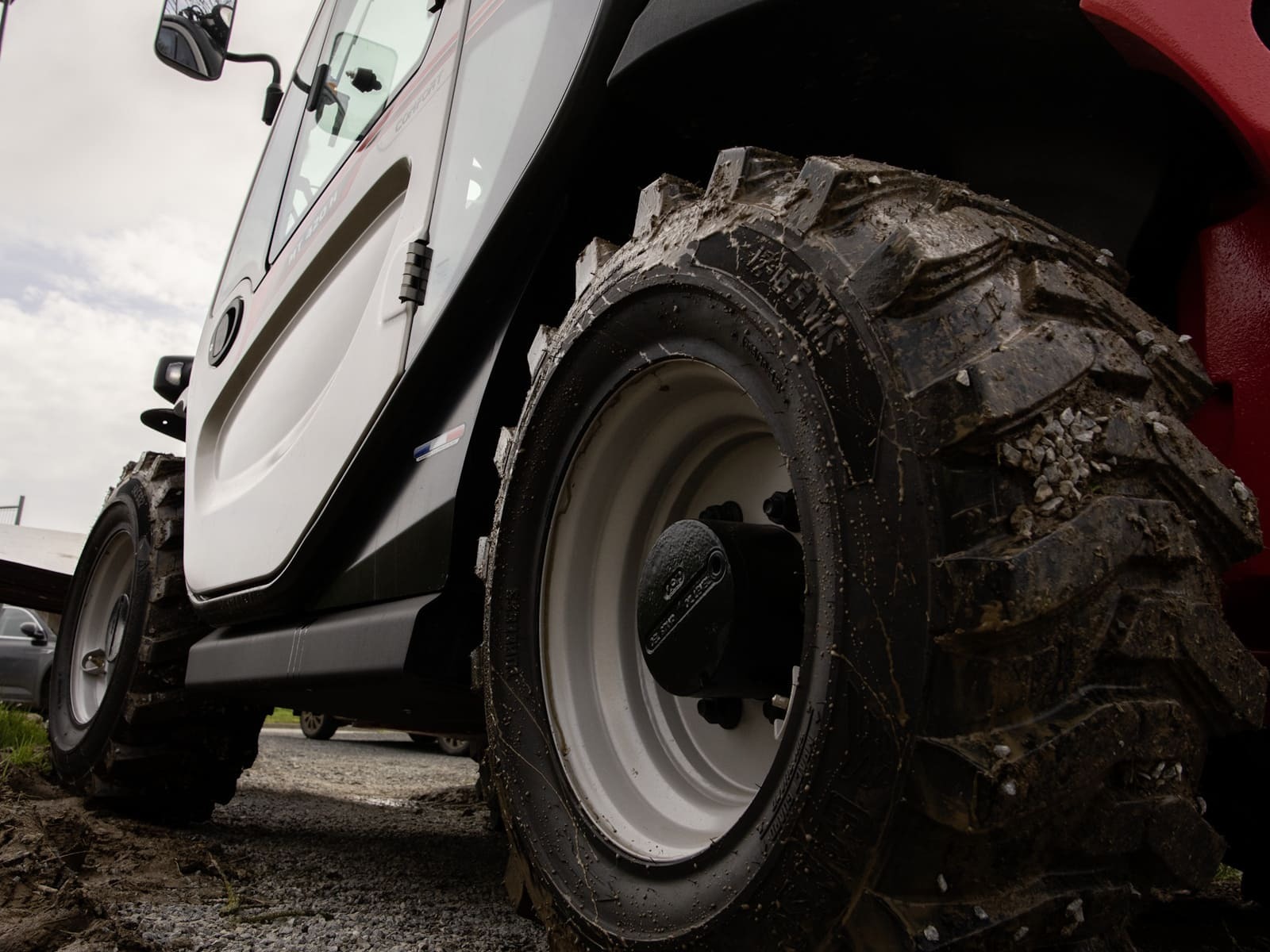

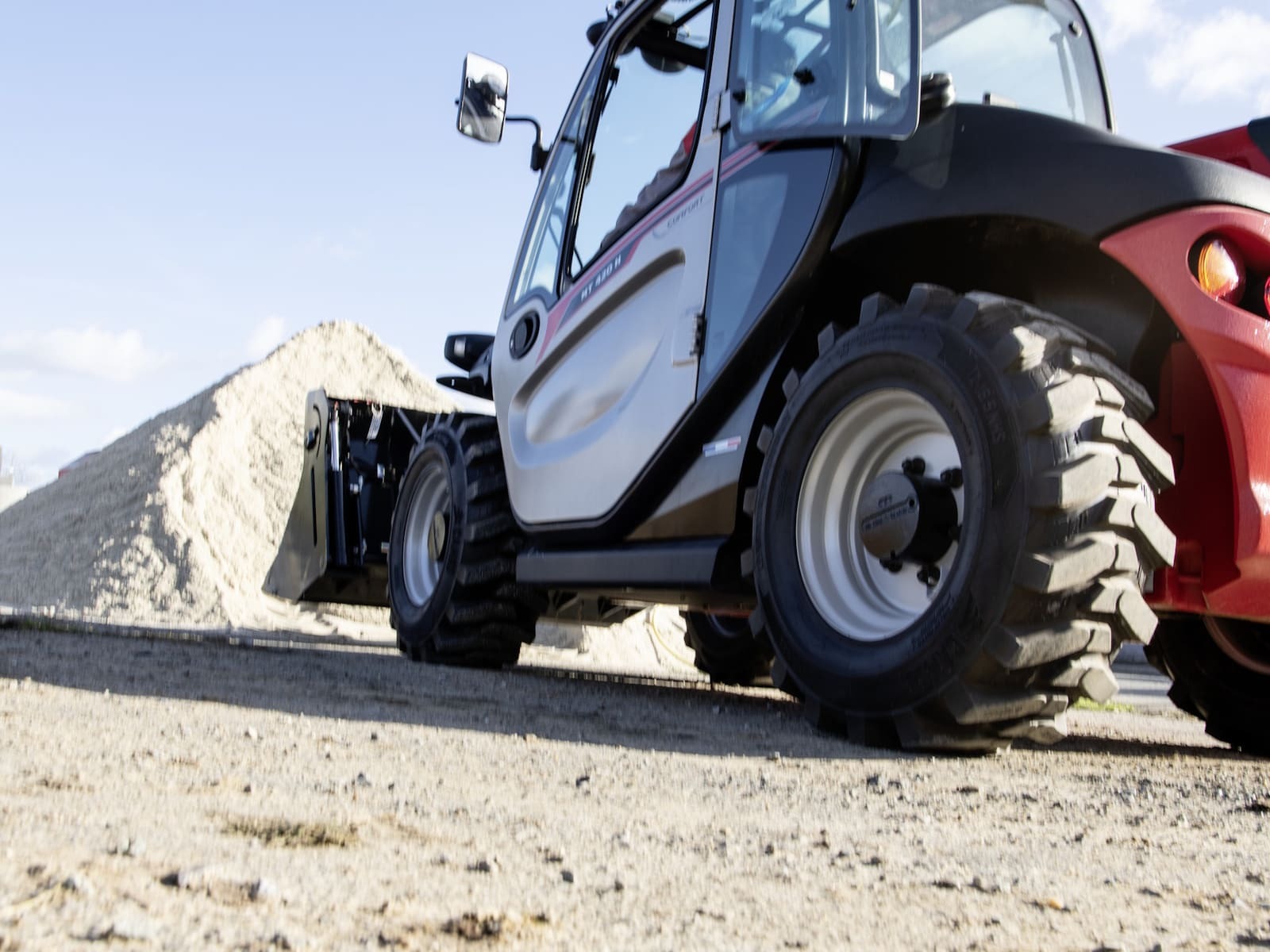

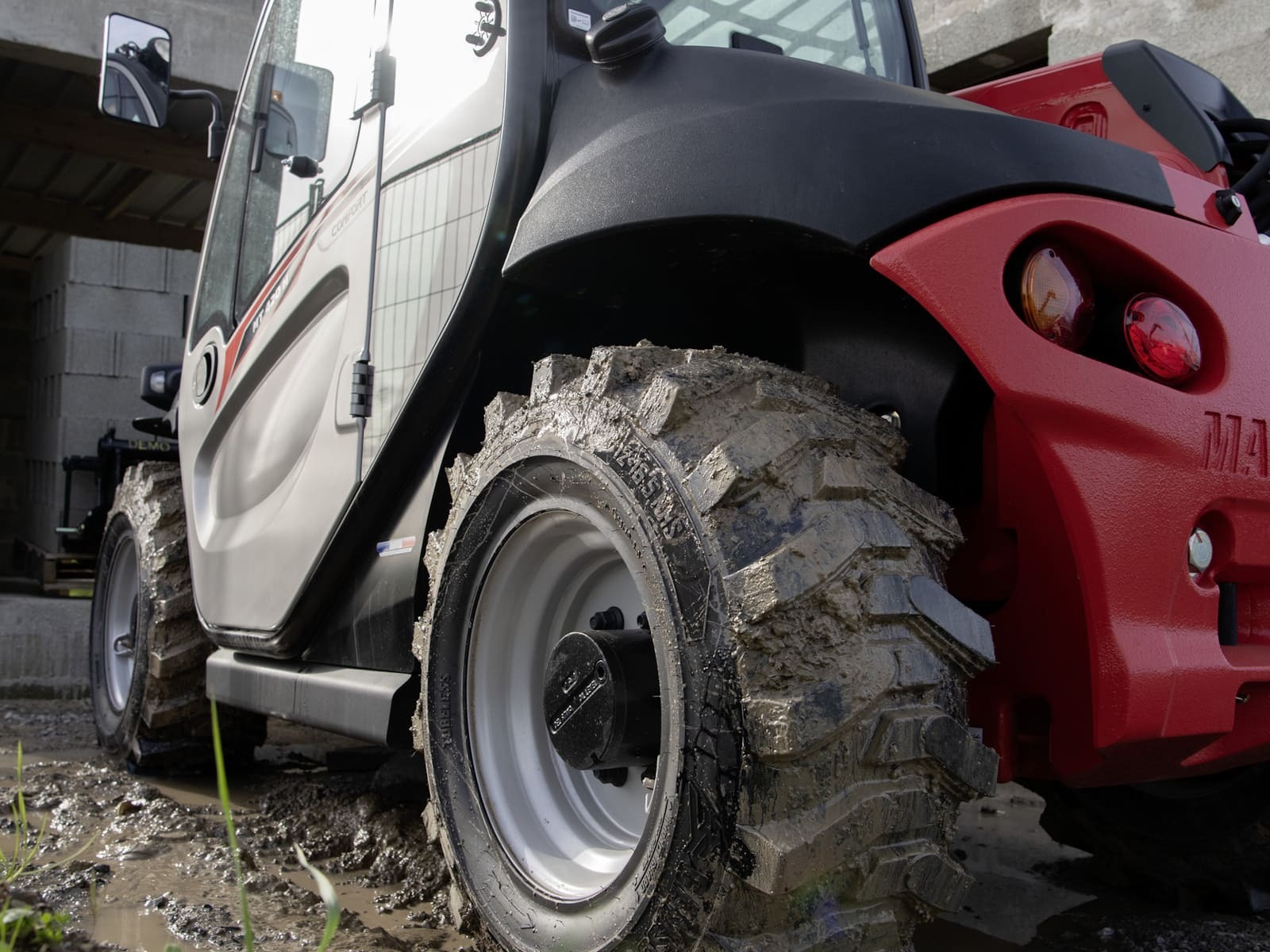

Tires
Inflatable

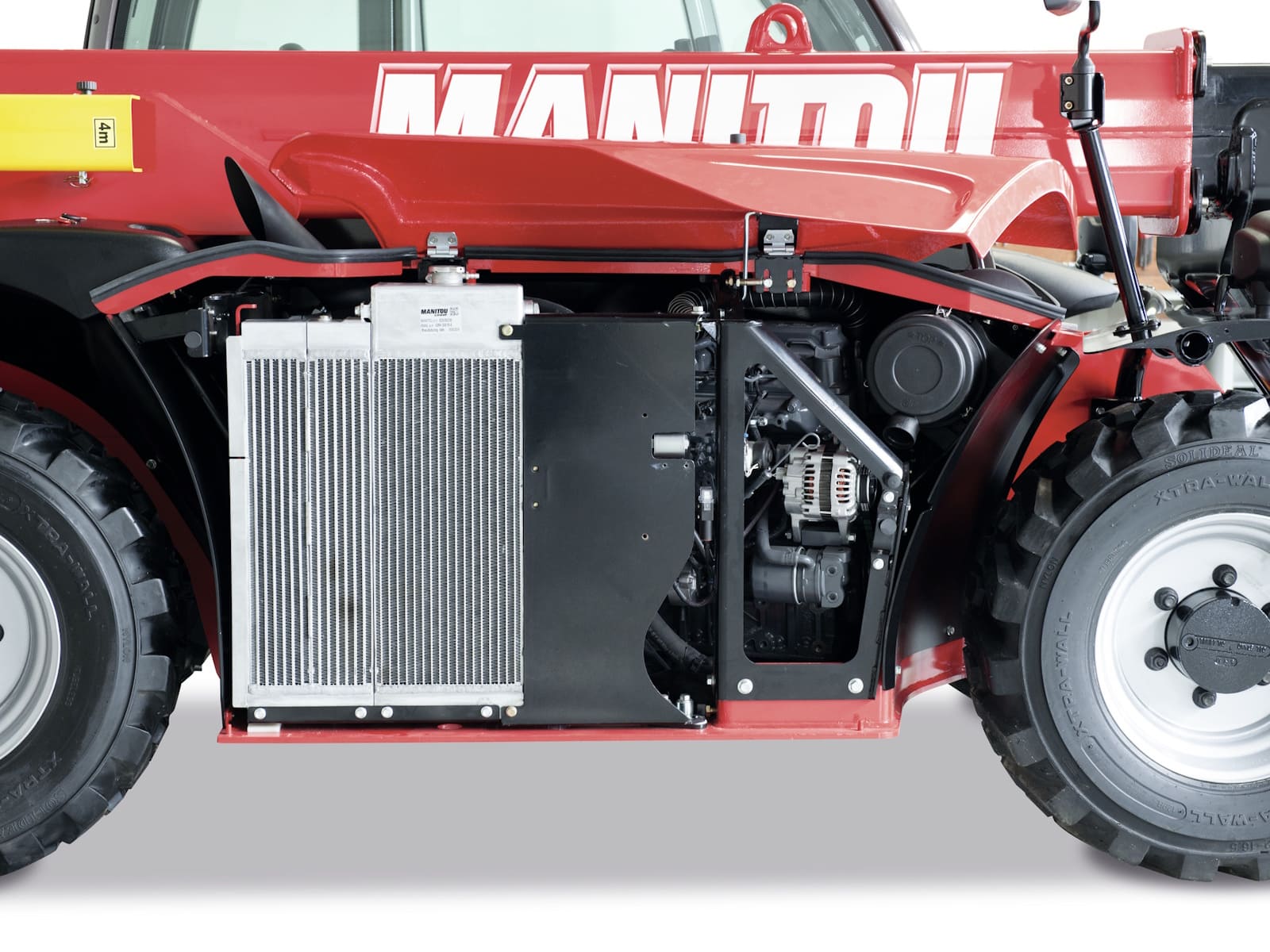

Engine
Kubota | Stage V
Cylinders
Number of cylinders / Capacity of cylinders: 4 - 160 in³
Power/Horsepower
57 Hp / 42 kW
Torque
Max. torque / Engine rotation: 128 ft/lbs @ 1600 rpm
Transmission
Hydrostatic
Brakes
Parking brake: Automatic Negative Hand-brake | Service brake: Disk brake on the cadran shaft
Oil Capacity
3 US gal | Hydraulic oil: 18 US gal
Fuel Capacity
16 US gal | Hydraulic tank capacity: 3 US gal
Steering
Steering wheels (front / rear): 2 / 2
Wheels
Drive wheels (front / rear): 2 / 2
