2026 Manitou Group MLT 738-130 PS+ (S1)
Get in Touch
Description

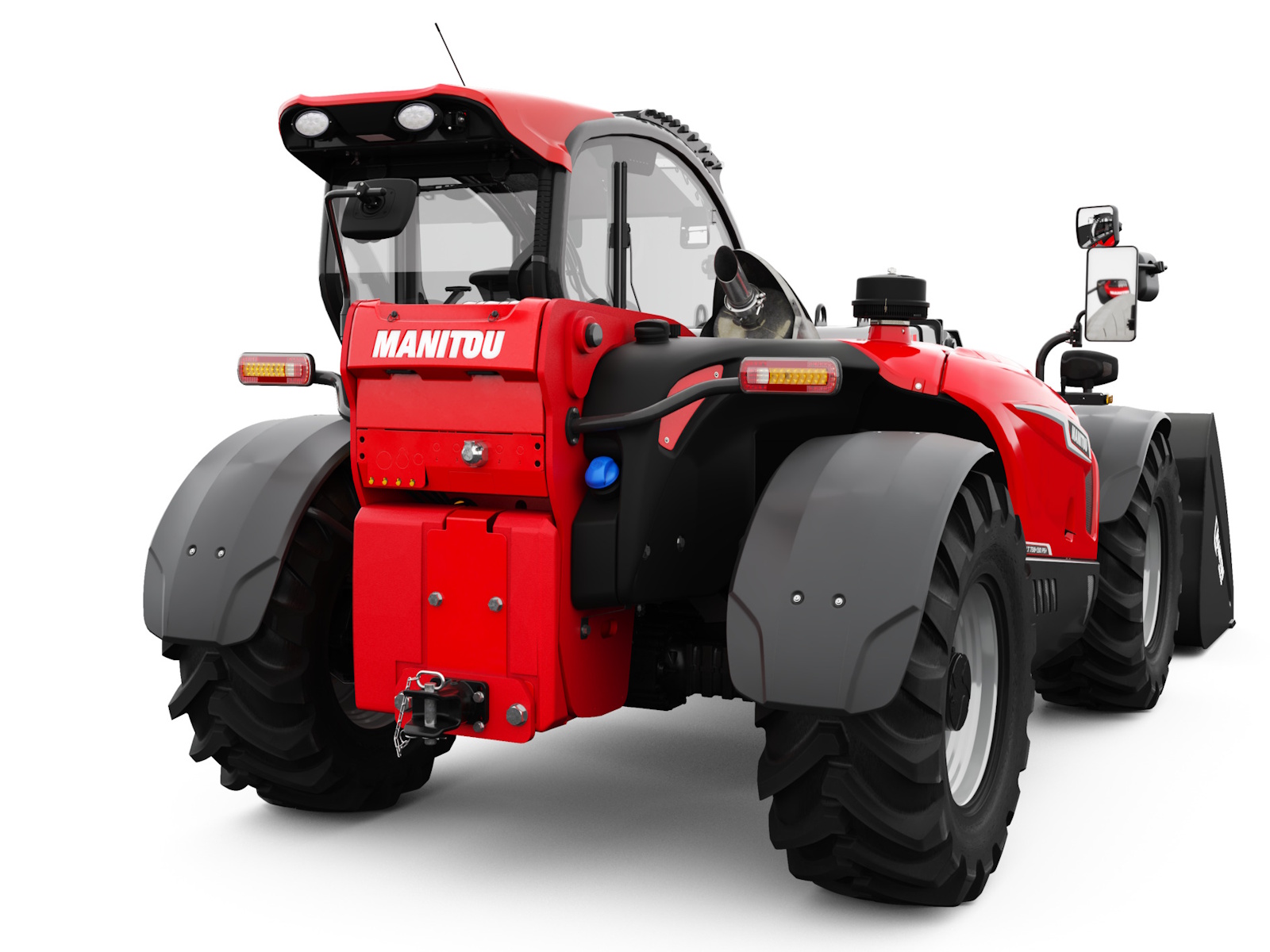

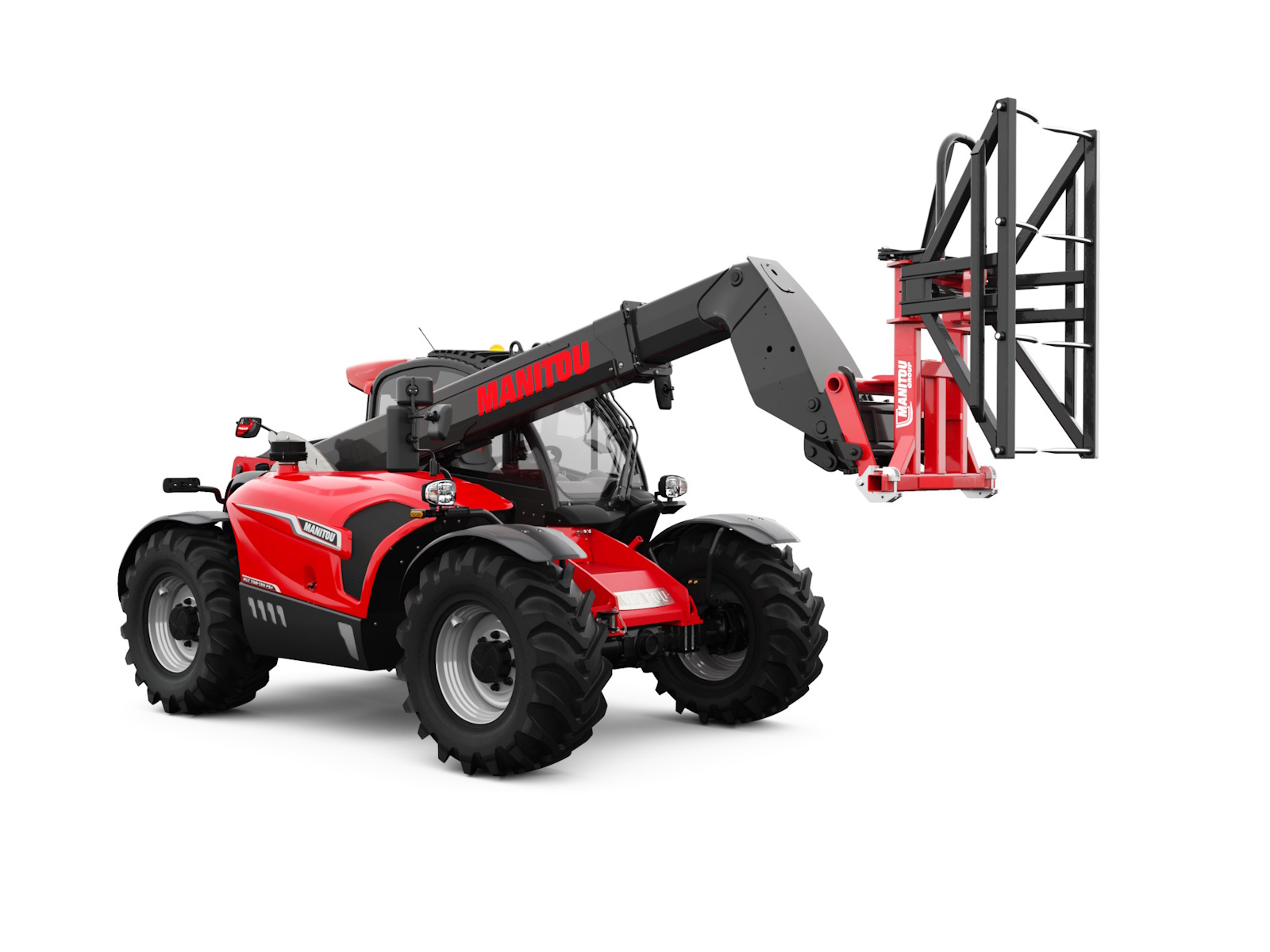

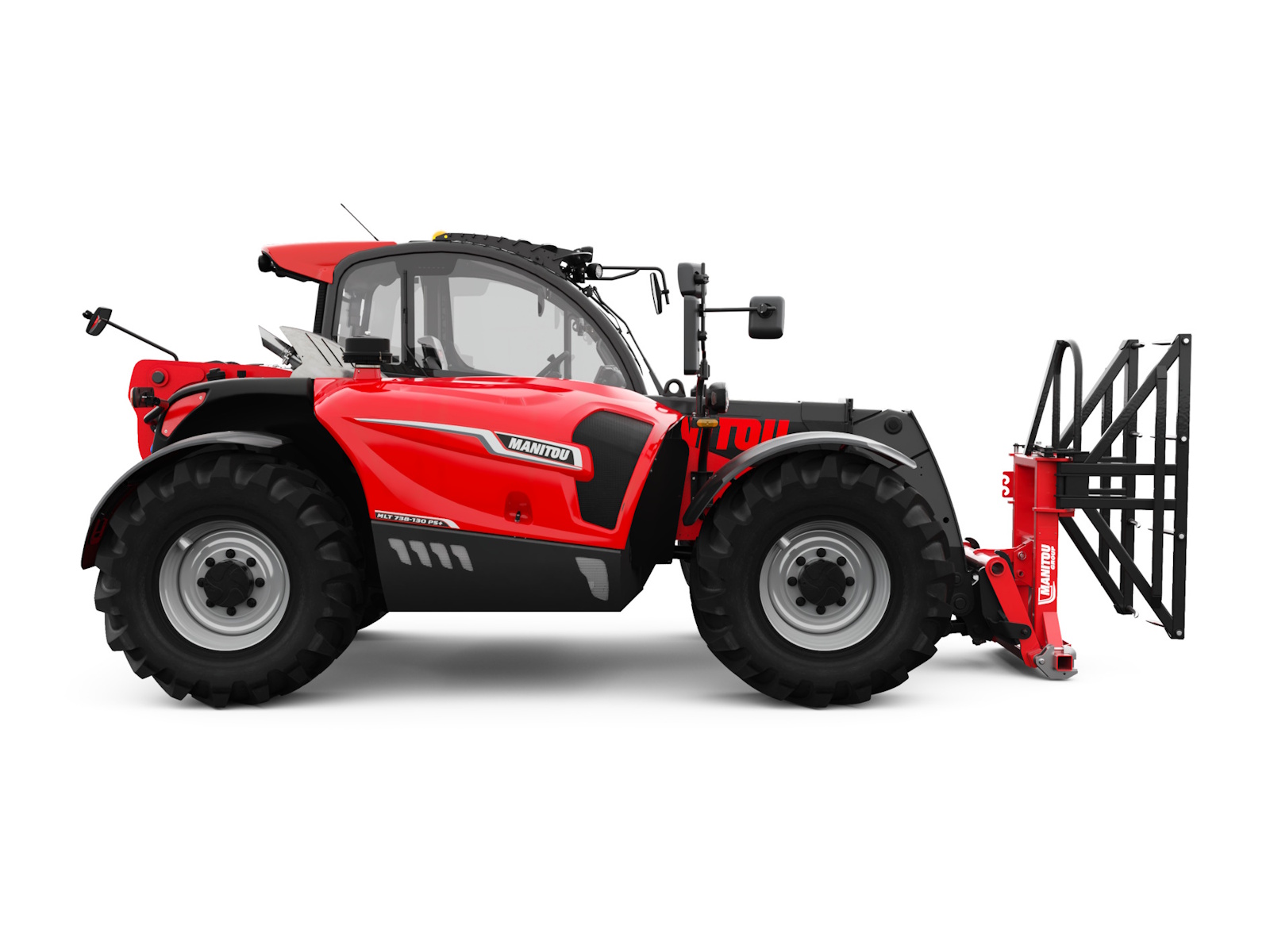

2026 Manitou Group MLT 738-130 PS+ (S1)

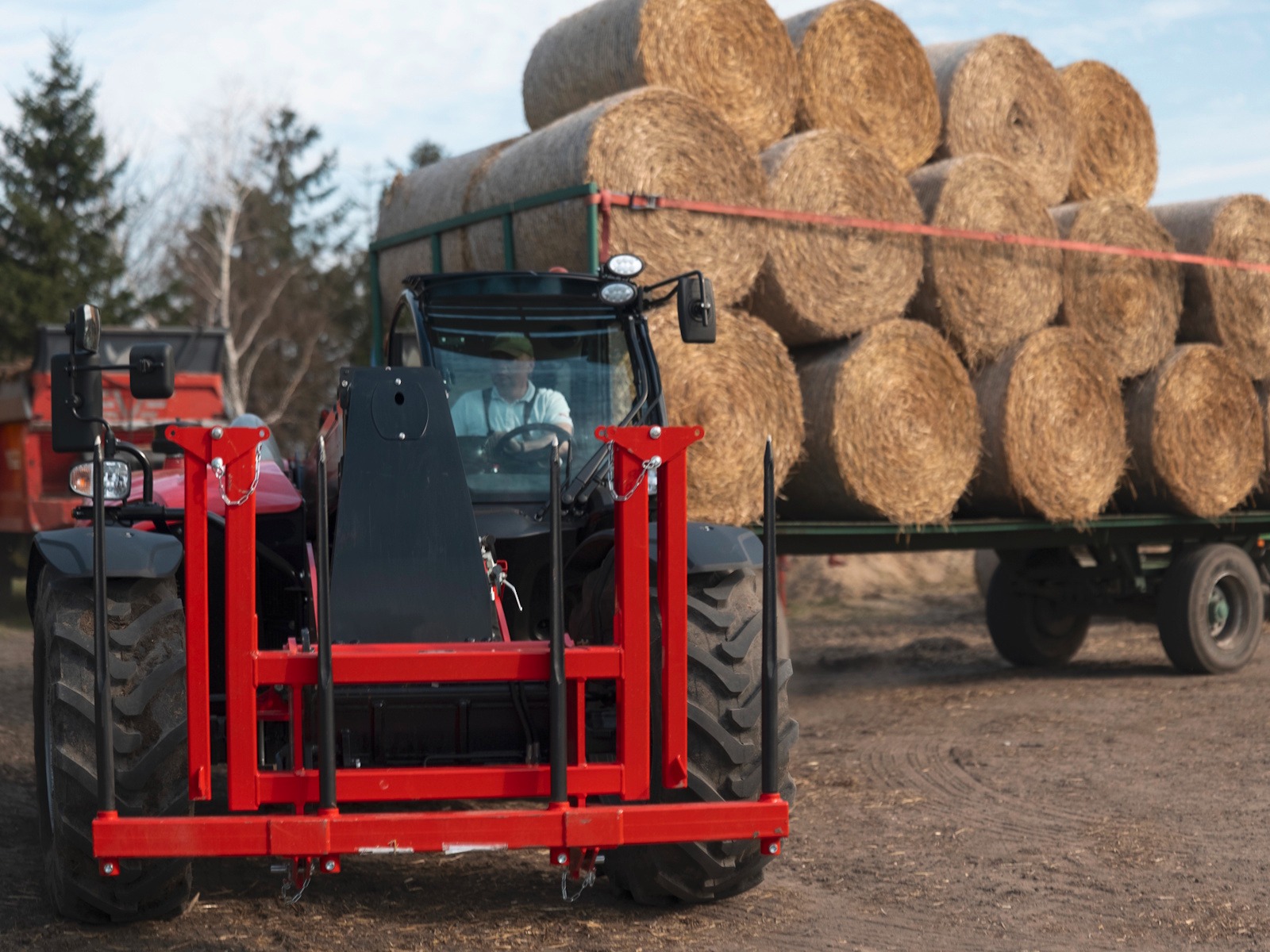

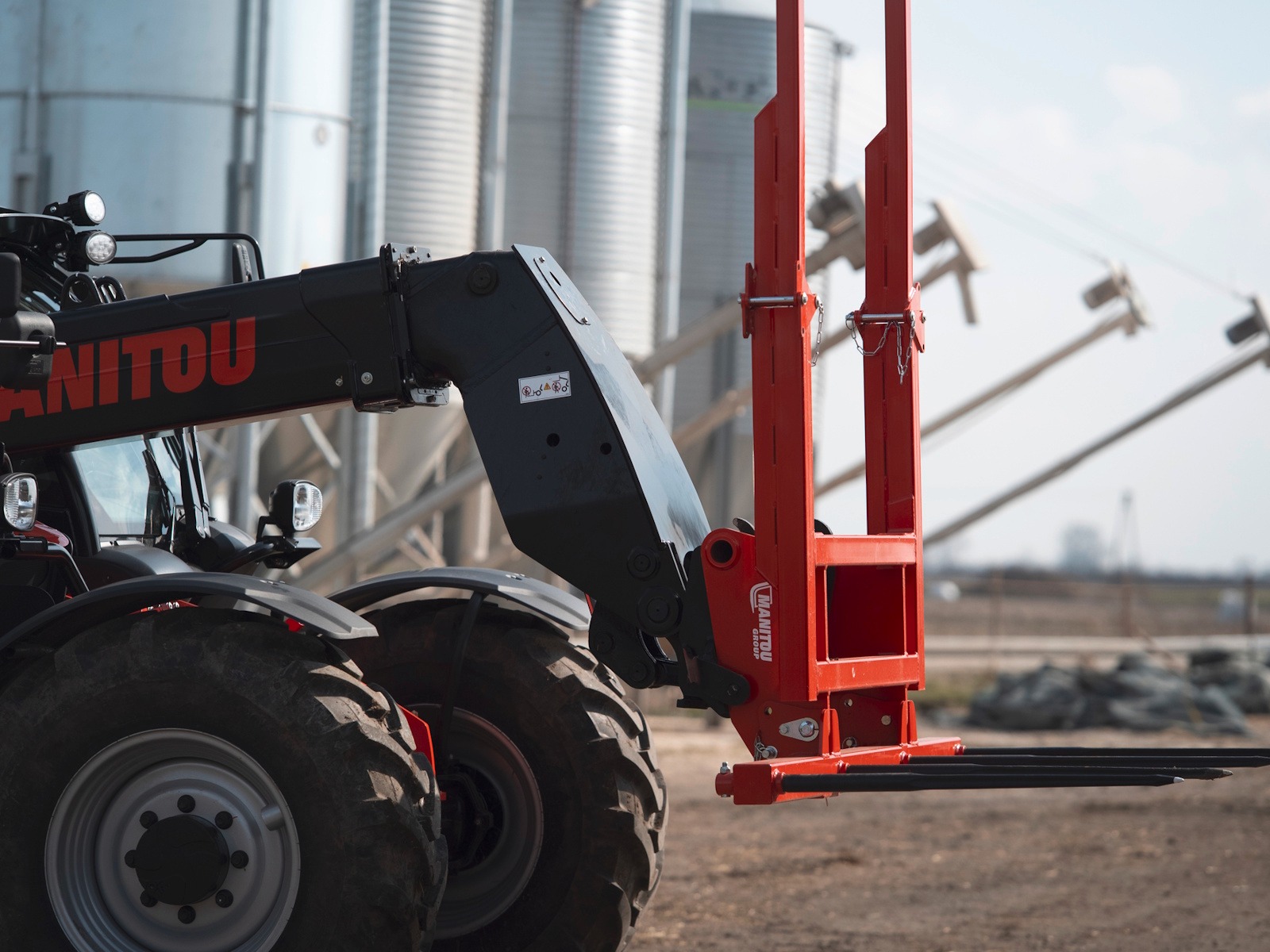

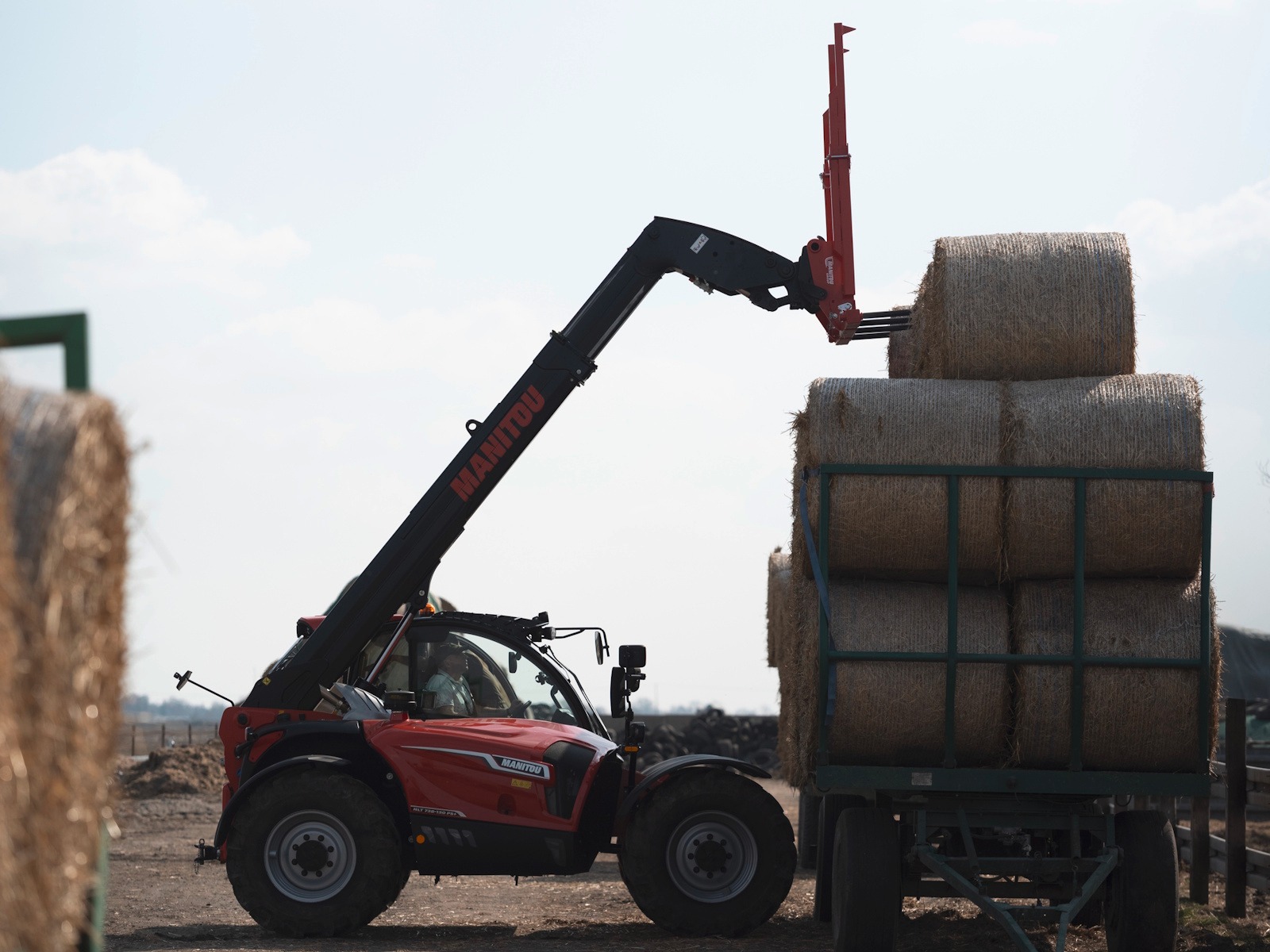

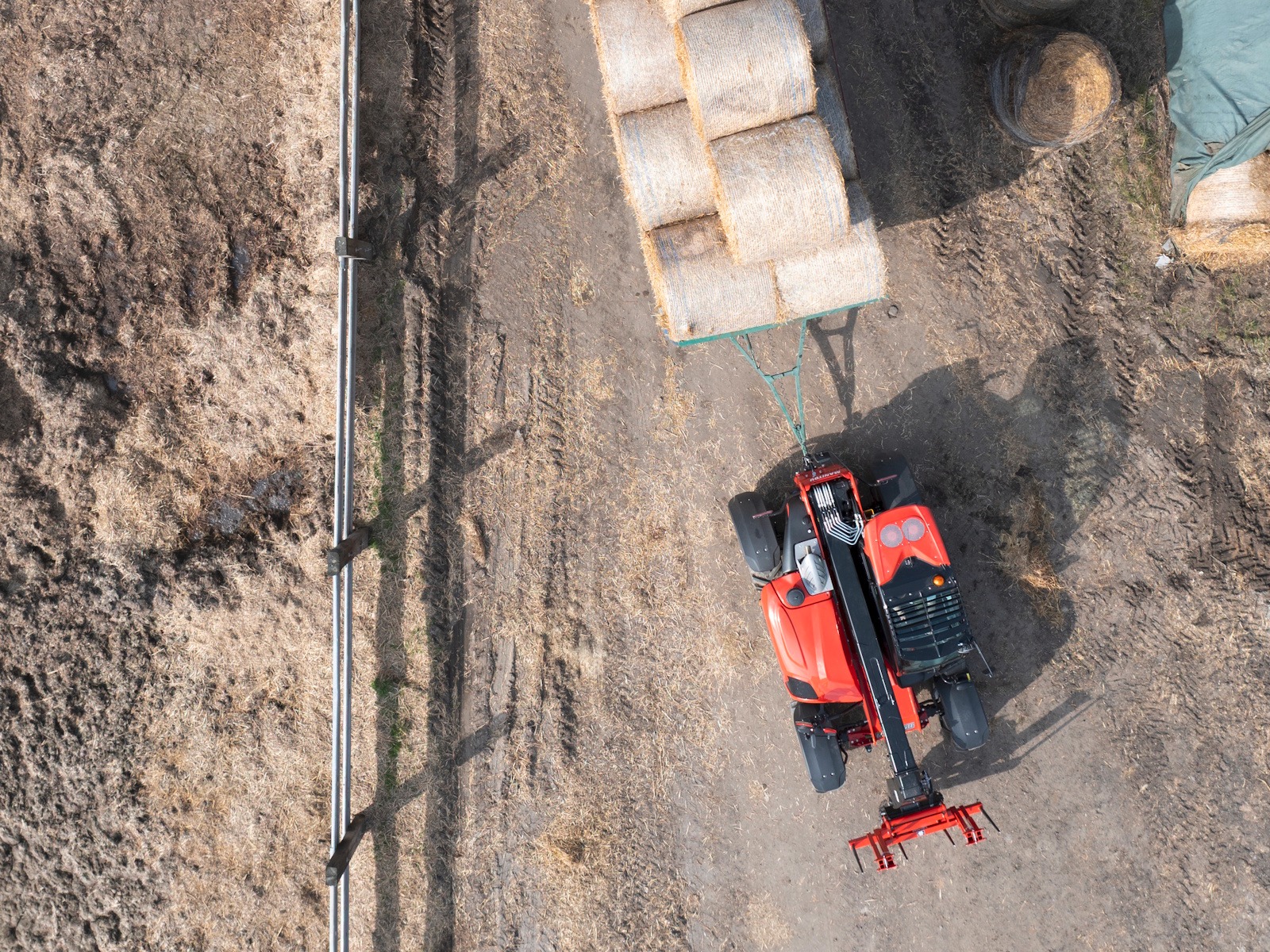

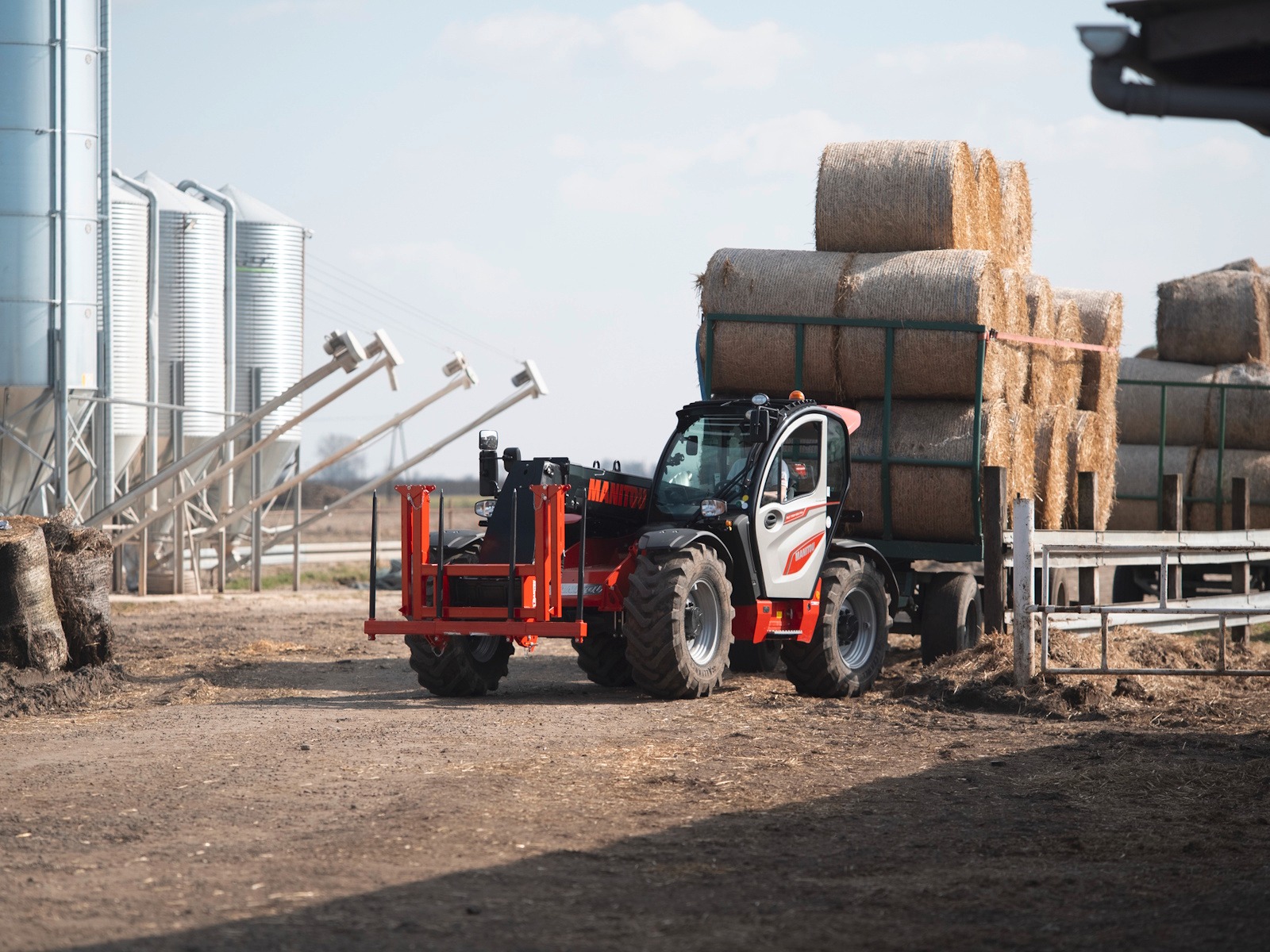

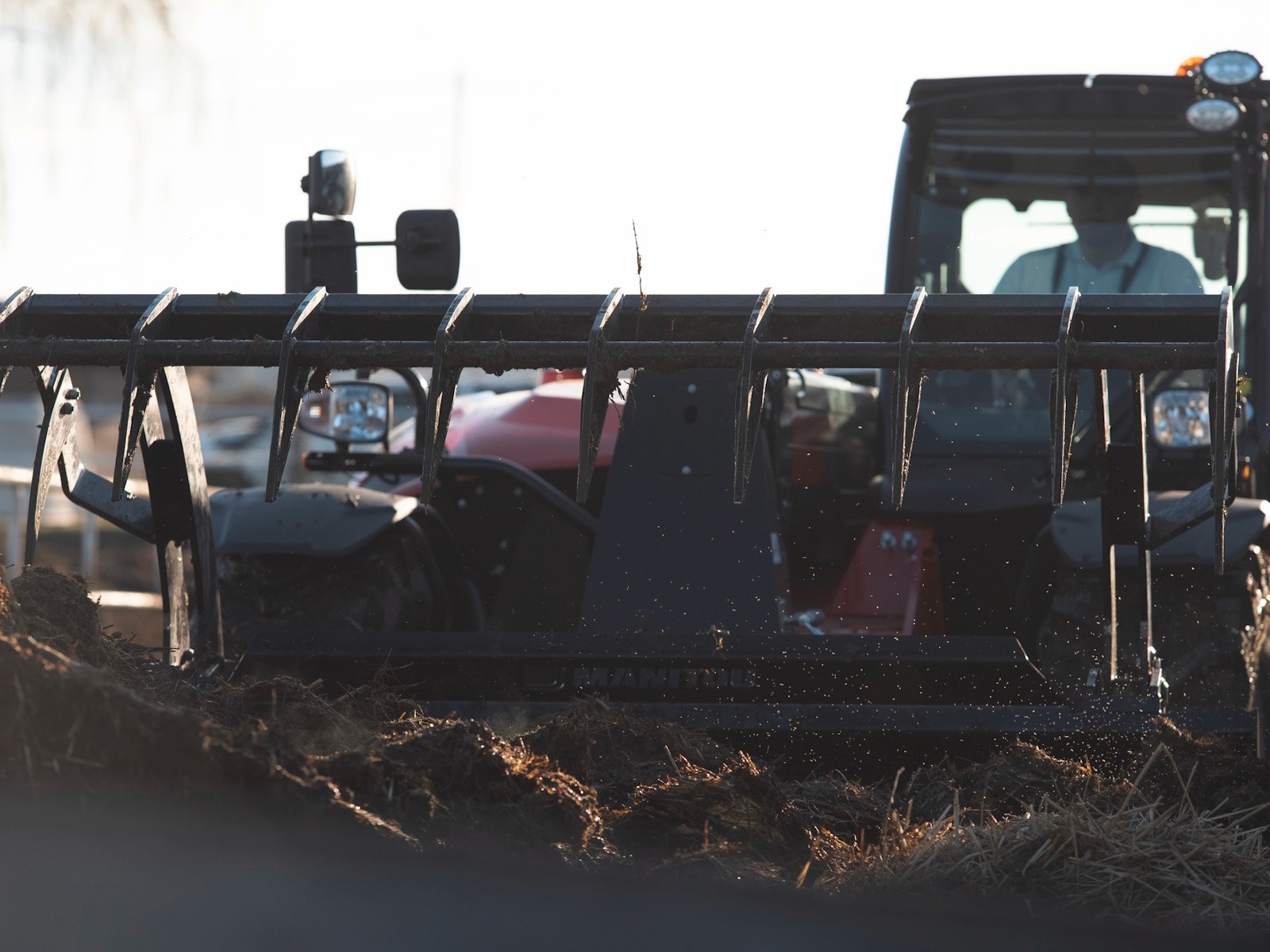

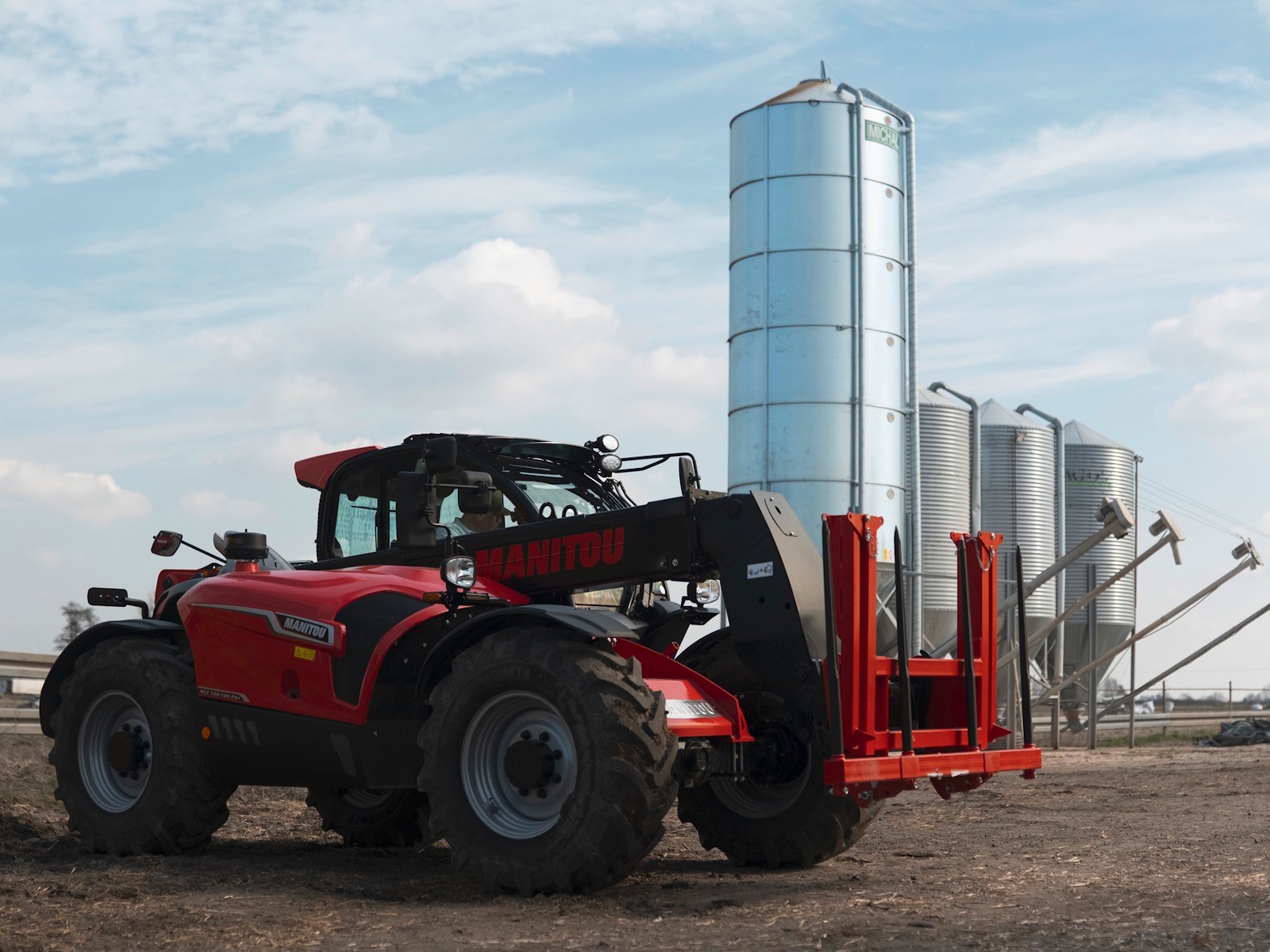

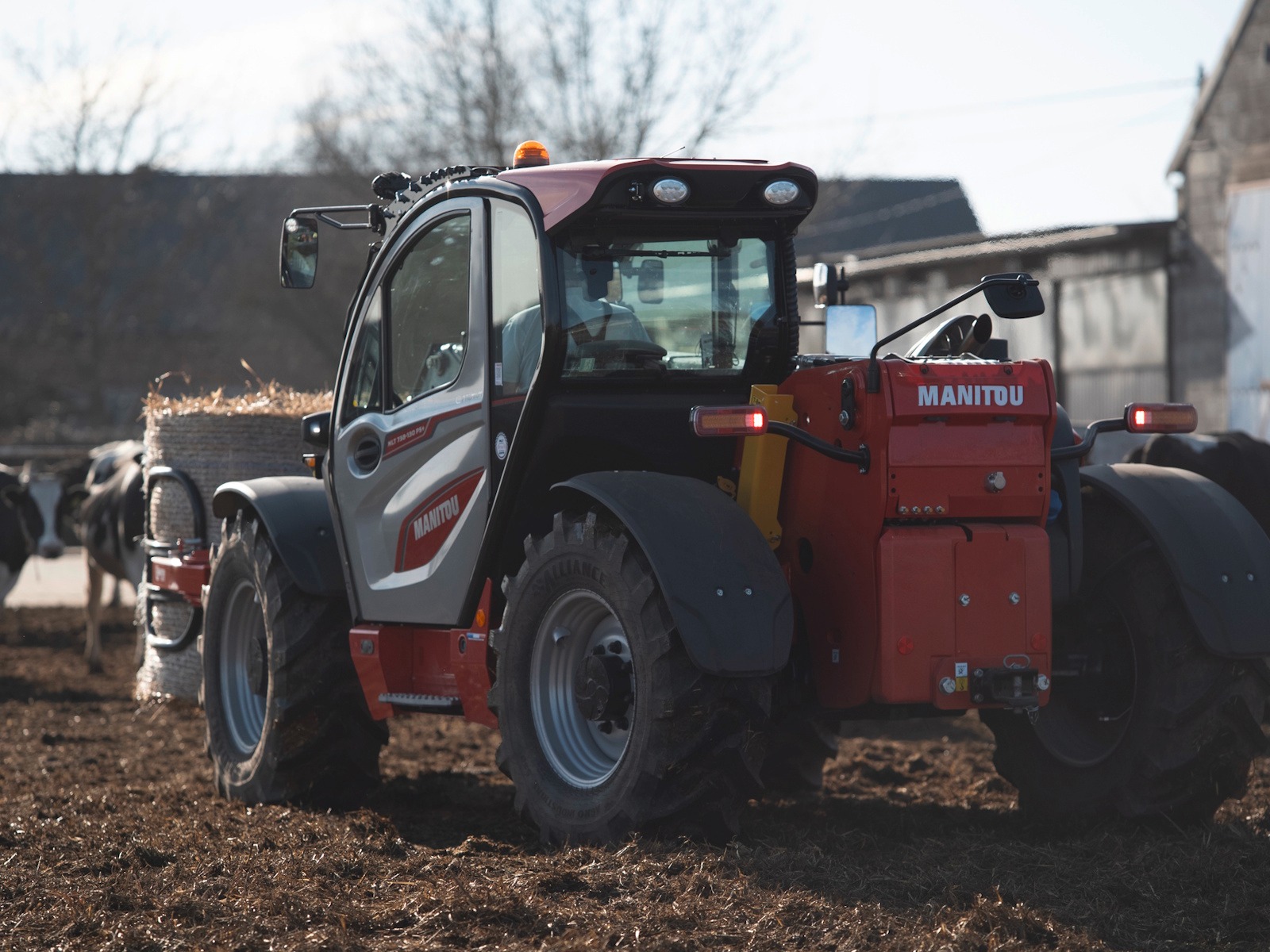

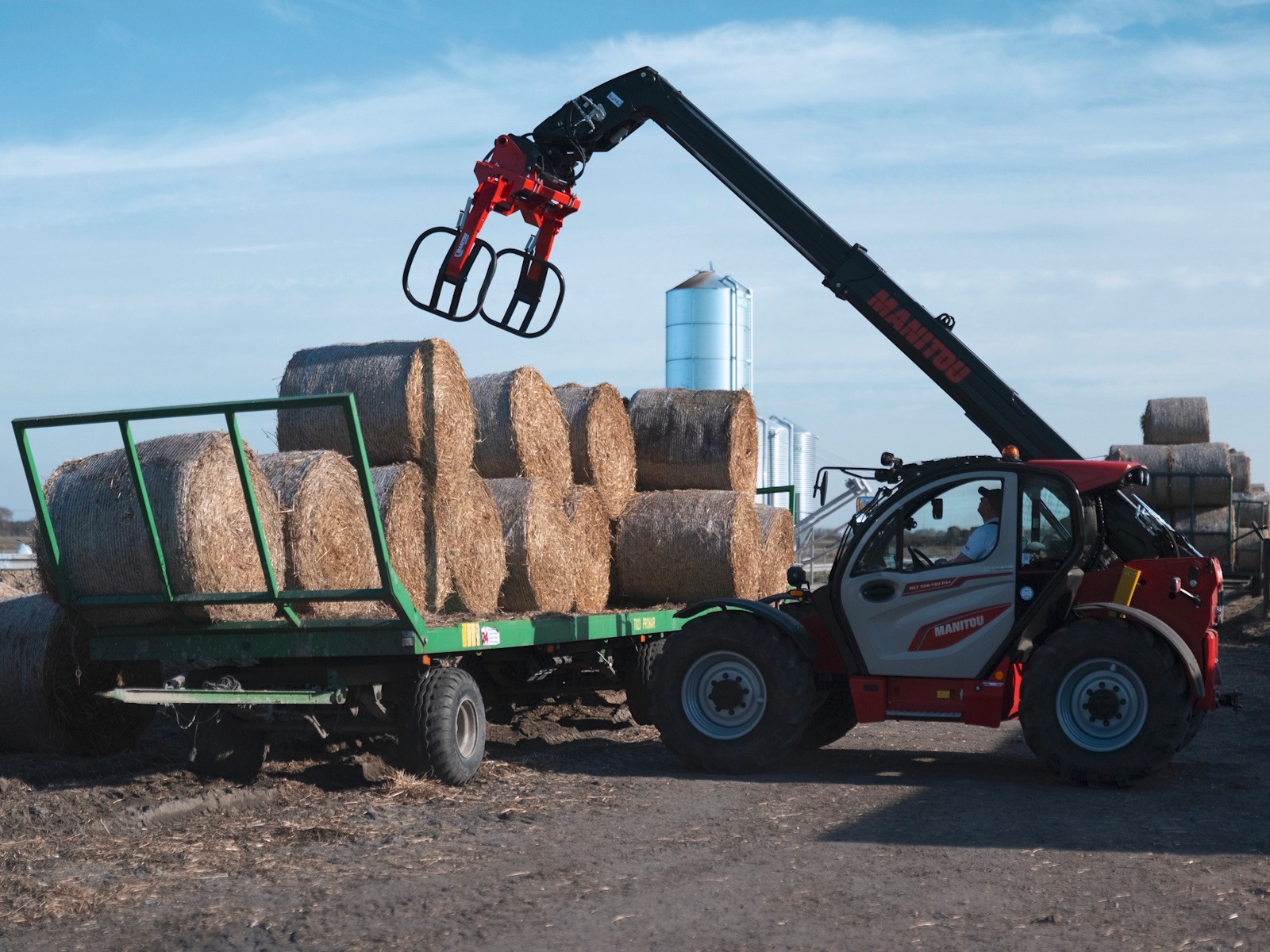

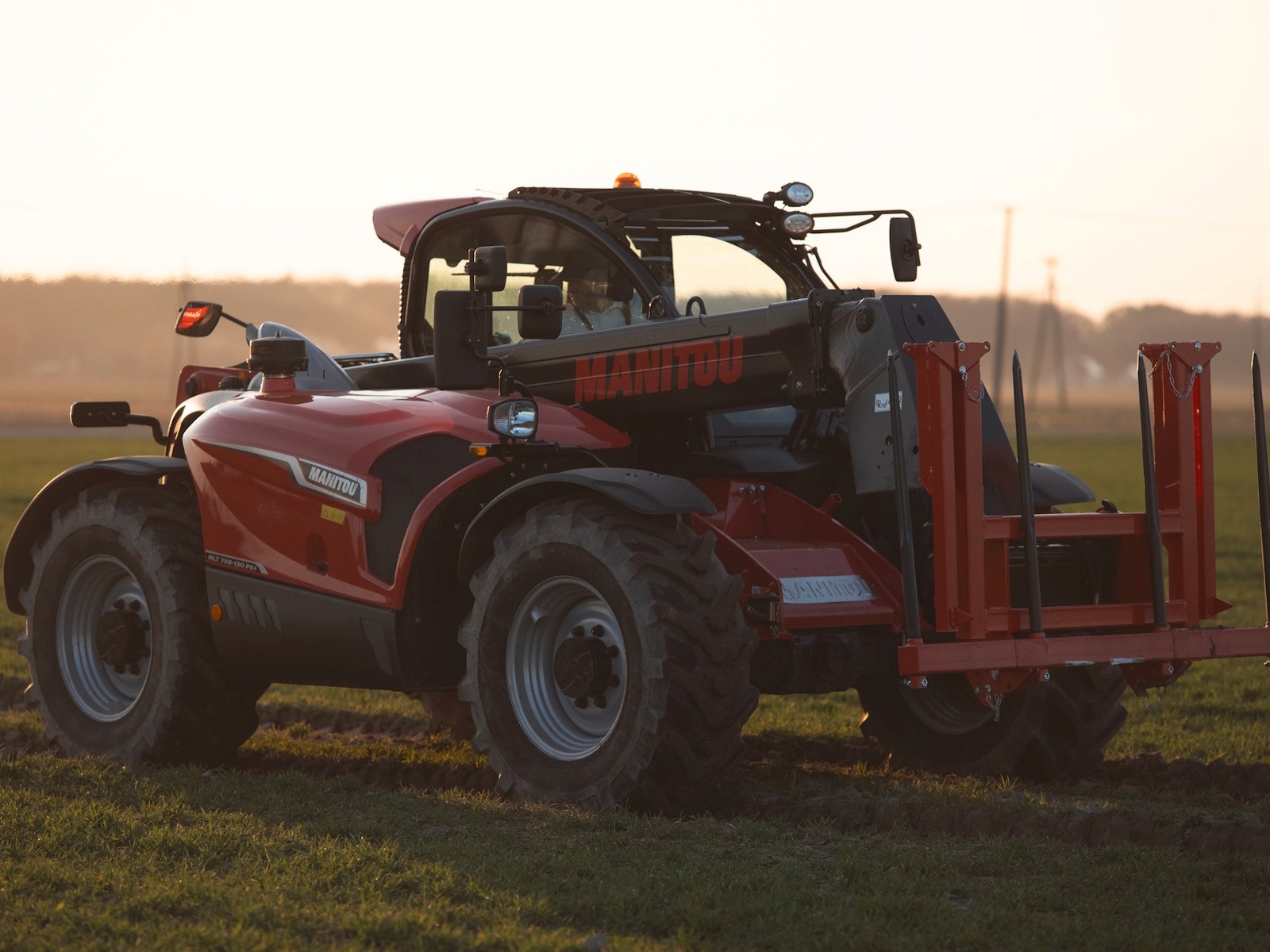

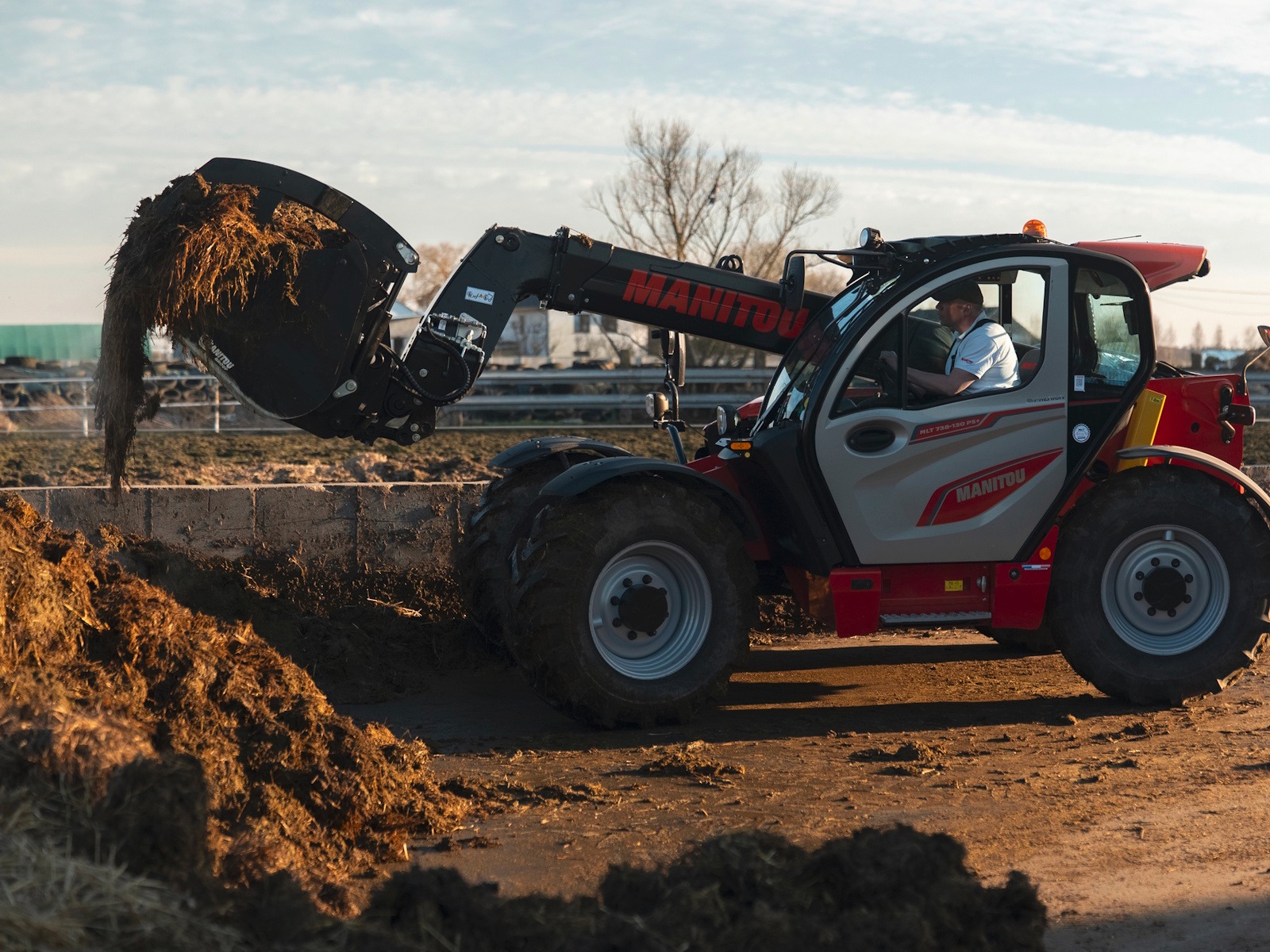

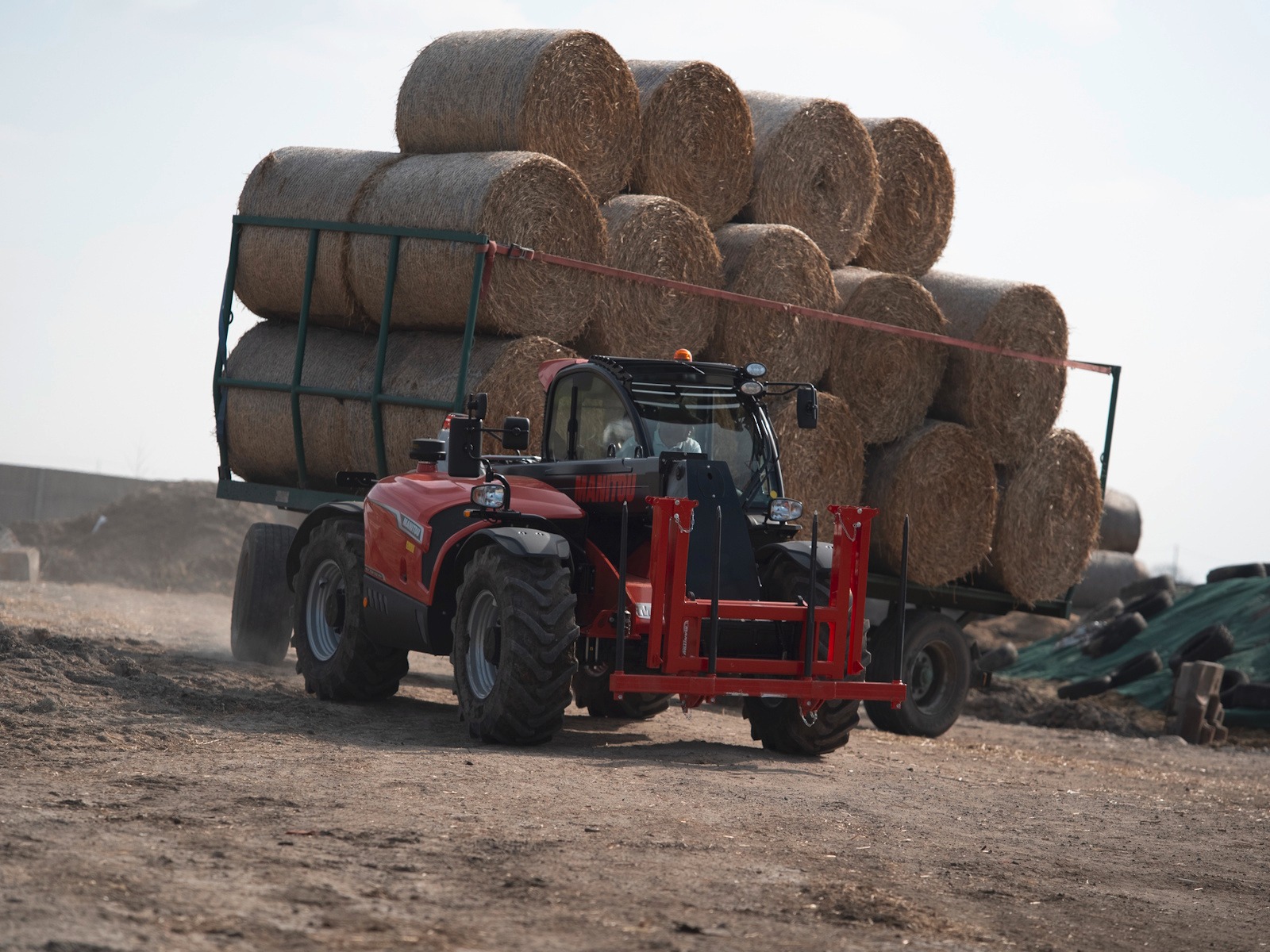

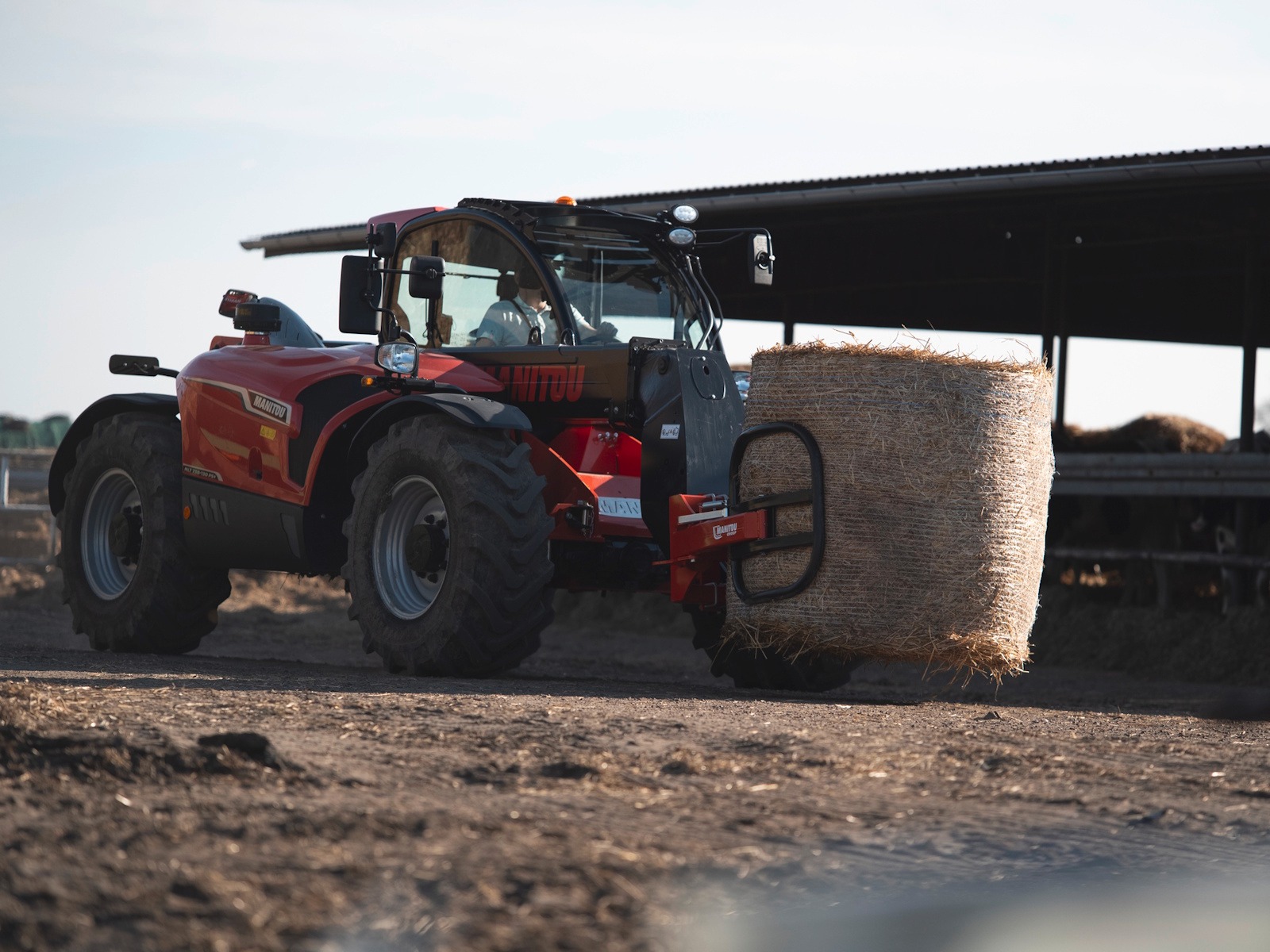

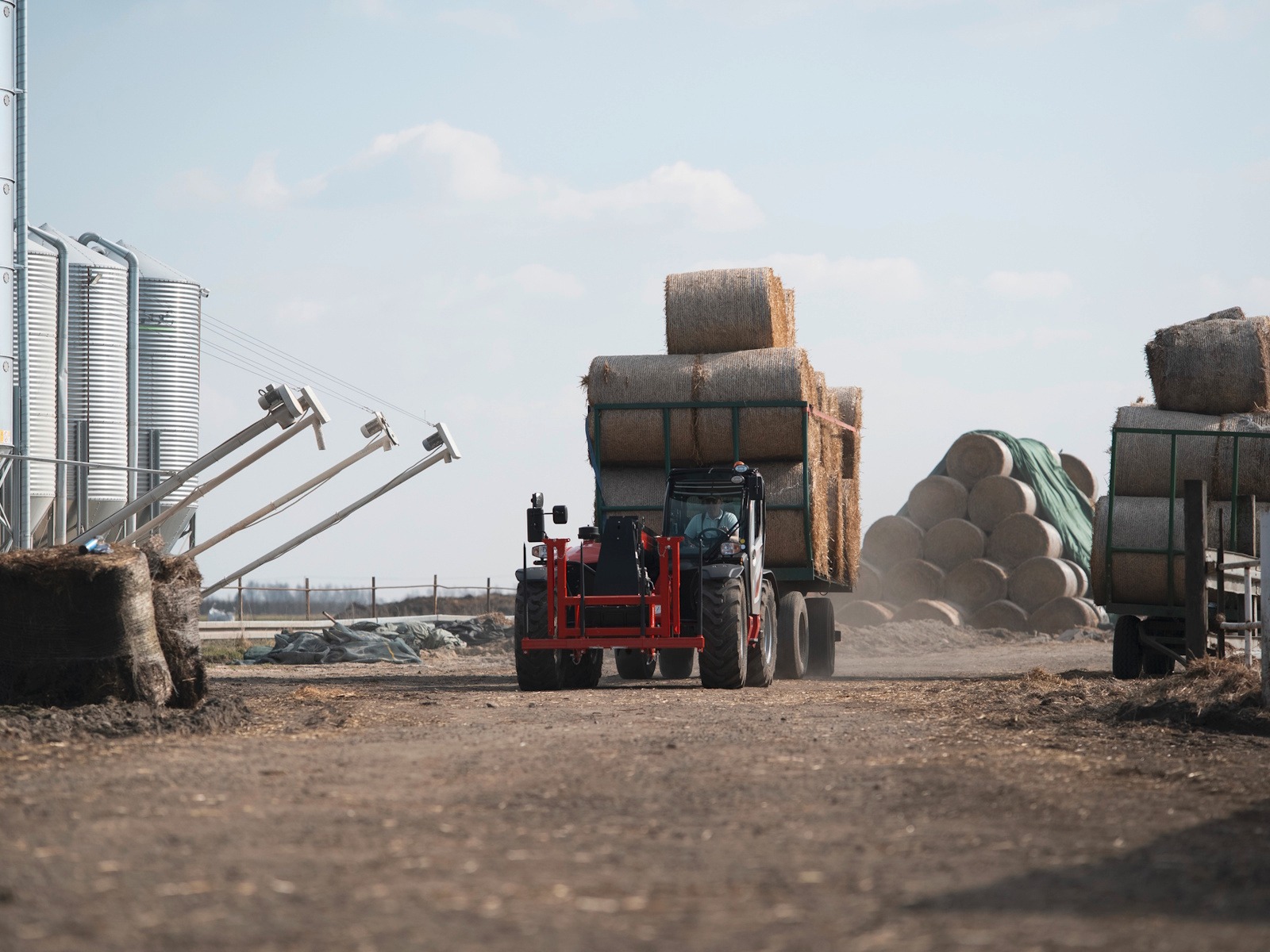

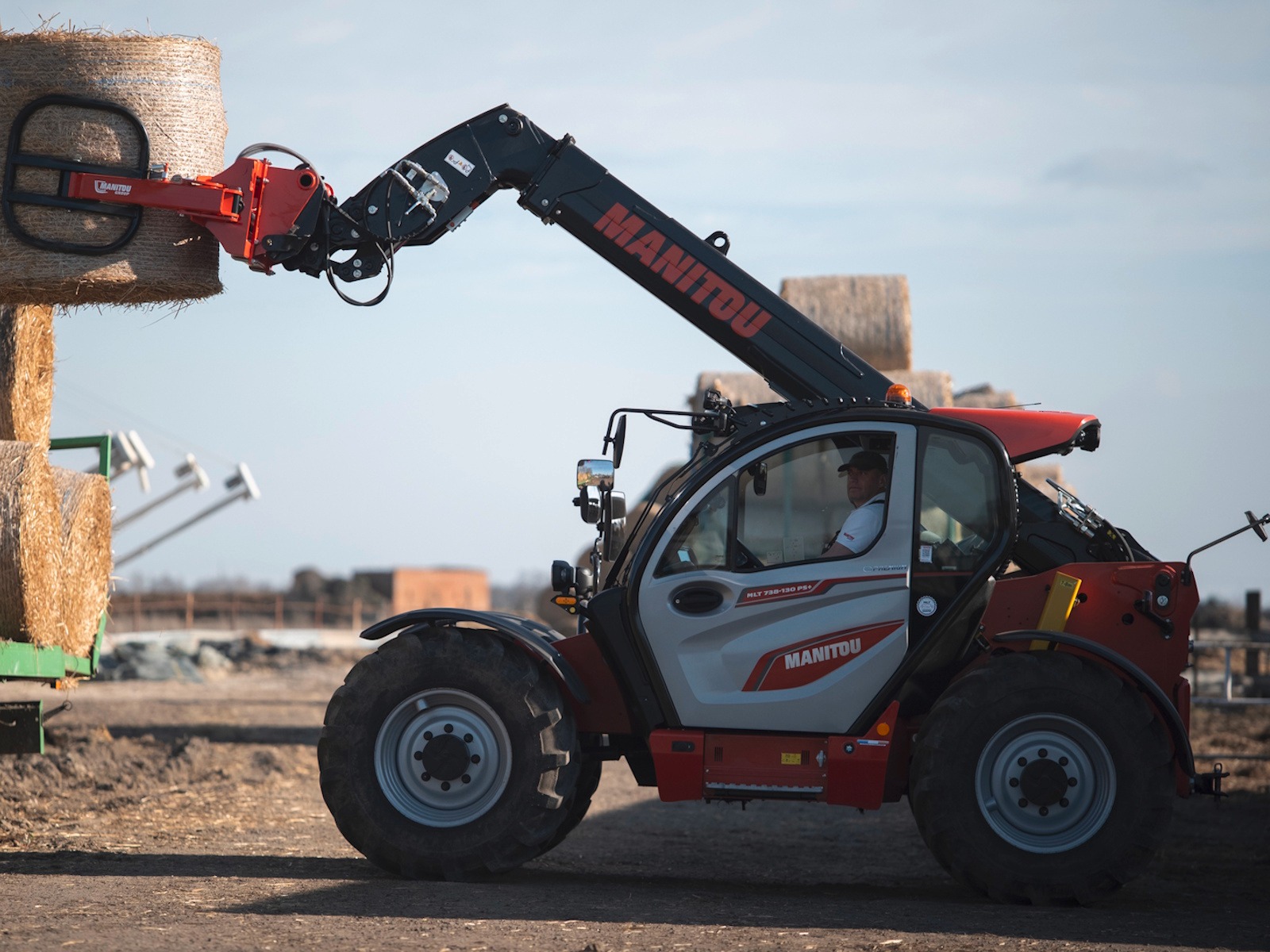

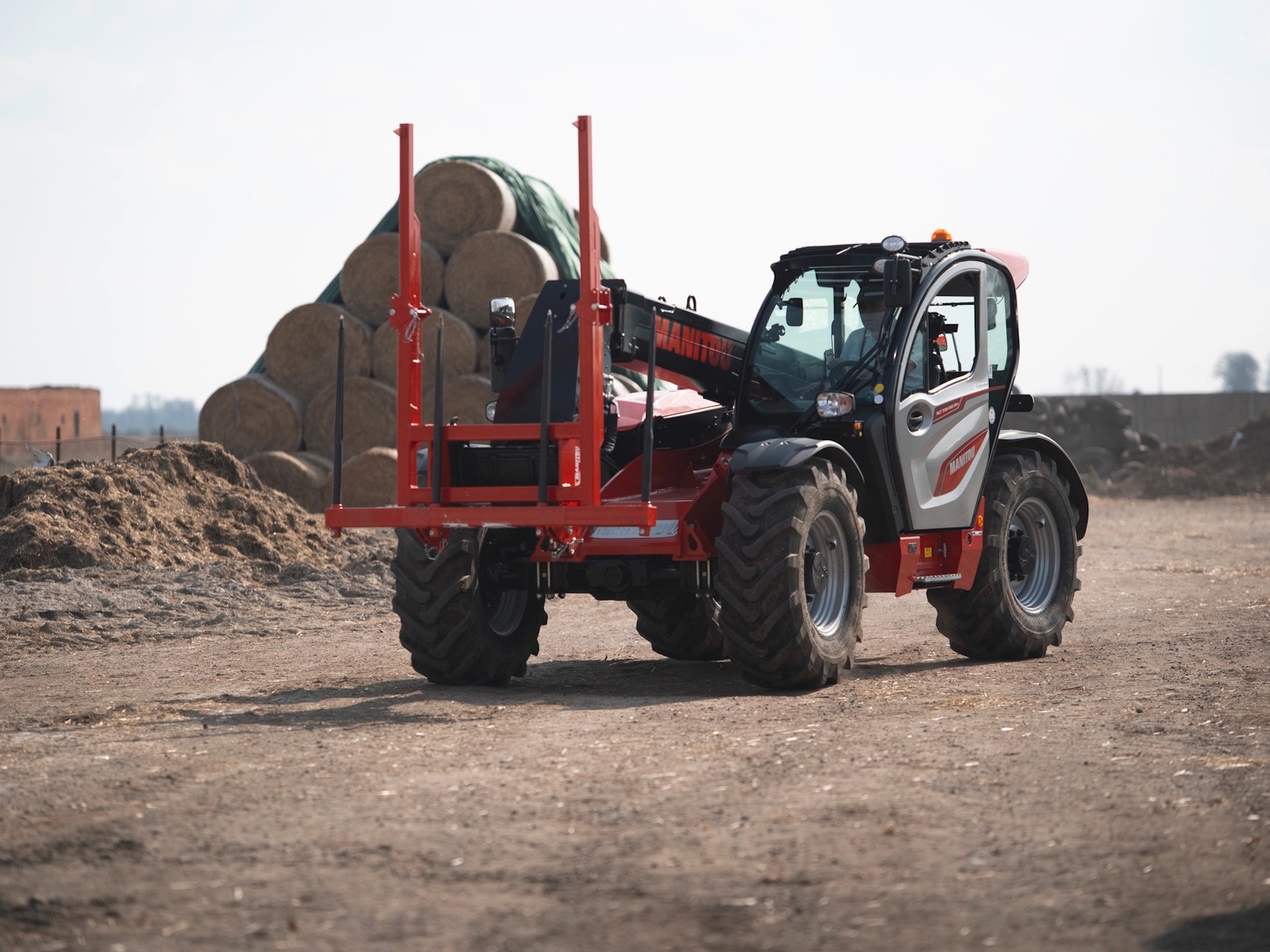

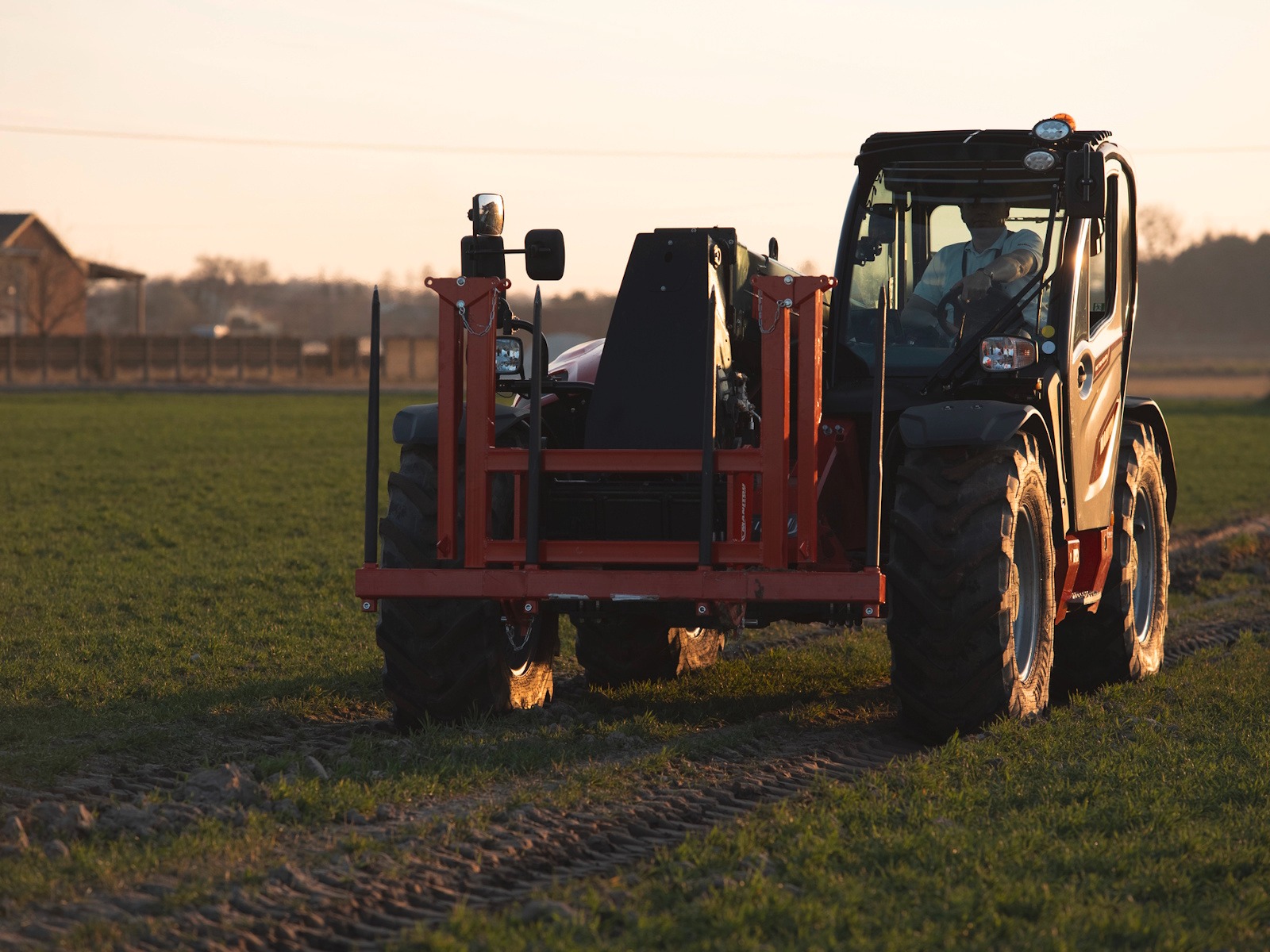

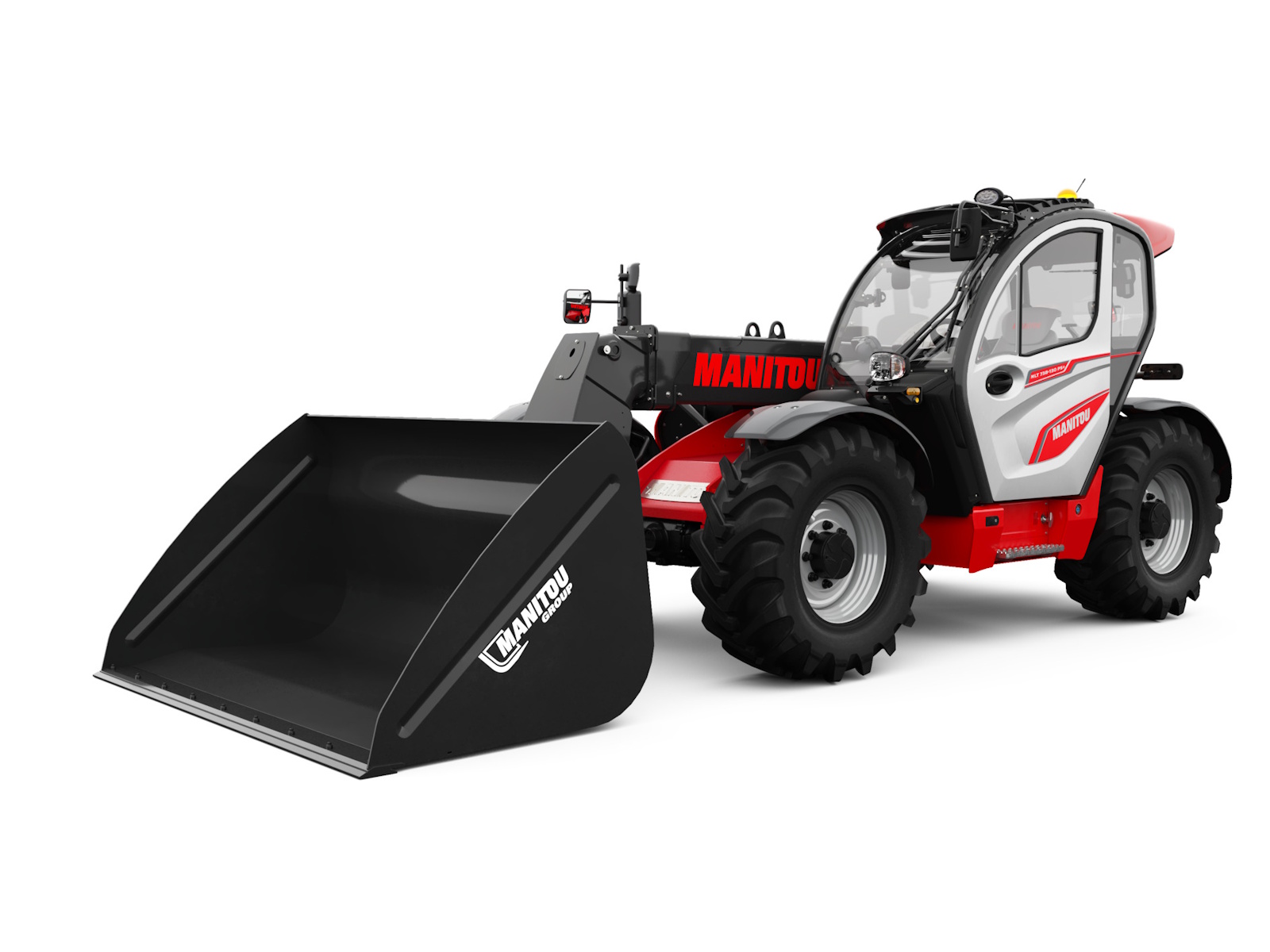

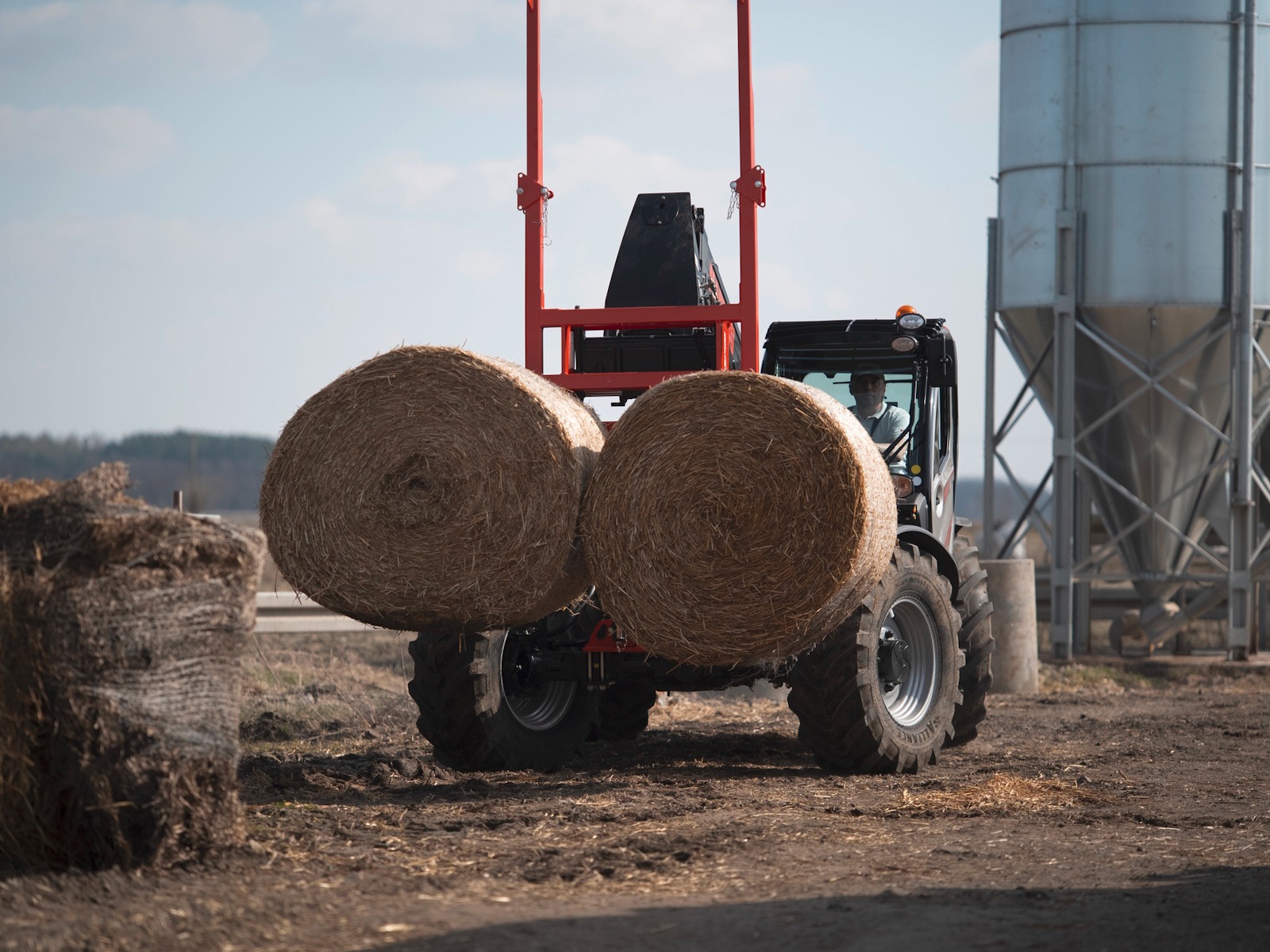

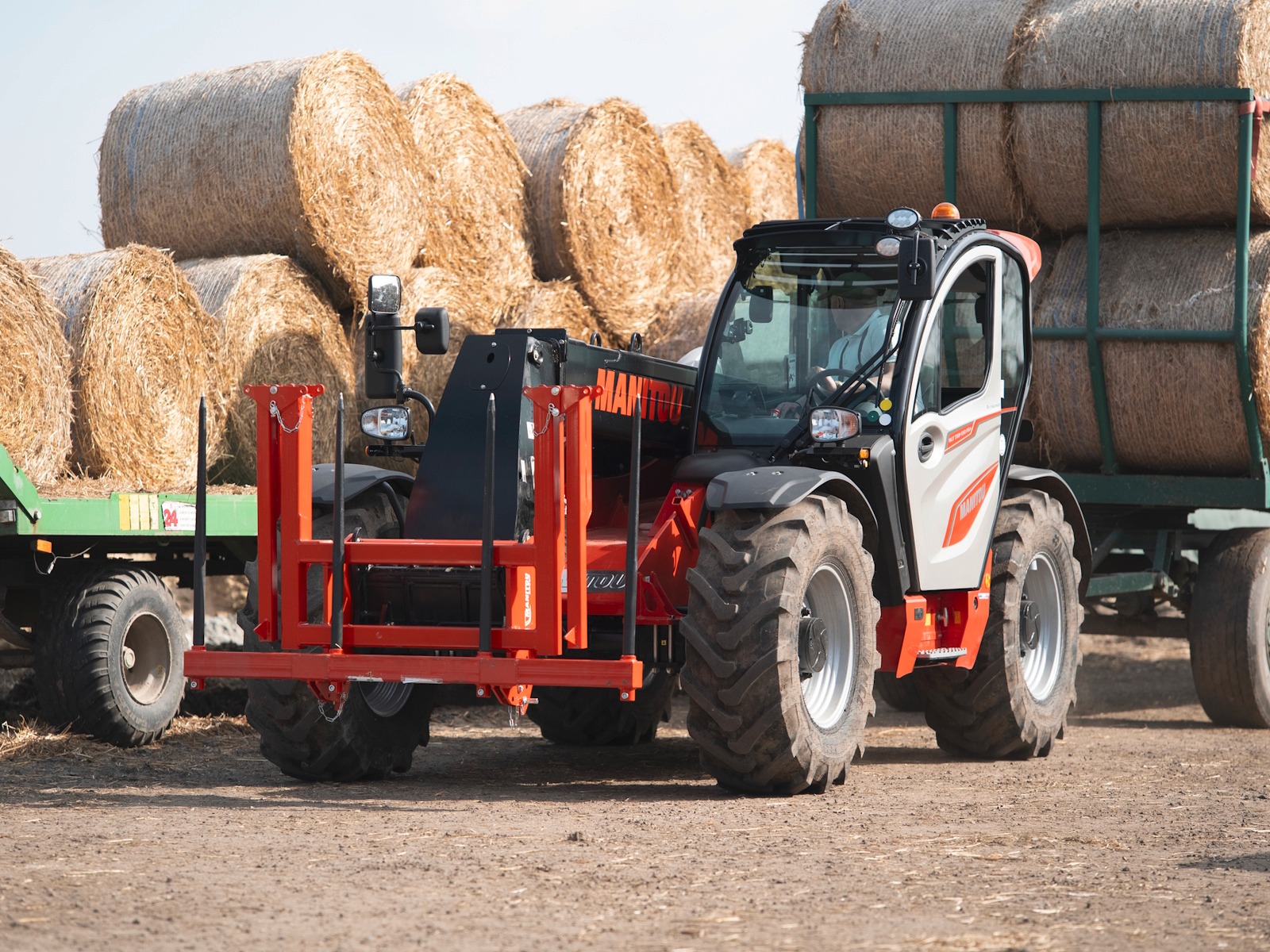

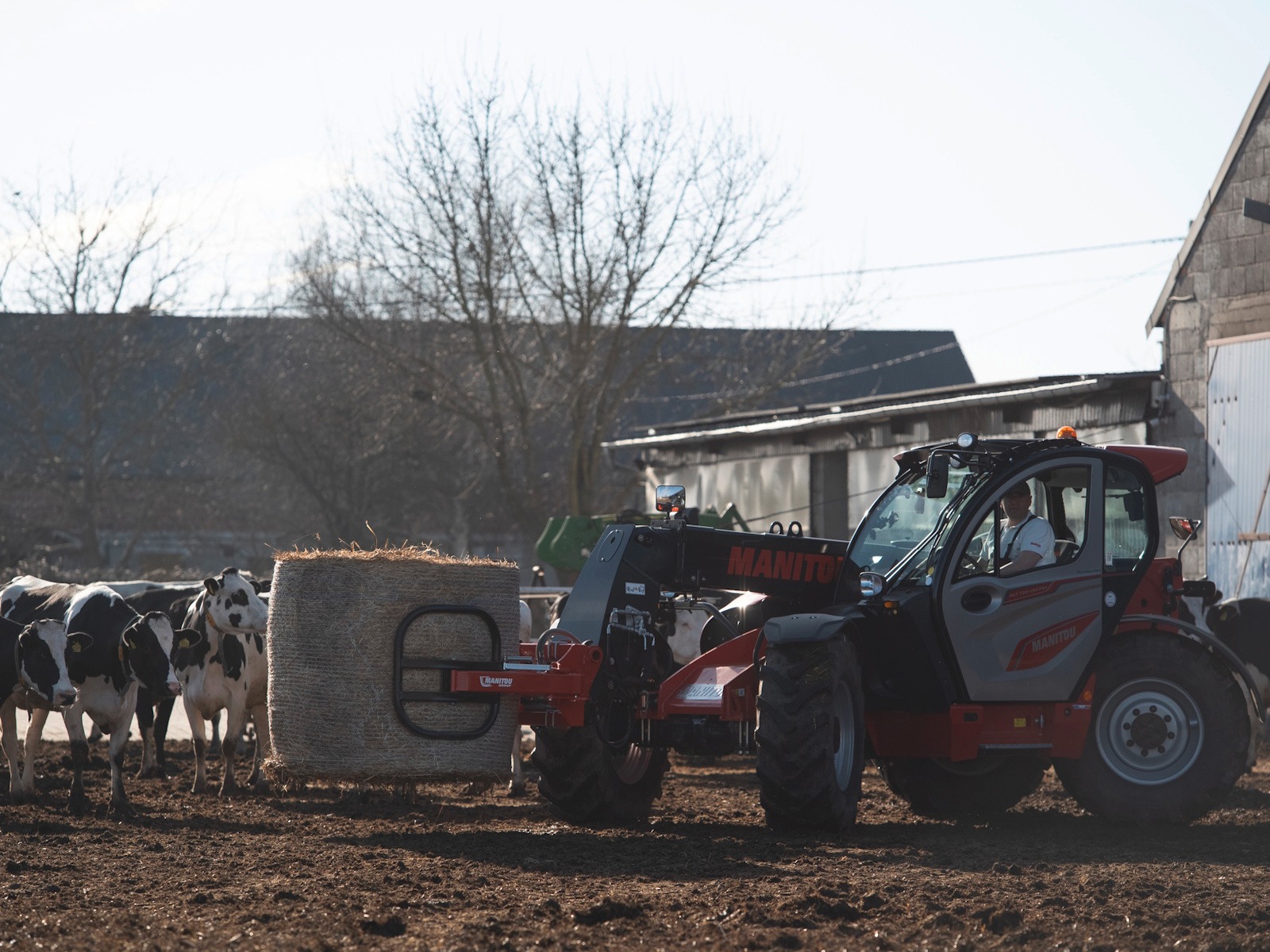

Dedicated to the agricultural market, the MLT 738-130 PS+ telescopic handler has a lift height of 6.91 m and a capacity of 3,800 kg. This model is very versatile and can handle many types of loads (paletts, bales, grain, forage...).

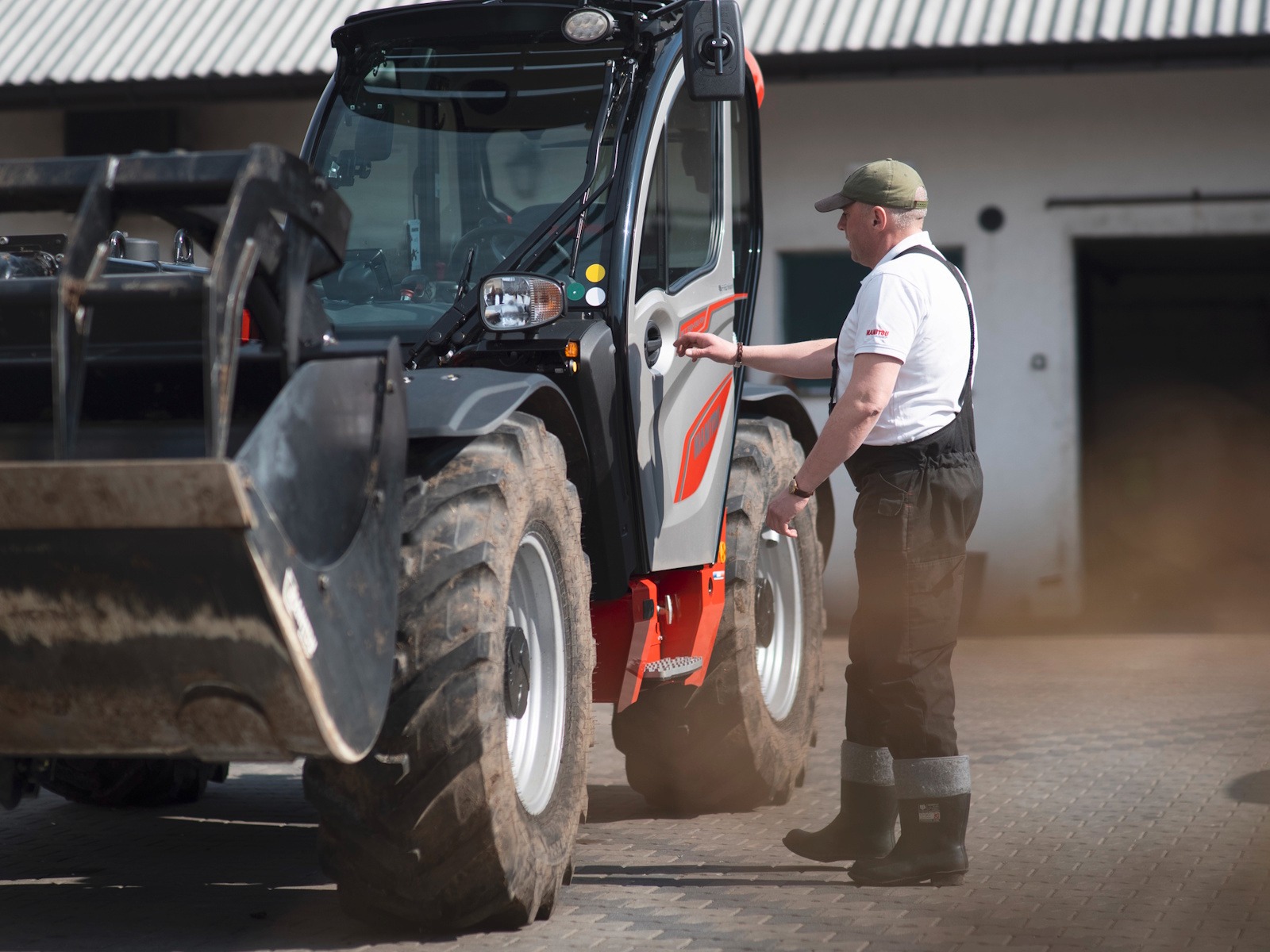

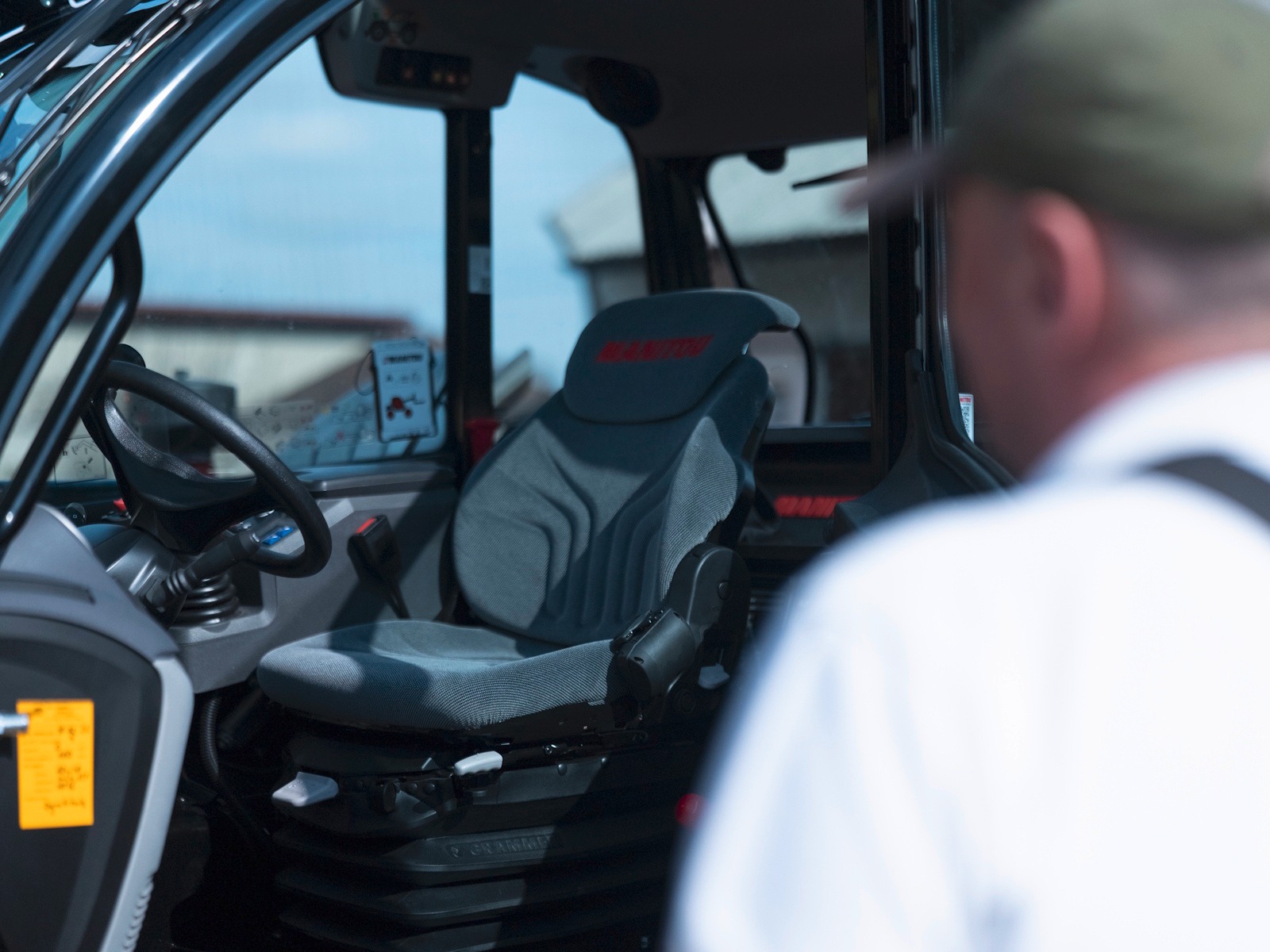

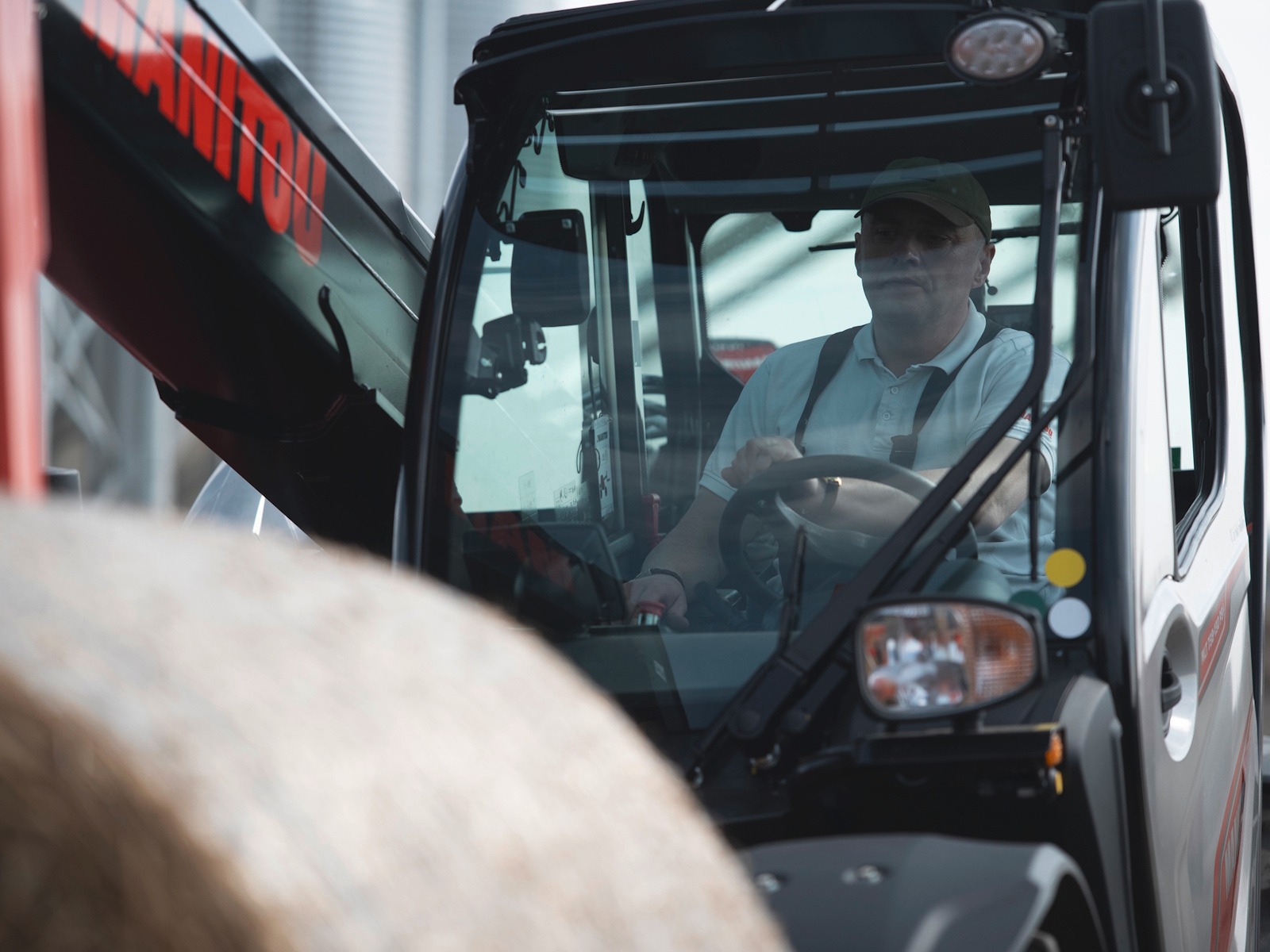

Comfort first and foremost: this model features a high-visibility grille, easy access to the driver's cab and a range of standard equipment (automatic parking brake, large screen, JSM joystick, etc.).

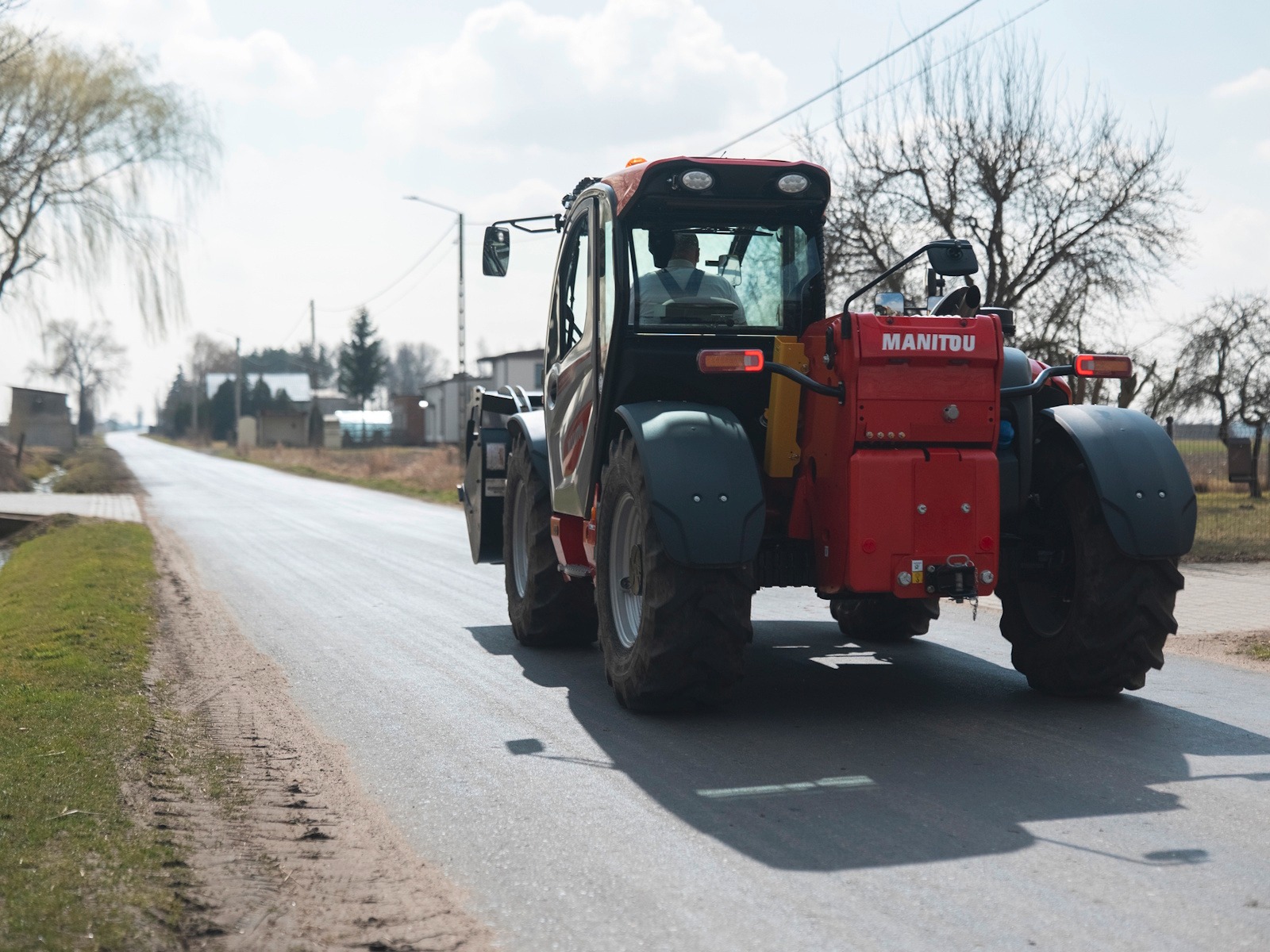

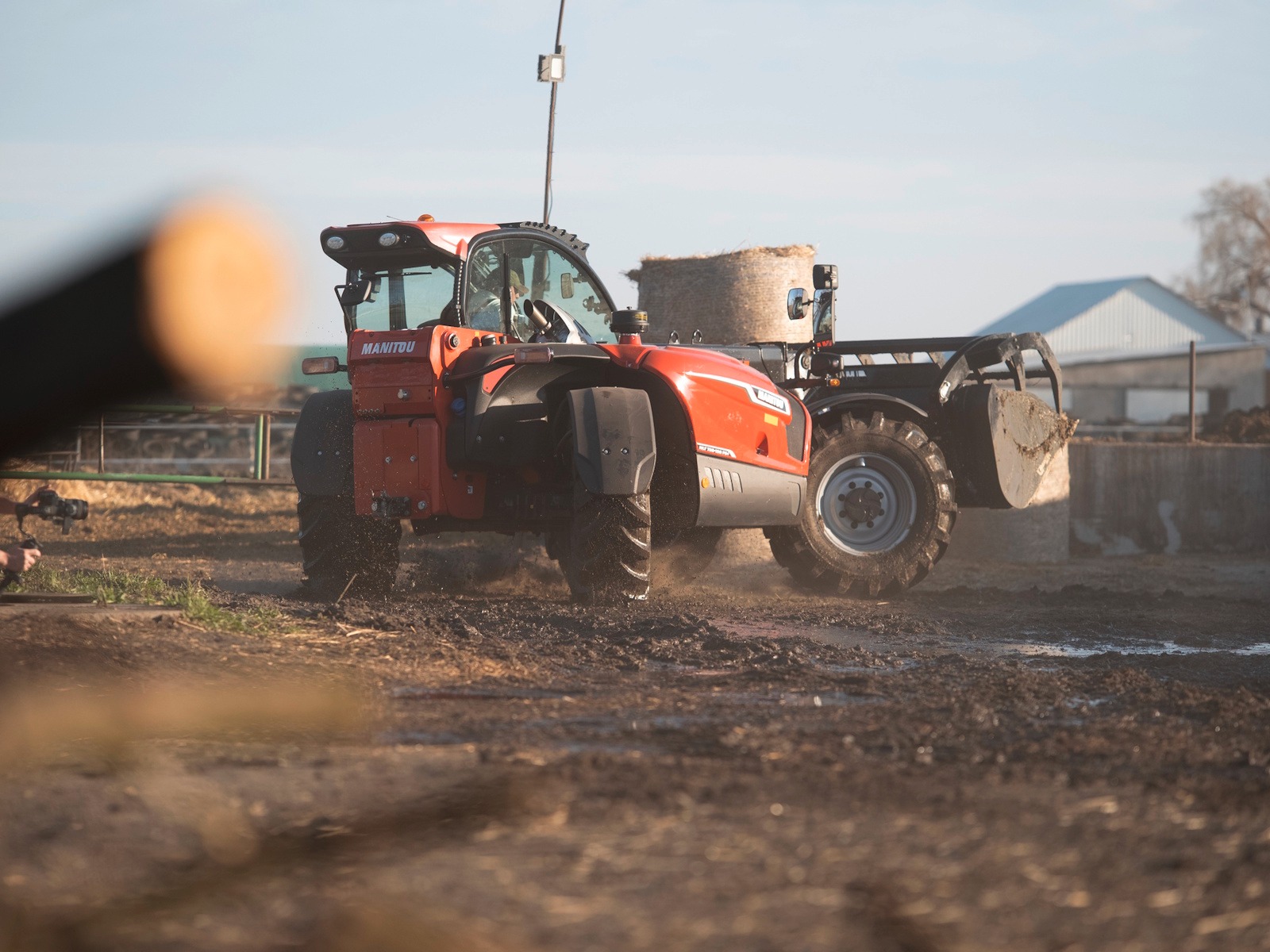

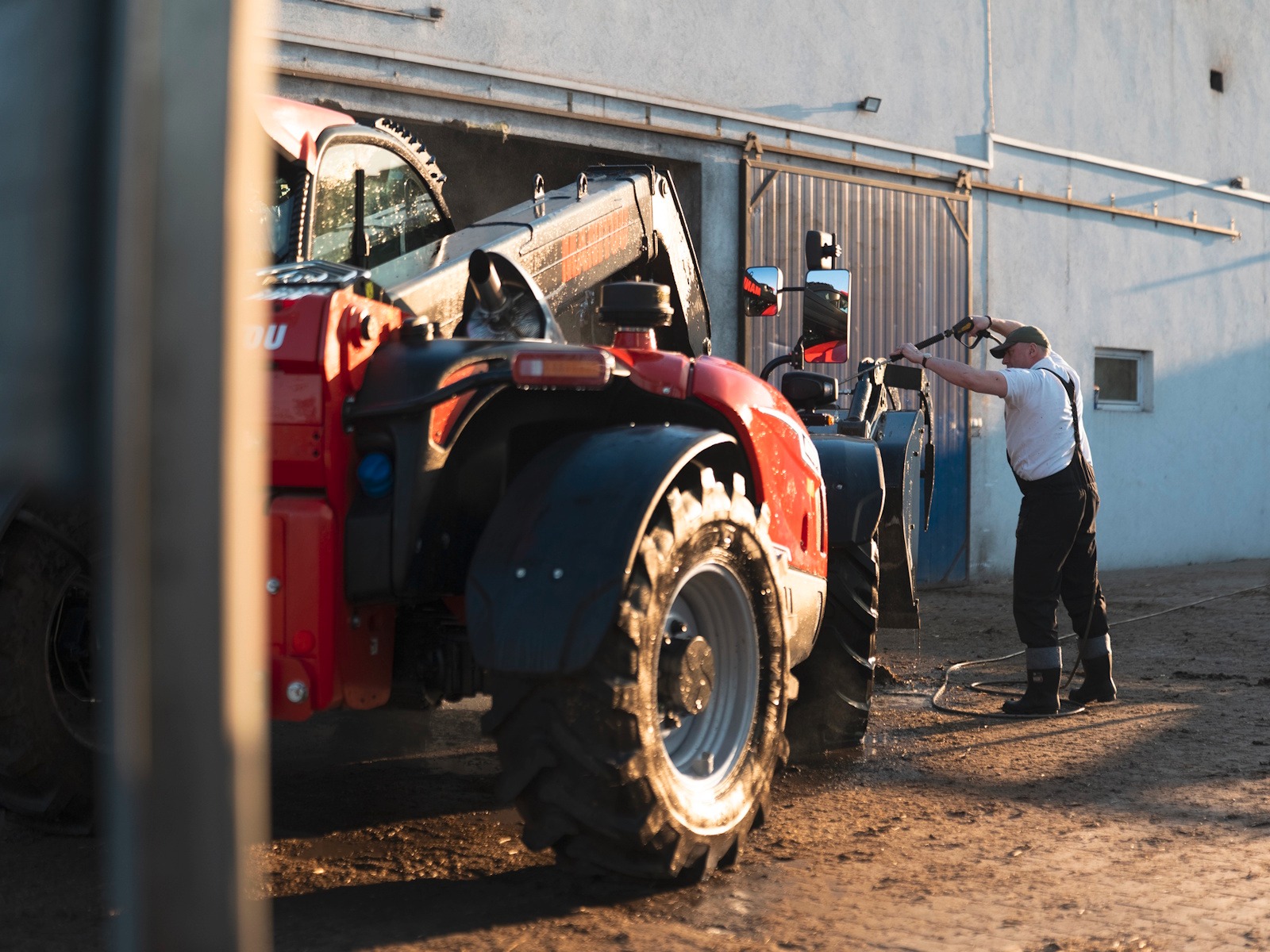

Performance first: with its 129 hp engine, Powershift Plus transmission and 150 l/min hydraulic flow, the MLT 738-130 PS+ saves you time in your daily work. Its all-terrain capabilities, radiator cleaning system and air pre-filter make it an ideal solution for agricultural environments.
Profitability first and foremost: easy access to the machine's main components, a connected machine, optimized fuel consumption (Stop & Start function)... every effort has been made to actively improve your farm's profitability.
Info
Industry
Agriculture
Make
Manitou Group
Model
MLT 738-130 PS+ (S1)
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Load Capacity
Max. capacity: 8378 lb
Height
7 ft 10 in | Max. lifting height: 22 ft 8 in | Reach at max. height: 3 ft 3 in
Notes
Max. outreach: 13 ft 1 in | Breakout force with bucket: 6095 daN | Front overhang: 4 ft 2 in | Tilt-down angle: 133 ° | Tilt-up angle: 14 ° | Lifting: 7.30 s | Lowering: 5.50 s | Extension: 6.30 s | Retraction: 5.70 s | Crowd: 3.60 s | Dump: 3.10 s | Drawbar pull (Laden): 8000 daN | Engine cooling system: 4 radiators (water + intercooler + hydraulic oil + transmission oil) | Gearbox: Powershift | Number of gears (forward / reverse): 6 / 3 | Max. travel speed: 25 mph | Differential lock: Limited slip differential on front axle | Hydraulic flow - Pressure: 40 US gpm - 3916 PSI | Noise at driving position (LpA) tested following NF EN 12053 norm: 72 dB | Vibration on hands/arms: < 8 ft/s² | Tractor homologation | Cab certification: Cabin ROPS - FOPS level 2 | Controls: JSM
Weight
Unladen weight (with forks): 16557 lb
Ground Clearance
1 ft 4 in
Wheelbase
9 ft 3 in
Length
Overall length to carriage (with hitch): 16 ft 6 in
Width
7 ft 10 in | Overall cab width: 3 ft 1 in
Turning Radius
External turning radius (over tyres): 12 ft 11 in
Tires
Alliance - A580 - 460/70 R24 159A8
Wheels
Drive wheels (front / rear): 2 / 2
Steering
Manicrab, 2 wheel steer, 4 wheel steer, Crab mode
Engine
Deutz | Stage V
Cylinders
Number of cylinders - Capacity of cylinders: 4 - 221 in³
Power/Horsepower
129 Hp / 95 kW
Torque
369 ft/lbs @1600 rpm
Transmission
Torque converter
Brakes
Parking brake: Automatic negative parking brake | Service brake: Oil-immersed multi-discs braking on front & rear axles
Fuel Capacity
32 US gal | Hydraulic tank capacity: 36 US gal | Diesel Exhaust fluid (AdBlue® type) tank capacity: 3 US gal
