2026 Manitou Group MLT 635-130 PS+ (S2)
Get in Touch
Description

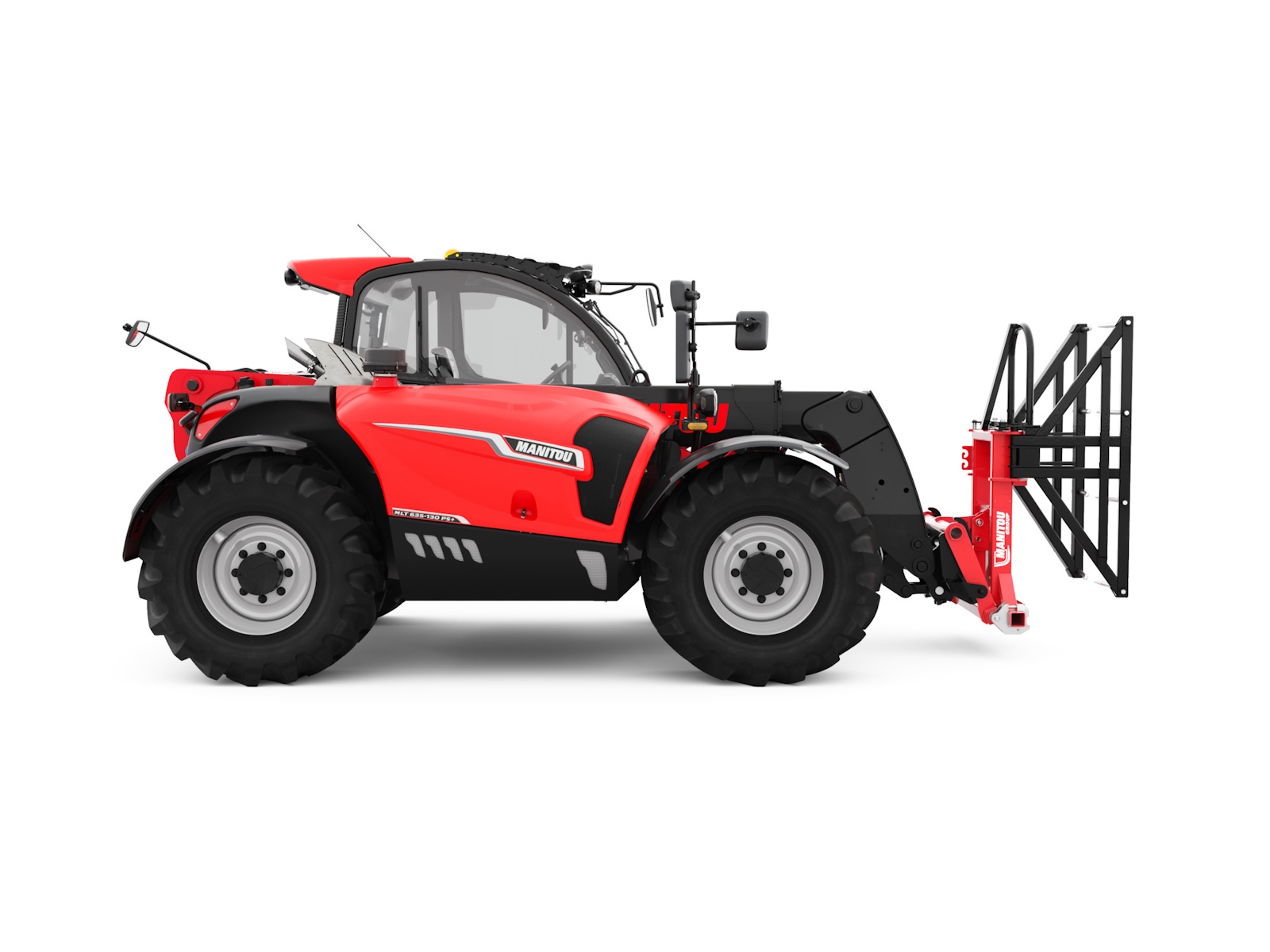

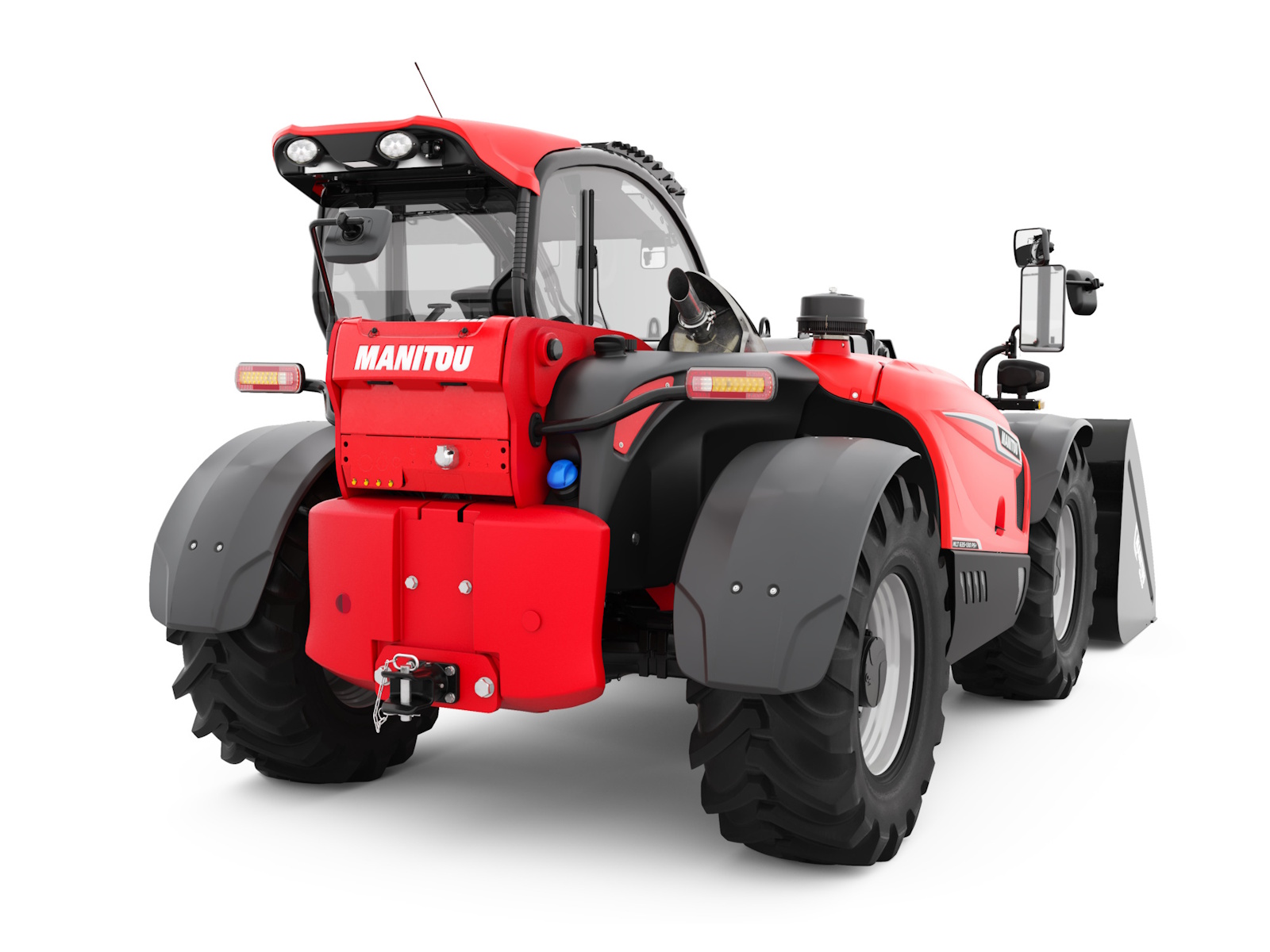

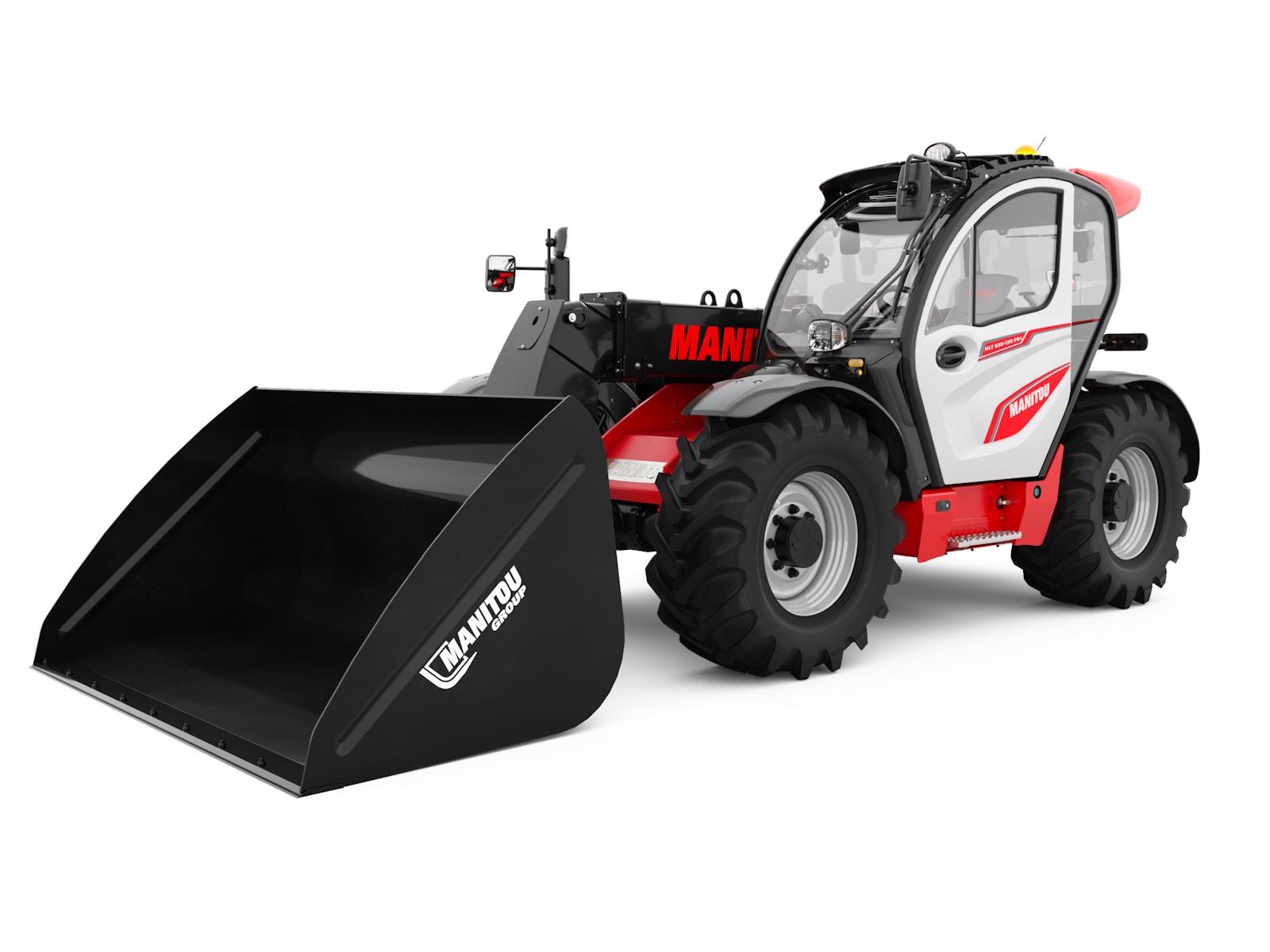

2026 Manitou Group MLT 635-130 PS+ (S2)
Dedicated to the agricultural market, the MLT 635-130 PS+ telescopic handler has a lifting height of 6.13 m and a capacity of 3,500 kg. This model offers the right balance between compactness and performance. It can handle all types of loads (paletts, bales, grain, forage, manure...).
Comfort first and foremost: this model features a high-visibility grille, easy access to the driver's cab and a range of standard equipment (automatic parking brake, large screen, JSM joystick, etc.).
Performance first: with a 129 hp engine, Powershift Plus transmission and 150 l/min hydraulic flow, the MLT 635-130 PS+ saves you time in your daily work. Its all-terrain capabilities, radiator cleaning system and air pre-filter make it an ideal solution for agricultural environments.
Profitability first and foremost : easy access to the machine's main components, a connected machine, optimized fuel consumption (Stop & Start function)... every effort has been made to actively improve your farm's profitability.
Info
Industry
Agriculture
Make
Manitou Group
Model
MLT 635-130 PS+ (S2)
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Load Capacity
7716 lb
Height
7 ft 10 in | Max. lifting height: 20 ft 1 in | Reach at max. height: 2 ft
Notes
Max. outreach: 10 ft 8 in | Breakout force with bucket: 5900 daN | Front overhang: 3 ft 10 in | Tilt-down angle: 133 ° | Tilt-up angle: 14 ° | Lifting: 6.40 s | Lowering: 5.30 s | Extension: 5 s | Retraction: 4.30 s | Crowd: 3.70 s | Dump: 3 s | Drawbar pull (Laden): 7870 daN | Reversible fan: Standard | Engine cooling system: 4 radiators (water + intercooler + hydraulic oil + transmission oil) | Gearbox: Powershift | Number of gears (forward / reverse): 6 / 3 | Max. travel speed (may vary according to applicable regulations): 25 mph | Differential lock: Limited slip differential on front axle | Hydraulic pump type: Variable displacement pump | Hydraulic flow - Pressure: 40 US gpm - 3916 PSI | Noise at driving position (LpA) tested following NF EN 12053 norm: 72 dB | Vibration on hands/arms: < 8 ft/s² | Tractor homologation | Cab certification: Cabin ROPS - FOPS level 2 | Controls: JSM
Weight
Unladen weight (with forks) 16513 lb
Ground Clearance
1 ft 4 in
Wheelbase
8 ft 6 in
Length
Overall length to carriage (with hitch): 15 ft 5 in
Width
7 ft 10 in | Overall cab width 3 ft 1 in
Turning Radius
External turning radius (over tyres): 12 ft 4 in
Tires
Alliance - A580 - 460/70 R24 159A8
Wheels
Drive wheels (front / rear): 2 / 2
Steering
Manicrab, 2 wheel steer, 4 wheel steer, Crab mode
Engine
Deutz | Stage V
Cylinders
Number of cylinders - Capacity of cylinders: 4 - 221 in³
Power/Horsepower
129 Hp / 95 kW
Torque
369 ft/lbs @1600 rpm
Transmission
Torque converter
Brakes
Parking brake: Automatic negative parking brake | Service brake: Oil-immersed multi-discs braking on front & rear axles
Fuel Capacity
32 US gal | Hydraulic tank capacity: 36 US gal | Diesel Exhaust fluid (AdBlue® type) tank capacity: 3 US gal
