2026 Manitou Group MLT 630-115 V CP (S2)
Get in Touch
Description

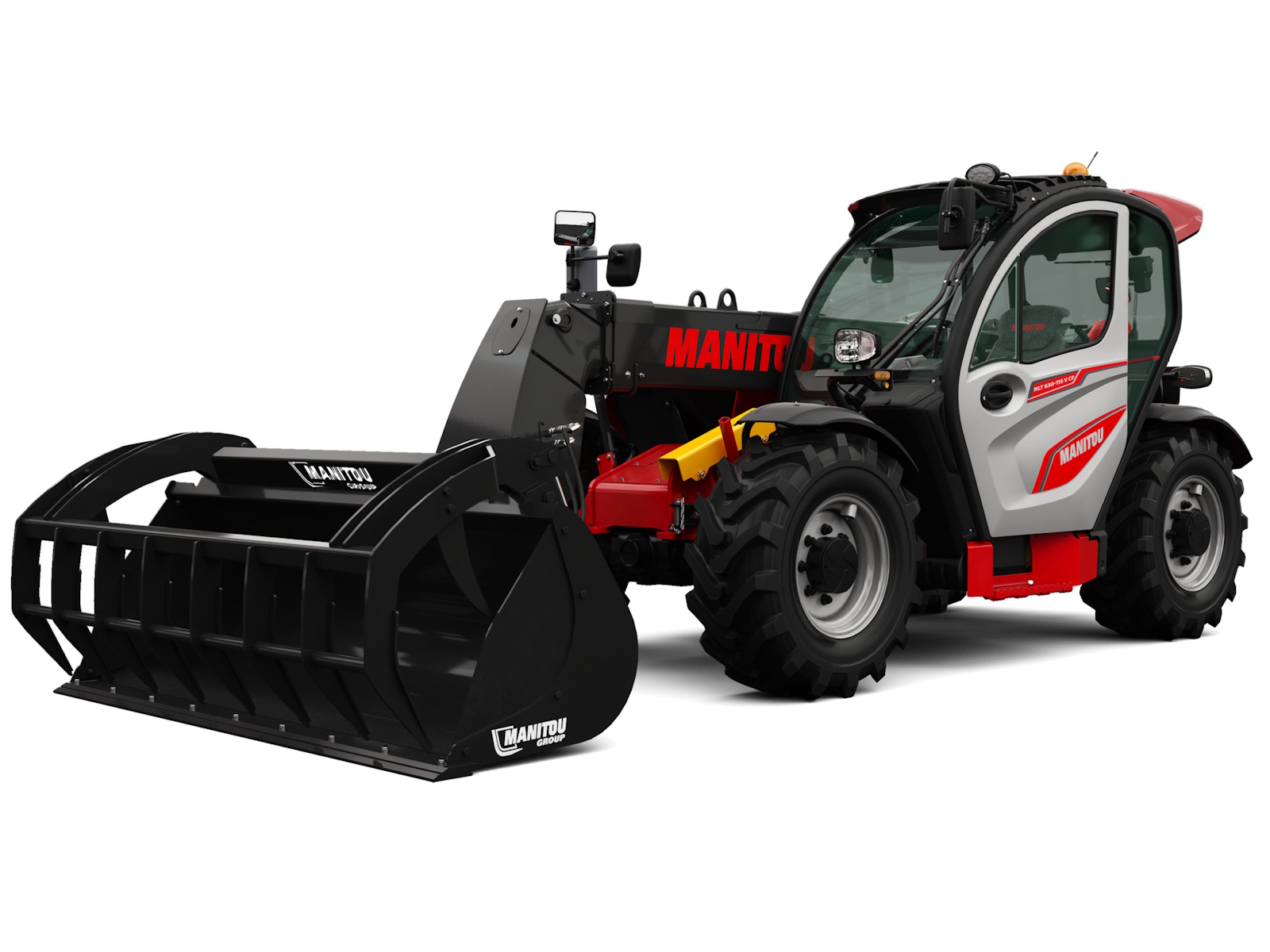

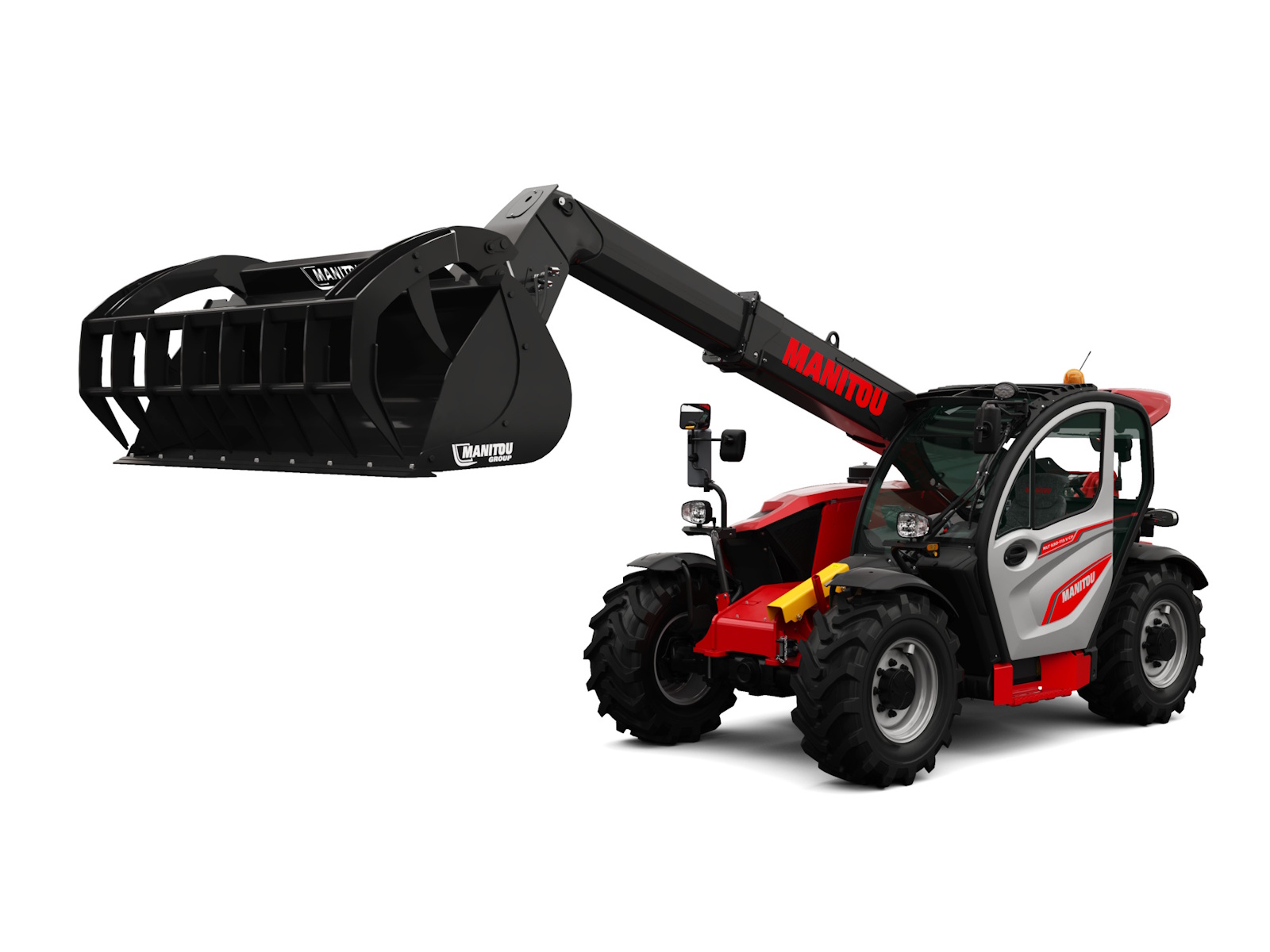

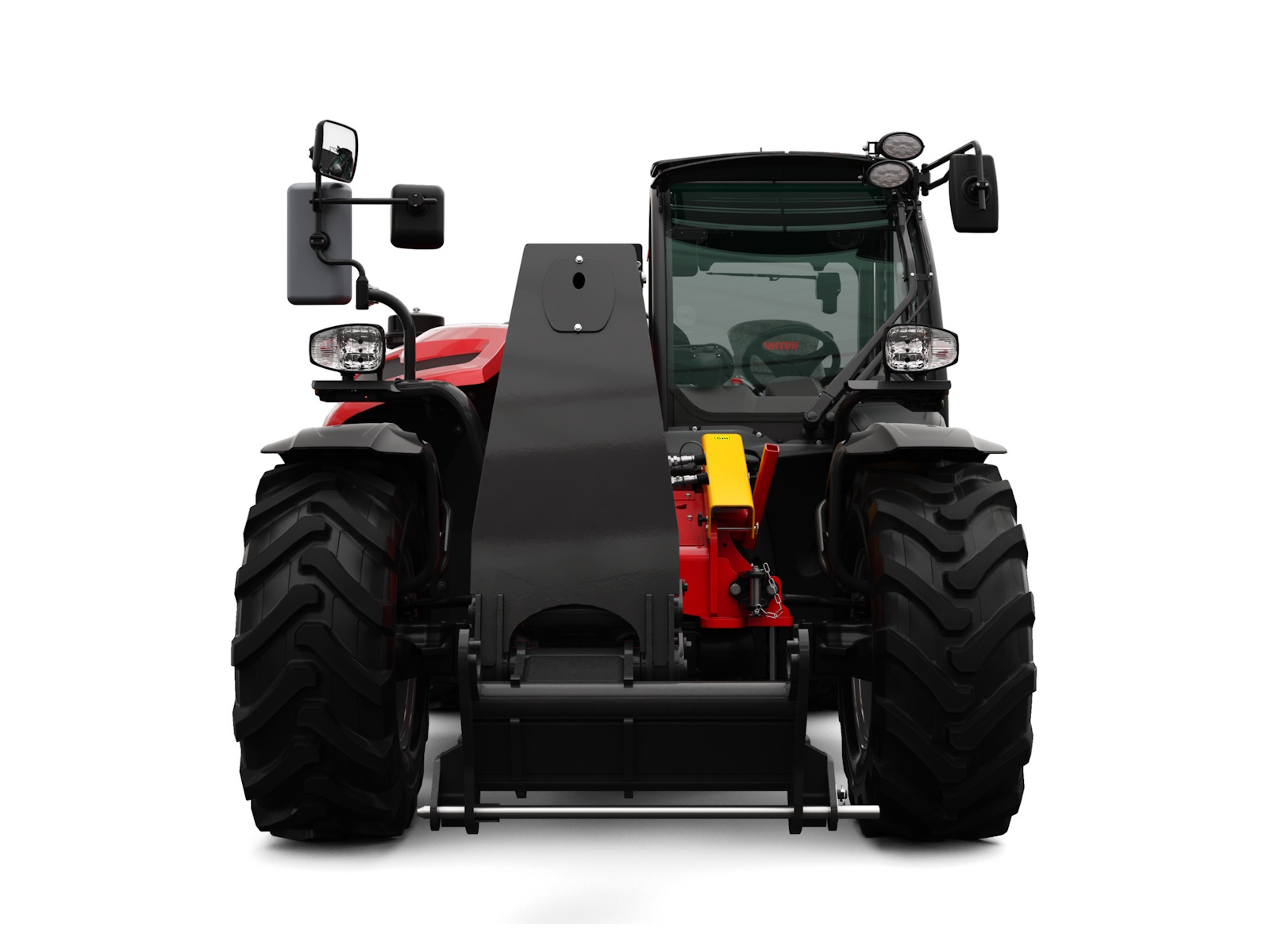

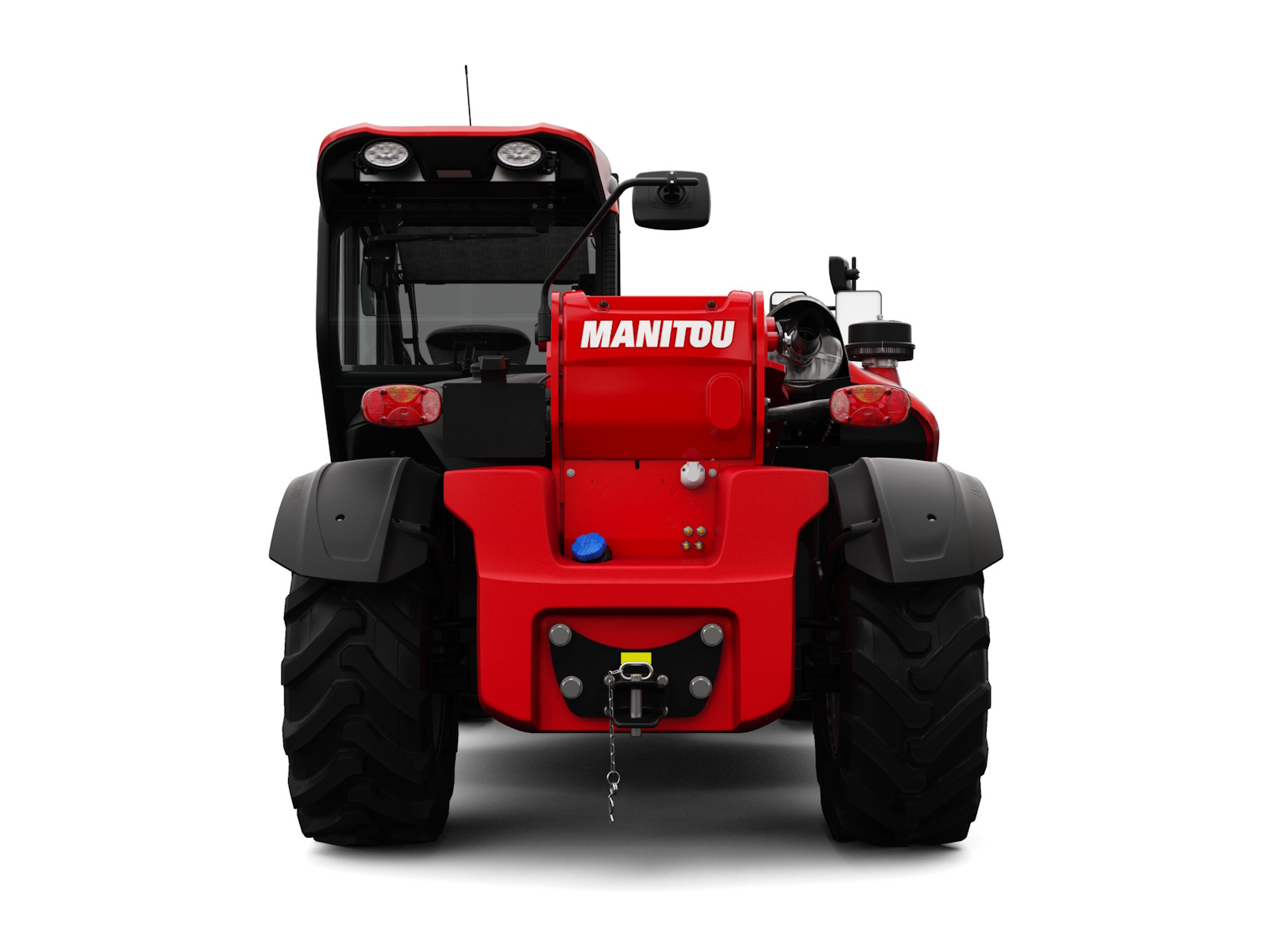

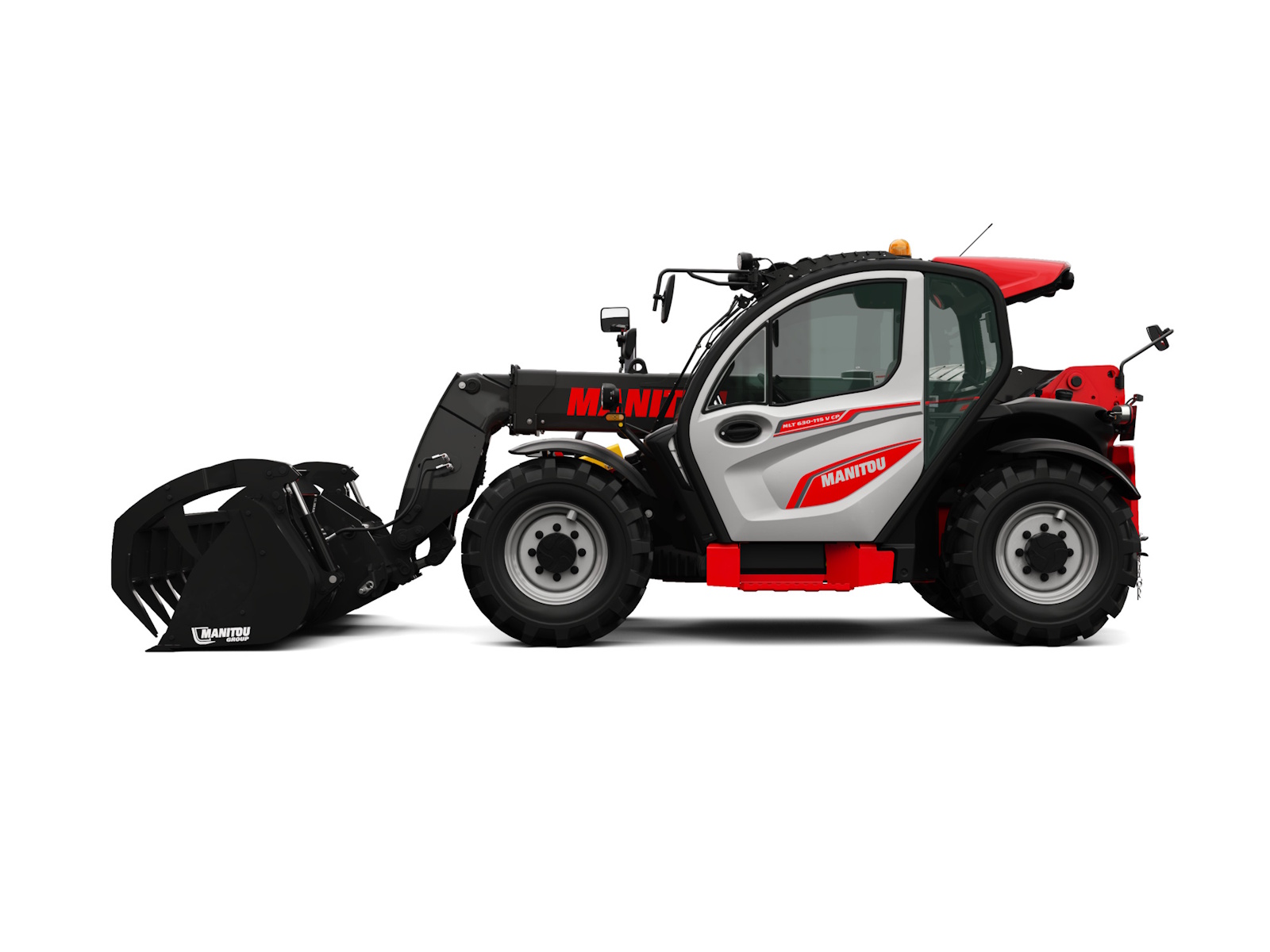

2026 Manitou Group MLT 630-115 V CP (S2)
Dedicated to the agricultural market, the MLT 630-115 V CP telescopic handler combines compactness and performance. It has a lift height of 6.11 m and a capacity of 3,000 kg. These features make this model perfectly adapted to work in restricted areas, either inside or outside farm buildings.
Comfort first and foremost: this model features a high-visibility grille, easy access to the driver's cab and a range of standard equipment (wide screen, JSM joystick on floating armrest, etc.).
Performance first and foremost: with a 116 hp engine, M-Varioshift transmission and 106 l/min hydraulic flow, the MLT 630-115 V CP saves you time on a daily basis. Its all-terrain capabilities, radiator cleaning system and air pre-filter make it an ideal solution for agricultural environments.
Profitability first and foremost: easy access to the machine's main components, connected machine as standard, optimized fuel consumption (Stop & Start function)... every effort has been made to actively improve your farm's profitability.
Info
Industry
Agriculture
Make
Manitou Group
Model
MLT 630-115 V CP (S2)
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Load Capacity
6614 lb
Height
Max. lifting height: 20 ft 1 in | Reach at max. height: 2 ft 11 in | 7 ft
Notes
Max. outreach: 11 ft 6 in | Breakout force with bucket: 5671 daN | Front overhang: 4 ft 4 in | Tilt-down angle: 133 ° | Tilt-up angle: 14 ° | Lifting: 6.10 s | Lowering: 5.10 s | Extension: 6.30 s | Retraction: 5.70 s | Crowd: 4.10 s | Dump: 3.30 s | Drawbar pull (Laden): 6280 daN | Reversible fan: Standard | Engine cooling system: 4 radiators (water + intercooler + oil + fuel) | Number of gears (forward / reverse): 2 / 2 | Max. travel speed (may vary according to applicable regulations): 24 mph | Differential lock: Limited slip differential on front axle | Hydraulic pump type: Gear pump | Hydraulic flow - Pressure: 28 US gpm - 3626 PSI | Noise at driving position (LpA) tested following NF EN 12053 norm: 73 dB | Vibration on hands/arms: < 8 ft/s² | Tractor homologation | Cab certification: Cabin ROPS - FOPS level 2 | Controls: JSM
Weight
Unladen weight (with forks): 14595 lb
Ground Clearance
11 in
Wheelbase
8 ft 10 in
Length
Overall length to carriage (with hitch): 15 ft 11 in
Width
6 ft 9 in | Overall cab width: 3 ft 1 in
Turning Radius
External turning radius (over tyres): 12 ft
Tires
Standard tires: Alliance - A580 - 400/70 R20 149A8
Wheels
Drive wheels (front / rear): 2 / 2
Steering
Manicrab, 2 wheel steer, 4 wheel steer, Crab mode
Engine
Deutz | Stage V
Cylinders
Number of cylinders - Capacity of cylinders: 4 - 221 in³
Power/Horsepower
116 Hp / 85 kW
Torque
339 ft/lbs @1600 rpm
Transmission
M-Varioshift
Brakes
Parking brake: Manual | Service brake: Oil-Immersed multi-discs braking on front axles
Fuel Capacity
21 US gal | Hydraulic tank capacity: 25 US gal | Diesel Exhaust fluid (AdBlue® type) tank capacity: 3 US gal
