2026 Manitou Group MLA-T 533-145 V+ - ST5
Get in Touch
Description

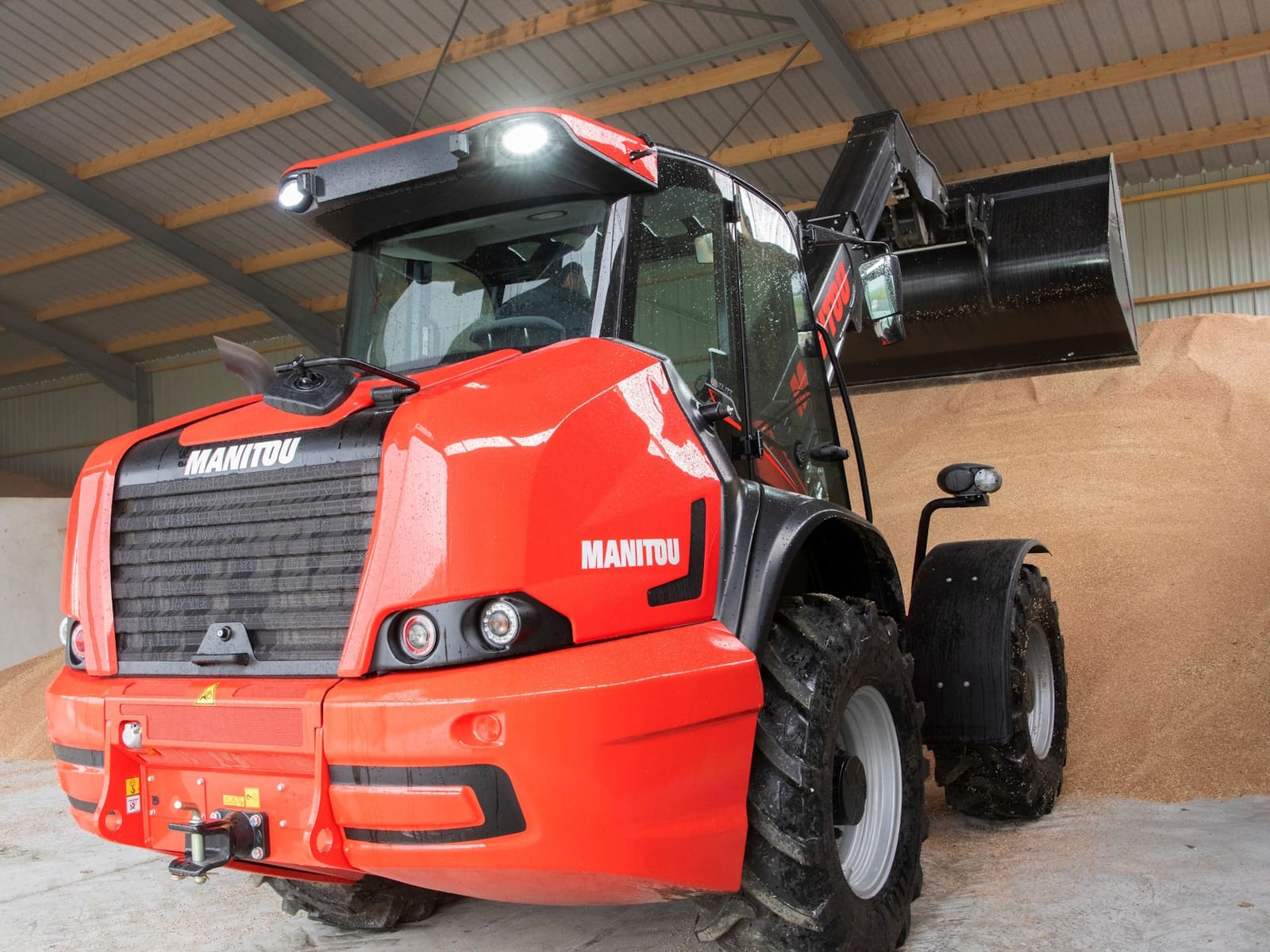

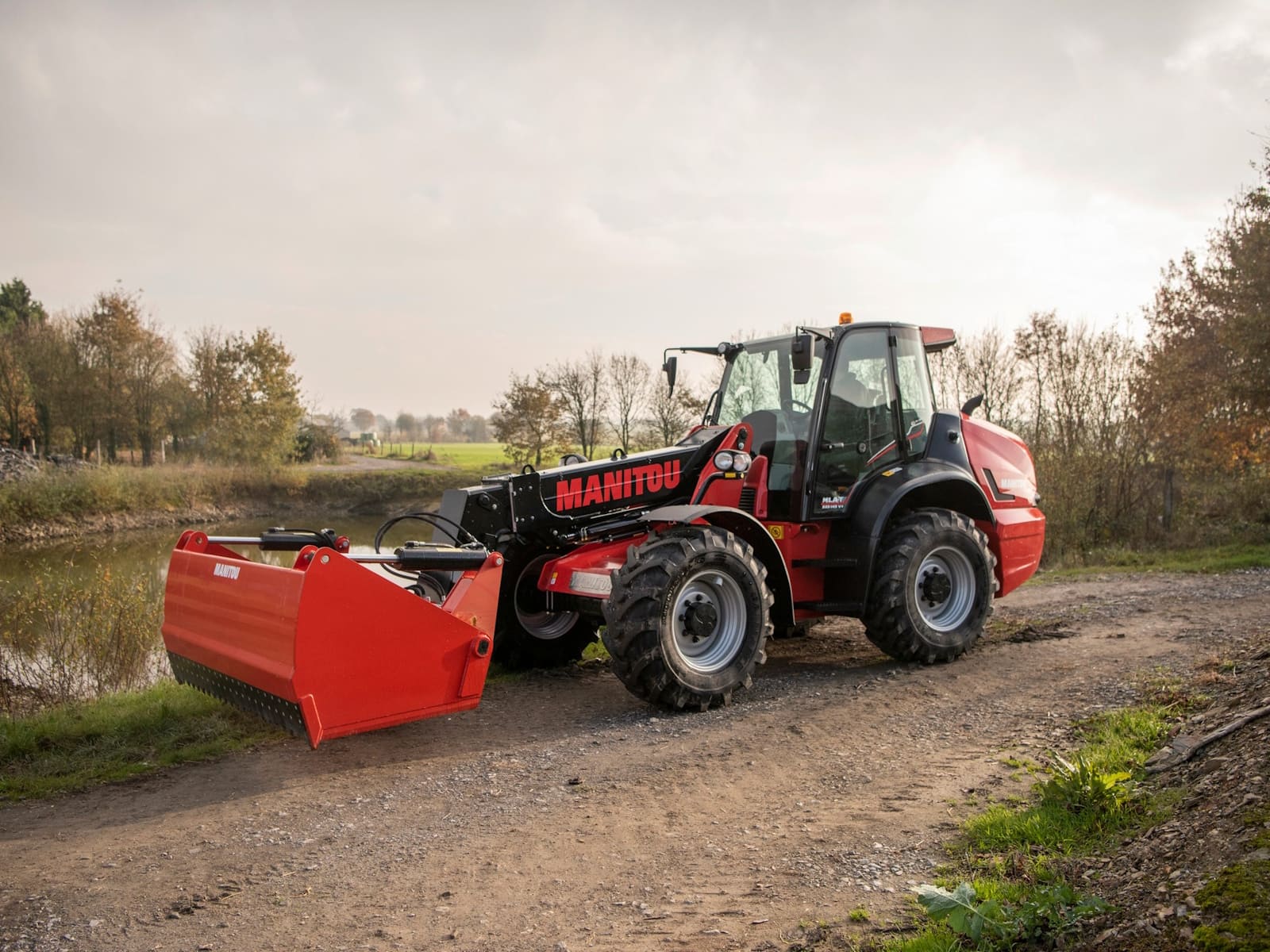

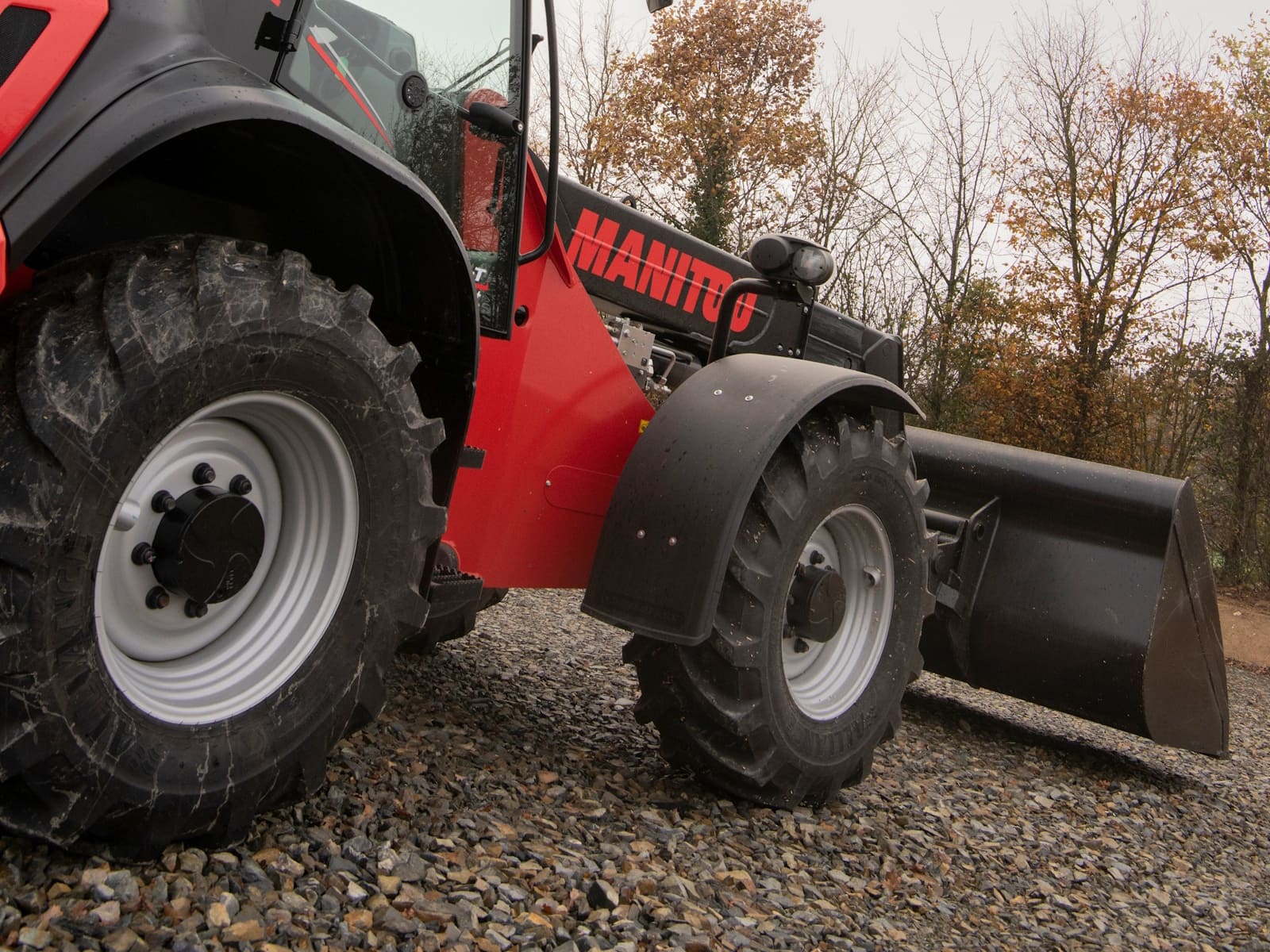

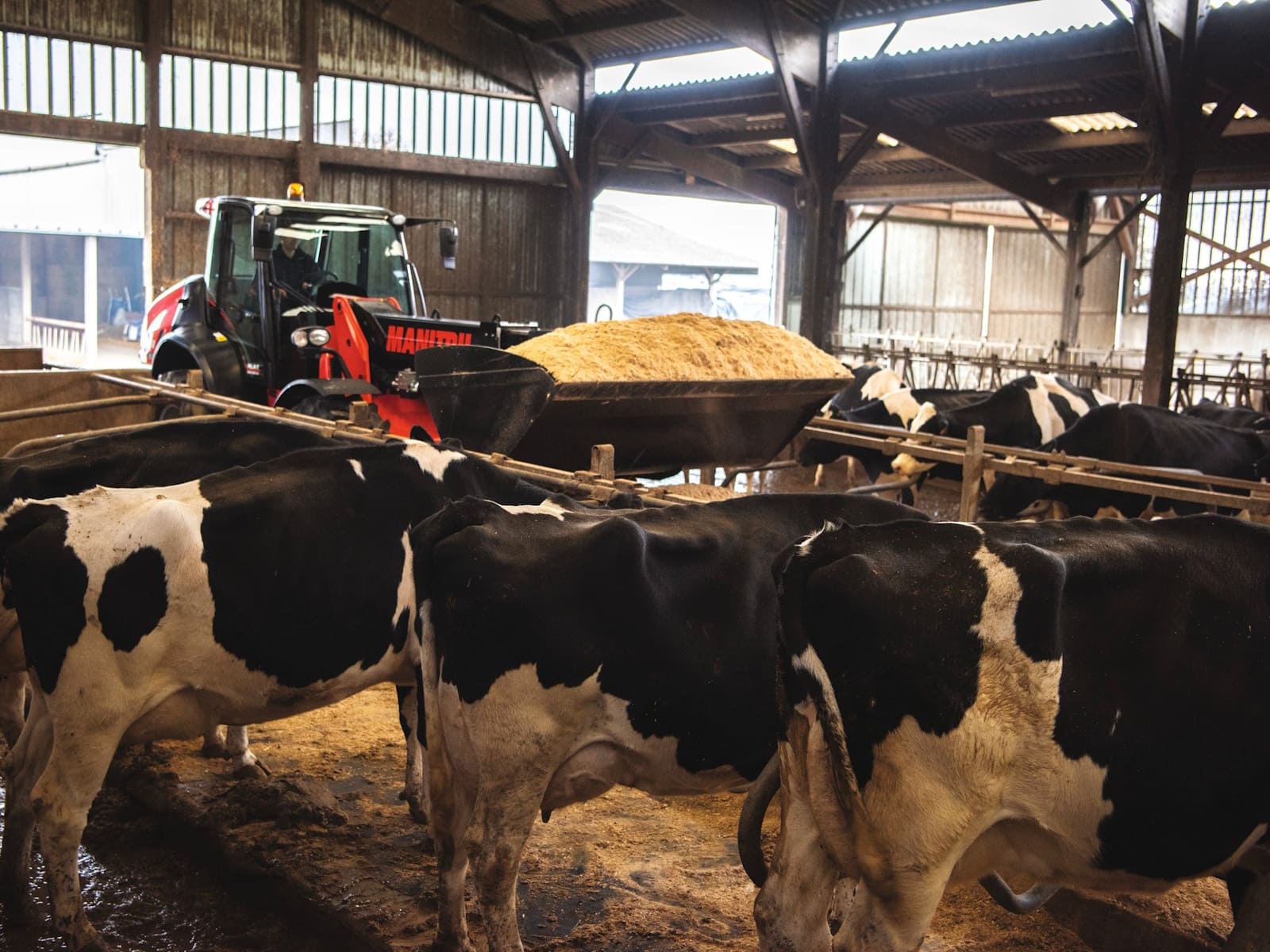

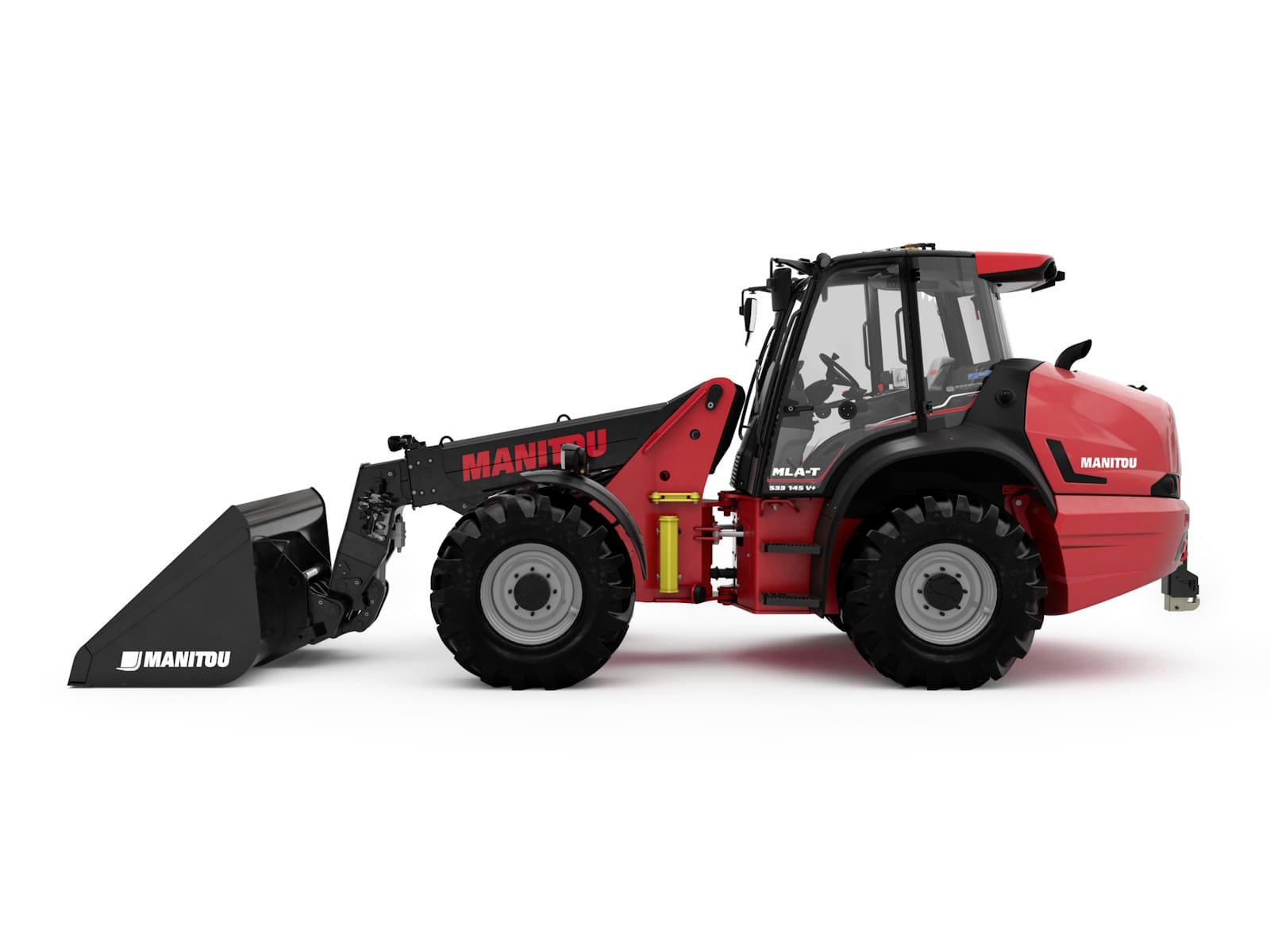

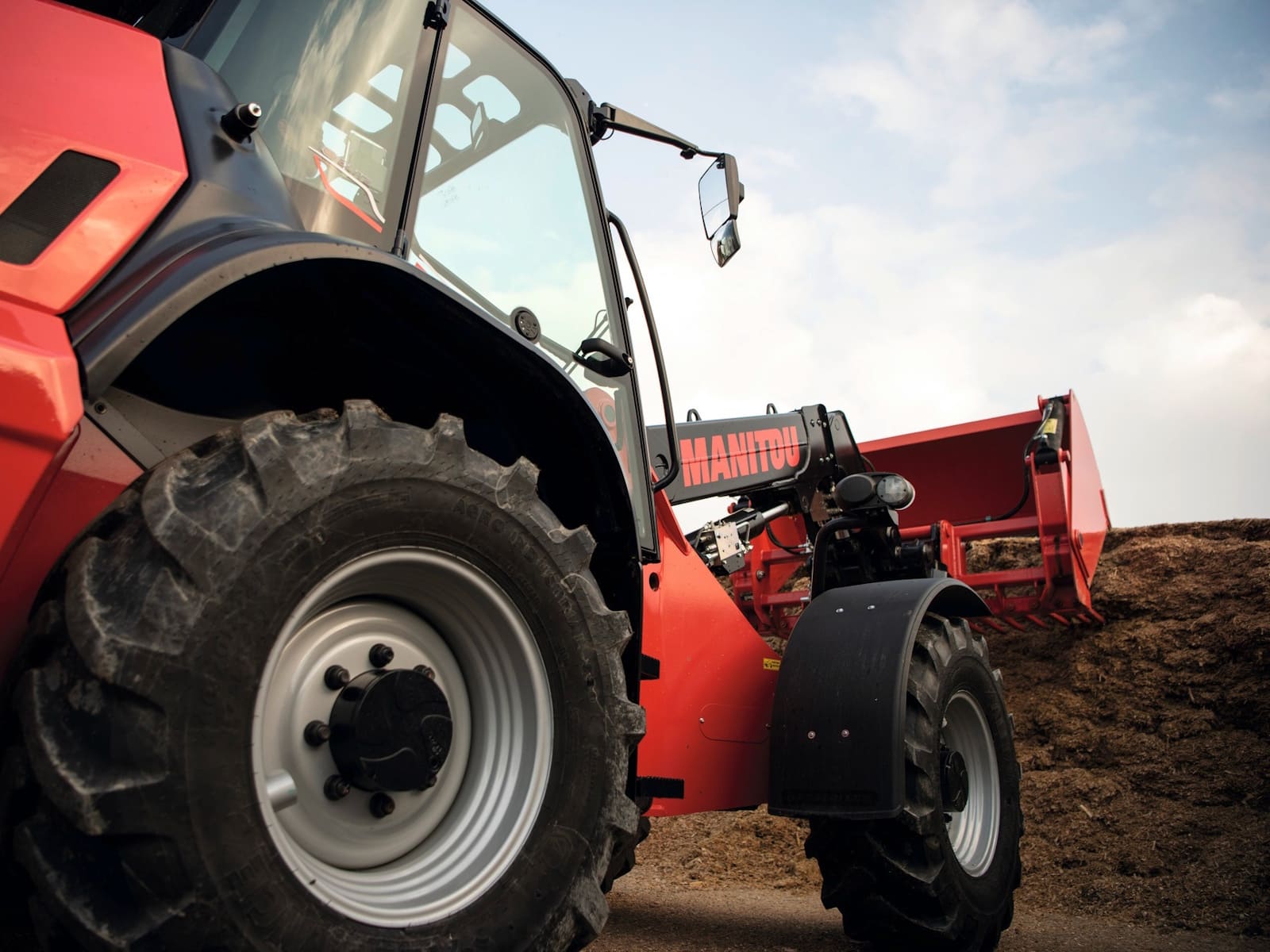

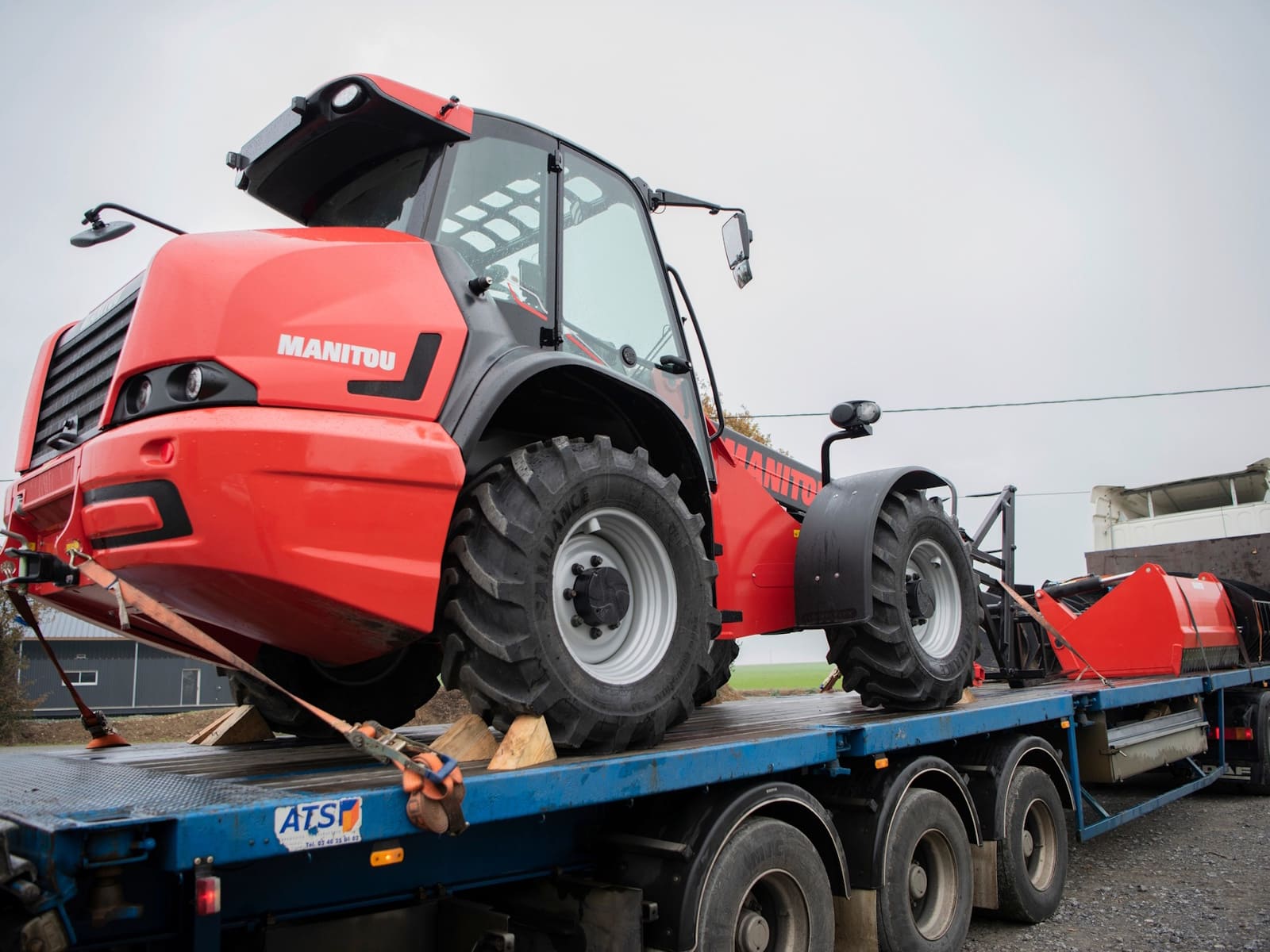

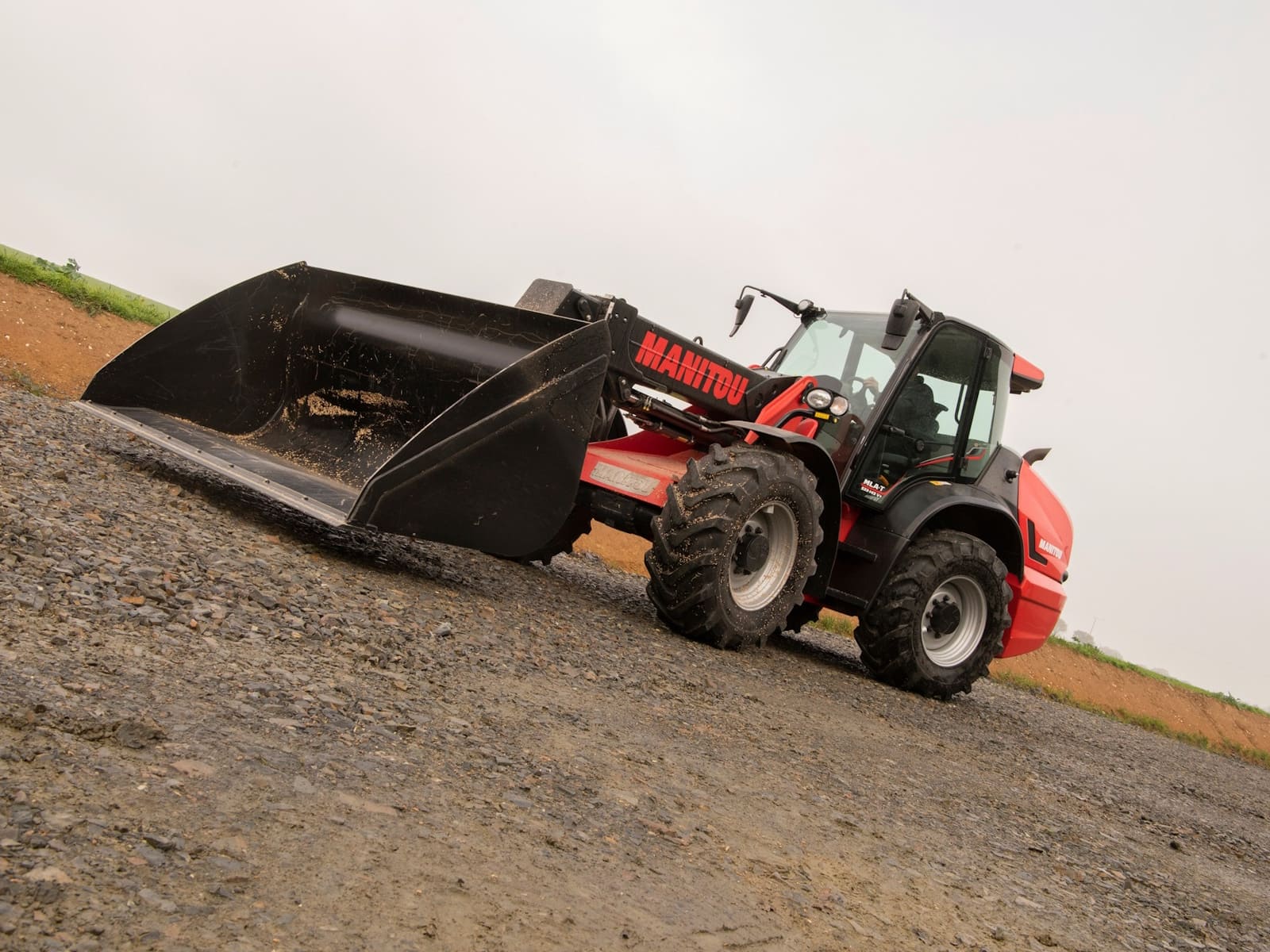

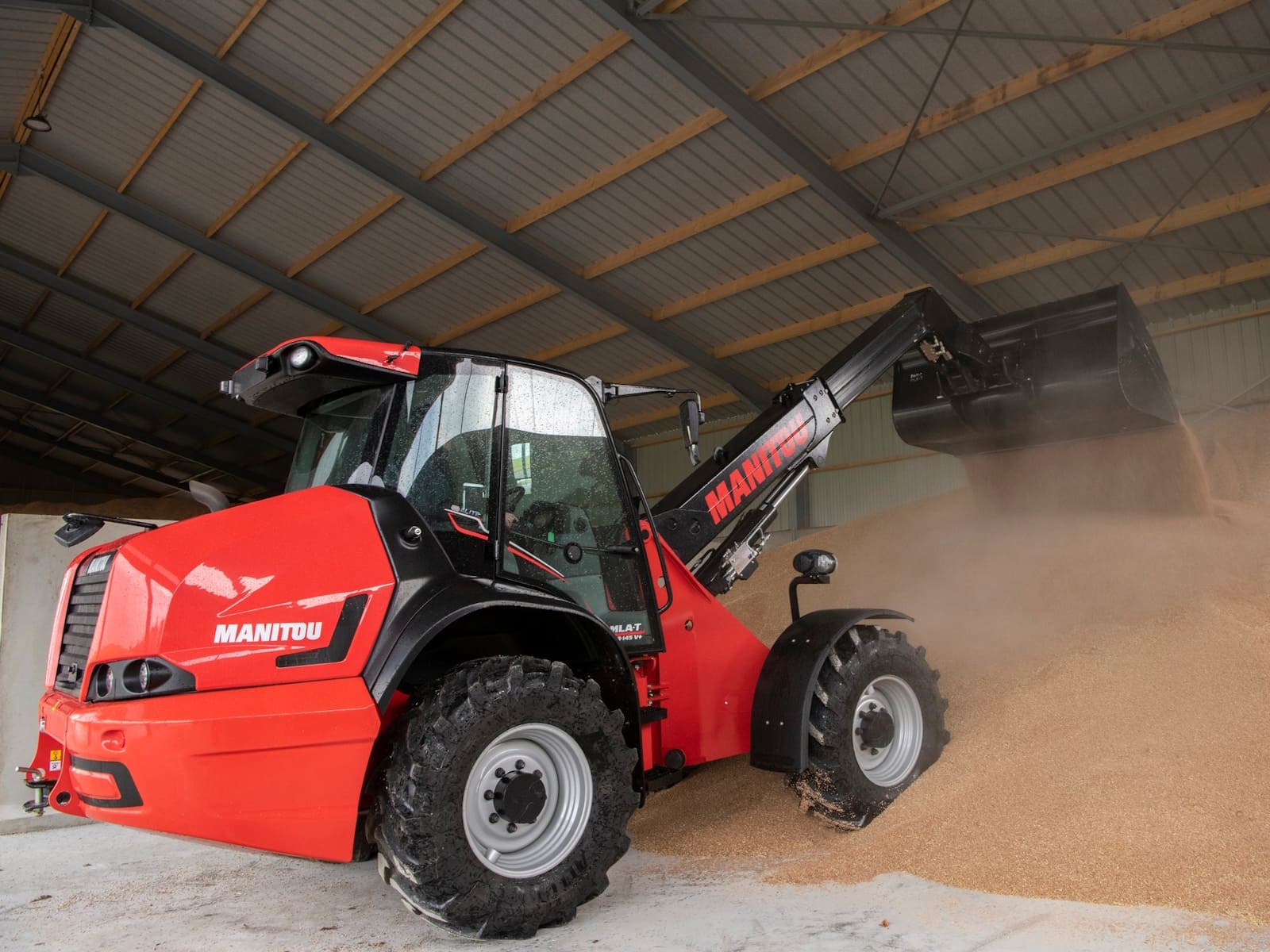

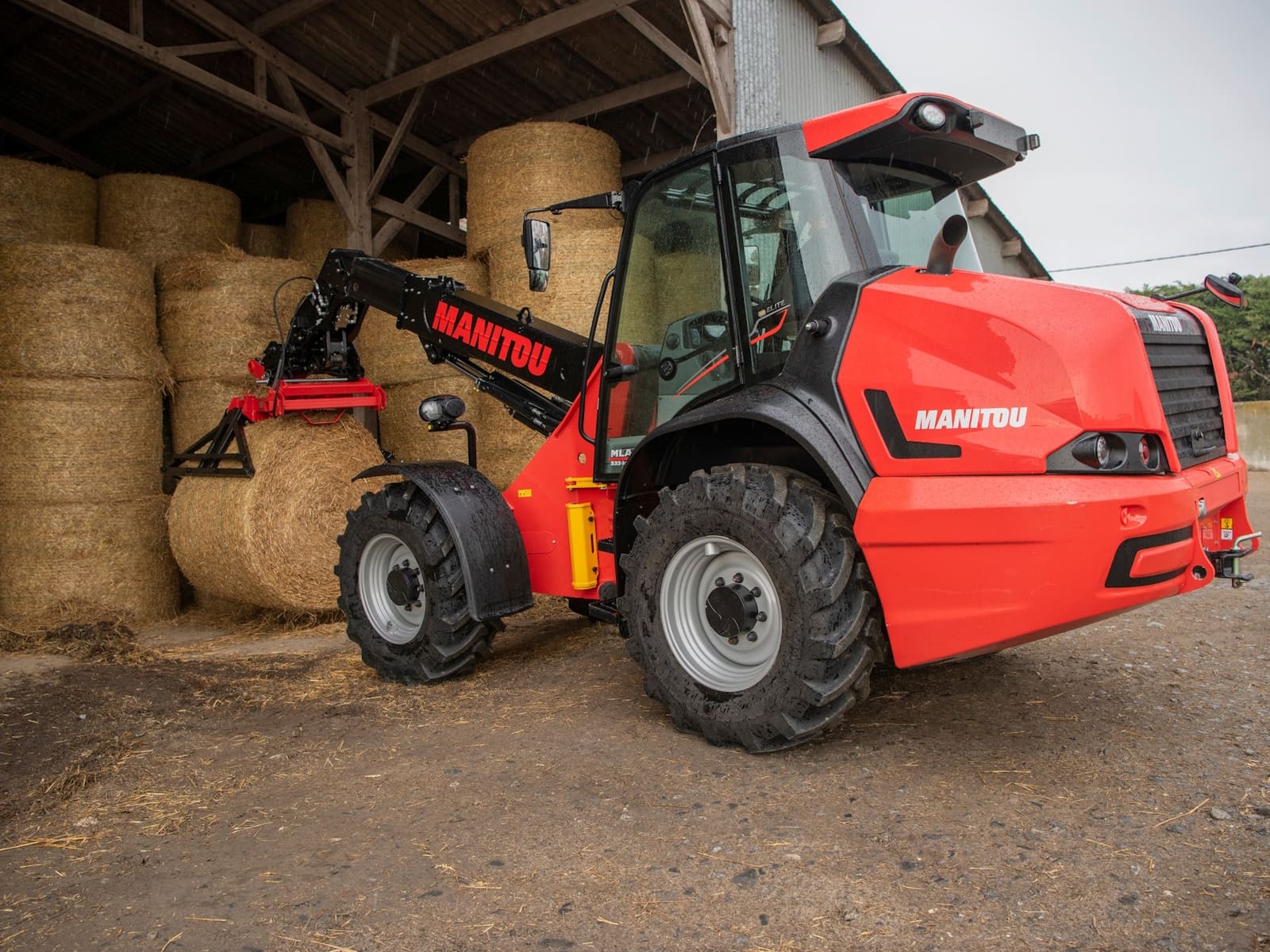

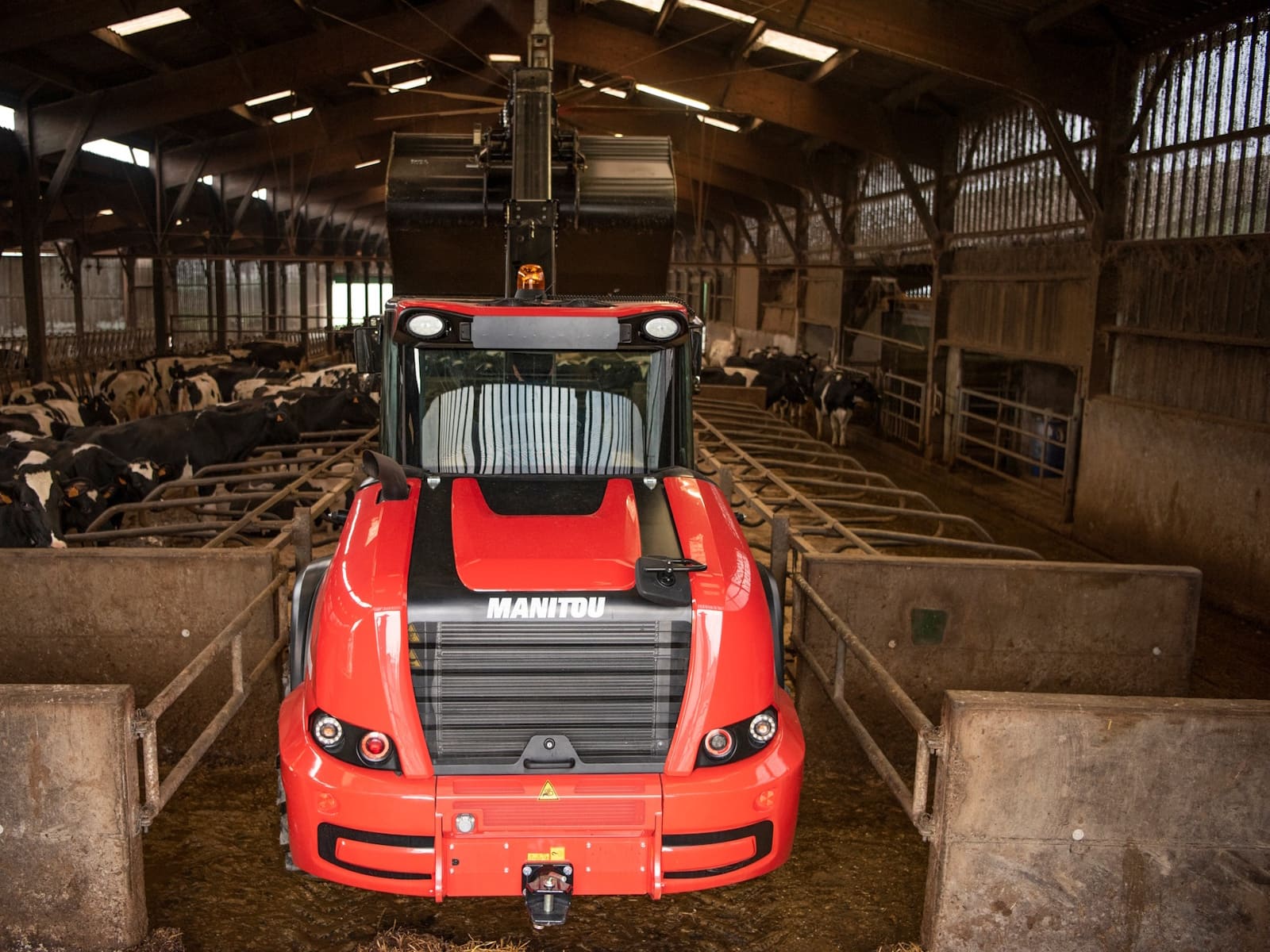

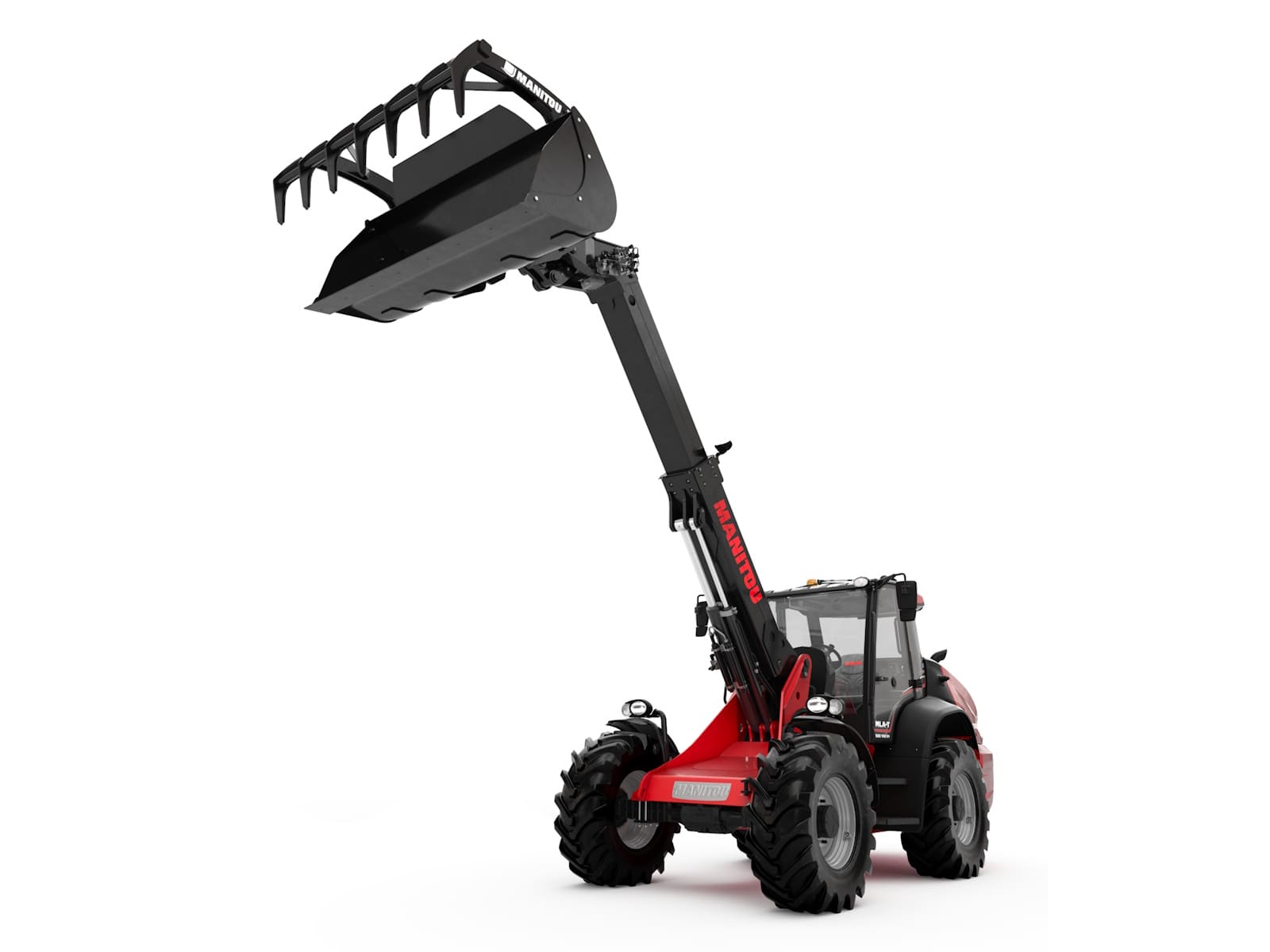

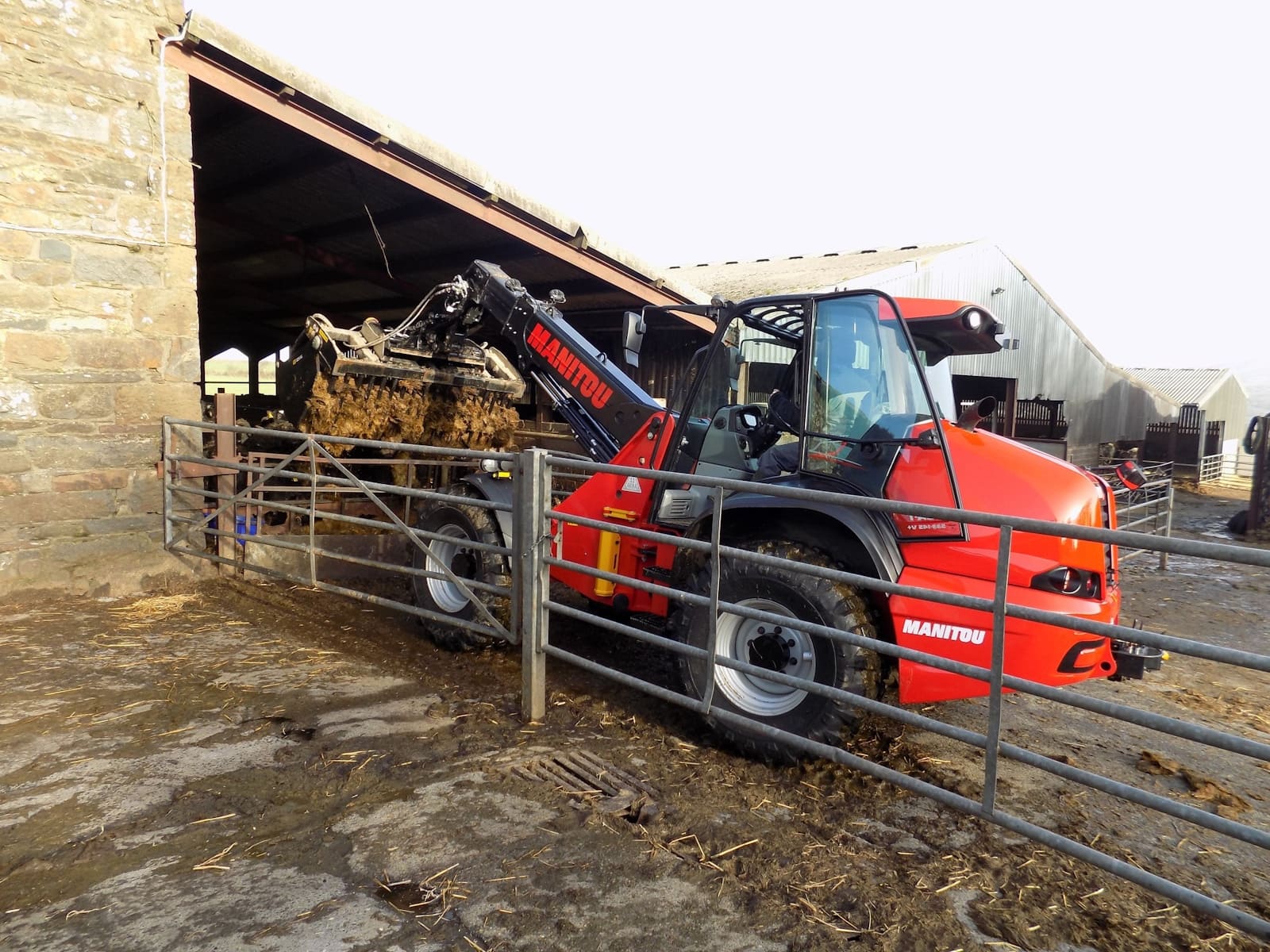

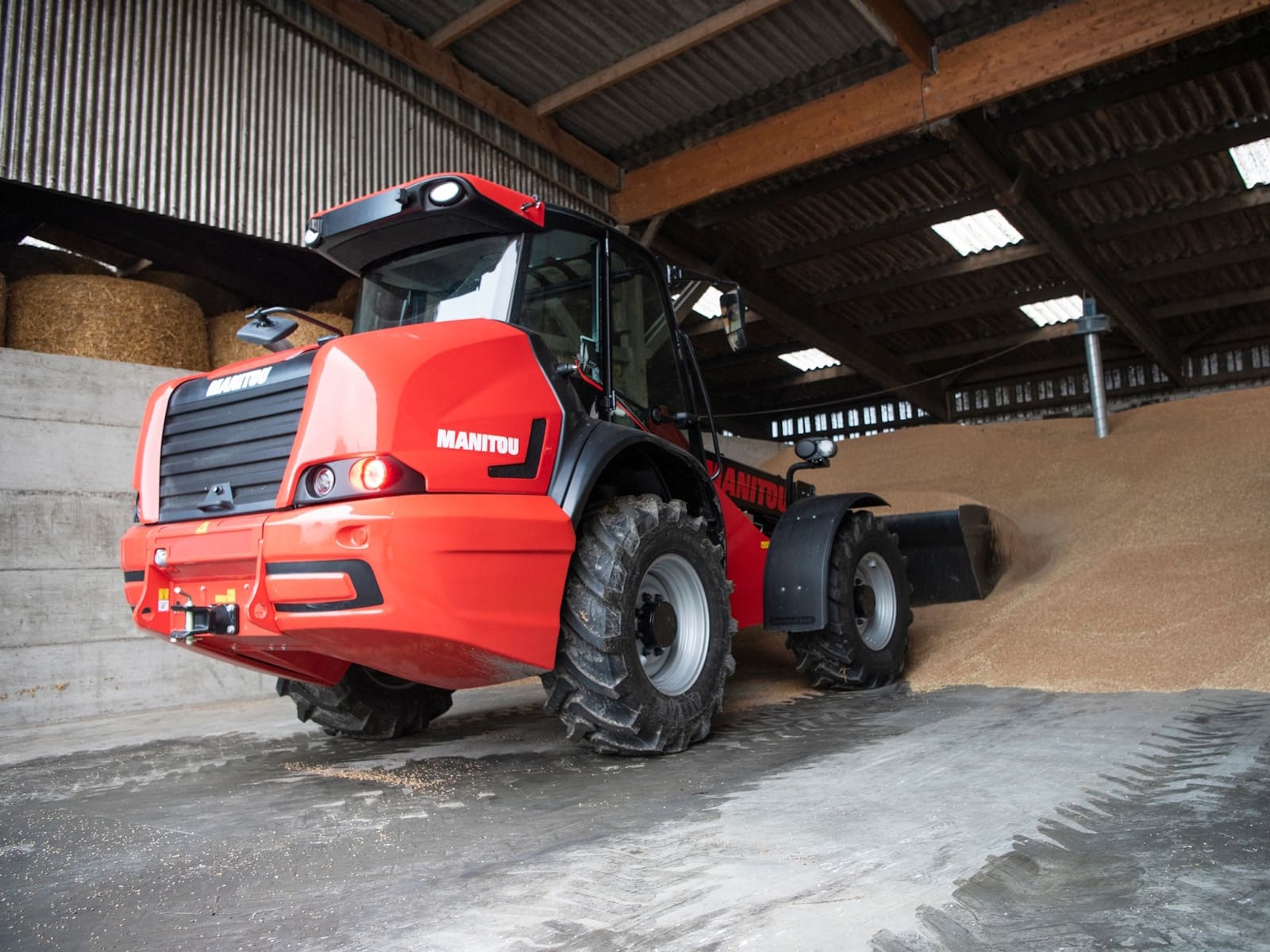

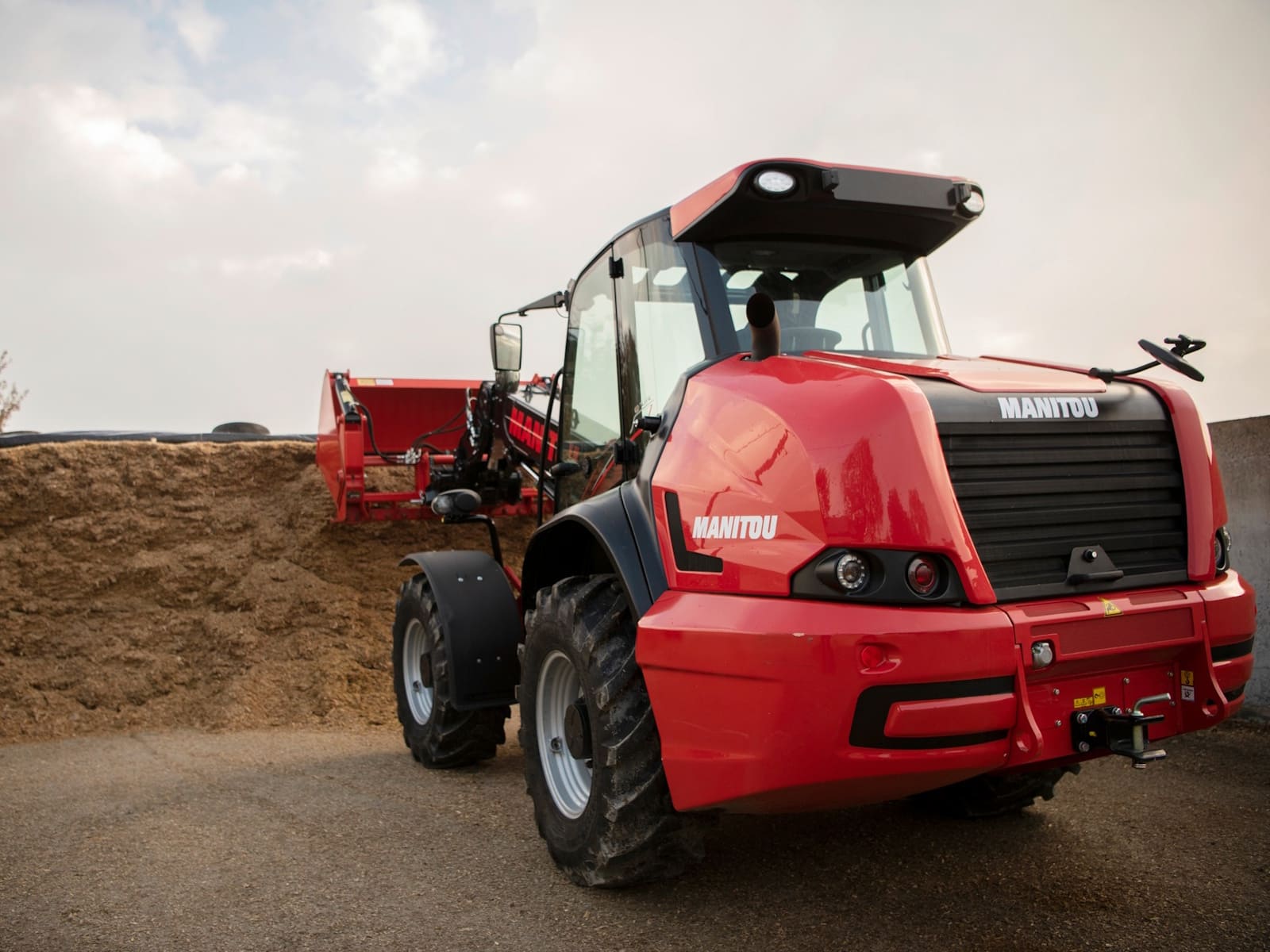

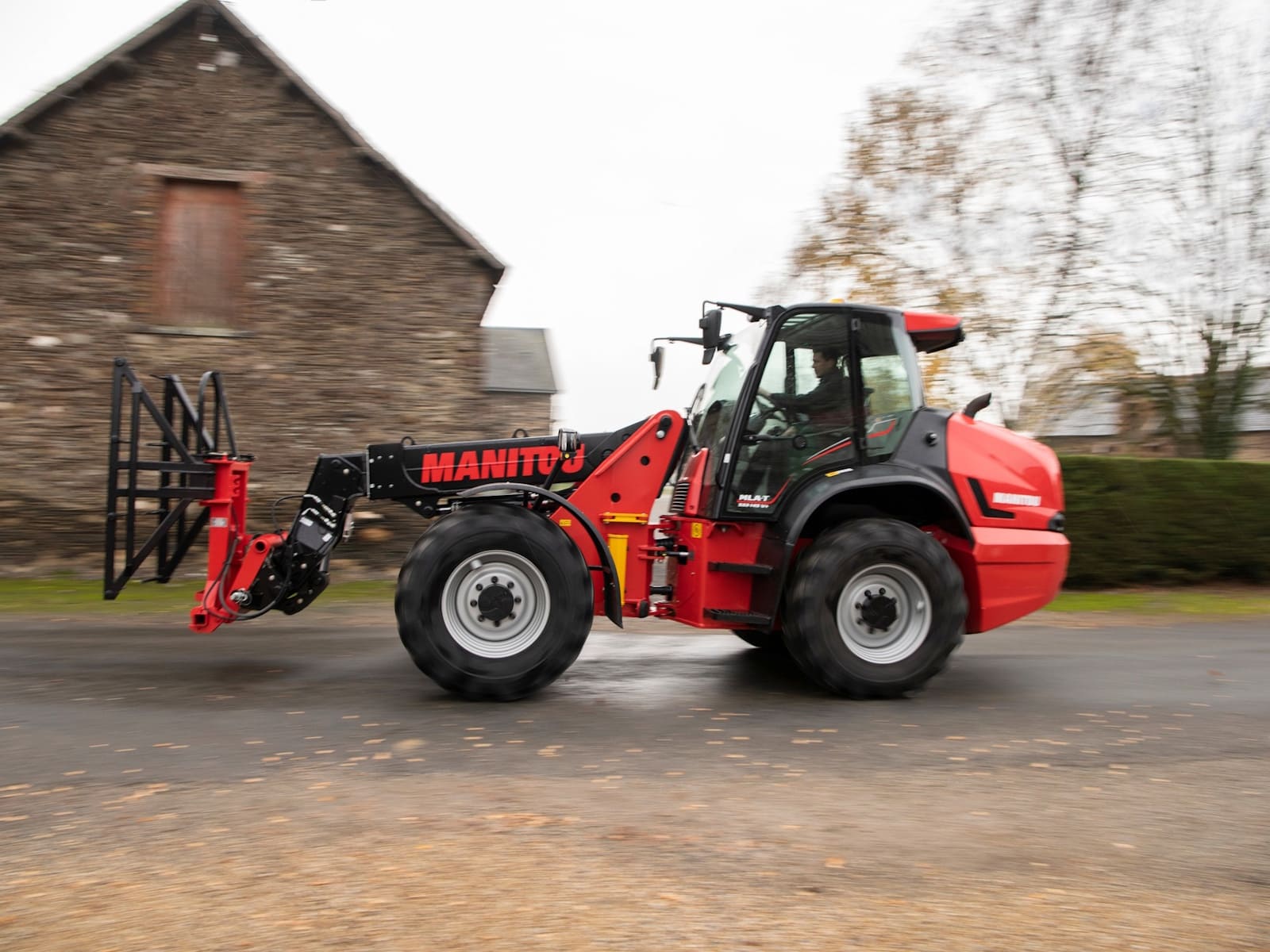

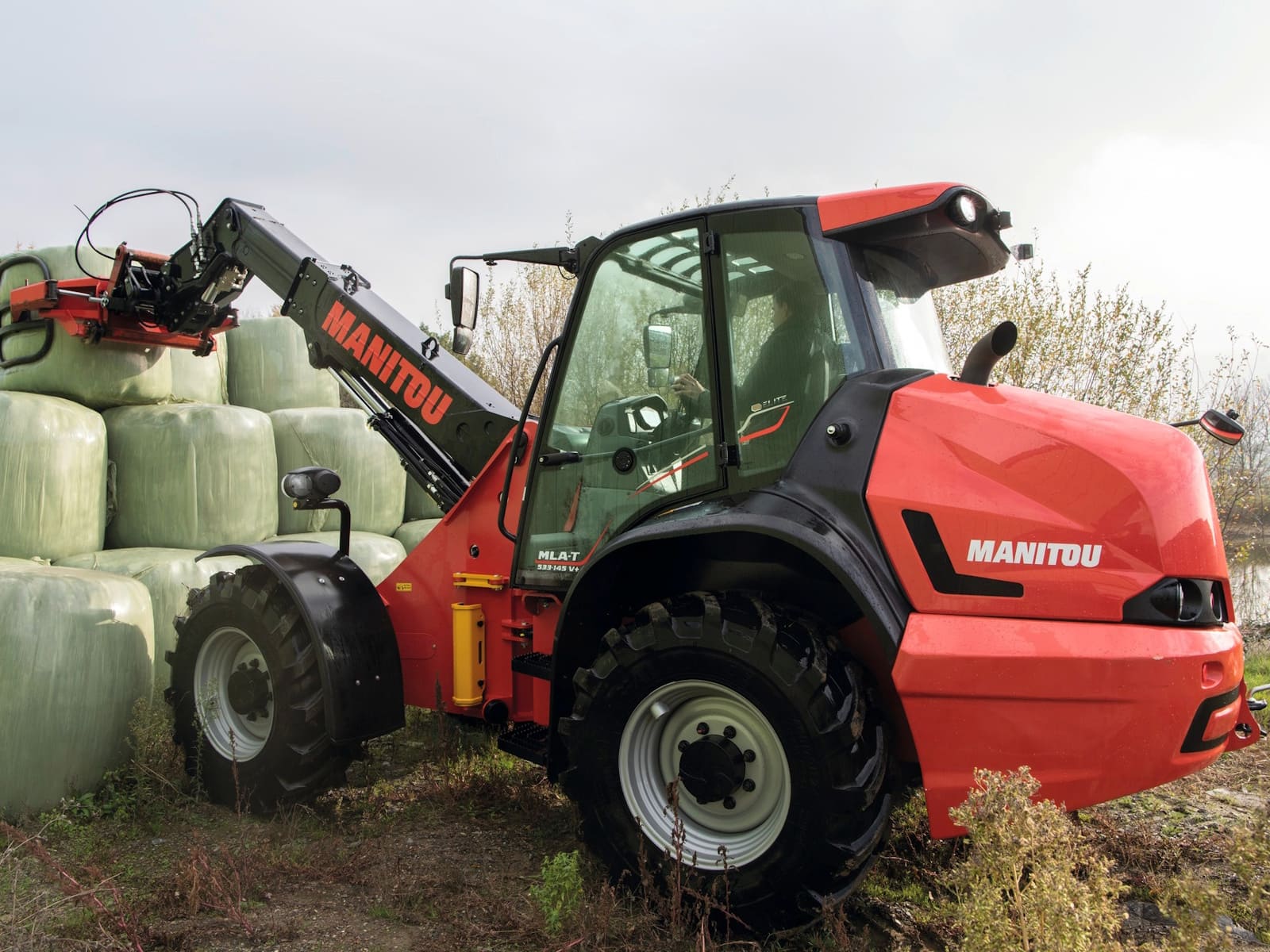

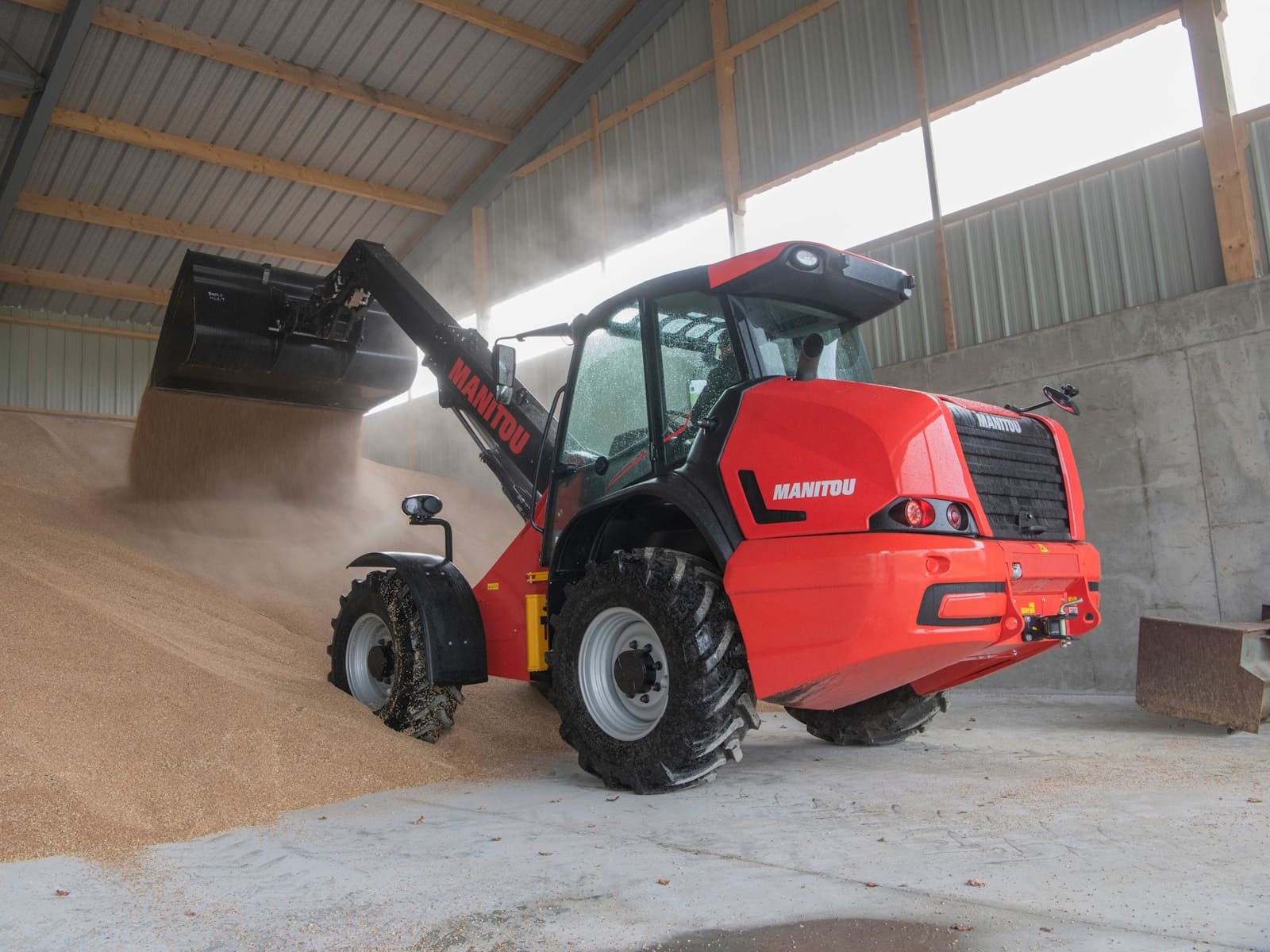

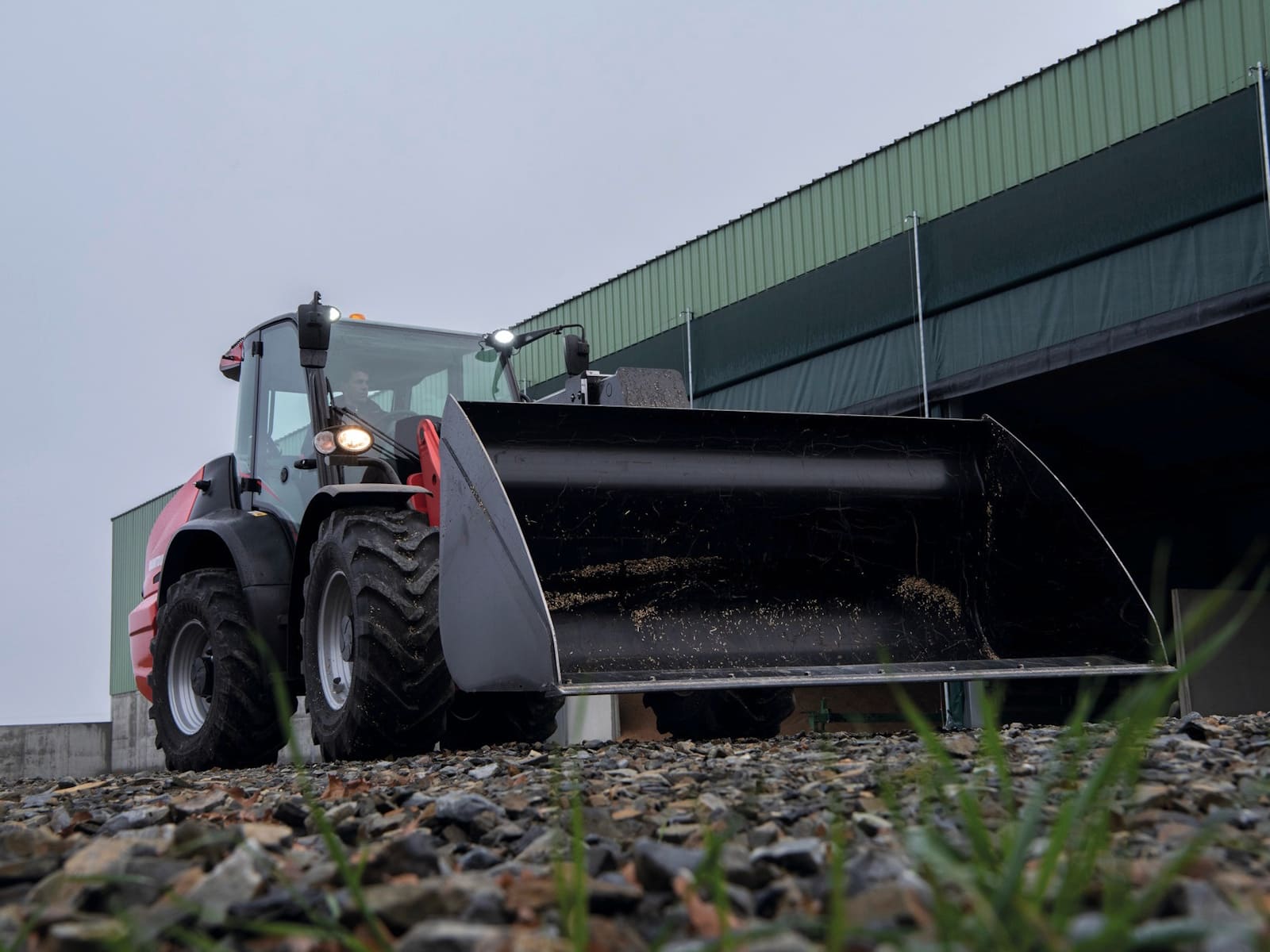

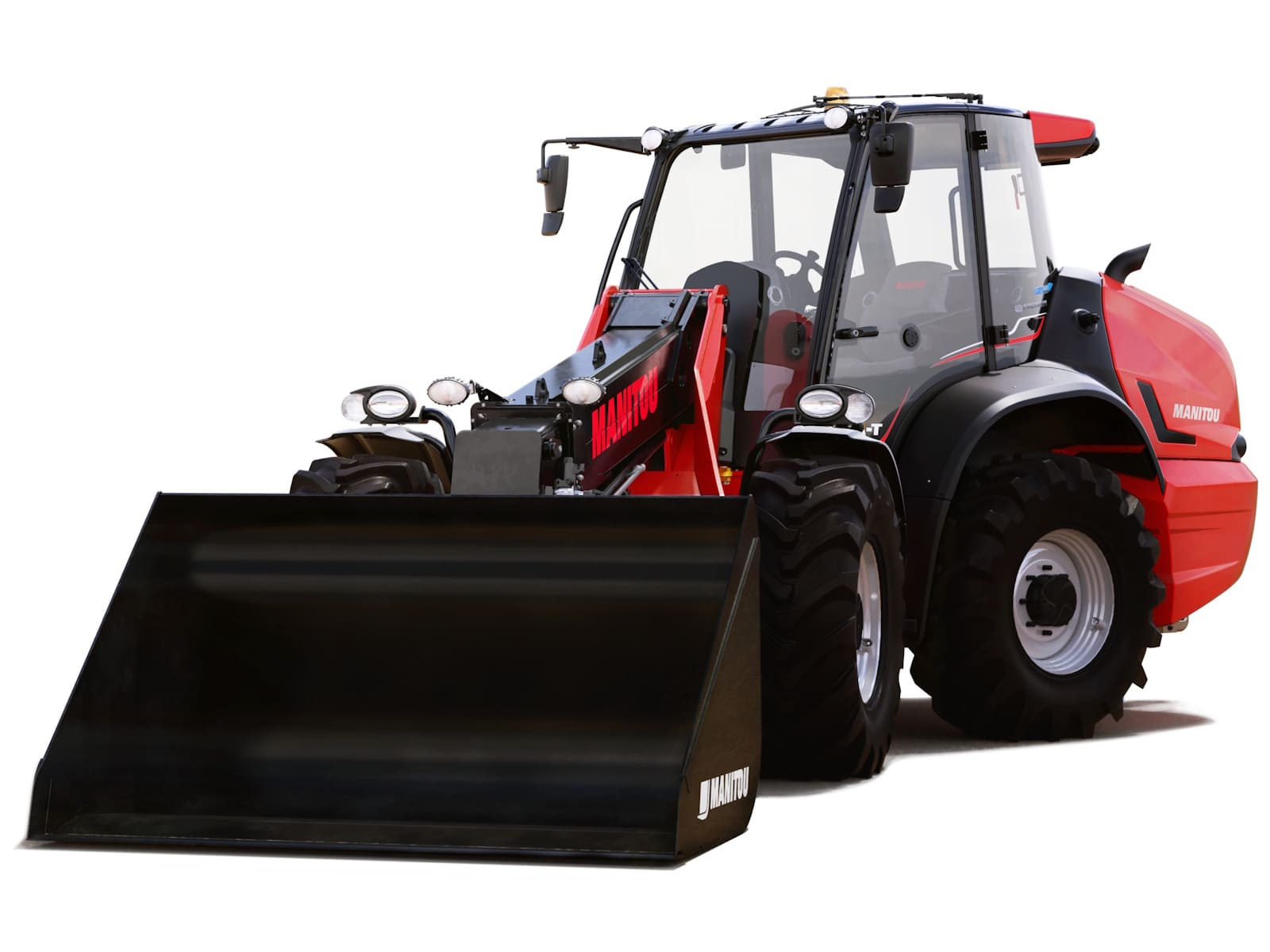

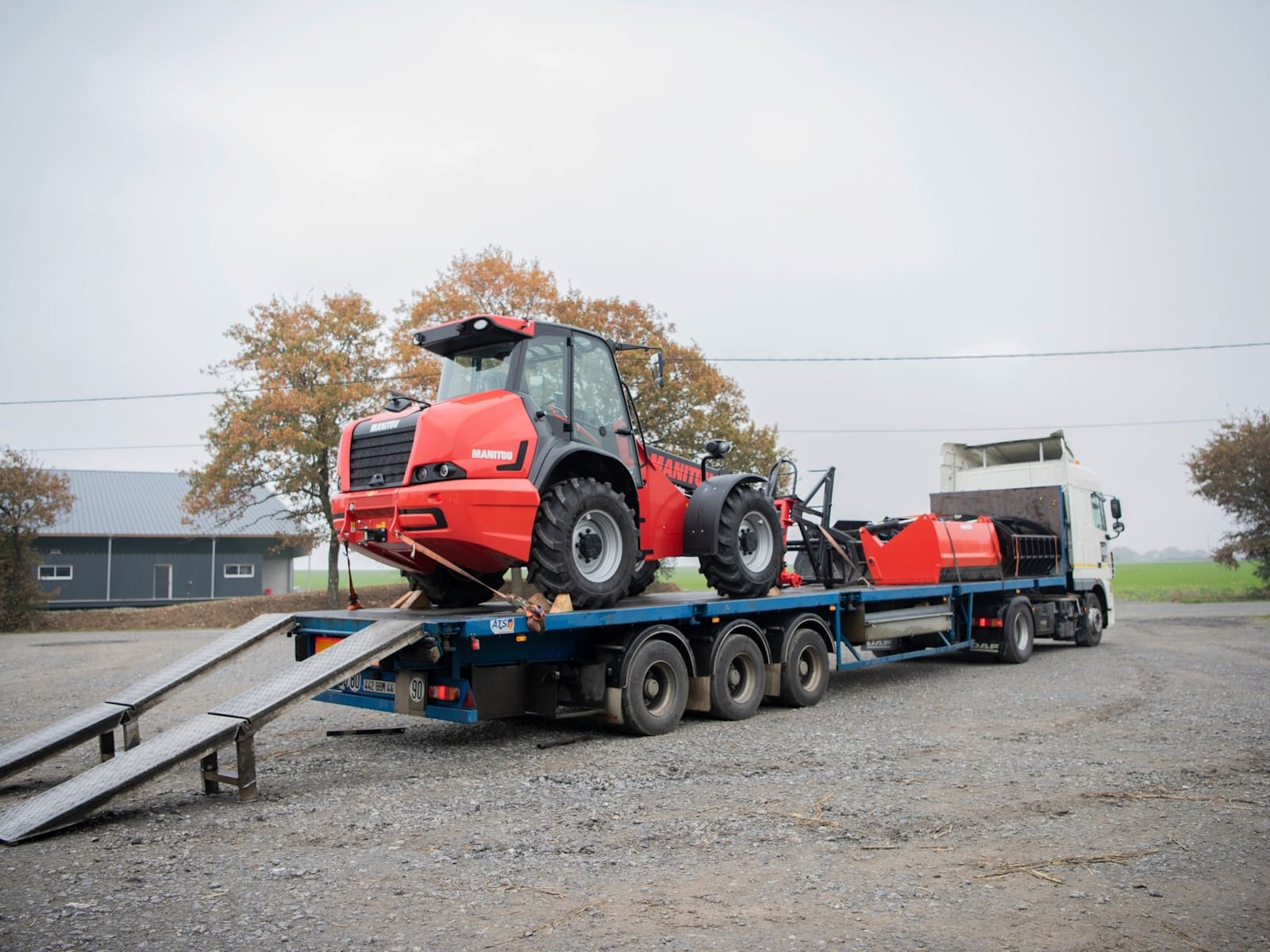

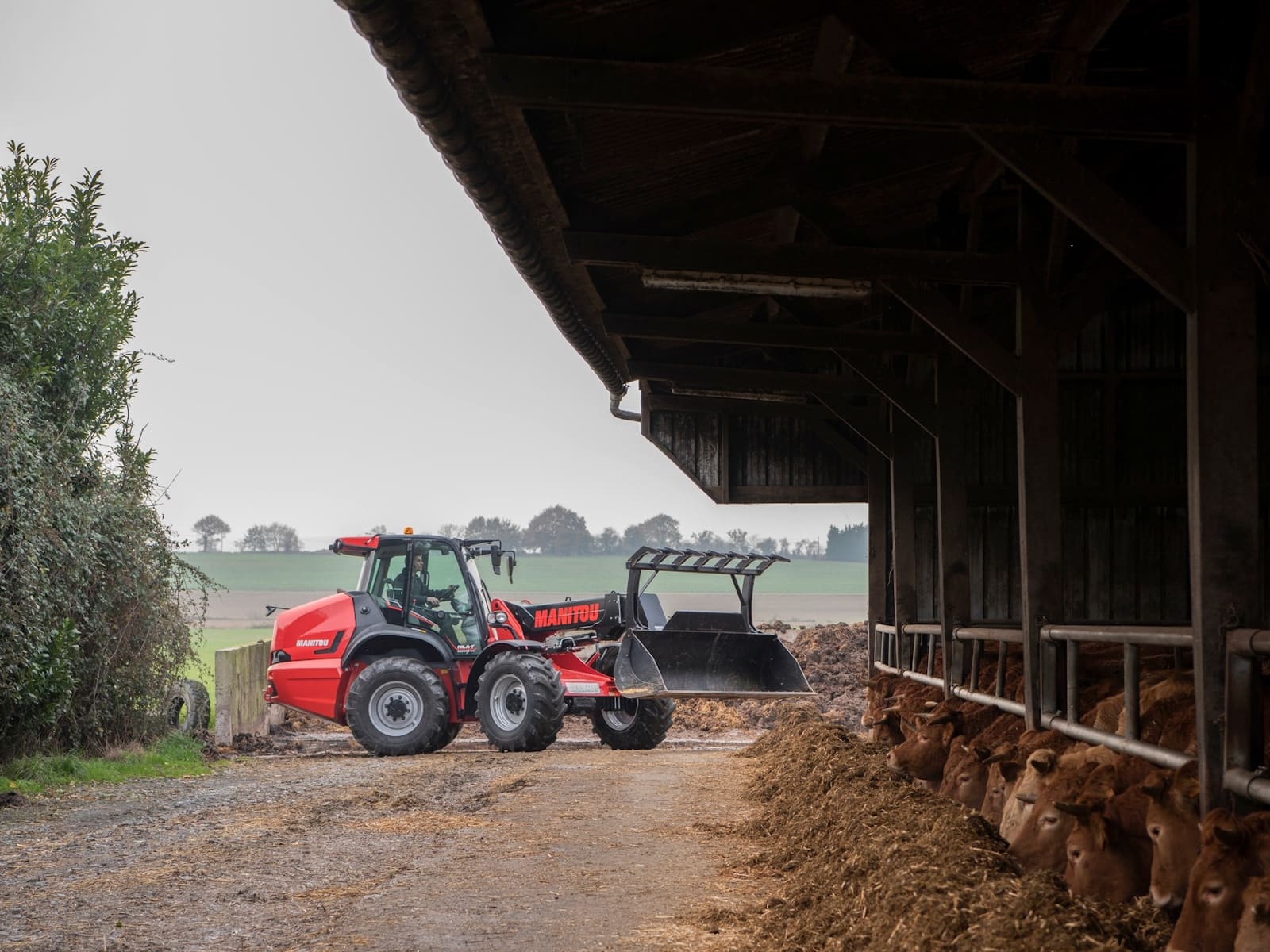

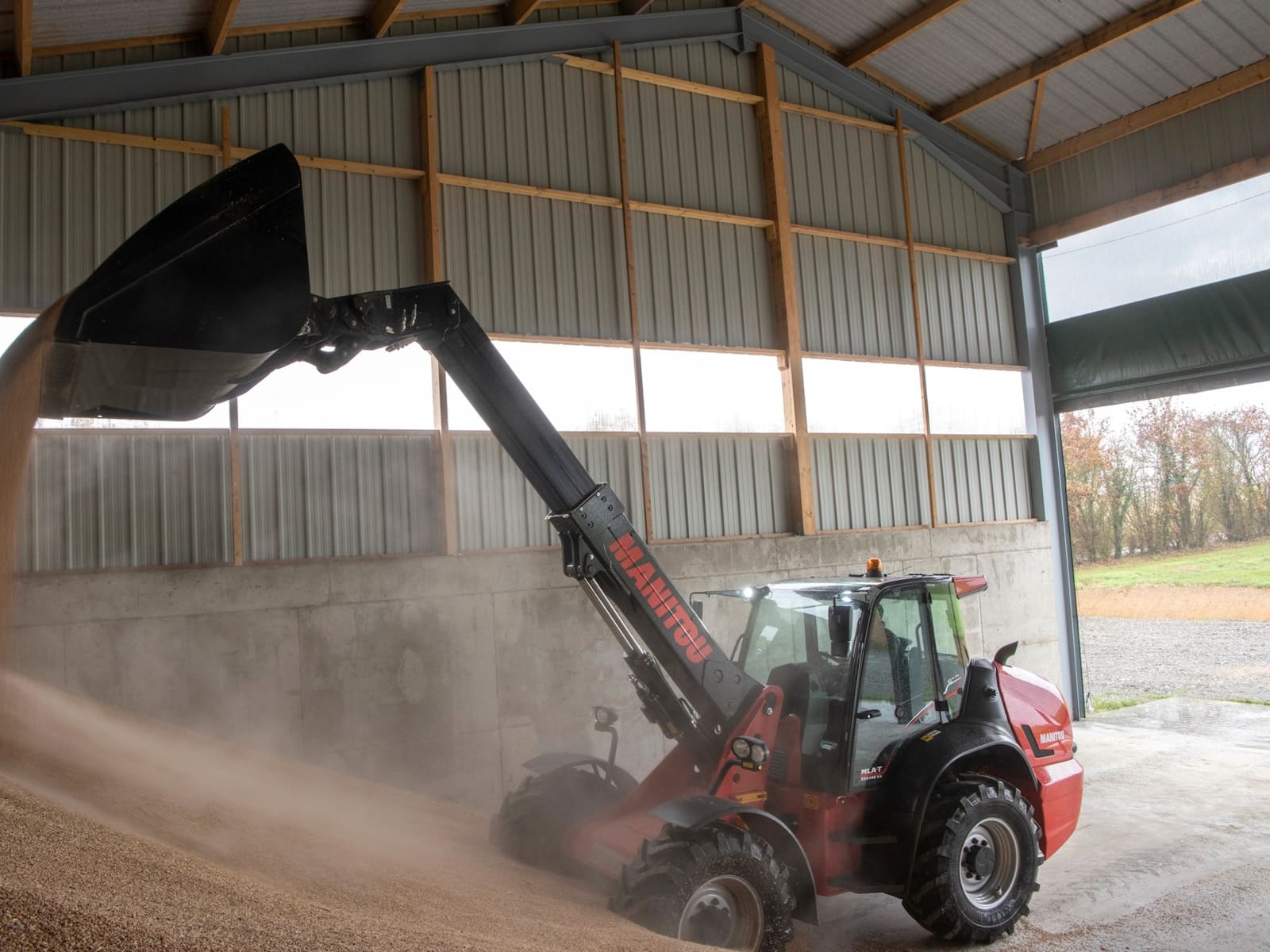

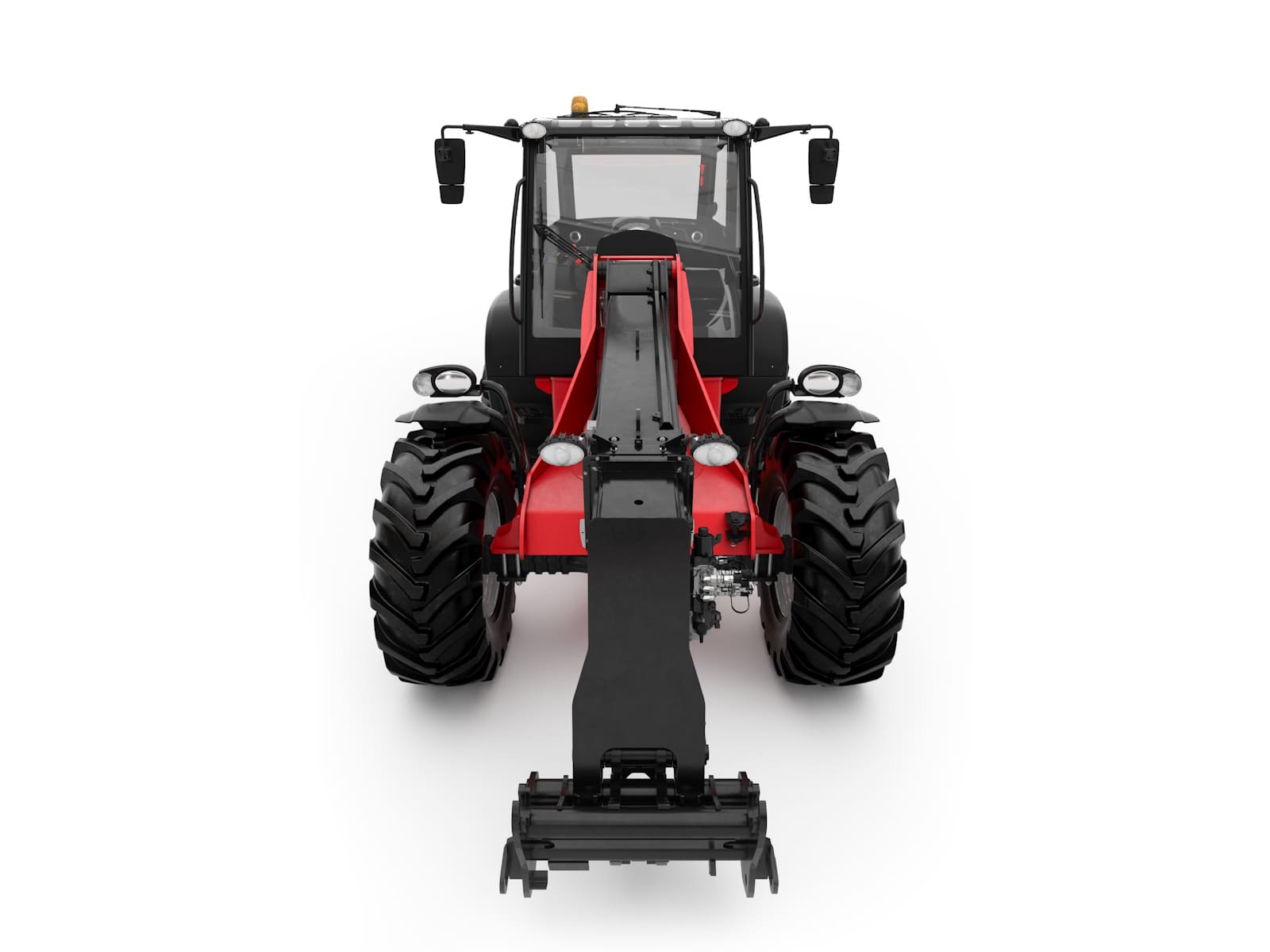

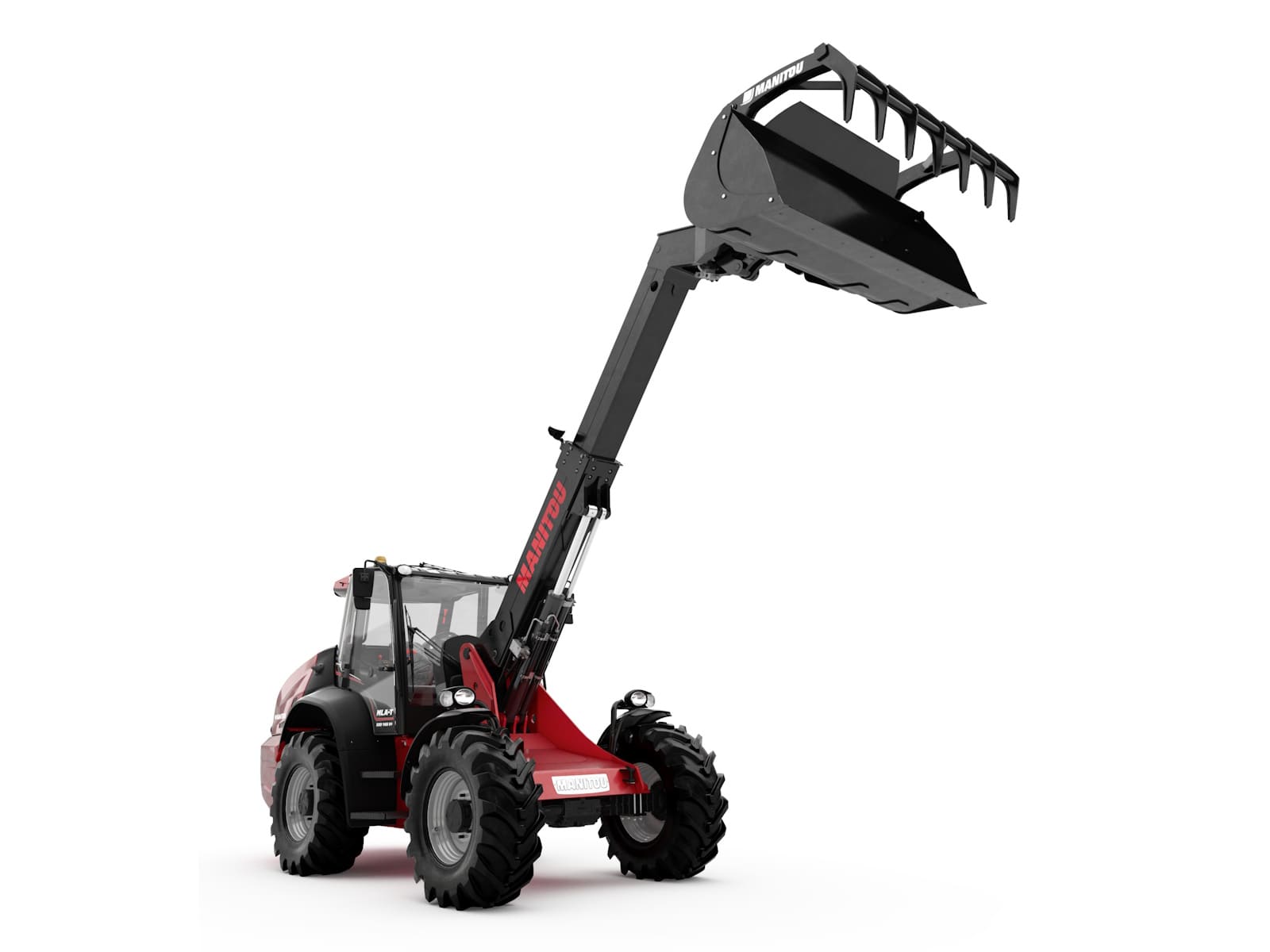

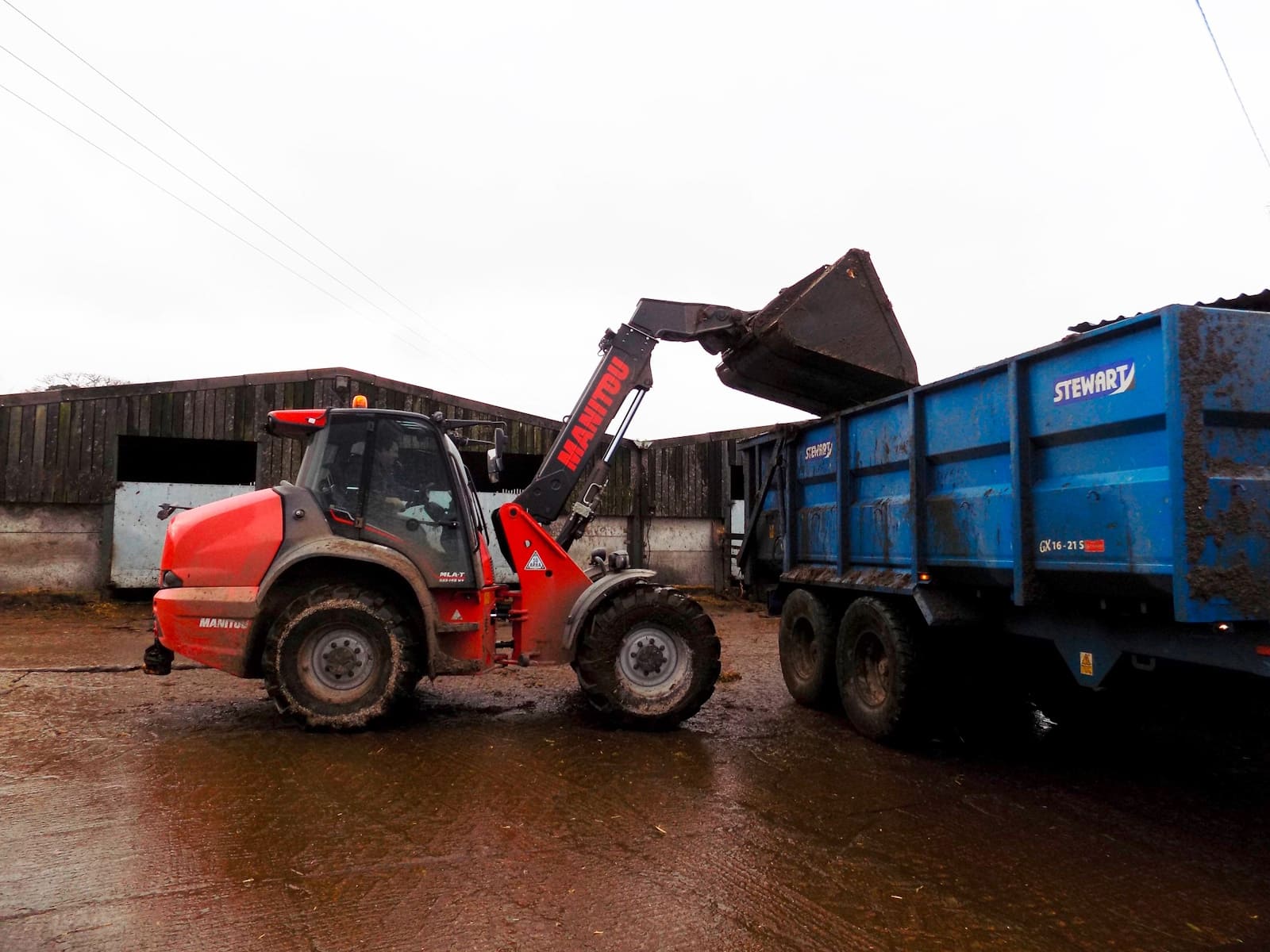

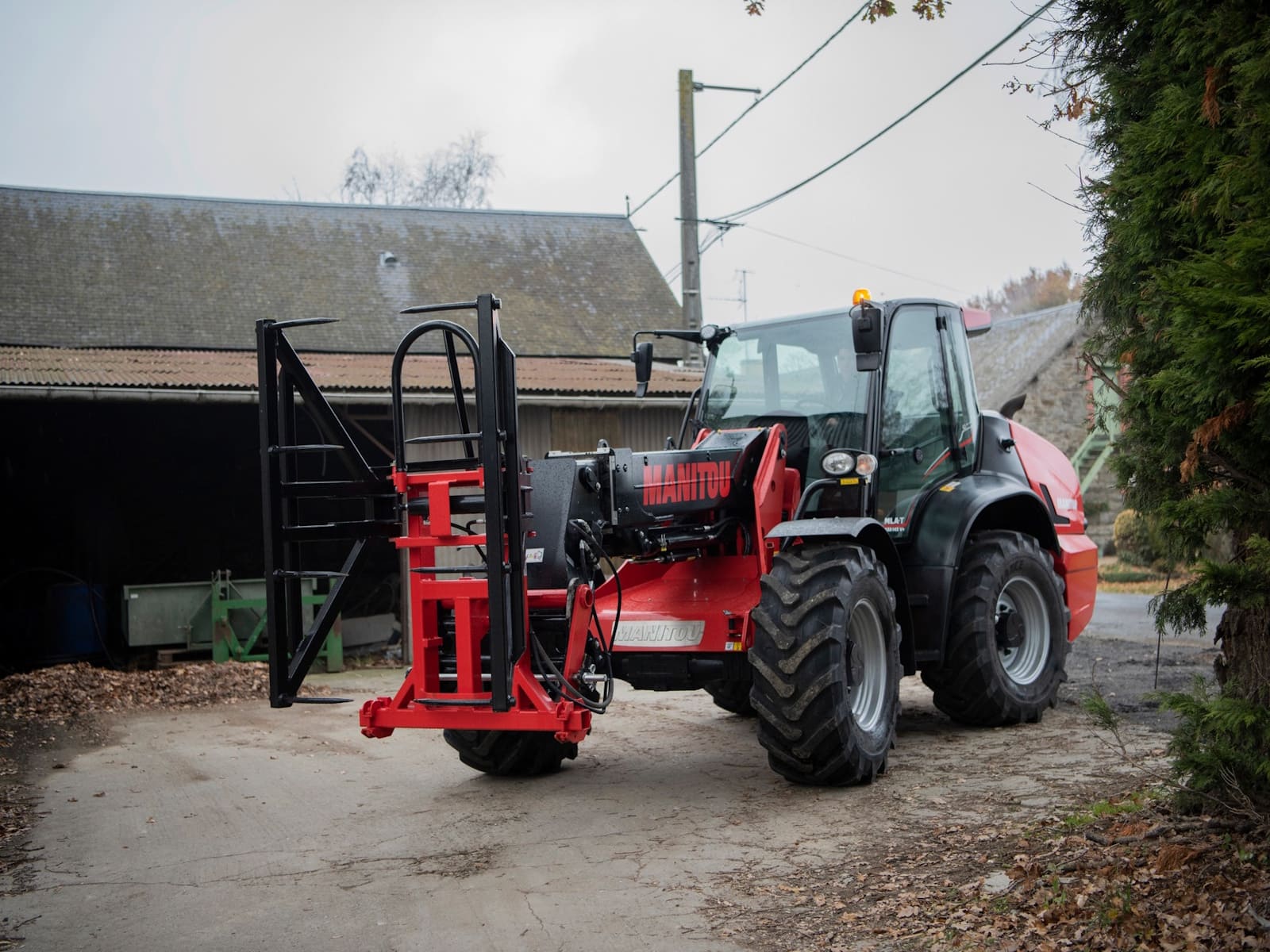

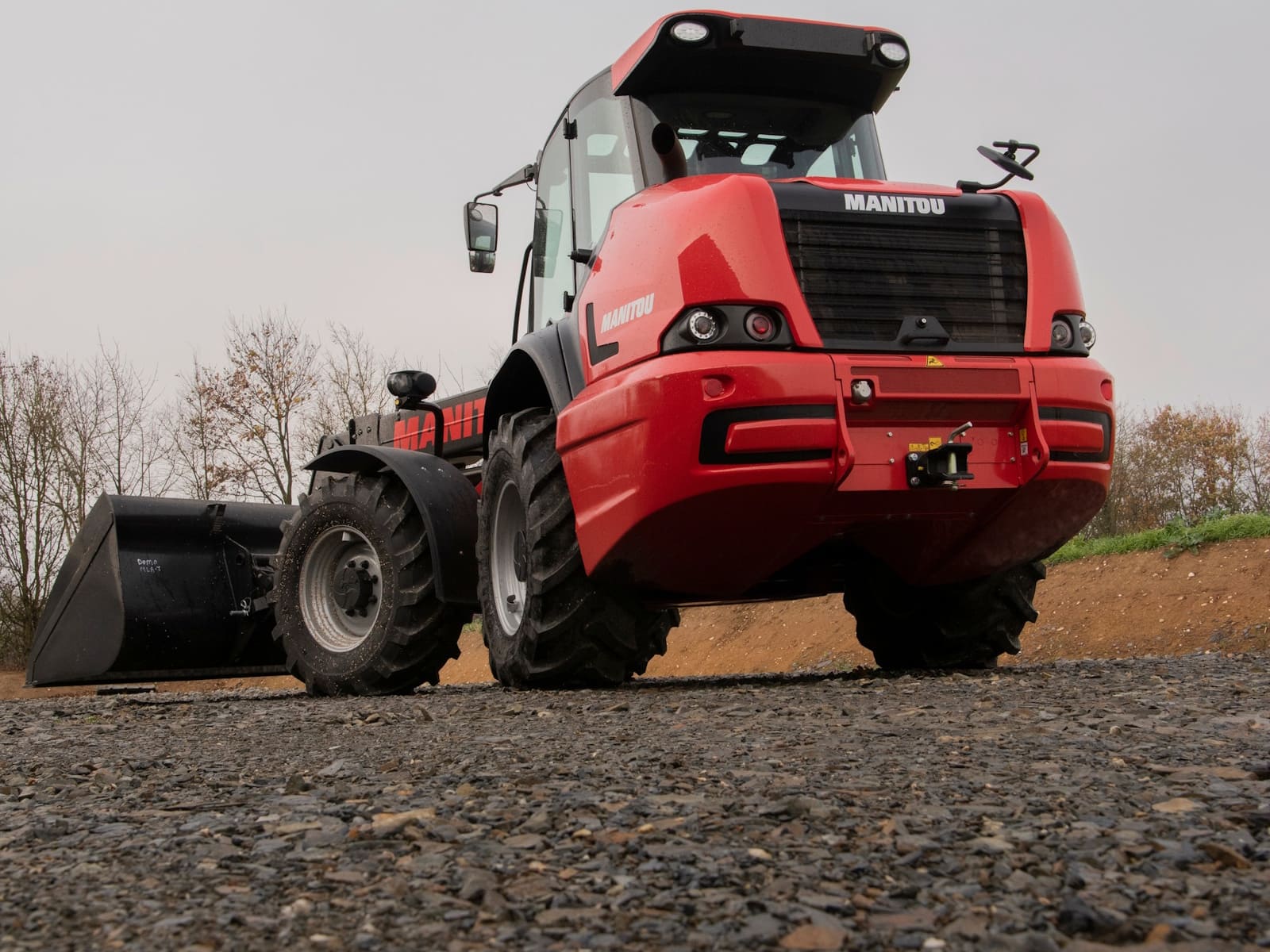

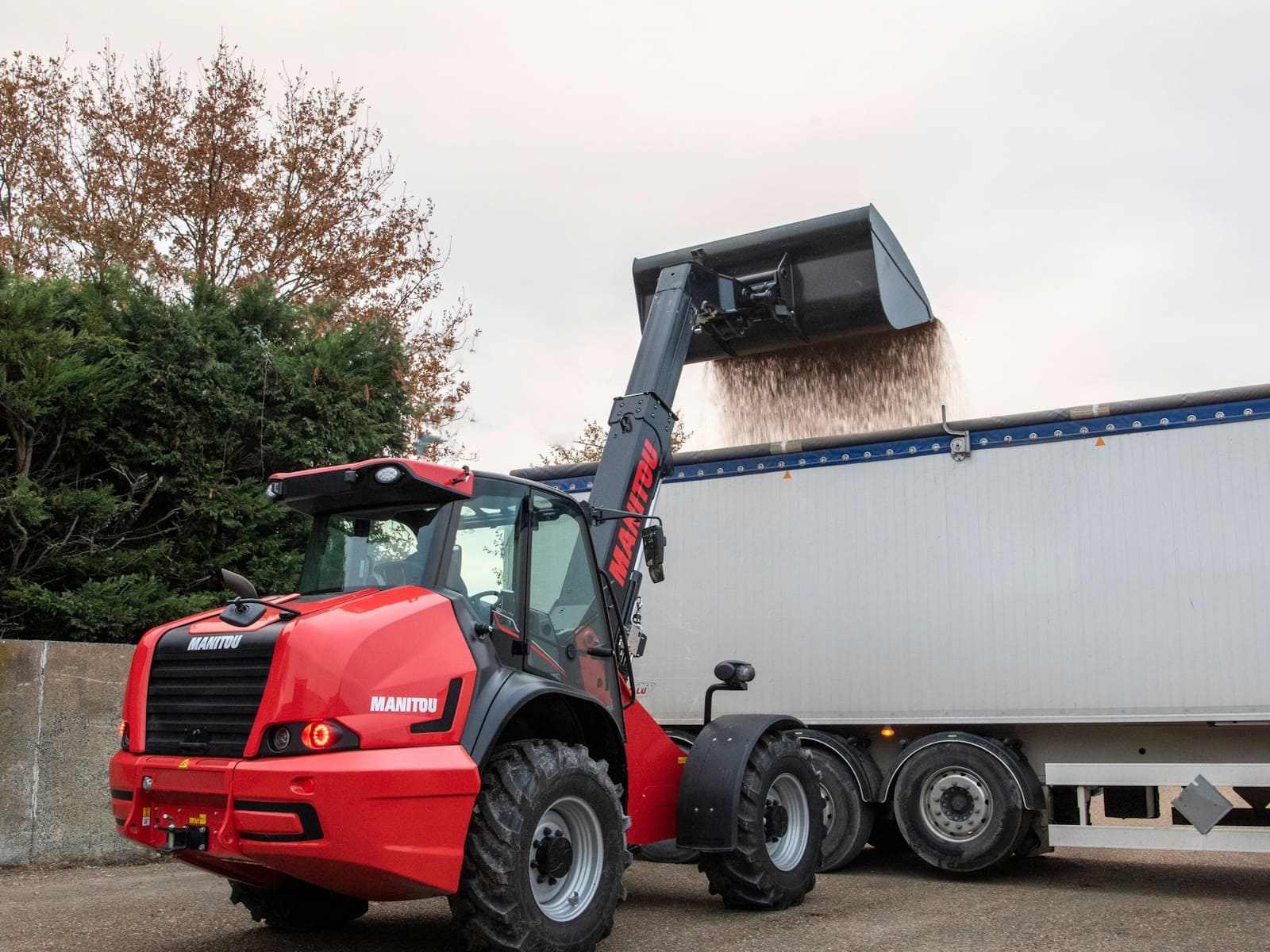

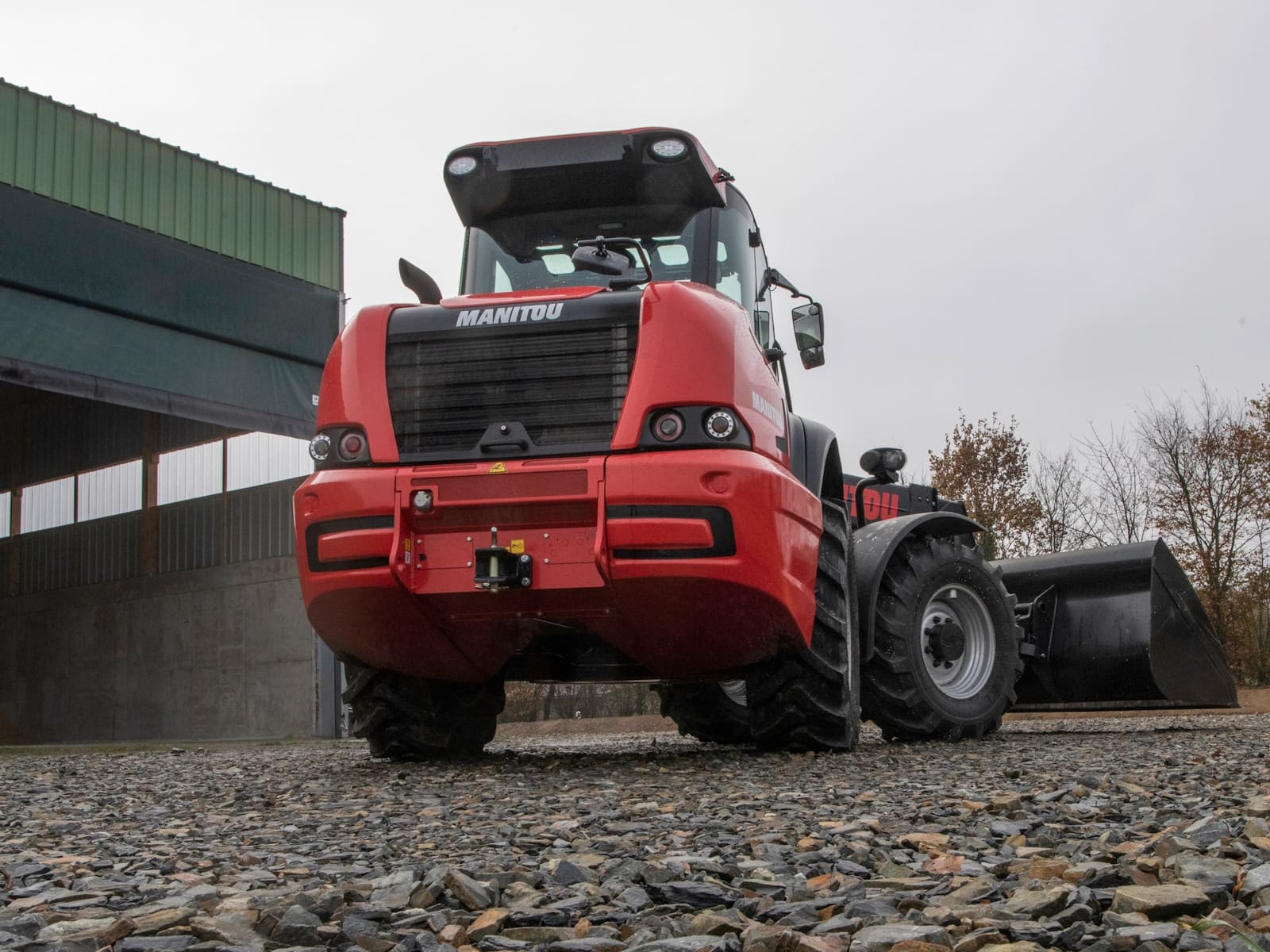

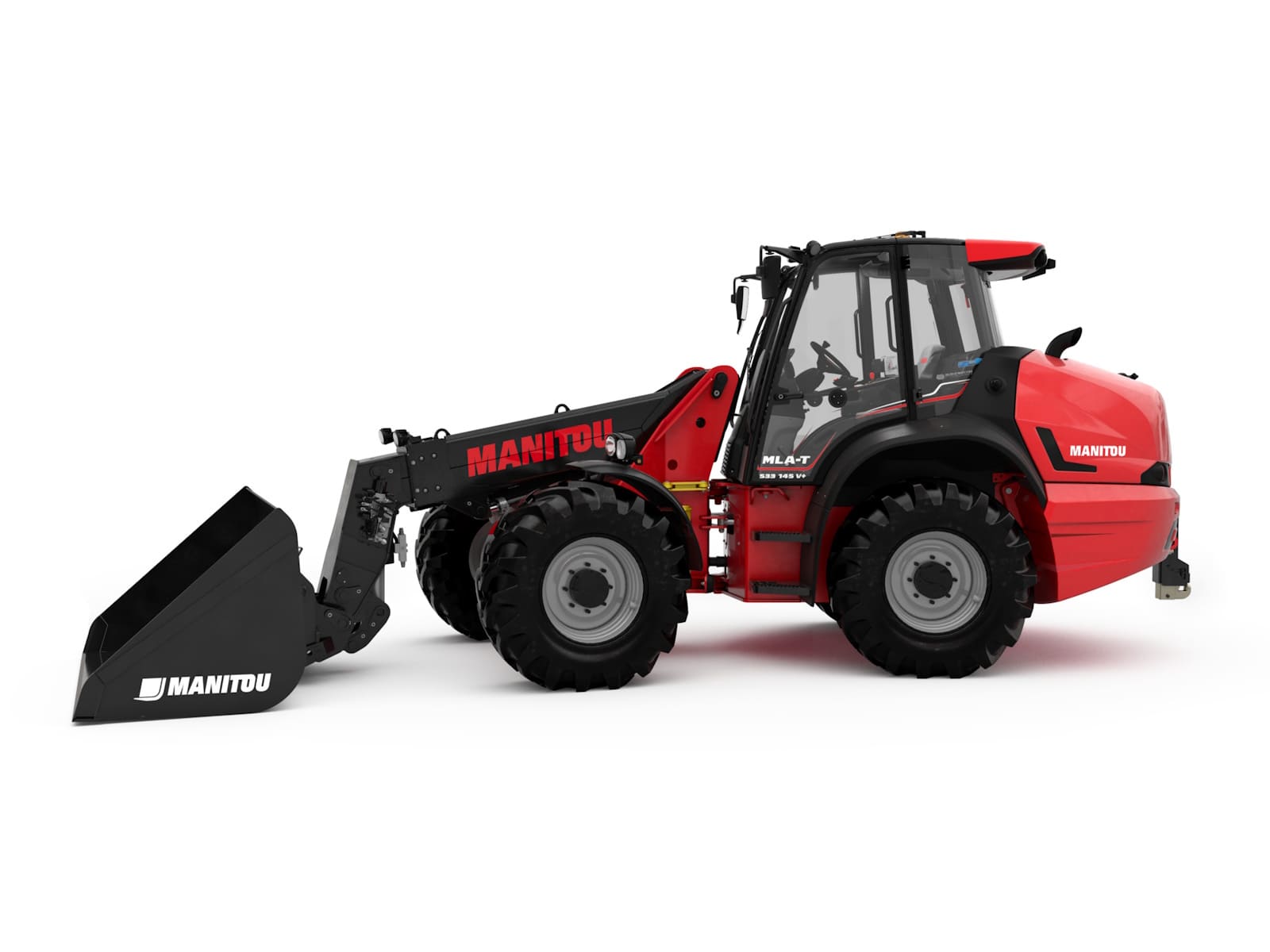

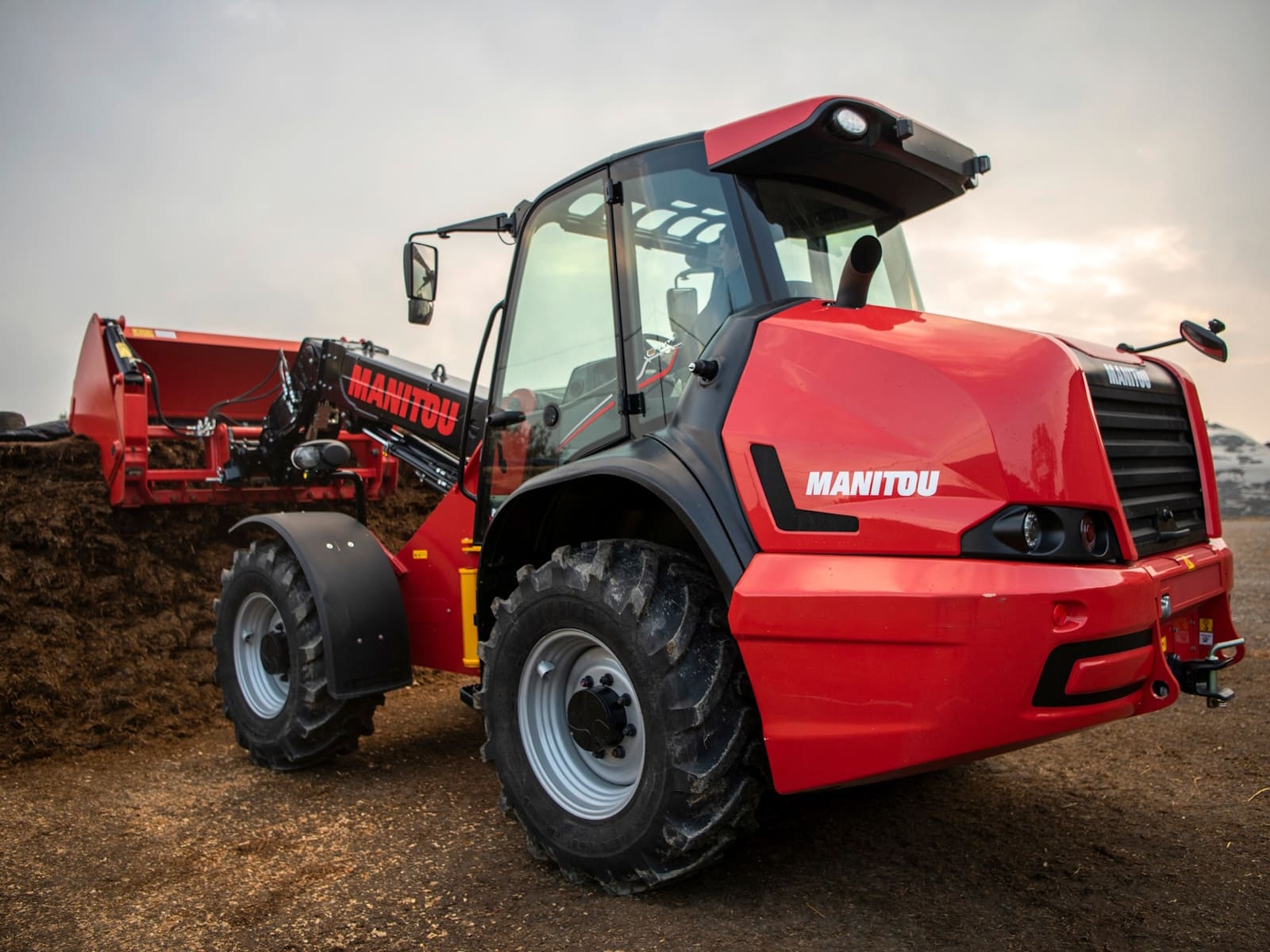

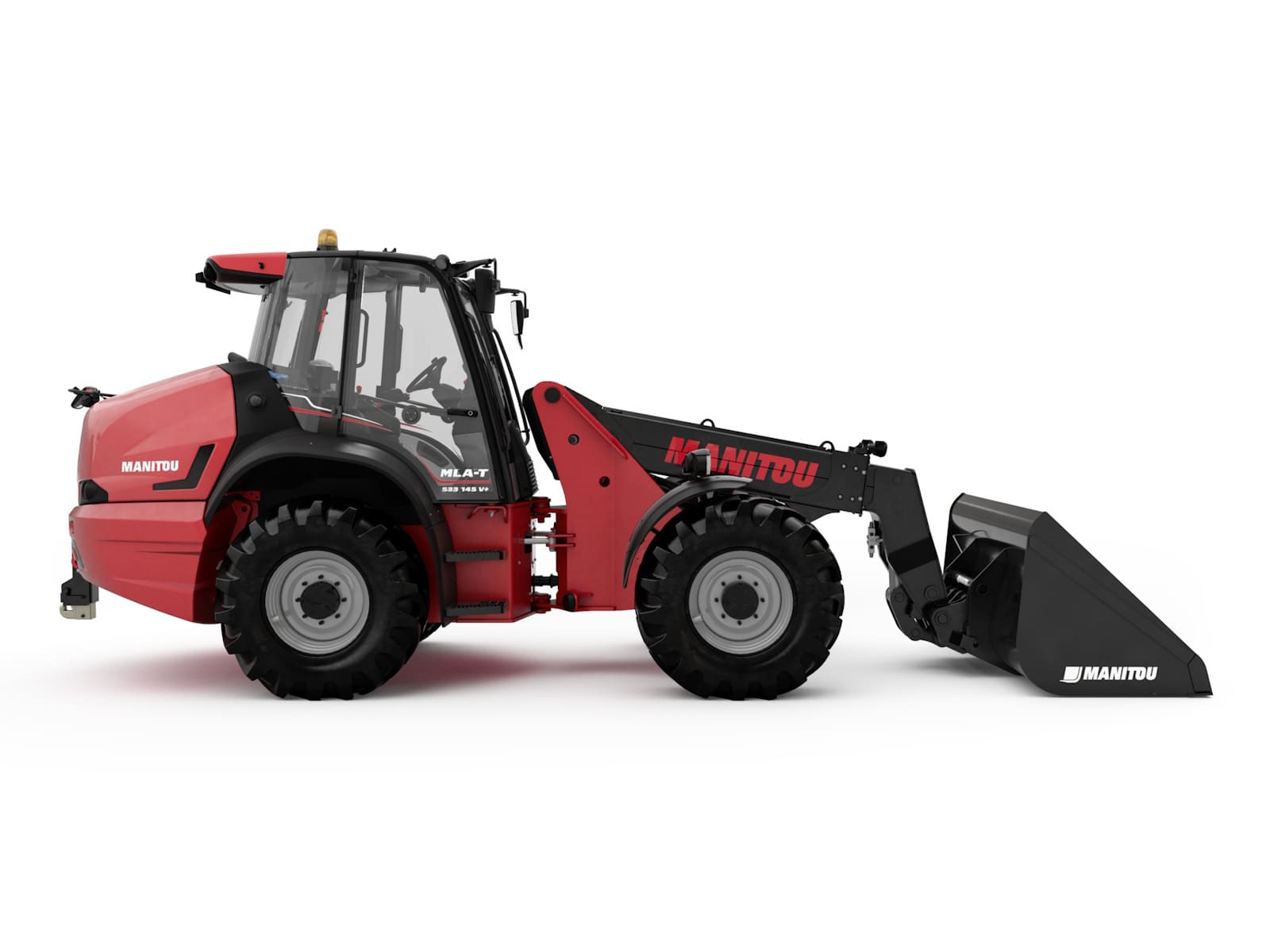

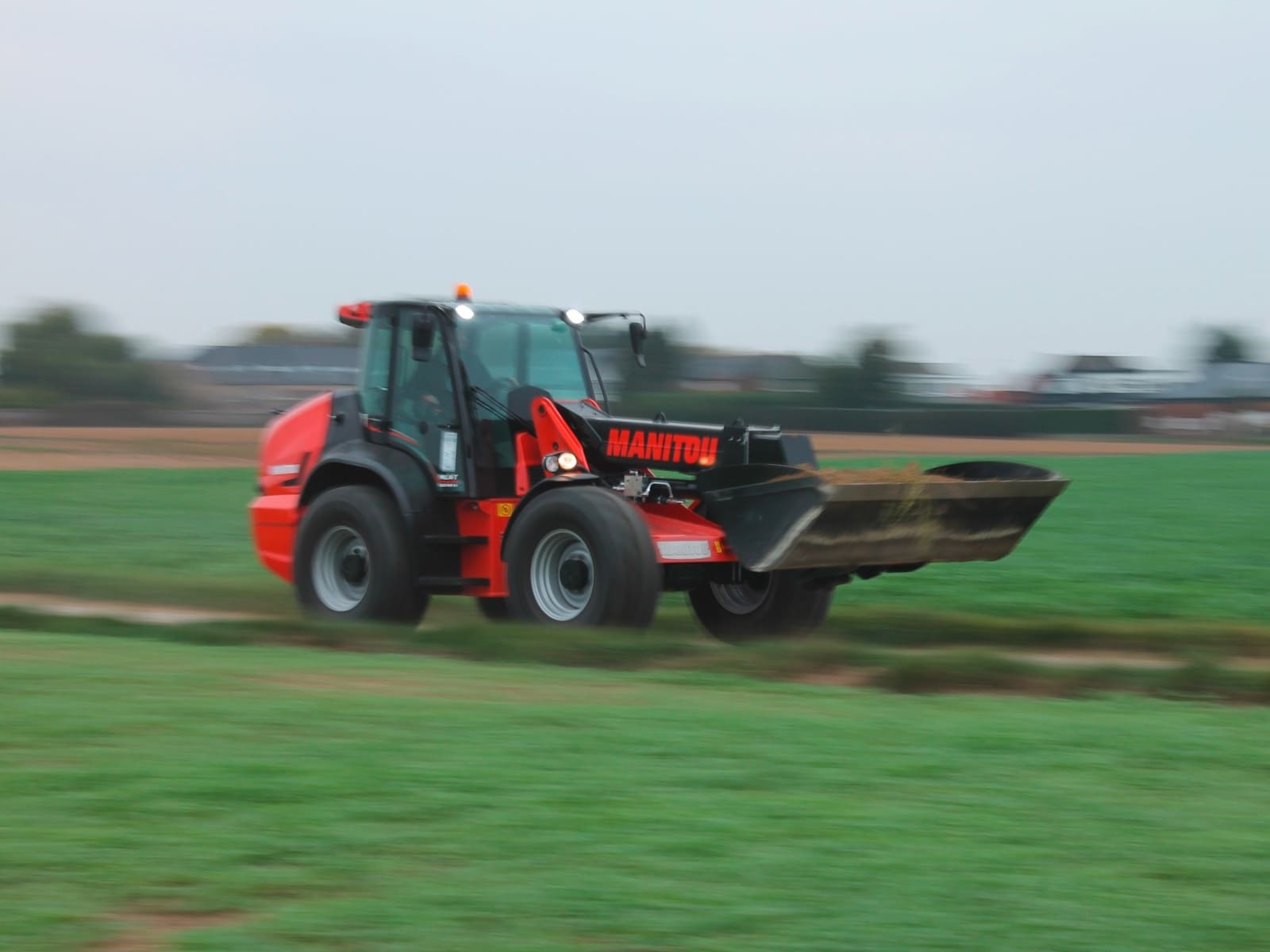

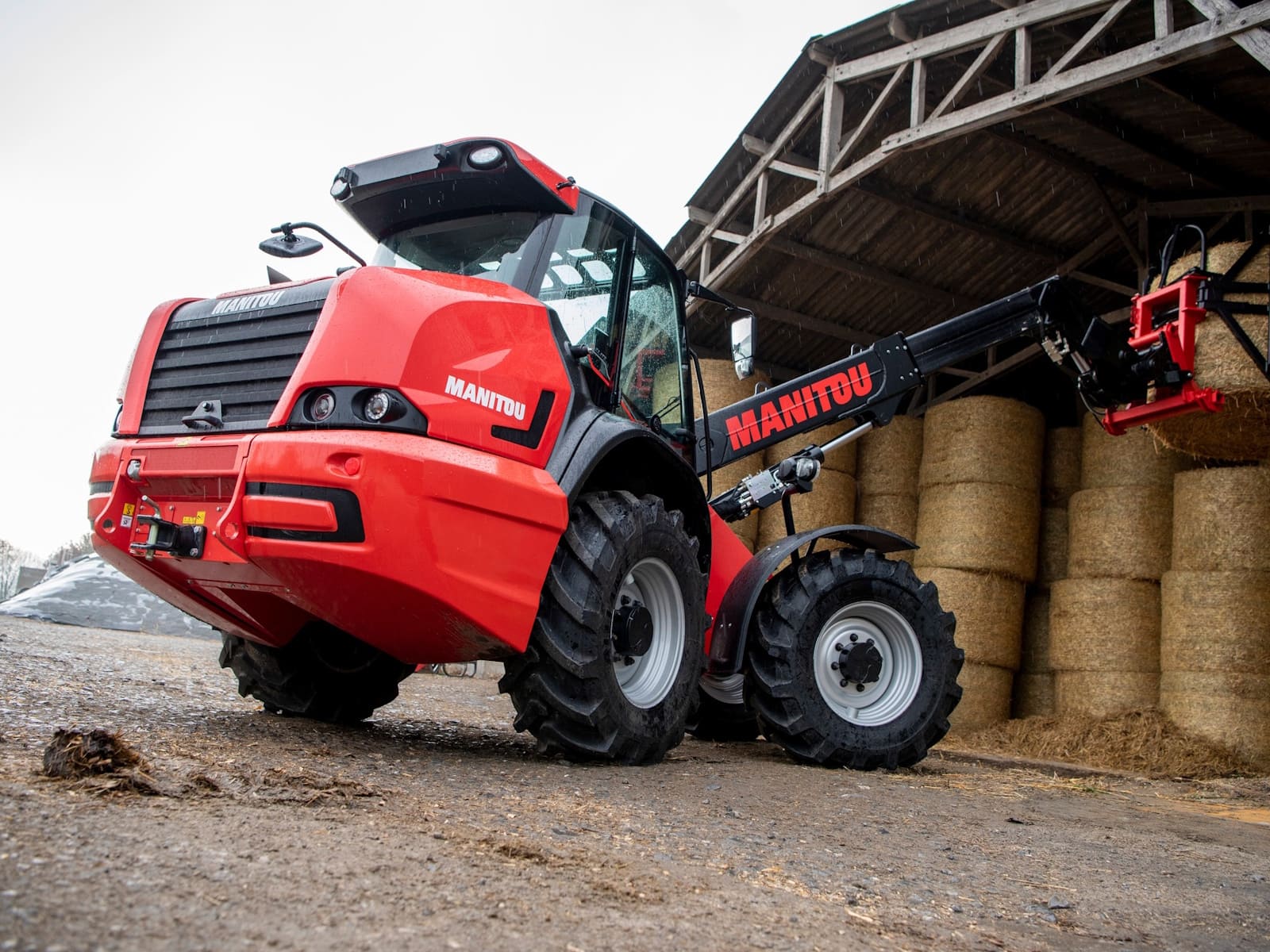

2026 Manitou Group MLA-T 533-145 V+ - ST5

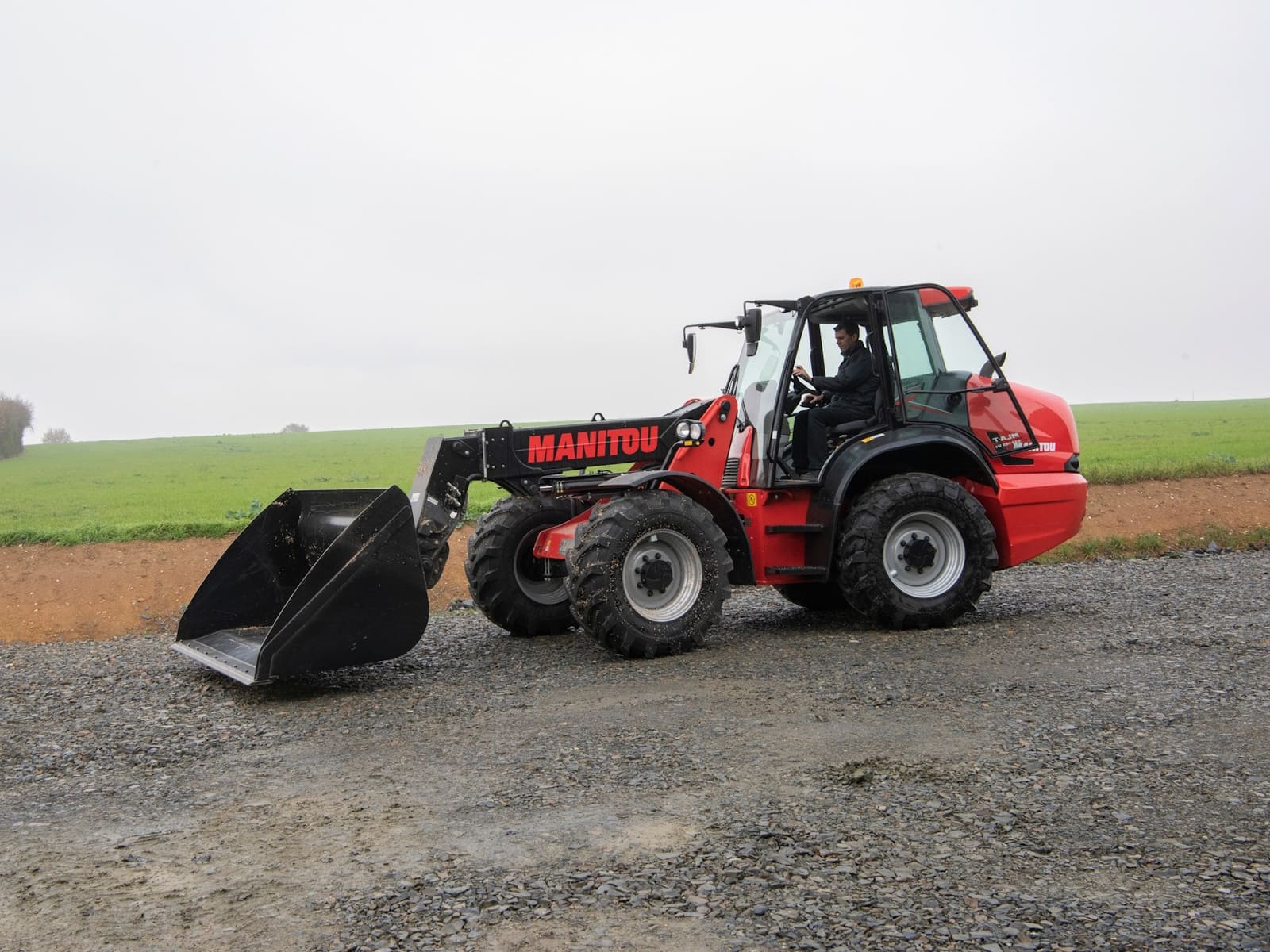

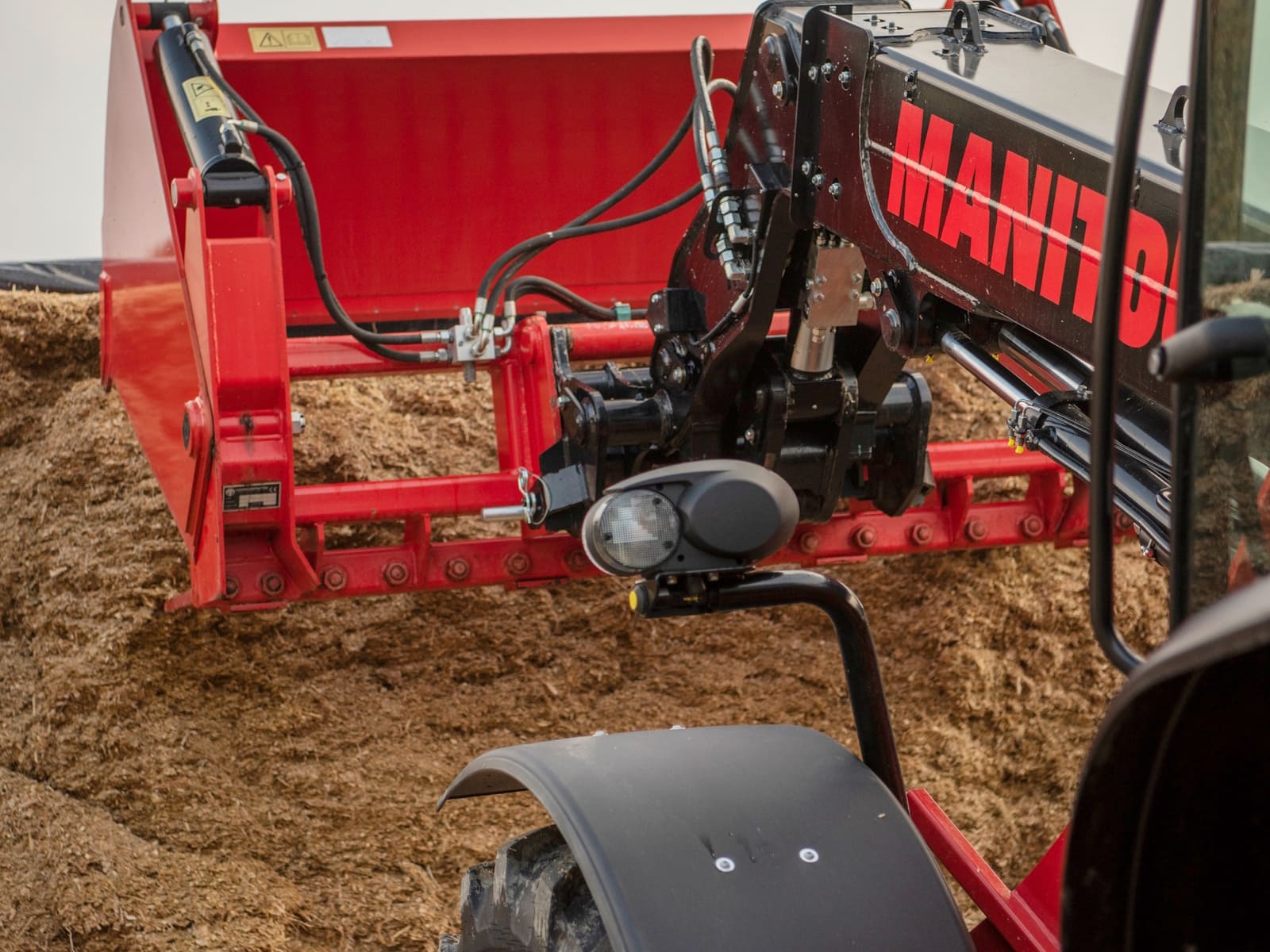

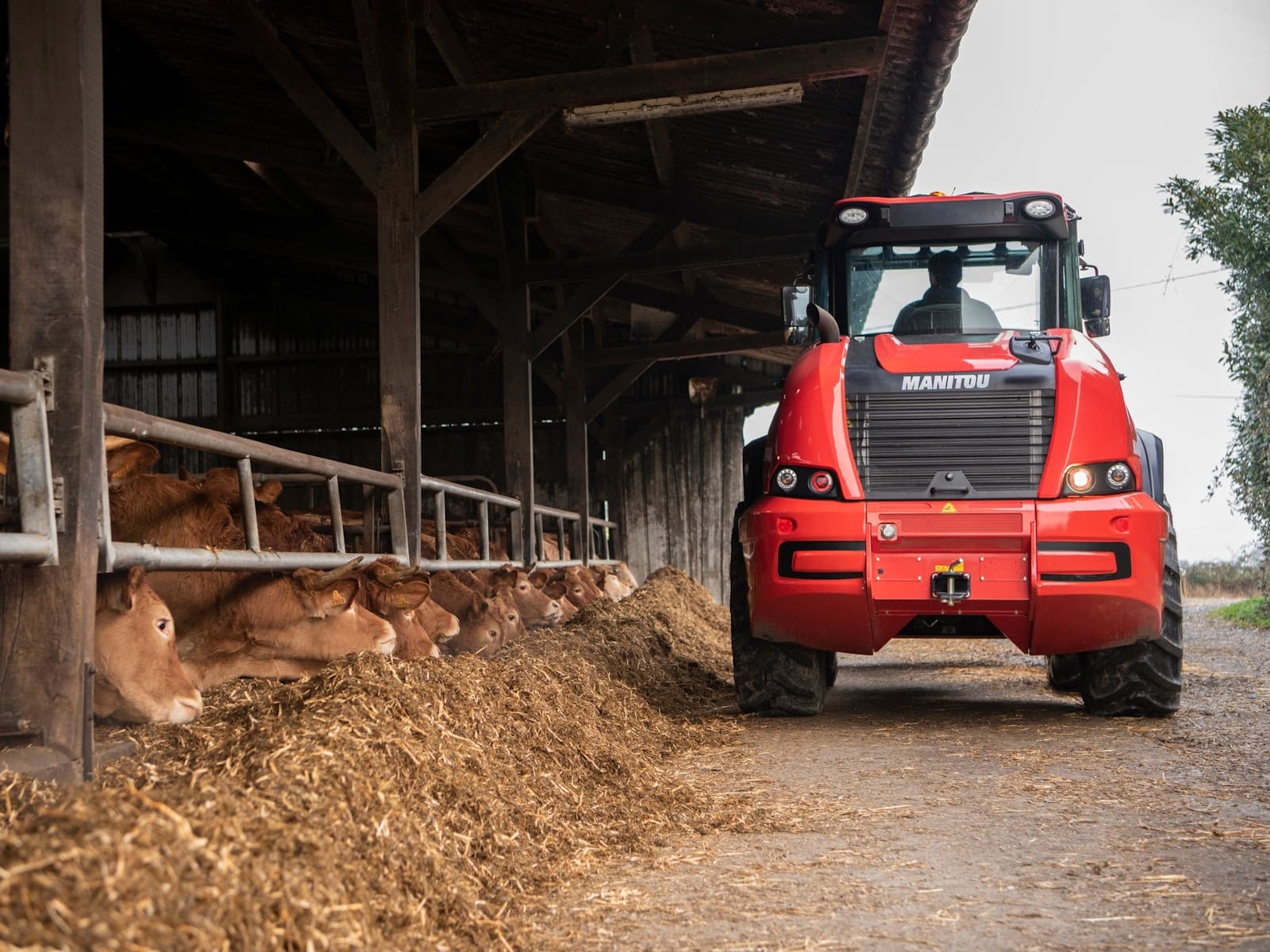

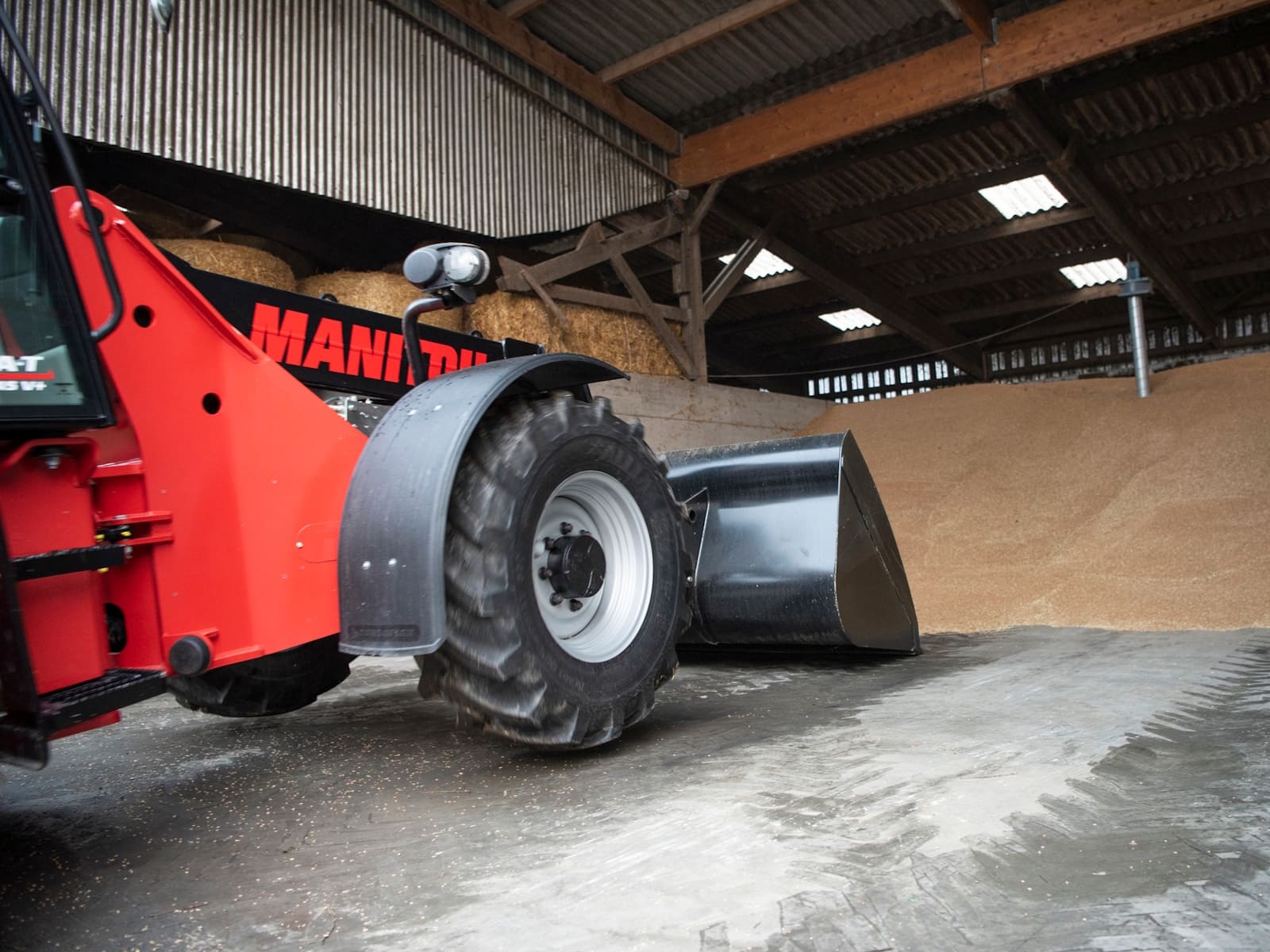

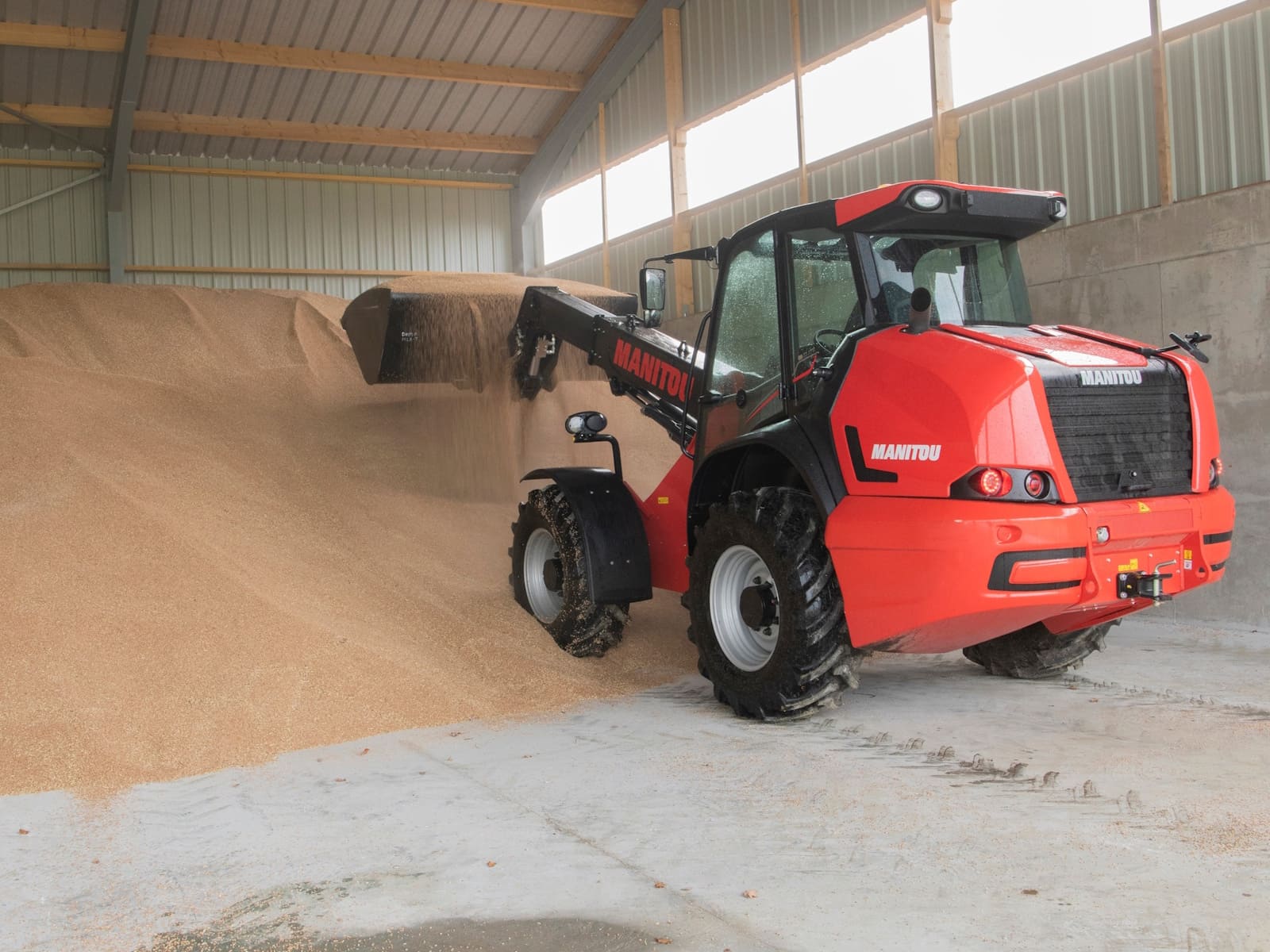

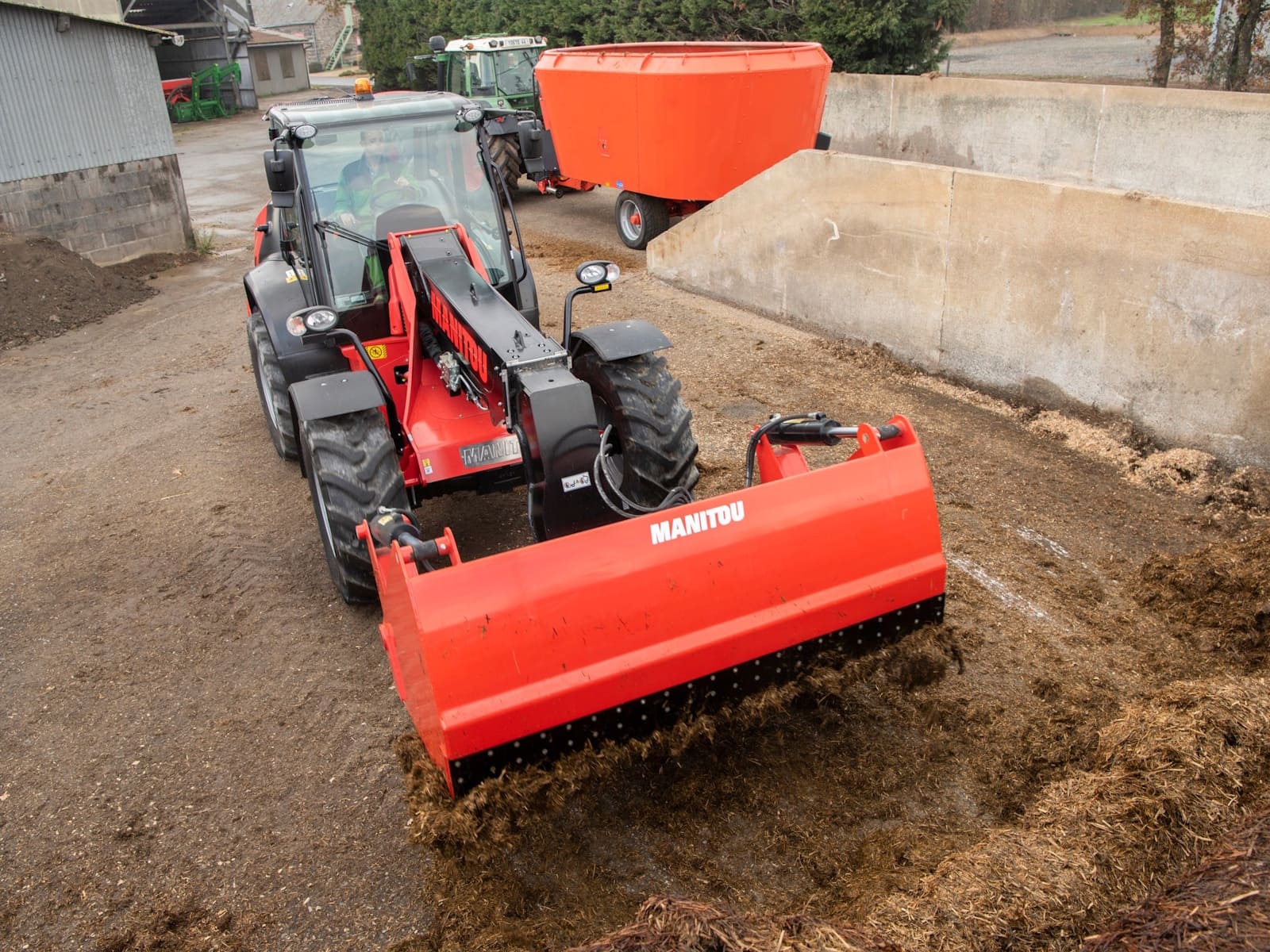

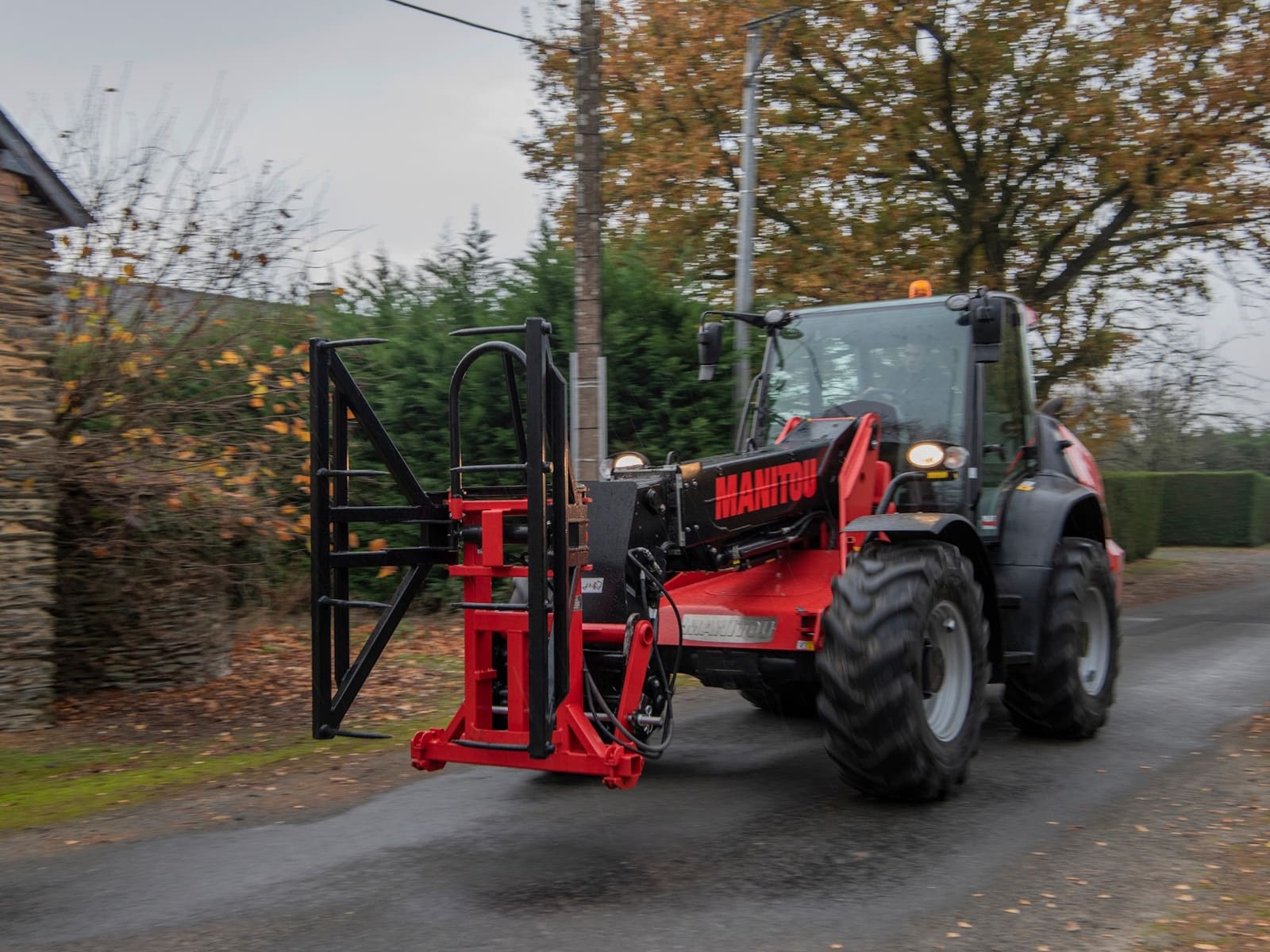

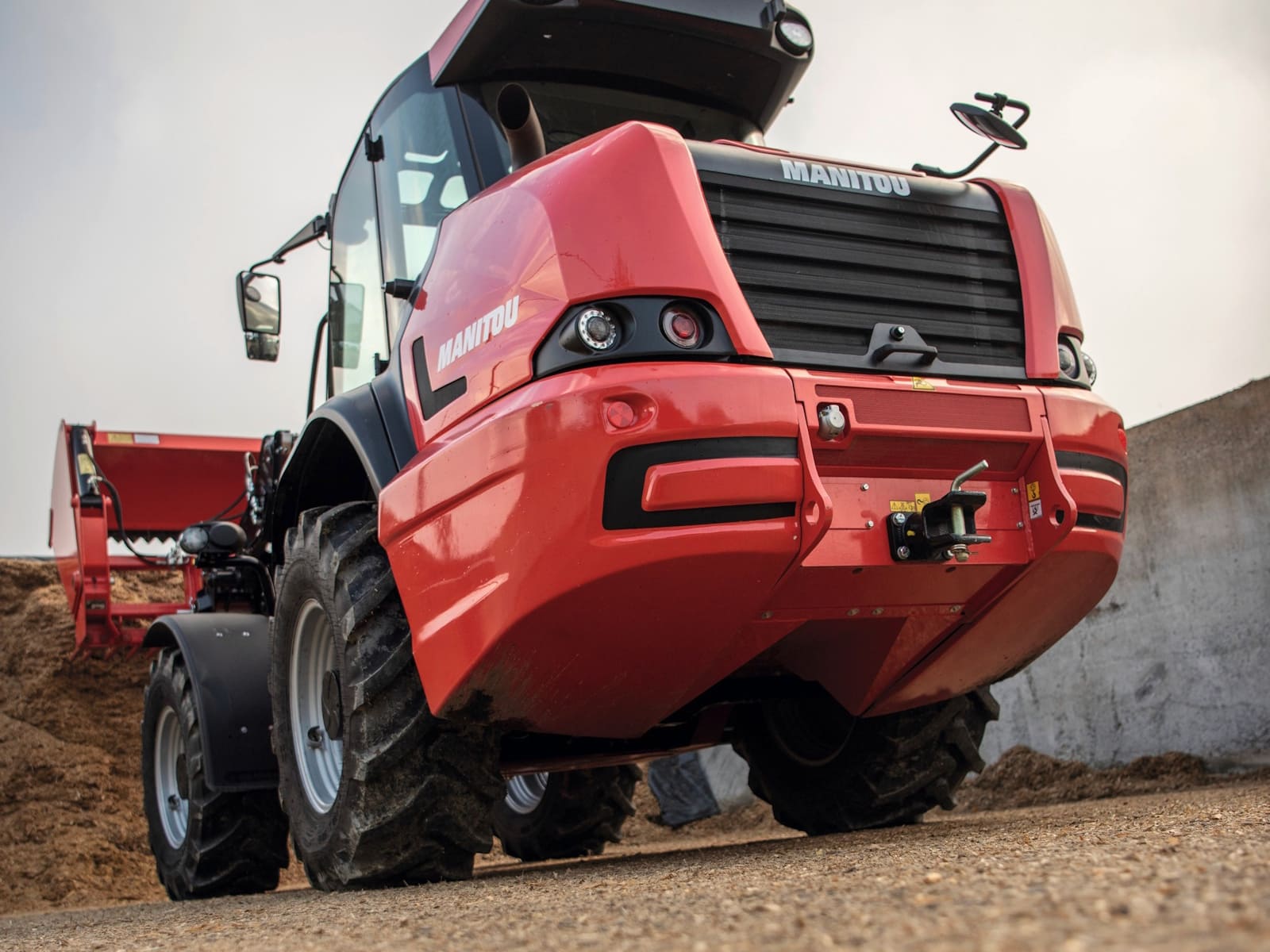

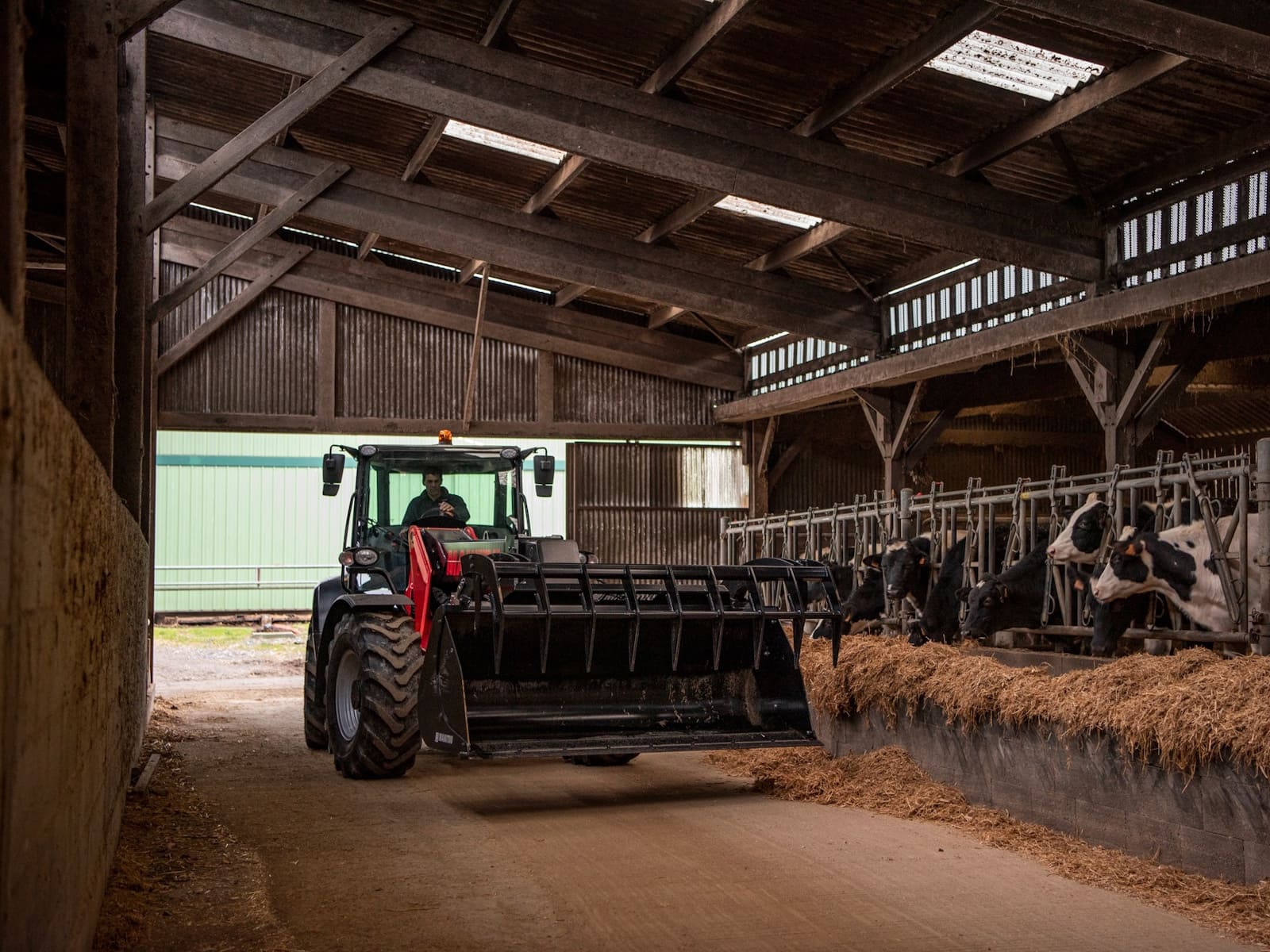

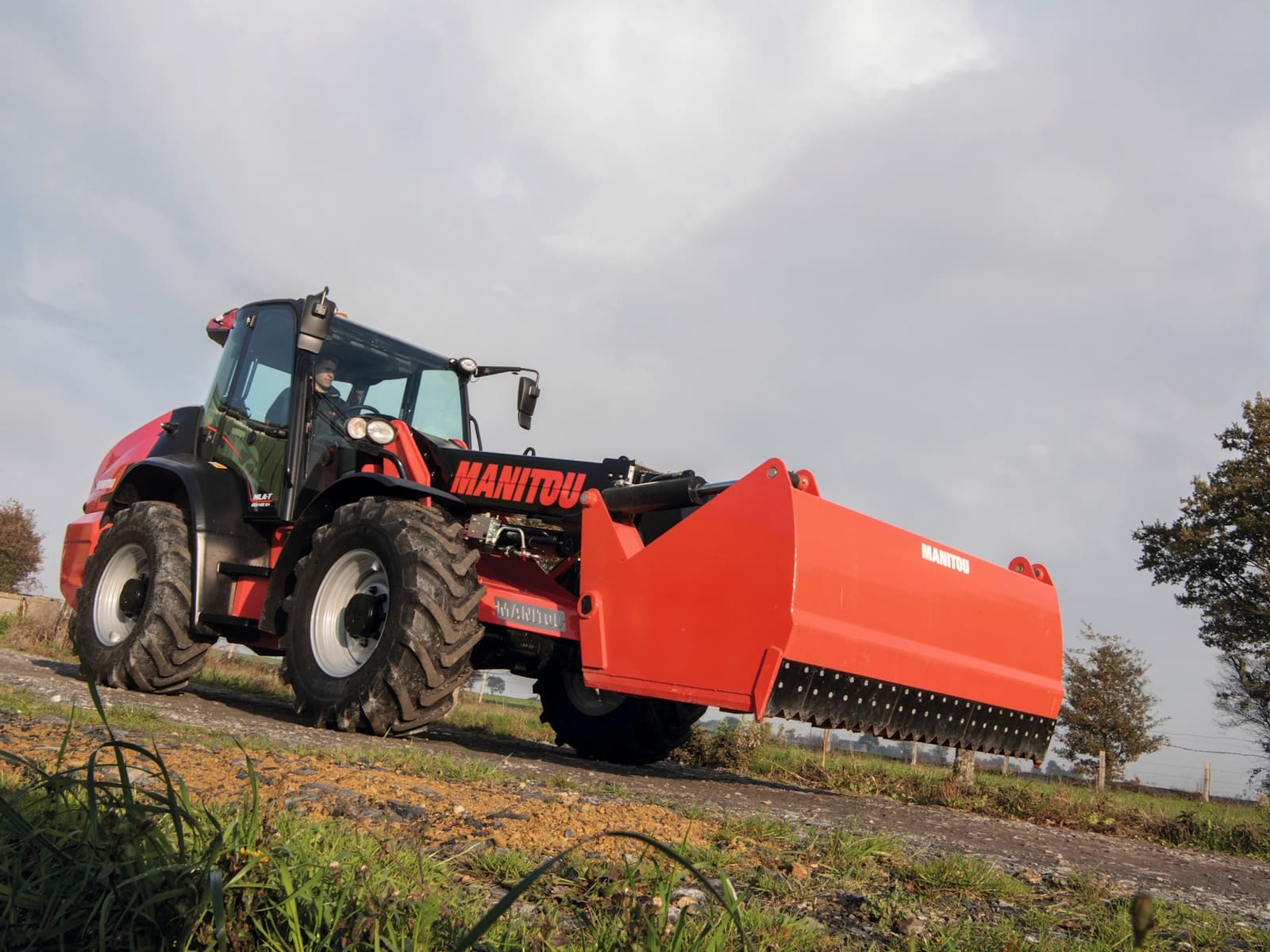

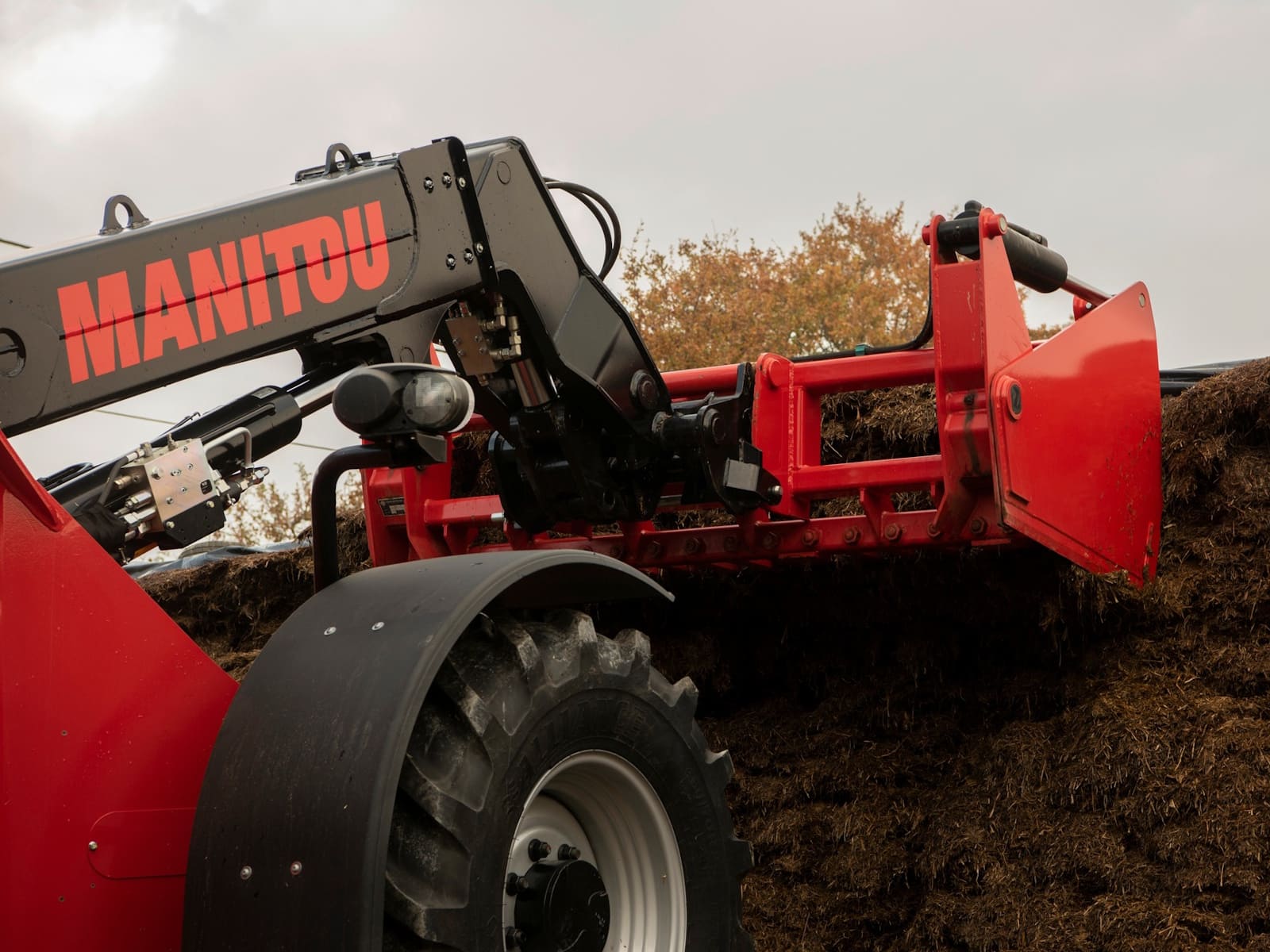

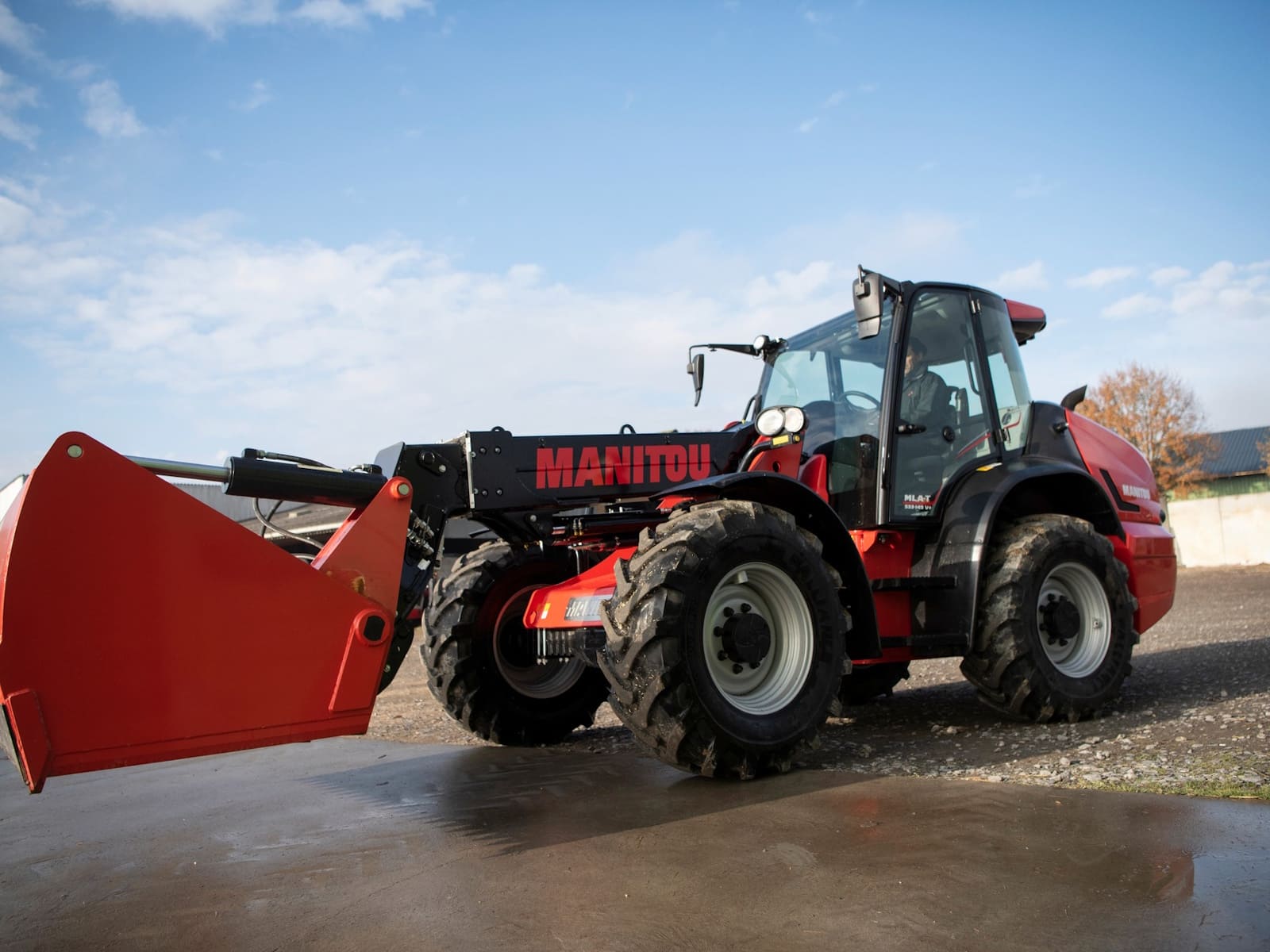

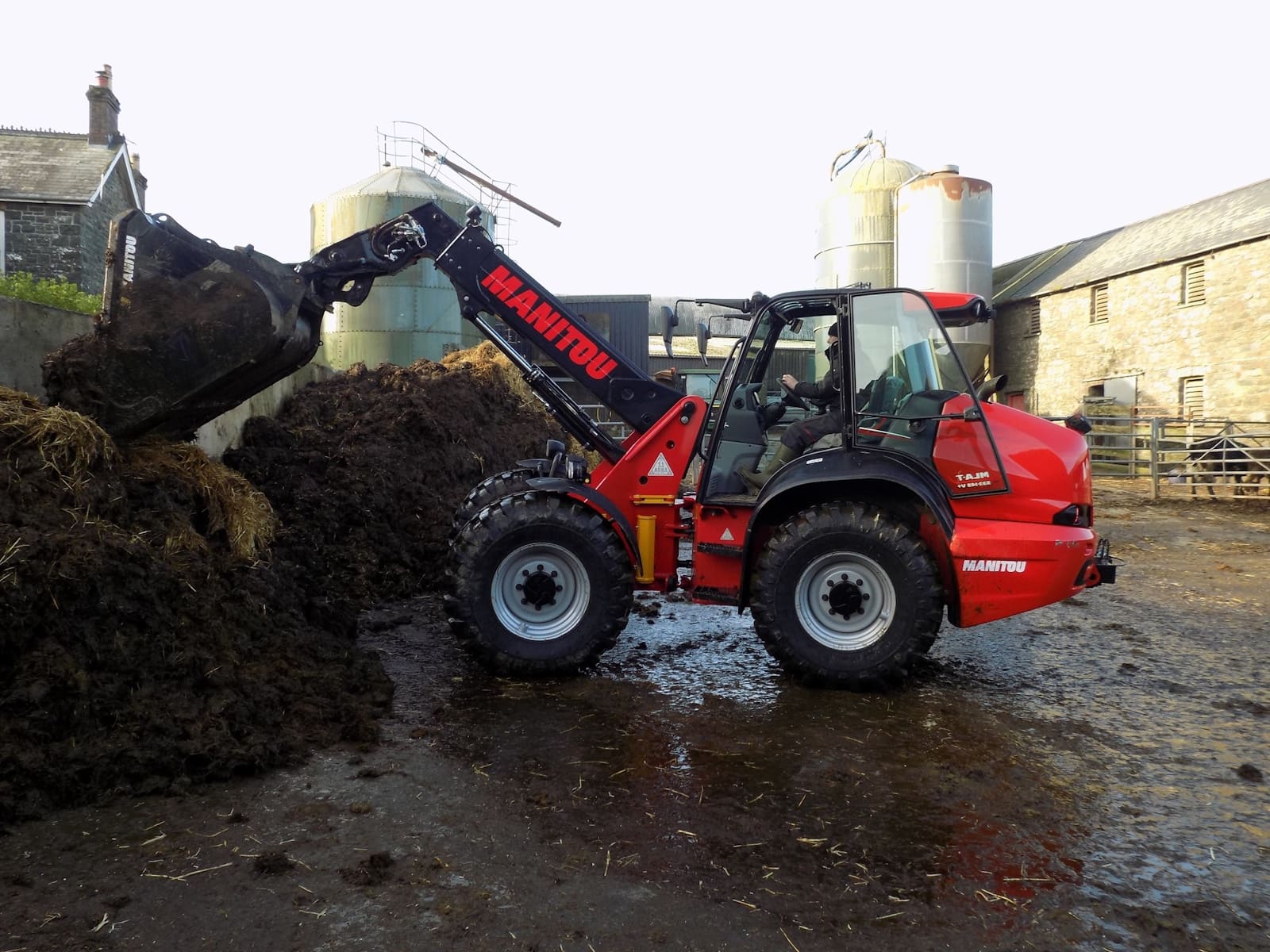

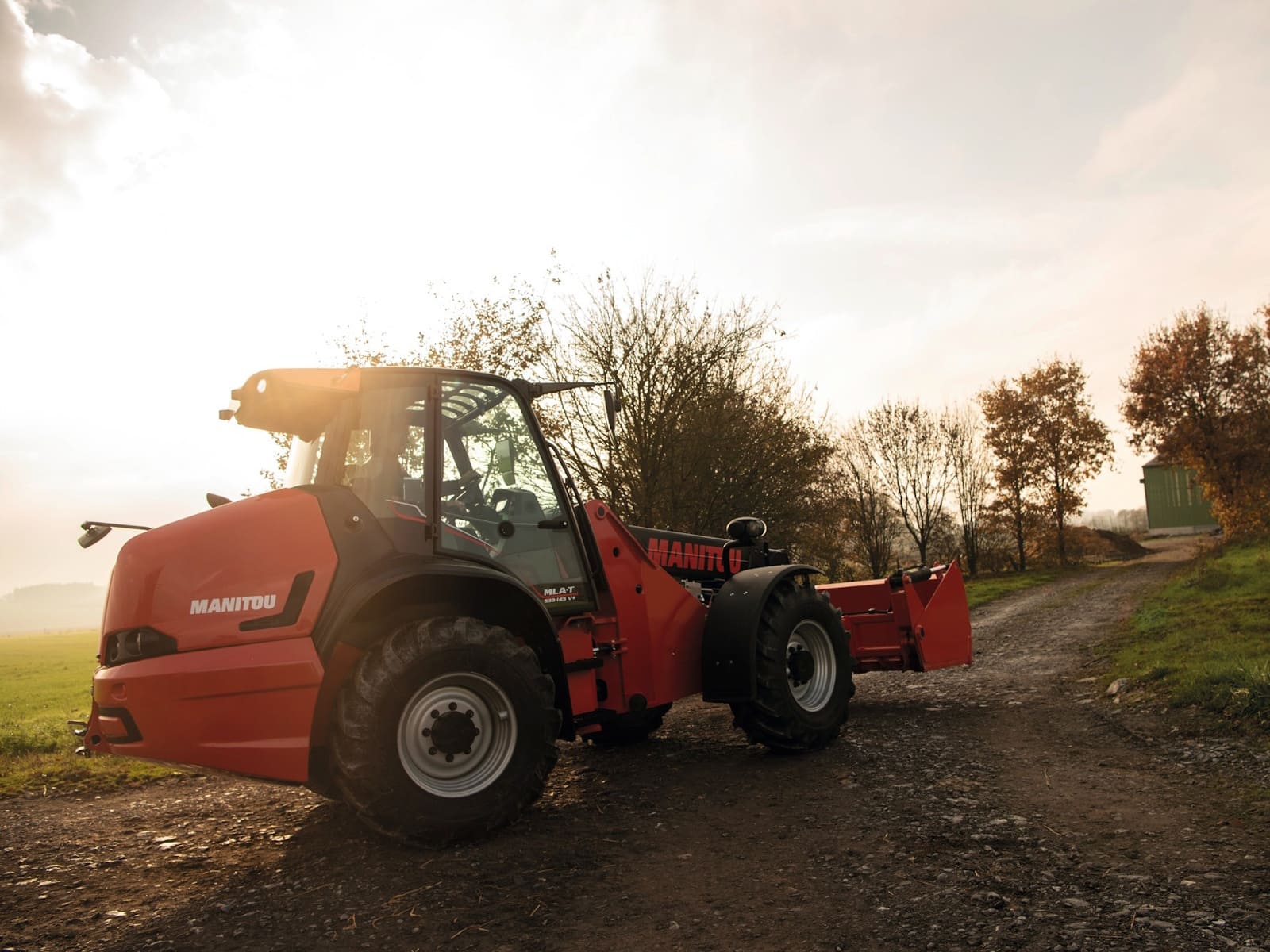

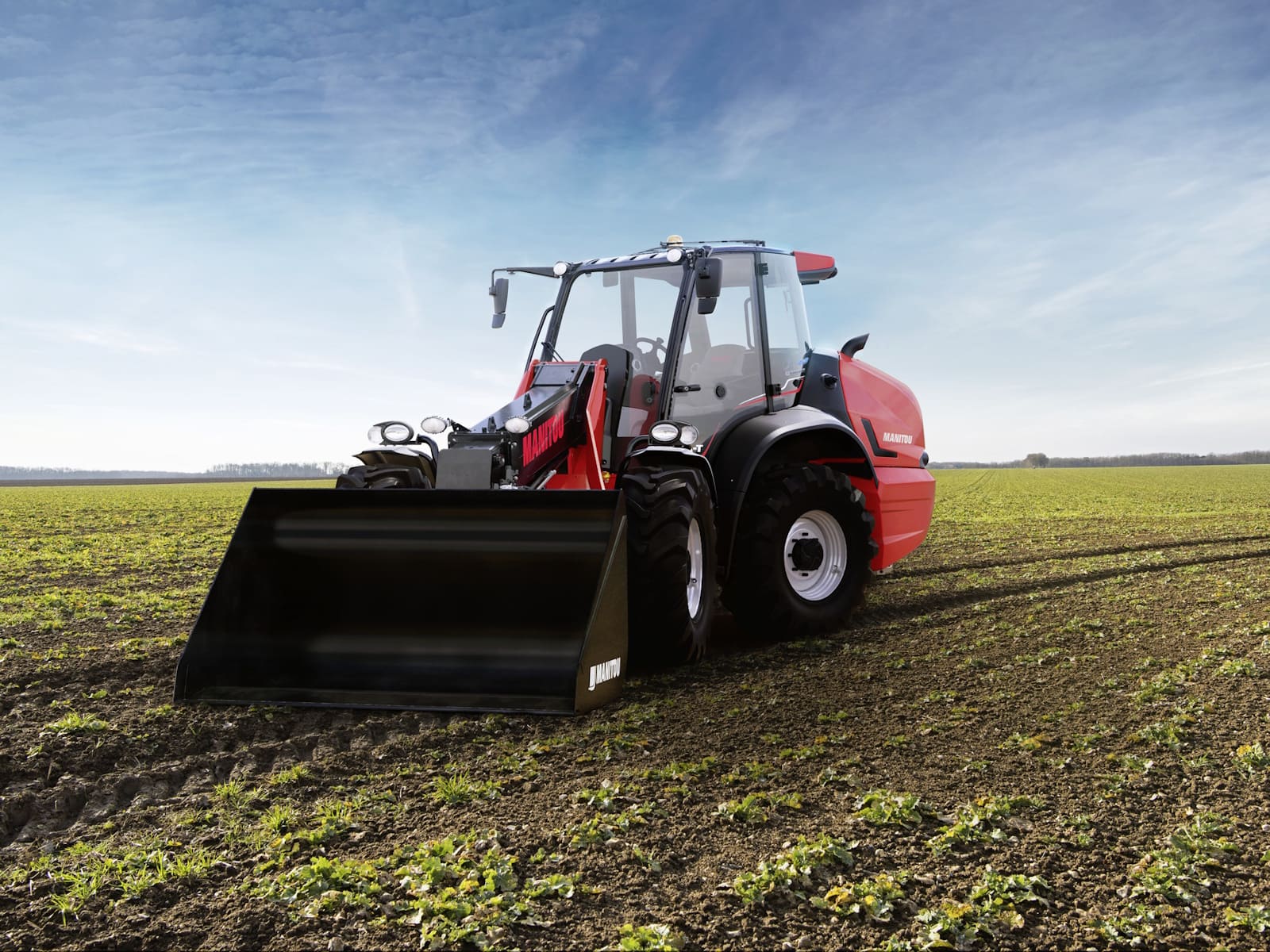

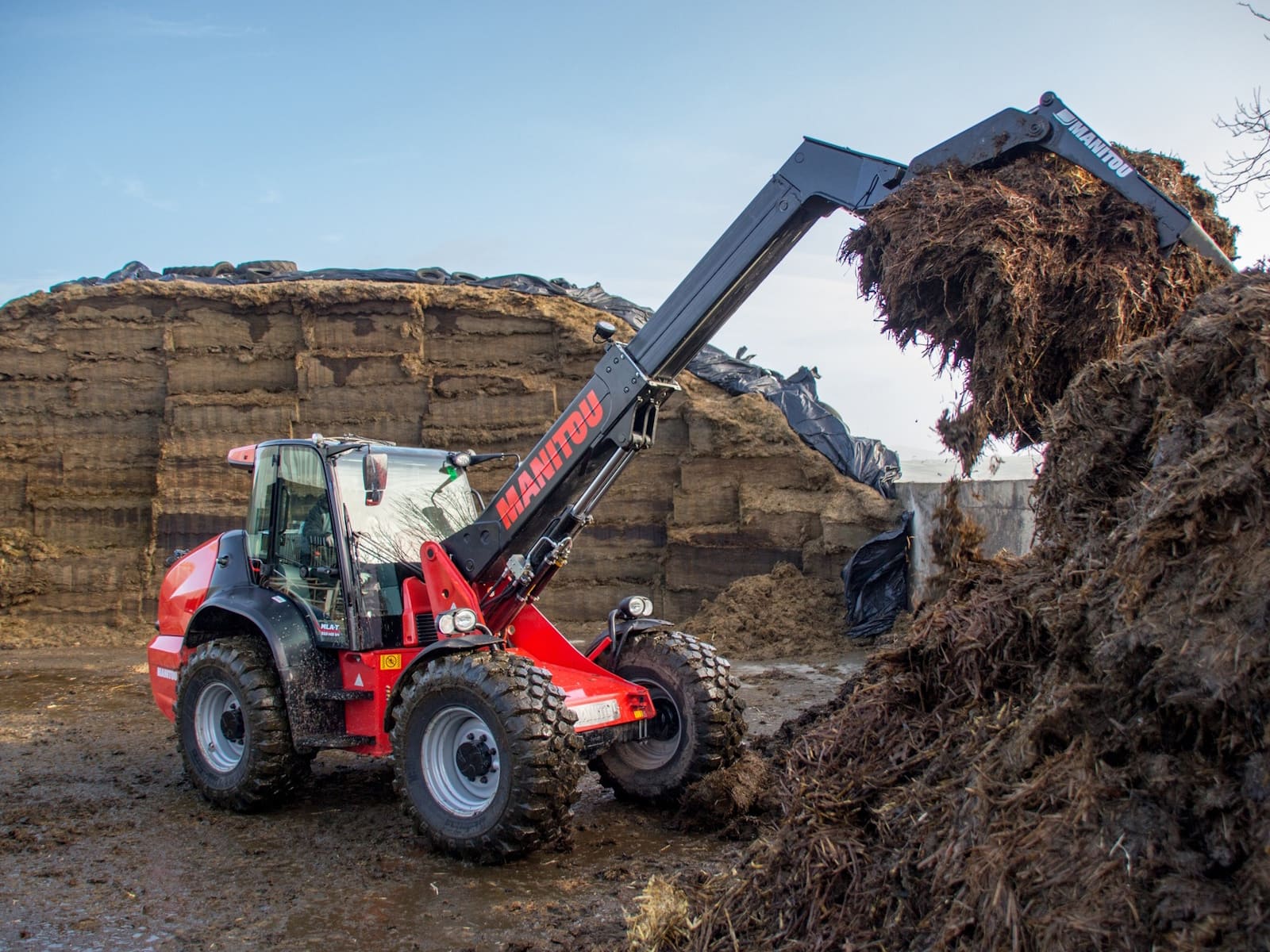

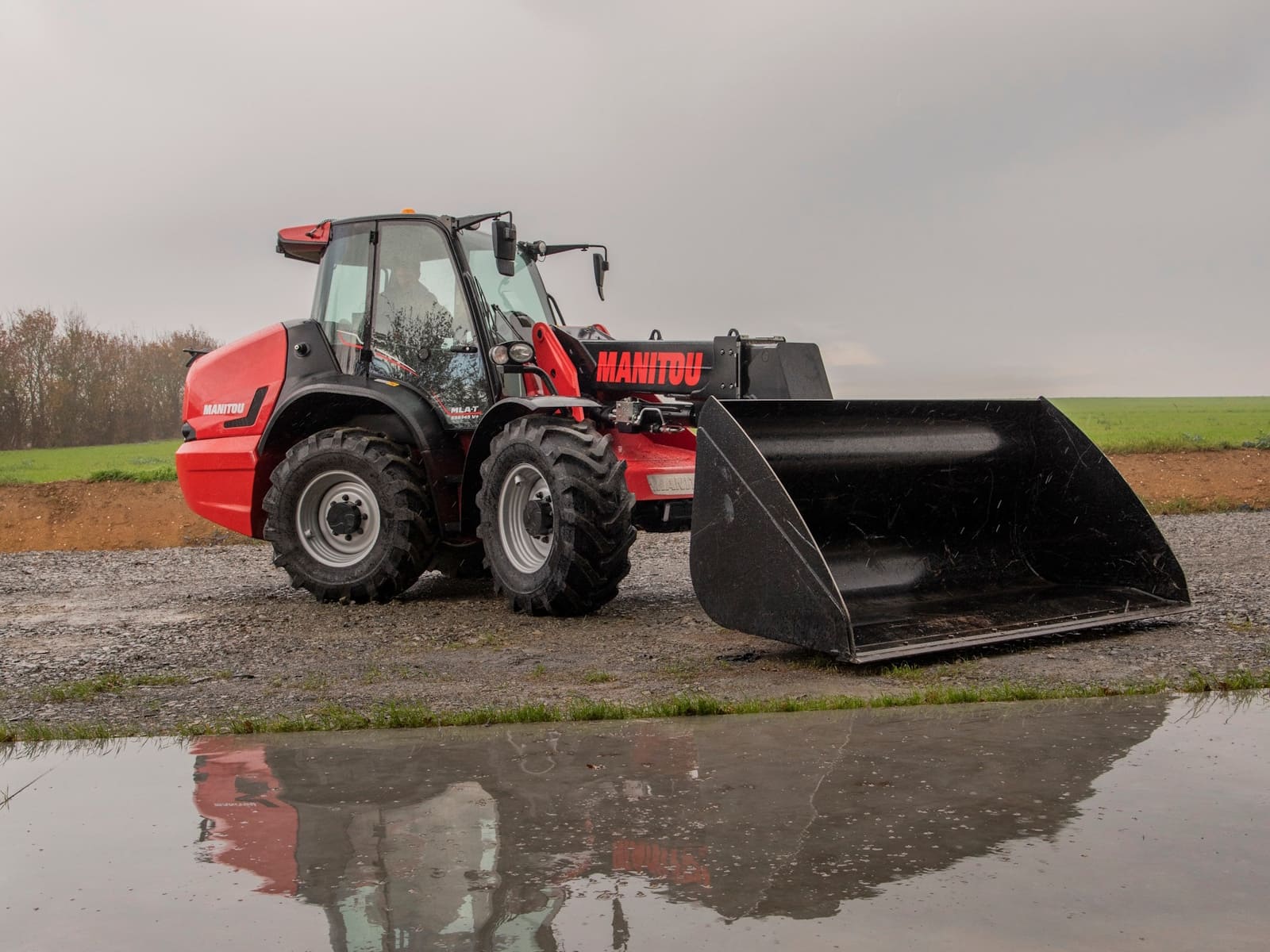

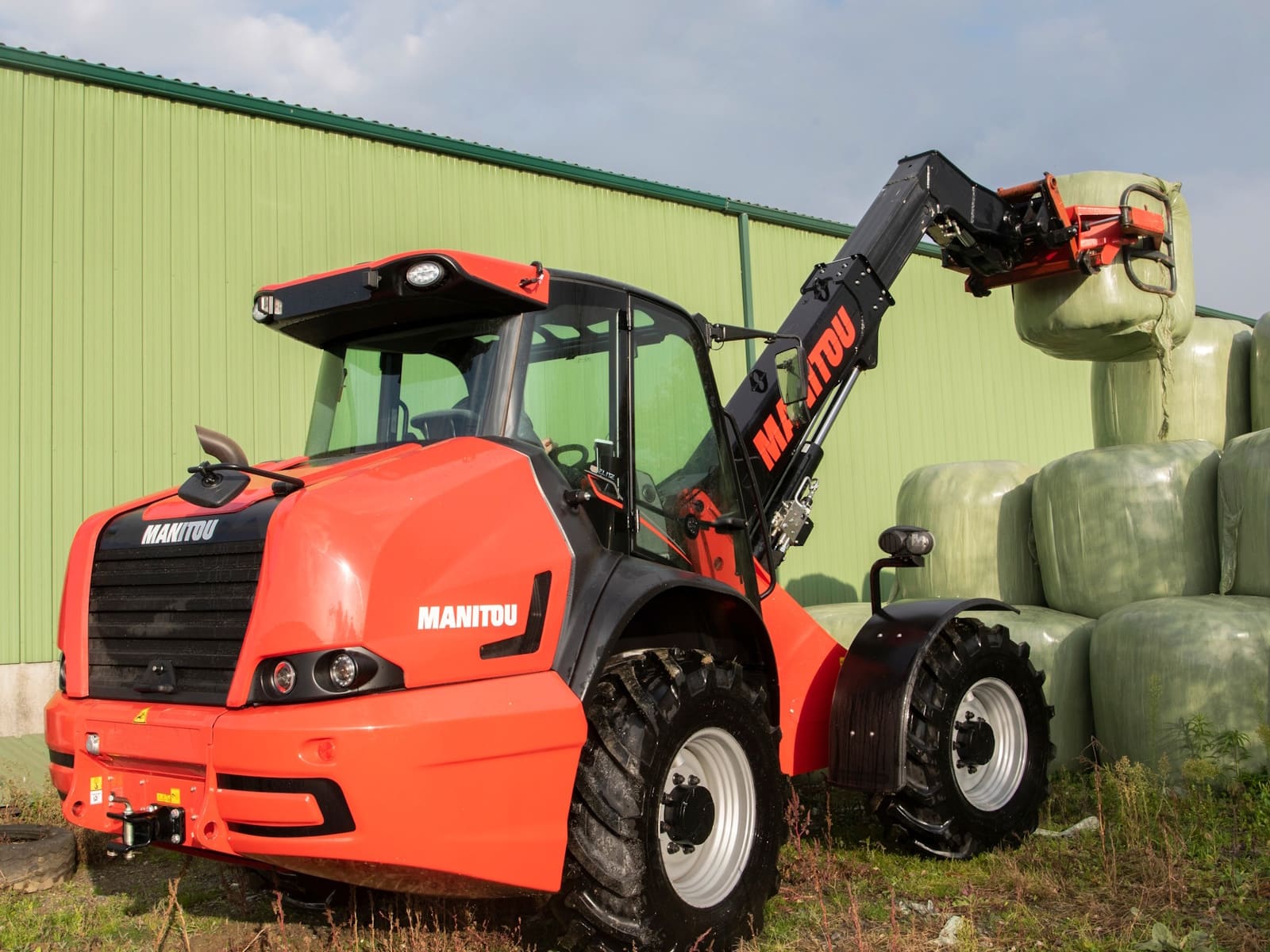

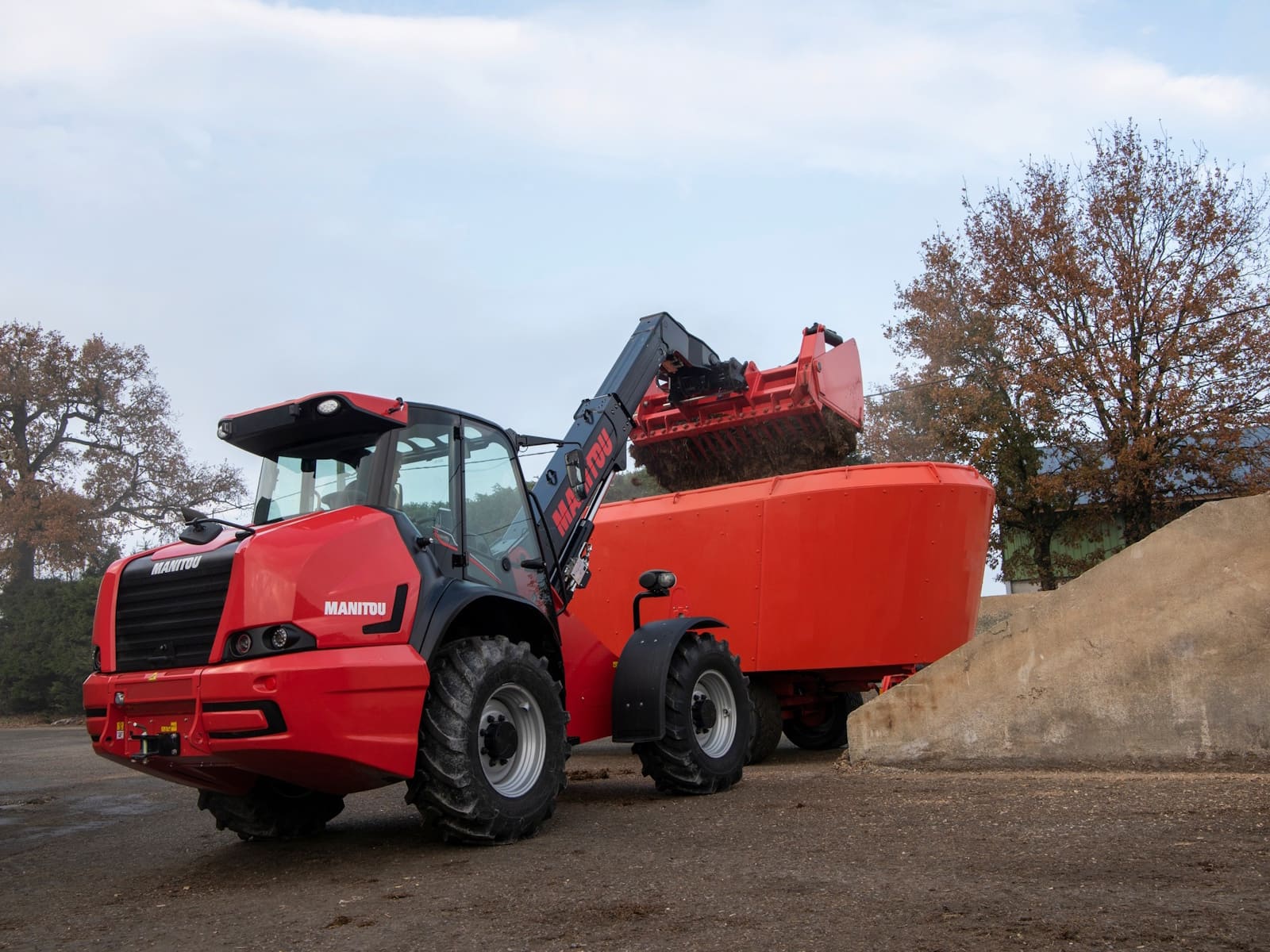

The MLA-T 533-145 V + is the newest articulated telescopic loaders designed by Manitou. With a telescopic boom to cushion the jolts while traveling with or without load, the 533-145 V + makes your daily handling jobs easier. It's designed with innovative features on the agricultural market such as; 4 wheel drive and steering, 45 degree articulation, connected system, possibility of changing attachments in just a few seconds (buckets, clamps, forks ...) to overall increase productivity on the jobsite. This all-terrain telescopic loader has flow sharing hydraulics with combined movements and total control for the operator as a result. The MLA T-533-145 V+, fits all your requirements to effectively help you in all of your handling operations.
Info
Industry
Agriculture
Make
Manitou Group
Model
MLA-T 533-145 V+ - ST5
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Load Capacity
7275 lb
Height
9 ft 3 in | Max. lifting height: 17 ft 2 in
Notes
Max. outreach: 10 ft 8 in | Breakout force with bucket: 7560 daN | Tilt-up angle: 46 ° | Tilt-down angle: 43 ° | Articulation angle: 42 ° | Crowd: 5.30 s | Dump: 3.90 s | Number of gears (forward / reverse): Continuous / Continuous | Max. travel speed (may vary according to applicable regulations): 25 mph | Differential lock: Front and rear locking of the machine | Hydraulic pump type: Variable displacement load sensing pump | Hydraulic flow - Pressure: 40 US gpm / 4061 PSI | Drive hydraulic system pressure: 6527 PSI | Vibration on hands/arms: < 8 ft/s² | Cab certification: ROPS - FOPS cab (level 2)
Weight
Unladen weight (with forks): 23788 lb
Length
Overall length to carriage (with hitch): 18 ft 4 in | Overall length less bucket: 18 ft 8 in
Wheelbase
8 ft 11 in
Width
7 ft | Overall cab width: 7 ft
Ground Clearance
1 ft 2 in

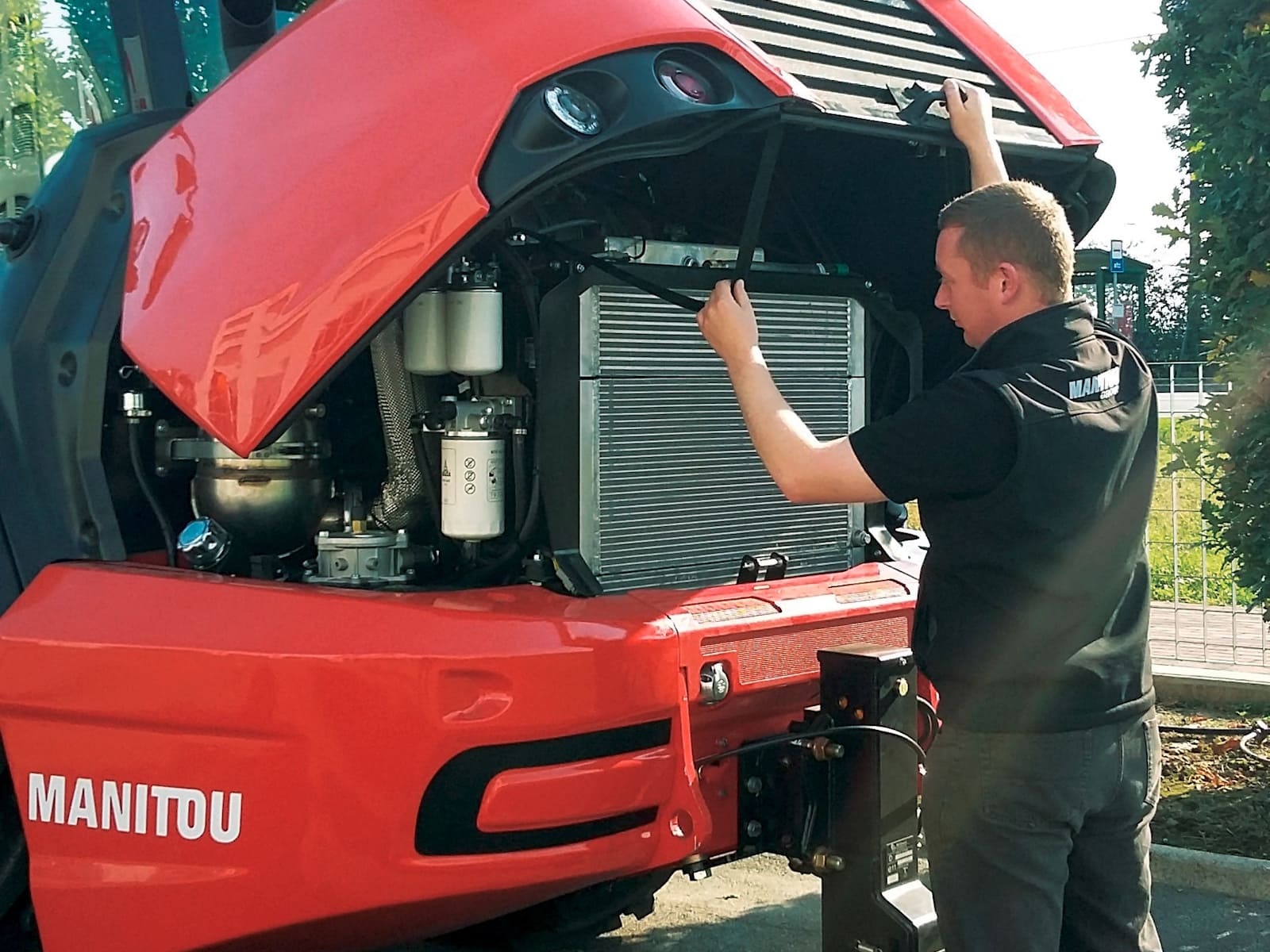

Engine
Deutz | Stage V | Engine cooling system: Water
Cylinders
4 - 220 in³
Power/Horsepower
143 Hp / 105 kW
Torque
443 ft/lbs / 1600 rpm
Transmission
CVT
Brakes
Parking brake: Automatic | Service brake: Hydraulic multidisc brake
Oil Capacity
Hydraulic oil: 40 US gal
Fuel Capacity
37 US gal | Diesel Exhaust Fluid (DEF) tank capacity: 5 US gal
