2026 Manitou Group MLA 7-75 H-Z
Get in Touch
Description

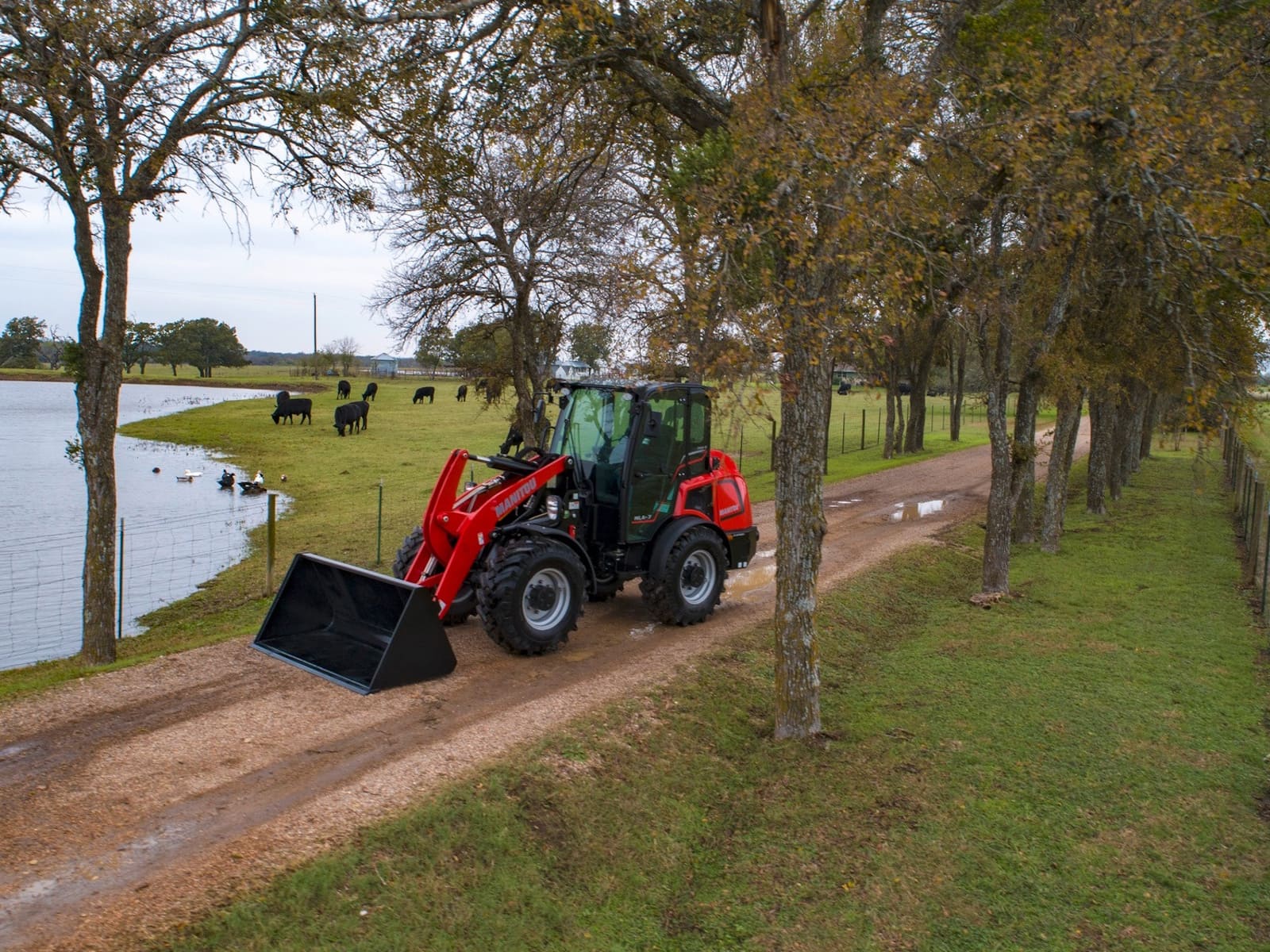

2026 Manitou Group MLA 7-75 H-Z
The Manitou MLA 7-75 is the largest wheel loader in the range with a standard lift arm. Similar to the smaller units, this machine did not make compromises in terms of comfort and performance! The hydrostatic transmission is smooth at low speed and very powerful in demanding circumstances. With gearshift and 100% diff lock controls on the joystick, the operator is always in control. With optional 30 kph and lift arm suspension, the MLA 7-75 will bring you in full comfort from one jobsite to another. The Z-bar loader linkage gives you the extra break-out force, return to dig and parallel guidance. Whether in agricultural or in construction environment, this wheel loader performs at its best in tough conditions and never lets you down.
Info
Industry
Agriculture
Make
Manitou Group
Model
MLA 7-75 H-Z
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Notes
Static tipping load with bucket (straight): 6956 lb | Static tipping load with bucket (full turn): 5360 lb | Static tipping load with forks (straight): 5280 lb | Static tipping load with forks (full turn): 4057 lb | Breakout force with bucket: 5743 daN | Tilt-up angle: 45 ° | Tilt-down angle: 45 ° | Articulation angle: 45 ° | Crowd: 4.77 s | Dump: 2.84 s | Number of gears (forward / reverse): 2 / 2 | Max. travel speed (may vary according to applicable regulations): 25 mph | Travel speed (laden): 12 mph | Differential lock: Front and rear locking of the machine | Hydraulic pump type: Gear pump | Hydraulic flow - Pressure: 18 US gpm / 2901 PSI | Drive hydraulic system pressure: 6092 PSI | Vibration on hands/arms: < 8 ft/s² | Cab certification: ROPS - FOPS cab (level 1)
Height
Max. height of bucket pivot point: 10 ft 11 in | Max. lifting height (below forks): 10 ft 3 in | Reach at max. height: 2 ft 4 in | Overall height with FOPS removed and ROPS folded: 6 ft 6 in | Overall height with 4 posts canopy: 8 ft 1 in | Overall height with cab: 8 ft 1 in
Weight
Unladen weight (with forks) with 4-post canopy: 9753 lb | Unladen weight (with forks): 10141 lb
Length
Overall length to carriage (with hitch): 14 ft 2 in
Wheelbase
6 ft 7 in
Width
Overall width of 4 posts canopy: 4 ft 2 in | Overall cab width: 4 ft 2 in | Overall width less bucket: 5 ft 5 in
Ground Clearance
1 ft 3 in
Engine
Deutz | Stage V | Engine cooling system: 2 radiators water + hydraulic oil
Cylinders
4 - 177 in³
Power/Horsepower
75 Hp / 55.40 kW
Torque
276 ft/lbs / 1600 rpm
Transmission
Hydrostatic
Brakes
Parking brake: Manual | Service brake: Hydraulic drum brake on front axle, acting on all 4 wheels
Oil Capacity
Hydraulic oil: 20 US gal
Fuel Capacity
25 US gal
