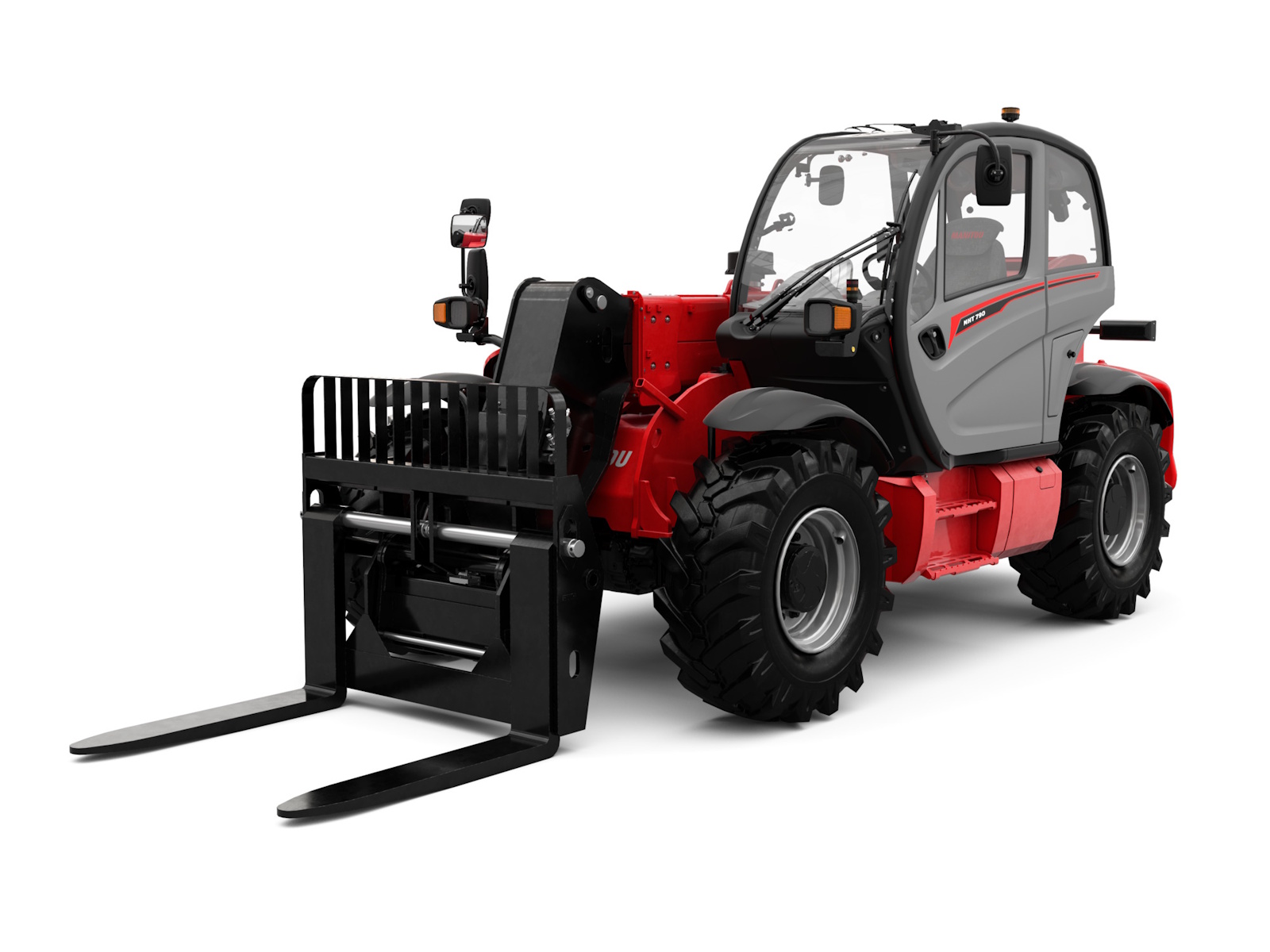

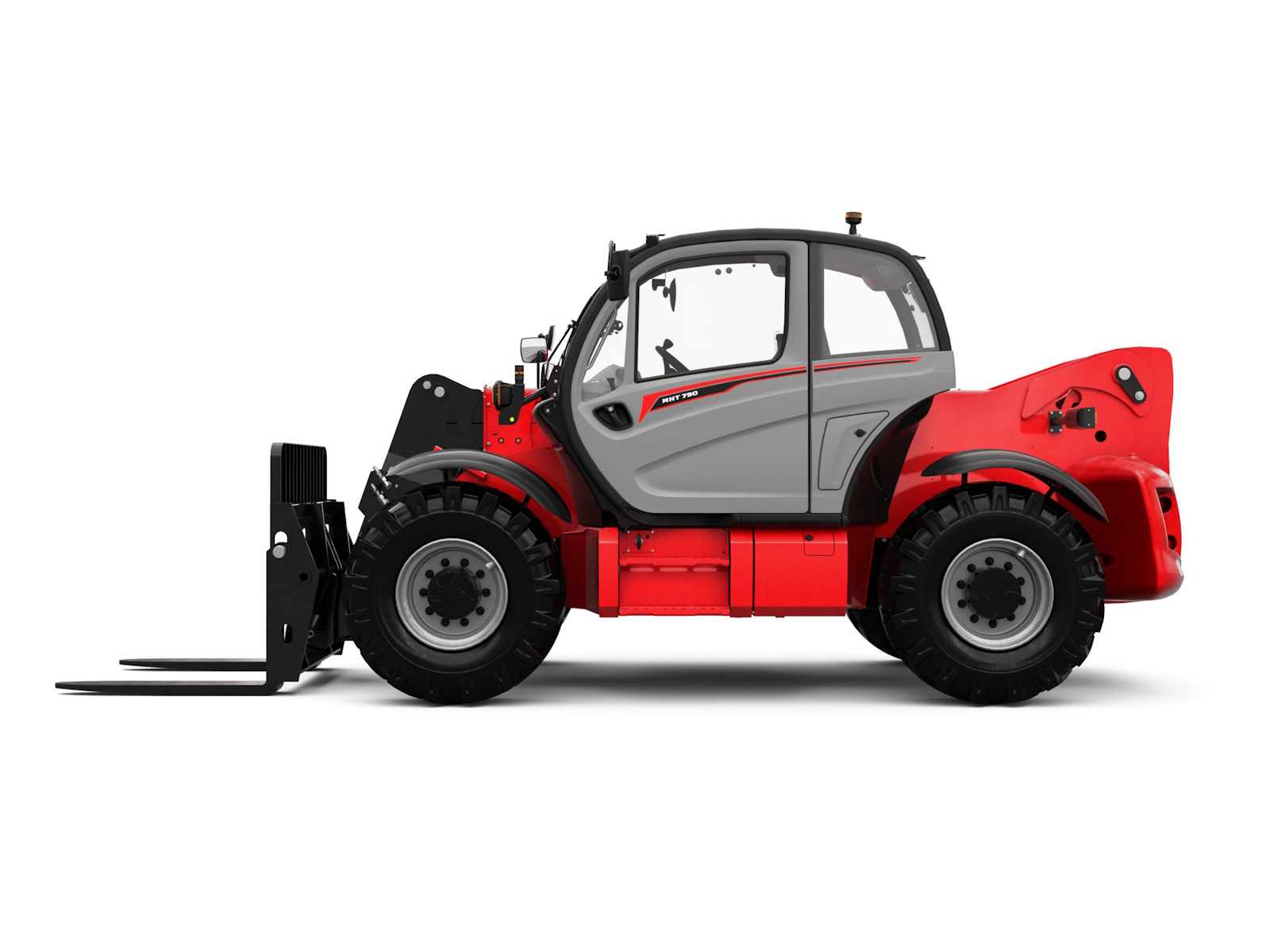

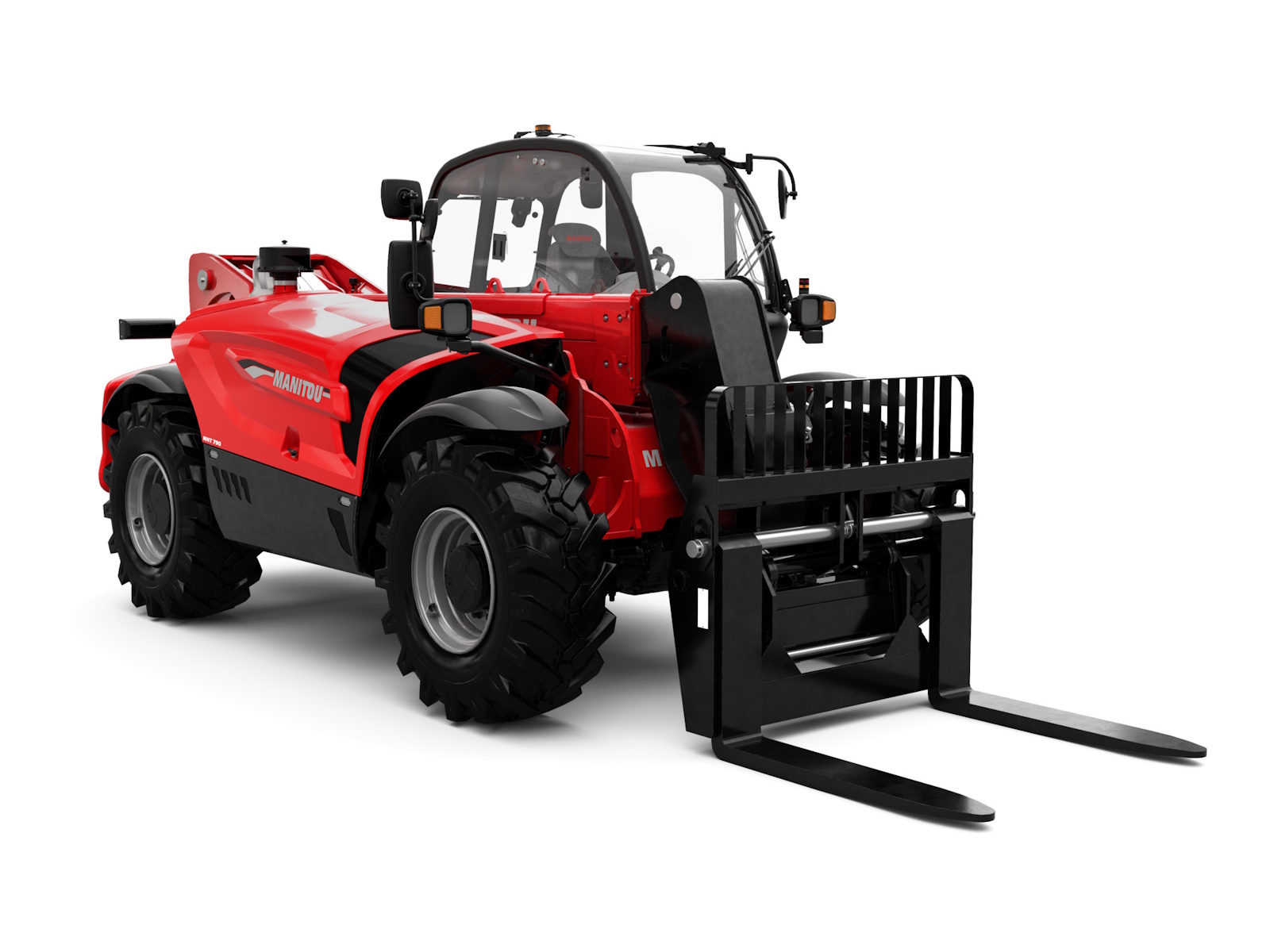

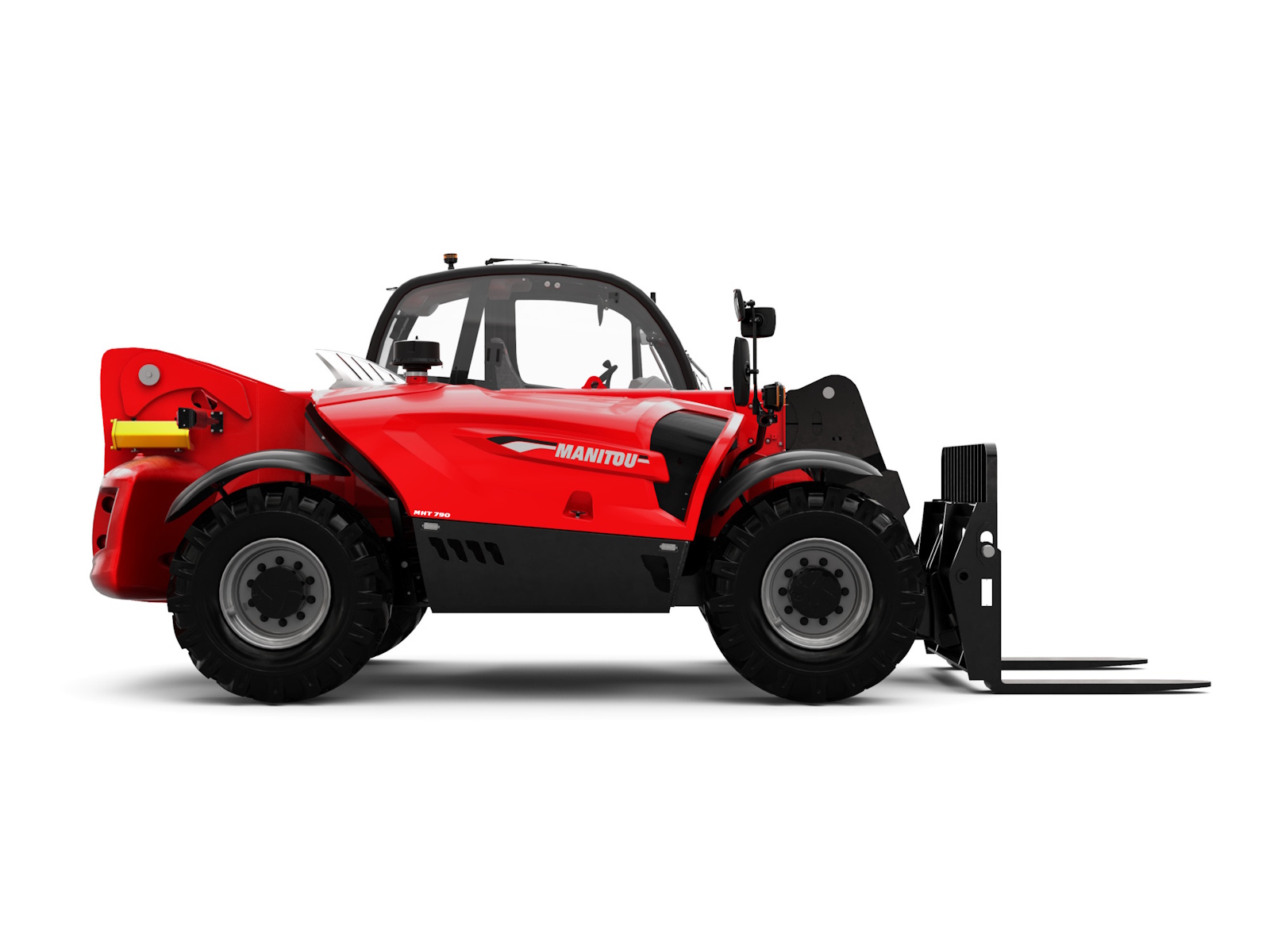

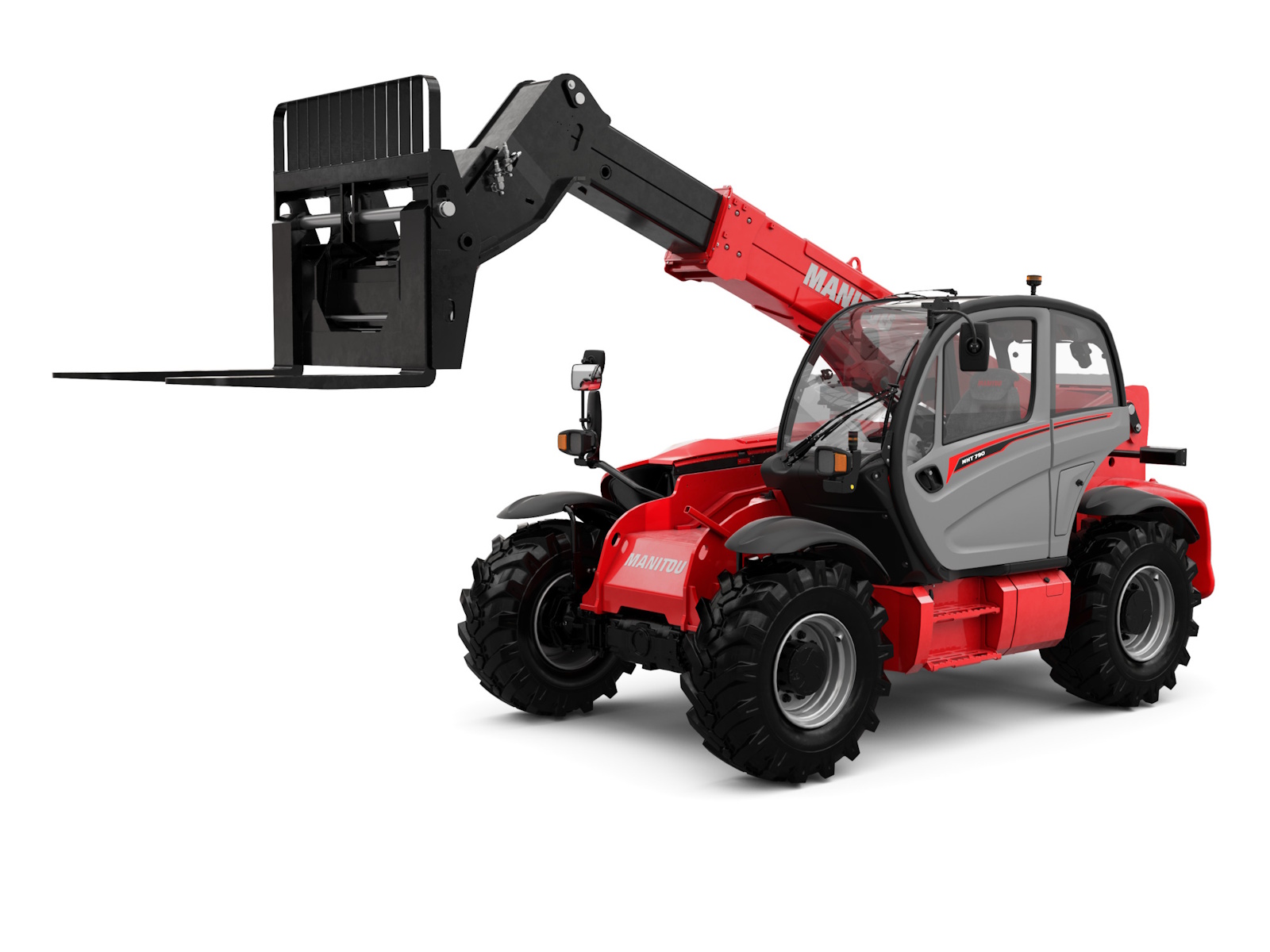

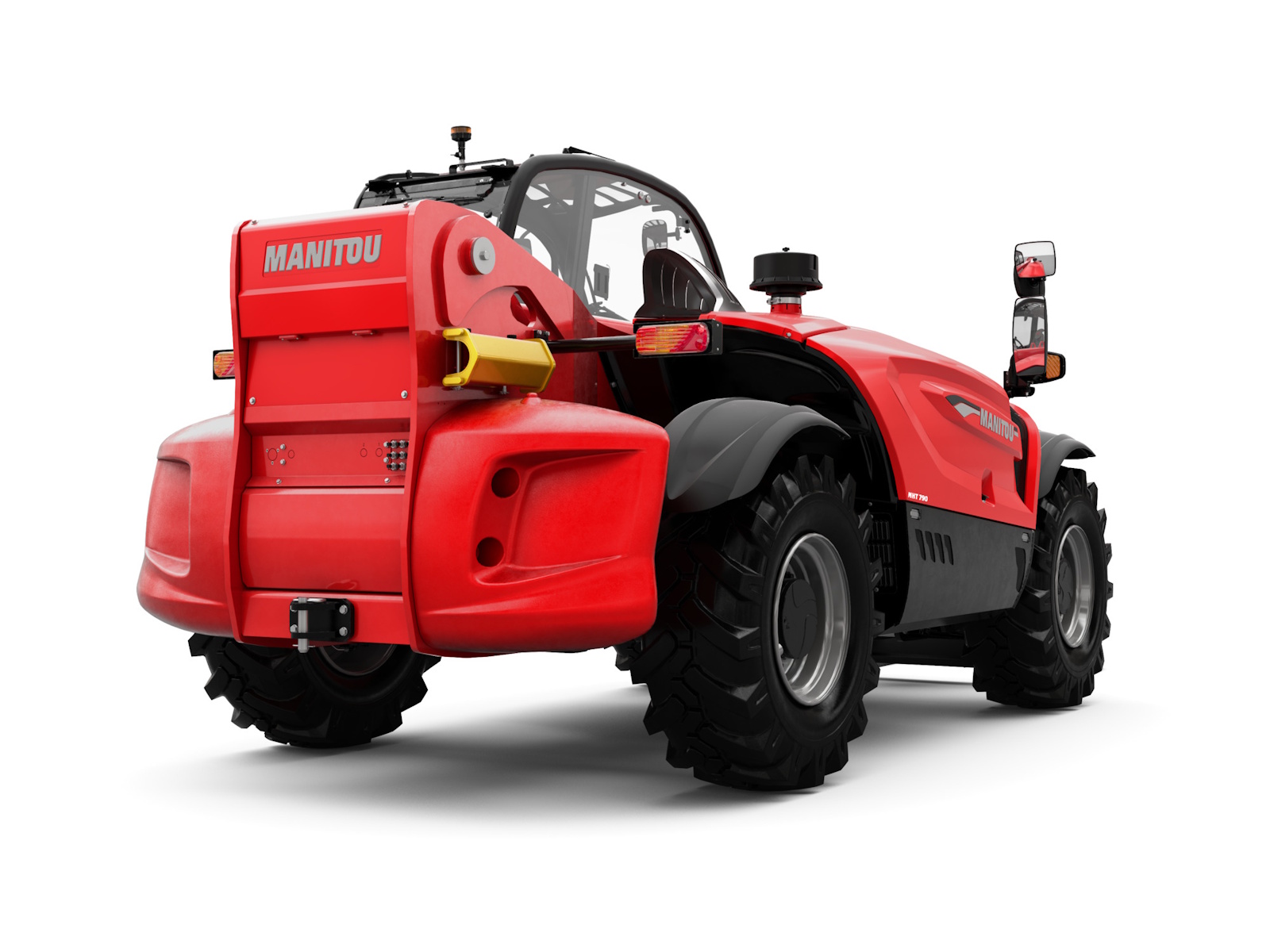

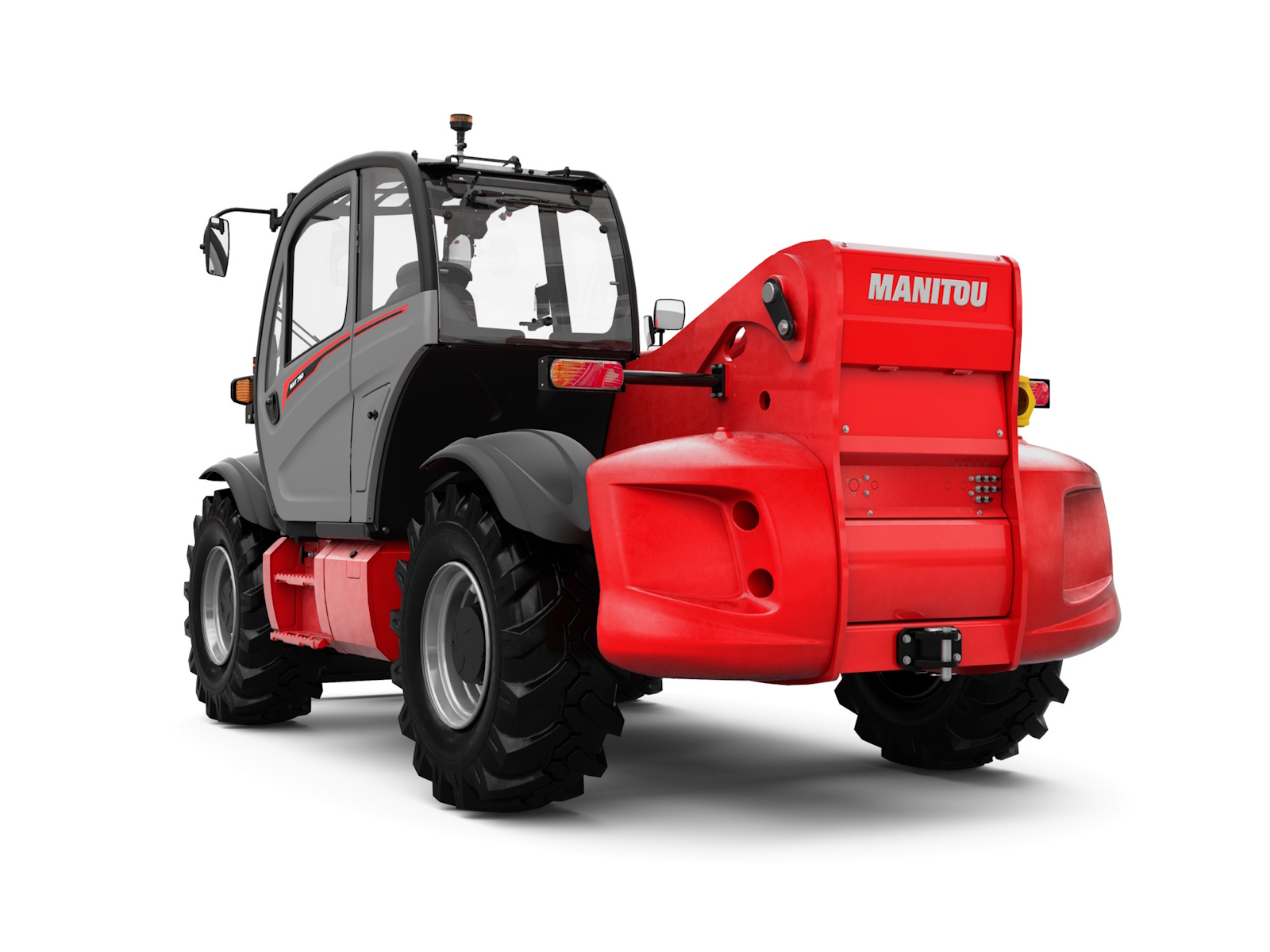

2026 Manitou Group MHT 790 ST5

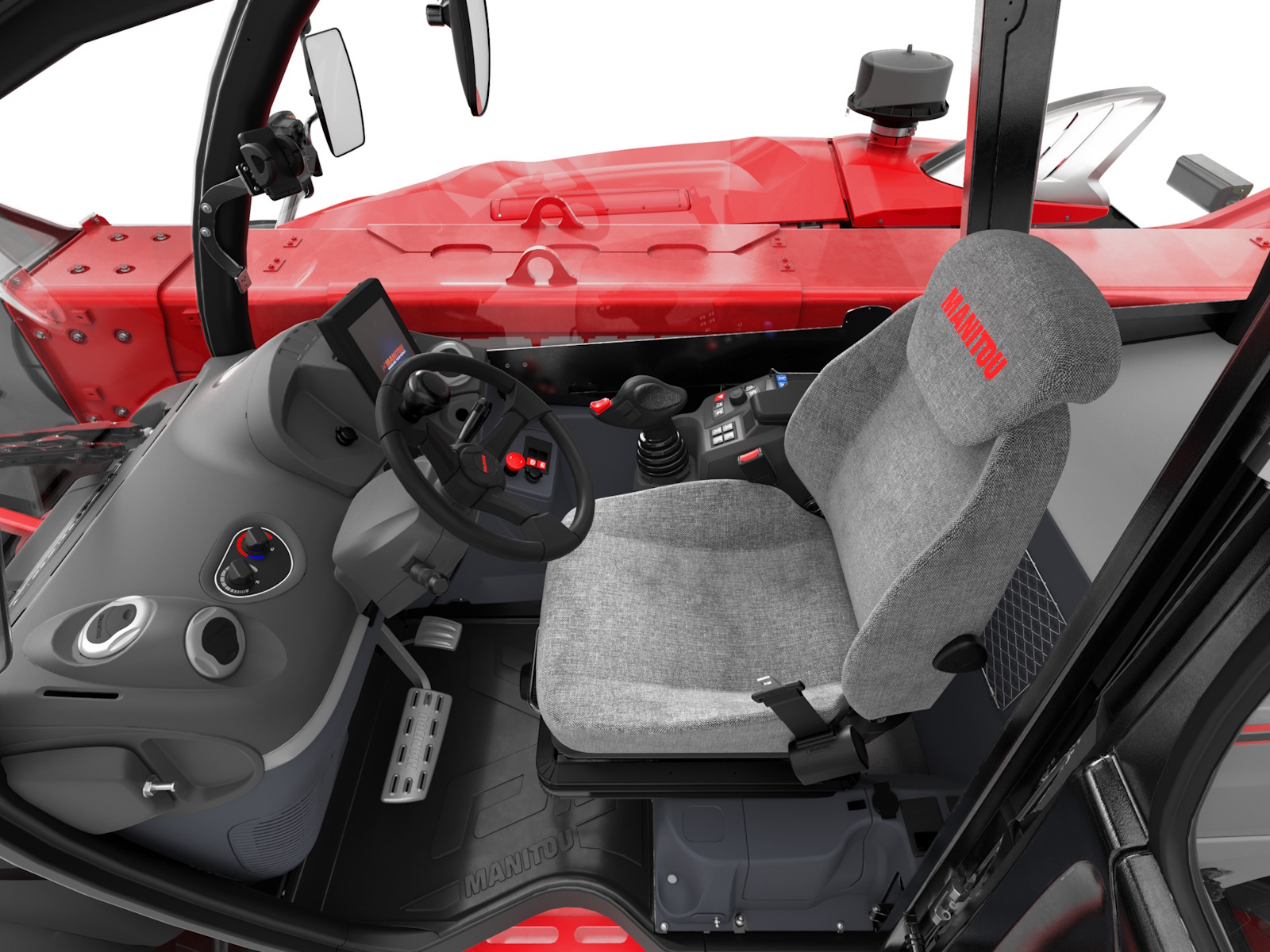

The MHT 790 is a telescopic handler with a capacity of 9 tonnes and a maximum lifting height of 7 metres. It is equipped with a 145 hp engine and a hydrostatic transmission that makes the movements extremely precise. Thanks to the 4 driving and steering wheels, it is easy to manoeuvre on all types of terrain in complete safety. The MHT 790 telescopic handler is used in construction, quarries and industry. It can be equipped with a wide range of attachments: forks, positioner, hook and winch, shovel, man basket and tyre grippers, cylinders and tubes. For maximum comfort, this machine is equipped with a panoramic, ergonomic cab, Easy Step access, JSM joystick and colour touch-screen display.
Info
Industry
Agriculture
Make
Manitou Group
Model
MHT 790 ST5
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Load Capacity
19842 lb
Notes
Load center of gravity: 24 in | Max. outreach: 12 ft 2 in | Tilt-up angle: 15 ° | Tilt-down angle: 109 ° | Engine cooling system: Water cooled | Drawbar pull: 10050 daN | Number of gears (forward / reverse): 2 / 2 | Max. travel speed: 22 mph | Gradeability (laden / unladen): 48.10 % / 37.40 % | Hydraulic pump type: Variable displacement pump | Hydraulic flow - Pressure: 49 US gpm - 3916 PSI | Noise to environment (LwA): 107 dB | Vibration on hands/arms: < 8 ft/s² | Noise at driving position (LpA) tested following NF EN 12053 norm: 75 dB | Cab certification: Cabin ROPS - FOPS level 2 | Controls: JSM
Height
Max. lifting height: 22 ft 4 in | 8 ft 4 in
Length
21 ft | Length to face of forks: 17 ft 1 in | Forks: 47 in
Weight
Unladen weight (with forks): 29586 lb
Ground Clearance
1 ft 5 in
Wheelbase
9 ft 5 in
Width
8 ft 1 in | Overall cab width: 3 ft 1 in | Forks: 8 in
Turning Radius
External turning radius (over tyres): 15 ft 6 in
Tires
445/65 R22,5
Wheels
Number of front wheels / rear wheels: 2 / 2 | Drive wheels (front / rear): 2 / 2
Steering
2 wheel steer, 4 wheel steer, Crab mode
Engine
Yanmar | Stage V, Tier 4
Cylinders
Number of cylinders / Capacity of cylinders: 4 - 279 in³
Power/Horsepower
143 Hp / 105 kW
Torque
444 ft/lbs@1500 rpm
Transmission
Hydrostatic
Brakes
Parking brake: Automatic negative parking brake | Service brake: Oil-immersed multi-discs braking on front & rear axles
Oil Capacity
3 US gal | Hydraulic : 40 US gal
Fuel Capacity
44 US gal | Diesel Exhaust fluid (AdBlue® type) tank capacity: 5 US gal
