2026 Manitou Group ATJ 60 RC
Get in Touch
Description

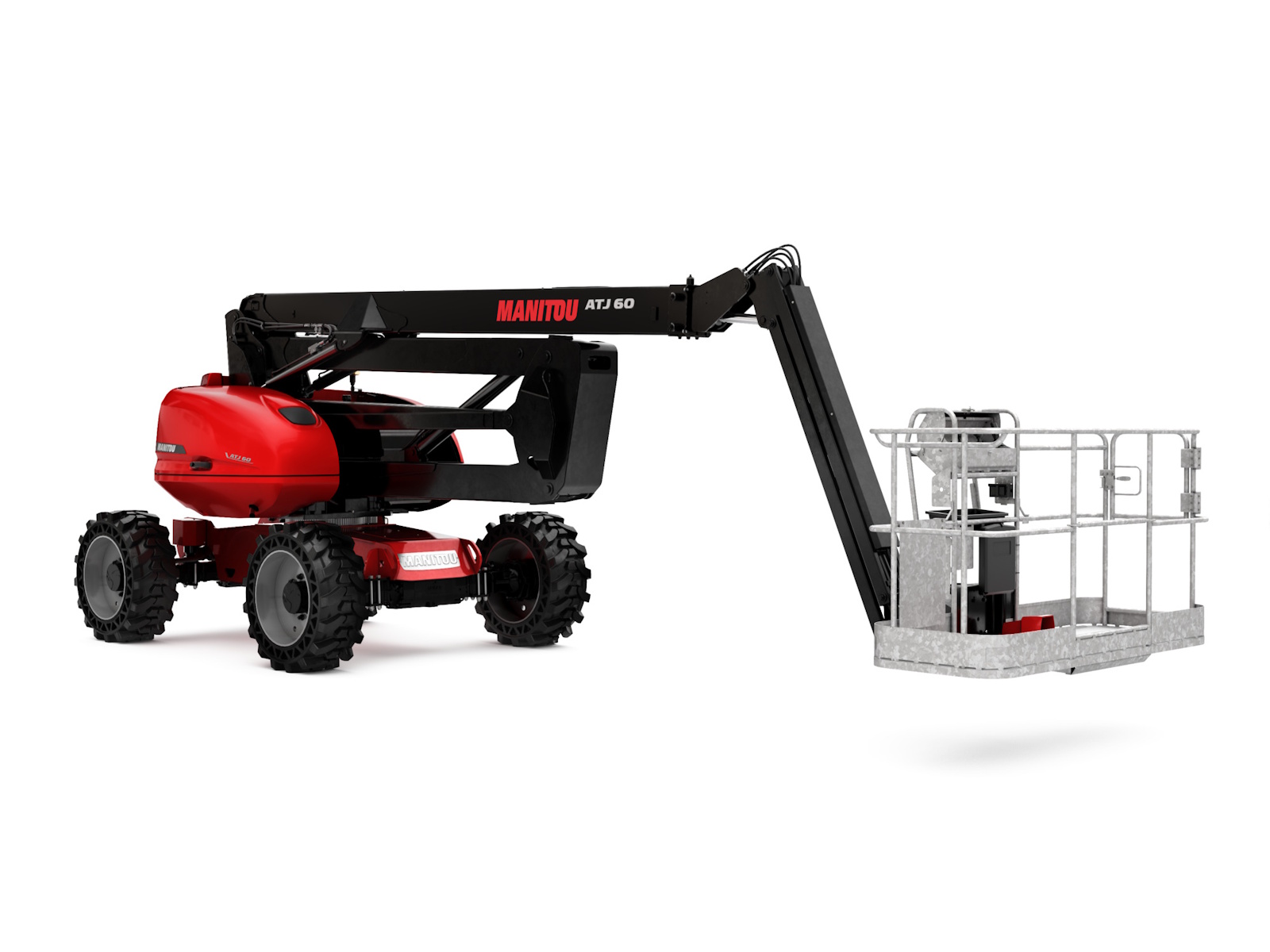

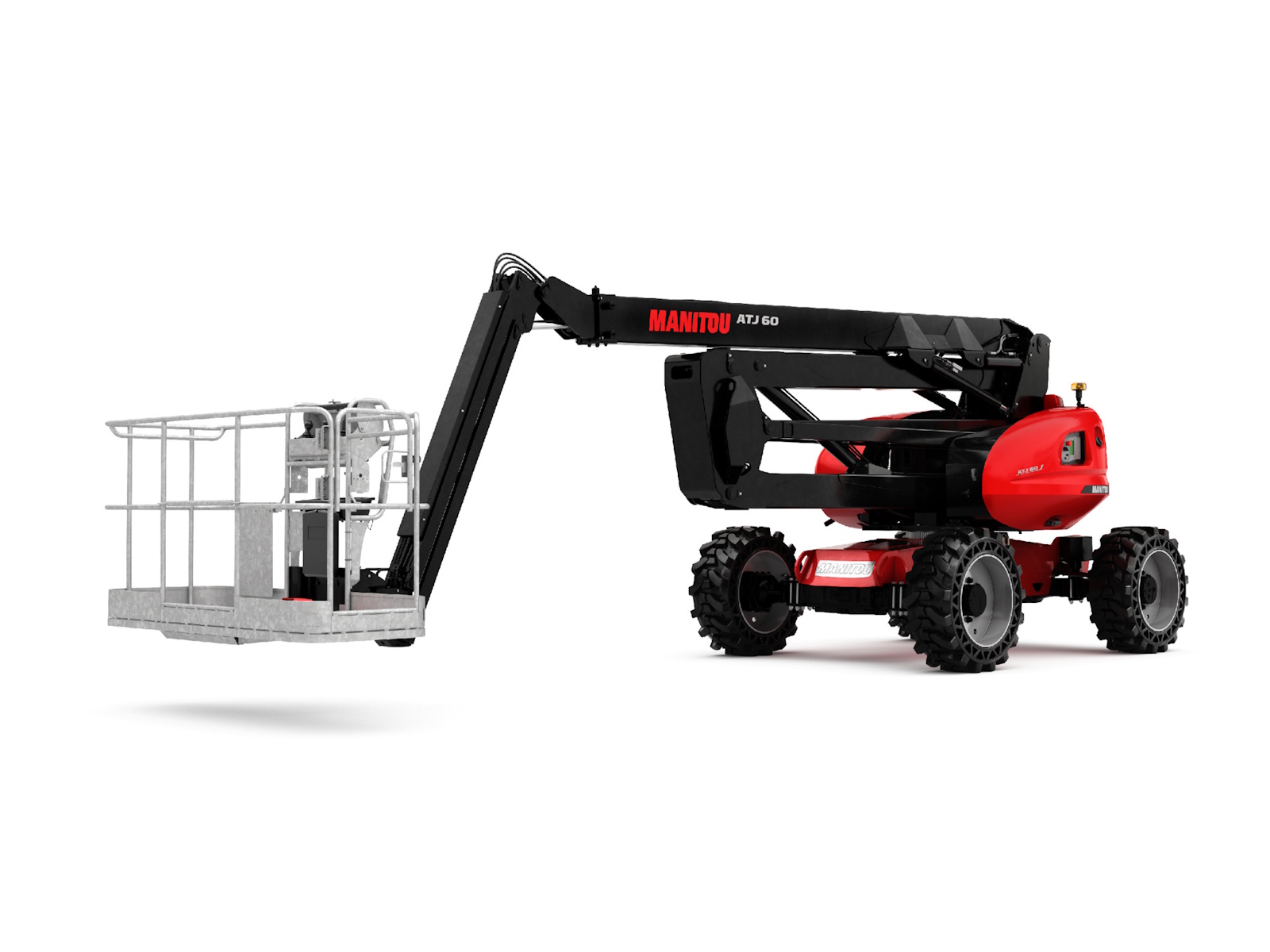

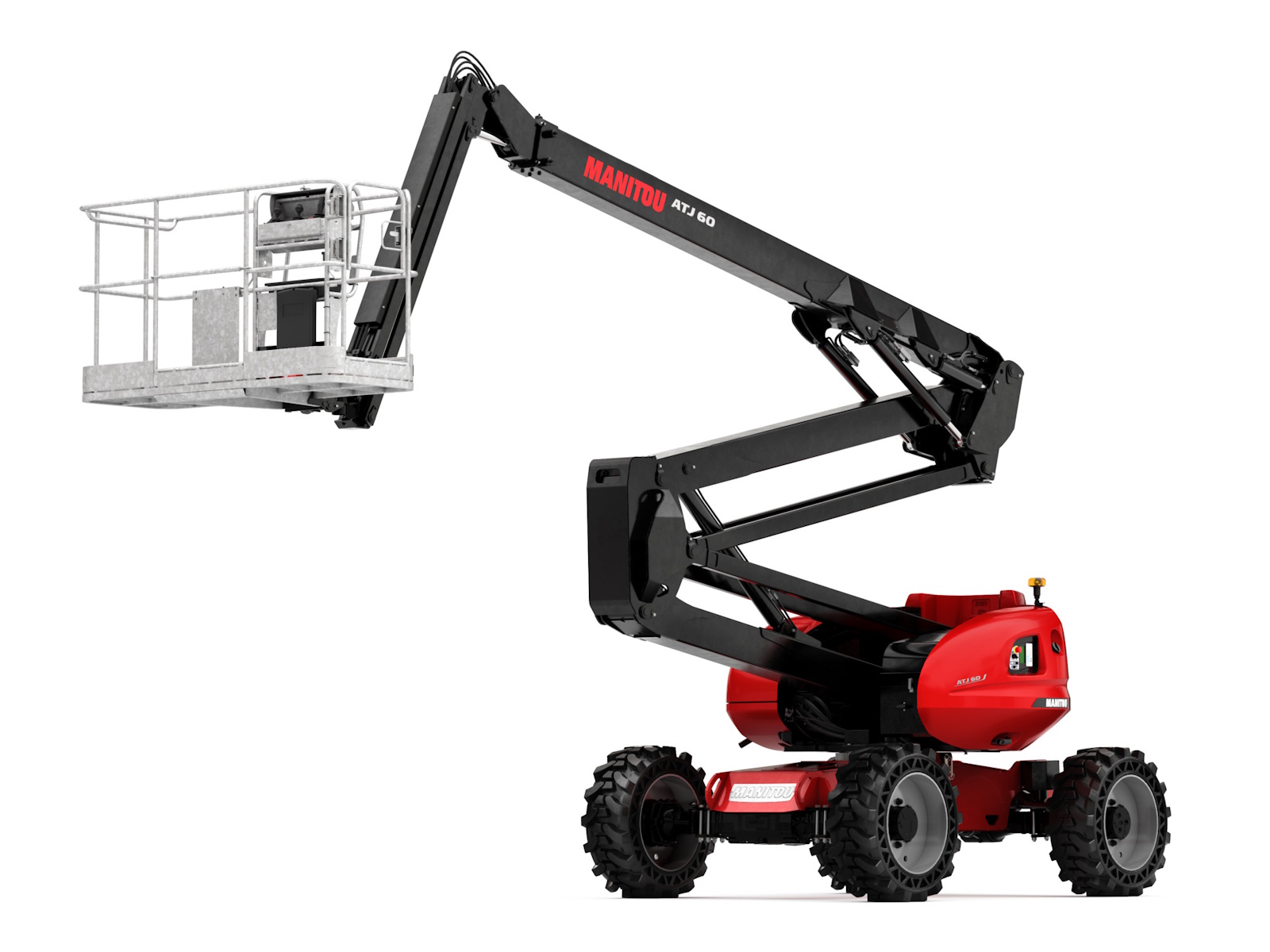

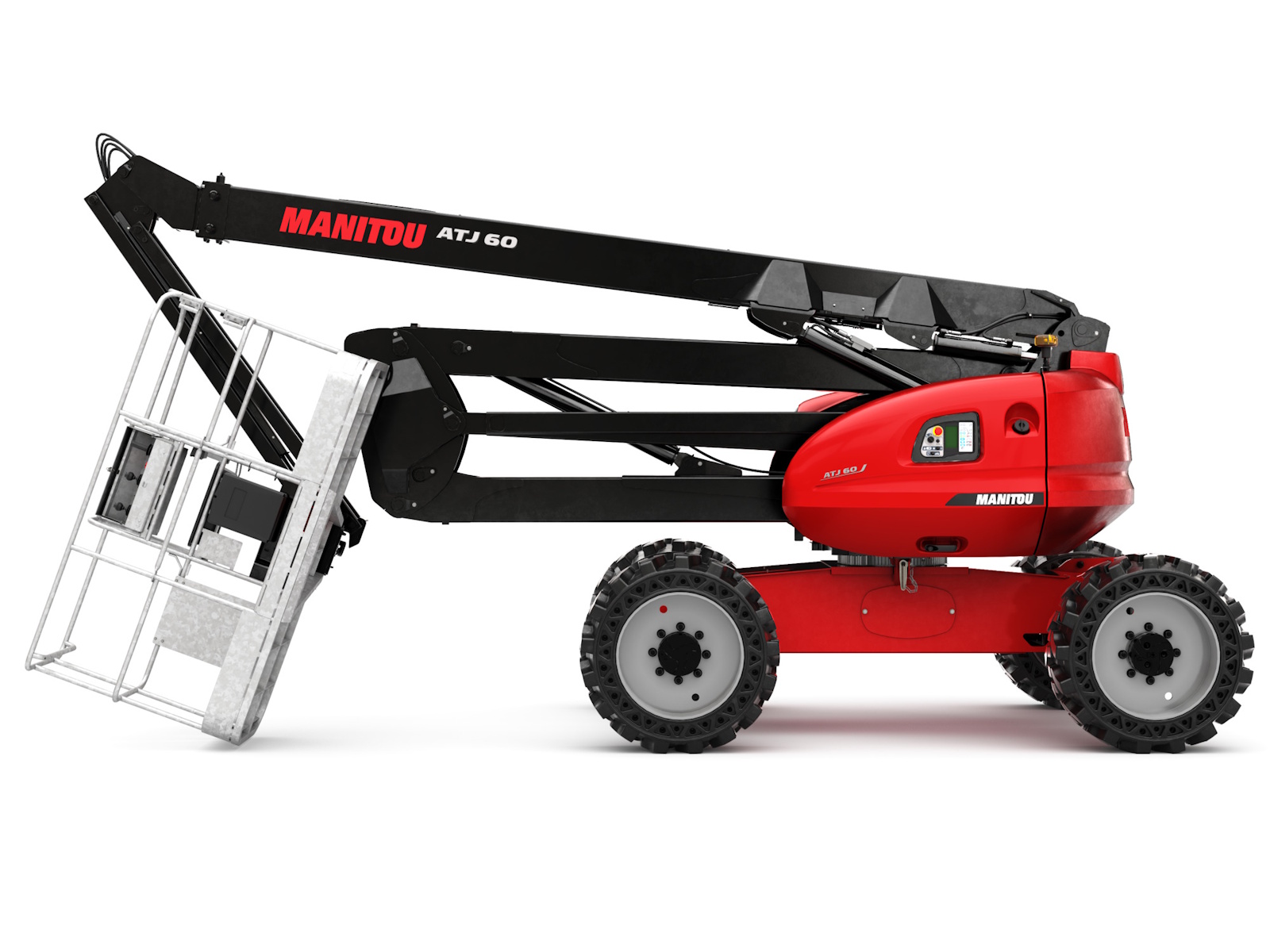

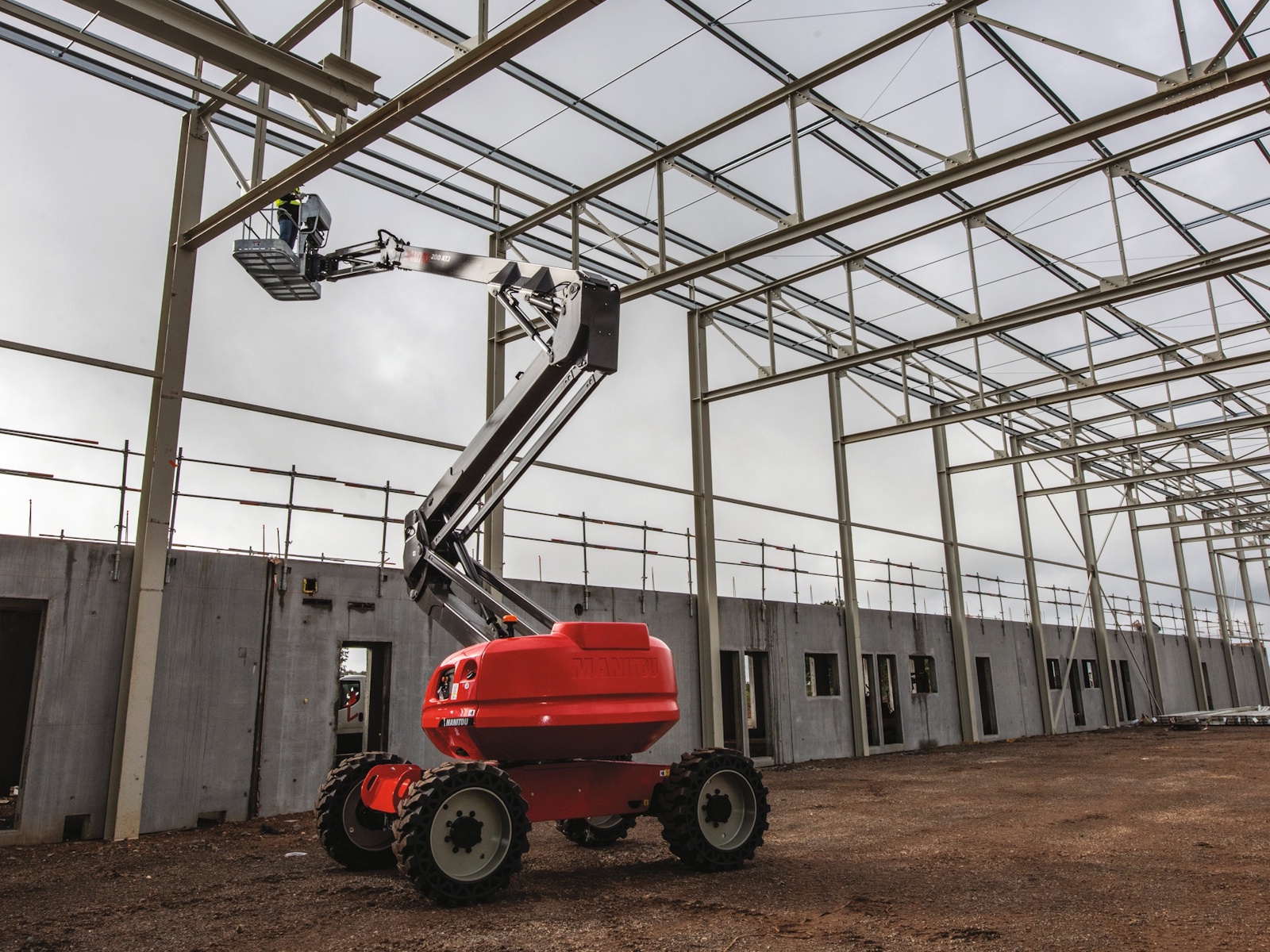

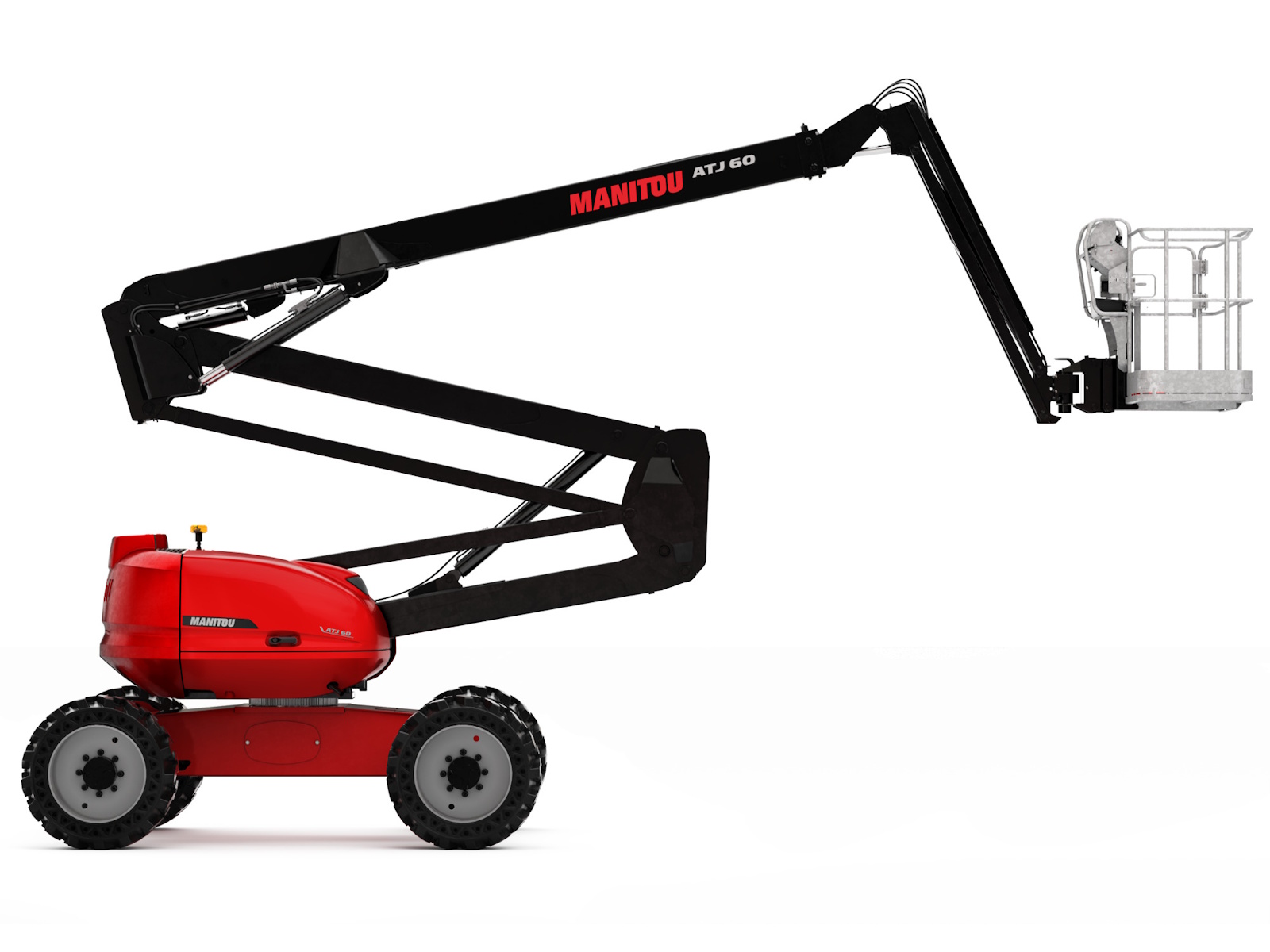

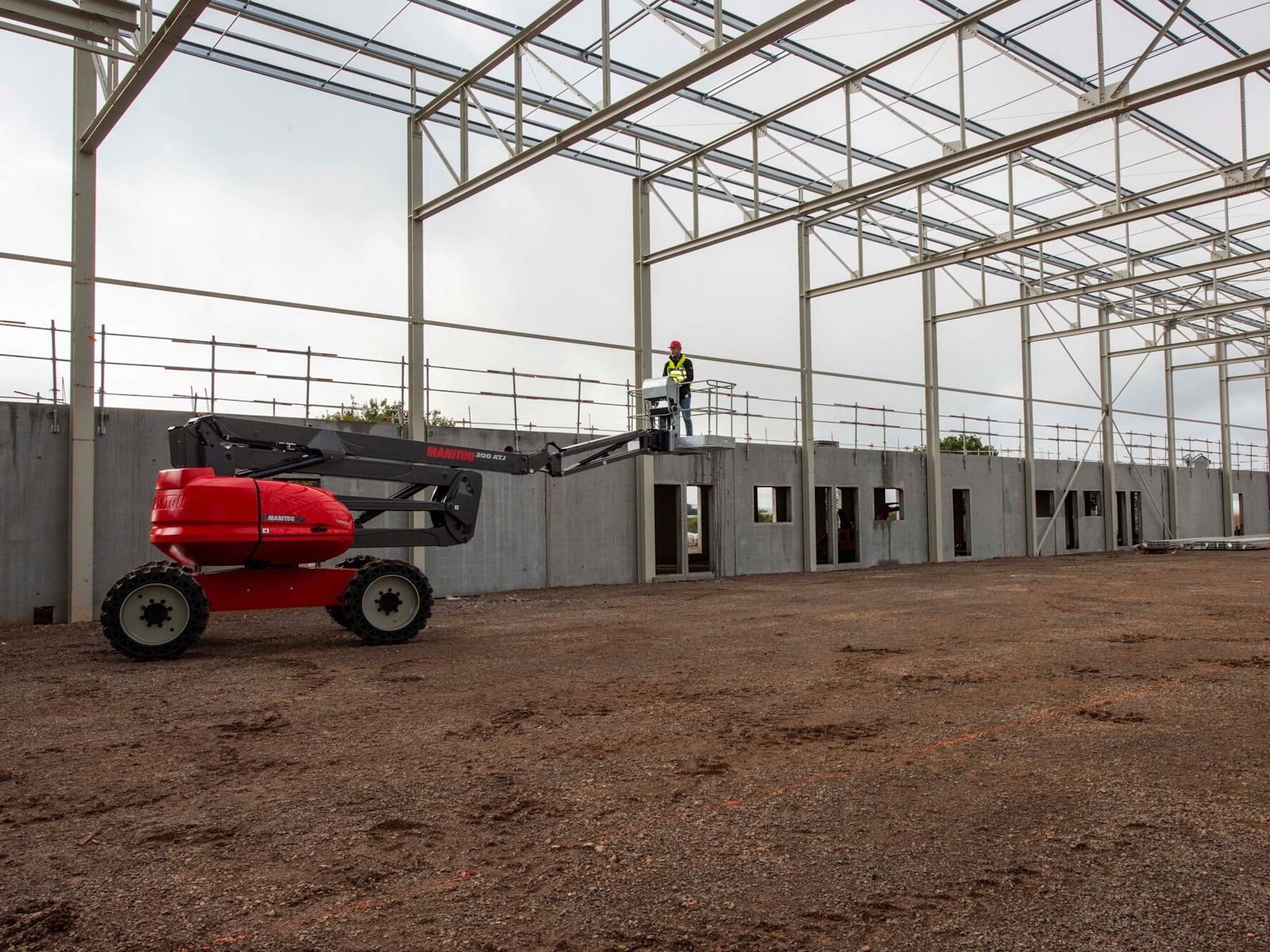

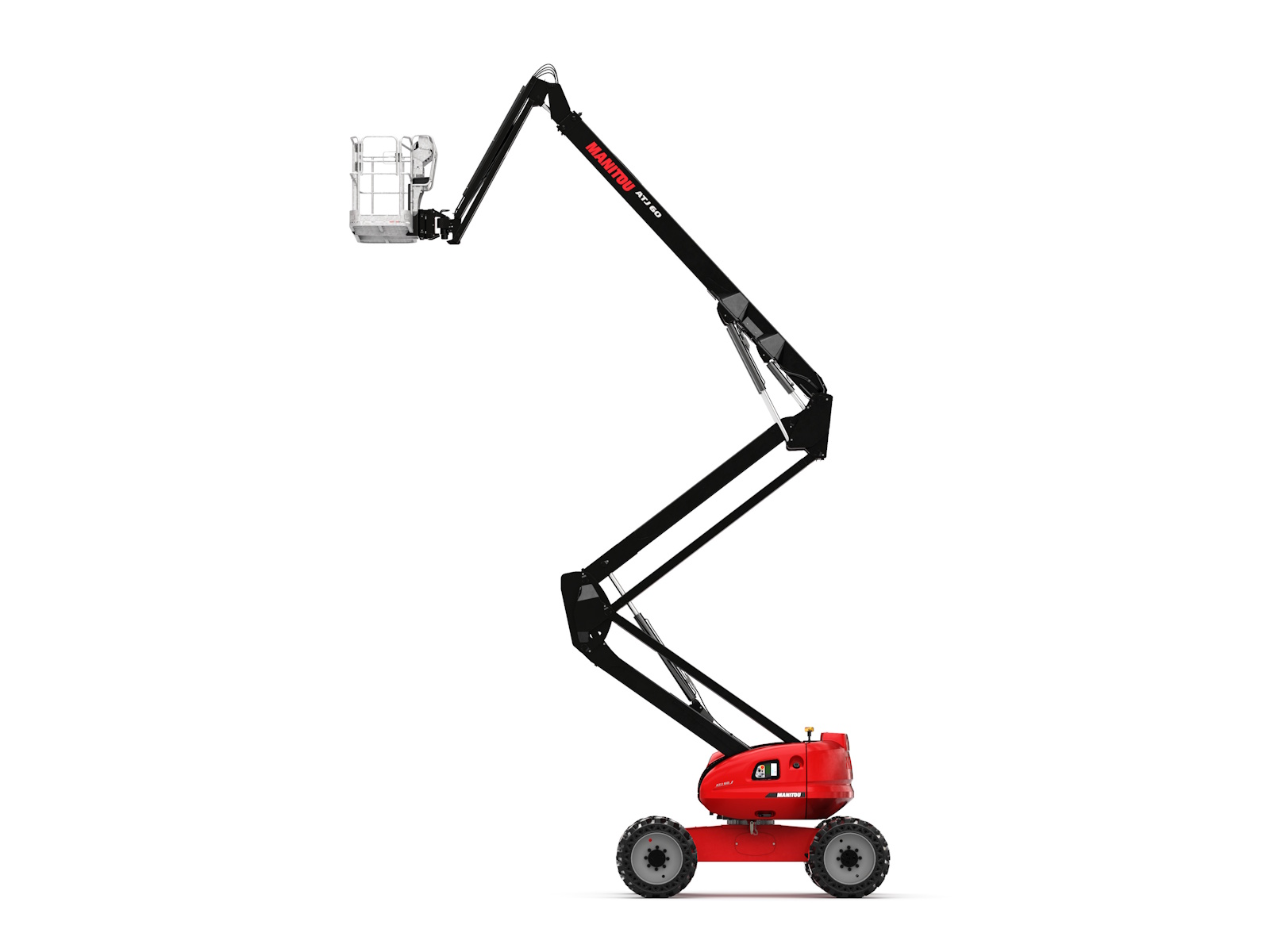

2026 Manitou Group ATJ 60 RC
Looking for a compact, all-terrain MEWP solution? Then the ATJ 60 boom lift is the solution for you! With its 60 ft 2 in max platform height, articulated arm and 360 degree continuous rotation, it allows you the ability to work in the most remote and difficult to access areas. To ensure safety, the ATJ 60 has a smooth double basket, an operator presence pedal and a negative braking system. The design of the chassis is well-suited for off-road use, whatever the ground conditions, making the ATJ 60 an ideal aerial lift for all your outdoor work.
Info
Industry
Agriculture
Make
Manitou Group
Model
ATJ 60 RC
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Height
8 ft 11 in | Working height: 66 ft 3 in | Platform height: 60 ft 3 in | Floor height (access): 1 ft 8 in | Overall height (stowed): 9 ft 3 in
Notes
Max. outreach: 39 ft 3 in | Overhang: 50 ft | Pendular arm rotation (bottom): +66 ° | Platform capacity: 500 lb | Turret rotation: 360 ° | Platform rotation (right / left): 90 ° / 90 ° | Number of people (indoor / outdoor): 2 / 2 | Platform dimensions (length x width): 6 ft 11 in x 2 ft 7 in | Counterweight Oversize / Reach: 4 in | Drive speed - stowed: 3 mph | Drive speed - raised: 0.62 mph | Gradeability: 40 % | Ground Pressure: 300 PSI | Hydraulic Pressure: 4931 PSI | Hydraulic tank capacity: 21 US gal | Noise to environment (LwA): < 102 dB | Vibration on hands/arms: < 2 ft/s²
Weight
Platform weight*: 22267 lb
Length
27 ft 8 in | Overall length (stowed): 20 ft 5 in
Width
7 ft 10 in
Turning Radius
Internal turning radius / External turning radius: 4 ft 2 in/12 ft 10 in
Ground Clearance
Ground clearance at centre of wheelbase: 1 ft 5 in
Wheelbase
7 ft 10 in
Tires
Solid tires | 40 x 14 in
Wheels
Drive wheels (front / rear): 2 / 2 | Braking wheels (front / rear): 0 / 2
Steering
Steering wheels (front / rear): 2 / 2
Engine
Kubota - D1803-CR-TIE4B | Engine norm: Tier 4
Power/Horsepower
42.90 Hp / 32.80 kW
Fuel Capacity
21 US gal
