2026 Manitou Group ATJ 46
Get in Touch
Description

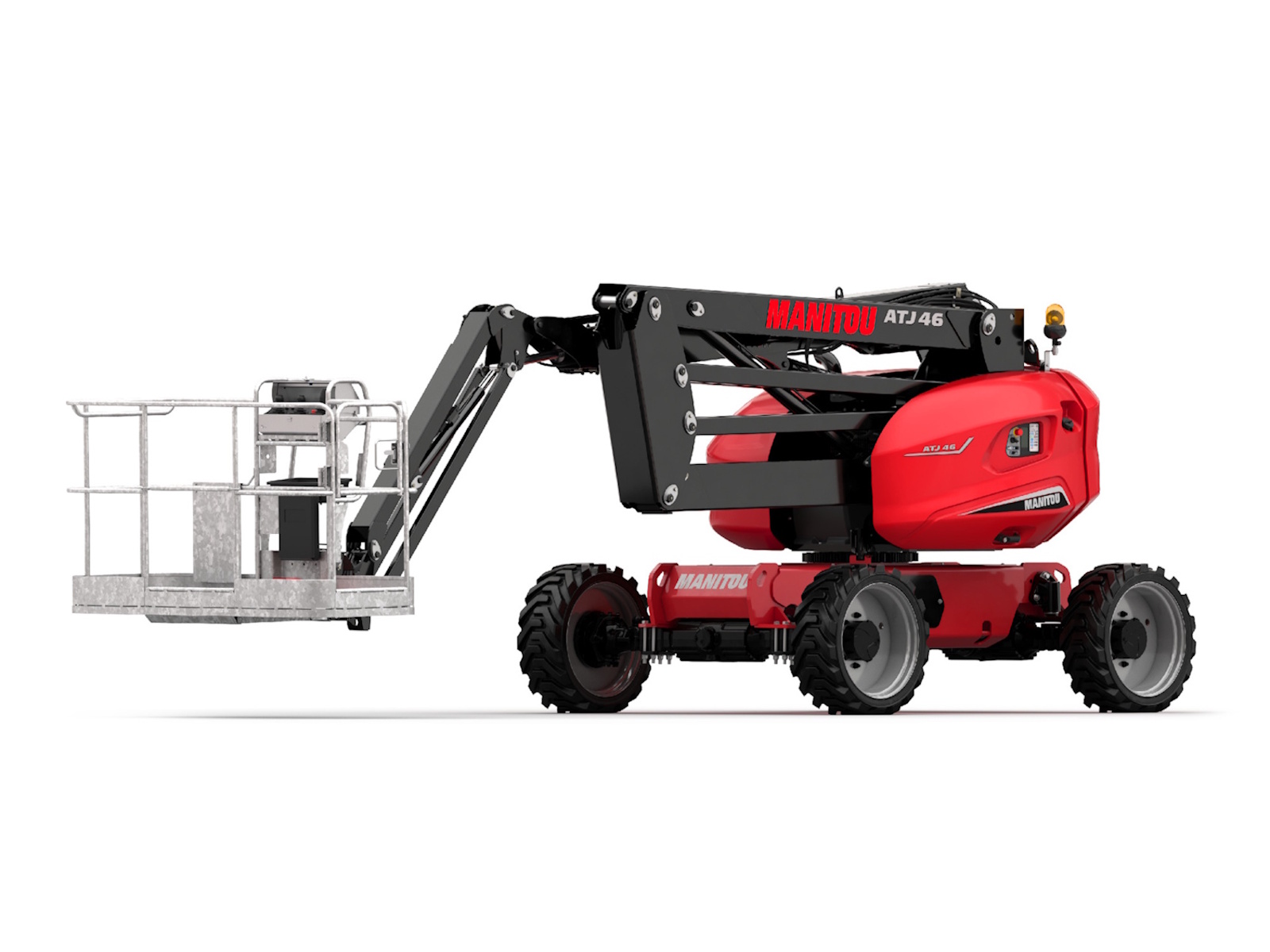

2026 Manitou Group ATJ 46
Tackle all aerial projects no matter the ground conditions with the ATJ 46 articulating boom lift. This compact MEWP guarantees excellent performance on rough terrain, thanks to its robust chassis and high ground clearance. To facilitate your operations in harsh environments, the ATJ 46 features a full standard galvanized work platform resistant to extreme conditions, helping to improve TCO. Easy to use, powerful, with an excellent working range through important offsets, the ATJ 46 articulated mobile elevating work platform is perfect for your every-day aerial solutions!
Info
Industry
Agriculture
Make
Manitou Group
Model
ATJ 46
Trim
Base
Year
2026
MSRP
N/A
Category
Telehandler
Subcategory
General
Specs
Height
7 ft 9 in | Working height: 52 ft 6 in | Platform height: 46 ft | Overall height (stowed): 9 ft 3 in | Floor height (access): 1 ft 4 in
Notes
Max. outreach: 27 ft 3 in | Overhang: 24 ft 7 in | Pendular arm rotation (bottom): +59.50 ° | Platform capacity: 500 lbs | Turret rotation: 350 ° | Platform rotation (right / left): 90 ° / 90 ° | Number of people (inside / outside): 2 / 2 | Platform dimensions (length x width): 6 ft 11 in x 2 ft 7 in | Counterweight offset (turret at 90°): 9 in | Drive speed - stowed: 3 mph | Drive speed - raised: 1 mph | Gradeability: 45 % | Ground Pressure: 139 PSI | Hydraulic Pressure: 4931 PSI | Hydraulic tank capacity: 14 US gal | Noise to environment (LwA): < 105 dB(A) | Vibration on hands/arms: < 1.64 ft/s² | Daily consumption **: 1 US gal
Weight
Platform weight*: 13342 lbs
Width
7 ft 7 in
Length
21 ft 11 in | Overall length (stowed): 14 ft 9 in
Turning Radius
Internal turning radius (over tyres): 7 ft 6 in | External turning radius: 17 ft
Ground Clearance
Ground clearance at centre of wheelbase: 1 ft 2 in
Wheelbase
7 ft 3 in
Tires
Foam-filled
Wheels
Drive wheels (front / rear): 2 / 2 | Braking wheels (front / rear): 0 / 2
Steering
Steering wheels (front / rear): 2 / 0
Engine
Kubota - D1105-E4B | Interim Tier 4, Stage IIIA, Stage V
Power/Horsepower
24.80 Hp / 18.50 kW
Fuel Capacity
14 US gal
