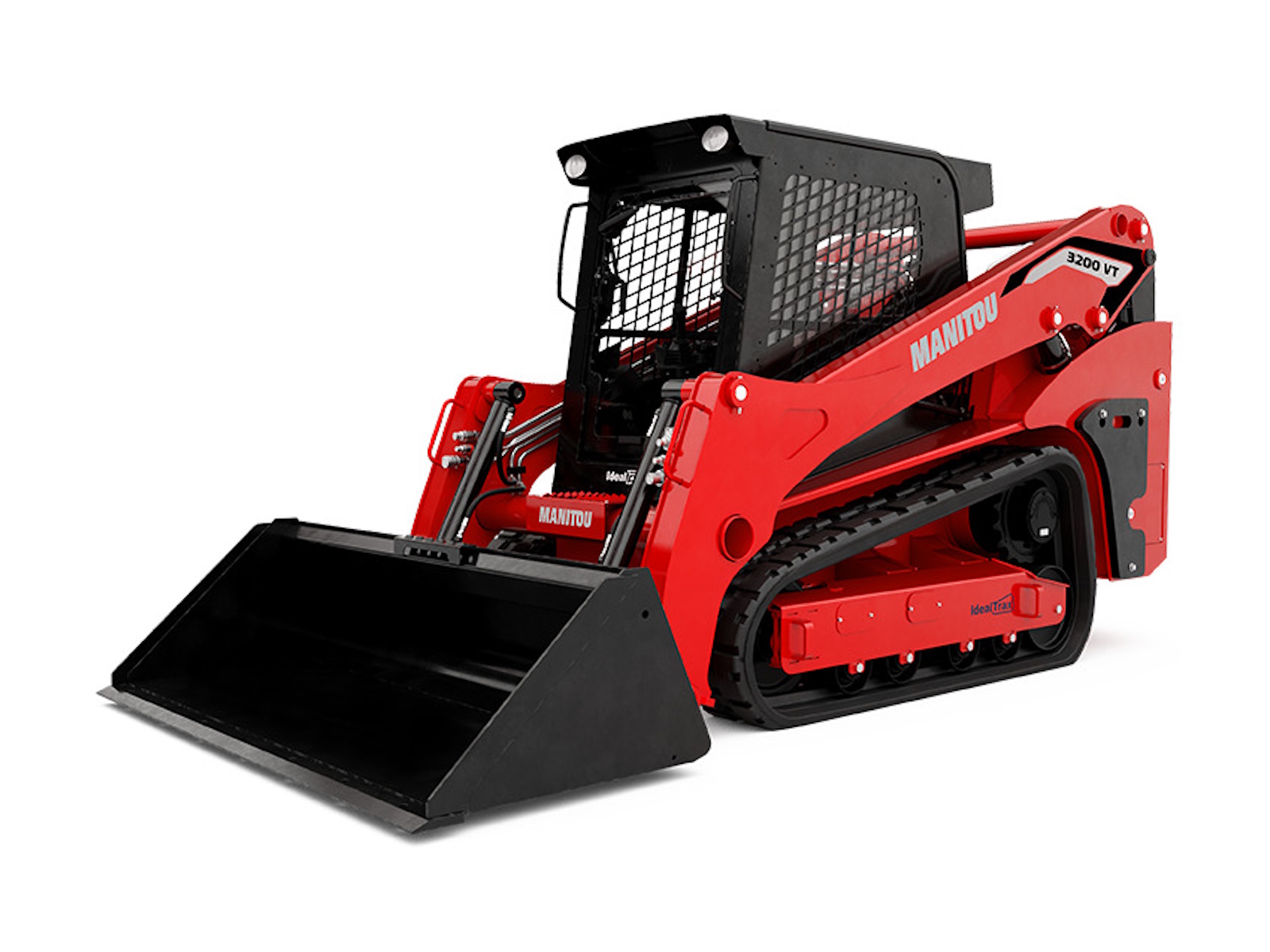

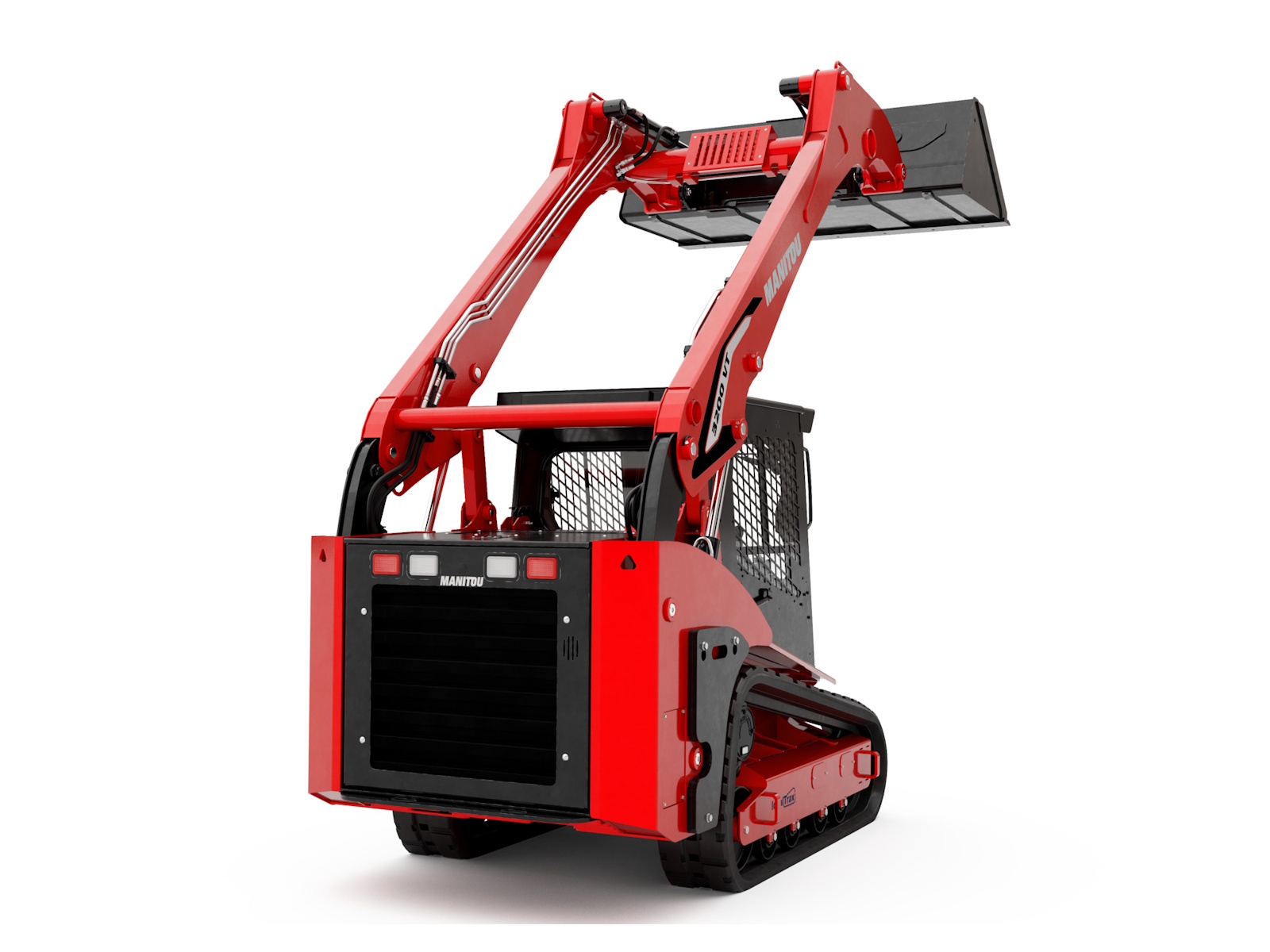

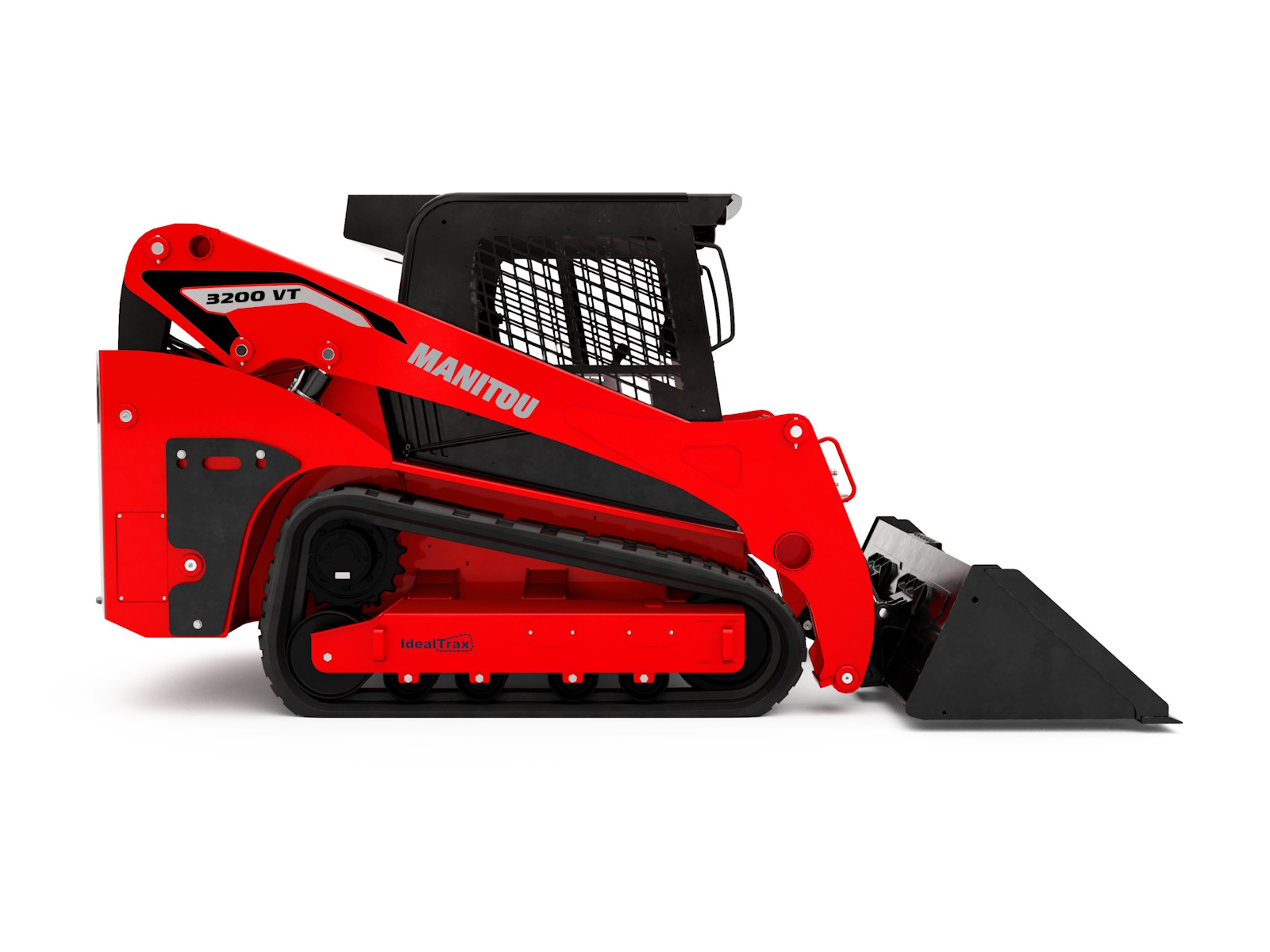

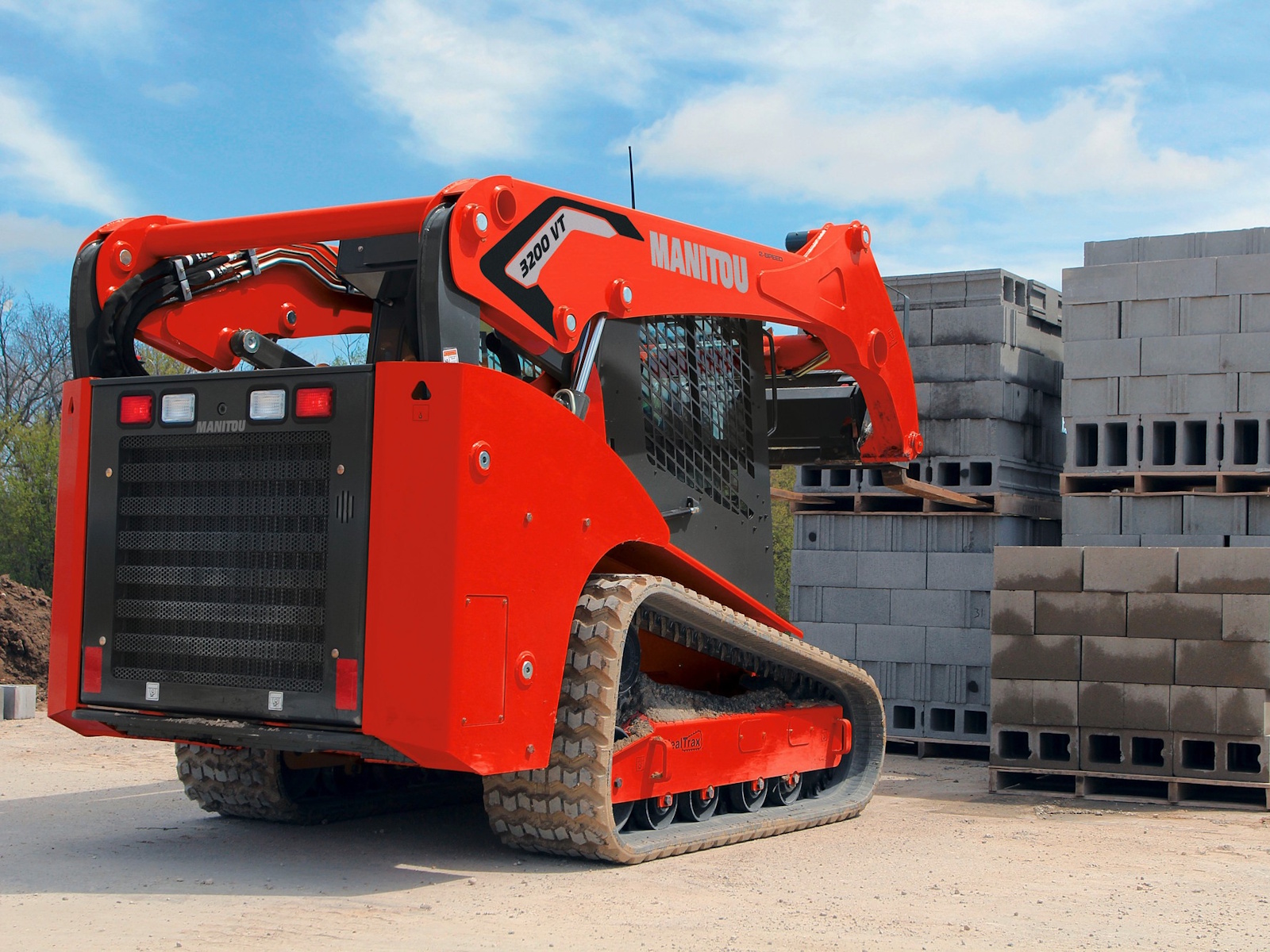

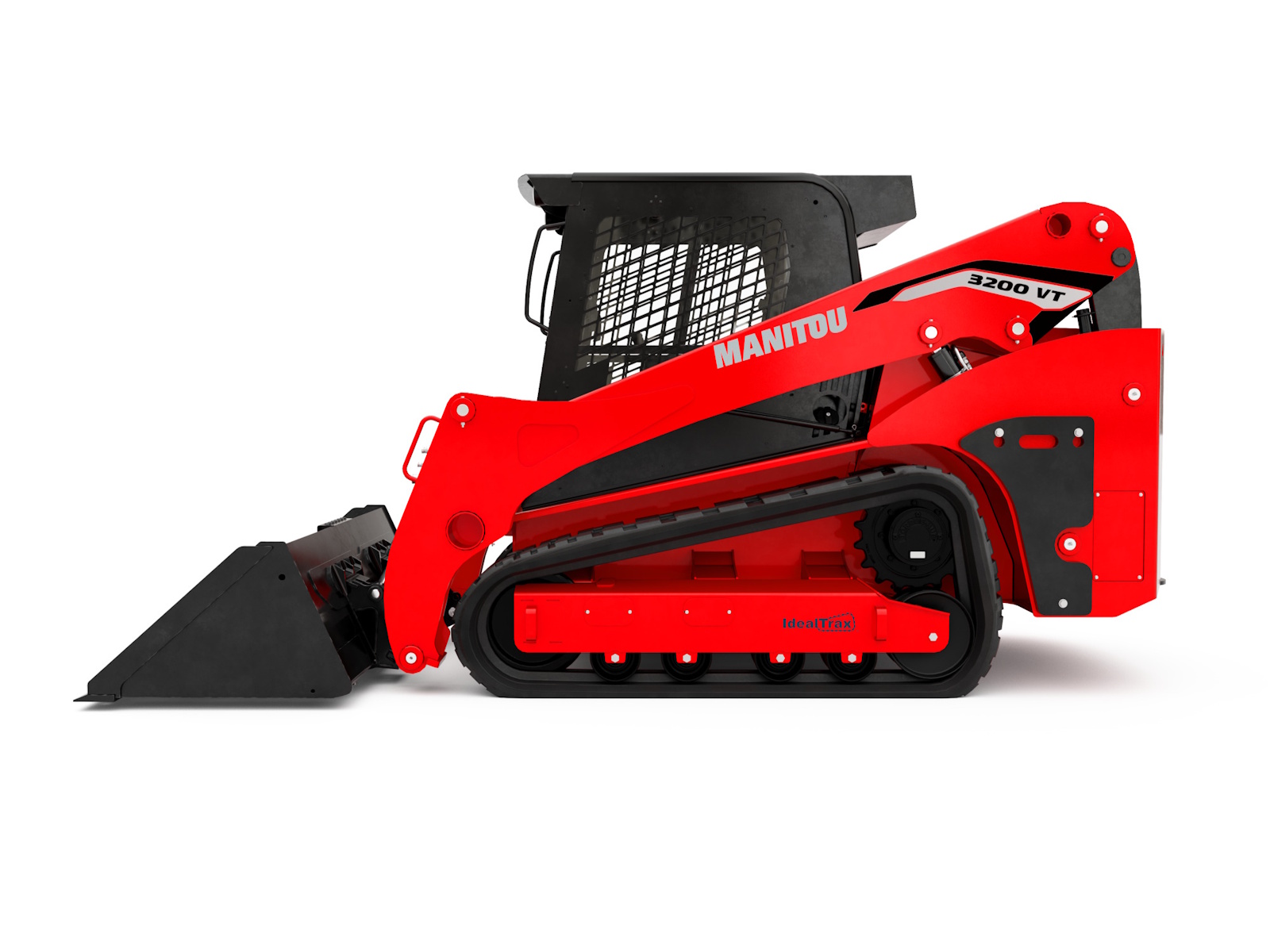

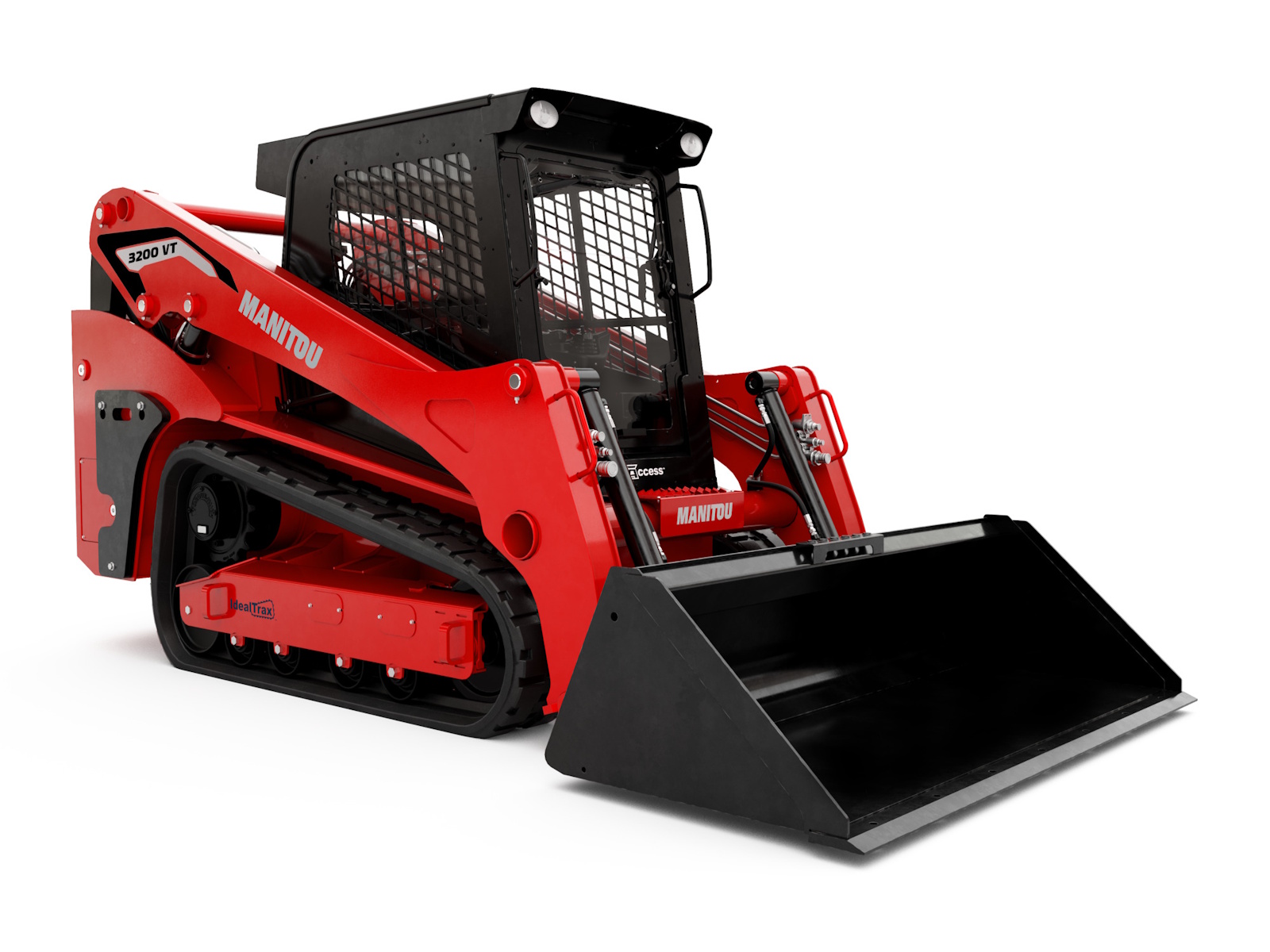

2026 Manitou Group 3200VT
Enjoy improved full-sized performance of 3200 VT vertical-lift track loader. This model can easily work in hard to access areas on the jobsite nomatter the soil conditions. Combining compactness, robustness, accuracy and speed of movement, the 3200 VT track loader enables you to excavate the land or load up 2074 kg rated operating capacity with optional counterweight. Many other applications are possible thanks to the ability to change attachments within minutes. This track loader meets the requirements of building professionals, industry and agriculture.
Info
Industry
Agriculture
Make
Manitou Group
Model
3200VT
Trim
Base
Year
2026
MSRP
N/A
Category
Loader
Subcategory
Compact Track
Specs
Load Capacity
9145 lb
Weight
Operating Weight 11612 lb
Notes
Operating Capacity at 35% Tipping Load: 3201 lb | Operating Capacity At 50% Tipping Load: 4572 lb | Tipping capacity: 9145 lb | Maximum Rollback Angle - Fully Raised: 90 ° | Departure angle: 24 ° | Carry Position: 8 in | Maximum Rollback Angle at Carry Position: 31 ° | Digging Position 0.75: in | Angle of Departure with STD Counterweight: 24 ° | Track gauge: 52 in | Crawler base: 62 in | Clearance Radius - Front with Bucket: 96 in | Angle of Approach: 90 ° | Track Type / Track Rollers / Roller Type: Rubber / 5 / Steel | Ground Speed - Single Speed: 5 mph | Ground Speed - Two Speed: 8 mph | Drawbar Pull/Tractive Effort: 12769 lb | Bucket Breakout - Tilt Cylinder: 9903 lb | Bucket Breakout - Lift Cylinder: 7491 lb | Cold Cranking Amps at Temperature (CCA): 950 A | Standard flow - Auxiliary hydraulics: 27 US gpm | Cooling liquid: 5 US gal | Ground Pressure: 5 PSI
Height
Overall Operating Height - Fully Raised: 169 in | Height to Hinge Pin - Fully Raised: 130 in | Dump reach - Full height: 40 in | Dump angle at full height: 41 ° | Dump Height - Fully Raised: 100 in | Overall Height to top of ROPS: 83 in | Specified Height: 76 in | Reach at Specified Height 30 in | Dump angle at specified height: 68 ° | Grouser Height: 1 in
Length
Overall length with bucket: 160 in | Overall Length without Bucket: 128 in
Ground Clearance
12 in
Width
Track Shoe Width: 18 in | Overall width less bucket: 70 in | Bucket Width: 84 in
Engine
Deutz
Engine Type
Motor Type: Axial Piston with Planetary Gear Box Reduction
Power/Horsepower
114 Hp / 85 kW
Torque
317 ft/lbs
Battery
Battery voltage: 12 V
Alternator
Voltage / Ampere: 14 V / 95 A
Oil Capacity
Oil Pan Capacity: 2 US gal
Fuel Capacity
32 US gal | Hydraulic tank capacity: 17 US gal
Displacement
0.95 US gal
Cylinders
4
