2026 Manitou Group TMT 55 XT 4W Y ST5
Get in Touch
Description
2026 Manitou Group TMT 55 XT 4W Y ST5

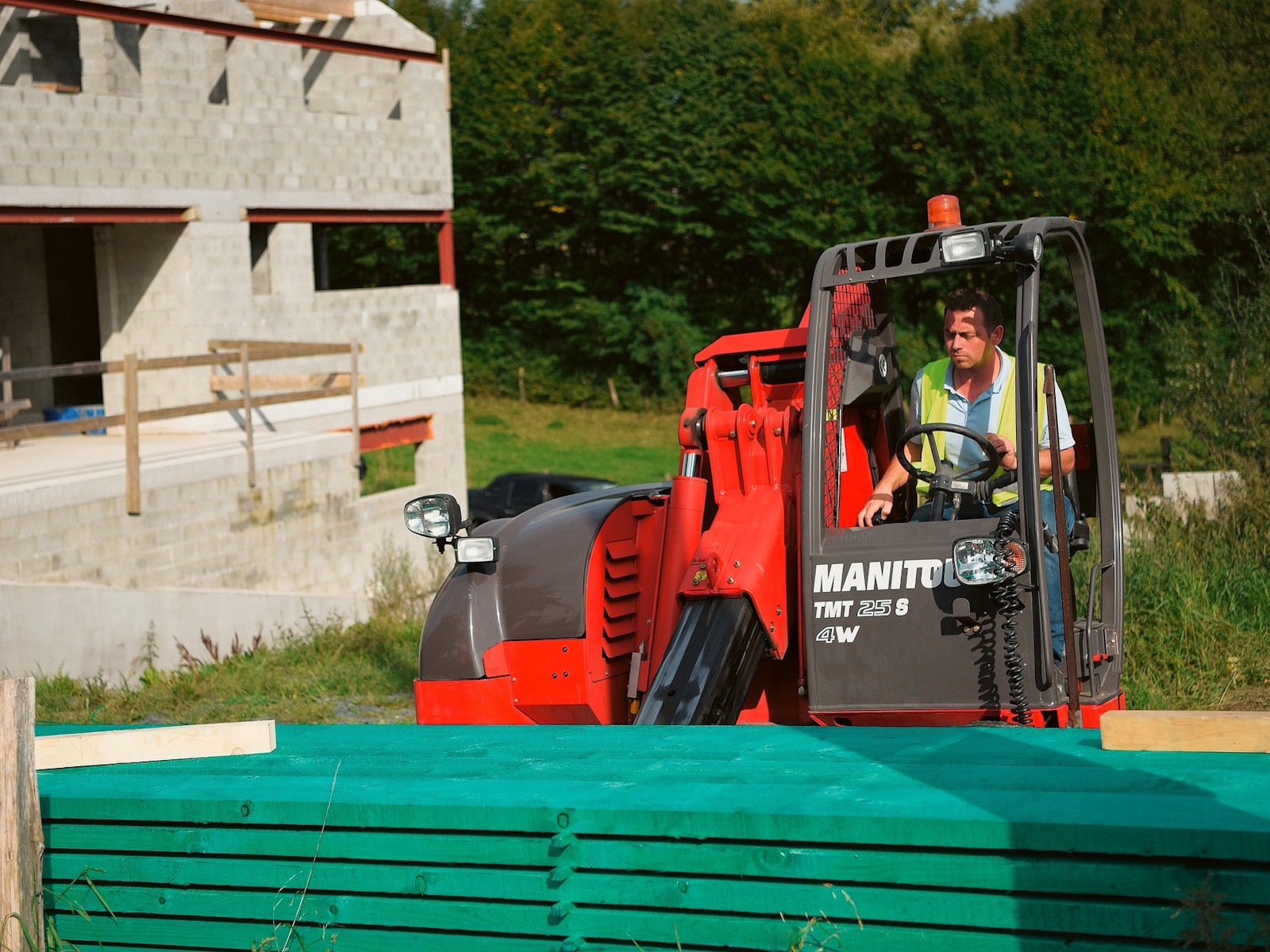

The TMT 55 XT 4W truck-mounted forklift is designed for single-side loading for logistics professionals, particularly those working in the construction sector. It enables you to deliver materials to customers who don't have loading/unloading bays, or with sites not accessible by paved roads. The bi-directional mode means you can move the forklift sideways, which is useful when you have to park the lorry on the side of the road or alongside a wall or other lorry. Designed to last, the TMT 55 XT 4W is built using robust components, for maximum cost effectiveness and minimum payload.
Info
Industry
Agriculture
Make
Manitou Group
Model
TMT 55 XT 4W Y ST5
Trim
Base
Year
2026
MSRP
N/A
Category
Forklift
Subcategory
General
Specs
Notes
Telescopic boom | Operator type: Seated | Load center of gravity: 24 in | Load distance, centre of drive axle to fork: -20 in | Mast/fork carriage tilt, forward: 100 ° | Mast/fork carriage tilt, backward: 12 ° | Mast free lift: 57 in | Fork carriage ISO 2328 (class/form) A/B: FEM 2A | Distance between support arms: 49 in | Maximum horizontal extension at COG 600: 52 in | Lifting speed (laden / unladen): 0.82 ft/s / 0.89 ft/s | Lowering speed (laden / unladen): 0.95 ft/s / 1 ft/s | Rated speed: 2800 rpm | Type of drive control: Mechanical | Working hydraulic pressure for attachments: 3916 PSI | Oil flow rate for attachments: 12 US gpm | Measured/guaranteed mean noise level at the ear of the operator: 105 dB
Fuel Type
Diesel
Load Capacity
5512 lb
Wheelbase
65 in
Weight
Service weight: 6415 lb
Tires
Pneumatic
Wheels
Dimensions of front wheels: 10x16,5 | Dimensions of rear wheels: 31x15,5-15 | Number of front wheels / rear wheels: 2 / 1 | Drive wheels (front / rear): 2 / 1 | Front wheel gauge: 86 in | Distance between wheel arms/loading surfaces: 60 in
Height
Height telescopic boom lowered: 89 in | Max. lifting height: 134 in | Height telescopic boom extended: 154 in | Height of overhead guard (cabin): 93 in | Seat height/stand height: 55 in
Length
111 in | Length to face of forks: 63 in
Width
97 in | Fork carriage width: 50 in | Aisle Width for pallets 1000 x 1200 crossways: 79 in | Aisle width for 800 x 1200 pallet lengthways: 77 in
Ground Clearance
Ground clearance at centre of wheelbase: 11 in
Turning Radius
117 in
Brakes
Service brake: Hydraulic brakes by loss of pressure
Engine
Yanmar - Stage V / 3TNV 86 CT
Power/Horsepower
42 Hp / 31 kW
Cylinders
3 - 96 in³
