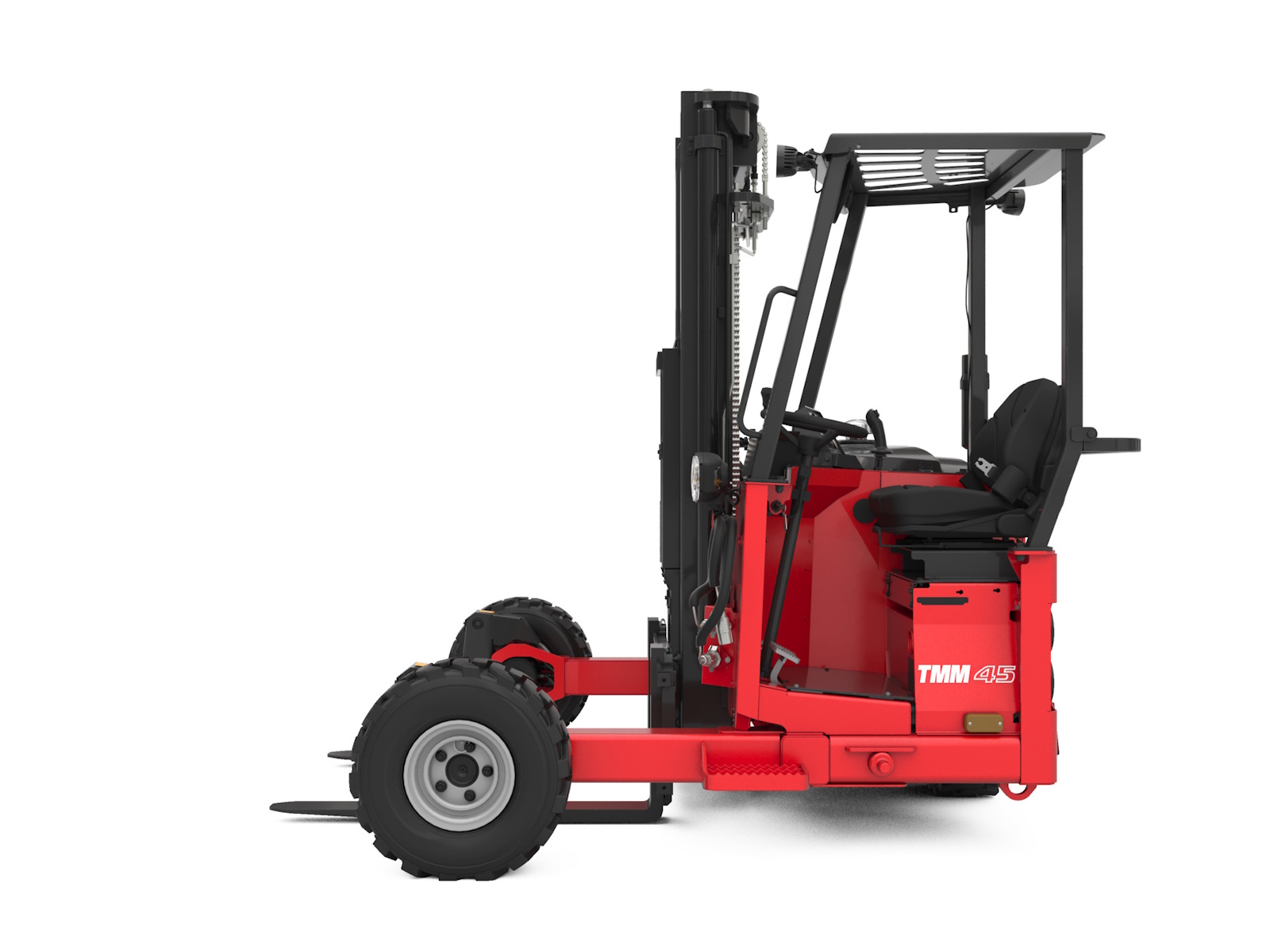

2026 Manitou Group TMM 45 K ST5

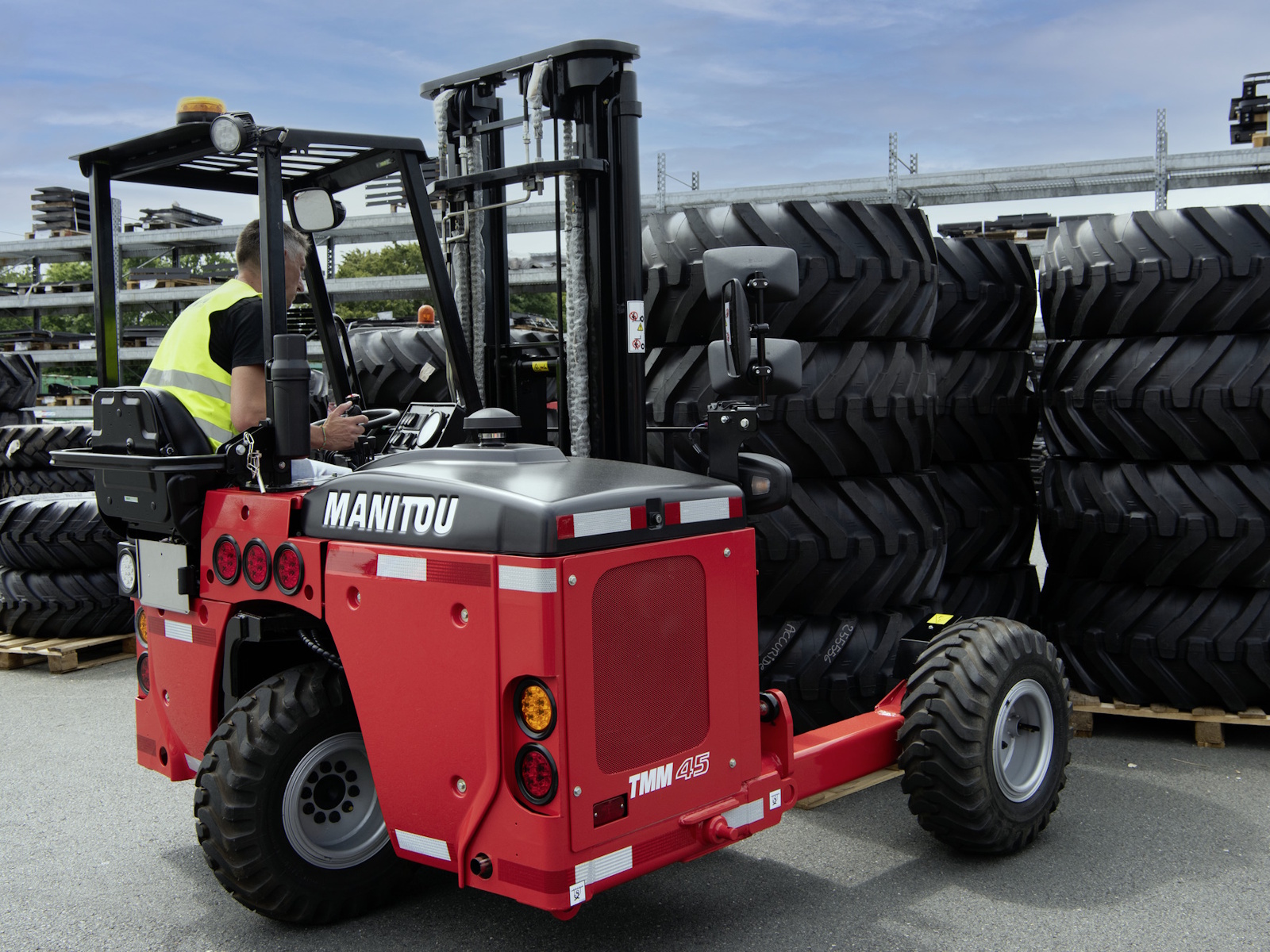

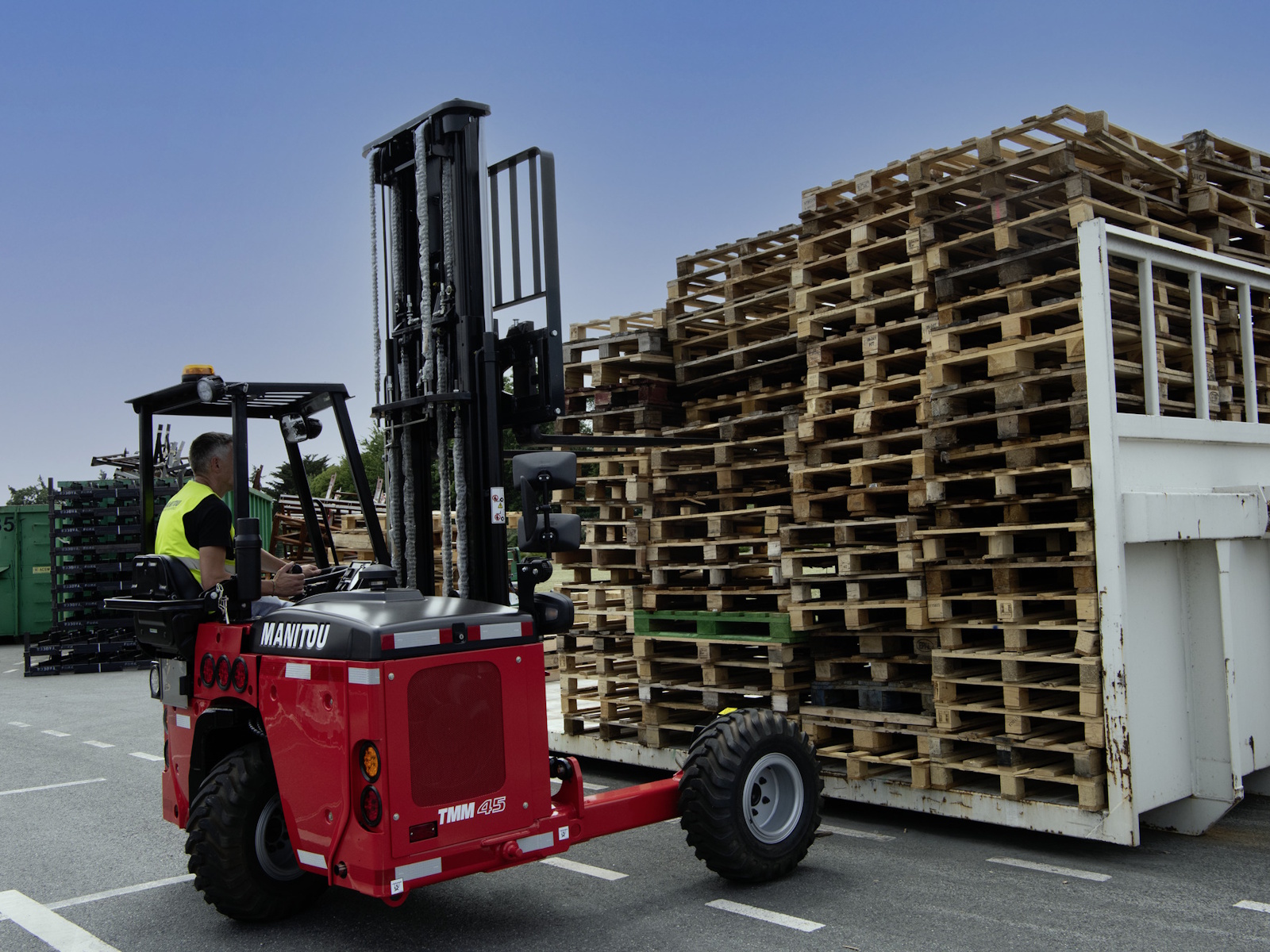

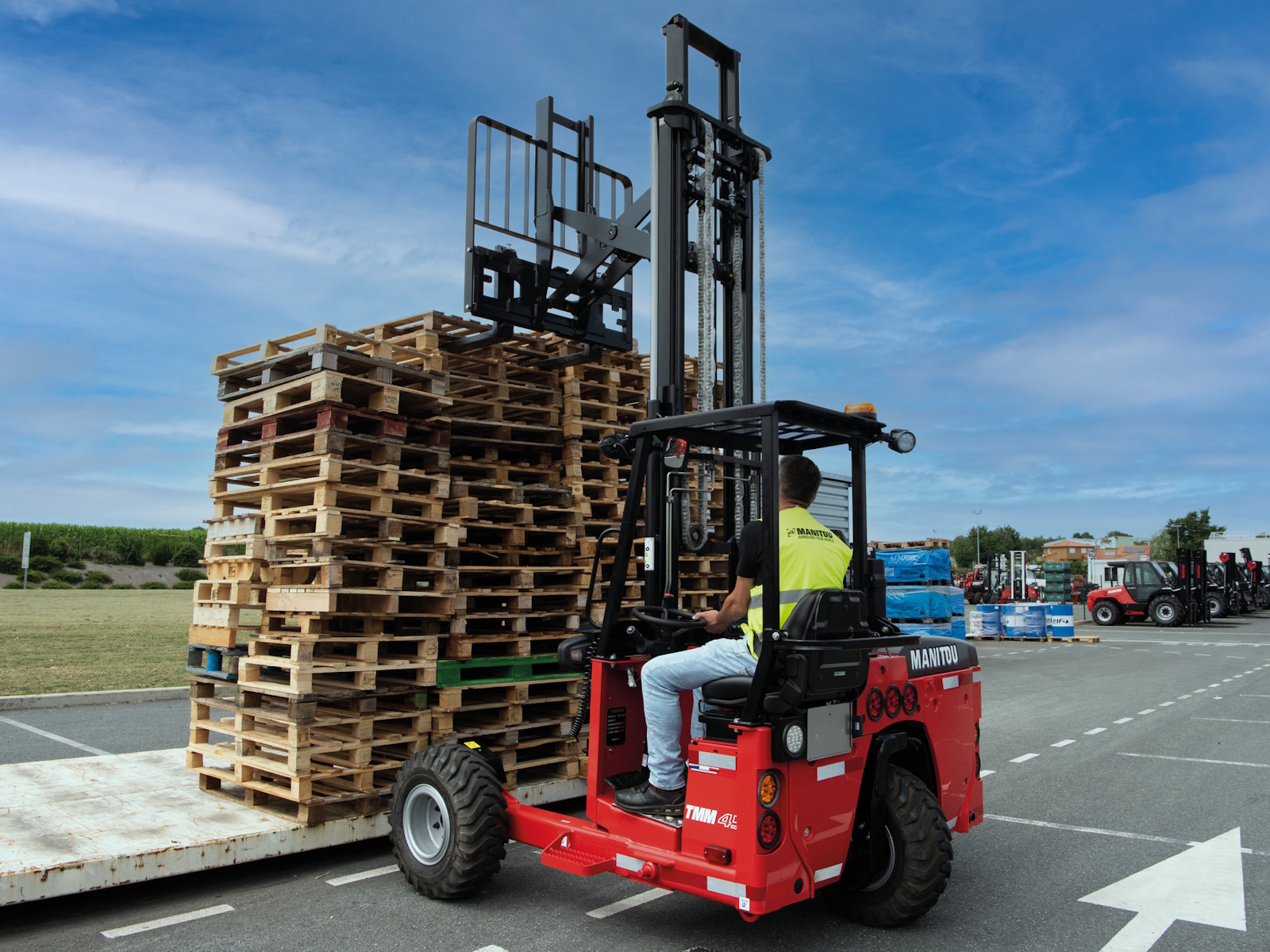

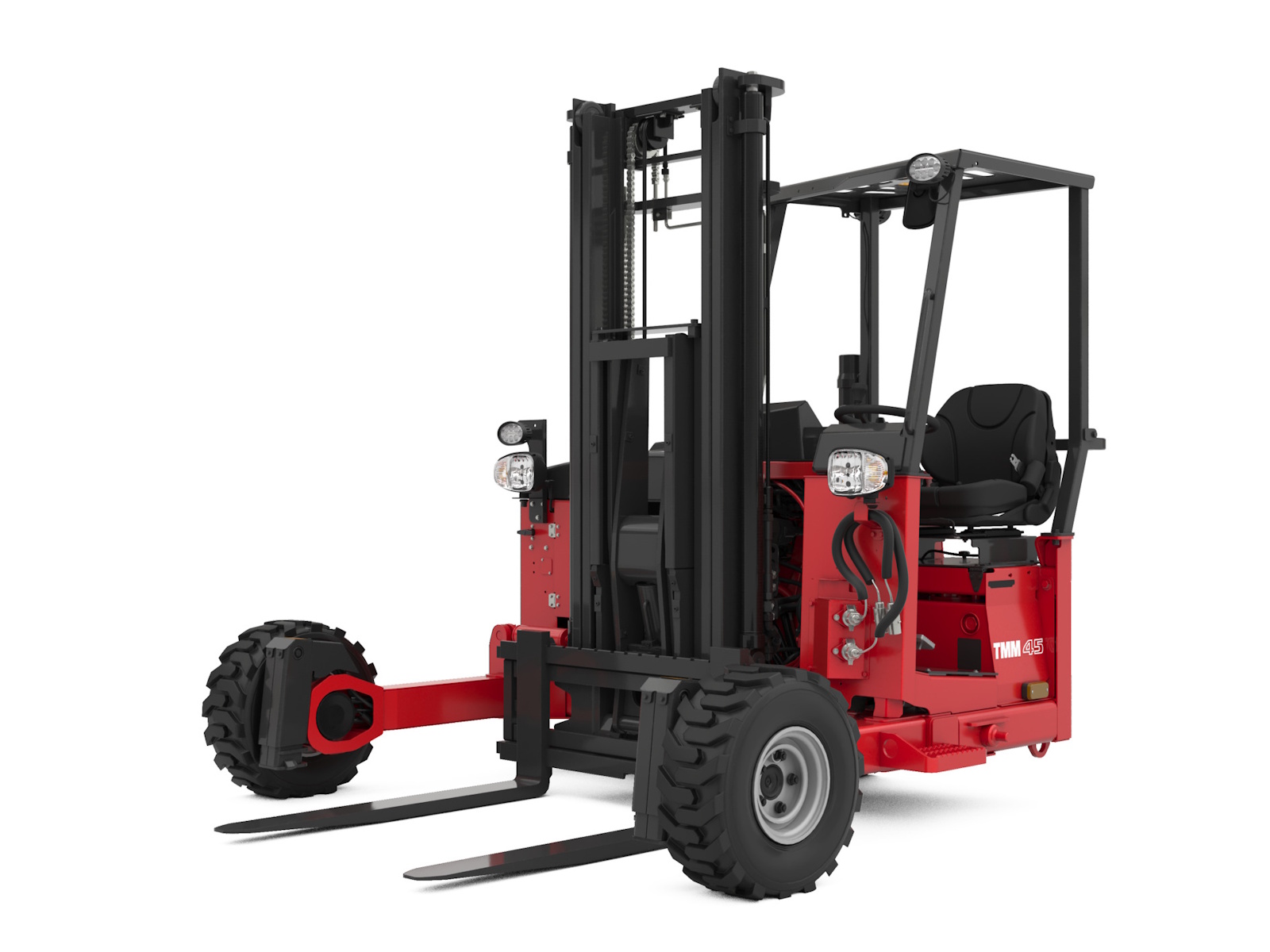

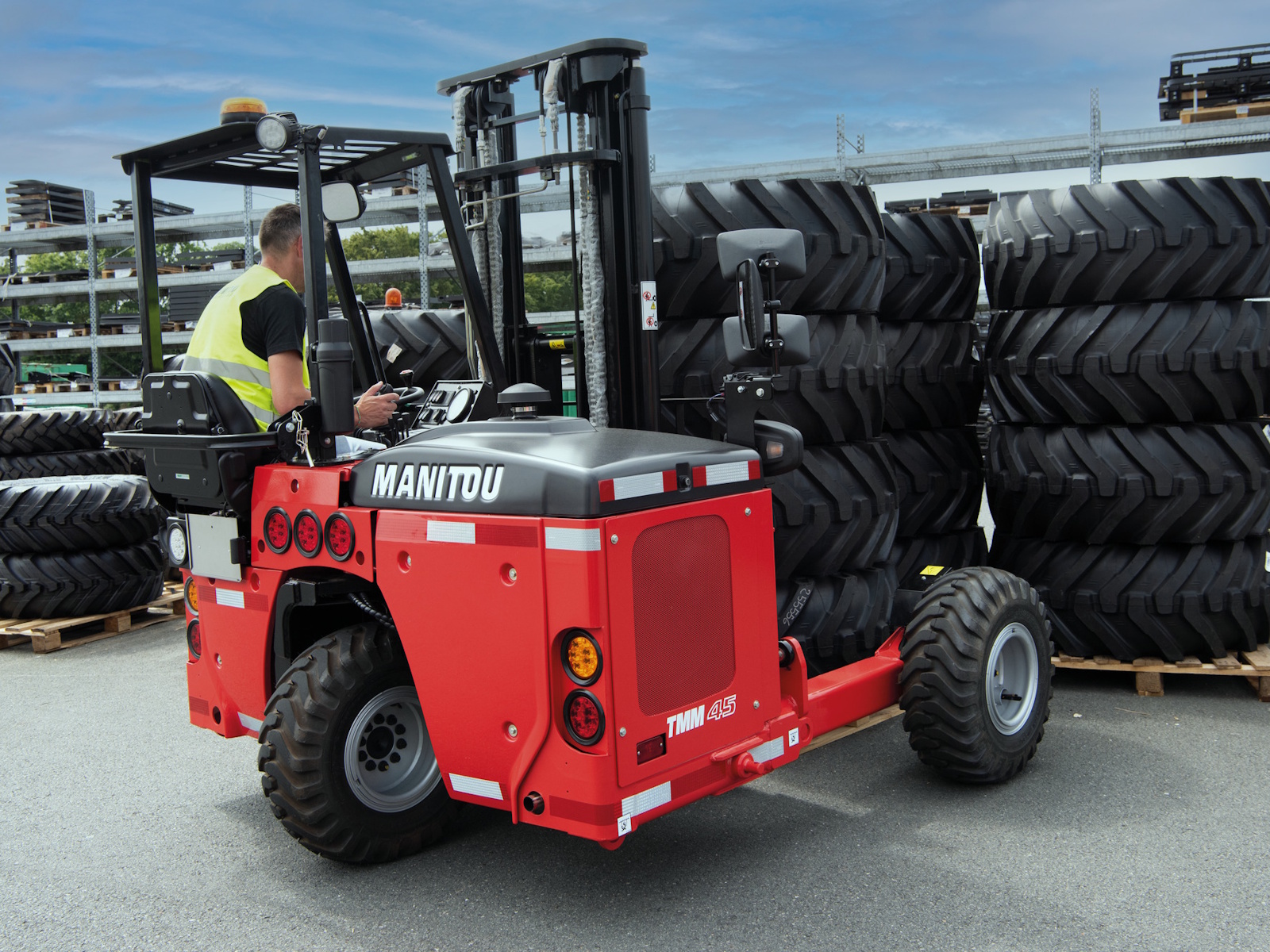

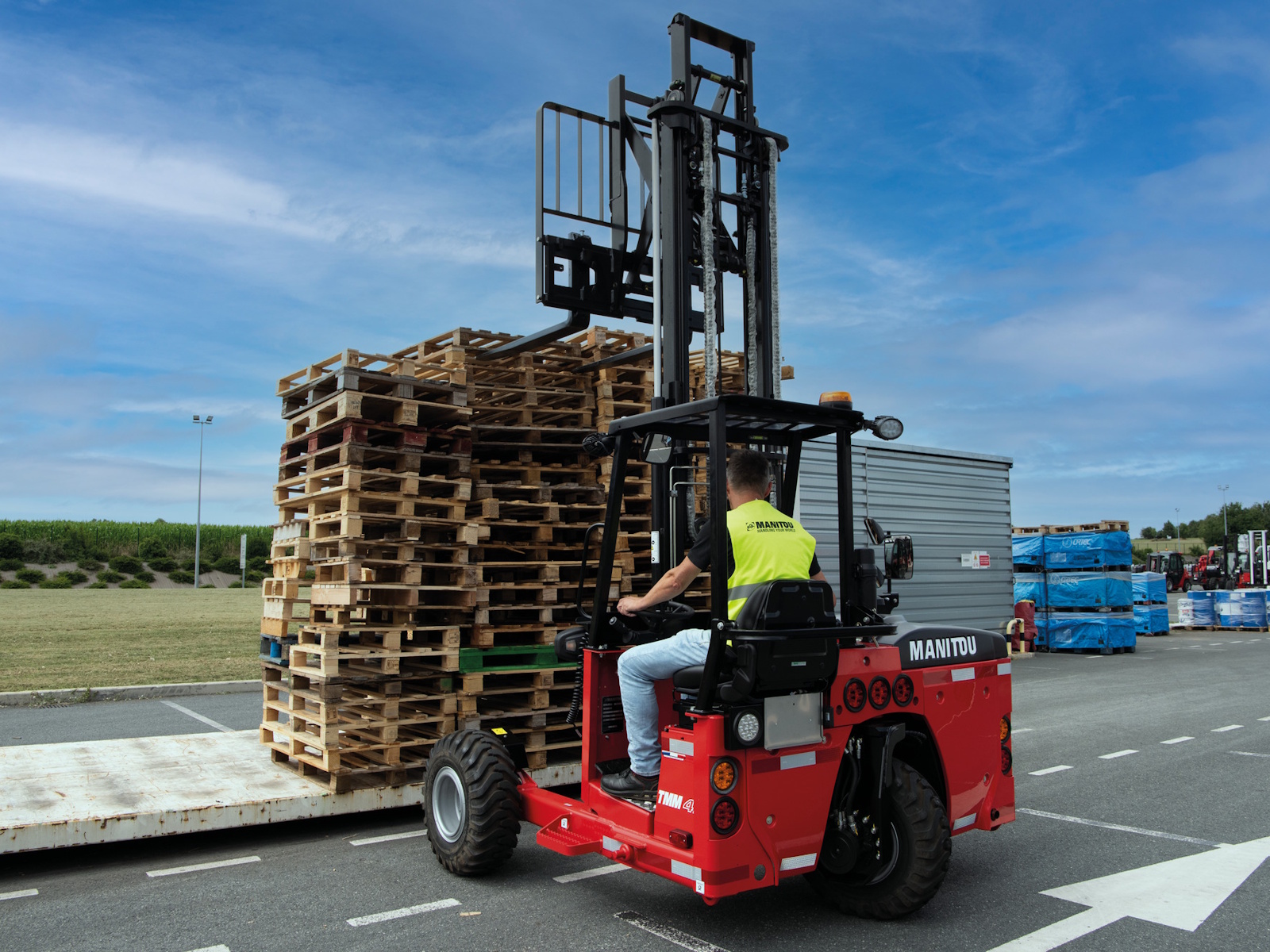

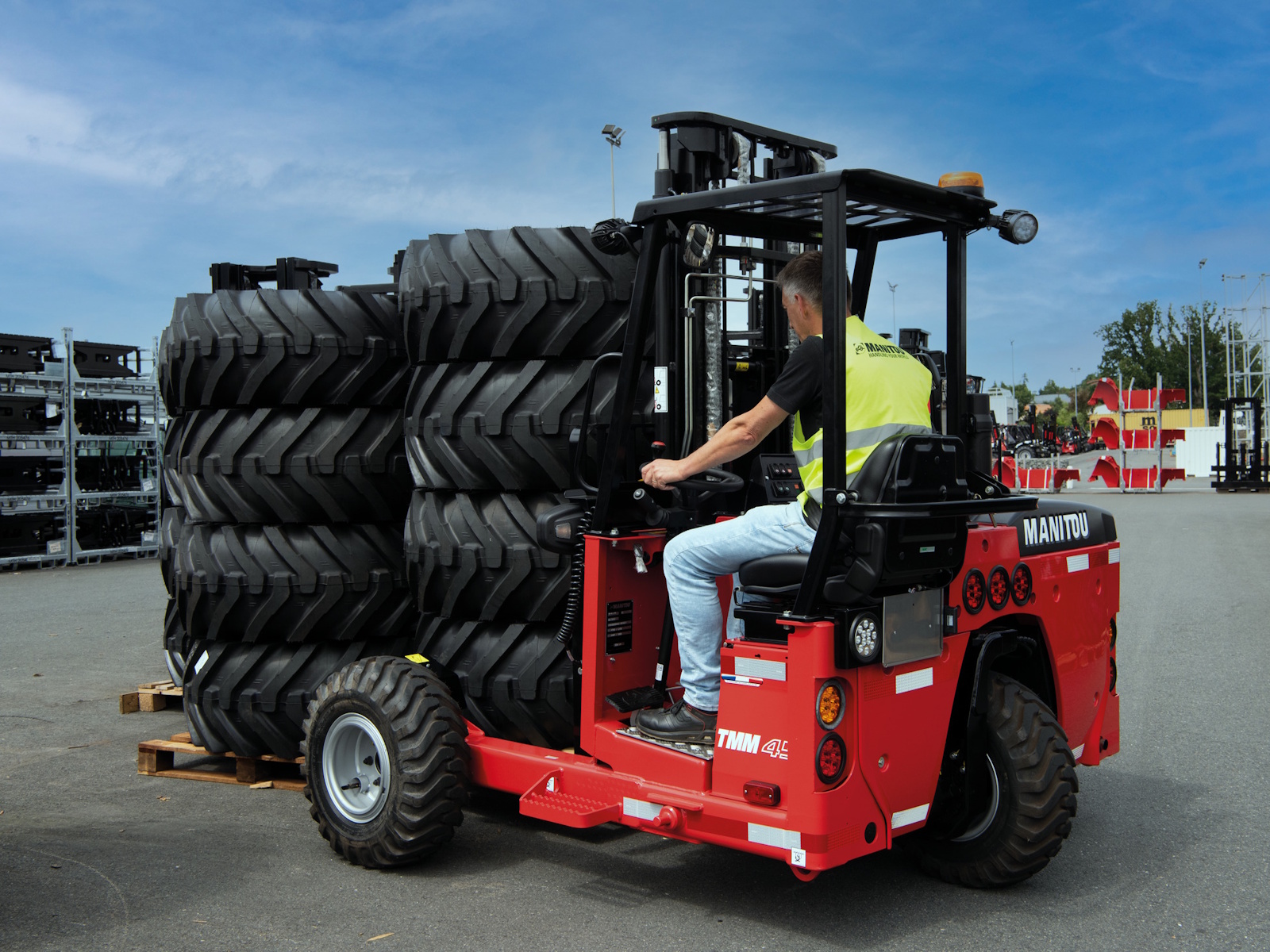

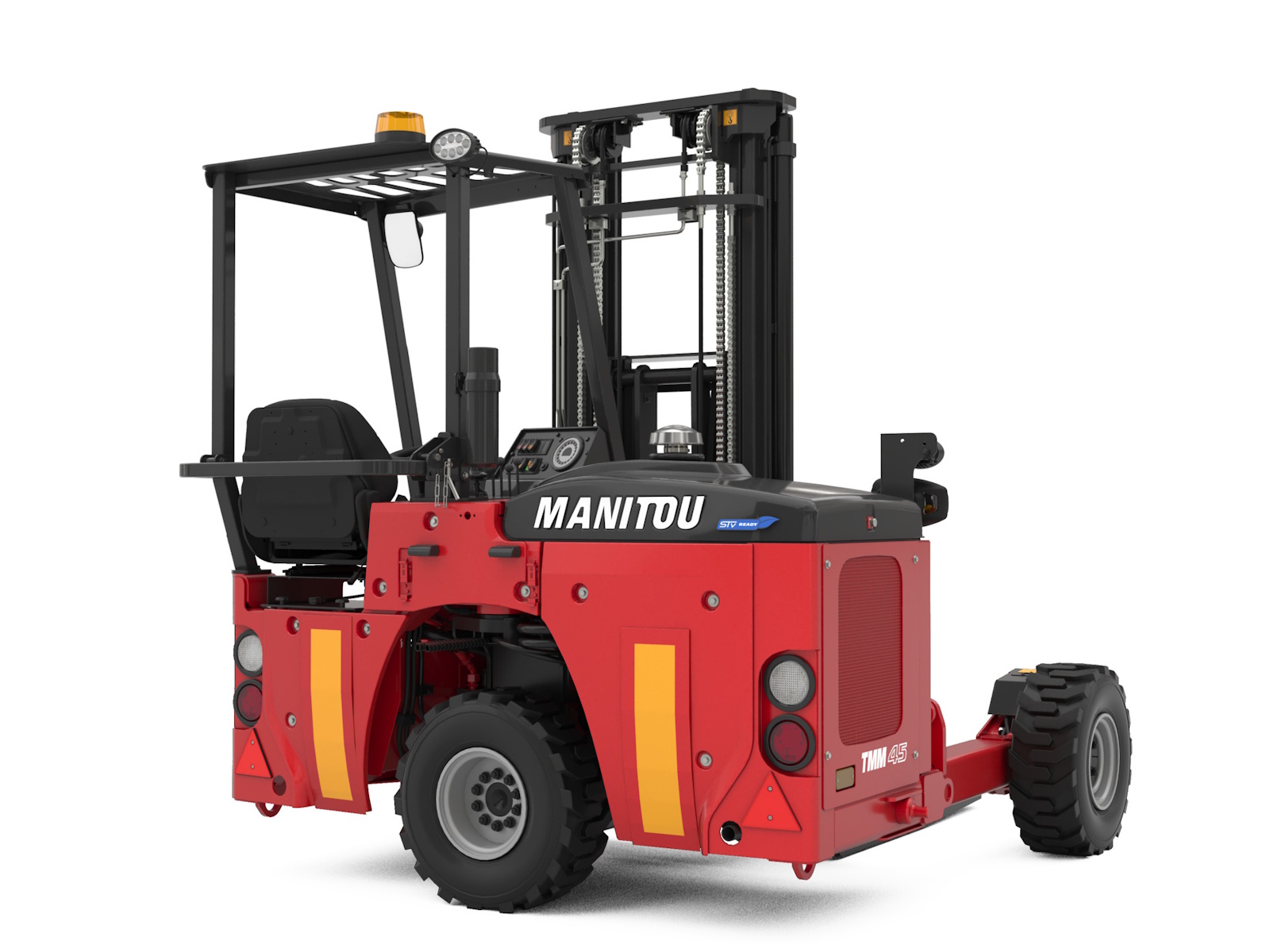

- The TMM 45 is an on-board industrial truck mounted forklift that allows operators to be completely autonomous during their deliveries and loading in semi-urban areas.
- Compact and light, it can be easily attached to the truck and can be adapted to all mounting kits on the market. Its high lifting height of up to 11'10" (3.6 m), the lateral displacement of its mast and its 3 driving wheels make the TMM 45 efficient and easy to handle on all types of ground.
- For better stability and greater operator comfort, this truck-mounted forklift is equipped with stabilizers, and an inching/braking pedal to adjust the speed in all circumstances.
Info
Industry
Agriculture
Make
Manitou Group
Model
TMM 45 K ST5
Trim
Base
Year
2026
MSRP
N/A
Category
Forklift
Subcategory
General
Specs
Notes
Reach out equipment: Pantograph | Operator type: Seated | Load distance, centre of drive axle to fork: 19 in | Forks section / width / length: 2 in x 5 in x 47 in | Fork carriage ISO 2328 (class/form) A/B: 2A | Distance between support arms: 46 in | Distance between wheel arms/loading surfaces: 63 in | Maximum horizontal extension at COG 600: 39 in | Travel speed (laden / unladen): 7 mph - 7 mph | Lifting speed (laden / unladen): 0.85 ft/s / 0.79 ft/s | Lowering speed (laden / unladen): 1 ft/s / 0.79 ft/s | Gradeability (laden / unladen): 50 % / 51 % | Acceleration time (laden / unladen): 4.10 s / 2.60 s | Rated speed: 3000 rpm | Type of drive control: Cable | Working hydraulic pressure for attachments: 2756 PSI | Oil flow rate for attachments: 11 US gpm | Sound level at the driver's ear according to DIN 12 053: 84 dB
Fuel Type
Diesel
Load Capacity
4409 lb
Wheelbase
63 in
Weight
Standard mast reference of the machine: FVD 30 | Service weight: 5049 lb | Weight on front axle (laden) / rear axle (laden): 6724 lb / 2734 lb | Weight on front axle (Unladen) / rear axle (Unladen): 2315 lb / 2734 lb
Tires
Pneumatic
Wheels
Dimensions of front wheels: 27x10-12 IC30 | Dimensions of rear wheels: 27x10-12 IC30 | Number of front wheels / rear wheels: 2 / 1 | Drive wheels (front / rear): 2 / 1 | Front wheel gauge: 85 in
Height
Max. lifting height: 118 in | Height telescopic boom extended: 199 in | Height of overhead guard (cabin): 83 in | Seat height/stand height: 41 in
Length
104 in
Width
95 in | Fork carriage width: 50 in | Aisle width for 800 x 1200 pallet lengthways: 132 in
Ground Clearance
Ground clearance at centre of wheelbase: 11 in
Turning Radius
97 in
Brakes
Service brake: Hydraulic brakes by loss of pressure
Transmission
Hydrostatic
Engine
Kubota - Stage V / D1105-E4B-MNT-2
Power/Horsepower
25 Hp / 18.50 kW
Cylinders
3 - 69 in³
