2026 Manitou Group TMM 45 4W K ST5
Get in Touch
Description

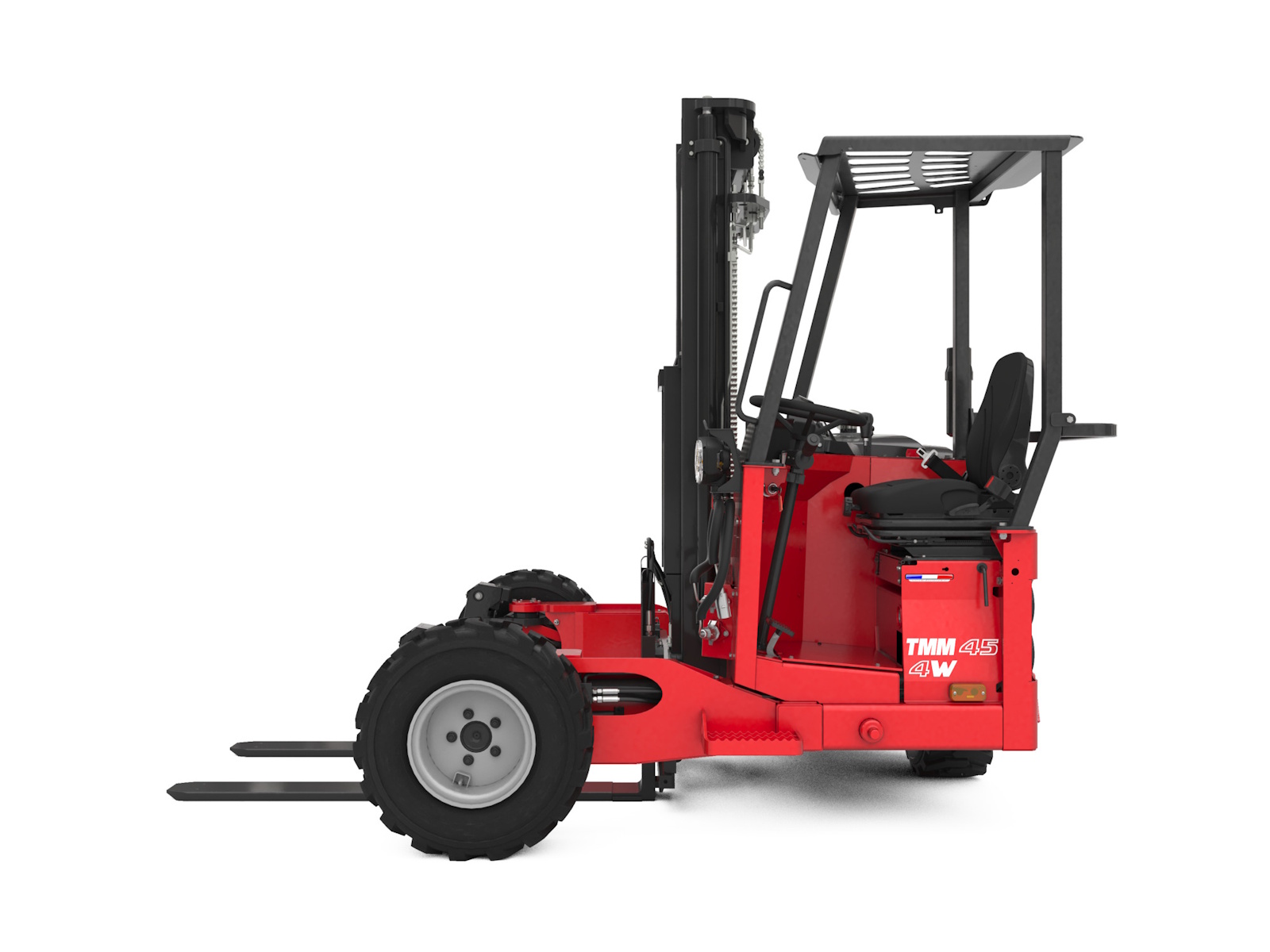

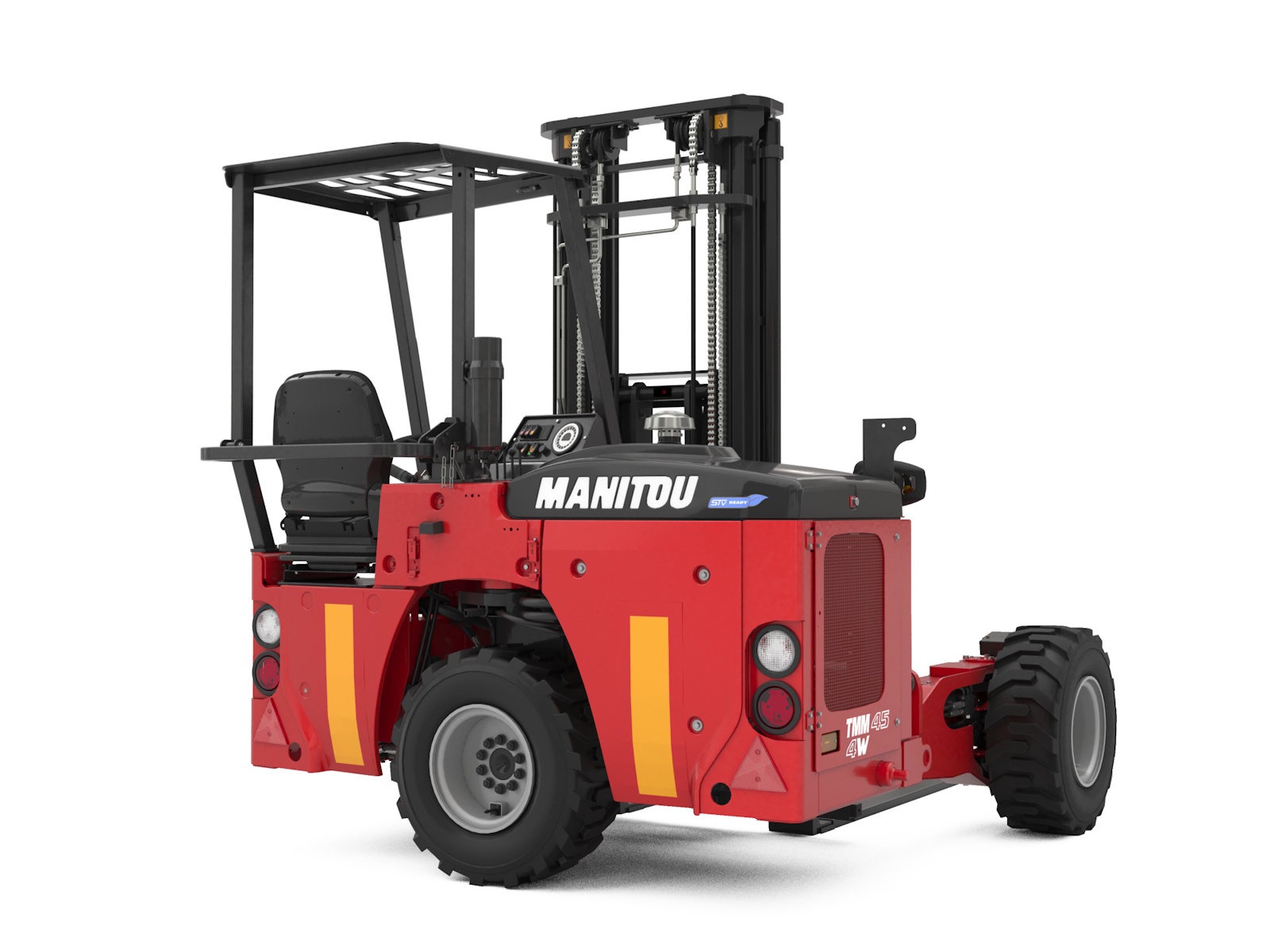

2026 Manitou Group TMM 45 4W K ST5
- The TMM 45 is an on-board industrial truck that allows transporters to be completely autonomous during their deliveries and loading in semi-urban areas.
- Compact and light, it can be easily attached to the truck and can be adapted to all attachment kits on the market.
- Its high lifting height of up to 3.9 m, the lateral displacement of its mast and its 3 driving wheels make the TMM 45, this industrial truck, efficient and easy to handle on all types of grounds.
- For a better stability and a greater comfort of work, this industrial truck is equipped with stabilizers, a control to change the direction of travel and a mixed pedal inching/braking to adjust the speed in all circumstances.
Info
Industry
Agriculture
Make
Manitou Group
Model
TMM 45 4W K ST5
Trim
Base
Year
2026
MSRP
N/A
Category
Forklift
Subcategory
General
Specs
Notes
Reach out equipment: Pantograph | Operator type: Seated | Load center of gravity: 20 in | Load distance, centre of drive axle to fork: 19 in | Standard mast reference of the machine: FVD 30 | Forks section / width / length: 2 in x 5 in x 47 in | Fork carriage ISO 2328 (class/form) A/B: 2A | Distance between support arms: 46 in | Distance between wheel arms/loading surfaces: 59 in | Maximum horizontal extension at COG 600: 39 in | Travel speed (laden / unladen): 7 mph - 7 mph | Lifting speed (laden / unladen): 0.85 ft/s / 0.79 ft/s | Lowering speed (laden / unladen): 1 ft/s / 0.79 ft/s | Gradeability (laden / unladen): 47 % / 48 % | Acceleration time (laden / unladen): 4.10 s / 2.60 s | Rated speed: 3000 rpm | Type of drive control: Cable | Working hydraulic pressure for attachments: 2756 PSI | Oil flow rate for attachments: 11 US gpm | Sound level at the driver's ear according to DIN 12 053: 84 dB
Fuel Type
Diesel
Load Capacity
4409 lb
Wheelbase
63 in
Weight
Service weight: 5401 lb | Weight on front axle (laden) / rear axle (laden): 7011 lb / 2800 lb | Weight on front axle (Unladen) / rear axle (Unladen): 2601 lb / 2800 lb
Tires
Pneumatic
Wheels
Dimensions of front wheels: 27x10-12 IC30 | Dimensions of rear wheels: 27x10-12 IC30 | Number of front wheels / rear wheels: 2 / 1 | Front wheel gauge: 84 in
Height
Max. lifting height: 118 in | Height of overhead guard (cabin): 83 in | Seat height/stand height: 42 in
Length
104 in
Width
94 in | Fork carriage width: 50 in | Aisle width for 800 x 1200 pallet lengthways: 132 in
Ground Clearance
Ground clearance at centre of wheelbase: 11 in
Turning Radius
97 in
Brakes
Service brake: Hydraulic brakes by loss of pressure
Transmission
Hydrostatic
Engine
Kubota - Stage V / D1105-E4B-MNT-2
Power/Horsepower
25 Hp / 18.50 kW
Cylinders
3 - 69 in³
