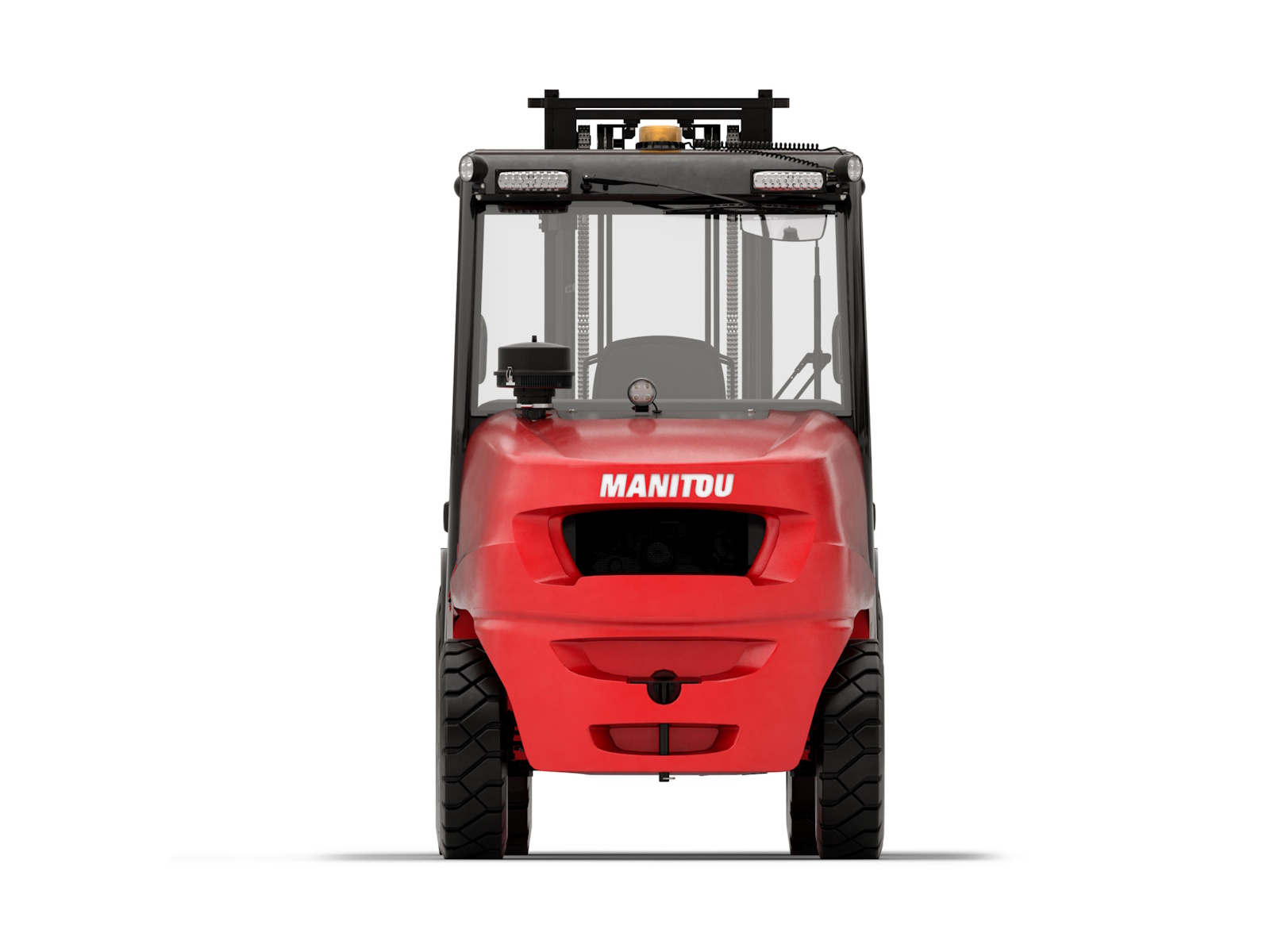

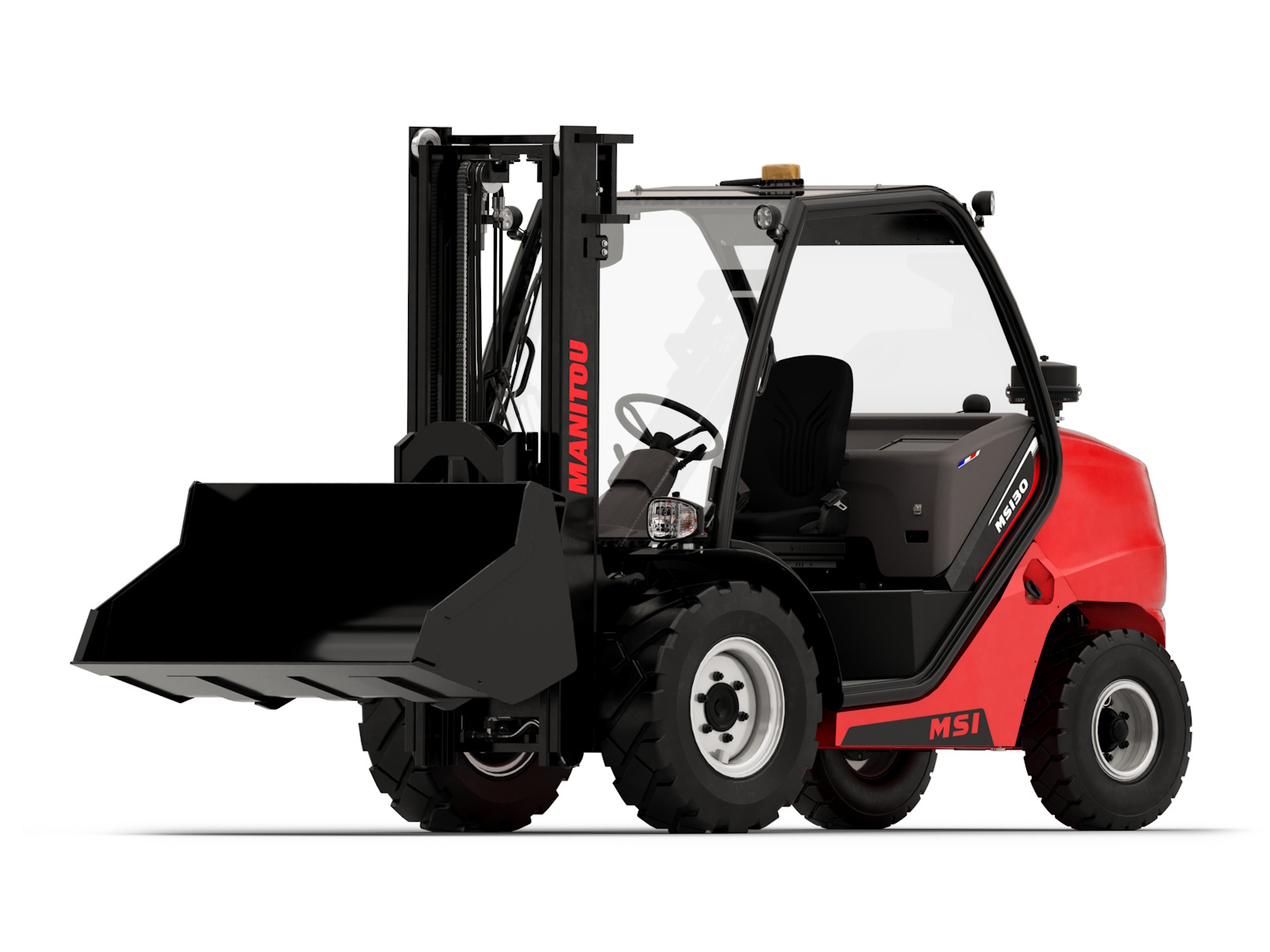

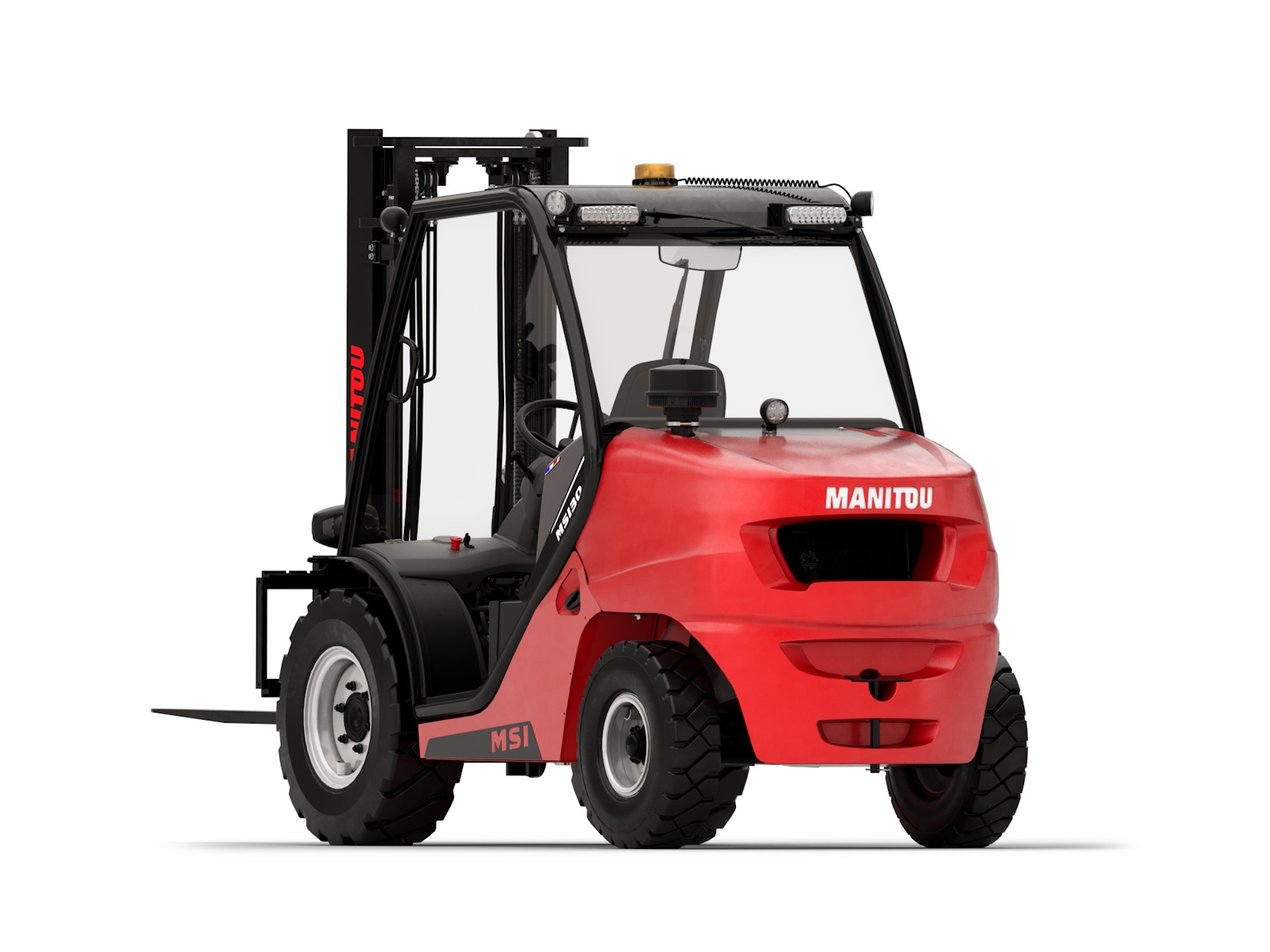

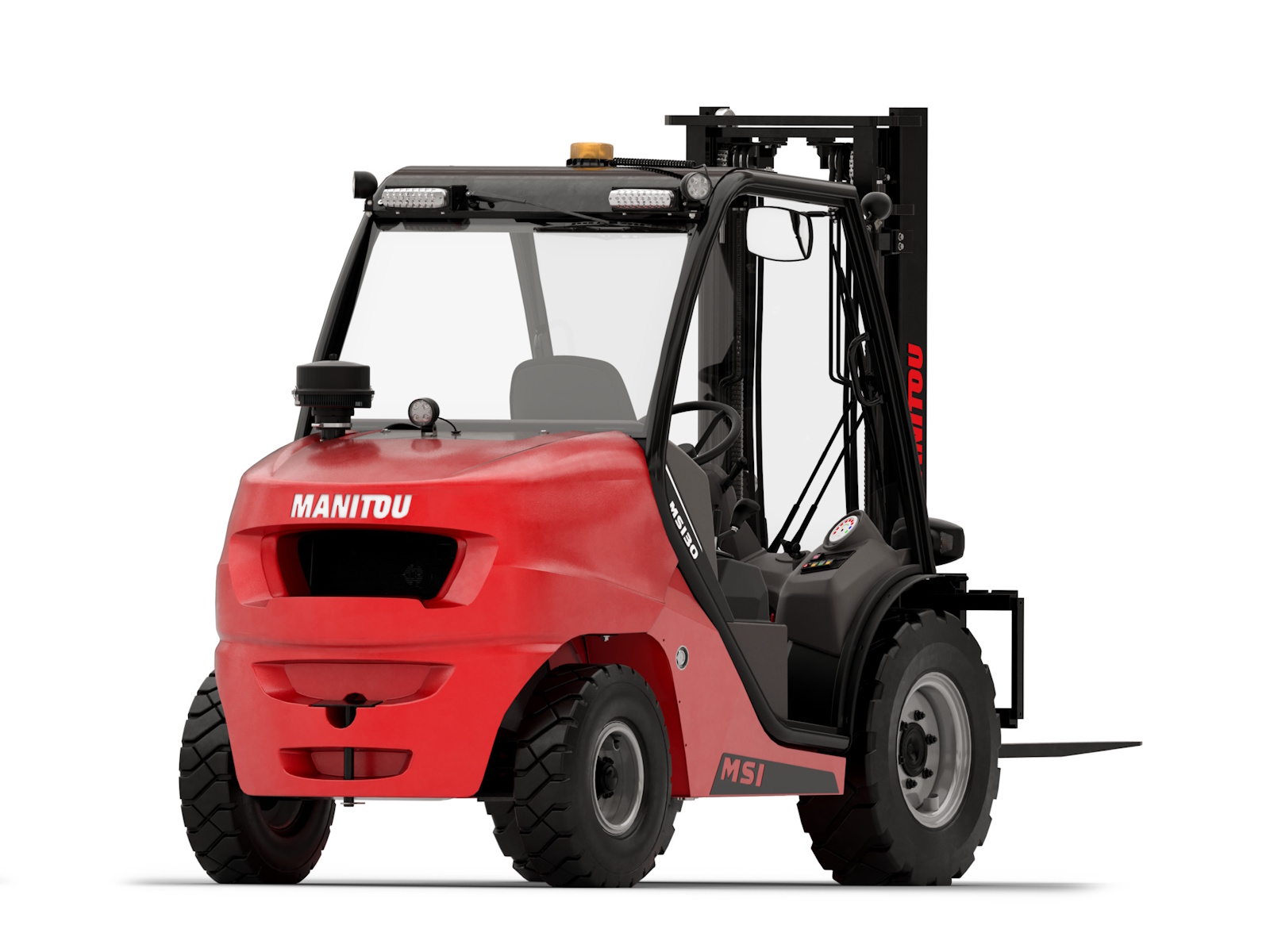

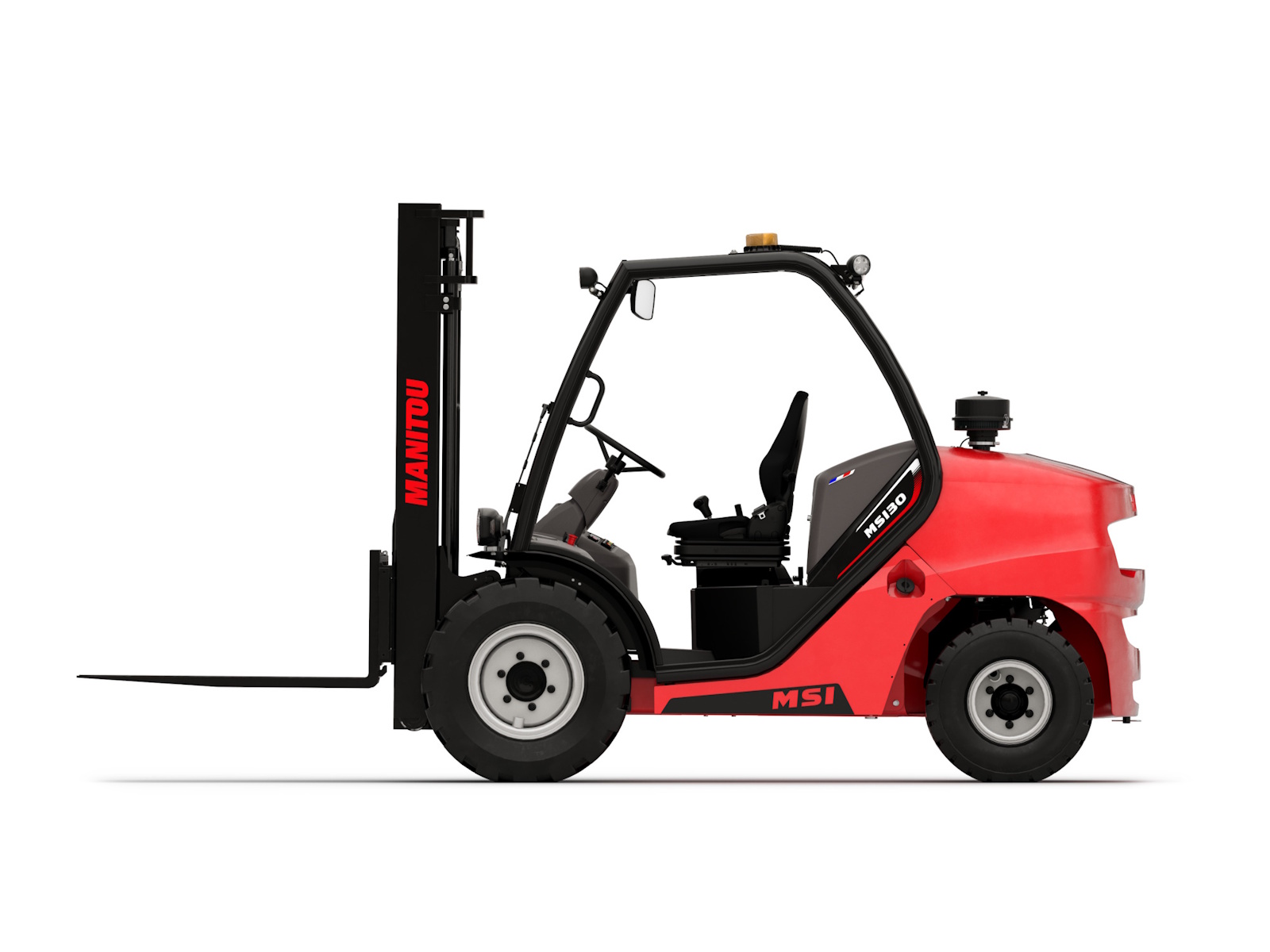

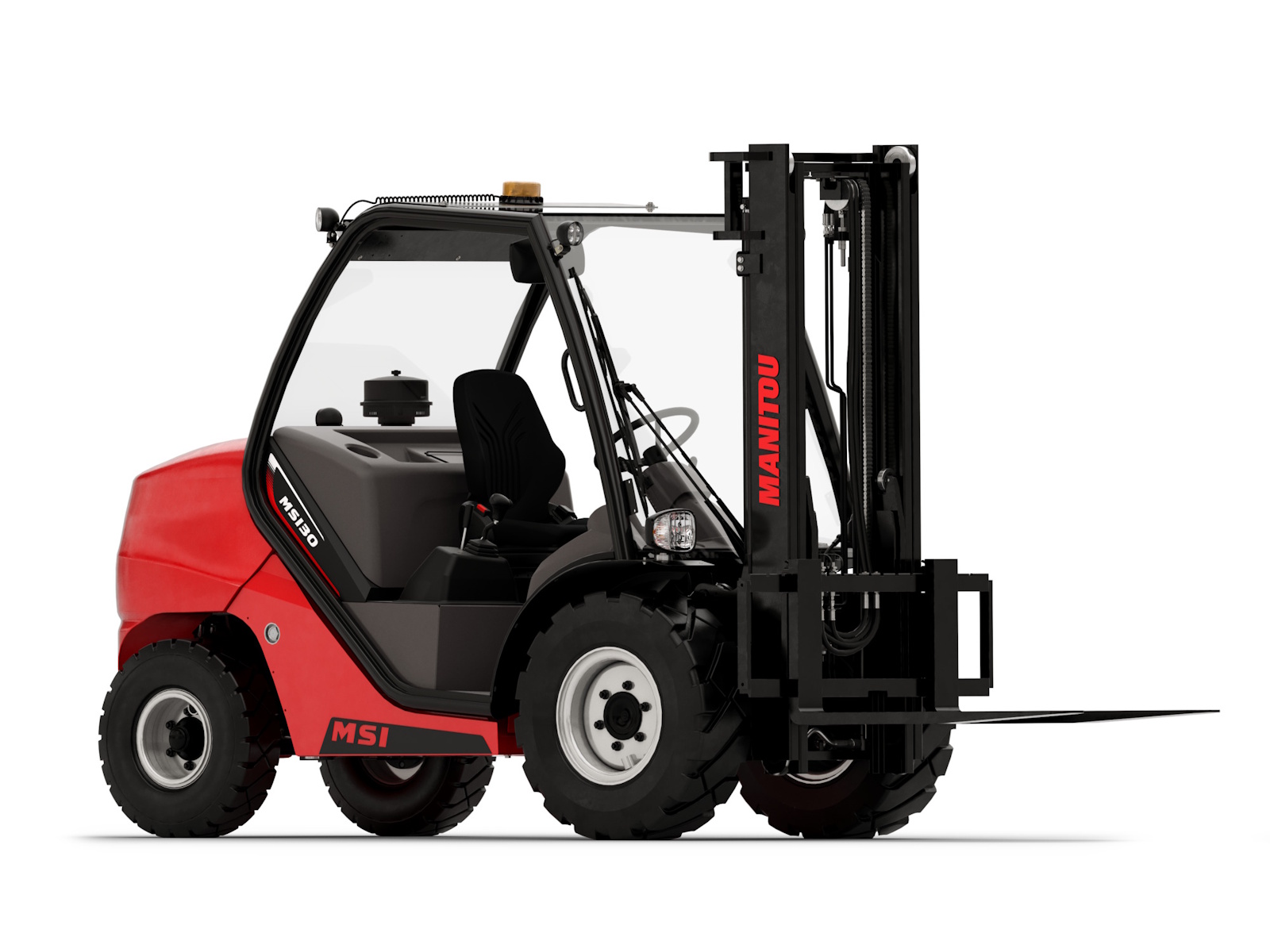

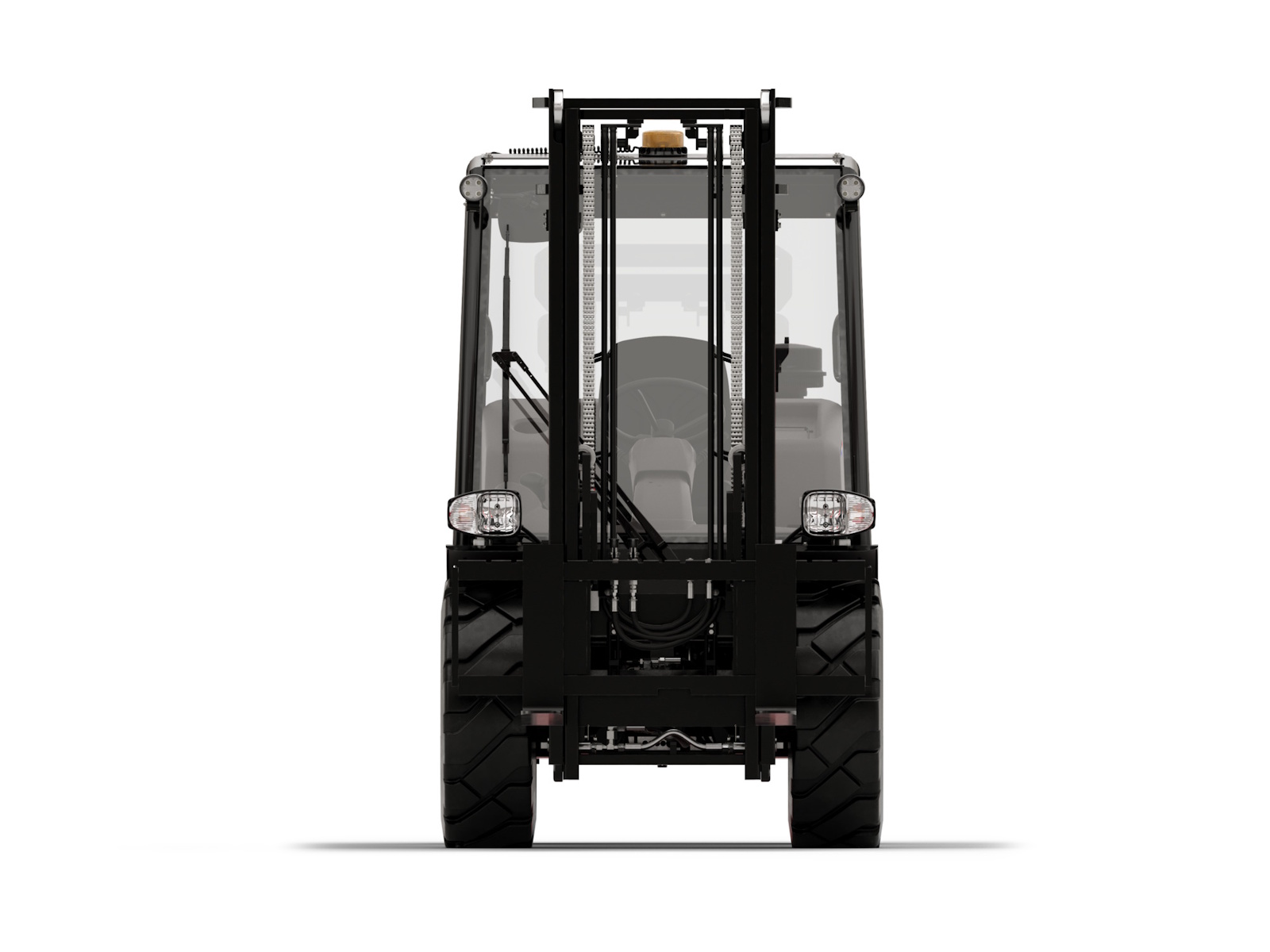

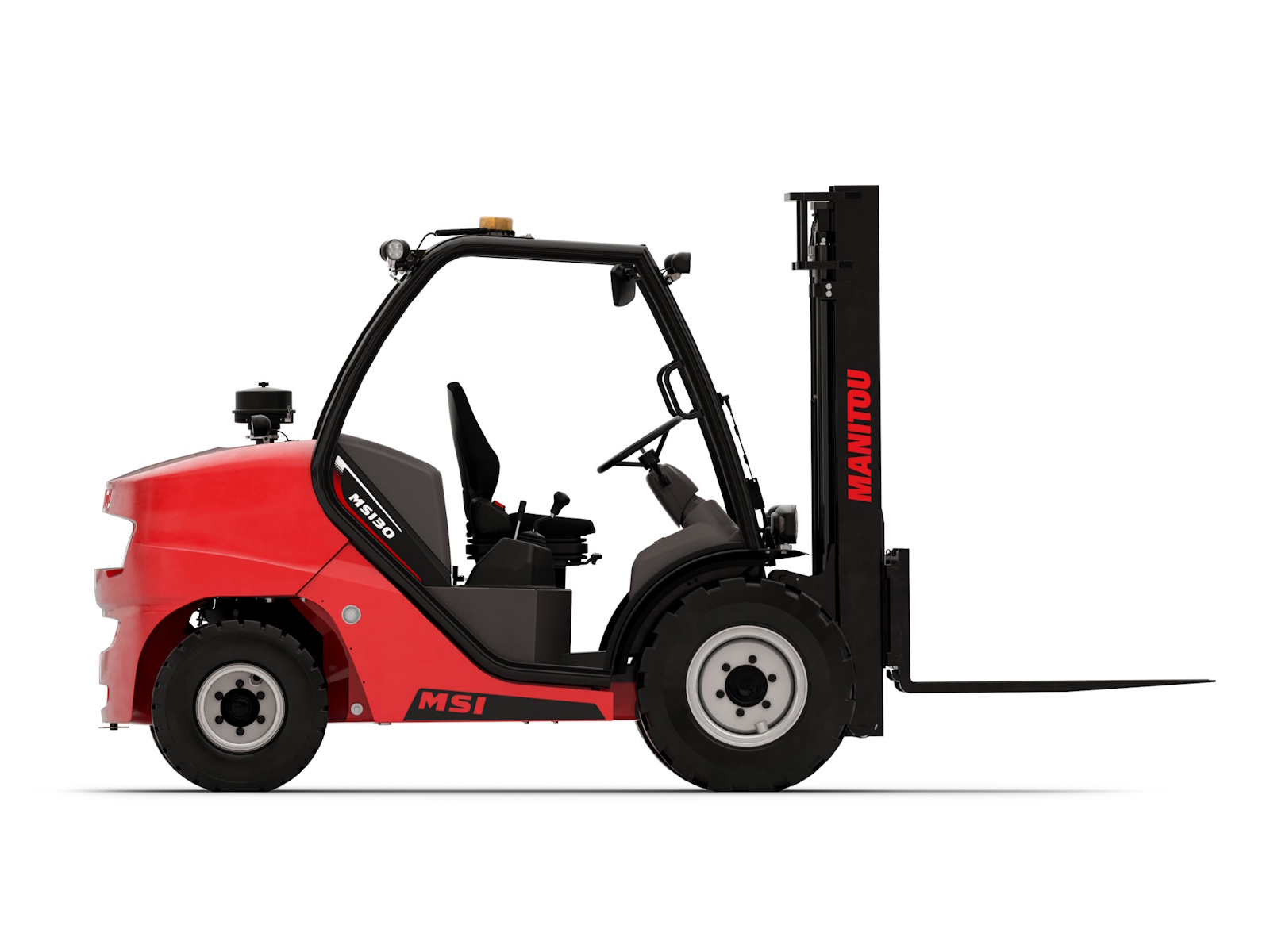

2026 Manitou Group MSI 30 ST5
The MSI 30 semi-industrial forklift allows you to easily move loads weighing up to 3000 kg. Offering a maximum lift height of 6 meters and exceptional ground clearance, it adapts to your various semi-industrial applications. Its hydrostatic transmission allows you to work with mastery and millimetric precision. The MSI 30 has been designed with 4 types of suspension: cab, seat, tires and load shock absorber. This ideal driving comfort combined with the optimal visibility through the mast and the panoramic roof of the MSI 30 contribute to the reduction of fatigue and MSD of the drivers.
Info
Industry
Agriculture
Make
Manitou Group
Model
MSI 30 ST5
Trim
Base
Year
2026
MSRP
N/A
Category
Forklift
Subcategory
General
Specs
Fuel Type
Diesel
Notes
Operator type: Seated | Load center of gravity: 20 in | Load distance, centre of drive axle to fork: 25 in | Standard mast reference of the machine: FVD 33 | Forks section / width / length: 2 in x 4 in x 47 in | Fork carriage ISO 2328 (class/form) A/B: 3A | Travel speed (laden / unladen): 13 mph-13 mph | Lifting speed (laden / unladen): 2 ft/s-2 ft/s| Lowering speed (laden / unladen): 2 ft/s-0.98 ft/s | Drawbar pull (Laden): 1900 daN | Gradeability (laden): 27 % | Rated speed: 2700 rpm | Type of drive control: Electronic | Working hydraulic pressure for attachments: 3191 PSI | Oil flow rate for attachments: 12 US gpm | Sound level at the driver's ear according to DIN 12 053: 81 dB
Load Capacity
6614 lb
Wheelbase
75 in
Weight
Service weight: 9700 lb | Weight on front axle (laden) / rear axle (laden): 14462 lb / 1852 lb | Weight on front axle (Unladen) / rear axle (Unladen): 3660 lb / 6041 lb
Tires
Pneumatic
Wheels
Dimensions of front wheels: 300-15/18 6T P43 | Dimensions of rear wheels: 7.00-12/12 ED PLUS | Number of front wheels / rear wheels: 2 / 2 | Number of drive wheels: 2 | Front wheel gauge: 41 in | Rear wheel gauge: 44 in
Height
Seat height/stand height: 38 in | Height of overhead guard (cabin) / Overall height of low overhead guard (Buggie version): 82 in / 76 in
Length
167 in | Length to face of forks: 119 in
Width
52 in | Fork carriage width: 50 in | Aisle Width for pallets 1000 x 1200 crossways: 184 in
Ground Clearance
Ground clearance below mast: 10 in | Ground clearance at centre of wheelbase: 9 in
Turning Radius
104 in
Brakes
Service brake: Hydraulic brakes by loss of pressure
Transmission
Hydrostatic
Engine
Kubota / D1803 CRT E5B / Stage V
Power/Horsepower
50 Hp/37 kW
Cylinders
3 - 111 in³
