2026 Manitou Group ME 425C US
Get in Touch
Description

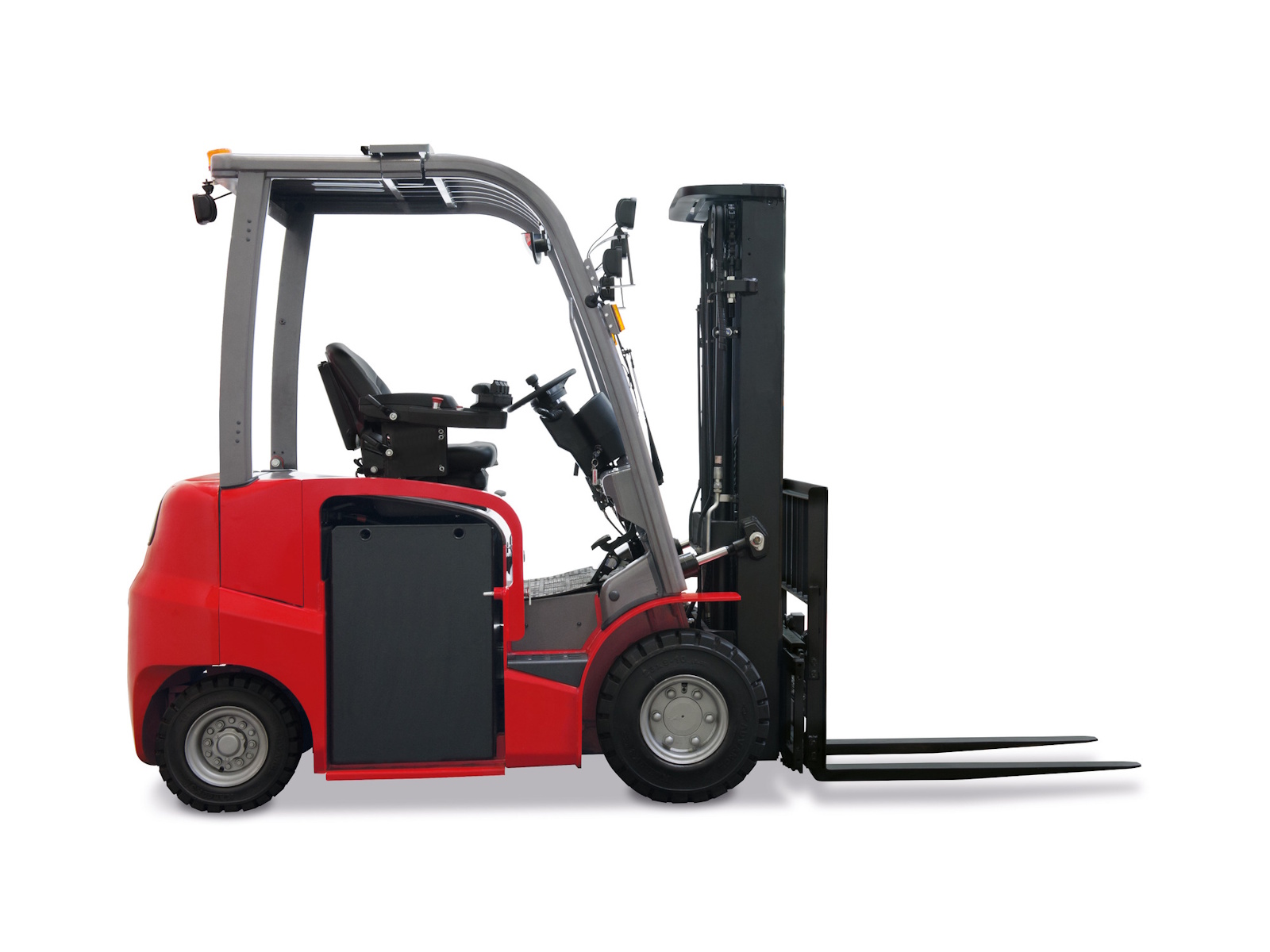

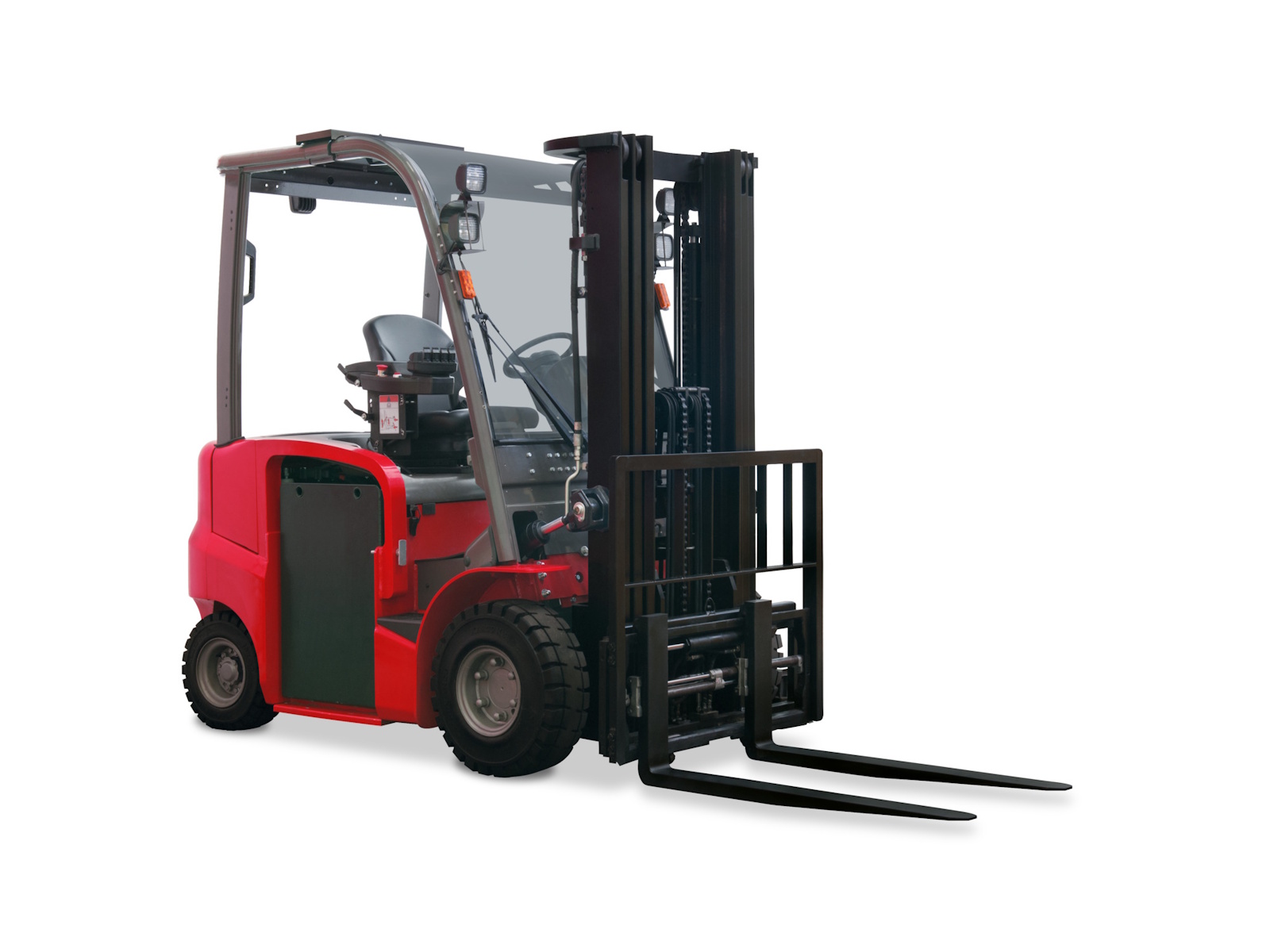

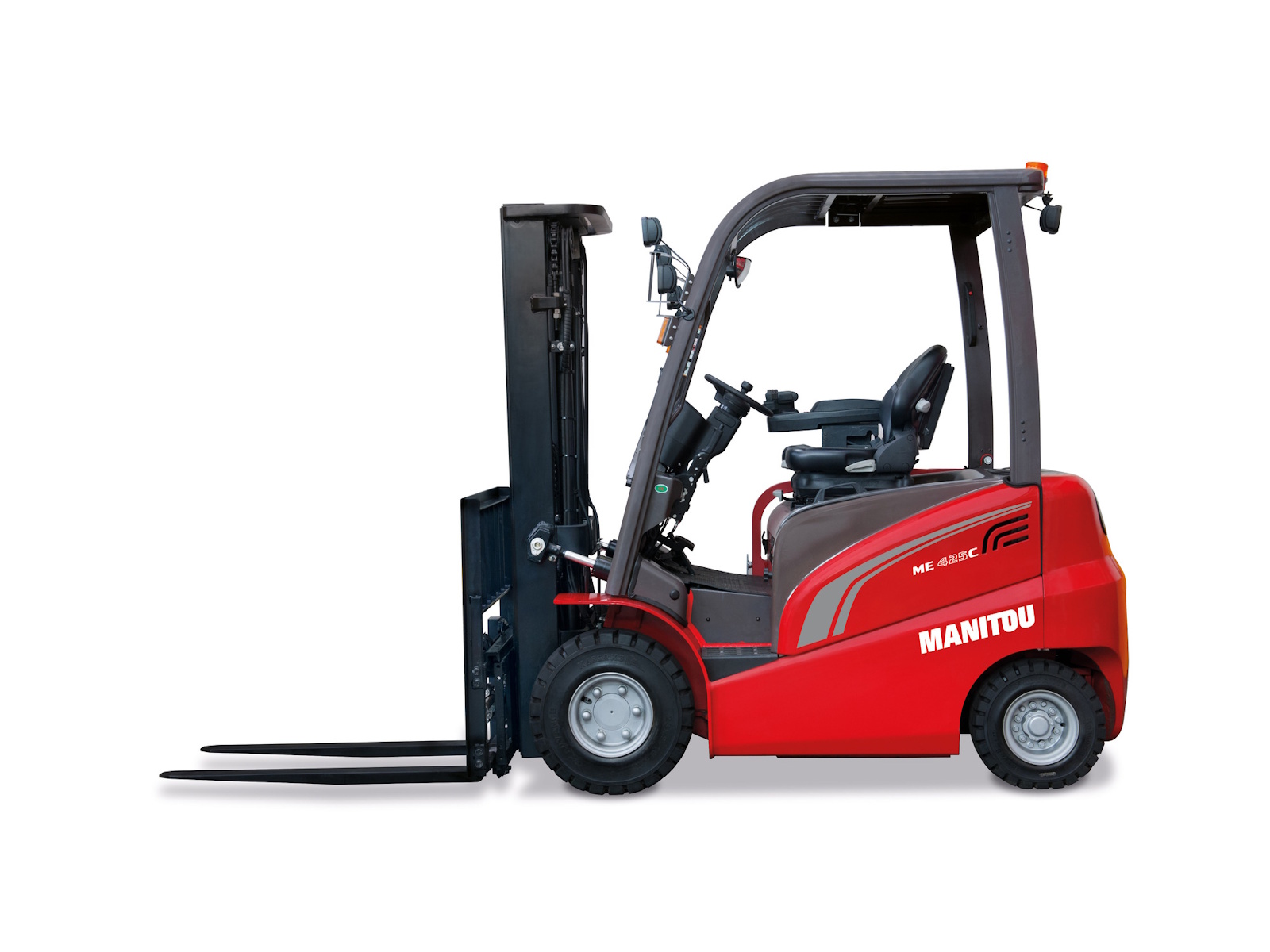

2026 Manitou Group ME 425C US
Optimize your handling and storage operations with the Manitou ME 425C forklift. Electric, this mast model offers a maximum load capacity of 2500 kg capable of transporting your goods and various materials in complete safety. Its compact design is ideal for efficient handling under all conditions, especially in the tightest work areas. Our ME electric trucks can be configured with several options and mast types. Its 48V battery makes the ME 425C a compact and economical forklift truck, perfectly suited for light applications that do not require an 80V battery.
Info
Industry
Agriculture
Make
Manitou Group
Model
ME 425C US
Trim
Base
Year
2026
MSRP
N/A
Category
Forklift
Subcategory
General
Specs
Fuel Type
Electrical - Lead
Notes
Operator type: Seated | Load center of gravity: 20 in | Load distance, centre of drive axle to fork: 18 in | Forks section / width / length: 5 in x 45 in x 2 in | Fork carriage ISO 2328 (class/form) A/B: 2A | Travel speed (laden / unladen): 9 mph-9 mph | Lifting speed (laden / unladen): 0.75 ft/s-1 ft/s | Lowering speed (laden / unladen): 1 ft/s-0.72 ft/s | Drawbar pull (Laden / Unladen): 1800 daN / 1700 daN | Gradeability (laden / unladen): 11 % / 12 % | Drive motor rating S2 60 min: 11 kW | Lift motor rating at S3 15%: 8.60 kW | Battery according to DIN 43531/35/36 A, B, C: DIN43531 B | Energy consumption according to VDI cycle (kWh/h): 5.80 kWh/h | Type of drive control: Electronic | Working hydraulic pressure for attachments: 2538 PSI | Oil flow rate for attachments: 9 US gpm | Measured/guaranteed mean noise level at the ear of the operator: < 72 dB | Sound level at the driver's ear according to DIN 12 053: 72 dB
Load Capacity
5512 lb
Wheelbase
58 in
Weight
Service weight: 9480 lb | Weight on front axle (laden) / rear axle (laden): 13360 lb / 1631 lb | Weight on front axle (Unladen) / rear axle (Unladen): 4321 lb / 5159 lb
Tires
Solid tires
Wheels
Dimensions of front wheels: 23 x 9-10 | Dimensions of rear wheels: 18 x 7-8 | Number of front wheels / rear wheels: 2 / 2 | Number of drive wheels: 2 | Front wheel gauge: 42 in | Rear wheel gauge: 38 in
Height
Seat height/stand height: 42 in | Height of overhead guard (cabin): 85 in | Height of towing bar (coupling height): 12 in
Length
137 in | Length to face of forks: 92 in
Width
50 in | Fork carriage width: 41 in | Aisle Width for pallets 1000 x 1200 crossways: 147 in | Aisle width for 800 x 1200 pallet lengthways: 155 in
Ground Clearance
Ground clearance below mast: 4 in | Ground clearance at centre of wheelbase: 5 in
Turning Radius
82 in | Internal turning radius (over tyres): 29 in
Brakes
Service brake: Hydraulic
Battery
Battery voltage / capacity: 48 V / 700 Ah
