2026 Manitou Group M 50-4 D ST5

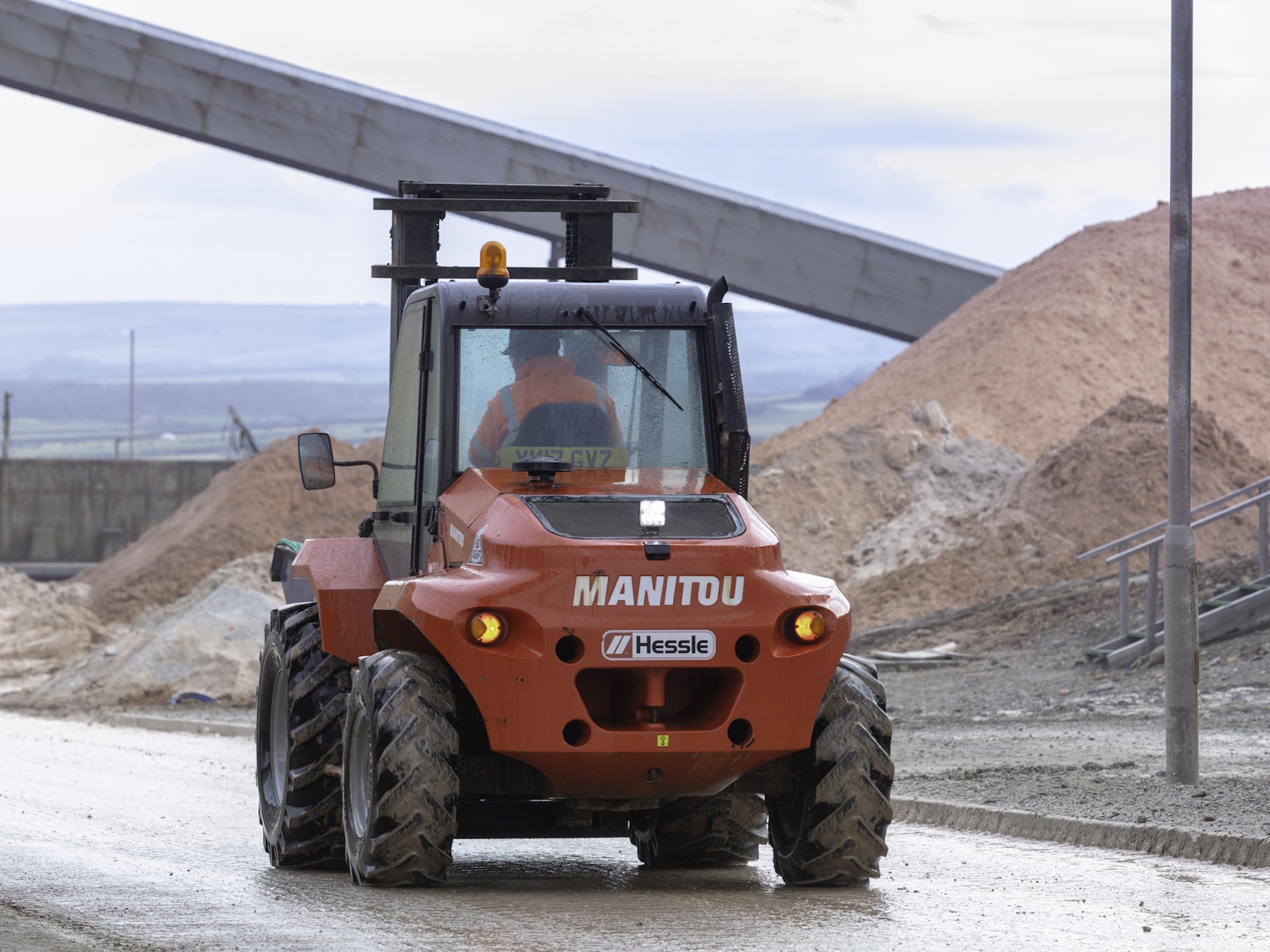

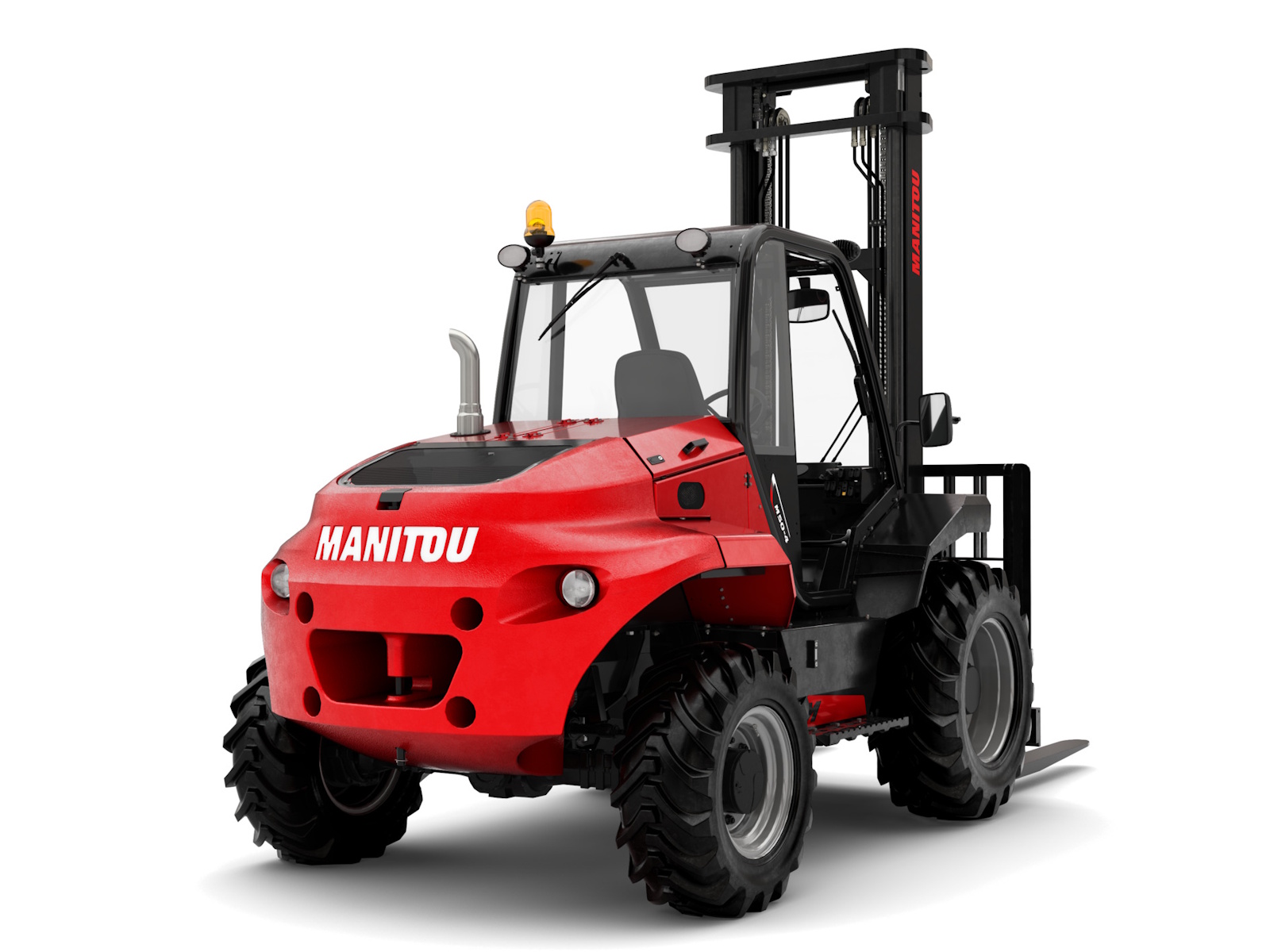

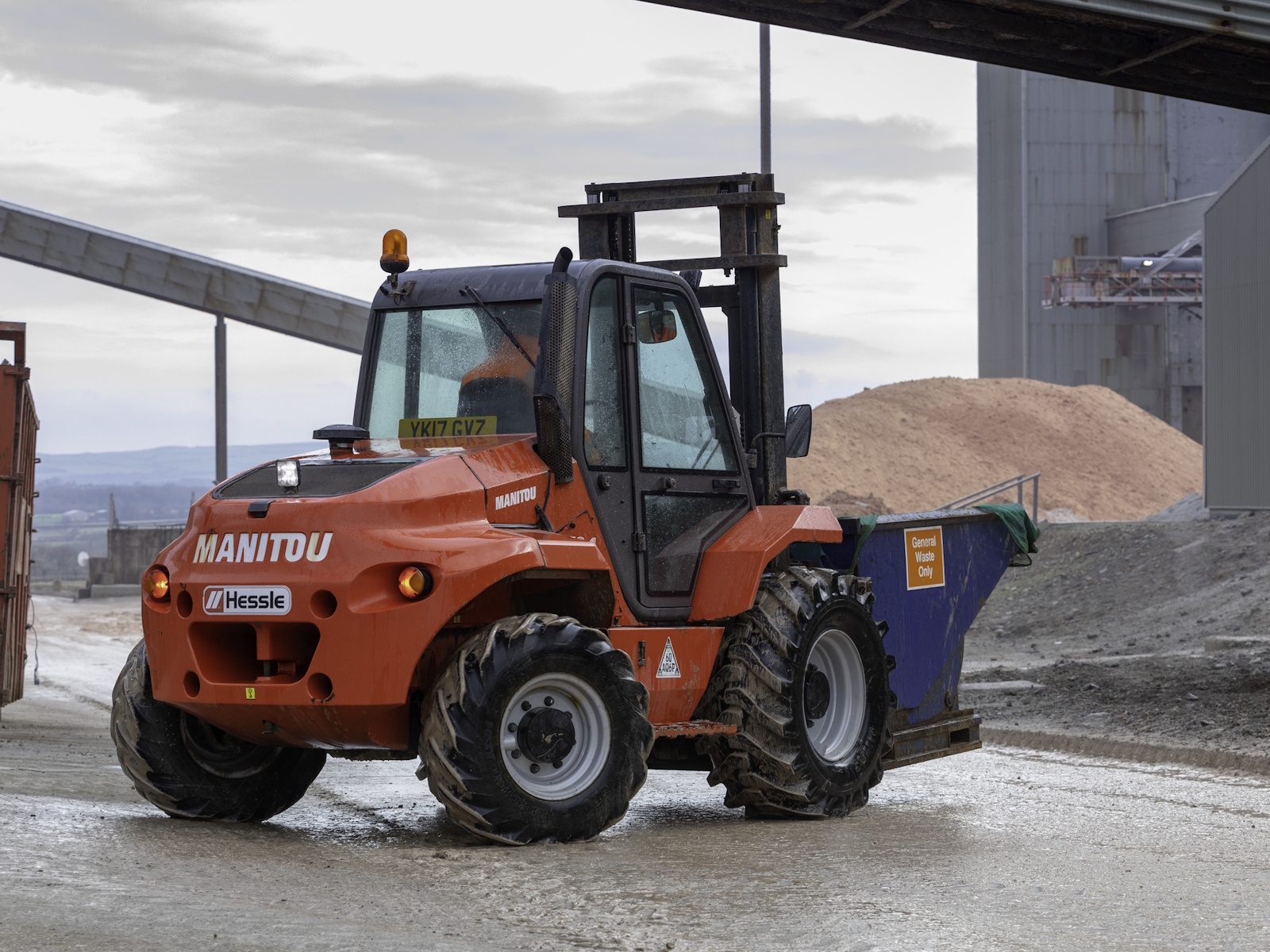

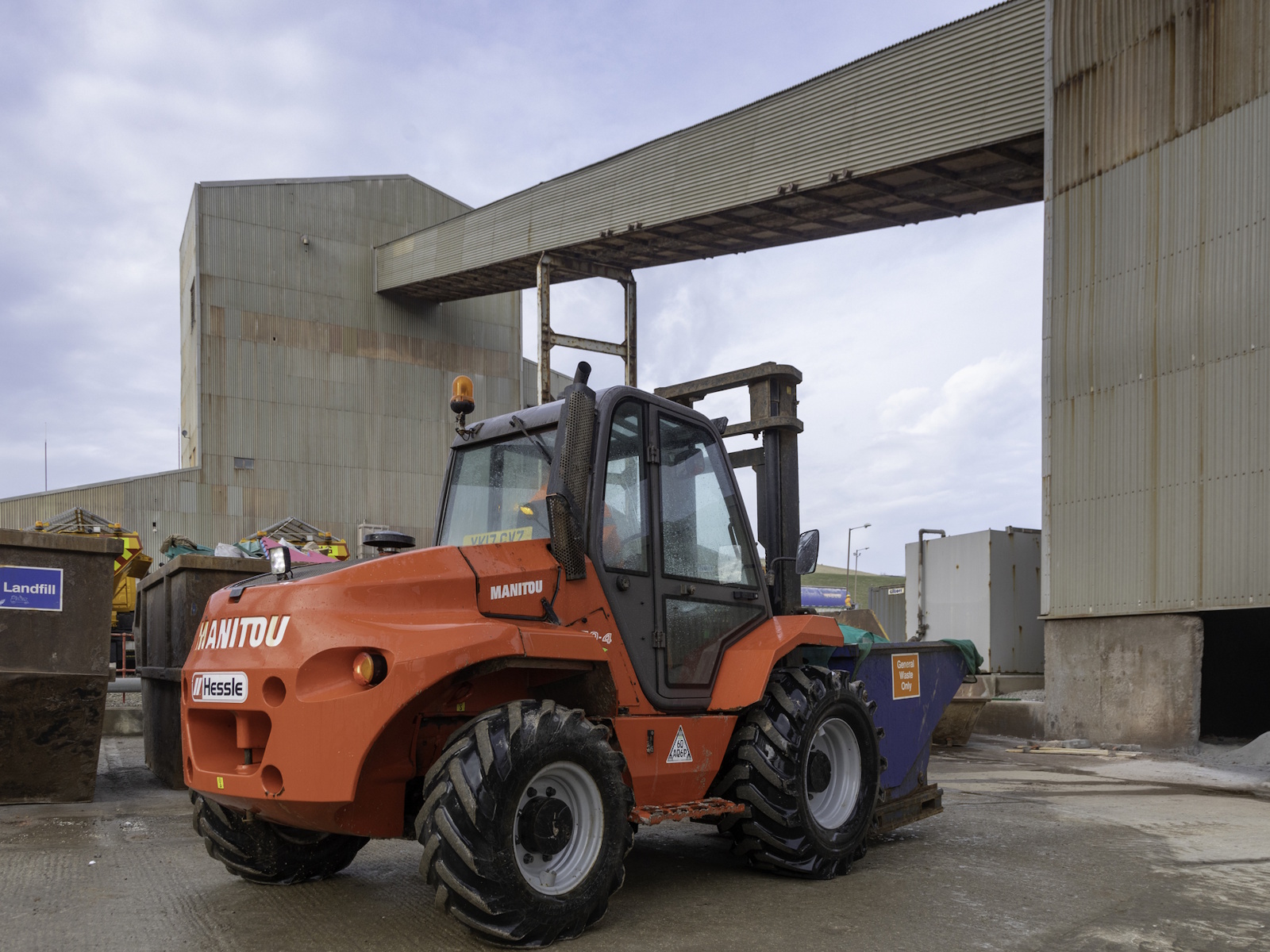

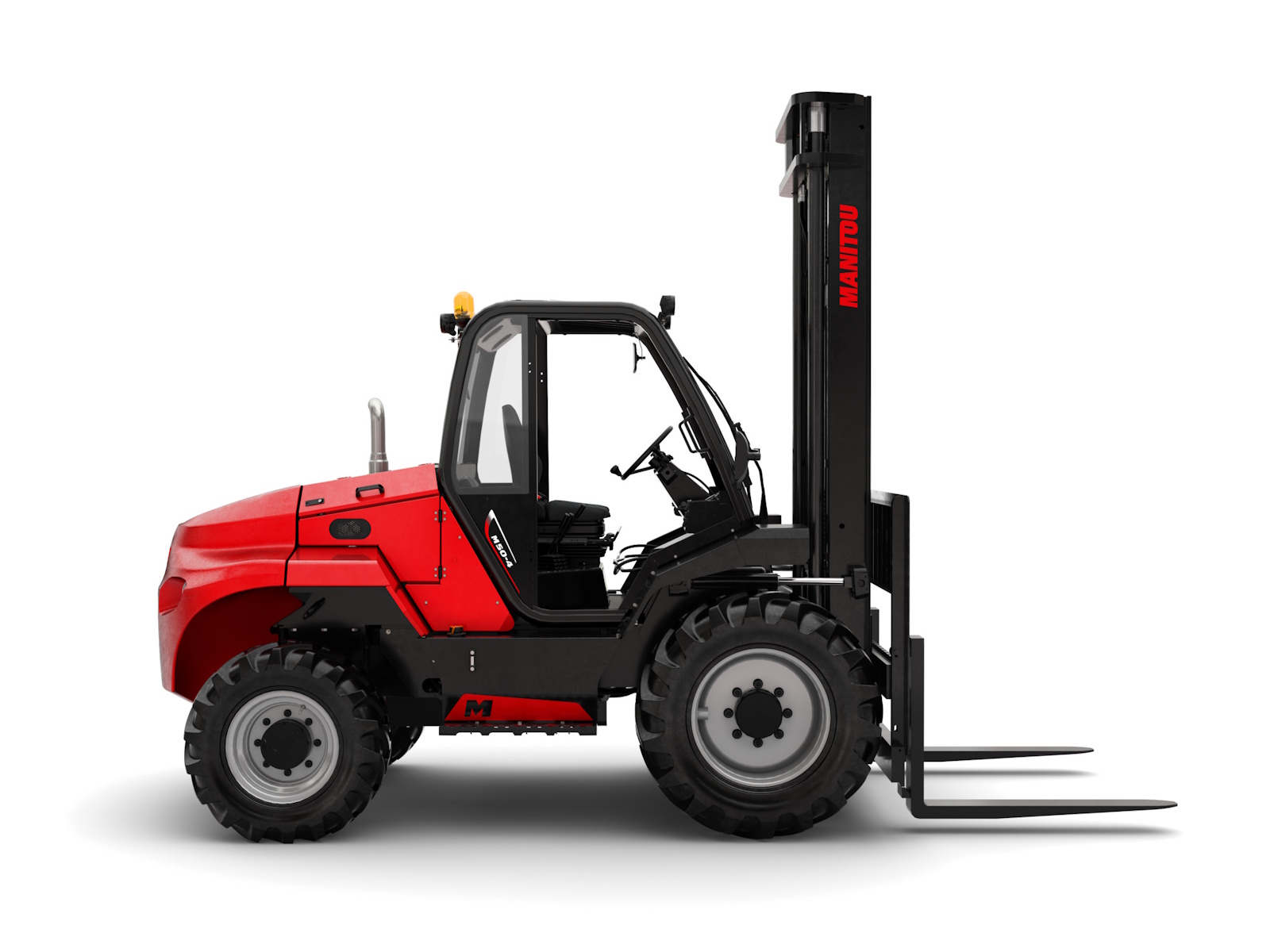

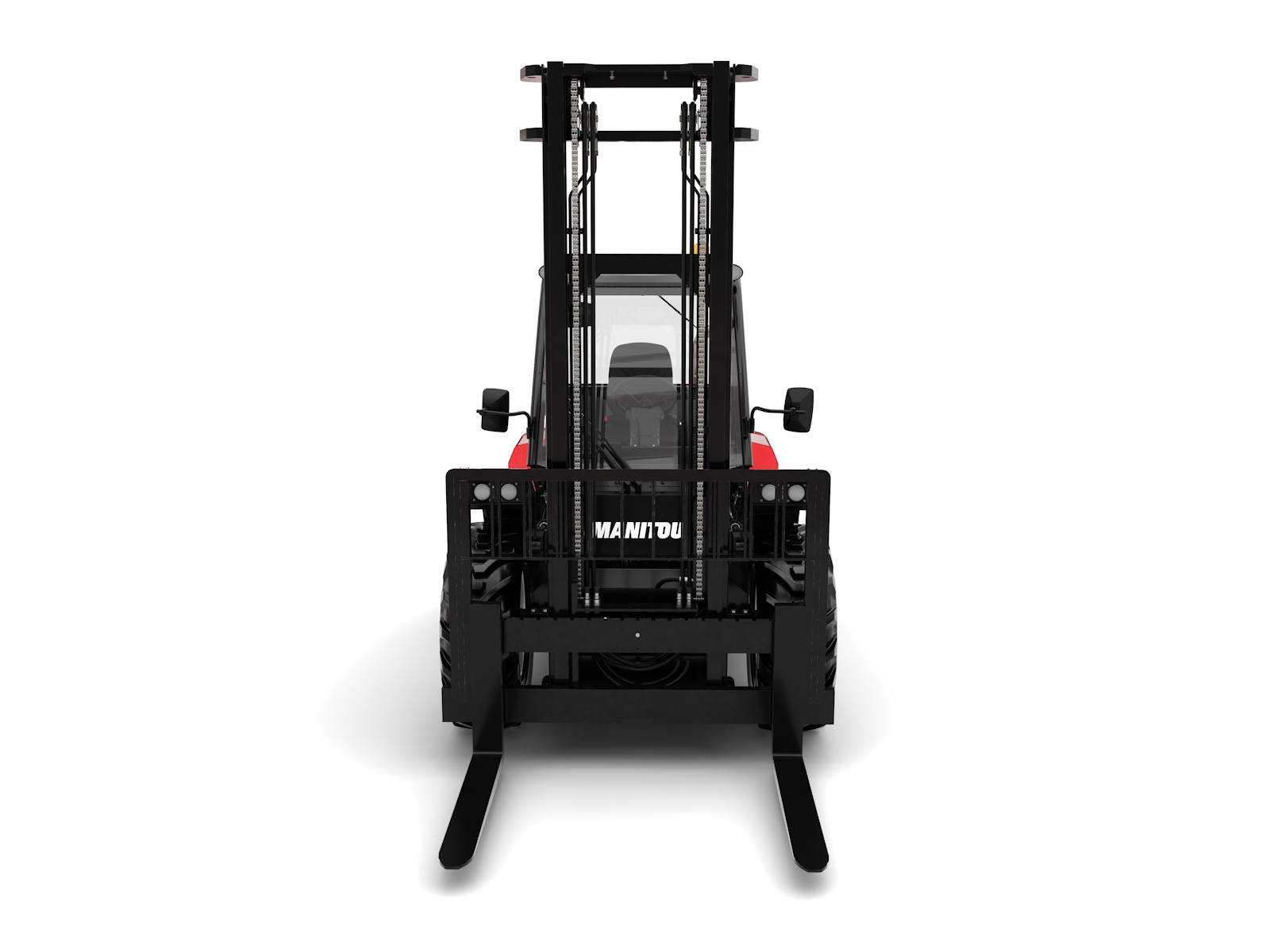

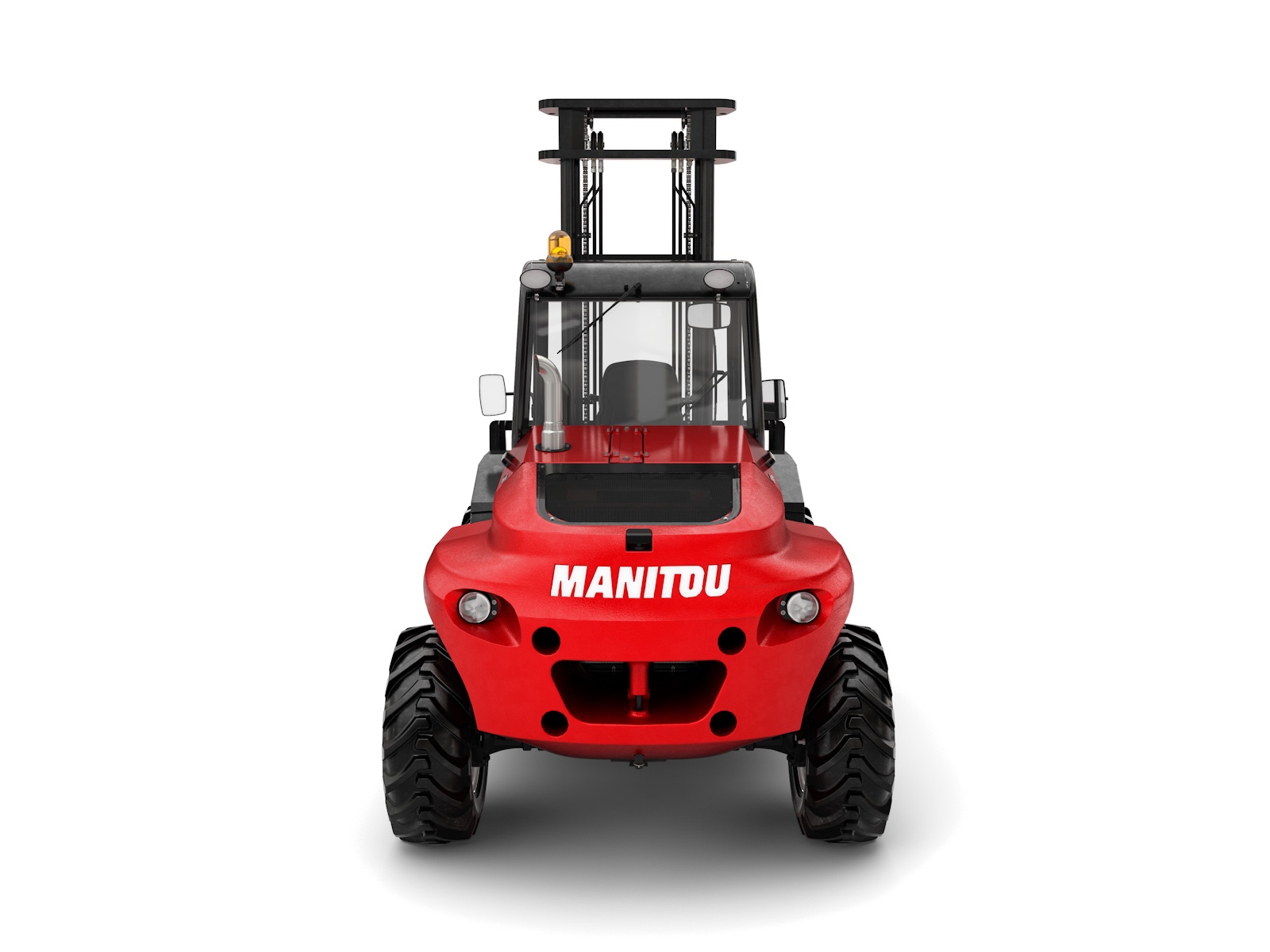

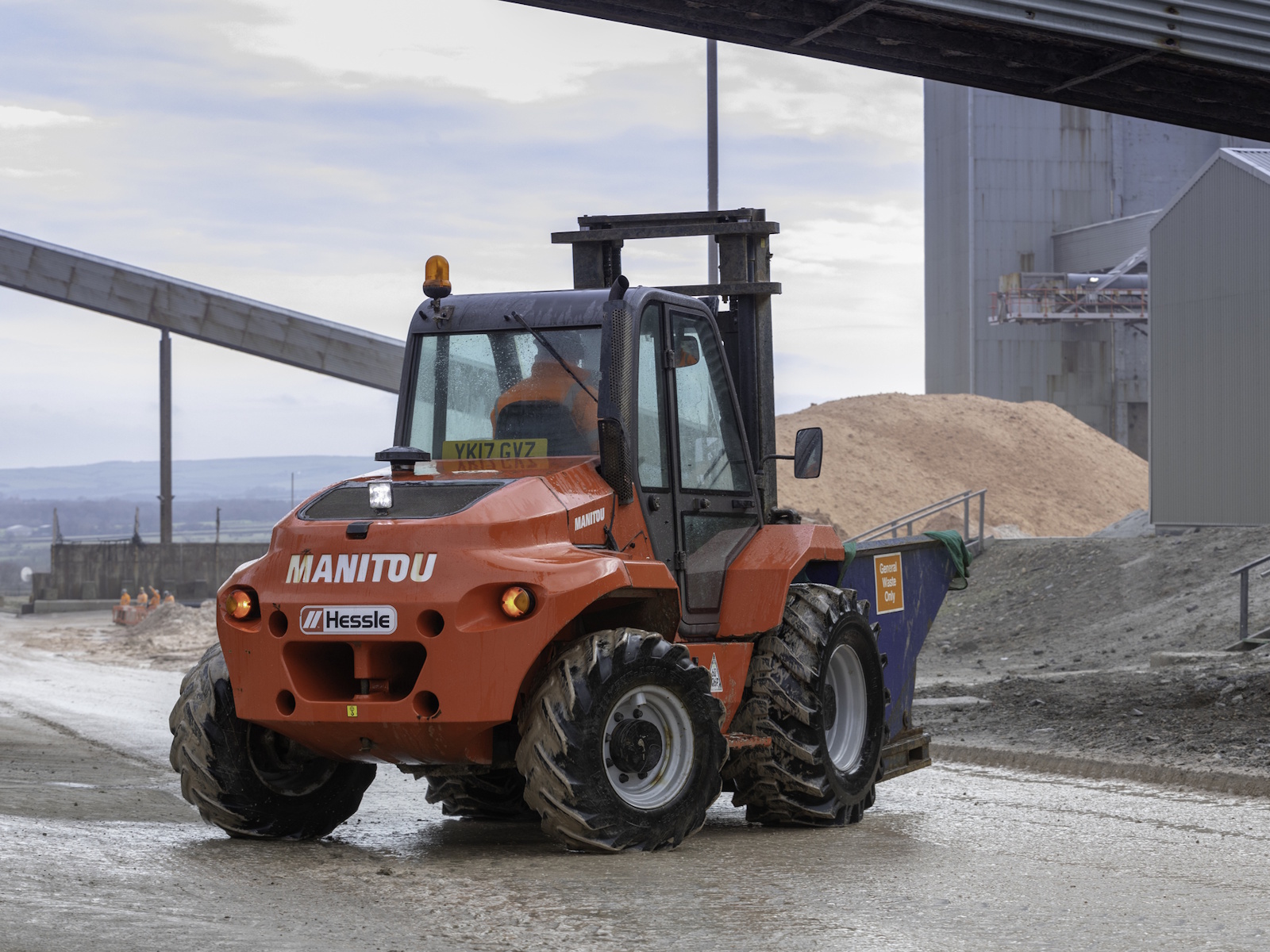

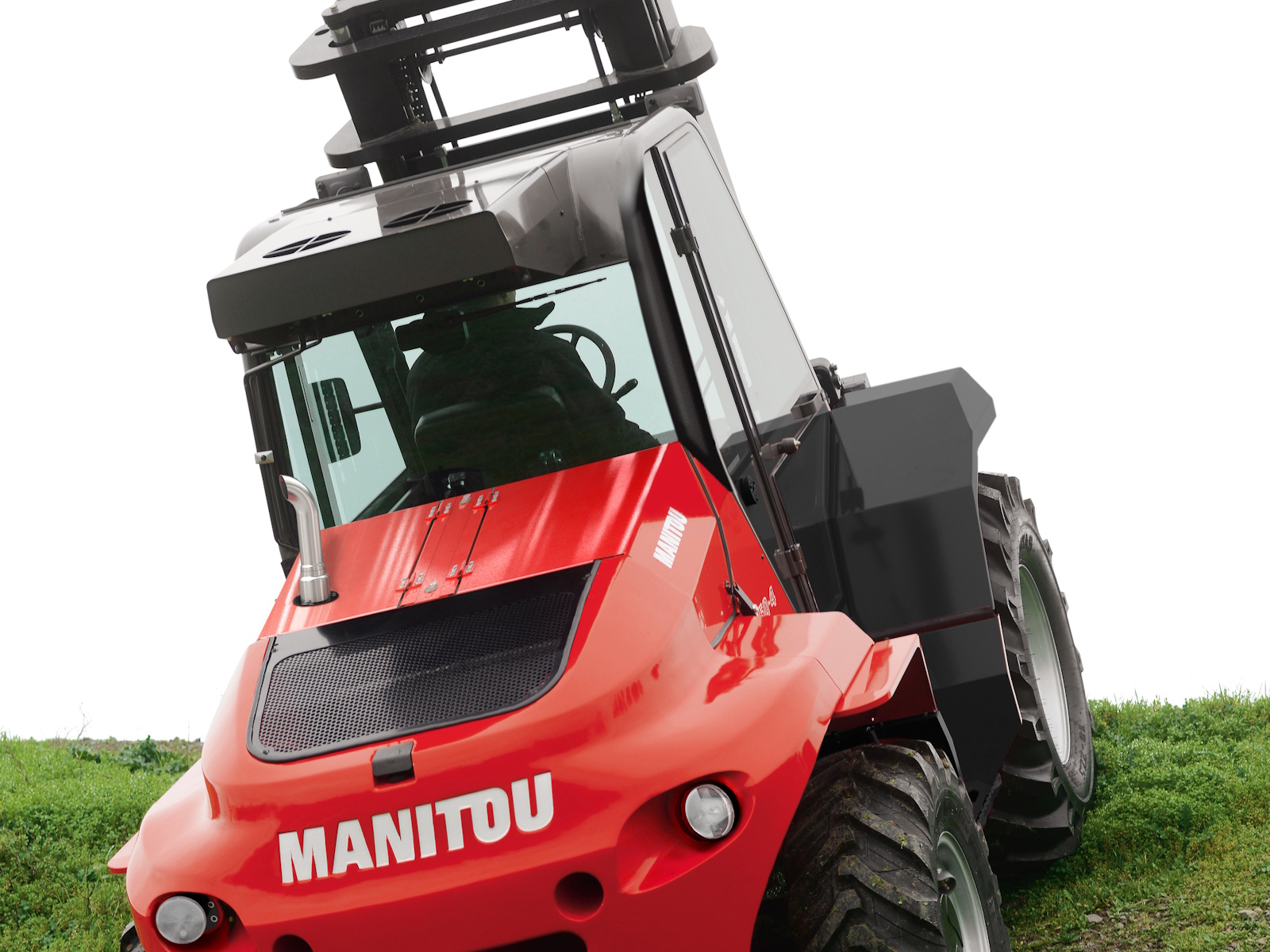

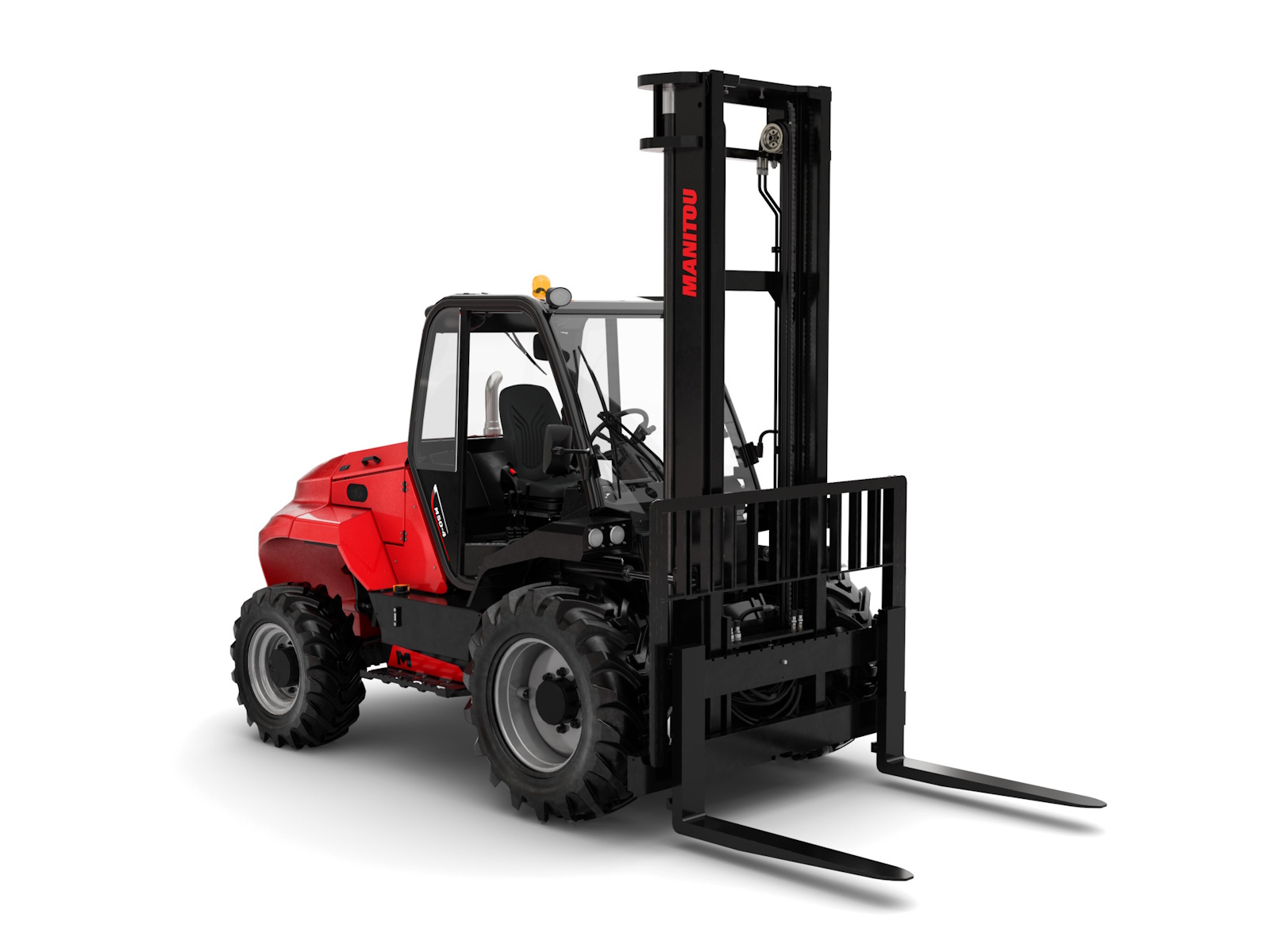

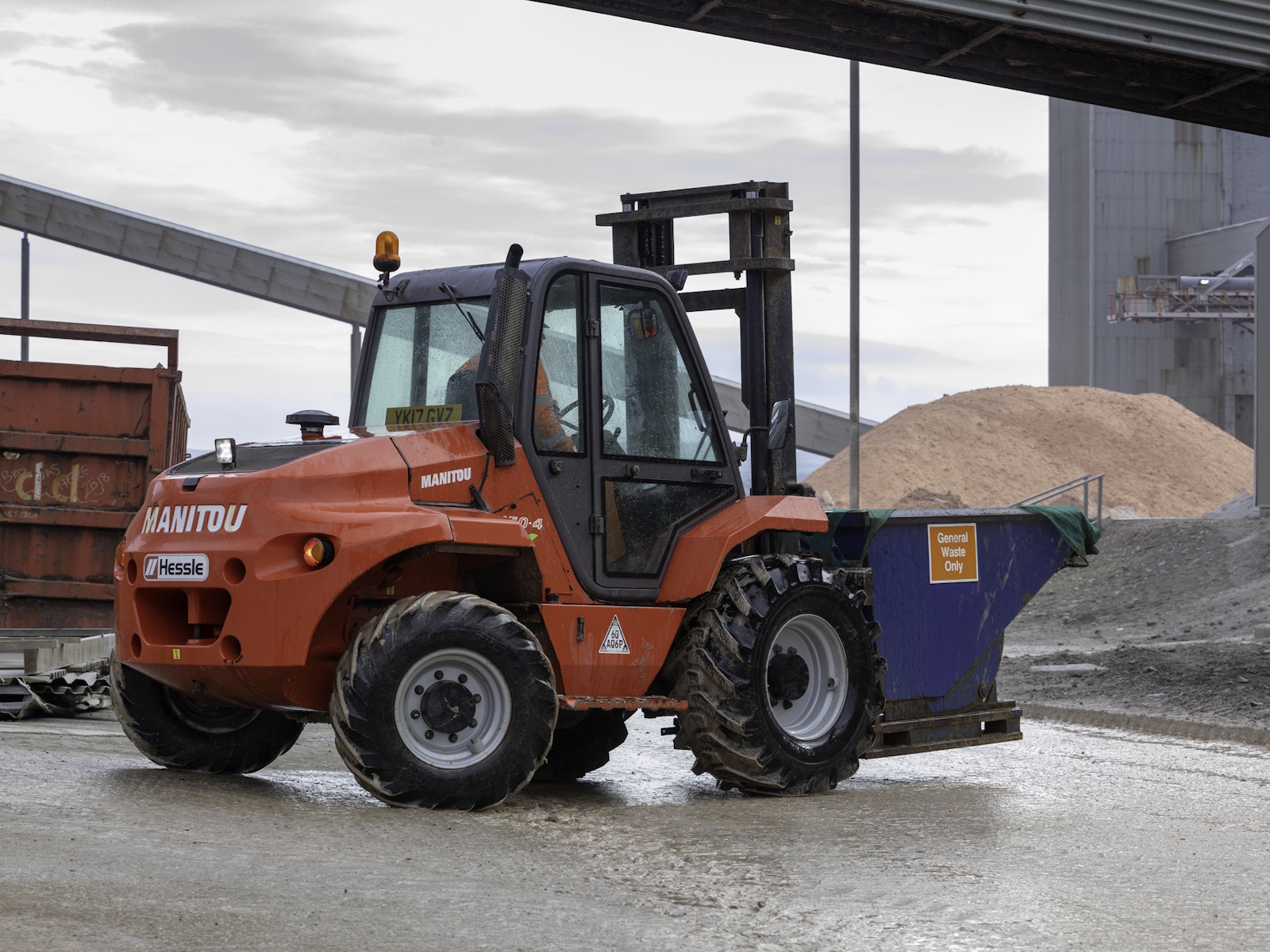

The M 50-4 rough-terrain forklift is designed for activities on difficult terrain or with obstacles. With 4 drive wheels and a ground clearance of 43 cm, this truck offers good manoeuvrability in all circumstances. To allow you to adapt to every ground context, you benefit from a choice of tires to optimize your productivity. Accessible from both sides, the suspended cab offers a spacious driving position with ergonomic controls. The high driving position offers a 360° panoramic vision for enhanced safety of the operator and his environment.
Info
Industry
Agriculture
Make
Manitou Group
Model
M 50-4 D ST5
Trim
Base
Year
2026
MSRP
N/A
Category
Forklift
Subcategory
General
Specs
Fuel Type
Diesel
Notes
Operator type: Seated | Load center of gravity: 24 in | Load distance, centre of drive axle to fork: 30 in | Standard mast reference of the machine: FVD 37 | Forks section x width x length: 2 in x 6 in / 47 in | Fork carriage ISO 2328 (class/form) A/B: 4A | Travel speed (laden / unladen): 6 mph / 14 mph | Lifting speed (laden / unladen): 1 ft/s / 1 ft/s | Lowering speed (laden / unladen): 2 ft/s / 1 ft/s | Drawbar pull (Laden): 11000 daN | Rated speed: 2300 rpm | Working hydraulic pressure for attachments: 3336 PSI | Oil flow rate for attachments: 14 US gpm | Sound level at the driver's ear according to DIN 12 053: 78 dB
Load Capacity
11023 lb
Wheelbase
83 in
Weight
Service weight: 18353 lb | Weight on front axle (laden) / rear axle (laden): 25397 lb / 3979 lb | Weight on front axle (Unladen) / rear axle (Unladen): 7242 lb / 11111 lb
Tires
Pneumatic
Wheels
Dimensions of front wheels: 18-22,5 MPT-06 | Dimensions of rear wheels: 340/80 R18 XMCL | Number of front wheels / rear wheels: 2 / 2 | Number of drive wheels: 4 | Front wheel gauge: 64 in | Rear wheel gauge: 69 in
Height
Height of overhead guard (cabin) / Overall height of low overhead guard (Buggie version): 98 in / 98 in | Seat height/stand height: 57 in
Length
195 in | Length to face of forks: 148 in
Width
82 in | Fork carriage width: 66 in | Aisle width for 1000 x 1200 pallet widthways: 268 in | Aisle width for 800 x 1200 pallet lengthways: 268 in
Ground Clearance
Ground clearance below mast: 12 in | Ground clearance at centre of wheelbase: 17 in
Turning Radius
183 in
Brakes
Service brake: Hydraulic
Transmission
Torque converter
Blades
Deutz / TCD 2,9 / Stage V
Power/Horsepower
75 Hp/55 kW
Cylinders
Number of cylinders / Capacity of cylinders: 4 - 178 in³
