2026 Manitou Group M 30-4 D ST5
Get in Touch
Description

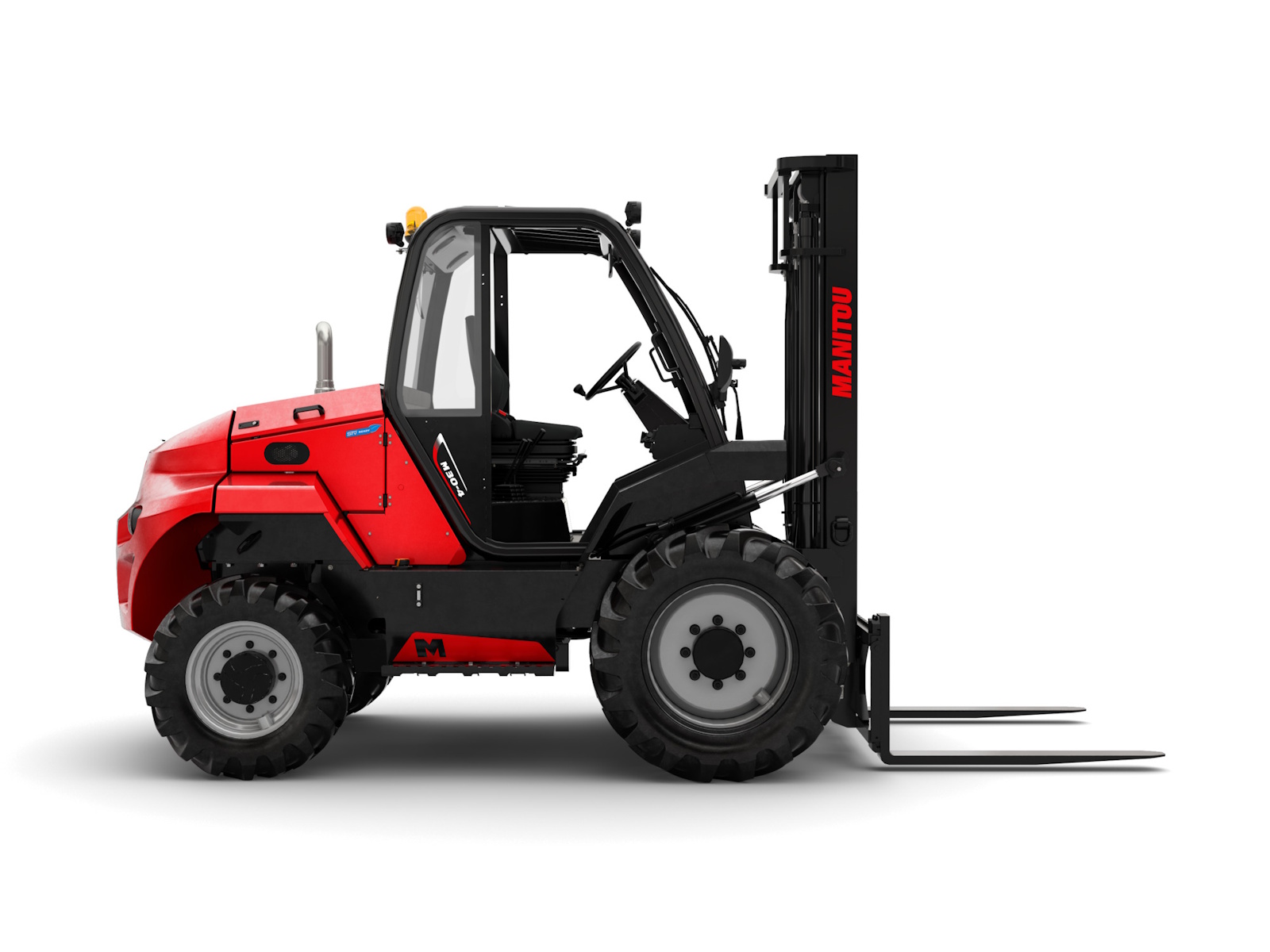

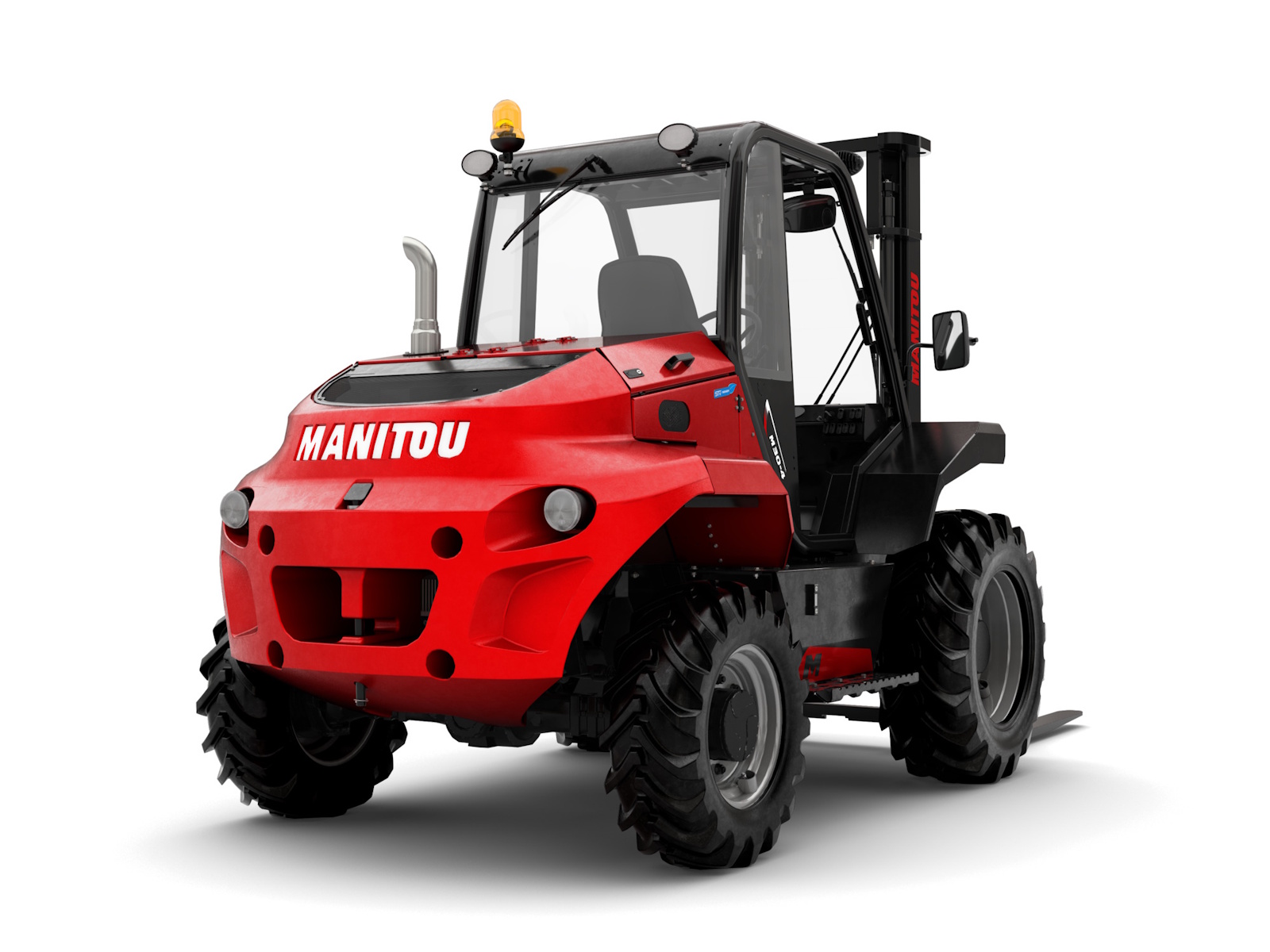

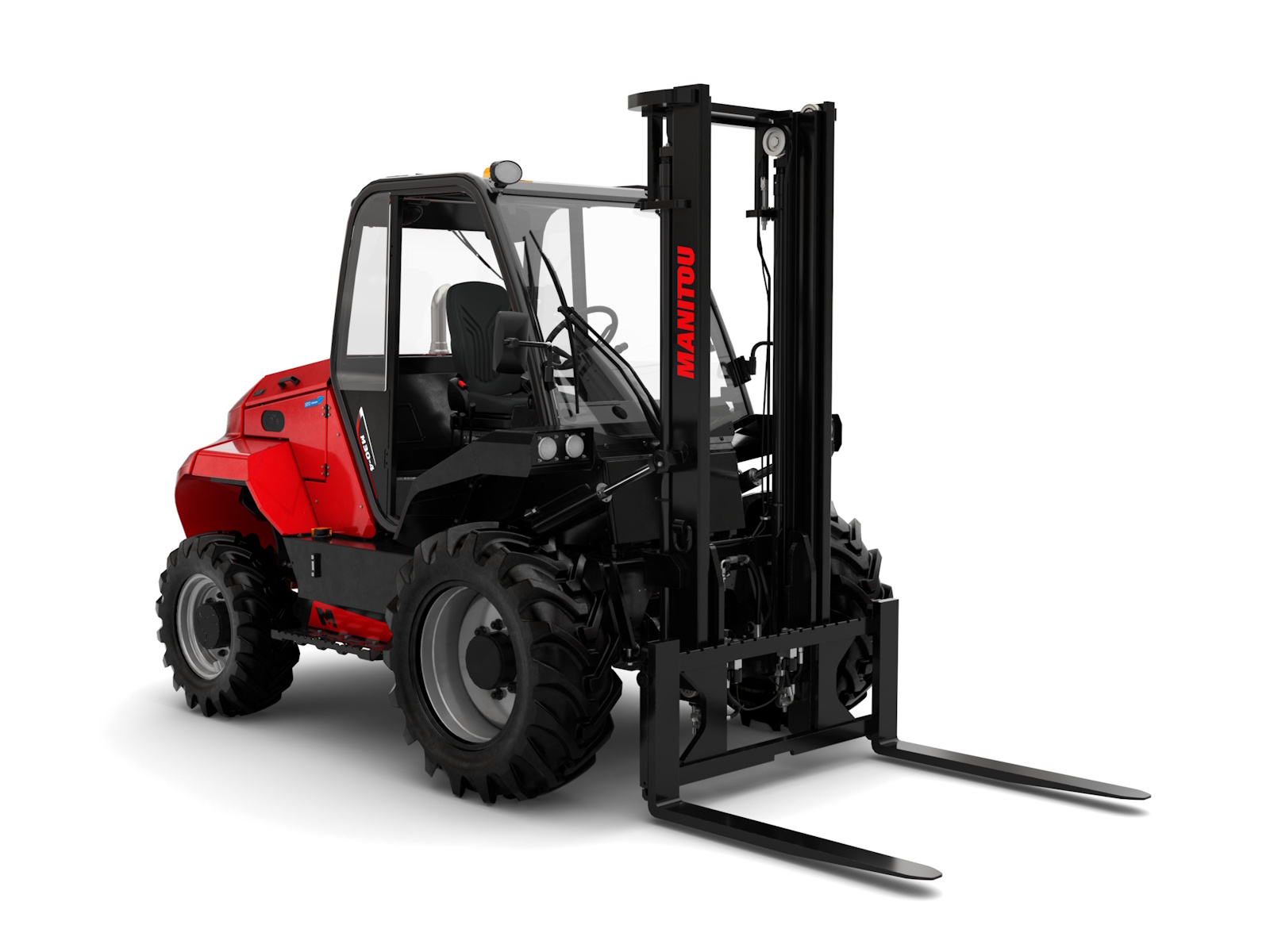

2026 Manitou Group M 30-4 D ST5
The M 30-4 is the ideal truck for extreme handling conditions. Quarries, mining operations, construction sites, wood industry are all activities for which this truck is extremely efficient. The Manitou masts offer excellent robustness on rough-terrain conditions, they lift up to 6.5 m. For a better performance, a wide choice of tires is available on this truck, you can adapt to all situations.
Info
Industry
Agriculture
Make
Manitou Group
Model
M 30-4 D ST5
Trim
Base
Year
2026
MSRP
N/A
Category
Forklift
Subcategory
General
Specs
Fuel Type
Diesel
Notes
Operator type: Seated | Load center of gravity: 20 in | Load distance, centre of drive axle to fork: 29 in | Standard mast reference of the machine: FVD 37 | Forks section x width x length: 2 in x 5 in / 47 in | Fork carriage ISO 2328 (class/form) A/B: 3A | Travel speed (laden / unladen): 6 mph / 14 mph | Lifting speed (laden / unladen): 2 ft/s / 2 ft/s | Lowering speed (laden / unladen): 1 ft/s / 1 ft/s | Drawbar pull (Laden / Unladen): 6290 daN / 4250 daN | Rated speed: 2300 rpm | Working hydraulic pressure for attachments: 2683 PSI | Oil flow rate for attachments: 26 US gpm | Sound level at the driver's ear according to DIN 12 053: 78 dB
Load Capacity
6614 lb
Wheelbase
79 in
Weight
Service weight: 13151 lb | Weight on front axle (laden) / rear axle (laden): 16513 lb / 3252 lb | Weight on front axle (Unladen) / rear axle (Unladen): 4751 lb / 8400 lb
Tires
Pneumatic
Wheels
Dimensions of front wheels: 405/70-20 149B 1323 | Dimensions of rear wheels: 10,5-18 12PR 1317 | Number of front wheels / rear wheels: 2 / 2 | Number of drive wheels 4 | Front wheel gauge: 60 in | Rear wheel gauge: 64 in
Height
Height of overhead guard (cabin) / Overall height of low overhead guard (Buggie version): 97 in / 97 in | Seat height/stand height: 56 in
Length
185 in | Length to face of forks: 138 in
Width
76 in | Fork carriage width: 58 in | Aisle width for 1000 x 1200 pallet widthways: 243 in | Aisle width for 800 x 1200 pallet lengthways: 243 in
Ground Clearance
Ground clearance below mast: 16 in | Ground clearance at centre of wheelbase: 16 in
Turning Radius
159 in
Brakes
Service brake: Hydraulic
Transmission
Torque converter
Engine
Deutz / TCD 2,9 / Stage V
Power/Horsepower
75 Hp/55 kW
Cylinders
4 - 178 in³
