2026 Manitou Group M 30-2 D ST5
Get in Touch
Description

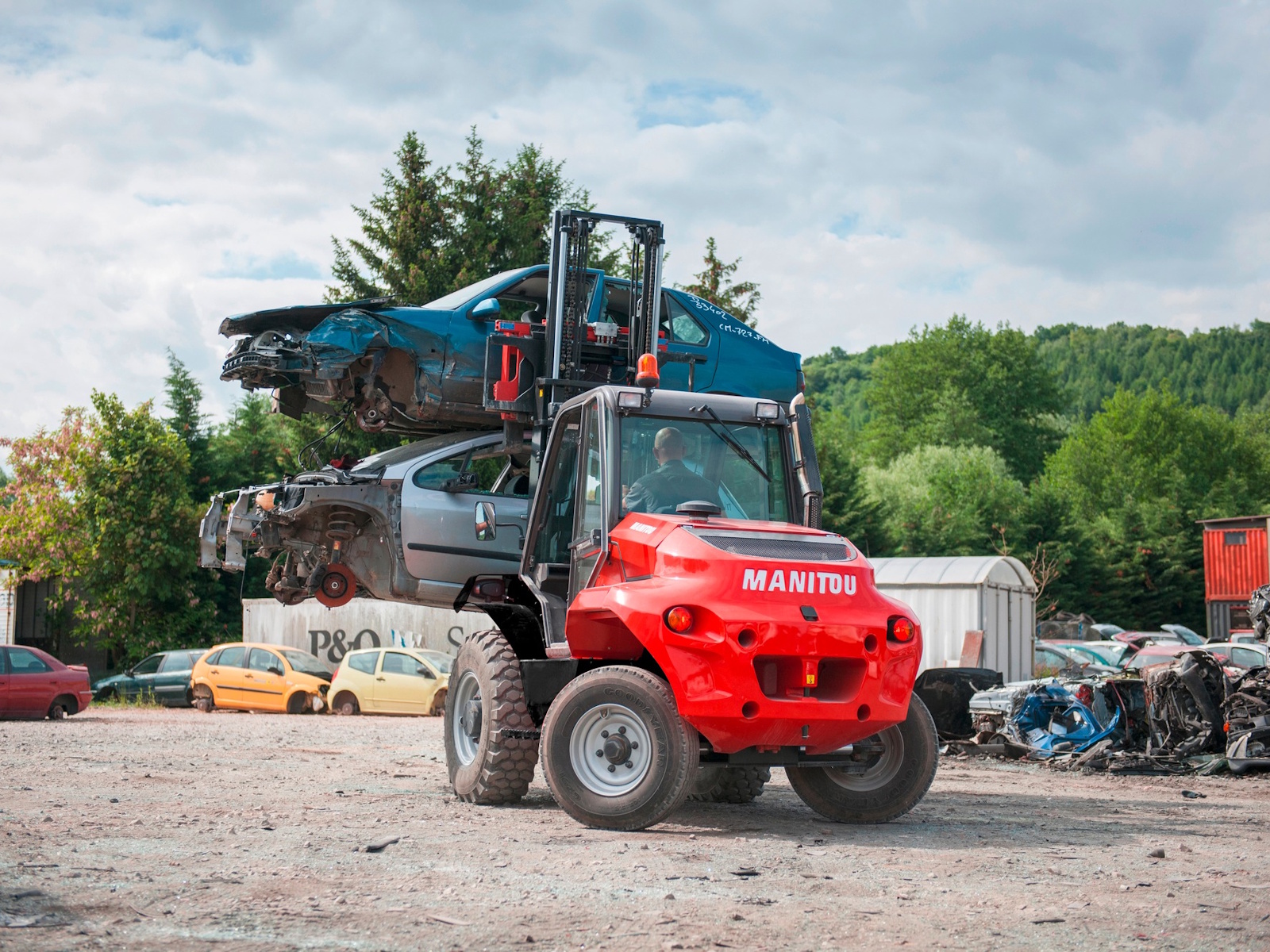

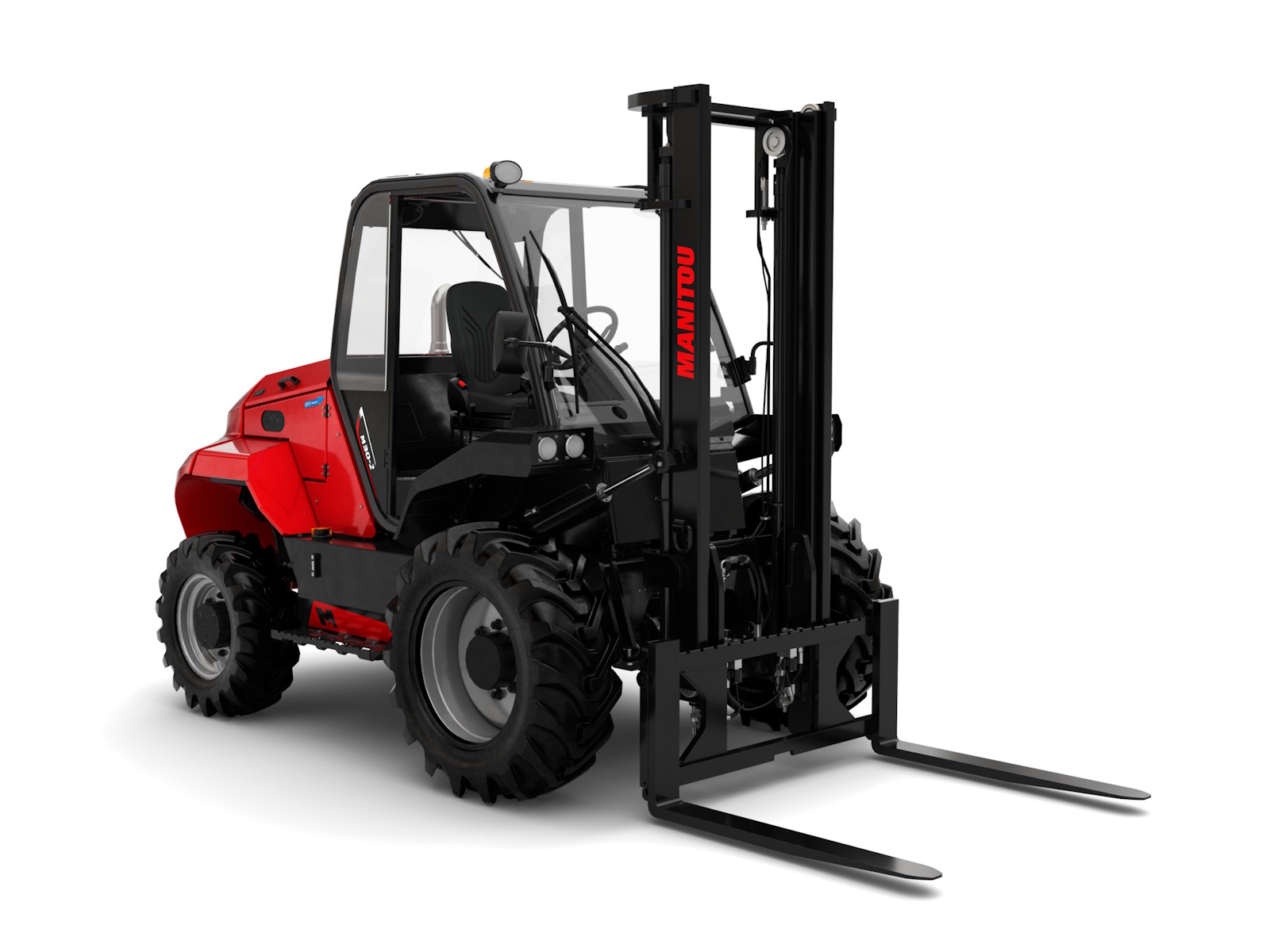

2026 Manitou Group M 30-2 D ST5
The M 30-2 rough-terrain forklift is designed for sectors of activity operating under demanding conditions (construction, wood industry, events, mining...). A true rough-terrain forklift, equipped with a ground clearance of 37 cm which gives it an excellent crossing capacity. Its width and wheelbase optimize the stability of the machine. The masts available on this truck are designed to operate in a difficult environment or with long loads, and they are robust and easy to use. Equipped with a torque converter transmission, the M 30-2 offers 4 speeds to allow you to do your work efficiently.
Info
Industry
Agriculture
Make
Manitou Group
Model
M 30-2 D ST5
Trim
Base
Year
2026
MSRP
N/A
Category
Forklift
Subcategory
General
Specs
Fuel Type
Diesel
Notes
Operator type: Seated | Load center of gravity: 20 in | Load distance, centre of drive axle to fork: 29 in | Seat height/stand height: 56 in | Forks section x width x length: 2 in x 5 in / 47 in | Fork carriage ISO 2328 (class/form): A/B 3A | Aisle width for 1000 x 1200 pallet widthways: 211 in | Aisle width for 800 x 1200 pallet lengthways: 211 in | Travel speed (laden / unladen): 14 mph / 14 mph | Lifting speed (laden / unladen): 2 ft/s / 2 ft/s | Lowering speed (laden / unladen): 1 ft/s / 1 ft/s | Drawbar pull (Laden): 5600 daN | Gradeability (laden): 62 % | Rated speed: 2300 rpm | Working hydraulic pressure for attachments: 2683 PSI | Oil flow rate for attachments: 14 US gpm | Sound level at the driver's ear according to DIN 12 053: 78 dB
Load Capacity
6614 lb
Wheelbase
79 in
Weight
Service weight: 12996 lb | Weight on front axle (laden) / rear axle (laden): 16513 lb / 3097 lb | Weight on front axle (Unladen) / rear axle (Unladen): 4751 lb / 8245 lb
Tires
Pneumatic
Wheels
Dimensions of front wheels: 14,5R20 18PR MPT80 | Dimensions of rear wheels: 10R17,5 G291 GY | Number of front wheels / rear wheels: 2 / 2 | Number of drive wheels: 2 | Front wheel gauge: 61 in | Rear wheel gauge: 65 in
Height
Height of overhead guard (cabin): 96 in
Length
185 in | Length to face of forks: 138 in
Width
76 in | Fork carriage width: 58 in
Ground Clearance
Ground clearance below mast: 16 in | Ground clearance at centre of wheelbase: 15 in
Turning Radius
127 in
Brakes
Service brake: Hydraulic
Transmission
Torque converter
Engine
Deutz / TCD 2,9 / Stage V
Power/Horsepower
75 Hp/55 kW
Cylinders
4 - 178 in³
