    Description

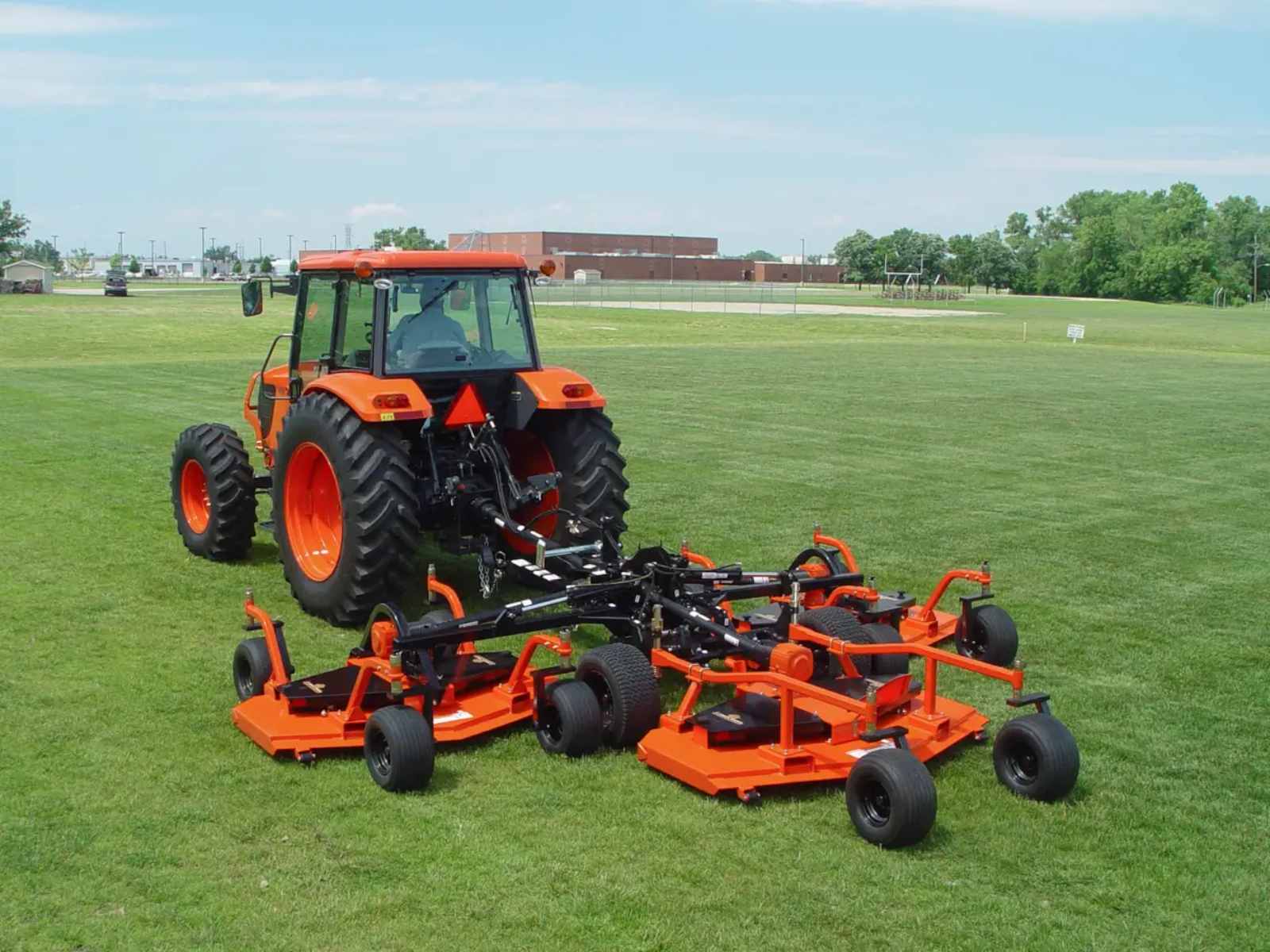

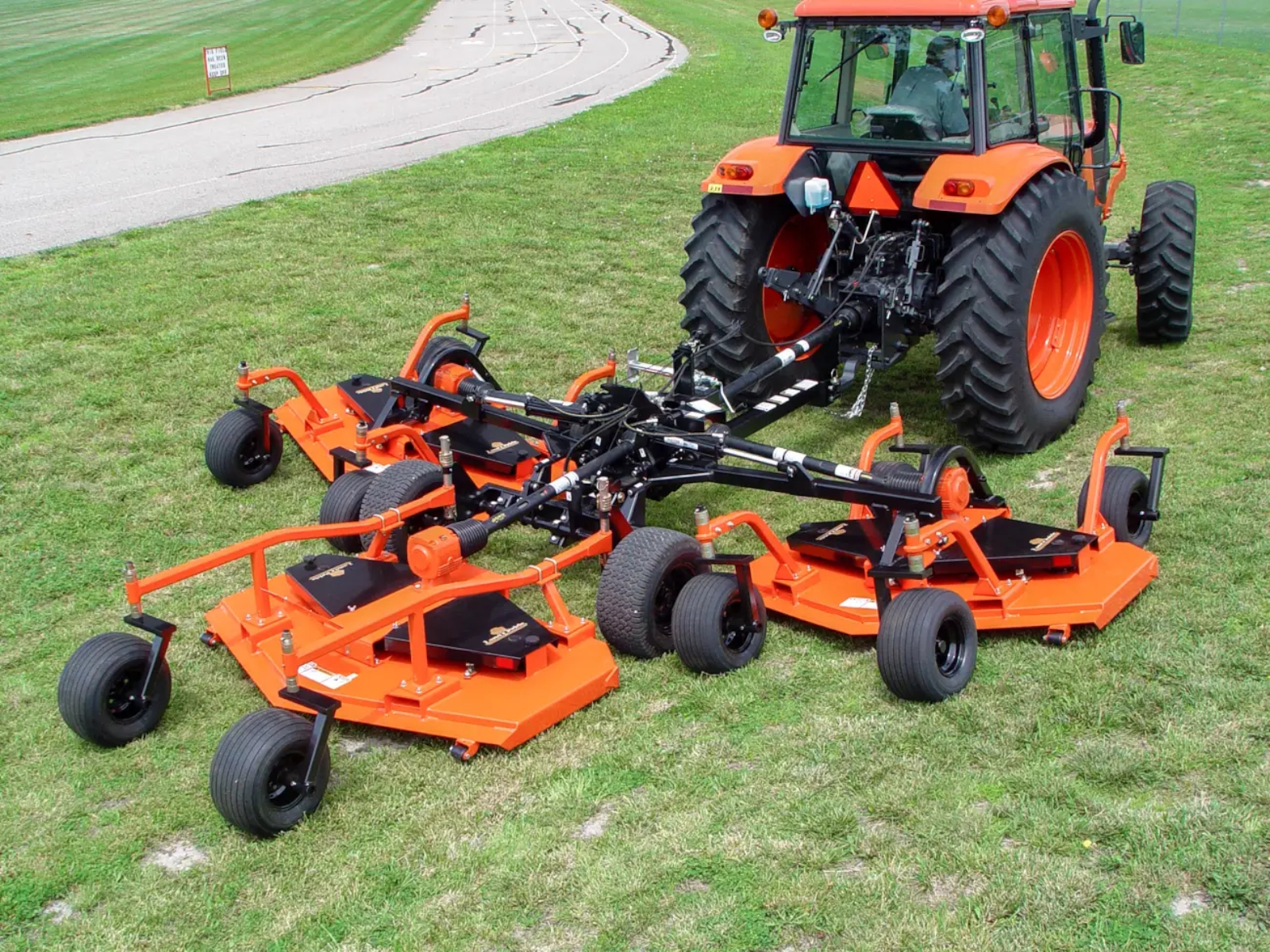

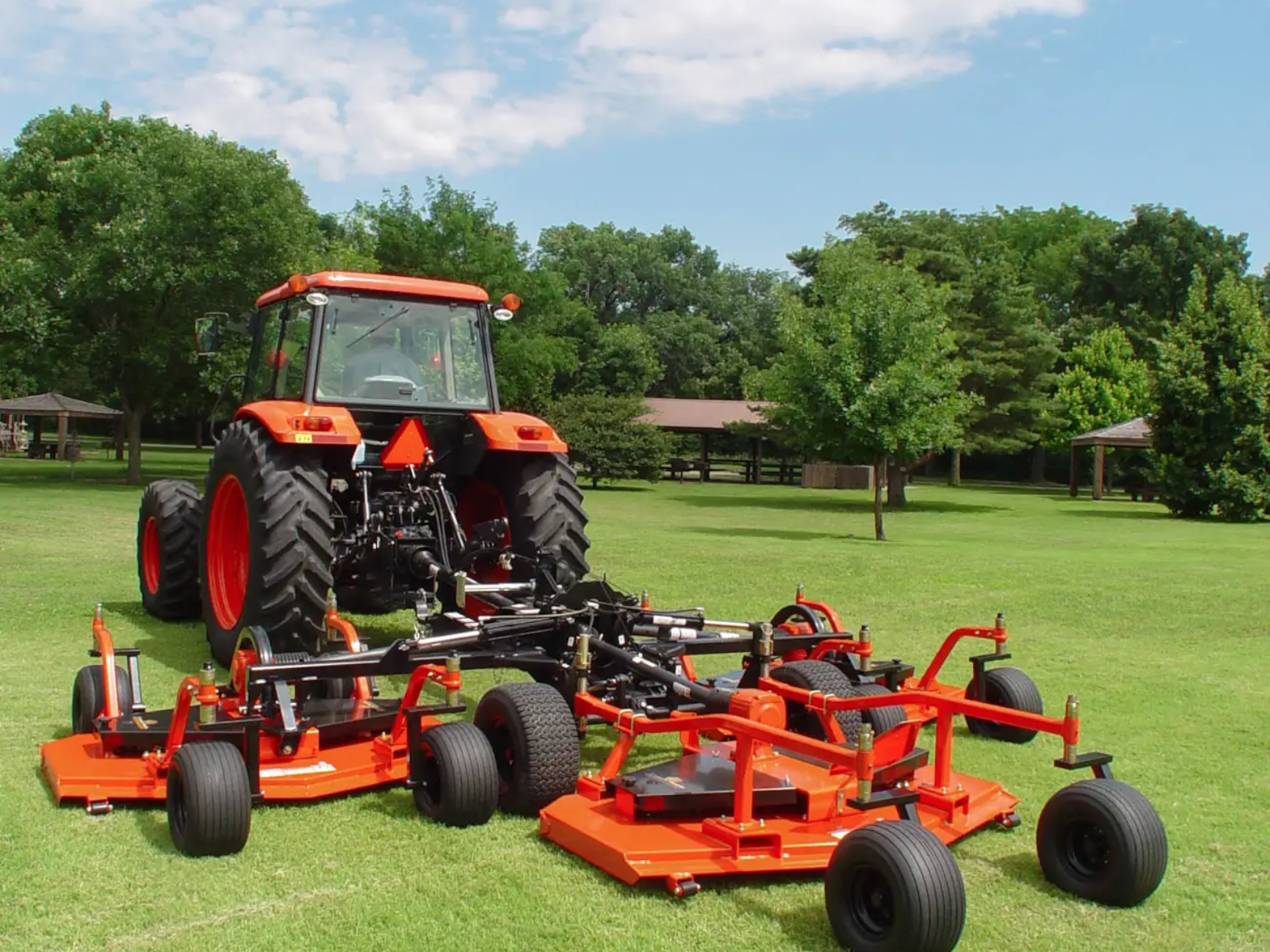

    2026 Land Pride AFM4216

    Land Pride's AFM4216 provides excellent cut quality and performance on lush turf grasses on expansive and well manicured areas such as sports fields, theme parks, fairways, turf farms, and large estates. It offers independent deck flotation and zero turning radius thanks to the sleek frame design. When transporting the AFM4216 from one mowing site to another the hydraulic wing cylinders will easily lift the wing decks for a 8'5" transport width -- especially critical on a public streets or rights-of-way. The contour-following capability, highly productive cutting widths, and rear discharge design of the floating decks will greatly reduce wide-area cutting times and still deliver beautifully groomed surfaces at mowing speeds up to 6 mph.

    Features May Include:

    • Gearbox Warranty
      • 5 Year Limited Gearbox Warranty demonstrates our confidence in the gearbox's quality and lasting performance.
    • Optional Hydraulic Wing Unlock
      • Transport locks can be released easily from the tractor seat while operating the same tractor control lever that raises and lowers the mower decks. (Pull-rope release standard.)
    • Transport Tires
      • 23" Large transport tires offer smooth roading and less grass compaction.
    • Zero Turn Radius
      • Sleek frame design allows operator to make tighter turns without leaving windrows and skips. The AFM virtually becomes a zero turn mower.
    • Over Center Release
      • Over center release easily takes tension off the drive belts during extended off time, or for belt replacement.
    • Low Deck Pivot
      • Low deck pivot allows for greater side to side flotation on the wing decks.
    • Anti-Scalp Rollers
      • Anti-scalp rollers on nose and trailing edges of decks protect the deck as well as the turf.

    Info

    Industry

    Agriculture

    Make

    Land Pride

    Model

    AFM4216

    Trim

    Base

    Year

    2026

    MSRP

    N/A

    Category

    Mower

    Subcategory

    General


    Specs

    Blades

    Drive Belt: 1 B-Section | Bearing: Sealed Ball Bearings | Overlap: 1 1/4 in | 3 Each Per Deck: Low Lift (5/16 in x 2 1/2 in x 25 in) Optional Blades: Medium Lift, High Lift & Mulching | Tip Speed: 18,340 F.P.M. | Spindle Speed: 2,302 R.P.M.

    Cutting Height

    3/4 in to 5 1/4 in (In 1/4 in increments)

    Cutting Width

    16 ft - 8 in

    Discharge

    Type: Rear

    Width

    Overall: 16 ft -10 in | Transport: Width 6 ft - 8 in With Lock Pins Installed

    Height

    Transport: 8 ft -10 in

    Length

    Overall: 15 ft -0 in Mowing Position 13 ft - 4 in Transport Position

    Weight

    Machine: W/15 in tires = 3,315 lbs. W/18 in tires = 3,465 lbs

    Power/Horsepower

    Minimum 40 HP / Maximum 70 HP

    Notes

    Drive Belt Tension: Spring Loaded Idler with Overcenter Release | Transport Locks: Automatic with Pull Rope Release | Mowing Capacity: @ 2 mph = 4.0 Acres Per Hour @ 4 mph = 8.1 Acres Per Hour @ 6 mph = 12.1 Acres Per Hour | Wing Deck Flex: 23 Degrees Left To Right 22 Degrees Front To Back | Center Deck Flex: 10 Degrees Left To Right 22 Degrees Front To Back | Hydraulic Outlets: 1 Set Required | Deck Thickness 3/16 in | Deck Overlap: 8 in | Deck Size & Quantity: 3 each / 72 in | Deck Drivelines (3): Cat. II | Main Driveline (1): Cat. lV Constant Velocity with Slip Clutch | Anti-Scalp Roller: Front Center and Outside Deck Corners | Gearbox Lubrication: Gear Lube 80-90W EP | Gearboxes: 540 RPM (1)-Splitter & (3)-Wing | Gearbox Support: 3/8 in Steel Channel | Tongue Support: 2,200 lb. Capacity Screw Jack | Hitch: Pull Type with Adjustable Clevis and Safety Tow Chain

    Oil Capacity

    Gearbox: 3 - Wings: 3.5 Pints SD Splitter: 2.125 Pints or OMNI Splitter: 2.5 Pints

    Wheels

    Deck Wheel Spindles: 1 1/4 in w/Nylon Bushings | Gauge Wheel Arms: 1/4 in Wall Square Tubing

    Cylinders

    Deck: Dual Acting

    Turning Radius

    Zero Turning Radius

    Tires

    10 each, Air tires with Sealant 18 x 9.5 or 15 x 6.6 | Transport: 2 each, 23 x 10.5 with Sealant
