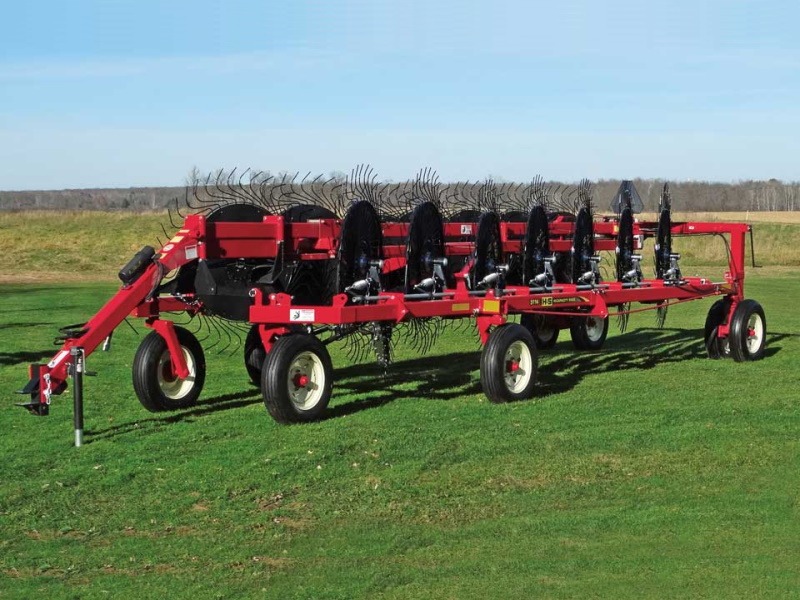

2023 H&S Manufacturing Company, Inc. 5100 Series Hi-Capacity Rakes 5114

Features may include:

• H&S 5114 & 5116 hi-capacity wheel rakes have the raking wheels positioned ahead of the rake arms, main frame beams and transport wheels. coupled with a high and wide end of frame, there are no hang-up points or restrictions when raking the heaviest of hay crops.
• A brake band on each front gauge wheels can be easily adjusted to field conditions.
• Large independent 60″ rake wheels with “Bee Hive” style spring suspension follow the contours of the ground smoothly.
• A large diameter rake wheel hub is used for added strength to the rake wheel dish.
• The adjustment for the ground pressure on the rake wheels allows the operator to fine tune the 5114 and 5116 wheel rakes to fit varying conditions.
• The rake arms feature 2 ball bearings on each end of the arm for long life, smooth operation, and less wear than rakes with bushings.
• The 60″ diameter rake wheels turn slower for less tooth wear and deliver more capacity.
• The windrow width adjustment is done with a hand crank and adjusts windrows from 38″ to 58″ width.
• Independent articulated rake beams have the flexibility to flex 3′ up, or 3′ down.
• Limited oscillating offset tandem transport wheels assure a smooth, level ride, even over irrigation tracks.
• Raking widths can be hydraulically adjusted in any position up to the pre-determined raking width. Setting the spring loaded stop allows you to set pre-determined raking widths up to 28′ on the 5114, and 32′ on the 5116.
• Rake wheel wind boards are standard on the 5114/5116 Rakes.
